Getting Started: Create Custom Images for Watson Studio (Cloud Pak for Data)

Preparation

Access to docker and container registries

Make sure that you

  • have docker installed in your environment

    • check and confirm that in your terminal, you are able to run docker commands by typing:

    docker --help

  • have the username and password to cp.icr.io, the container registry for base images (see this page if you do not know it)

  • have the username and password to your container registry for custom images

  • configured the Cloud Pak for Data cluster to access your container registry for custom images (see this page if you have not done it yet)

Access to Cloud Pak for Data and/or OpenShift as admin

Everything is easier if you are an admin of the Cloud Pak for Data cluster you want to add a custom image to, with access to the OpenShift backend. If not, you may need to work with your Cloud Pak for Data admin and/or OpenShift admin to complete the whole process.

The access needed for each step will be specified separately.

Step 1: Get Base Image Names for Target Watson Studio Runtimes

All custom images to be used in Watson Studio need to be based on the default runtime images.

Access role required:

  • Cloud Pak for Data admin role

Run the following commands to set up your credentials to your Cloud Pak for Data cluster:

export CPD_BASE_URL=<your cpd link>
export CPD_USERNAME=<your username>
export CPD_APIKEY=<your apikey>

For example:

export CPD_BASE_URL=https://mycpd.com
export CPD_USERNAME=wendy
export CPD_APIKEY=ziE9KHmhKy2aHemKLeXa2CjTXpJbse8ZKjzoxH7d

(The above is a dummy example.)

Now you can run the following commands to list the base image names you are looking for:

python cli_ws_image.py default list --cpu # python jupyter environments, non-gpu
python cli_ws_image.py default list --gpu # python jupyter environments, gpu
python cli_ws_image.py default list -a # python jupyter environments, non-gpu + gpu
python cli_ws_image.py default list --rstudio # rstudio environments

If your Cloud Pak for Data is not the latest version, you need to specify which version it is on, because each Cloud Pak for Data version corresponds to a different set of base images that might have dependency on this specific version and cannot work properly on an older or newer version. This can be done by argument --cpd-version <version>. For example:

python cli_ws_image.py default list --cpu --cpd-version 4.0.6

If the output looks good, you can export the base image names into a text file by adding an argument --export-fn <filename>. For example:

python cli_ws_image.py default list --cpu --cpd-version 4.0.6 --export-fn base_images_nongpu_406.txt

You may use the overwrite flag --overwrite (or -o) to overwrite the file if it exists.

This exported text file is needed in the build step. You can of course create this text file of base image names manually.

Step 2. Build and push the custom image(s)

No matter how many base images you need to build a custom image for, you only have to run the build command once for each dockerfile.

What does it mean?

You may have created a dockerfile that you want to apply for both python 3.8 and python 3.9 base image. In this case, you can manually edit the base image list to keep only the image names you want to build a custom image for. The build command will loop through all the base image names in the list, build one custom image for each base image using the same dockerfile provided, and push all of them to the target container registery.

Access required:

  • username and password to the container registry for base images (cp.icr.io)

  • username and password to your container registry for custom images

1. Login to both container registry

Before running the build command, you need to authenticate to both the CPD base image container registry as well as your custom image container registry.

Note that:

  • base-image-list: this is the path to the file after switching to dir-dockerfile, not relative to where you run the command

  • custom-image-name-pattern: this is a name pattern, where image_name can be optionally used to refer to the original/base image name

1.1 CPD base image container registry

To login to cp.icr.io, run the following:

docker login cp.icr.io --username <username> --password <password>

If you do not have it, you will need openshift access to extract the credentials (see this page) or ask your openshift admin to do it.

1.2 custom image container registry

To login to the container registry for custom images, you can run a similar docker login command. If you are usng IBM Cloud Container Registry for this purpose, you can also use the following command:

ibmcloud login -g <resource-group> --apikey <iam-apikey> && ibmcloud cr login

If you intend to use CPD’s internal container registry for the custom images, the command will look like th following:

docker login -u $(oc whoami) -p $(oc whoami -t) default-route-openshift-image-registry.****

Likely you will encounter the insecure registry issue. To resolve it, you may refer to this page in Docker documnetaion.

2. Run CLI command

The custom build command builds the custom images and optionally pushes each of them to the target container registry for custom images.

2.1 Separate build and push

In some situations you may not want to run both build and push together. It might be that a developer builds the image, then an IT admin pushes it to the registry. This is possible with the CLI tool.

Build
python cli_ws_image.py custom build --dir-dockerfile <directory-of-dockerfile> --base-image-list <path-to-base-image-list> --custom-image-name-pattern <pattern>

Example commands:

python cli_ws_image.py custom build --dir-dockerfile ../custom-image --base-image-list base_images_nongpu_408.txt --custom-image-name-pattern {image_name}-ws-applications

python cli_ws_image.py custom build --dir-dockerfile . --base-image-list base_images_wmlpython_407.txt --custom-image-name-pattern {image_name}-custom
Push
python cli_ws_image.py custom push --base-image-list <path-to-base-image-list> --custom-image-name-pattern <pattern> --registry-url <registry-for-custom-image> --registry-namespace <namespace>

Example commands:

# push using info from base image list, easy for pushing custom images based on multiple base images
python cli_ws_image.py custom push --base-image-list ./base_images_wmlpython_408.txt --custom-image-name-pattern {image_name}-custom --registry-url us.icr.io --registry-namespace cpd-custom-image

# push using image name
python cli_ws_image.py custom push --image-name wml-deployment-runtime-py39-1-custom --custom-image-name-pattern {image_name}-custom --registry-url us.icr.io --registry-namespace cpd-custom-image

2.2 Build & Push in one command

In some other times, it might be eaiser to do both build and push together. You can use the --push flag to enable this, and provide the needed information.

python cli_ws_image.py custom build --dir-dockerfile <directory-of-dockerfile> --base-image-list <path-to-base-image-list> --custom-image-name-pattern <pattern> --push --registry-url <registry-for-custom-image> --registry-namespace <namespace>

For example:

python cli_ws_image.py custom build --dir-dockerfile . --base-image-list base_images_wmlpython_407.txt --custom-image-name-pattern {image_name}-custom --push --registry-url us.icr.io --registry-namespace cpd-custom-image

Step 3. Register in CPD Service

In order to use the custom image, the target service in Cloud Pak for Data needs to be aware of this image.

For Watson Studio, this involves:

  • a new or updated runtime config

For Watson Machine Learning, this involves:

  • a new or updated software specification

  • a new or updated runtime config

Access role required:

  • Cloud Pak for Data admin role

The following command registers ONE custom image in Watson Studio:

python cli_ws_image.py custom register

If you have multiple custom images, you may need to run the command for multiple times, unless you created one custom image to be registered for each available Python Jupyter runtime (there is only 1 Rstudio runtime as of 4.0.x so you won’t encounter this for Rstudio).

Note that:

  • You may use the flag --dry-run to test the command and assess the generated json file, without really adding it to Watson Studio’s runtime definitions.

  • Use argument --cpd-version or -v if the Cloud Pak for Data cluster is not on the latest version. This information is used to get all the candidate runtime definitions for this version.

  • Use argument --python-version or -py if there are multiple candidate runtime definitions for this Cloud Pak for Data version (usually each corresponds to a different python version), and you want to register a custom image for only a specific python version.

  • --runtime-filename-pattern or -c: used to provide a filename pattern for each final config file (one for each final candidate runtime definitions). By default it is custom-{filename}, where {filename} refers to the original config filename. Note that {filename} has to be at the end of the pattern (do not add anything after it).

  • --display-name-pattern or d: used to provide a display name pattern in each final config file. By default it is {display_name} (custom).

  • --image-name-pattern or -i: used to provide an image name pattern for each custom image. By default it is us.icr.io/custom-image/{image_name}-custom:2, where {image_name} refers to the original image name of the base image, similar to the previous commands.

3.1 Python Jupyter

Special arguments to use:

  • You need to specify one of --jupyter (to generate config for jupyter notebook runtimes only), --jupyterlab (to generate config for jupyterlab runtimes only), or --jupyter-all (to generate config for both jupyter notebook and jupyterlab runtimes).

The command looks like the following:

python cli_ws_image.py custom register --jupyter-all -r <runtime-filename-pattern> -d <display-name-pattern> -i <image-name-pattern>

For example:

python cli_ws_image.py custom register --jupyter-all -r ws-applications-408-{filename} -d "{display_name} (ws applications)" -i us.icr.io/custom-image-ws-applications/{image_name}-ws-applications:4.0.8 -v 4.0.8

3.2 Rstudio

Special arguments to use:

  • You need to specify --rstudio.

The command looks like the following:

python cli_ws_image.py custom register --rstudio -r <runtime-filename-pattern> -d <display-name-pattern> -i <image-name-pattern>

For example:

python cli_ws_image.py custom register --rstudio -r custom-408-{filename} -d "{display_name} (custom)" -i us.icr.io/cpd-custom-image/{image_name}-custom:23 -v 4.0.8

Step 4. Test New Environment

Now you can go to the Cloud Pak for Data cluster, enter a Watson Studio project where your new environment is allowed to be used (e.g., JupyterLab environment is only available in a Git-connected project).

Access role required:

  • None

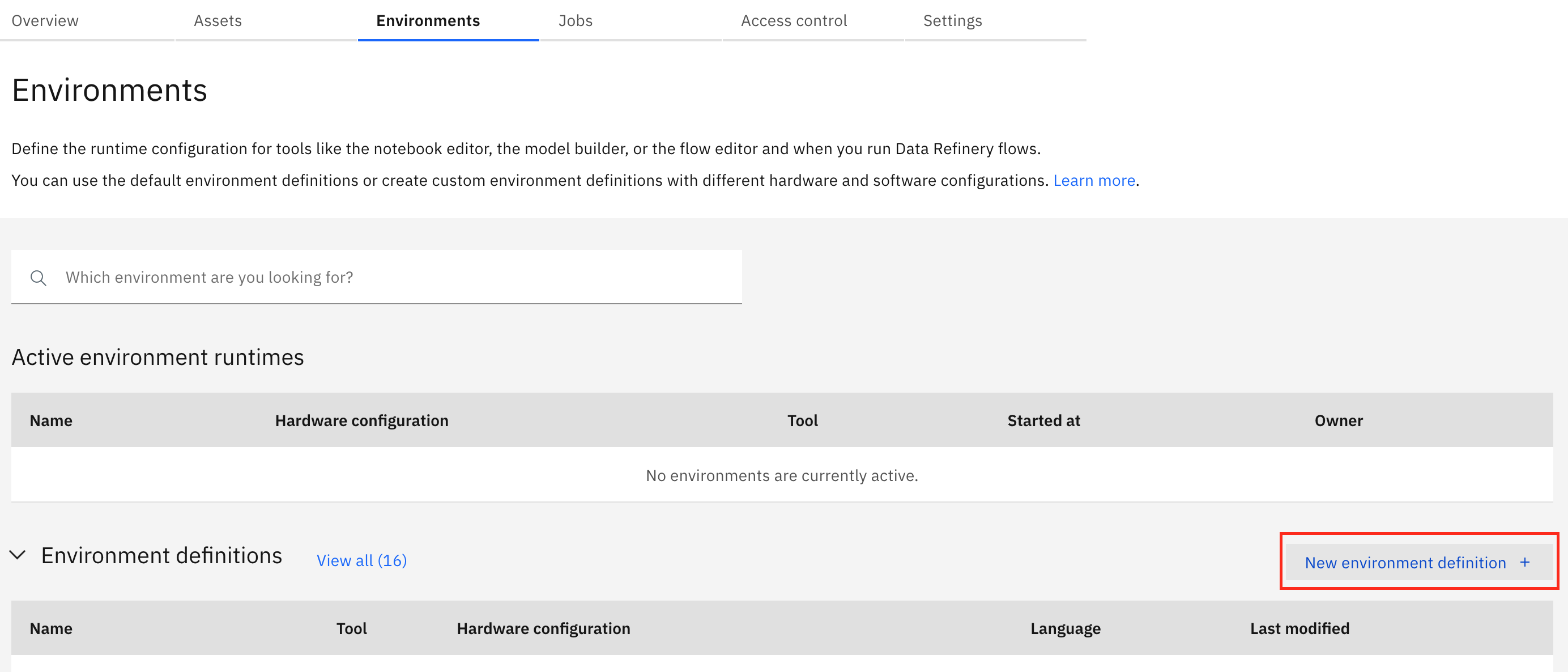

Click on the New environment definition button: screenshot

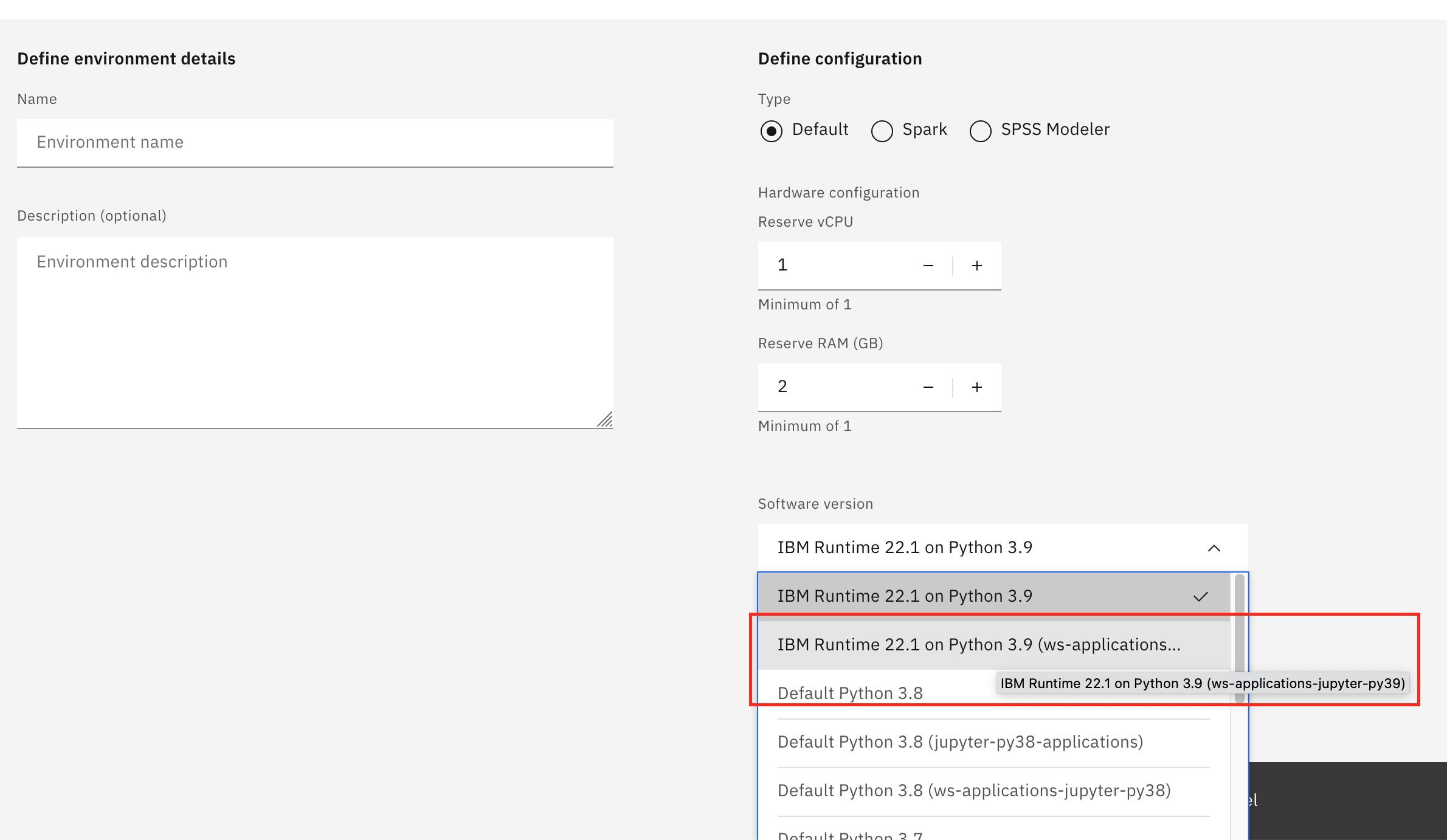

Then from the dropdown list, you should be able to find and choose the custom runtime you just registered for the custom image: screenshot

Once you created a new environment definition using the custom runtime, you can test it in the following way.

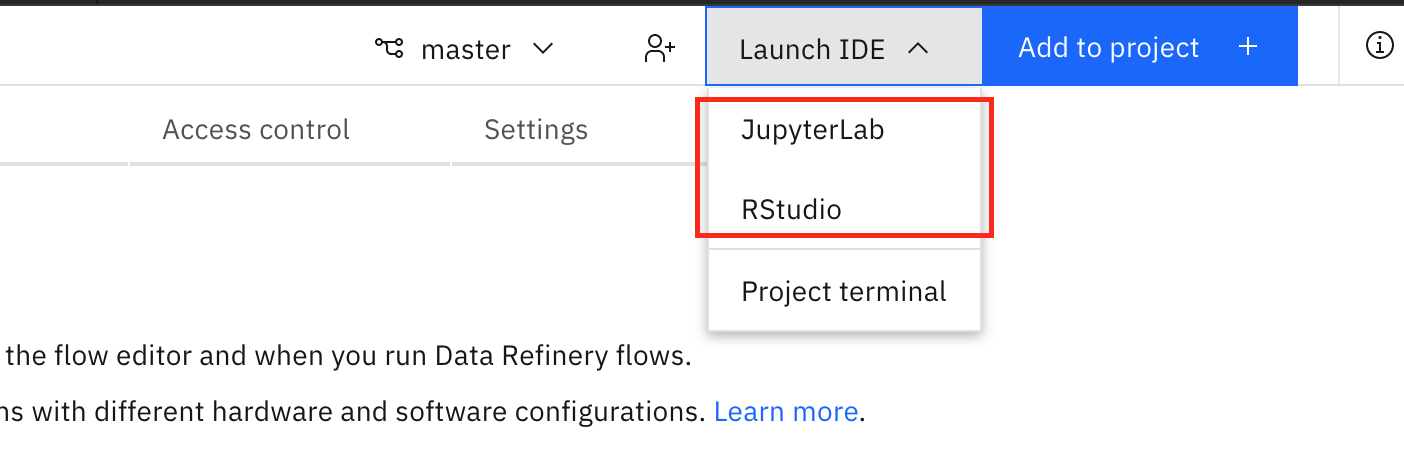

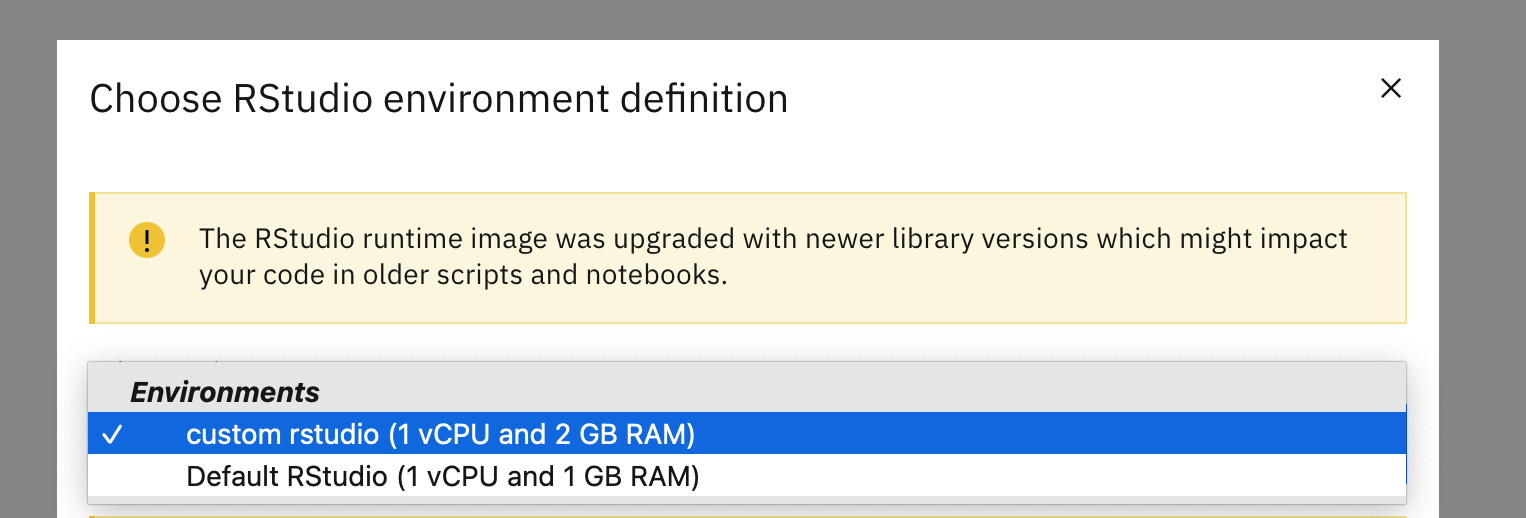

  • For JupyterLab or Rstudio environments, click Launch IDE -> JupyterLab or Rstudio, then choose the new environment definition from the dropdown list. screenshot screenshot

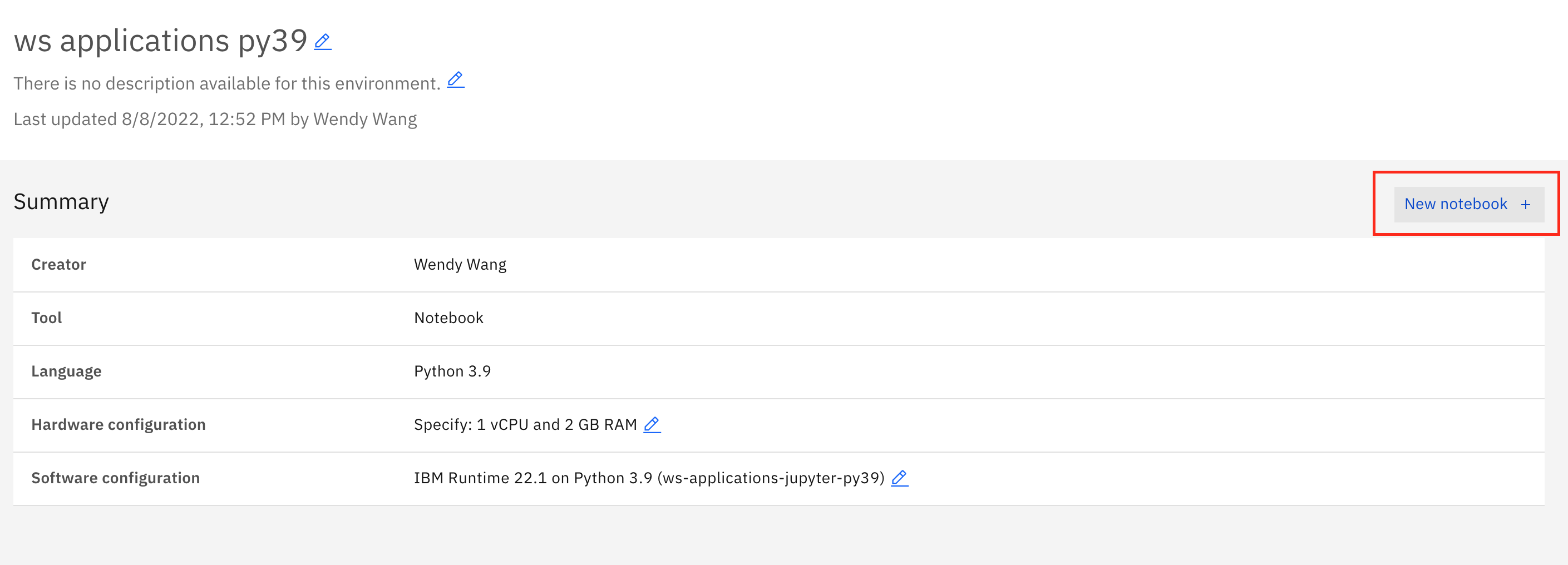

  • For Jupyter Notebook environments, open an exsiting notebook with this new environment definition, or click on this New notebook button to open a new notebook using this definition. screenshot

It can take a while for the environment to start, because the image needs to be pulled to the worker node. If you have openshift access, you will be able to see the pod events to track the progress.
