Design Planning

This demonstration flow is organized around the development process described in ISO 13485 and ISO 14971 for risk management.

The video below illustrates how this Act of the ELM demonstration can be performed for a client.

Sample narration

Let’s start here on the infusion pump team dashboard. Dashboarding is a common capability across the ELM platform. Dashboards can be created for the project, for teams, or personal dashboards can be created for individual users. Dashboards give instant access to the project data that's most relevant to you, whether you’re a Test Engineer looking at the current defect list or a Project Manager looking at the status of the project. And what’s more - the data presented in the Dashboards is always up to date.

For example, here on the General tab of our team dashboard we have a widget showing a graph of how many system requirements have linked test cases and how many don't. We’ll see a few more later as we’ll be using this dashboard as a jumping off point to various parts of the demonstration.

Let's start with this Design Planning tab. Here we see various widgets focused on the planning aspects of our project – we’ll come back to those in a moment but first let's follow this link to the practice content.

Practice content is a library of guidance for a specific workflow or standard that not only documents the process but provides guidance to engineers in their day-to-day work. Here for example we are looking at the practice library for the IEC 62304 standard which provides best practices for embedded software development for medical devices.

Over here on the left, if we expand this category we can see the high level objectives of IEC 62304. If, on the other hand, we expand this category we can see that there is a delivery process which is a detailed, prescriptive workflow including activities and tasks on how to satisfy those objectives. Of course you can use your own process or customize this one.

Let’s select the SW Development Process Objective. Here we can see a detailed list of the Objectives under that heading. 5.1 is all about planning, 5.2 is about requirements, 5.3 is focused on architecture and so on.

By way of example lets click on 5.7.1 – which is all about verification – and specifies that the Software (SW) Verification Tests shall cover all requirements and include inputs, outputs and selected outcomes.

Below the Objective we can see how it is mapped to the workflow. There is a list of the related elements in the detailed workflow guidance that helps our engineering teams to actually meet these objectives.

Let's dive into one of those – the task to develop test cases.

Here we can see the various roles involved, the input and output work products from the task and detailed, step-by-step guidance on how to perform the task and achieve the objective. The guidance can even go so far as to describe how to perform the task in a specific tool – we call those tool mentors.

Let's move back to our dashboard and take a look at how all of that guidance translates into actual work products.

In order to comply with IEC62304 and ISO13485, we have to have a plan. Our Infusion Pump has a plan which, in this case, is organized using iterative agile principles. At the bottom, we can see the development plans including one for each program increment and an overall solution roadmap.

Those development plans contain concepts from standard agile practices including epics, features, stories, and tasks – in a moment we’ll dive into one of those development plans and take a closer look, but here on our dashboard we can get a clear view of the status of the project in many different ways.

For example, on the left is a graph of all of the work items in the solution roadmap, grouped by their owner. On the right we can see some specific views that help with prioritizing the work according to agile principles. At the bottom, we can see a traceability graph of where our features, capabilities and so on have been traced to requirements, design architecture, and test cases.

Let us open the Solution Roadmap. Here we have two high level epics including this one - Deliver an external Infusion Pump. If we expand that epic we can see that it is broken down into Capabilities, and if we expand the Deliver Therapy capability, we can see that those are broken down into Features, and if we expand this Initiate Drug infusion Feature we can see that’s been broken down into User Stories. Over on the right we can see which program increment or sprint these artifacts are planned for.

But there are also detailed tasks that have to be performed at each of these levels and those tasks map back to the practice content we saw earlier as well as the classical V-Lifecycle.

If I switch the view to show those tasks in the tree, we can see at Capability level we have tasks for both sides of the top of the V Lifecycle - On the left hand side we perform functional analysis for the deliver therapy use case and on the right, perform system qualification testing for that same use case.

At Feature level, we move down the V and the tasks are around the development of a system architecture, and system integration testing. And if we expand this story, we can move further down and the tasks are at the software level – developing and testing software architectures.

This is only one of many views we can use to consume and modify our planning data. For example, here is a classic Kanban view. We can move work items through the process quickly and easily by dragging and dropping between these columns.

Hint

Prior to performing a client facing demonstration, it is beneficial to run through all the steps of the demonstration prior to doing so in front of the client. Doing so will cache all the web pages which will save a significant amount of load time. This will improve the performance of the environment and alleviate any awkward moments waiting for pages to load.

The following steps provide an overview of the ELM dashboard and the concept of "dash boarding".

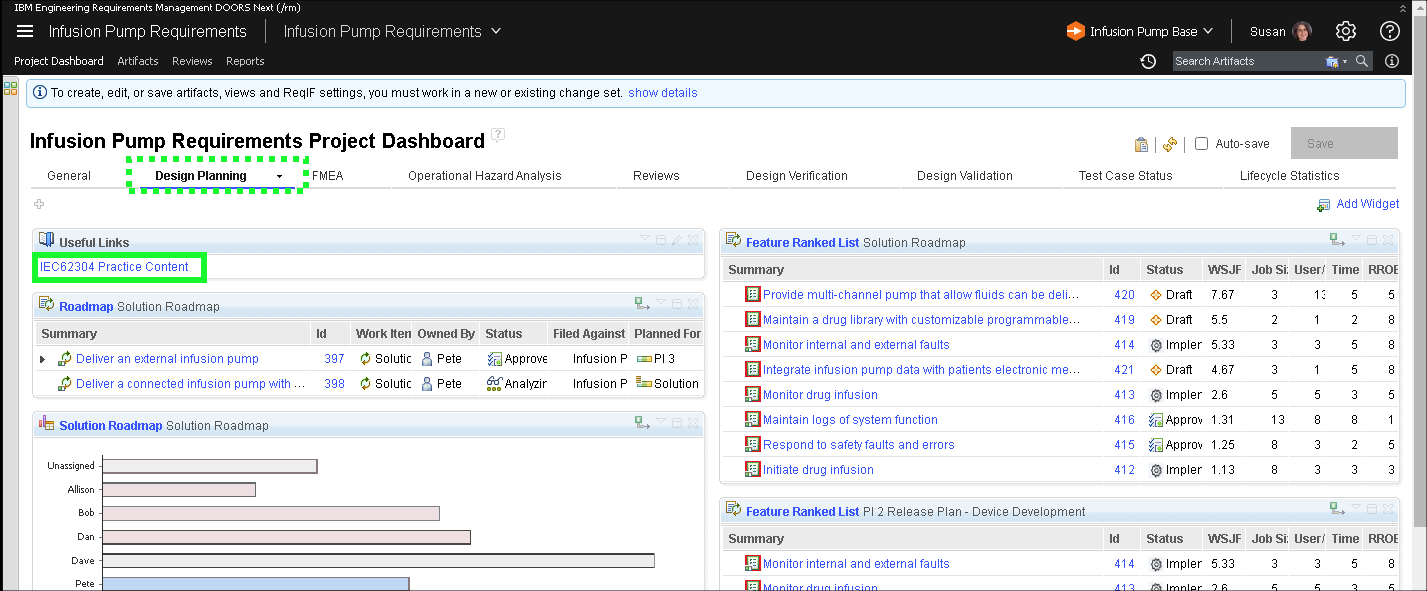

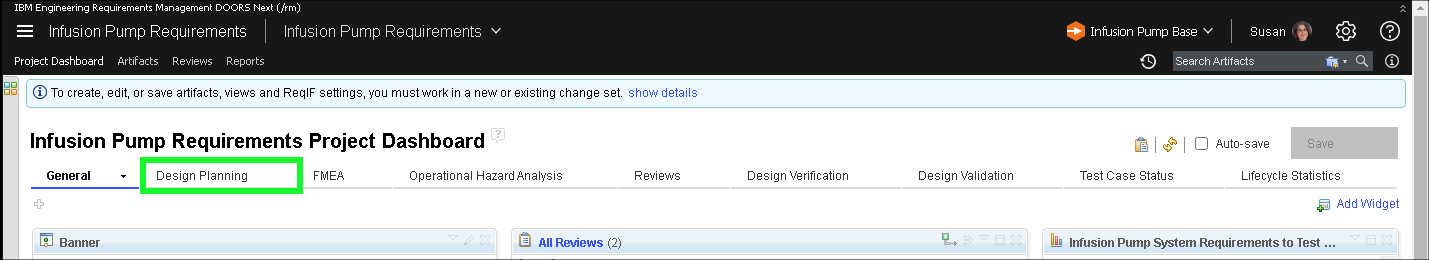

  1. Click the Design Planning tab on the Infusion Pump Requirements Project Dashboard.

  1. Click the IEC62304 Practice Content link in the Useful Links widget.

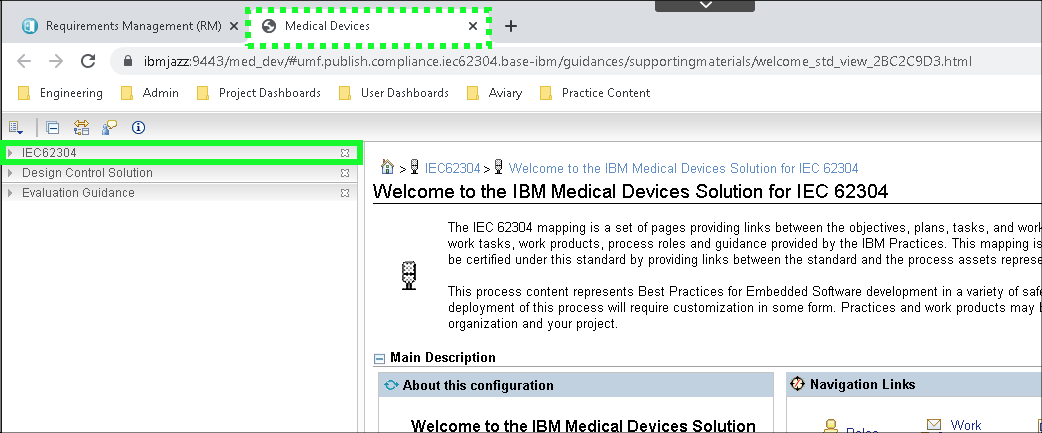

Notice a new browser tab is opened.

  1. Click the IEC62304 option in left-hand sidebar.

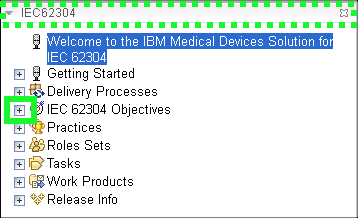

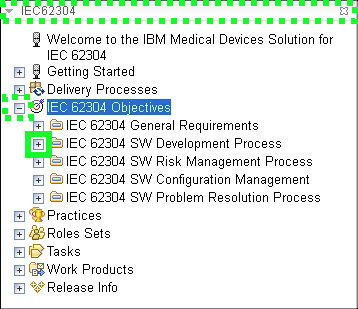

  1. Click the + next to IEC 62304 Objectives to expand the section.

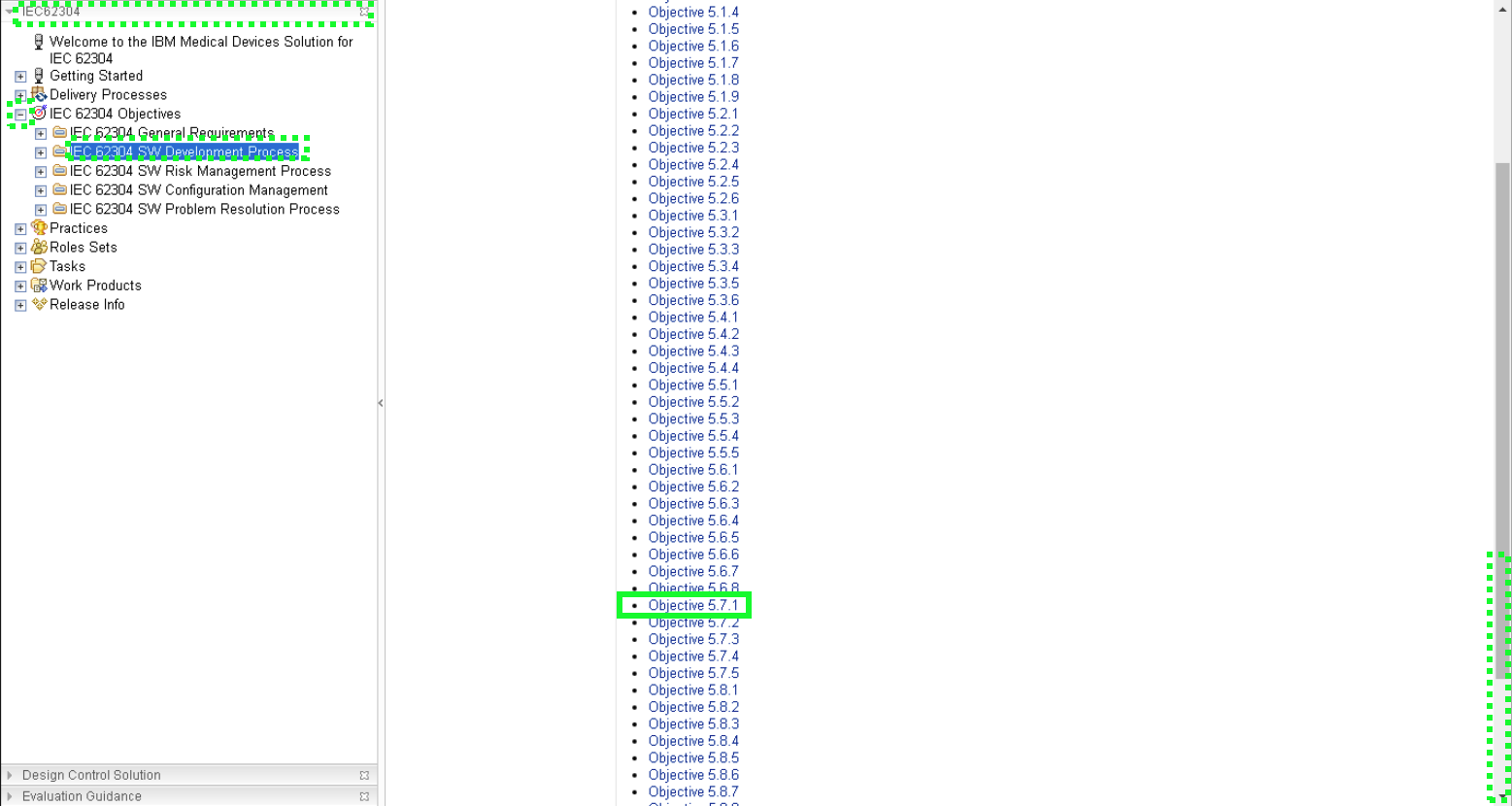

  1. Click IEC 62304 SW Development Process.

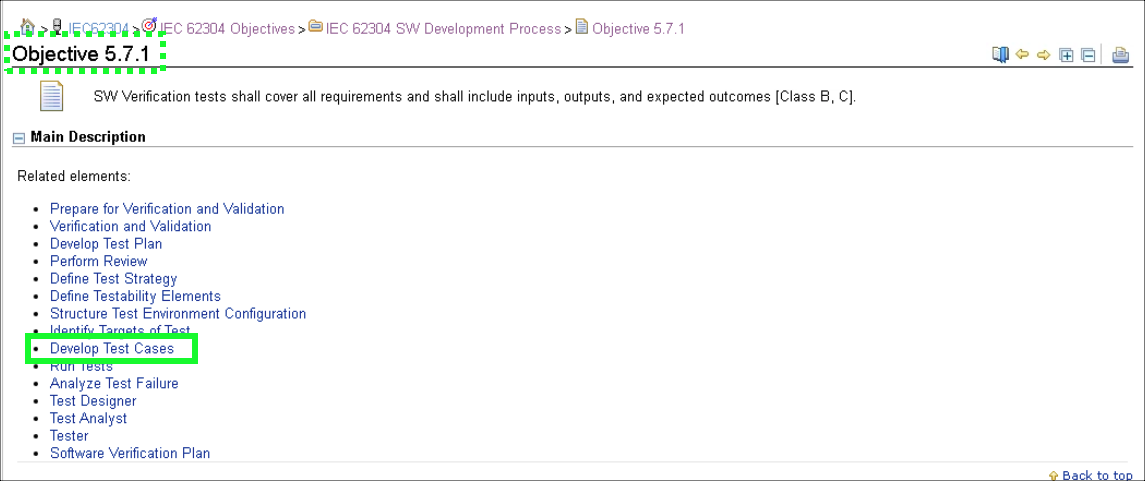

  1. Click the Objective 5.7.1 link in the detailed list in main window.

Note: scroll down if Objective 5.7.1 is not visible in the list.

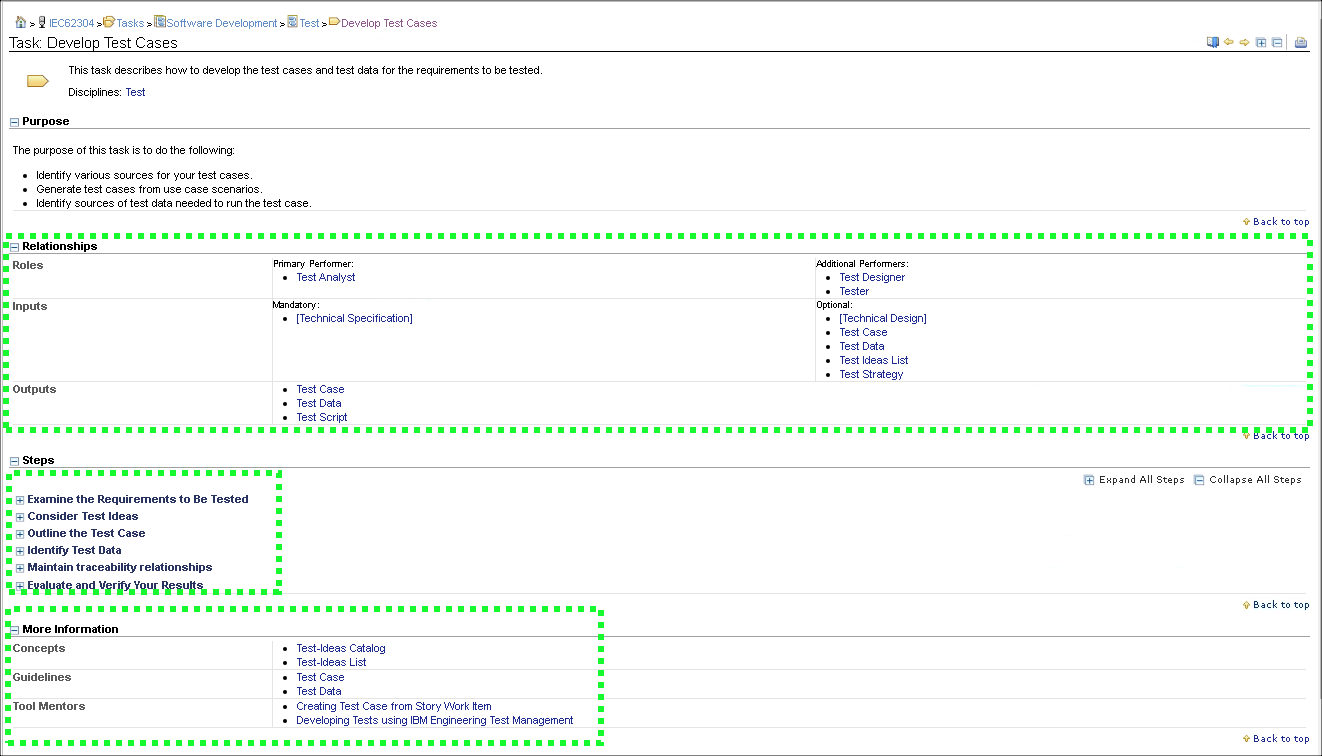

  1. Click the Develop Test Cases link.

  1. Explore the Develop Test Cases task.

Notice the roles associated with the task, the detailed guidance steps, and additional information links like Tool Mentors (scroll down as required).

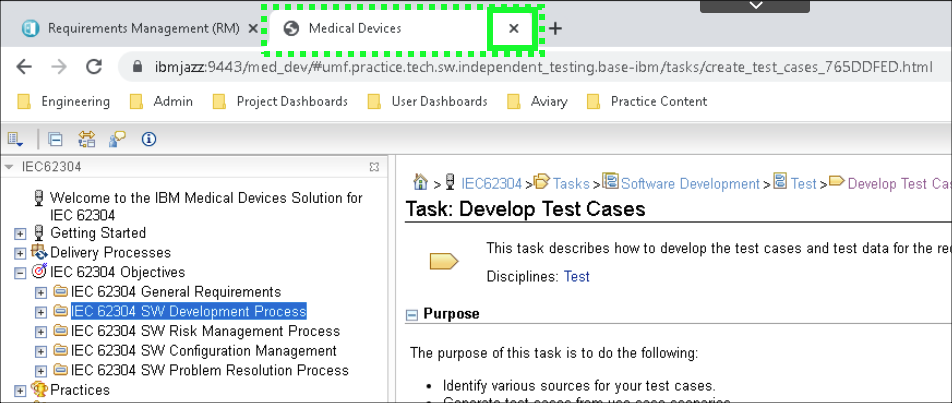

  1. Close the Medical Devices browser tab by clicking the X and return to the Requirements Management (RM) browser tab.

Now is a good time to explore the other widgets on the Design Planning tab of the Infusion Pump Requirements Project Dashboard.

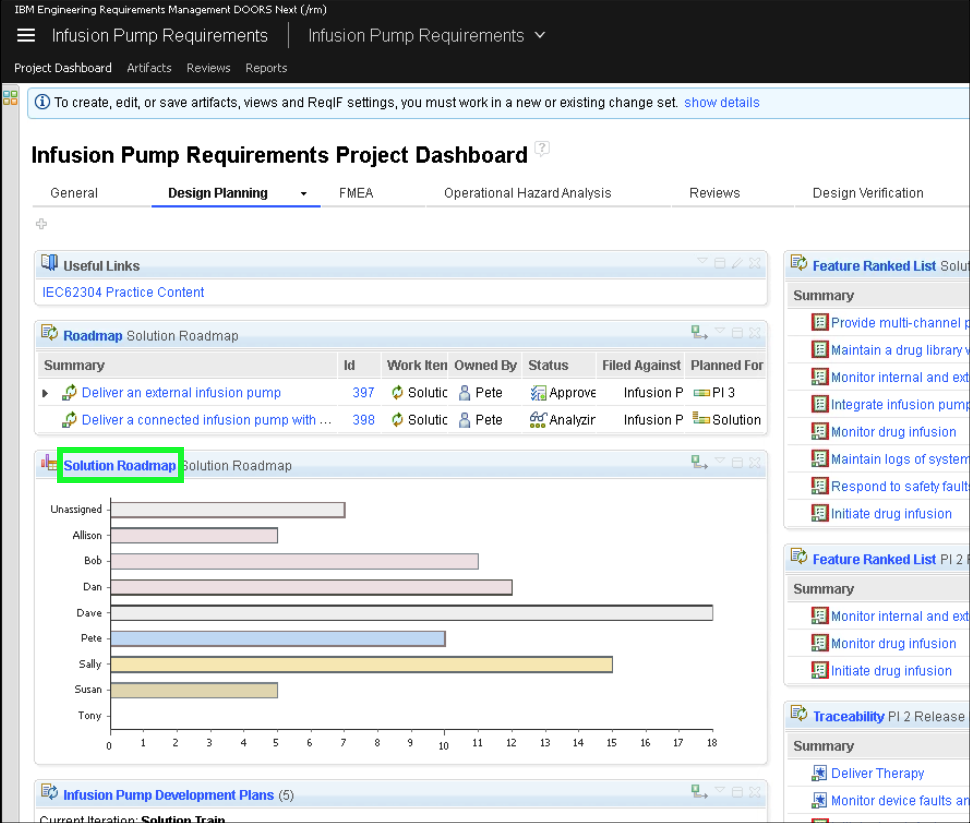

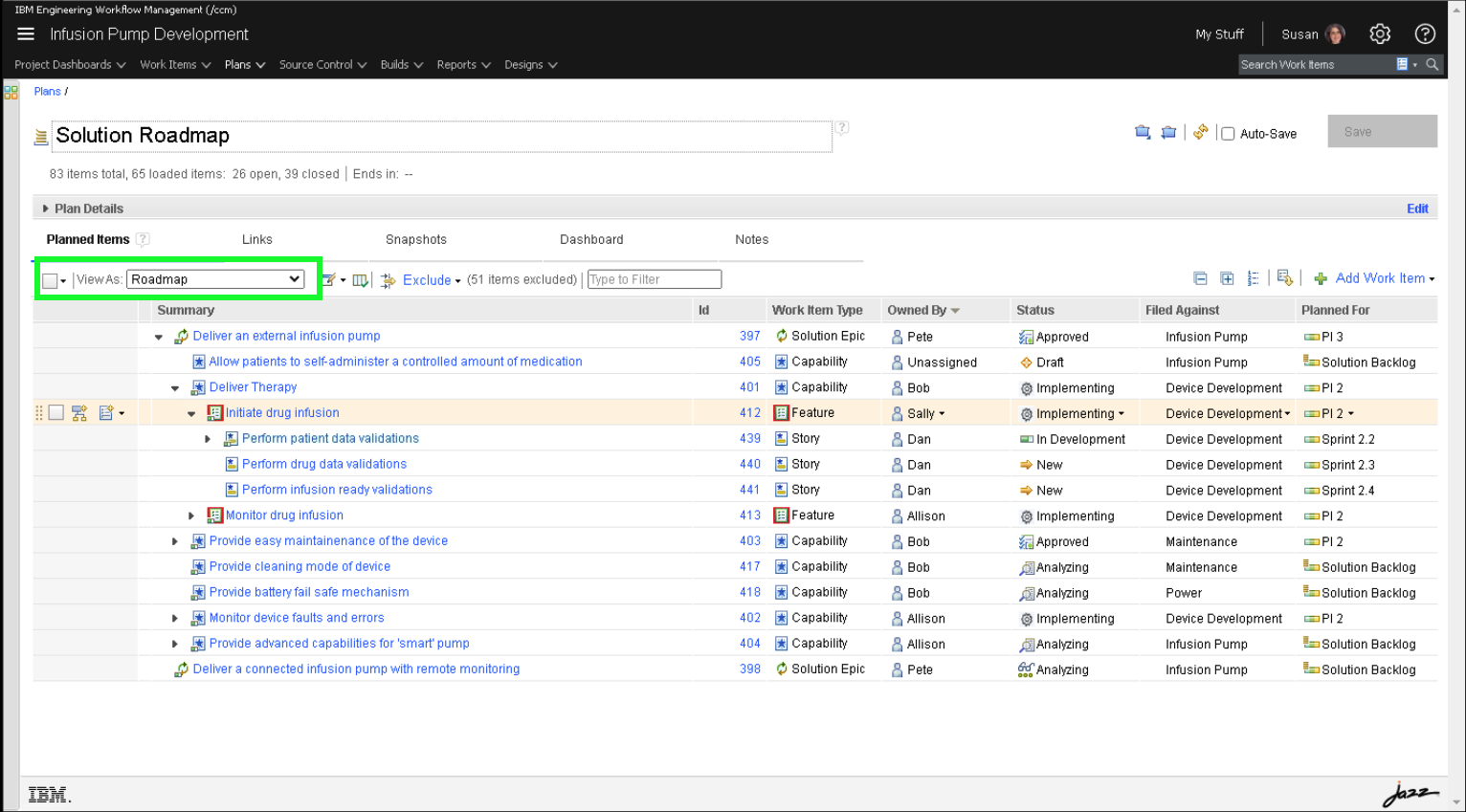

  1. Click the Solution Roadmap widget title.

  1. Notice the Epics defined as work items on the roadmap.

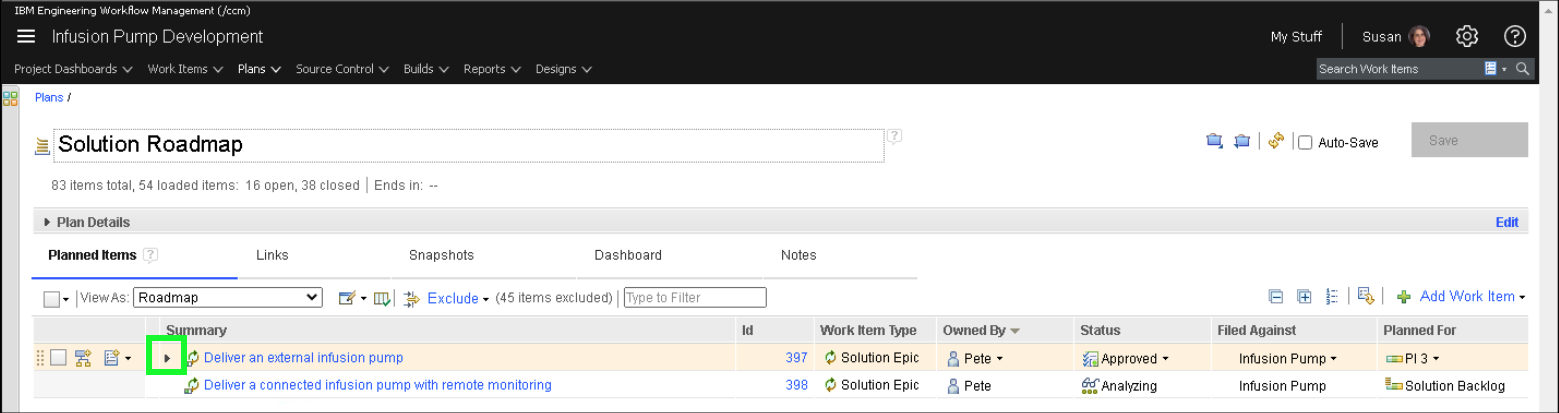

  2. Click the icon next to the Deliver an external infusion pump work item.

  1. Notice the items with the Work Item Type equal to Capability.

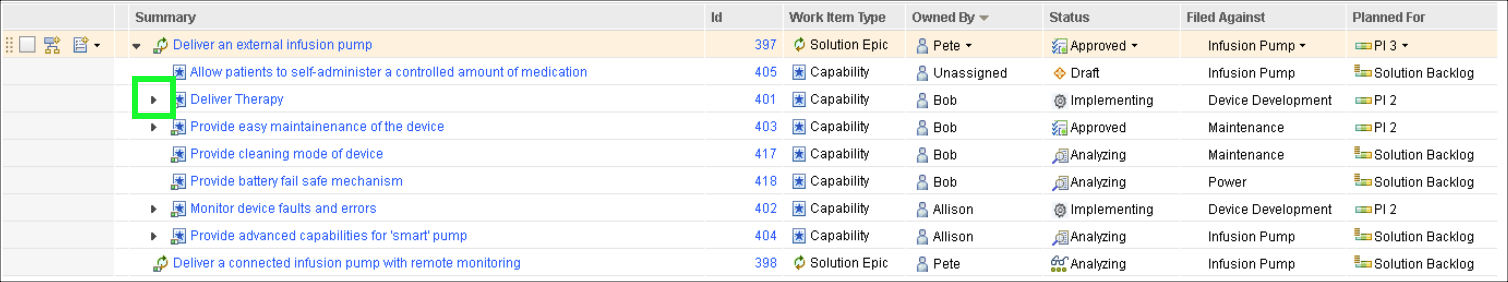

  2. Click the icon next to the Deliver Therapy Capability.

  1. Notice the items with the Work Item Type equal to Feature.

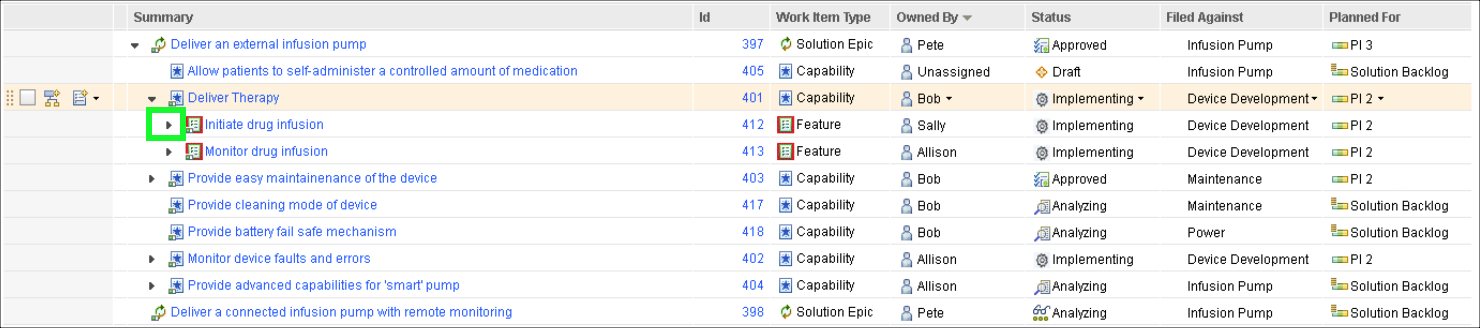

  2. Click the icon next to the Initiate drug infusion Feature.

  1. Notice the items with the Work Item Type equal to Story.
  2. Notice the Planned For column.

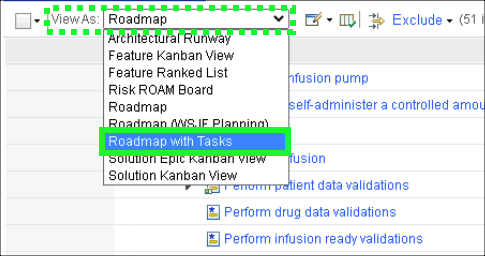

  1. Select Roadmap with Tasks in the View As pull-down menu.

Birds-eye view

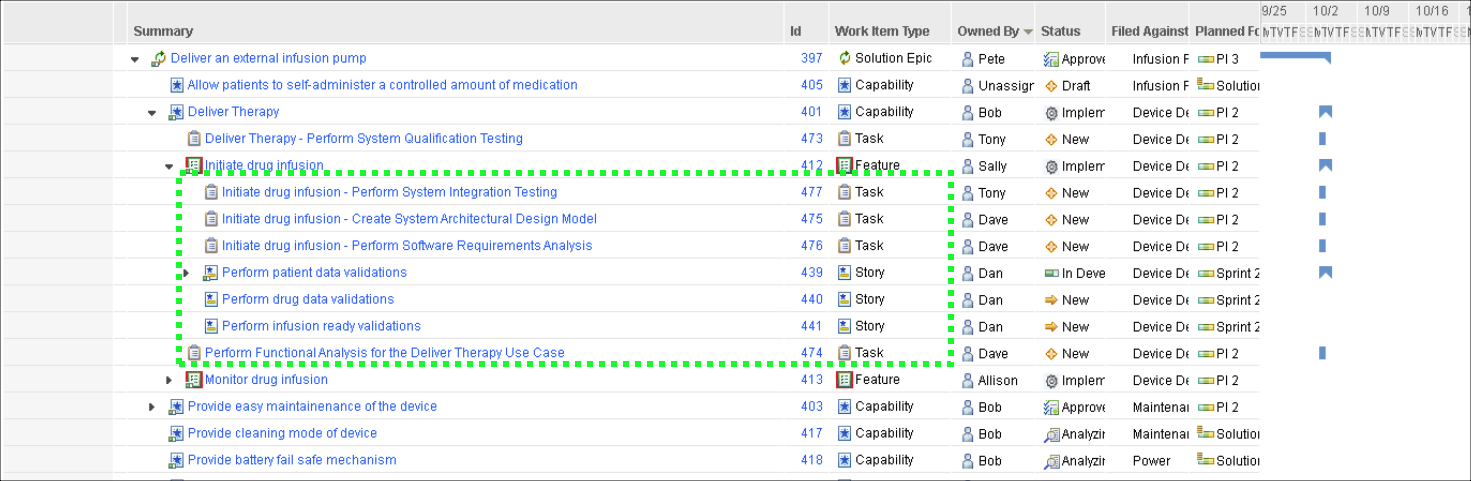

  1. Notice the detail under Initiate drug infusion with Work Item Type of Task and Story.

In Act 2, explore how Product Requirements are tracked in ELM.
