Installing and using zassist to ingest client documents#

With bring-your-own-search (BYOS) installed and configured in your assistant, you can now prepare for document ingestion (bring-your-own-documents (BYOD)). BYOD demonstrates how clients can augment their assistant’s conversational search by creating an internal knowledge base with their documentation. Using the client's documentation allows the assistant to provide valuable responses to a range of questions not possible with the default documentation available.

As an example, a client mentioned that their developers often need reference material on company-specific legacy code or company-specific syntax. The users must search through volumes of documentation to find it or look at old code. Also, a need for their operational support group to quickly determine how to resolve technical issues using runbooks exists.

You can show your client how watsonx Assistant for Z can assist developers and operational support personnel in finding answers about internal processes for code development and deployment.

Currently, only PDF, HTML, and DOCX file formats are supported for ingestion.

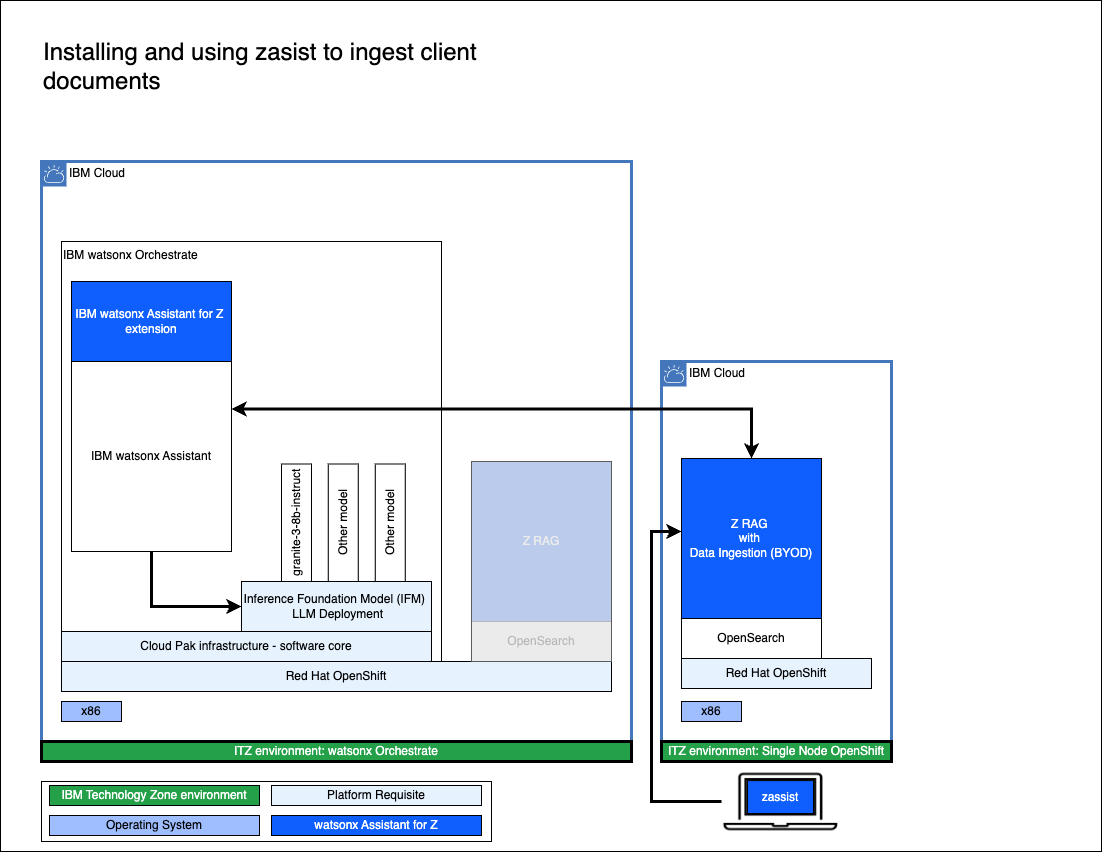

A high-level, logical architecture of the environment is illustrated in the following diagram.

To prepare for document ingestion, you can also reference the setup instructions that are located here.

Install the zassist utility#

The zassist utility is an executable program that automates the ingestion of client documentation into the RAG for watsonx Assistant for Z. A version of zassist is available for download for IBMers and Business Partners for conducting pilots. Follow the steps to download and install zassist.

How do clients get the zassist utility?

The utility is available to clients through IBM Passport Advantage.

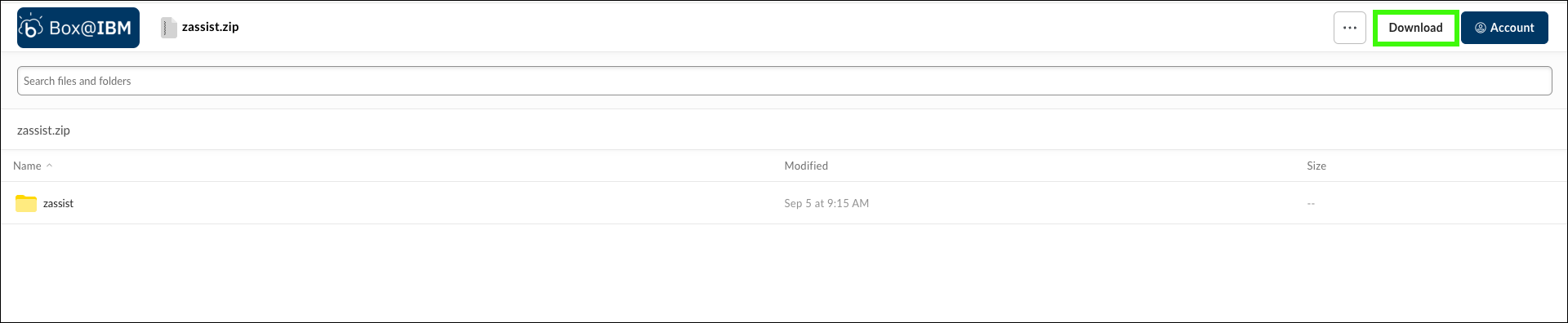

Click the following link and download the zassist.zip file. [Make sure you are using the latest version of zassist - v1.0.4]

https://ibm.box.com/s/m7rv8wxxcjla24npdfvy044vf5rr3urq

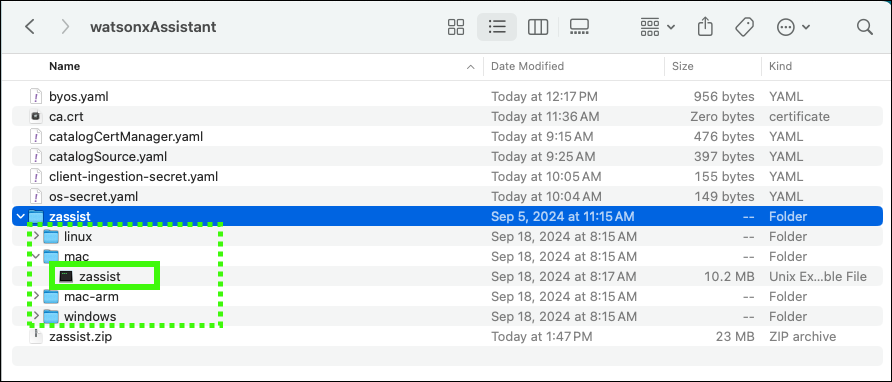

Extract the zassist.zip file.
Locate the appropriate file for your local workstation's operating system.
Either copy the appropriate zassist file to a directory in your PATH, or add the appropriate directory to your PATH environment variable.

Additional information for running the preceding tasks can be found here.

Windows users may need to rename the file zassist file!

If the zassist file does not execute properly, rename the file to zassist.exe.
Run the zassist command to verify that it is working.
```
zassist
```
Mac/OS users may need to adjust security settings.

The zassist binary may cause a security exception. Adjust the security settings by opening the System Settings utility and clicking Privacy & Security. Under Security locate the message about the zassist binary and click Allow Anyway. Return to the terminal window and try running teh command again.

Ingest client documentation using zassist#

With the zassist command installed, you are now able to begin ingesting data.

Step-by-step guidance for ingesting documents using zassist is provided in the IBM watsonx Assistant for Z documentation.

Download the BYOD.zip file.

BYOD.zip
What is in the sample client documentation?

Three sample documents are included:
- Mainframe_COBOL_Error_Codes.pdf

  This is a document containing company-specific mainframe COBOL error codes for their application. Developers within the organization typically review this document to quickly diagnose issues based on the application error codes returned.
- Mainframe_Operational_Incidents_Log.pdf

  This document is leveraged by the organization’s operational support team and contains historical records of production-level incidents that occurred. For each incident, there’s a record of what the incident was, the date, how it was resolved and who was involved in resolving the incident.
- COBOL-CICS-to-Java-Internal-Framework.pdf

  This document is leveraged by the development team and contains details about the organization’s internal framework for developing applications consisting of legacy COBOL CICS interoperating with new Java code. Within the document contains company-specific coding practices and code syntax that the developers frequently reference.
Extract the BYOD.zip file.
Change to the BYOD directory.
Set the WXA4Z_TLS_VERIFY environment variable to false.

WARNING: The below commands may not be appropriate depending on your version of zassist. See below...

The below commands referencing the WXA4Z_TLS_VERIFY environment variable will only work in your setup if you are using zassist version 1.0.2 or later. If you are using an earlier version of the utility, you will need to replace WXA4Z_TLS_VERIFY with the TLS_VERIFY environment variable in the below commands.

You can verify your version of zassist by running the zassist version command. Alternatively (and recommended), you can download the latest version of the zassist utility via the Box folder referenced in the beginning of this section.

Mac OS:
```
export WXA4Z_TLS_VERIFY=false
```
Windows OS:
```
set WXA4Z_TLS_VERIFY=false
```
Windows OS PowerShell:
```
Set-Item Env:\WXA4Z_TLS_VERIFY "false"
```
Initialize the zassist environment.
```
zassist init
```
Retrieve the server URL for the client ingestion server.

Mac OS:
```
echo https://$(oc -n wxa4z-zad get route wxa4z-client-ingestion -o jsonpath="{.spec.host}")
```
The output of this command is your unique URL for your client ingestion server.

Windows OS (this method can also be used by Mac OS users):

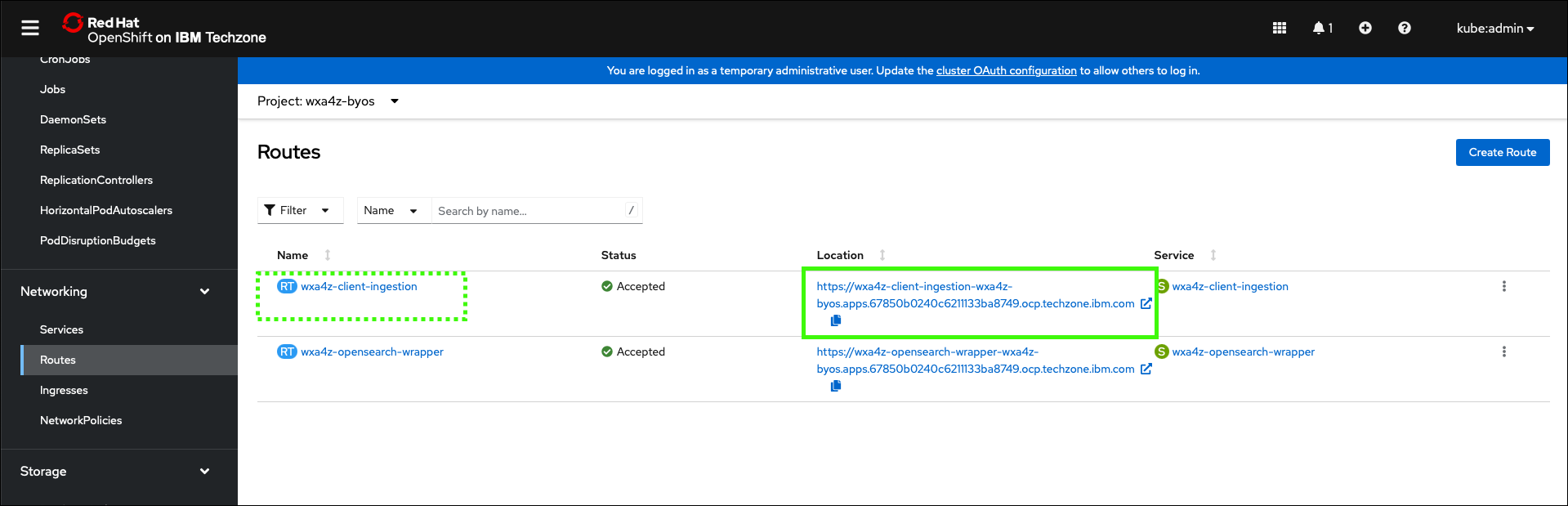

You can retrieve the URL in your OCP Web console by navigating to Networking Routes and then copy the URL for the wxa4z-client-ingestion route.
Retrieve the client-ingestion-authkey.
```
oc -n wxa4z-zad get secret client-ingestion-authkey -o jsonpath="{.data.authkey}" | base64 -d
```
The output of this command is your unique auth-key that you had previously set. You will need the output of both previous commands in the next step.

If the command doesn’t work for you...

You can find your authkey value by viewing the client-ingestion-secret.yaml file you created and copying the value set for the authkey parameter.
Login to your server. Replace <server url> with the value from step 6.
```
zassist login <server url>
```
When prompted, enter the password from step 7. Verify that a Success message is received.

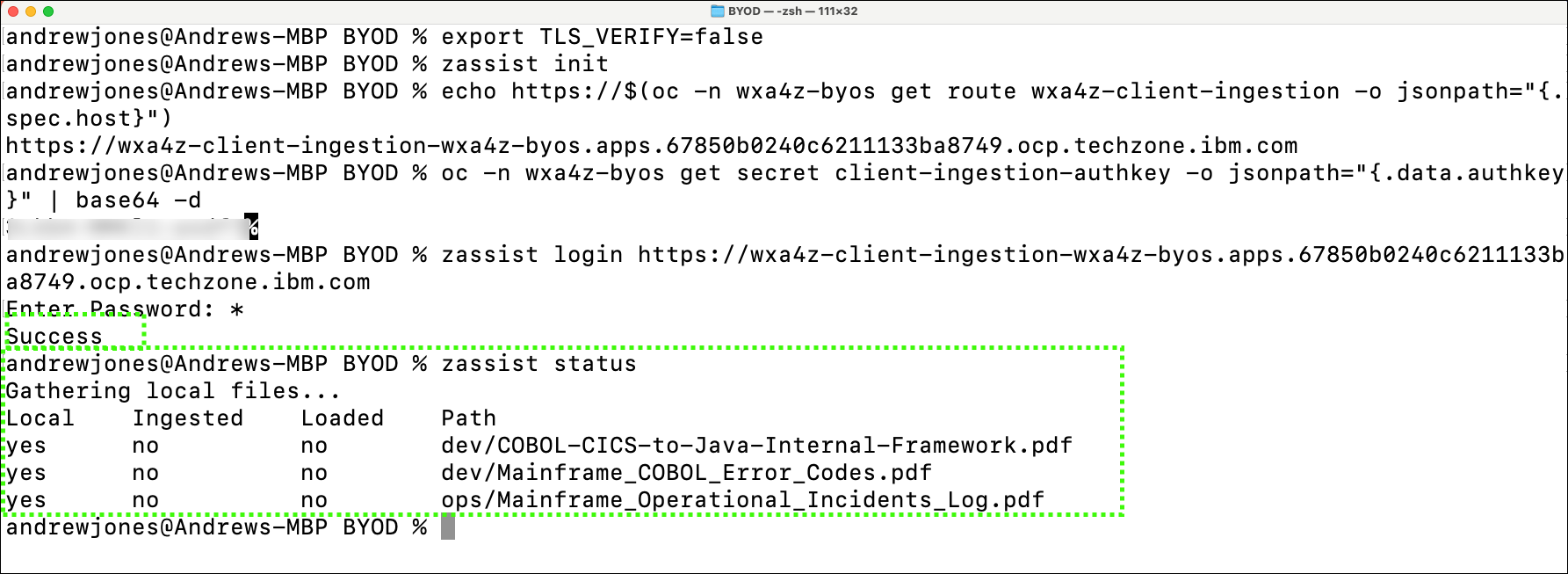

Verify zassist is ready to ingest documents by checking the status.
```
zassist status
```
Ingest the documentation using the commands.

For the next steps, you must be in the root directory called BYOD.
```
zassist ingest dev
```
Handling PII...

With v2.2.5, PII is automatically detected and the ingestion will fail if any PII is detected. This is valuable for security and compliance purposes. In our case, the document in dev/COBOL-CICS-to-Java-Internal-Framework.pdf was detected to contain PII and you will receive an error message. As this is dummy data, you can override this error by re-ingesting the index using the --skip-pii flag in the following command:

zassist ingest dev --skip-pii

This will override the PII detection. However, as part of a pilot, you should not be ingested any PII data, otherwise cleaning the data to ensure no sensitive data is included.
```
zassist ingest ops
```
What does 'zassist ingest' do?

The ingestion process uploads the document to the server, extracts the text, splits text into chunks, and then creates embeddings from each chunked text using IBM's slate model.
Upload the ingested documents.
```
zassist load dev
```
```
zassist load ops
```
What does 'zassist load' do?

The load process takes the resulting chunked text and embeddings and uploads it into the OpenSearch database.

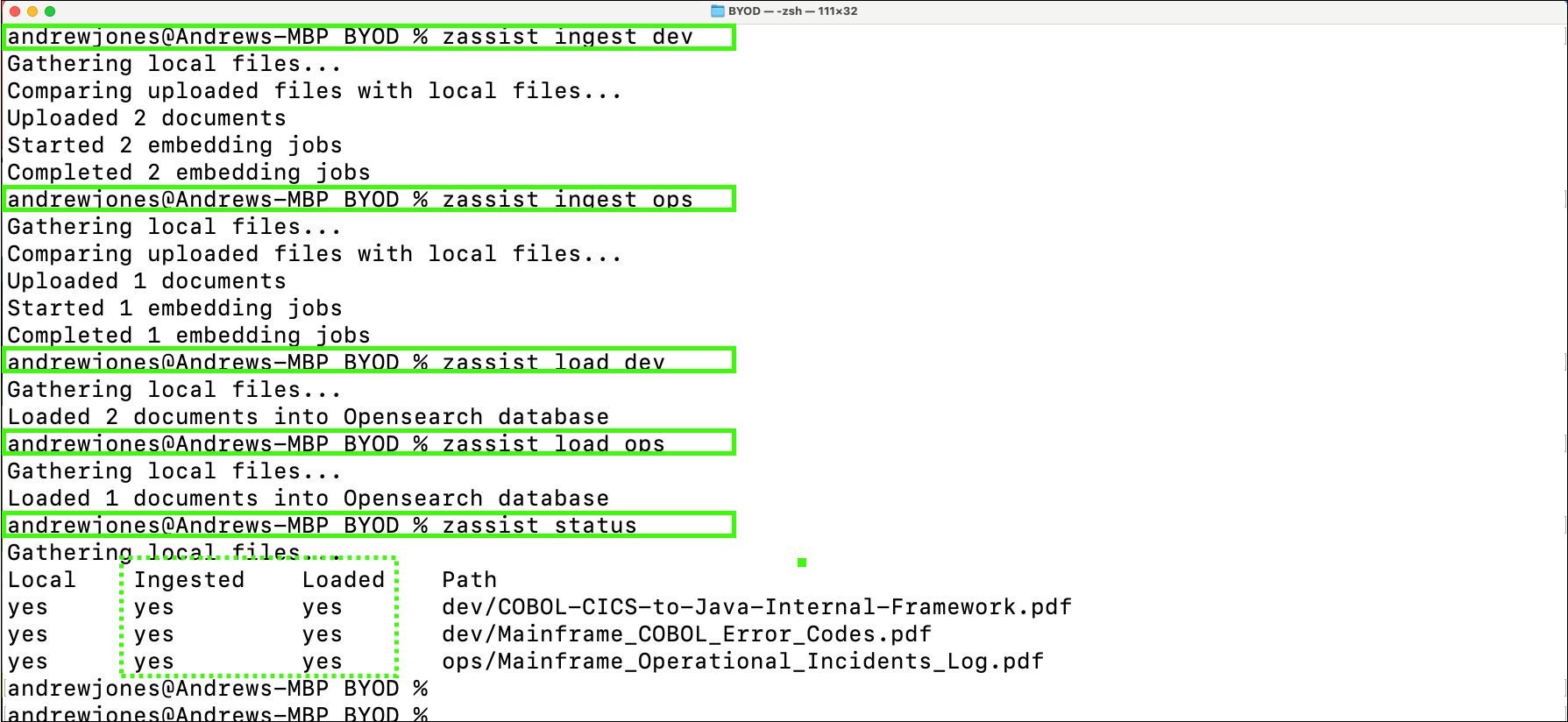

Verify that all documents were successfully ingested and loaded.
```
zassist status
```

Verify that the assistant is using the ingested documents#

Use the watsonx Orchestrate AI assistant builder to verify your document ingestion.

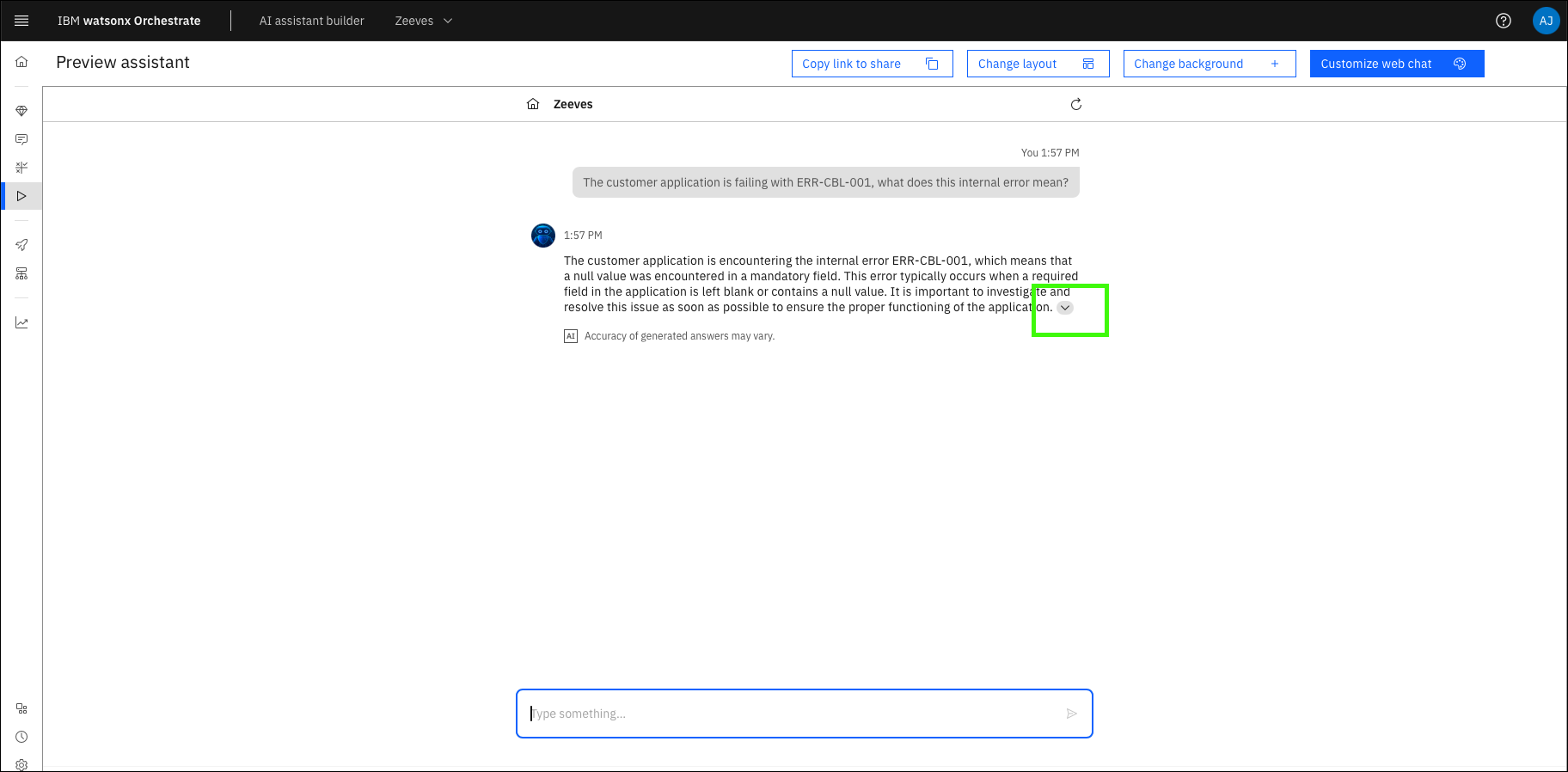

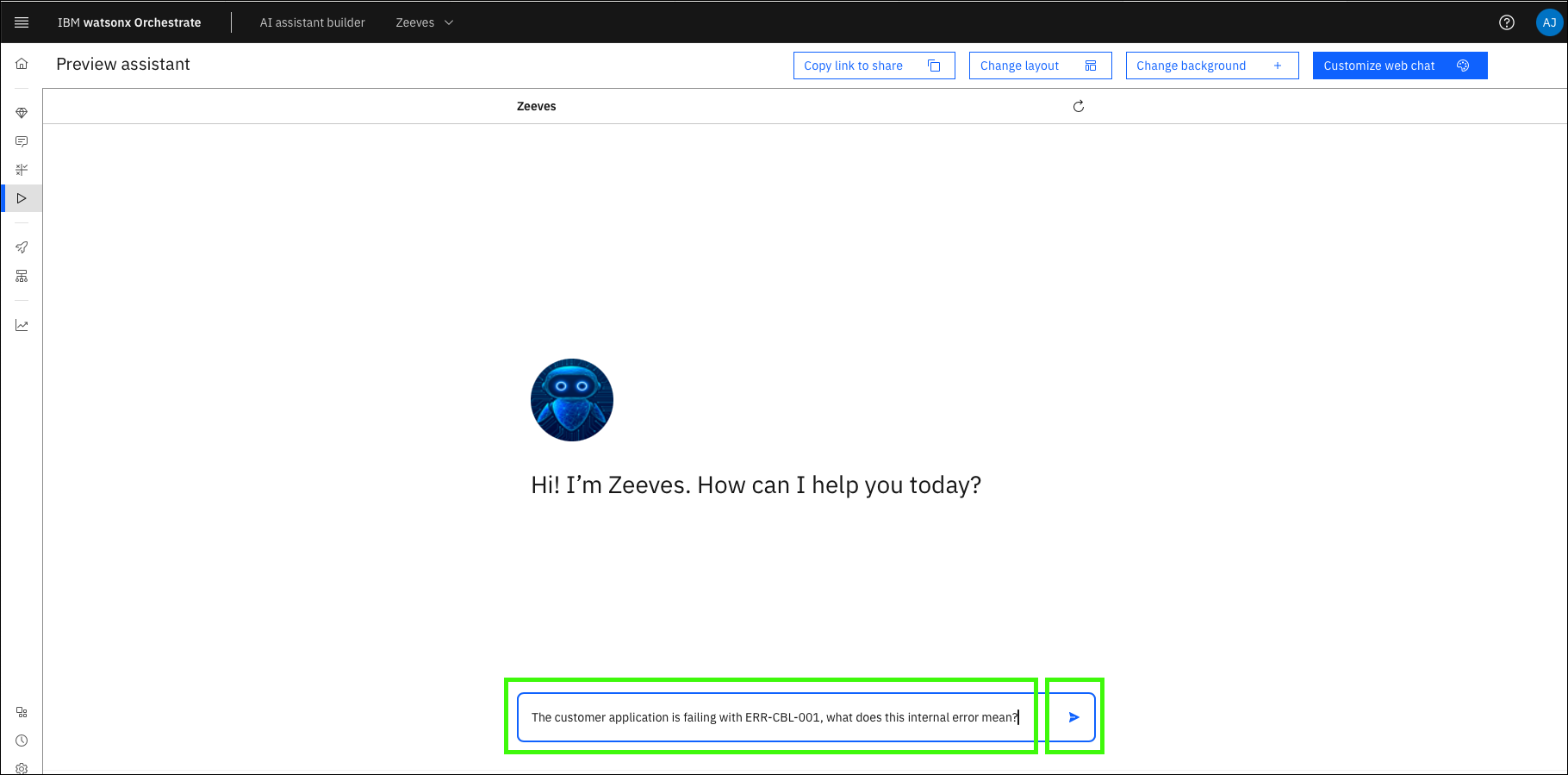

Enter the following prompt in your assistant and record the response (cut and paste into a text file on your local machine).
```
The customer application is failing with ERR-CBL-001, what does this internal error mean?
```

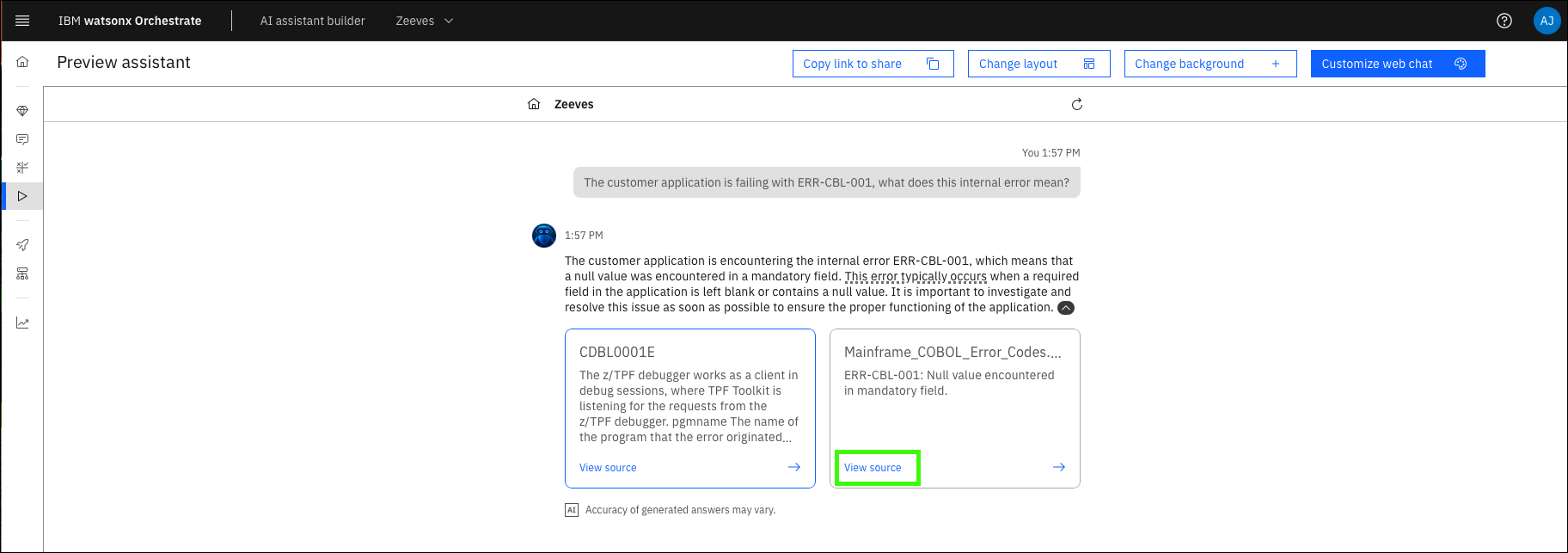

Click the Down arrow to view the citations for the response.

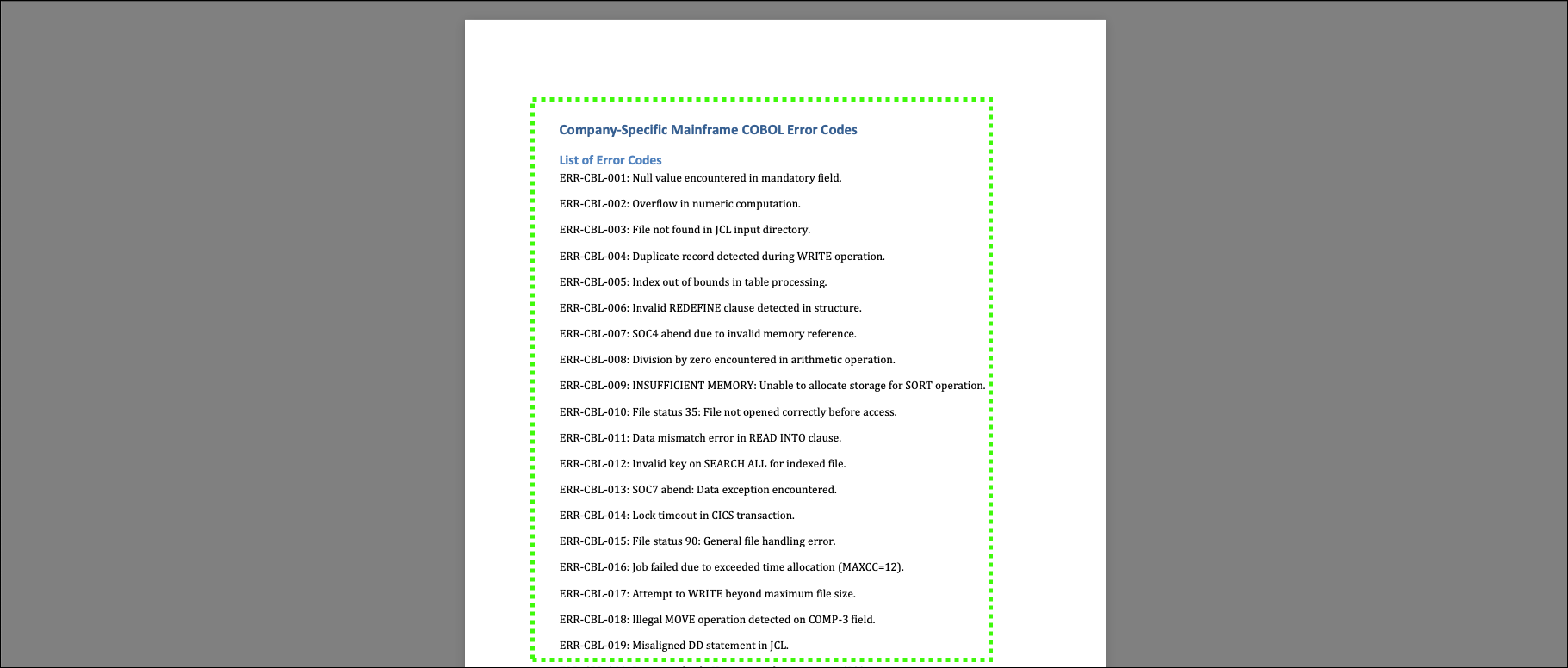

Click View source for the Mainframe_COBOL_Error_Codes-... citation.

Take note of the order of the response citations!
Accept the security risk to view the source document for any ingested document cited.

The steps to accept the security risk for the document are not shown as it varies by the browser you are using. The risk occurs because the certificate for the connection to the SNO instance is not secure. Notice that the URL contains the path to your SNO instance route.

Repeat the preceding steps for the following prompts in your assistant and record the responses (cut and paste into a text file on your local machine).

Are there any production incidents that were resolved in relation to Data corruption in the production database. If yes who can I collaborate with to resolve a similar issue today and what are their names?

What specific syntax changes do I need to make in COBOL to call Java using the internal framework? Please provide a detailed explanation.

What is the internal git lab link to execute the Java on z/OS pipeline?

Adjusting the search behavior#

Do you recall the Metadata field when you configured your assistant?

The Metadata field provides a way to adjust your assistant’s behavior during conversational search for your OpenSearch instance. Now that you have your own docs that are ingested for conversational search, you can set the metadata field for your assistant to use those documents in its content-grounded search. If you leave the metadata field empty, then it defaults to settings found to perform well but may not use the ingested documents as part of the search results.

If you leave the Metadata field empty, OpenSearch relies on the default settings, which means OpenSearch searches all the default IBM-provided documentation and all of the ingested customer documentation using the following value:

{"ibm_indices":"*_ibm_docs_slate,*_ibm_redbooks_slate",
“customer_indices”:“customer_*”}

Replacing the wildcard string with an explicit list of indices allows for personalization. The metadata setting is where you can input specific indices (pointing to the underlying documentation) that you want your assistant to use for the content-grounded search. There are over 220 products and topics that the OpenSearch instance has IBM Documentation for. You can find those indices and products here.

You can input a subset of indices into the “Metadata” field in cases where you want your assistant to only gather context for specific IBM products or topics. The specific indices can be listed out in this format:

{“ibm_indices”:“<comma separated index values>”,“customer_indices”:“customer_*”}

For example, if you want your assistant to reference only documentation for “Db2 Analytics Accelerator for z/OS” and no ingested client documentation, you can enter the following into the metadata field:

{“ibm_indices”:“ss4lq8_ibm_docs_slate”}

If you have a mix of IBM Documentation and client documentation ingested, then there’s an optional search string that you can use to set the “weights” used for each.

For example:

{"doc_weight":
{"product_docs":0.5,
"customer_docs":0.5},
"ibm_indices":"*_ibm_docs_slate,*_ibm_redbooks_slate",
"standardize":true,
"customer_indices":"customer_*"
}

In this case, “product_docs” is the weight that is assigned to “ibm_indices” and “customer_docs” is the weight that is assigned to “customer_indices”. For more information on customizing the metadata field for conversational search, refer to this supplemental video found here.

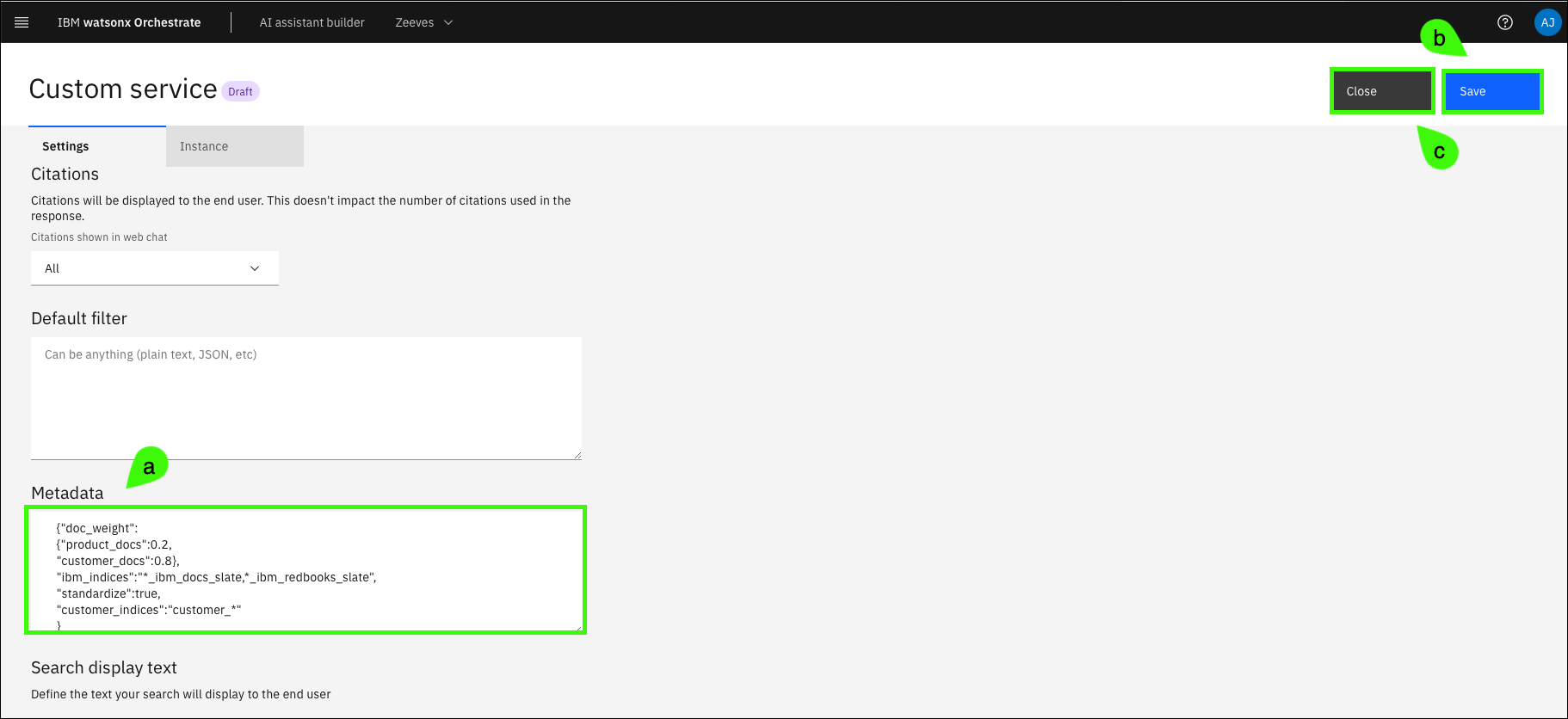

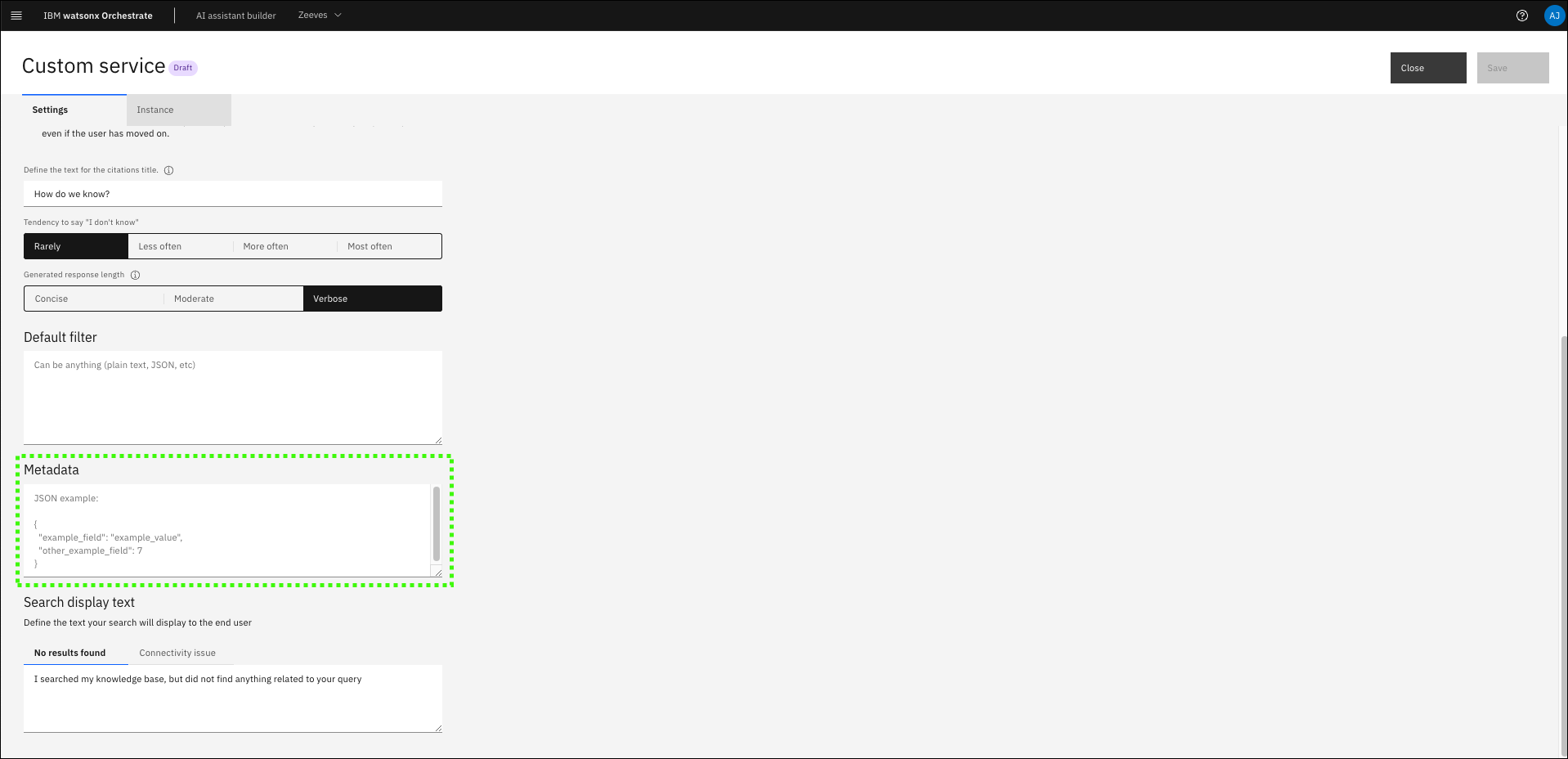

Set the (a) Metadata field for your BYOS custom search instance to the following value, click (b) Save, and then click (c) Close. Notice the weight for customer_docs is heavier than the weight for product_docs.
```
{"doc_weight":
{"product_docs":0.2,
"customer_docs":0.8},
"ibm_indices":"*_ibm_docs_slate,*_ibm_redbooks_slate",
"standardize":true,
"customer_indices":"customer_*"
}
```
Hover over the Home () icon and click Preview.

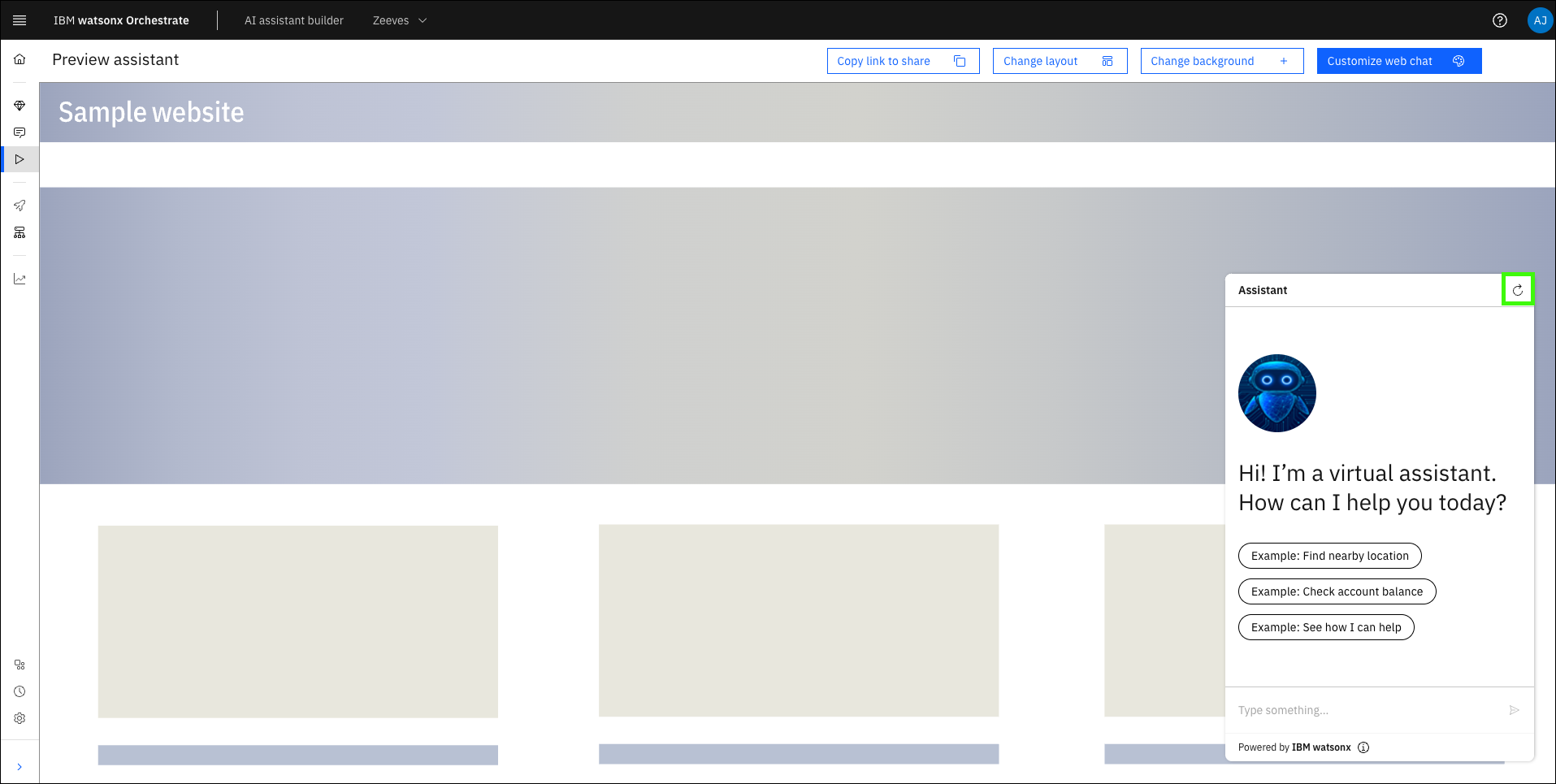

Click the Restart conversation () icon.
Repeat the queries four queries run earlier and record the results and the order of the response citations.

Compare the two sets of results. Notice how the answers changed based on the weighting of the ingested documents versus the IBM product documentation. Were the ingested documents always the first document cited? If not, why do you think that is?

Before proceeding, experiment with different metadata and other configuration settings for your custom service instance.

For client pilots

If you or your client have other documents to ingest, you can do so by repeating the steps using zassist. The Velocity Pilot ITZ environment is limited in compute and storage capacity. The following limits should be adhered to:

Loading documents can take a long time, especially with > 100 MB of text.
It is recommended to run large loads late at night.
When loading, ensure your workstations does not sleep during the process.
If you receive a batch time error, set the batch size to a lower number for that command. For example:
```
zassist ingest . -s 50
```
