Use case: Retrieve IPL information

Next, explore a use case to improve productivity for early-tenure system programmers (SysProg) who are preparing for an upcoming initial program load (IPL) for a logical partition (LPAR).

To prepare for the IPL, the SysProgs need to familiarize themselves with the process. Rather than spending time reading through the wide array of documentation available online, they would like to use watsonx Assistant for Z. The content-grounded capabilities that are provided by watsonx Assistant for Z return accurate responses to their questions quickly and uses automations to perform actions.

As part of the pilot, they already explored prompting the assistant with questions. In one example prompt, they asked the assistant is “What information is needed to perform an IPL on a z/OS LPAR?” In reading the response, the SysProg learns they need information about their system in preparation for the IPL. For example, the IPL Volume and the IPL LOAD PARM.

For this use case, show how a simple automation for retrieving this type of information can be infused in a natural conversation with watsonx Assistant for Z. You use pre-packaged skills to automate various tasks on z/OS. The pre-packaged skills are provided as an OpenAPI JSON file. Learn more about OpenAPI here. The file includes skill definitions that can be uploaded to the Skill Studio within watsonx Orchestrate to import the pre-packaged skills. First, the file must first be customized for your z/OS server.

The list of pre-packaged skills available include:

• Authorized program list
• z/OS IPL Information
• Display zOS parmlib datasets
• Unix System services options
• Display zOS subsystems
• List spool files
• Retrieve dataset content
• Retrieve spool file content
• Retrieve z/OS Management facility (z/OSMF) job status

A great value of watsonx Orchestrate is the ability to build skills that anyone can use. You can build your own custom skills by importing an OpenAPI file into watsonx Orchestrate as a JSON or YAML file. For more information on building skills by importing OpenAPI files, refer to the documentation here.

Watsonx Orchestrate also makes it possible to build, edit, and generate OpenAPI specifications by using the OpenAPI builder. With the OpenAPI Builder, you can use the AI function to simplify the process of generating these specifications. For more information on using the OpenAPI Builder, refer to the documentation here.

For this use case, you are importing the skill for retrieving a z/OS server’s IPL information. The next steps walk you through the process of downloading that OpenAPI JSON file and customizing it for your environment.

Download and customize the watsonx Assistant for Z OpenAP JSON file

1. Download the watsonx Assistant for Z OpenAP JSON file.

   wxa4z-skillpak-prepackaged-skills.json.zip

2. Extract the file.

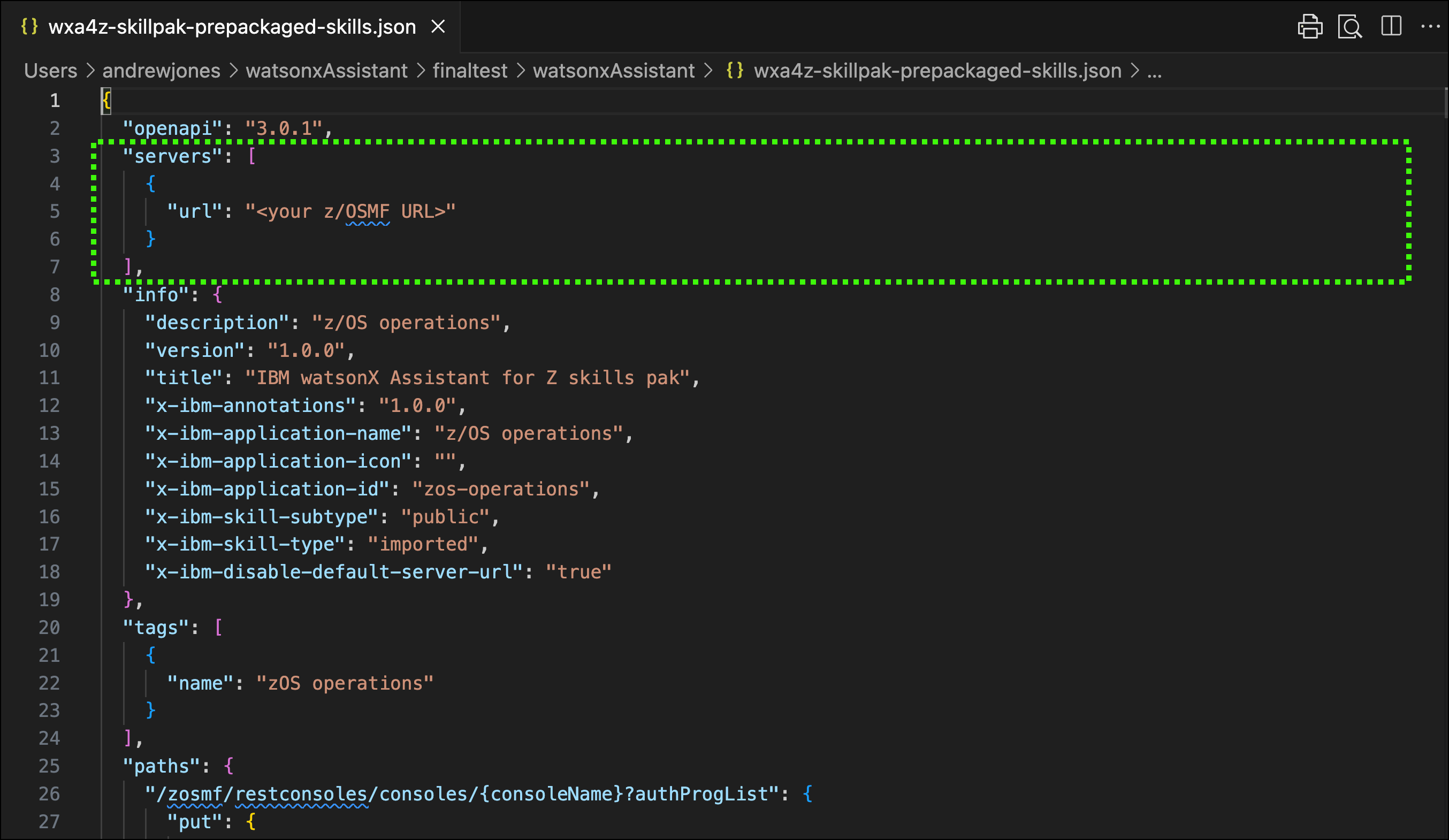

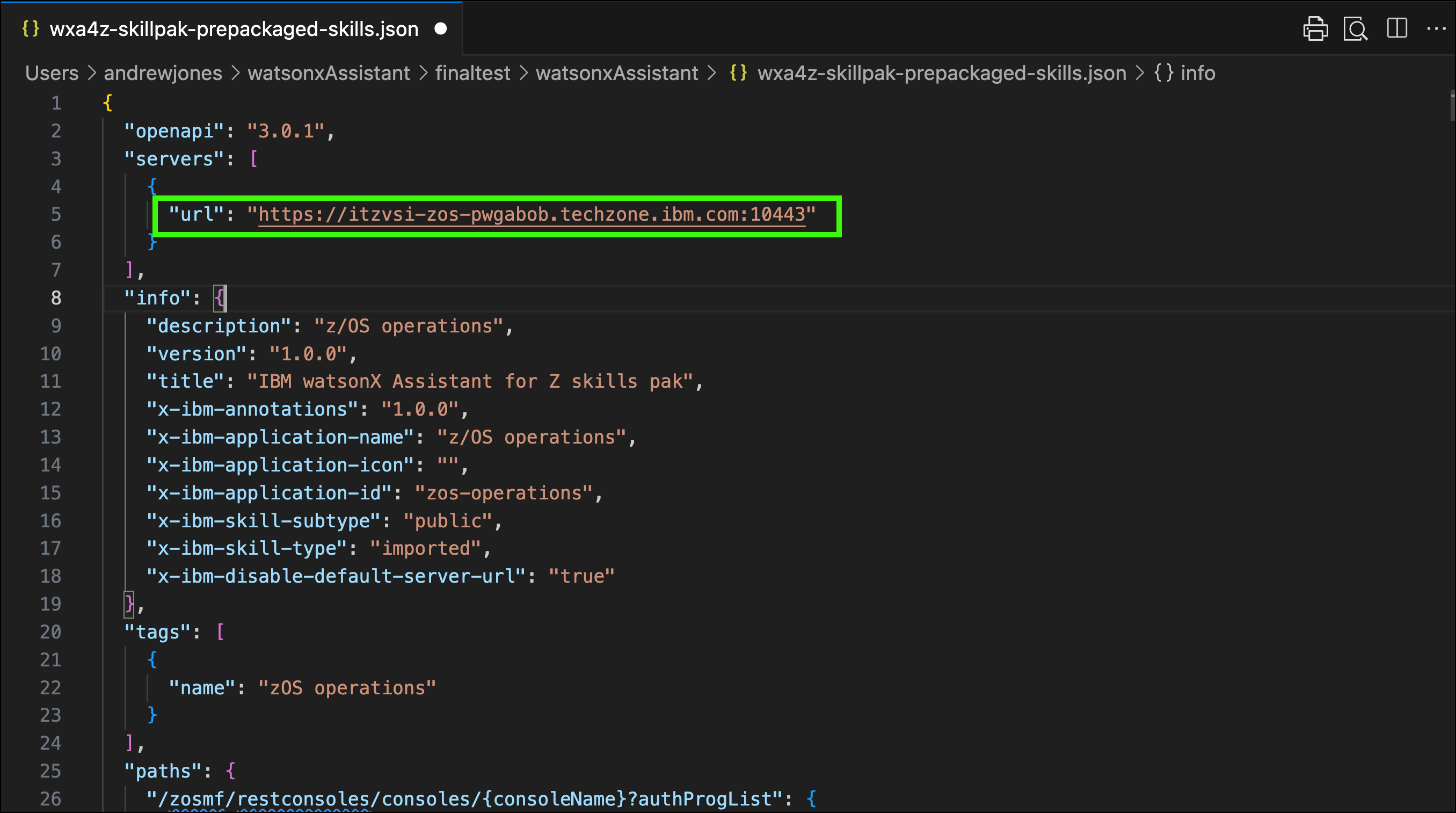

3. In a text editor, open the wxa4z-skillpak-prepackaged-skills.json, modify the server's url field as described, and save the file.

   File name:

   wxa4z-skillpak-prepackaged-skills.json


   Substitute your Wazi as a Service (WaaS) instance URL for the string <your z/OSMF URL>. Your WaaS URL is based on your ITZ AAP URL that can be obtained from your watsonx Assistant for Z Pilot - AAP & z/OS ITZ reservation.

   The AAP URL is similar to:

   https://itzvsi-aap-ppxbcno.techzone.ibm.com

   Change the aap string to zos and append :10443 to the URL value. Record this value for later use! Your new URL is similar to:

   https://itzvsi-zos-ppxbcno.techzone.ibm.com:10443

   Before:



   After:



   In watsonx Orchestrate, each app is associated with a single URL.

   If you have not imported previous skills into an app called z/OS operations, the default values in the info section are fine. If you already have a app named "z/OS operations", modify the info section to meet your needs.

   For more information on modifying the OpenAPI JSON file, see the instructions here.

Set the RACF passphrase for z/OSMF authentication

For your skills to run successfully on your WaaS instance, you need to ensure that you can authenticate to it from watsonx Orchestrate. To achieve successful authentication, setup a new RACF Passphrase for the IBMUSER ID that is a pre-defined user ID on the WaaS server. The following steps take you through the steps of setting a new passphrase for your user and verifying access.

1. Open and log in to the Ansible Automation Platform (AAP) web console.

   Don't remember how?

   Refer to the first 5 steps in Explore Ansible Automation Platform.

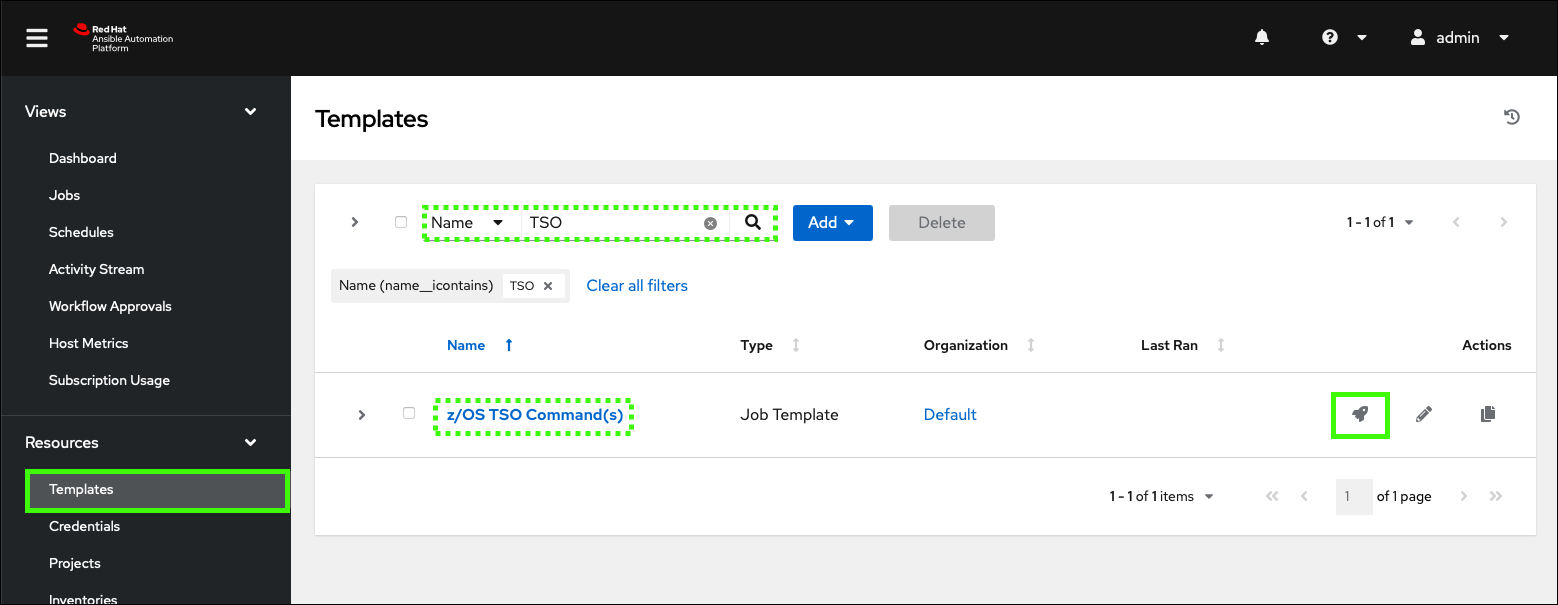

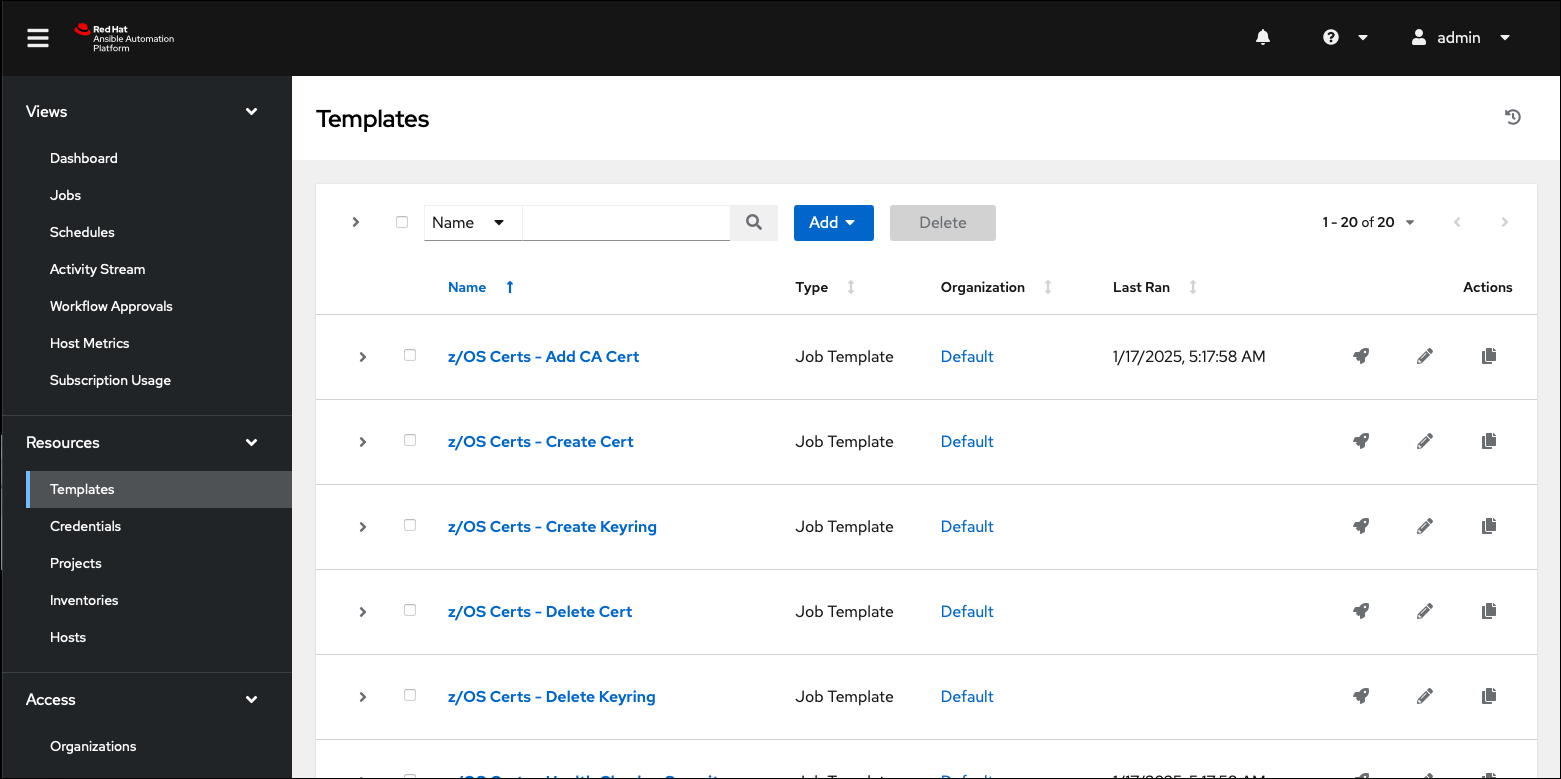

2. Click Templates under the Resources section.



3. Click the launch icon () for the z/OS TSO Command(s) template.

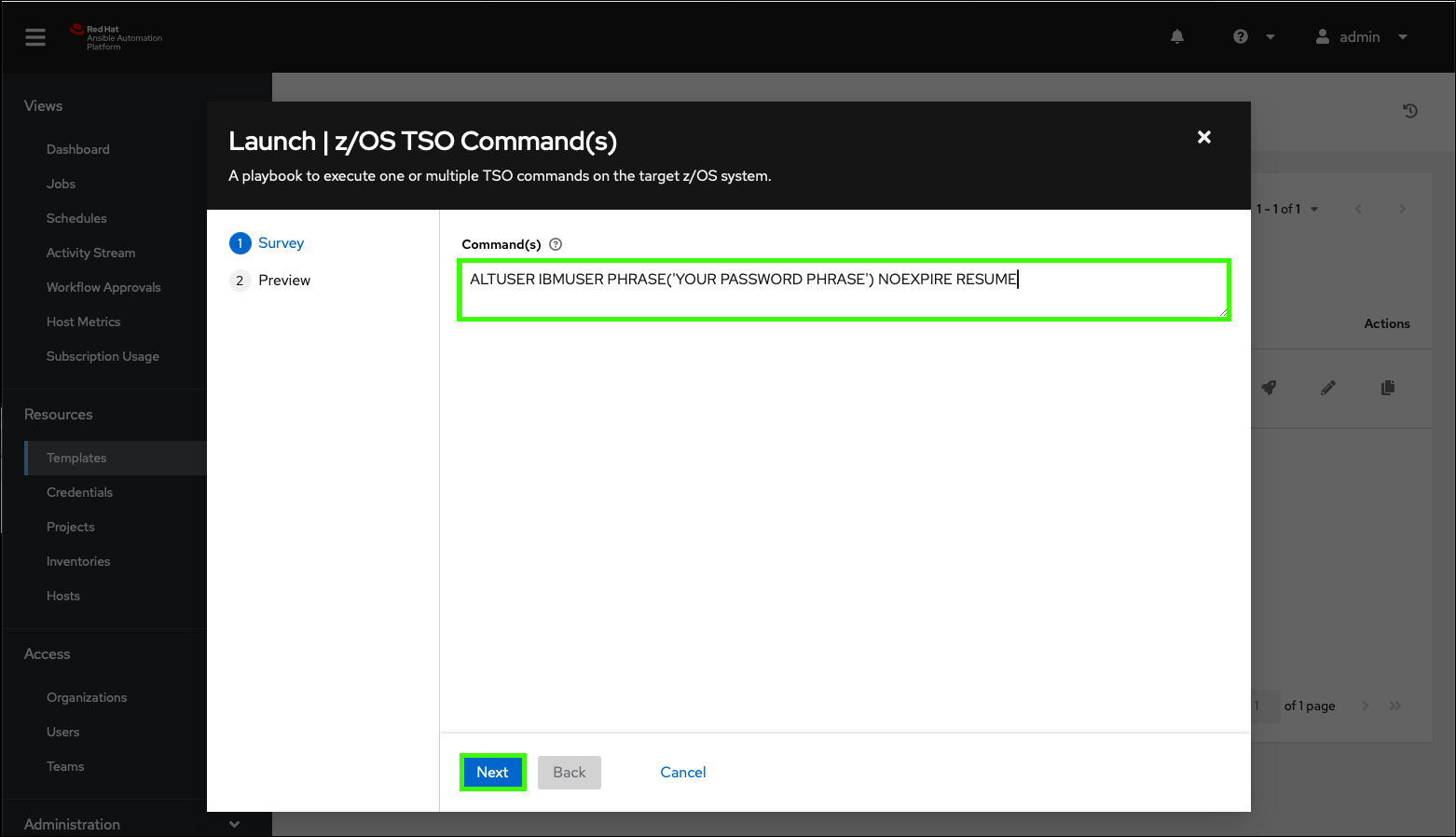

4. Replace the default command with the text that follows and substituting a password of your choosing for the string YOUR PASSWORD PHRASE and then click Next.

   ALTUSER IBMUSER PHRASE('YOUR PASSWORD PHRASE') NOEXPIRE RESUME


   Syntax rules for RACF Password Phrases (below)

   • Minimum length: 9 characters
   • Must contain at least 2 alphabetic characters (A - Z, a - z)
   • Must contain at least 2 non-alphabetic characters (numerics, punctuation, or special characters, including spaces)
   • Must not contain more than 2 consecutive characters that are identical

   If you type the command yourself, be sure to include the single quotes before and after the password. Record the password as it will be needed later. We will refer to this as your WaaS password."



5. Click Launch.

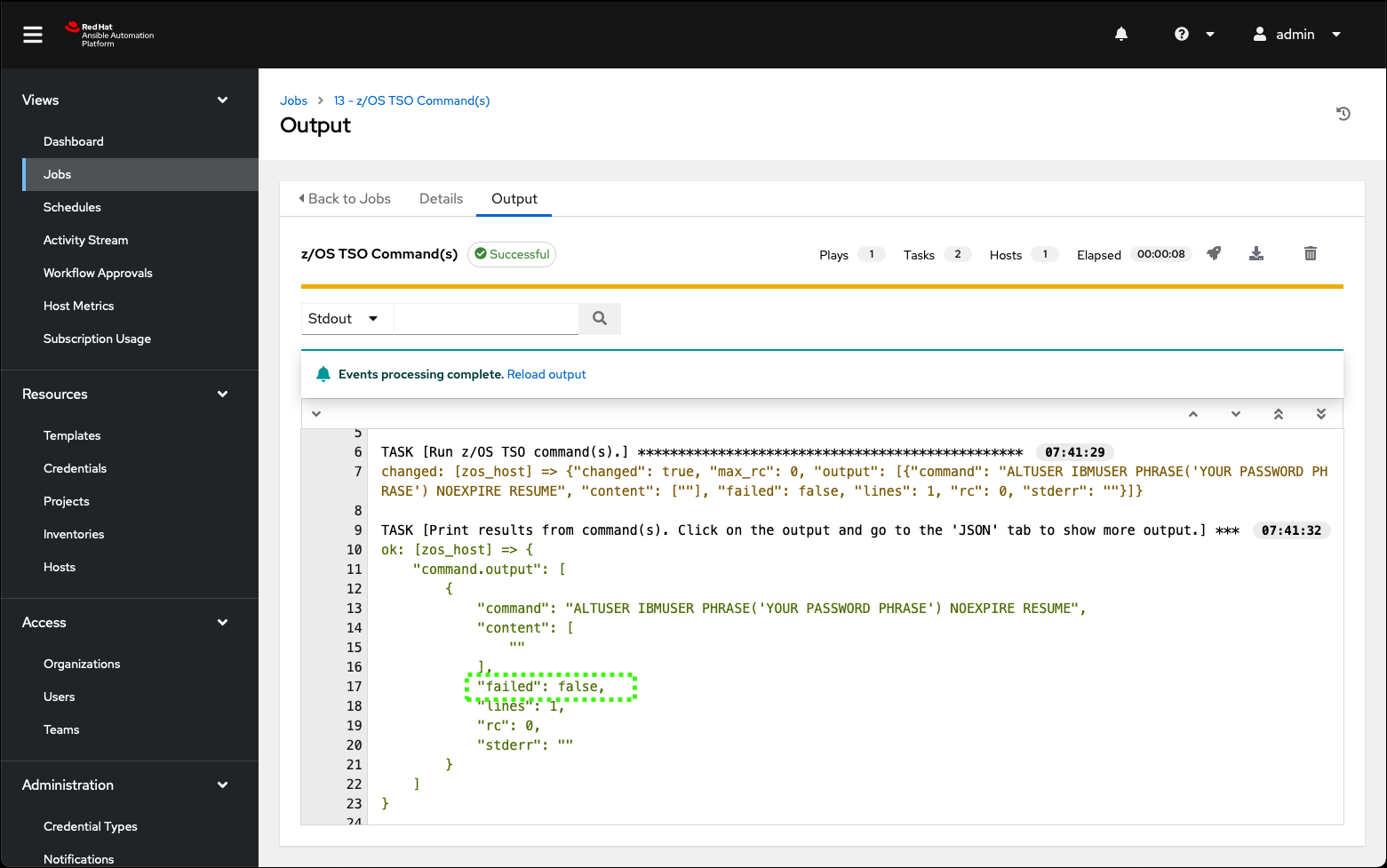

6. Verify that the job is Successful by locating the message "failed": false in the job output.

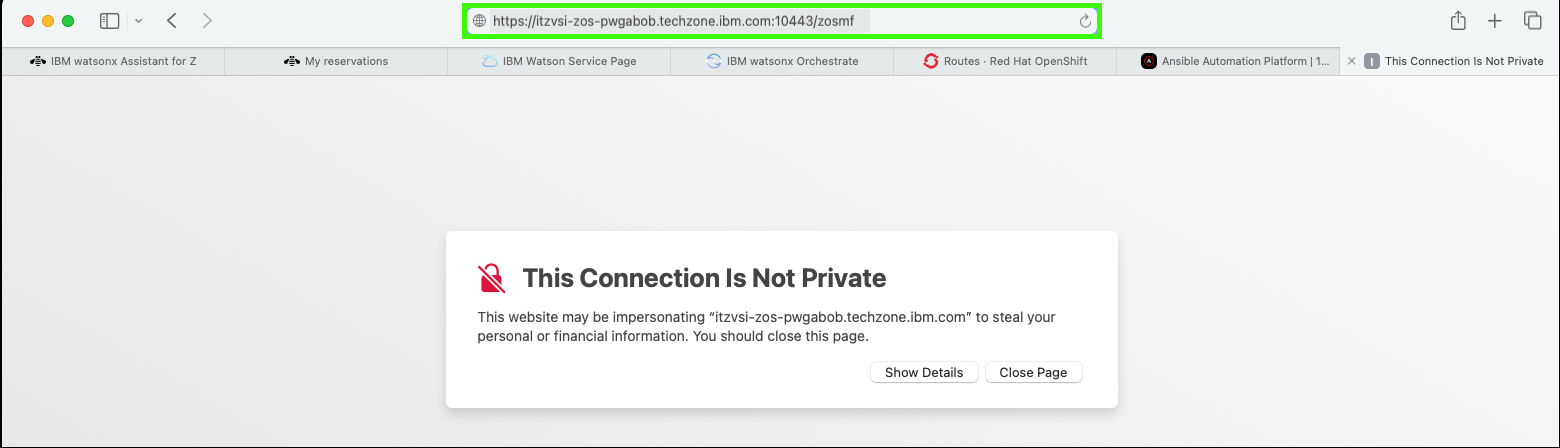

7. Verify that you can log in to z/OSMF in a new browser tab.

   Use the WaaZ URL created earlier and append /zosmf to the string. The URL is similar to: https://itzvsi-zos-pwgabob.techzone.ibm.com:10443/zosmf.



   Accept any connection not private messages to open the page.

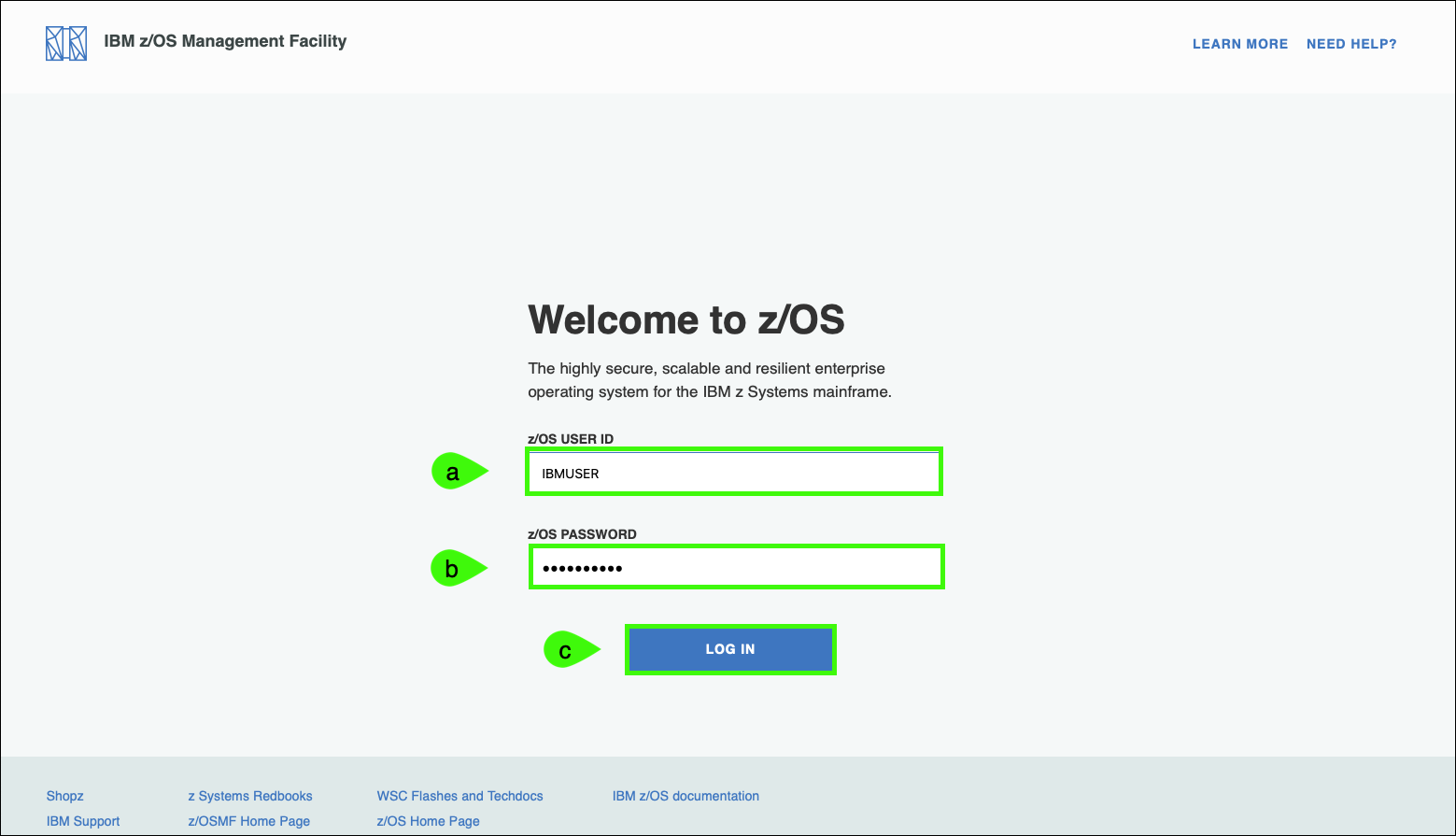

8. Enter (a) IBMUSER for the z/OS USER ID, (b) the password you specified in step 4 for the z/OS PASSWORD, and then (c) click LOG IN.



9. Close the new browser tab after verifying a screen similar to the image that follows is displayed.



Import and publish the pre-packaged skills as an OpenAPI file

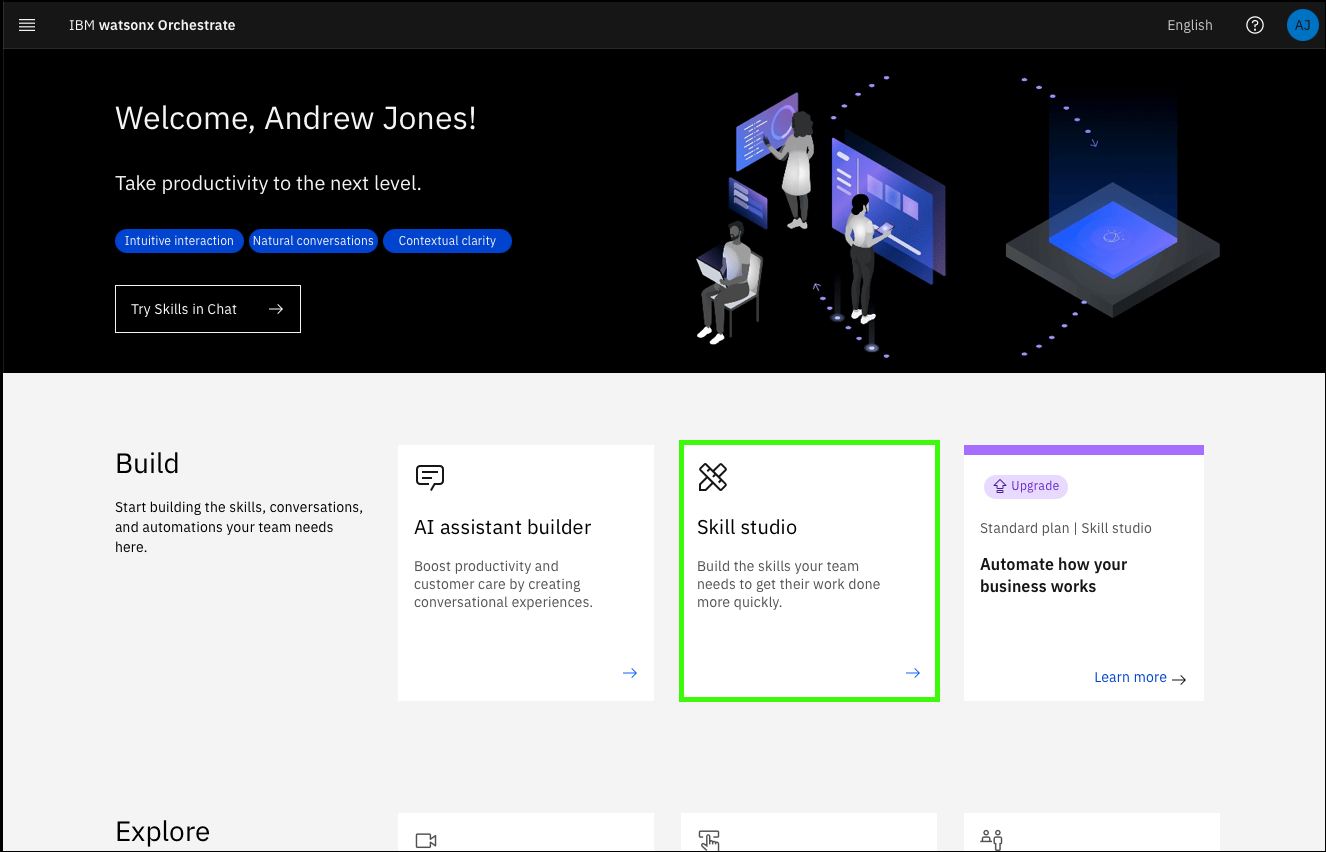

1. Open Skills studio in watsonx Orchestrate.

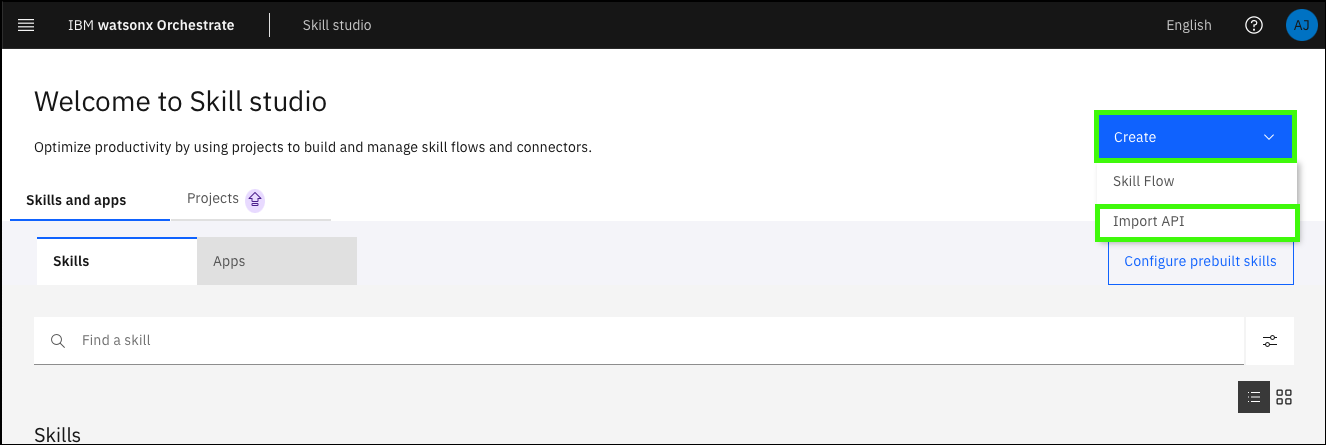

2. Click Create and then click Import API.

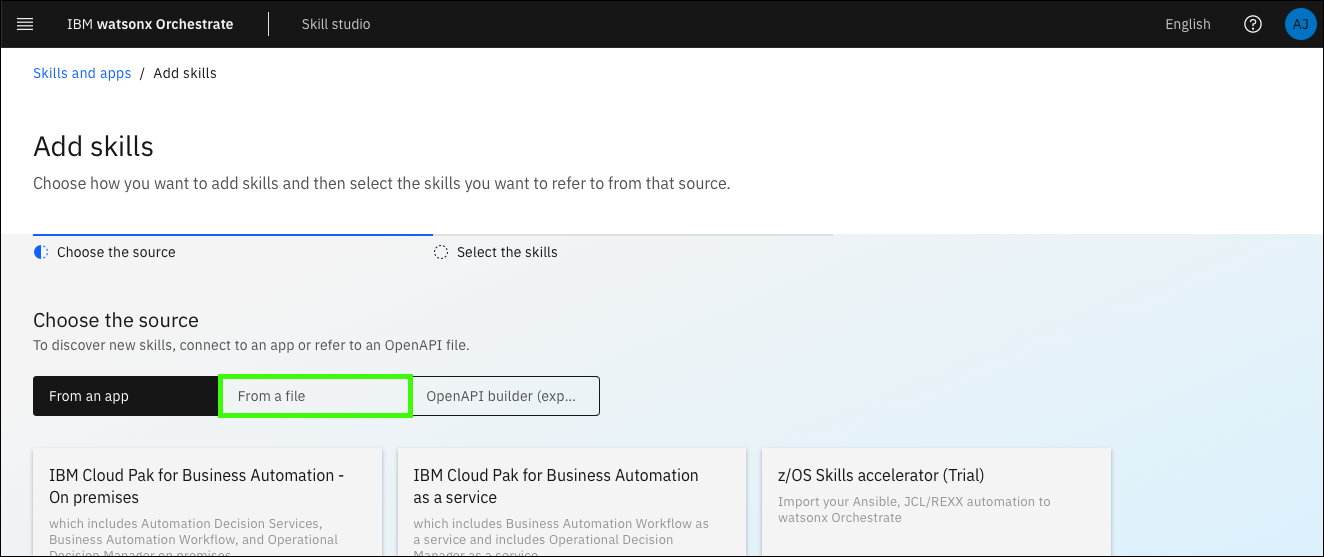

3. Click From a file.

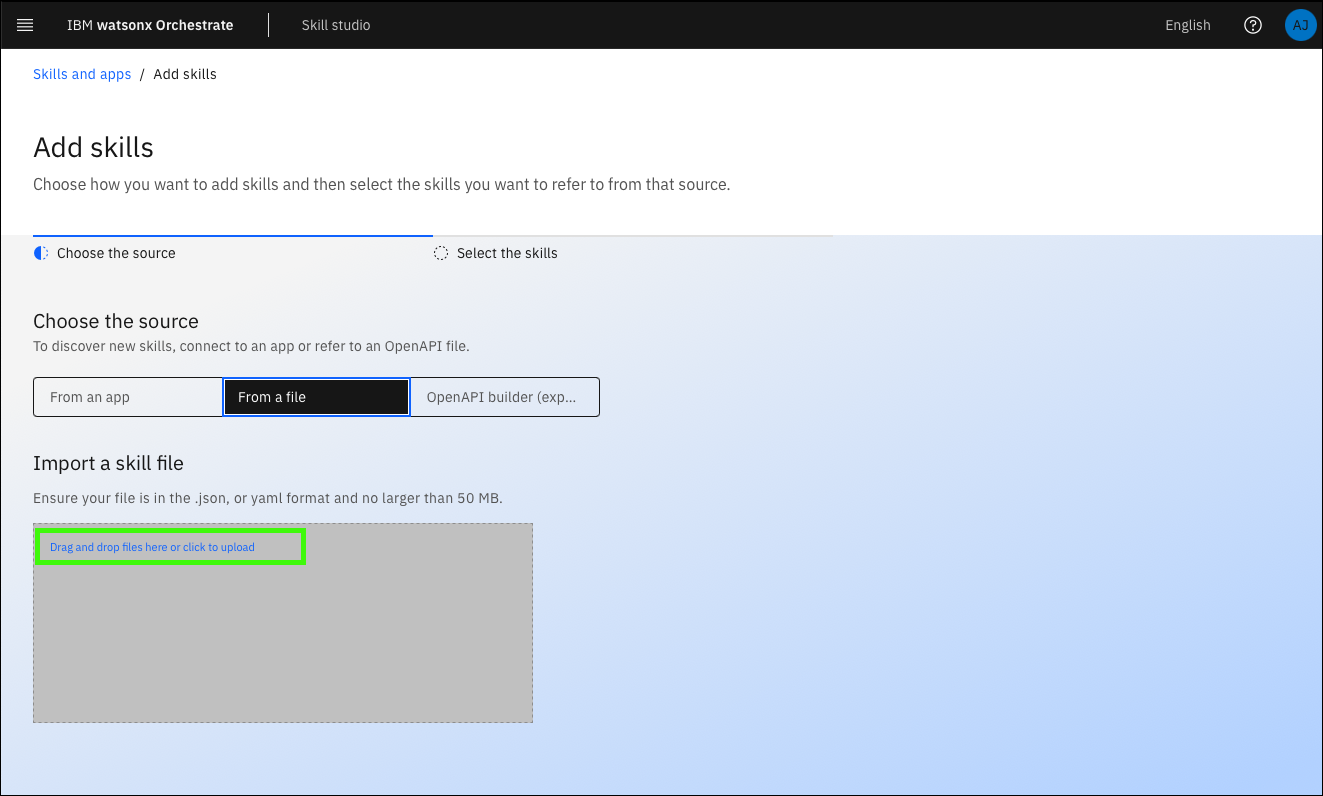

4. Click Drag and drop files here or click to upload in the Import a skill file window.

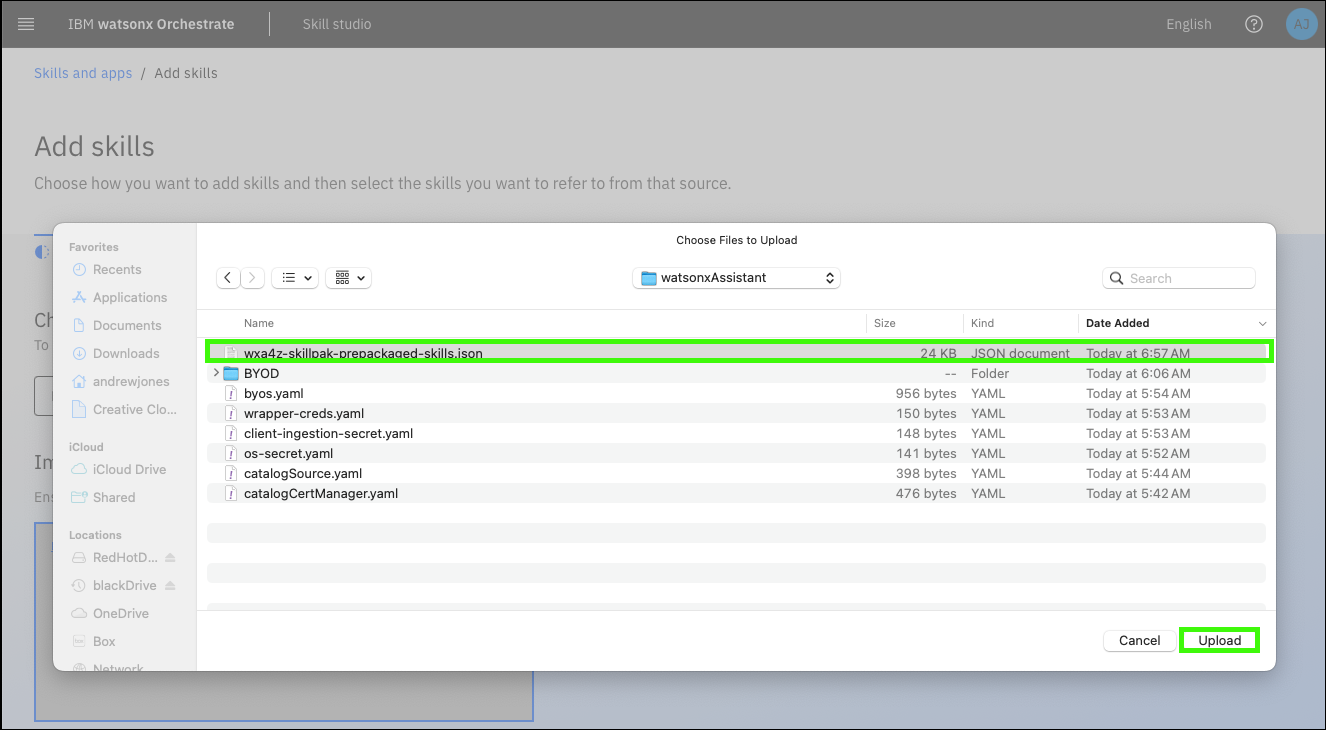

5. Locate and select the JSON file that you modified earlier and then click Upload.

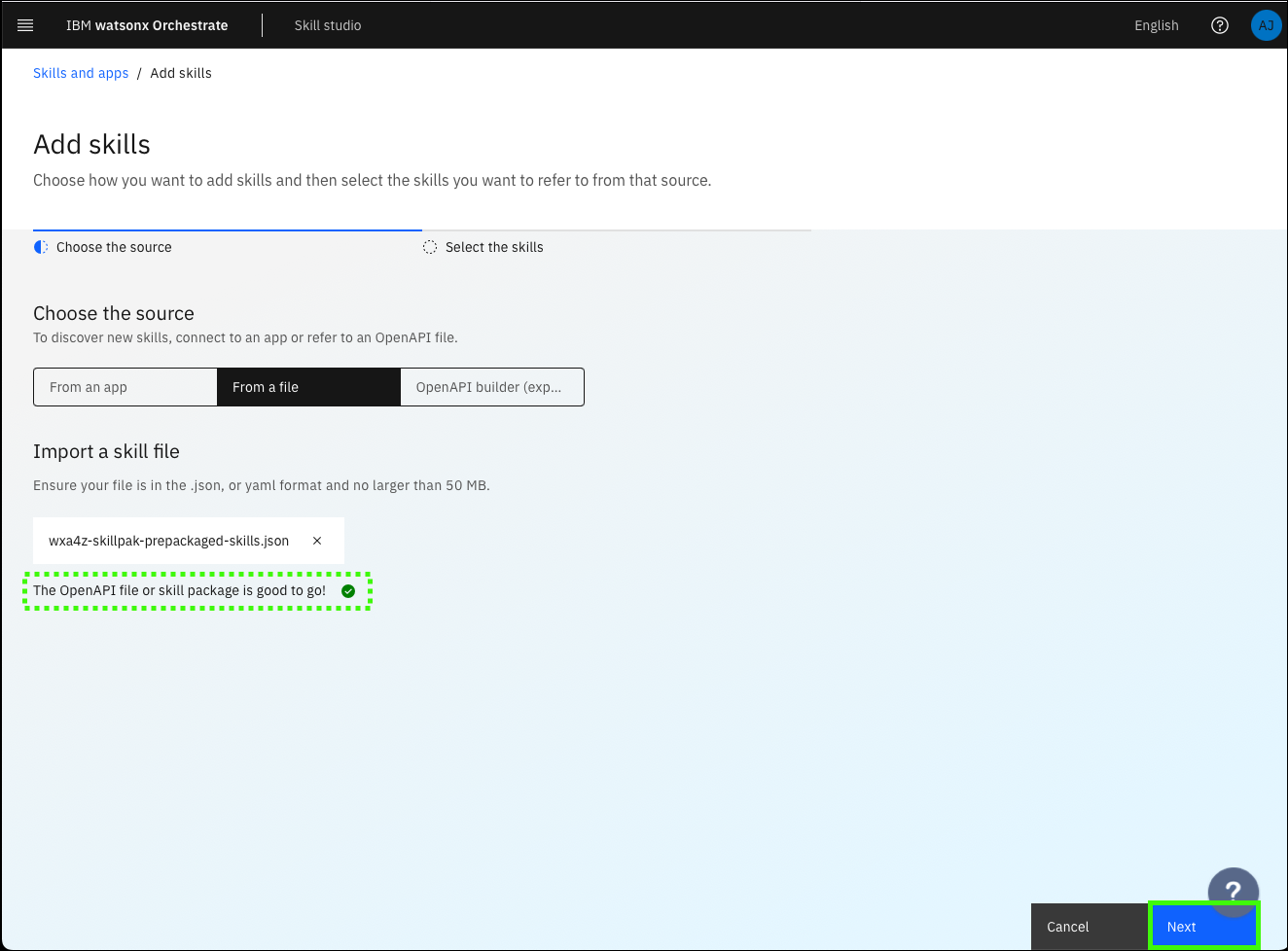

6. Verify that you receive the message The Open file or skill package is good to go! and then click Next.



   Not good to go?

   If the file does not load properly you will need to verify not formatting or errors were made in your json file. Return to the previous section to verify the file contents and then reload the JSON file.

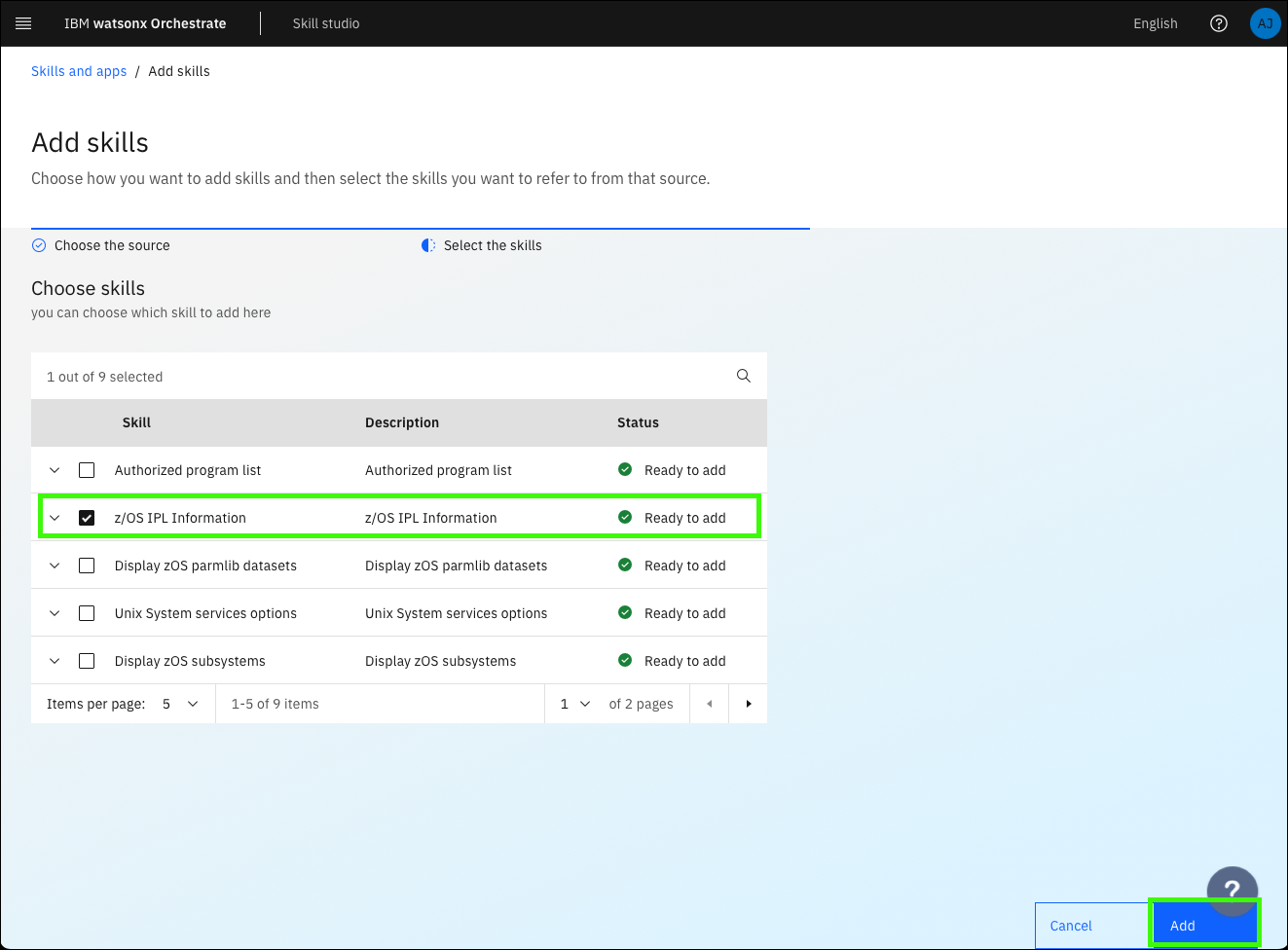

7. Select the z/OS IPL Information skill and then click Add.

   Note: Only the z/OS IPL Information skill is required for this use case, but you can add as many skills as you like for testing purposes.

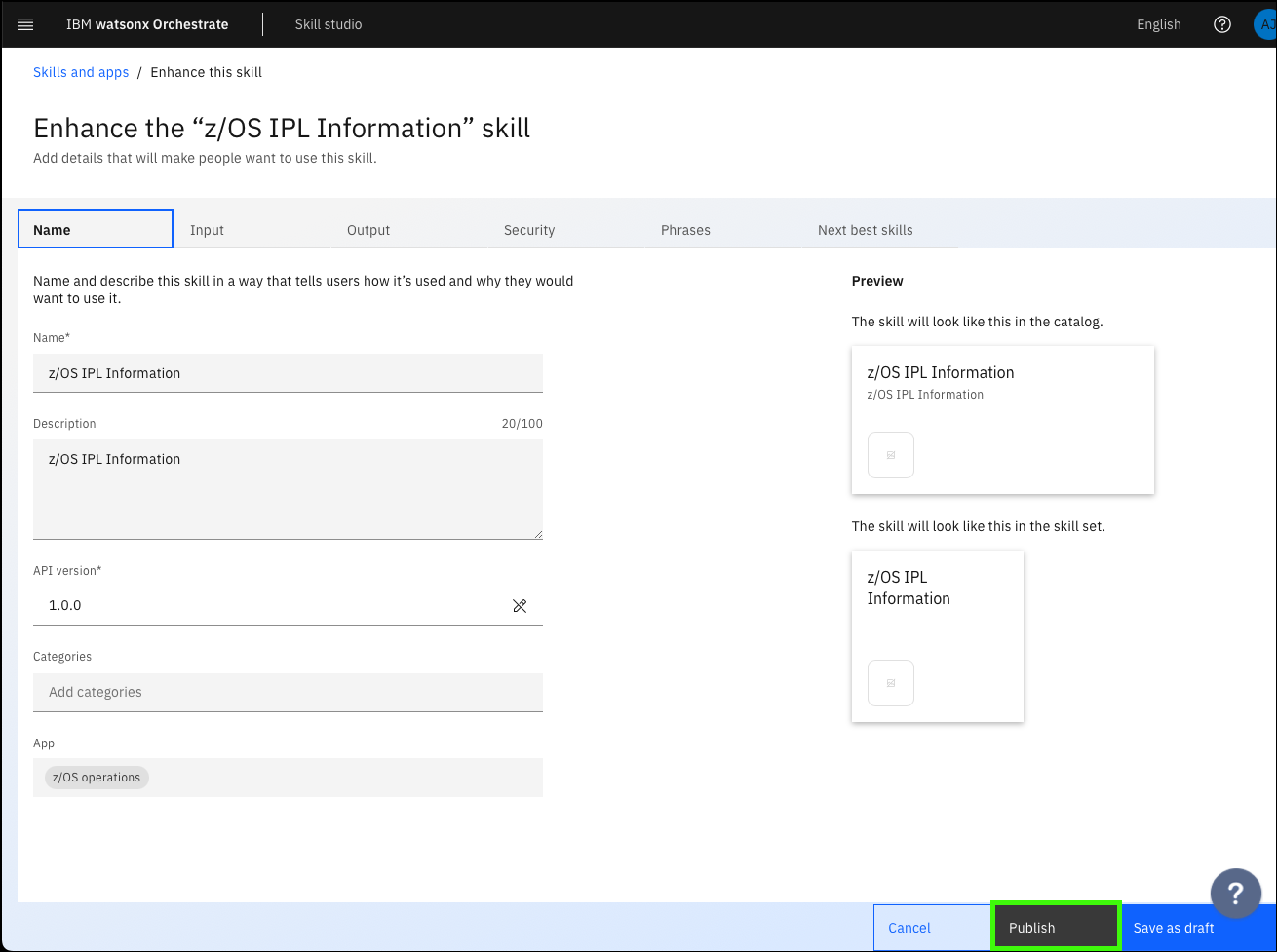

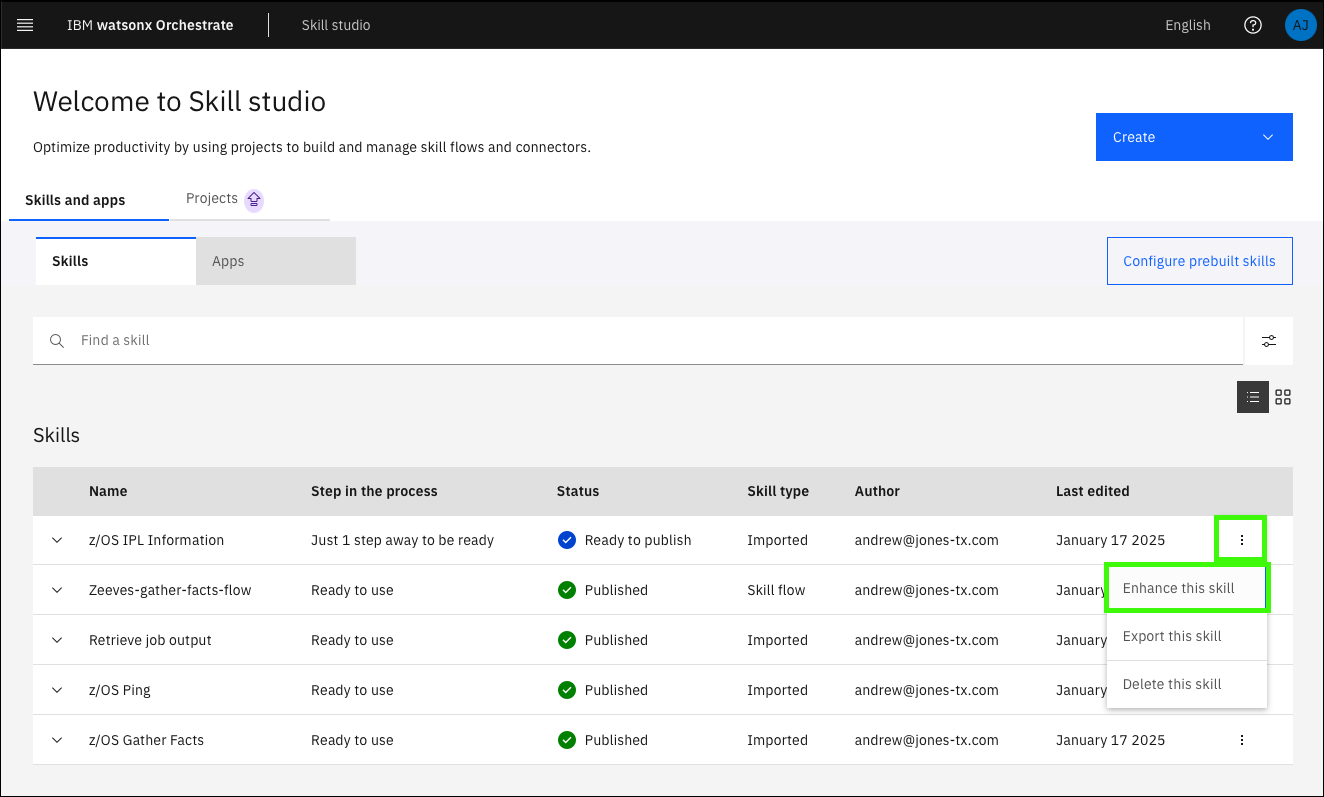

8. Click the ellipses icon () for the z/OS IPL Information skill and then click Enhance this skill.



9. Review the skill enhancements options and then click Publish.



10. If you added other skills in step 7, repeat the previous 2 steps for each skill added.

Configure your appURL to connect to the WaaS server

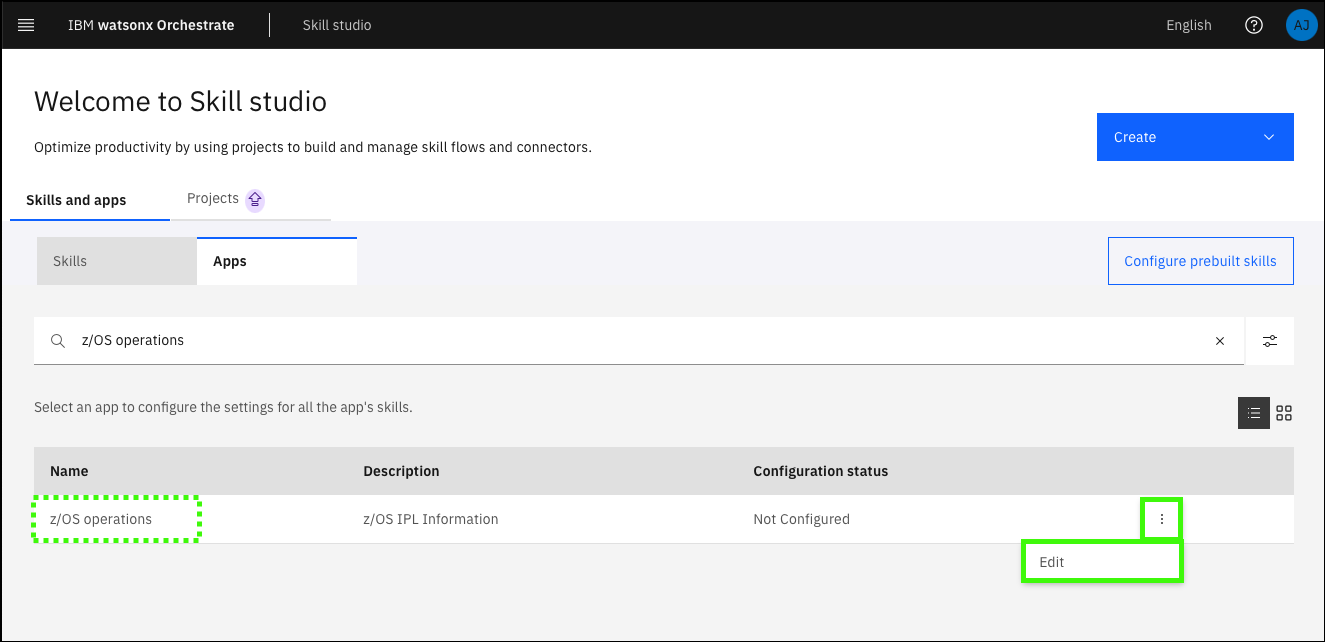

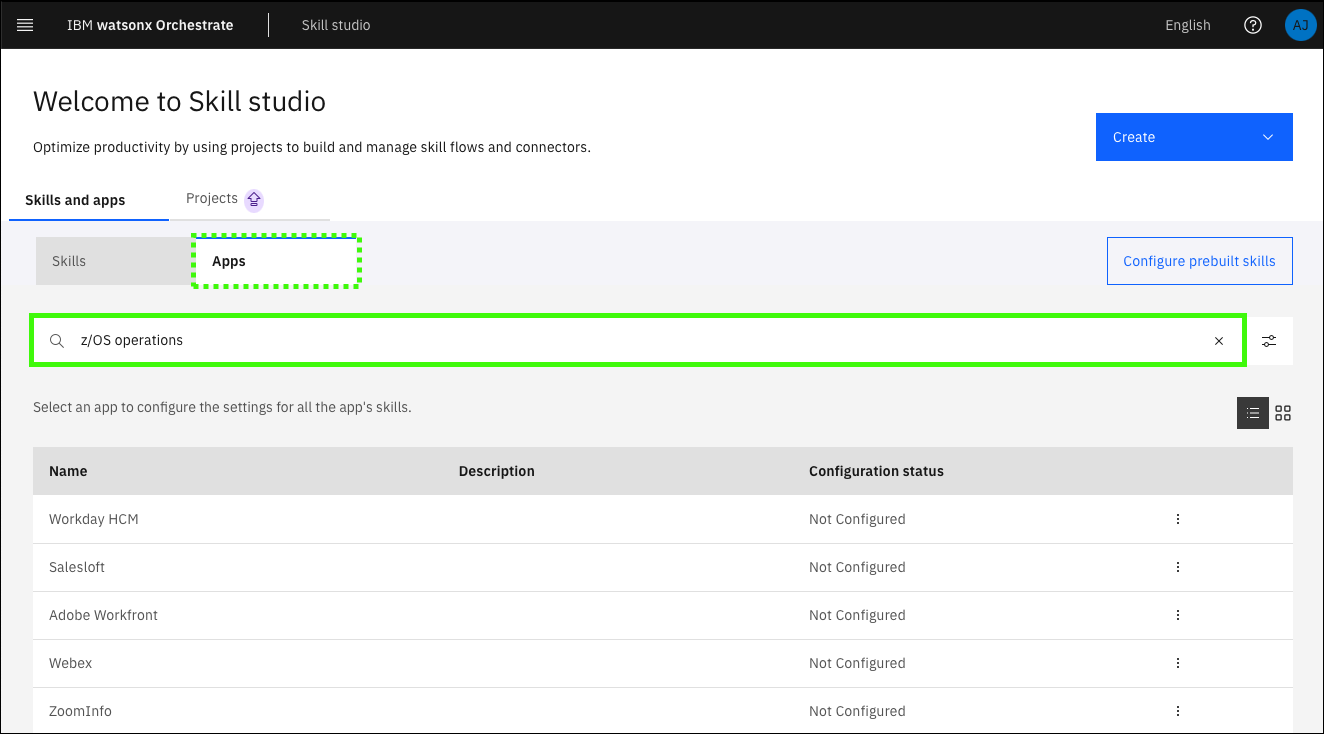

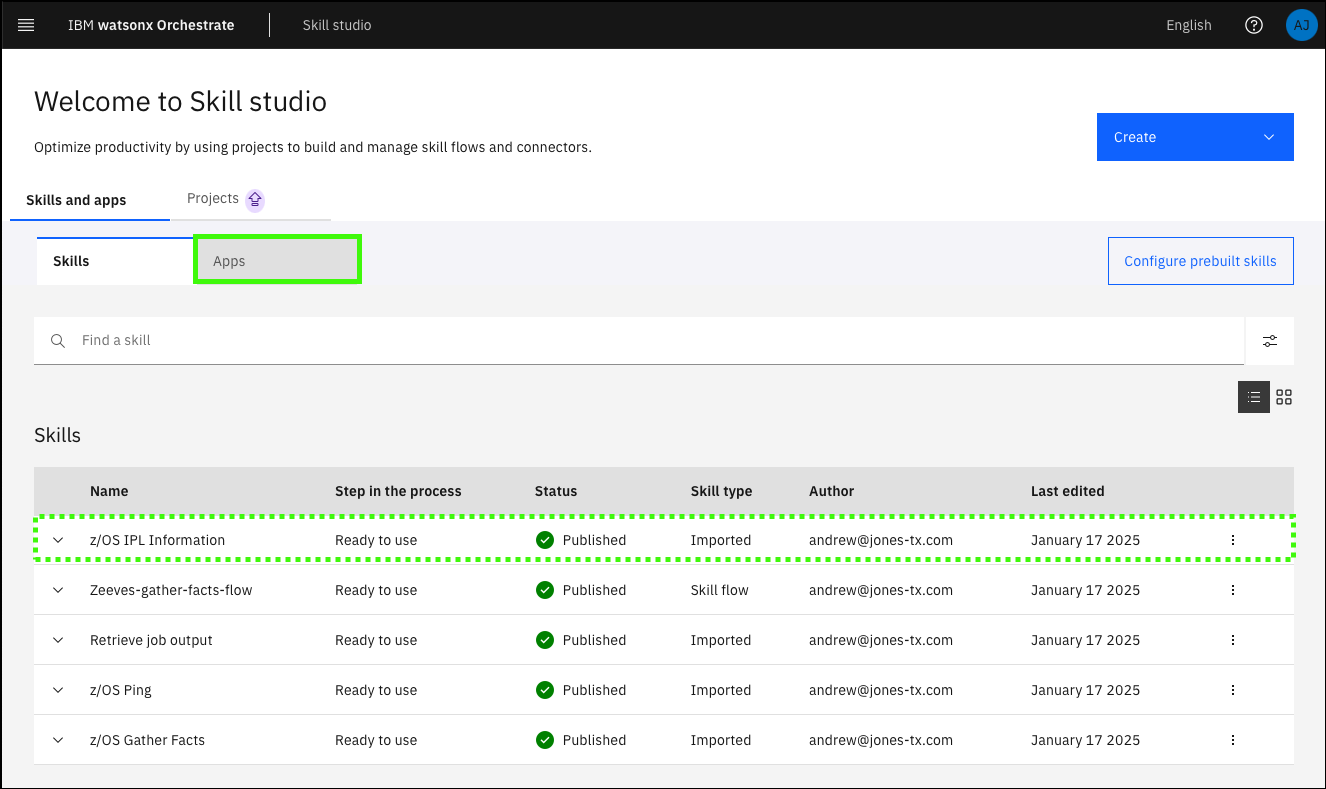

1. In Skill studio, click the Apps tab.



2. In the search field, enter the name of the application in the search field. Unless you modified the info section of the JSON file, the default name is z/OS operations.



3. Click the ellipses icon () for the z/OS Operations and then click Edit.

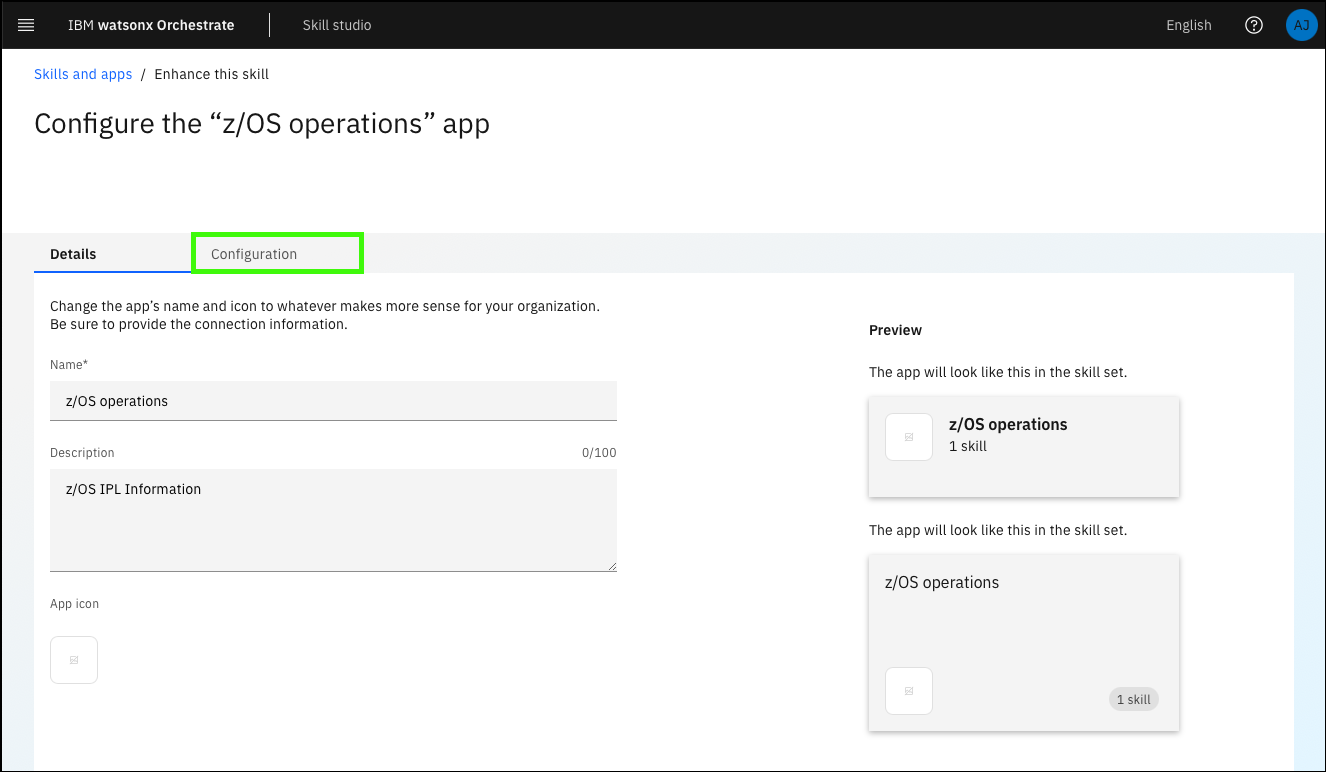

4. Click the Configuration tab.

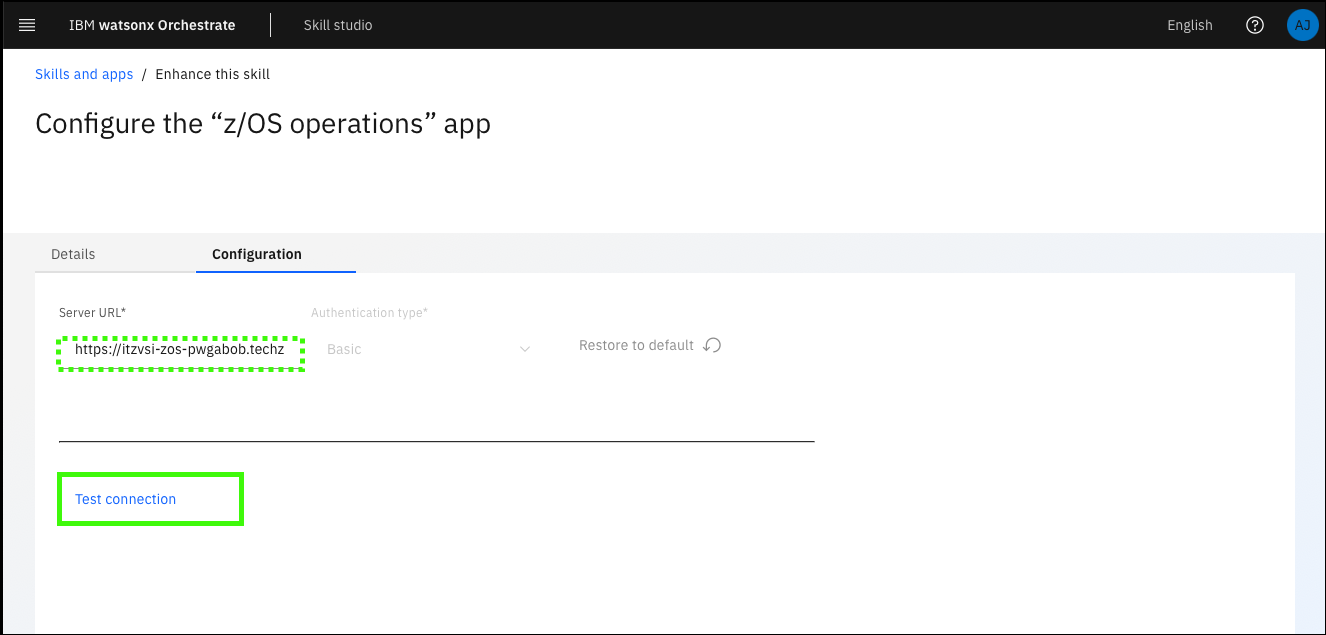

5. Click Test connection.

   Note: the Server URL field must match the URL you created for your WaaS server. It is similar to: https://itzvsi-zos-pwgabob.techzone.ibm.com:10443.

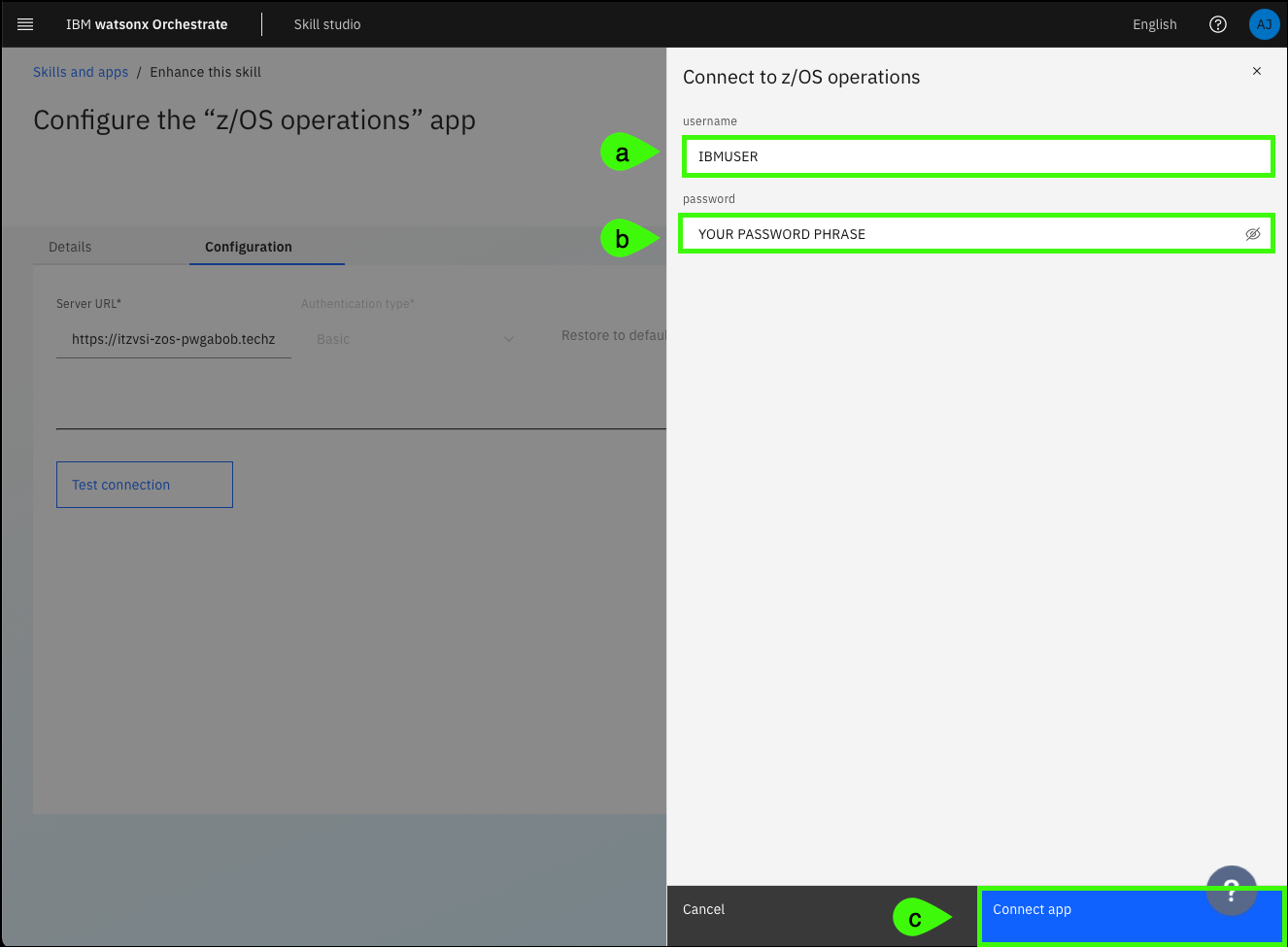

6. Enter (a) IBMUSER in the username field, (b) your WaaS password created earlier in the password field, and then (c) click Connect app.

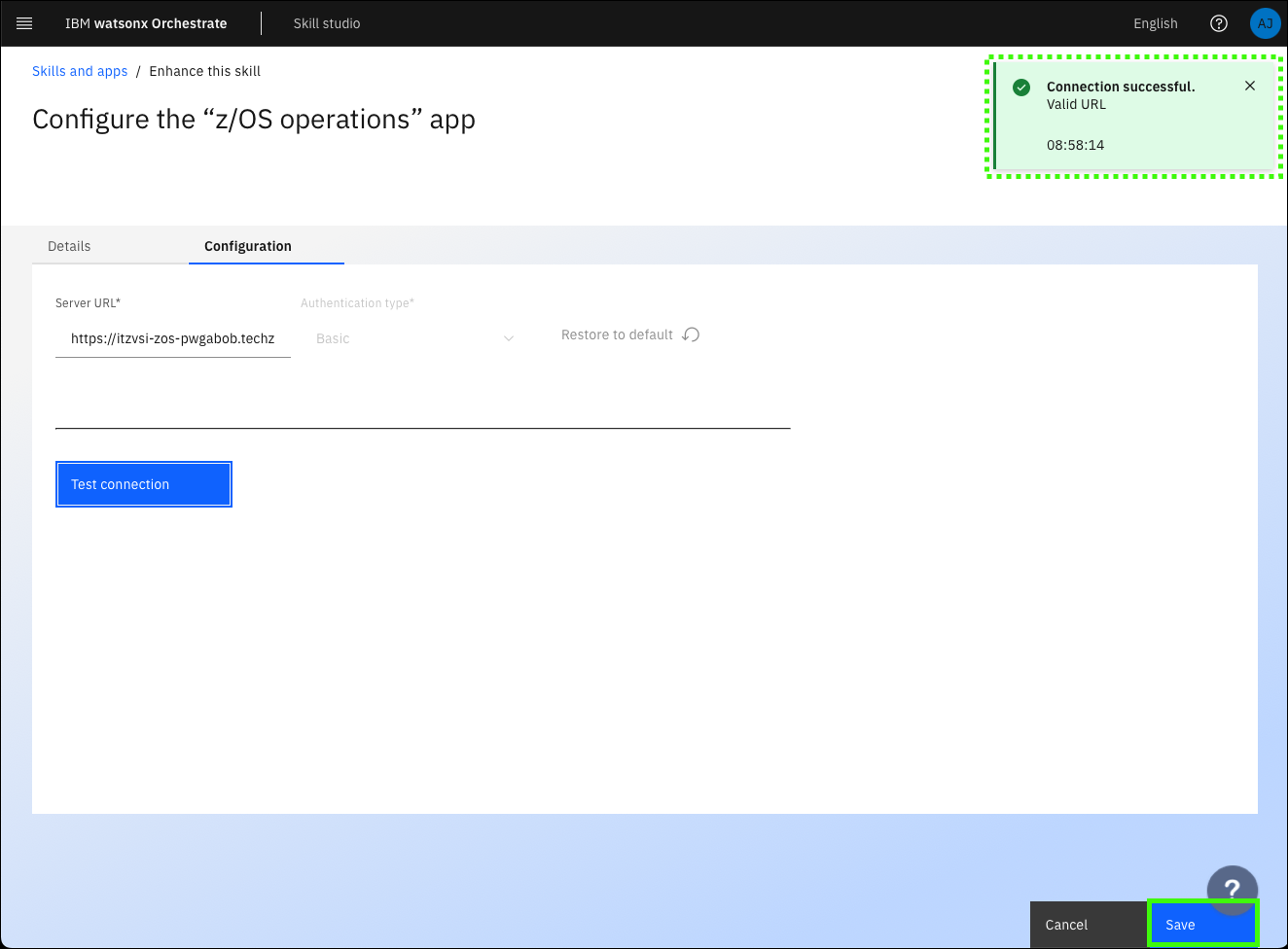

7. Verify that the connection is successful and then click Save.

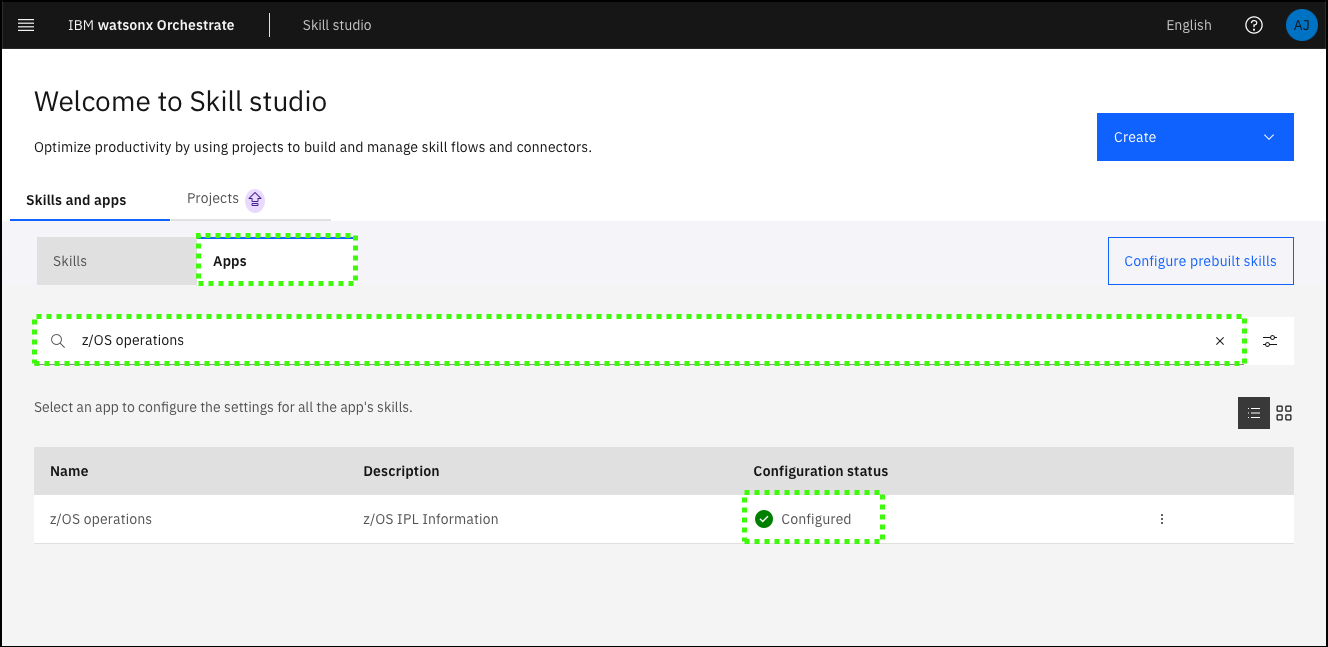

8. Repeat step 2 above to verify that the Configuration status is Configured.



Test the skill

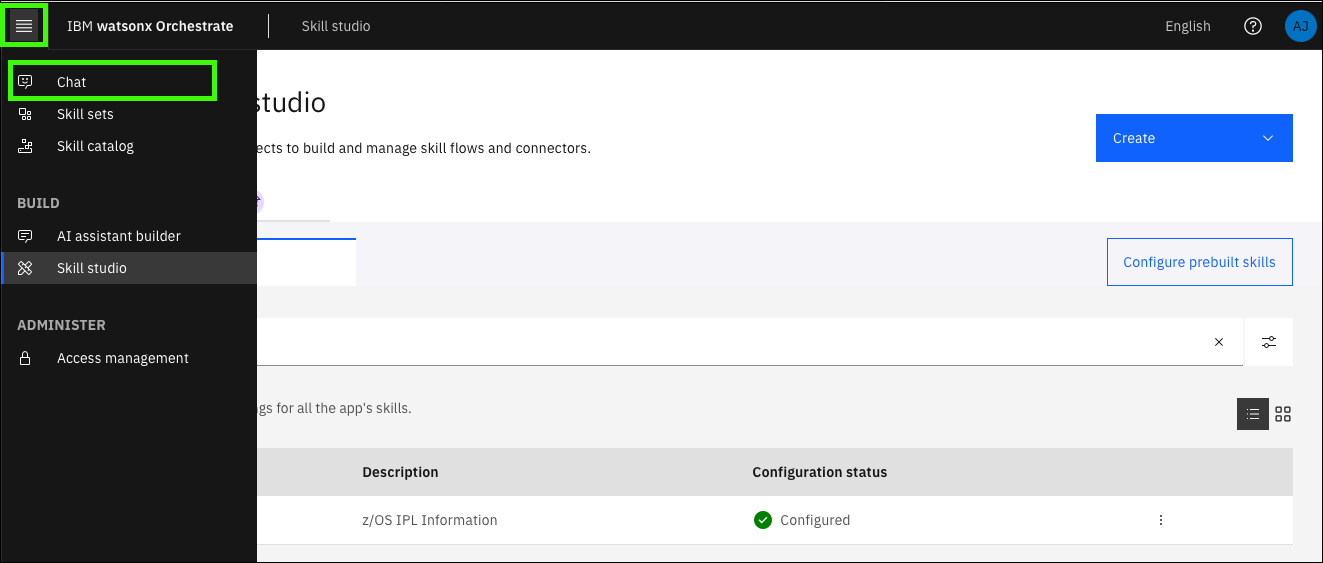

1. Open Chat in watsonx Orchestrate.

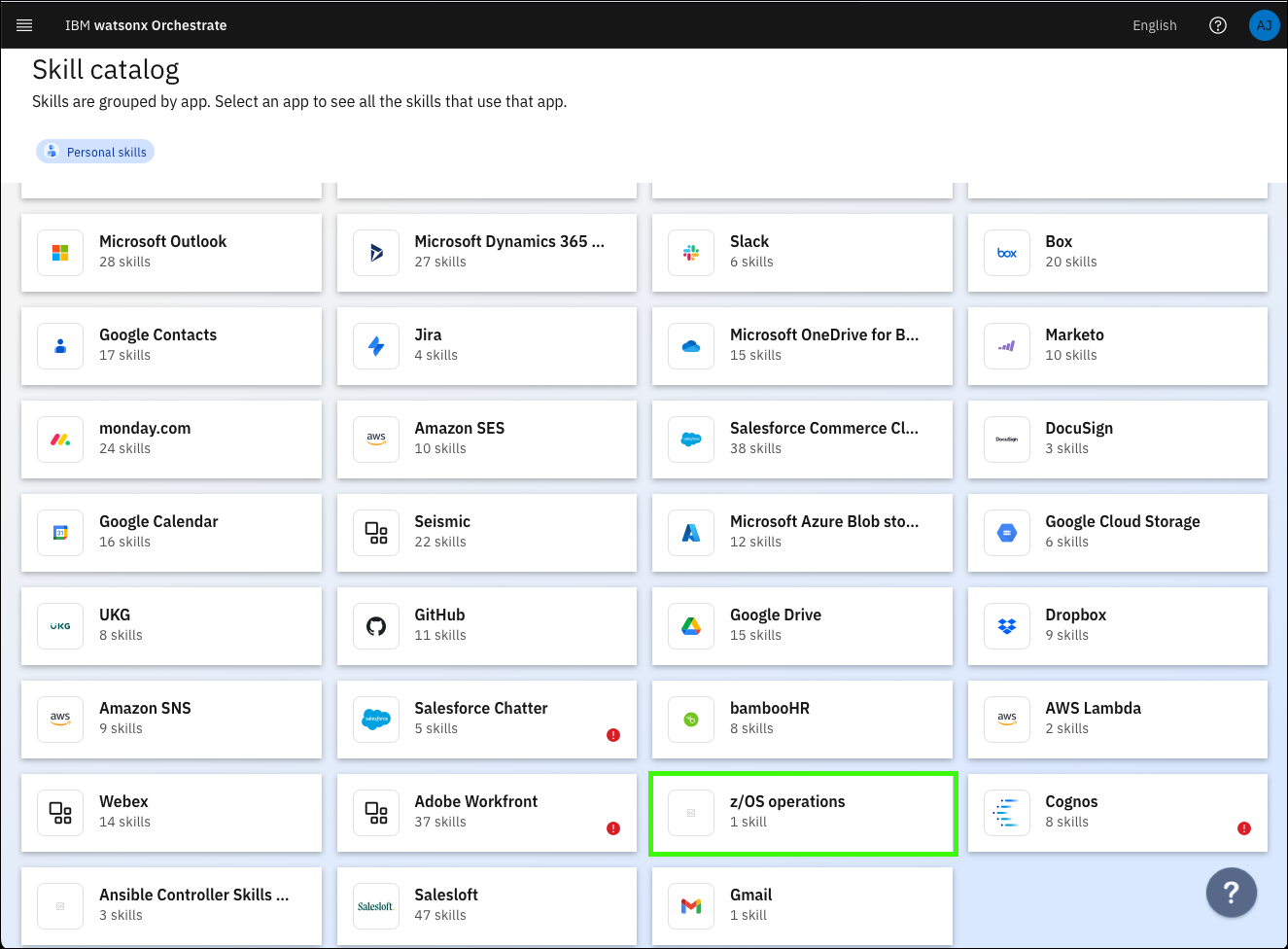

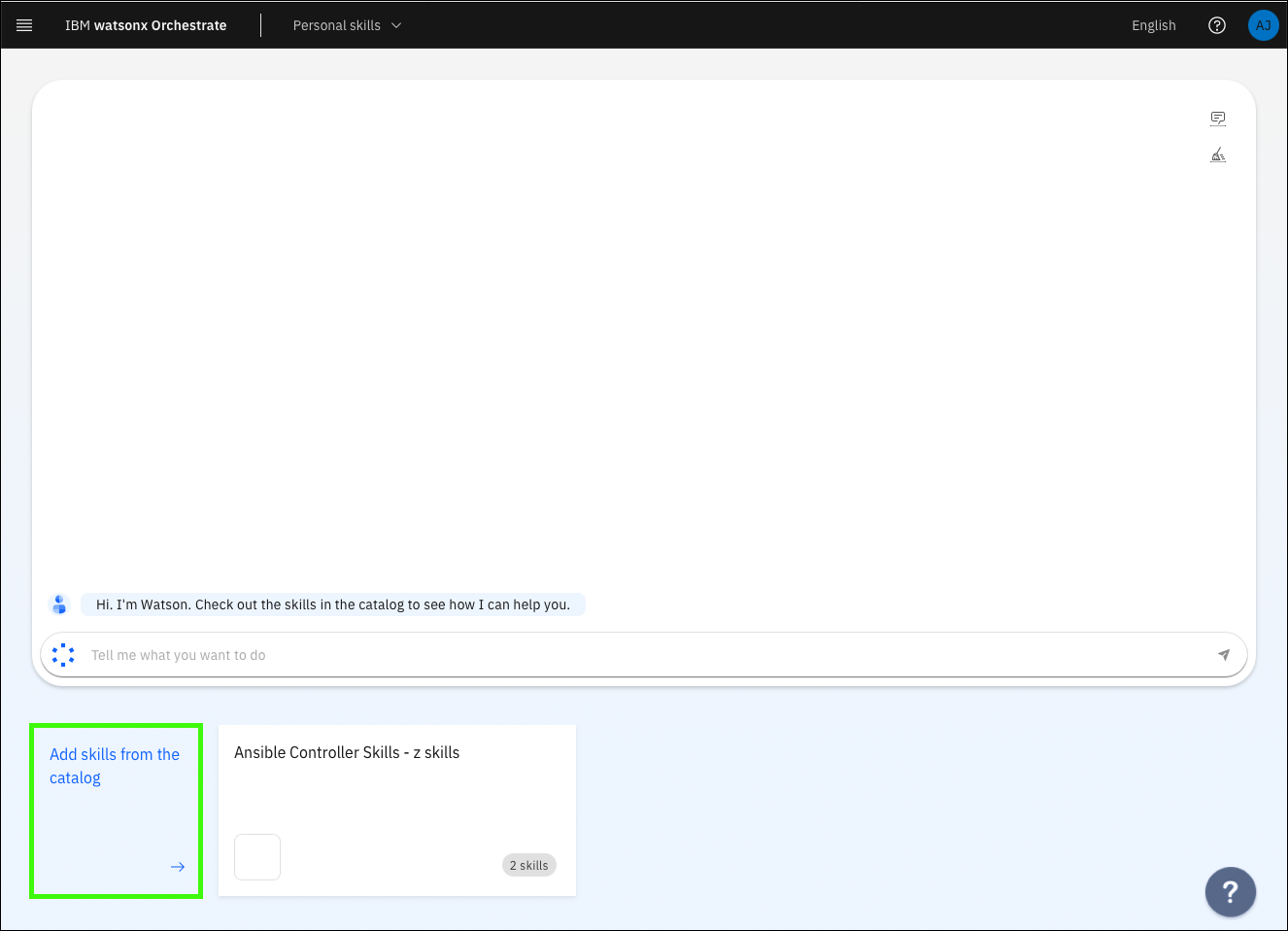

2. Click Add skills from the catalog.

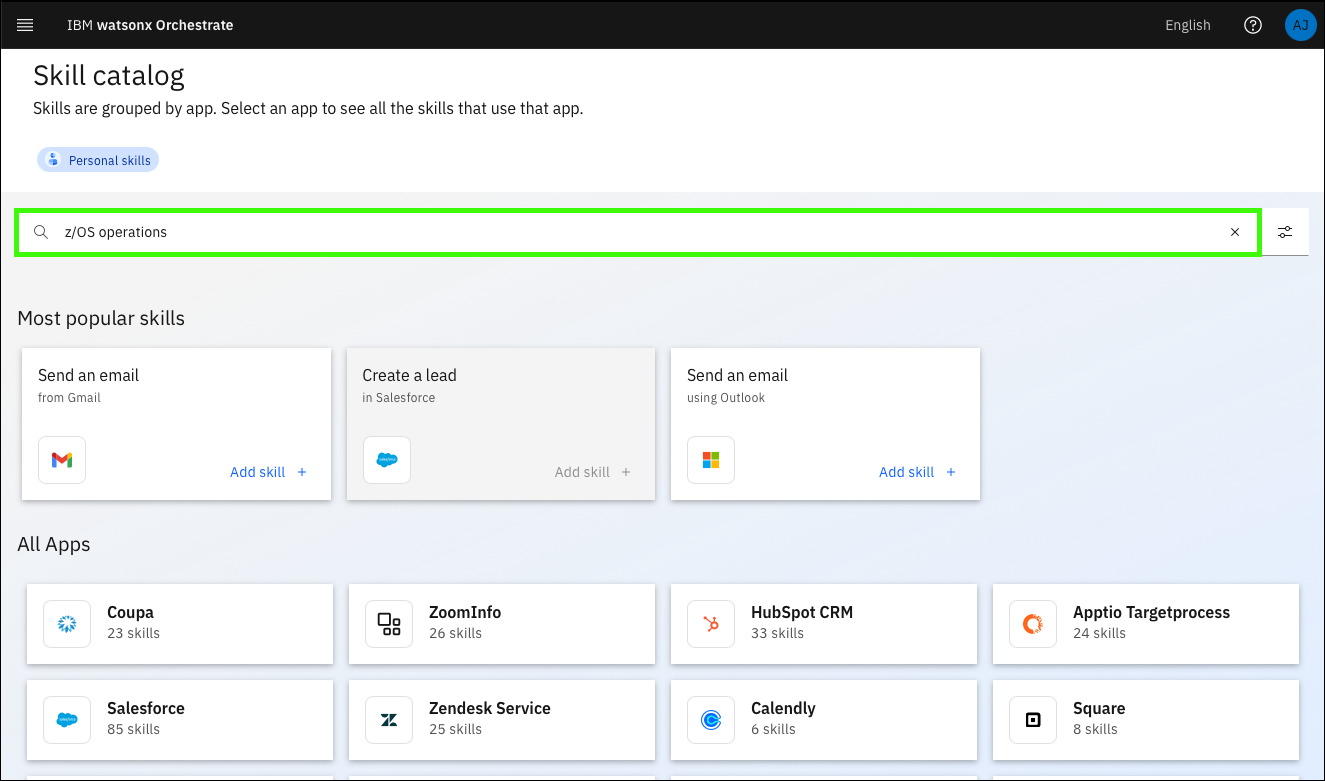

3. In the search apps field, enter the name of the application. Unless you modified the info section of the JSON file, the default name is z/OS operations.



4. Locate and click the tile for your app (z/OS operations).

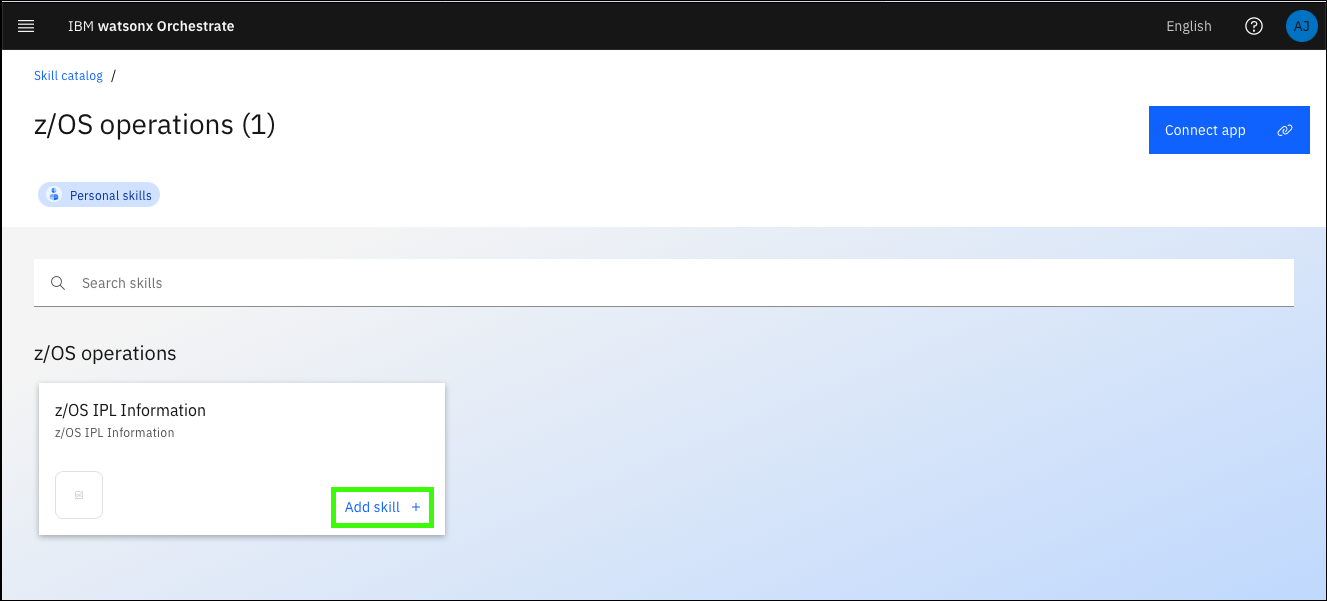

5. Click Add skill + for the z/OS IPL Information skill.



6. Repeat step 5 for any additional skills you added to the app.

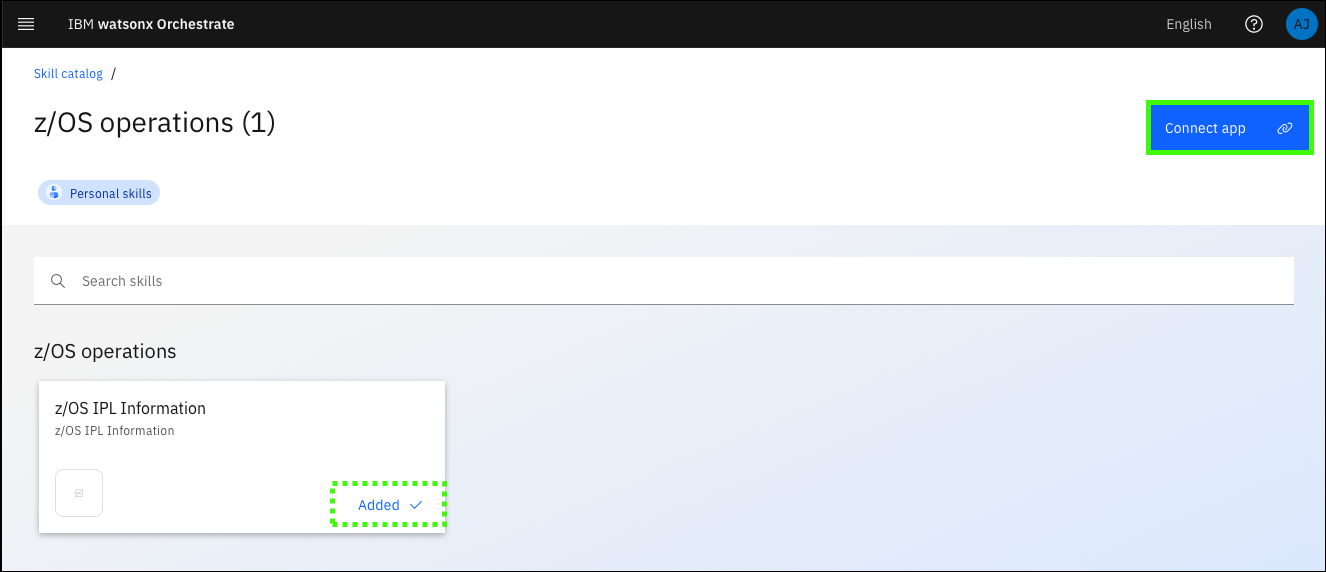

7. Click Connect app.

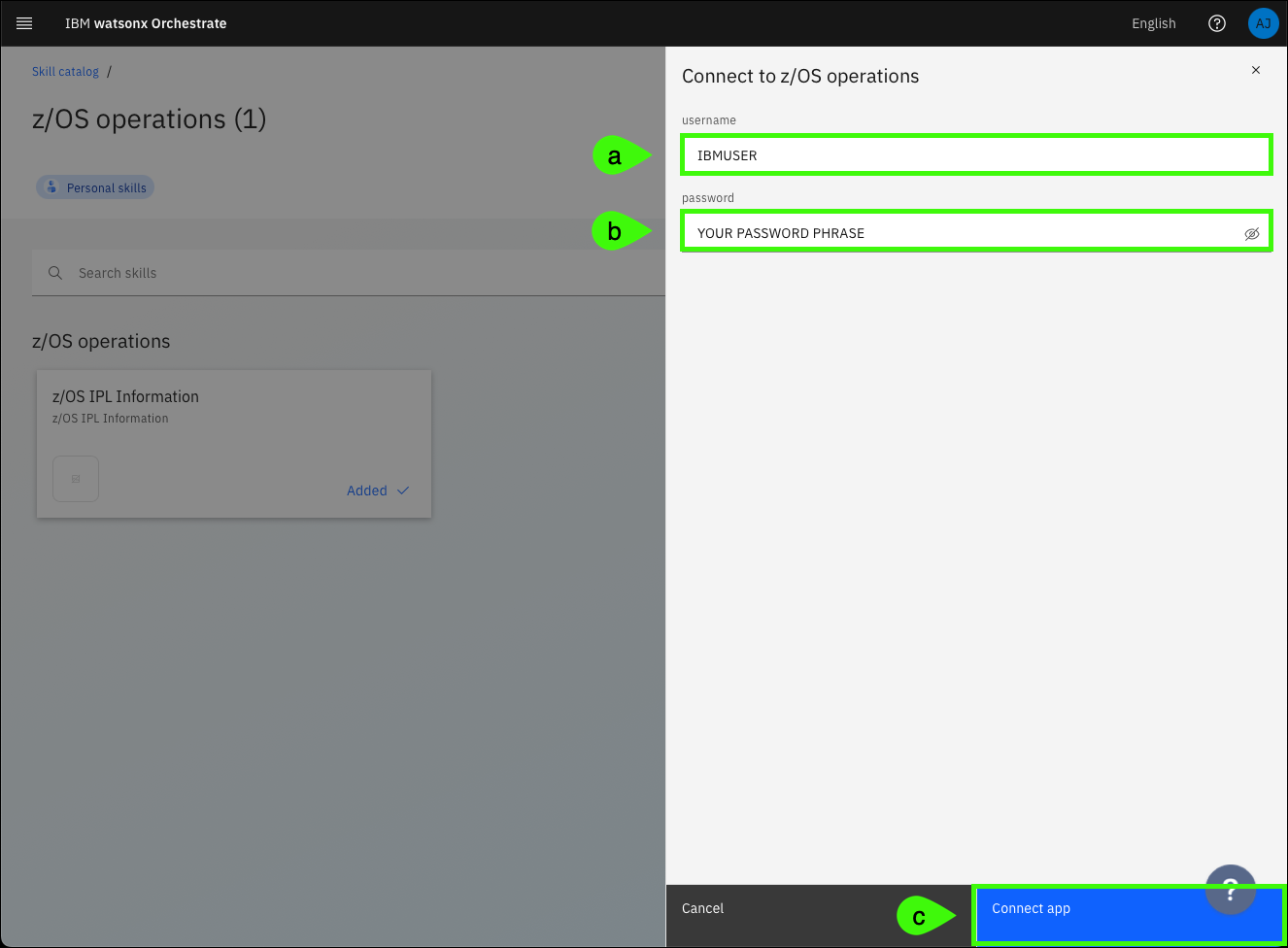

8. Enter (a) IBMUSER in the username field, (b) your WaaS password created earlier in the password field, and then (c) click Connect app.

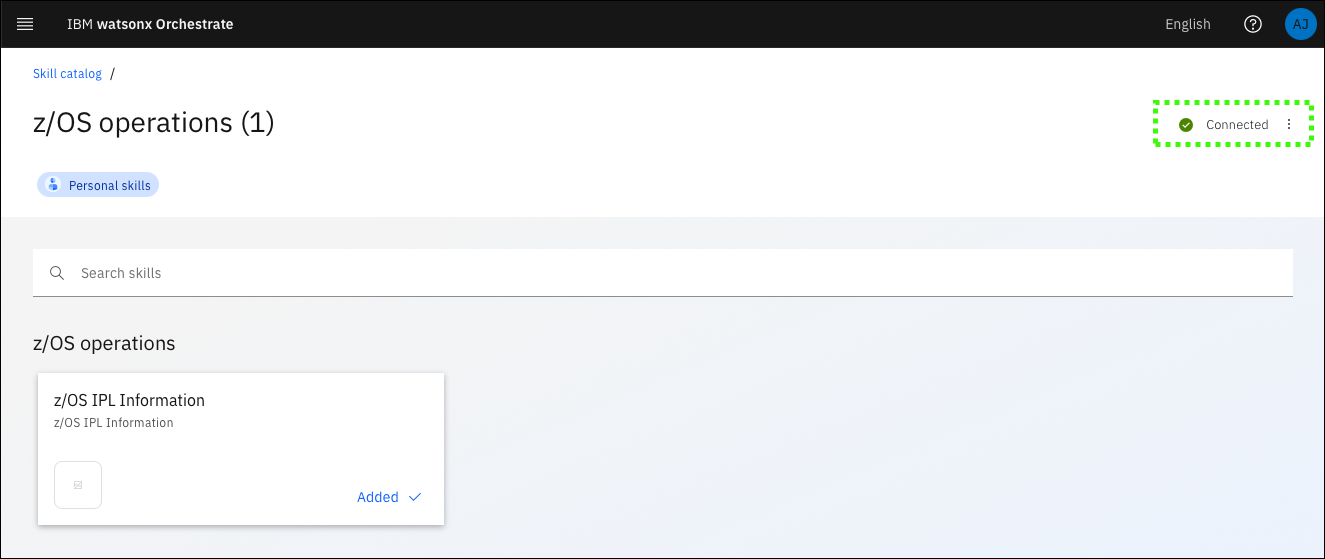

9. Verify that the skill is connected.

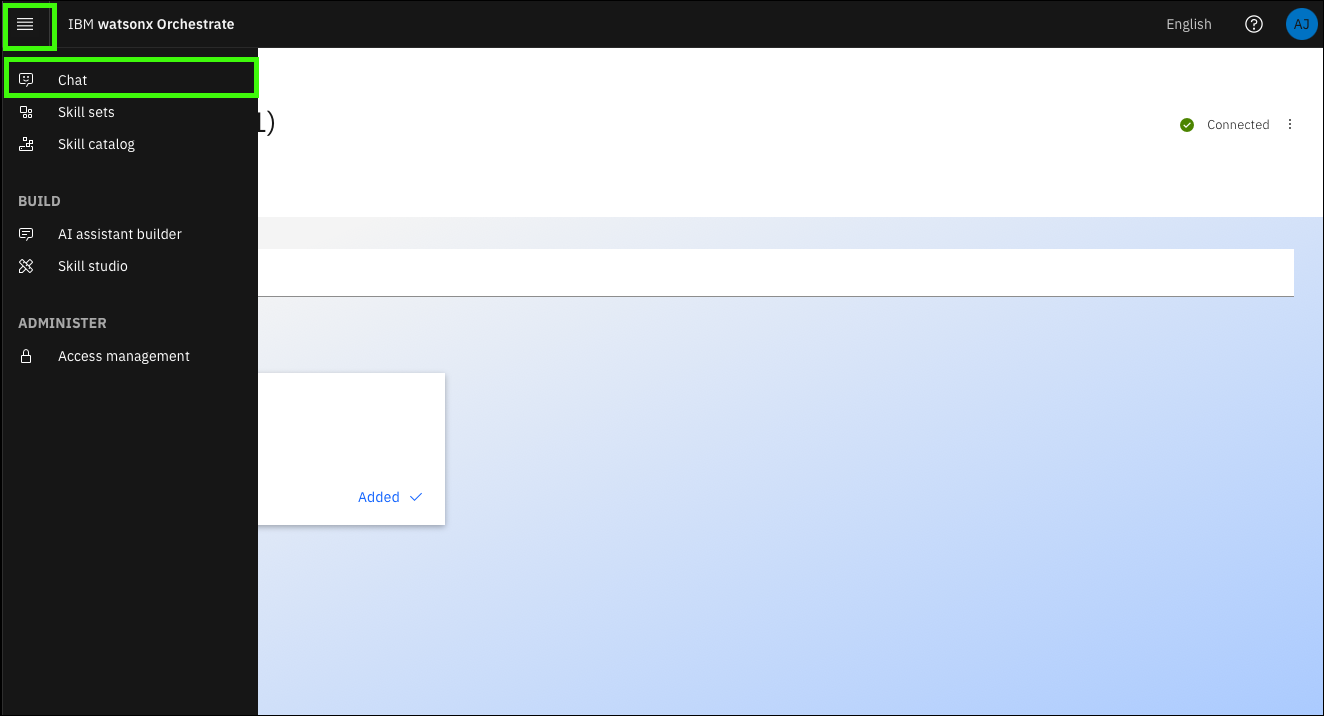

10. Open Chat in watsonx Orchestrate.

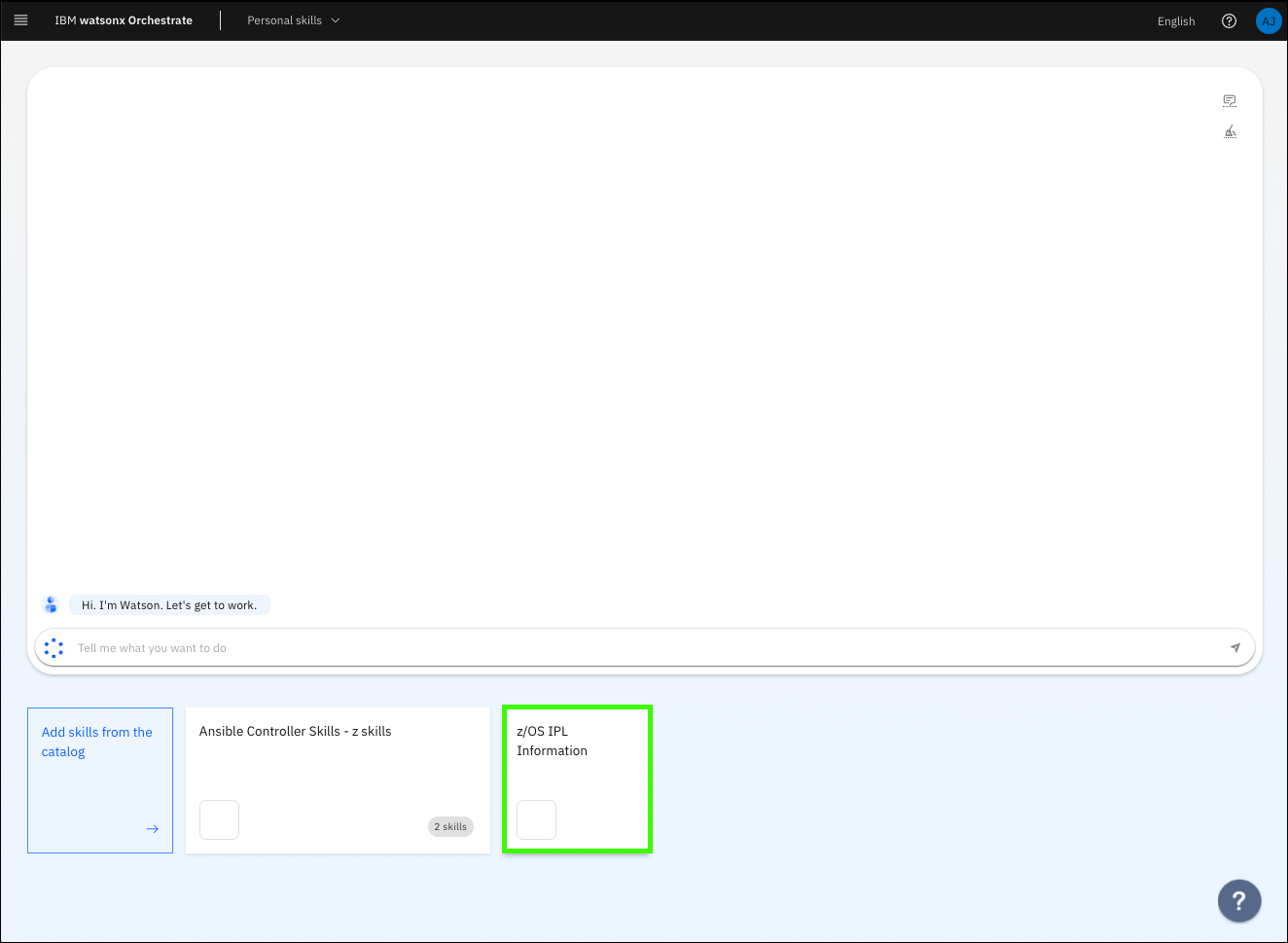

11. Click the z/OS IPL Information tile.



    The name of the tile may be different.

    If you added multiple skills to your app, the tile name may be z/OS operations and the number of skills included will be shown.

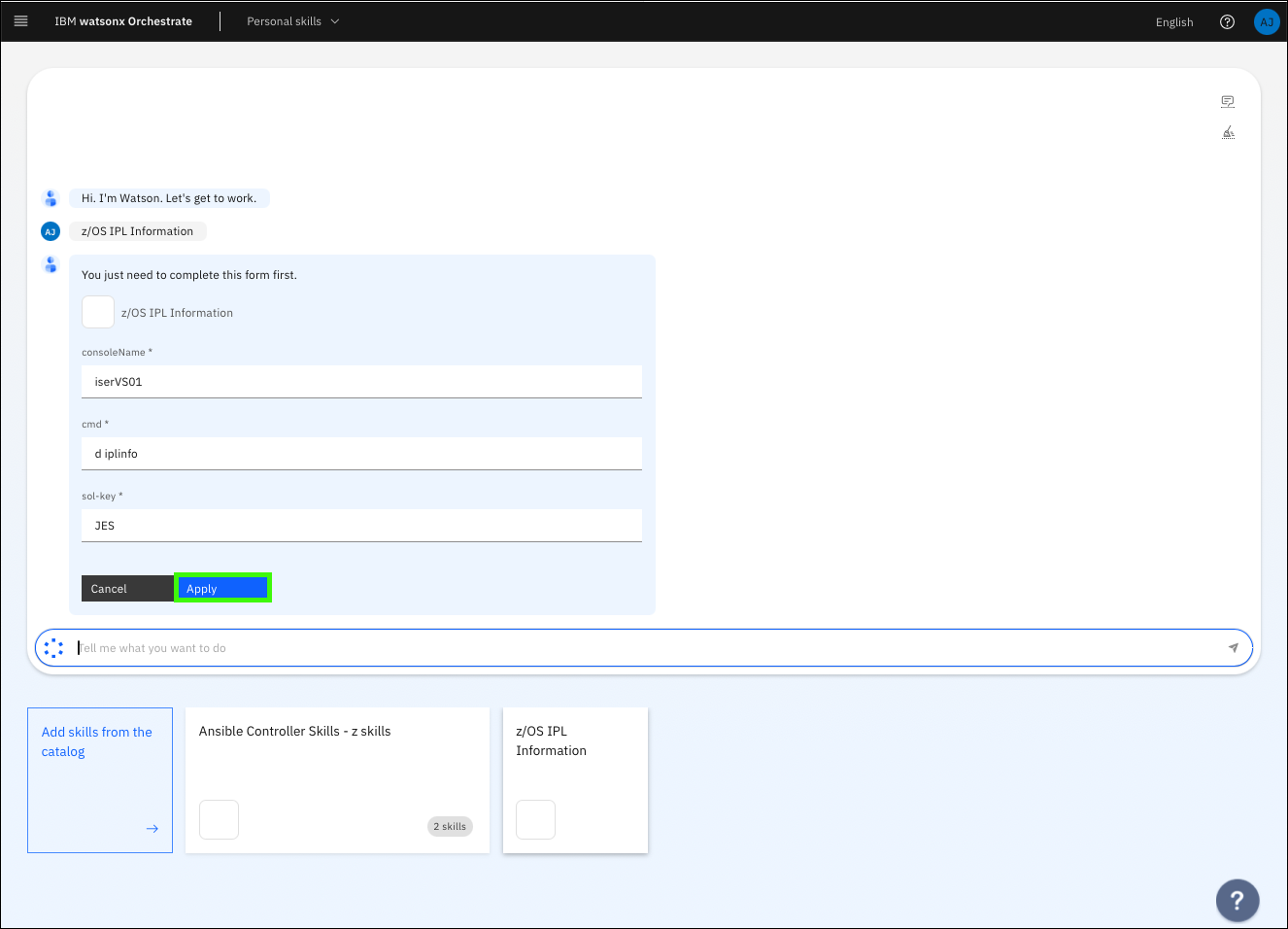

12. Using the defaults in the form, click Apply.

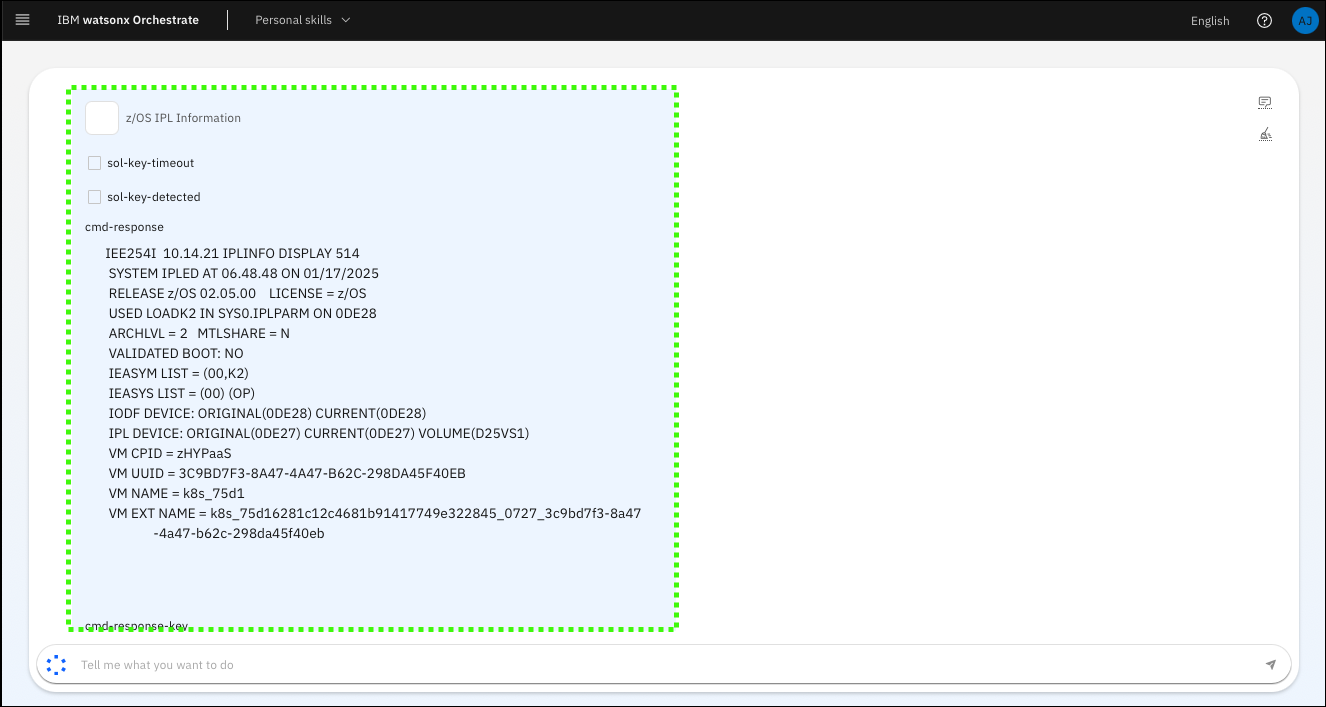

13. Review the returned information.

    The provided output shows information the early-tenure SysProg needs to prepare for an IPL on their z/OS LPAR. For example, the date and time the system was last IPL’ed, the z/OS release level, the IPL volume, the IPL LOAD PARM used during the IPL, and other details.

    If you loaded other pre-packaged skills, test them now.



Connect the app to your assistant

Before configuring the z/OS IPL Information skill as an assistant action, the app containing the skill must first be connected to the assistant.

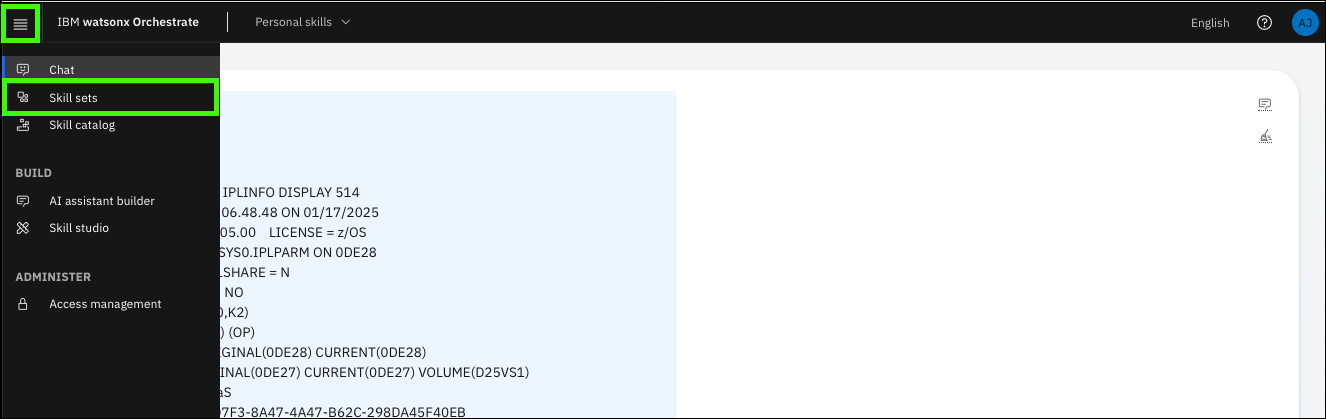

1. Open Skill sets in watsonx orchestrate.

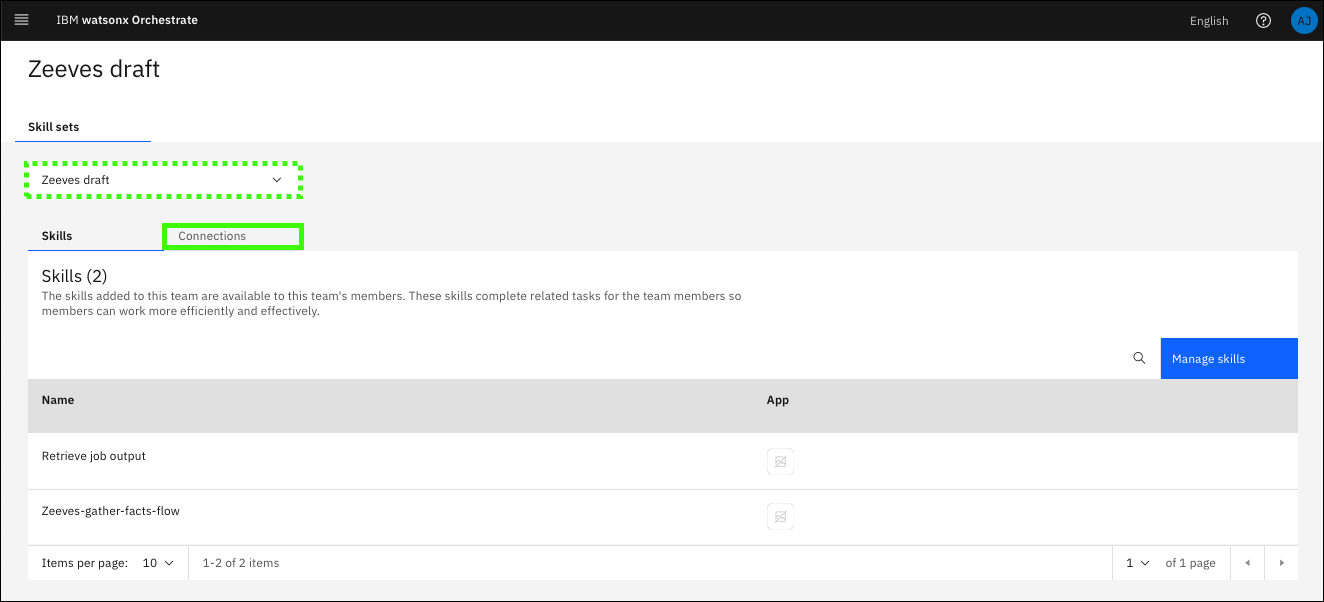

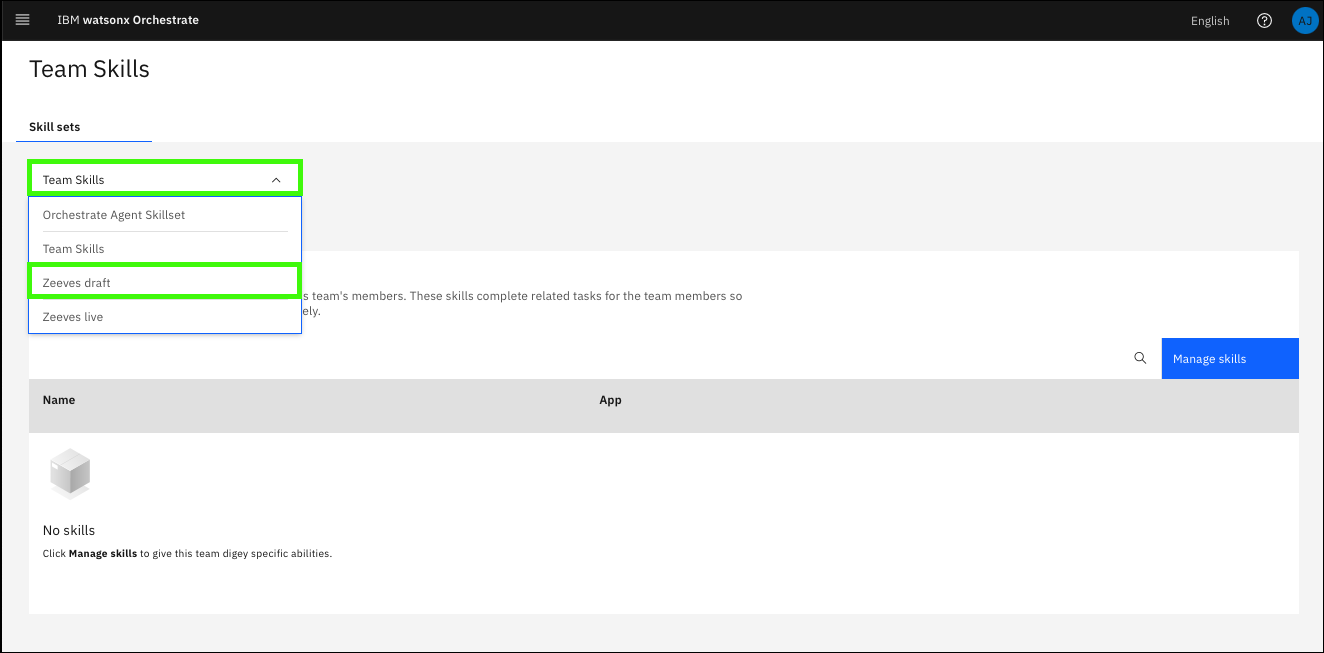

2. Click the Skill sets drop-down list and select the Draft of your assistant.



3. Click Connections.

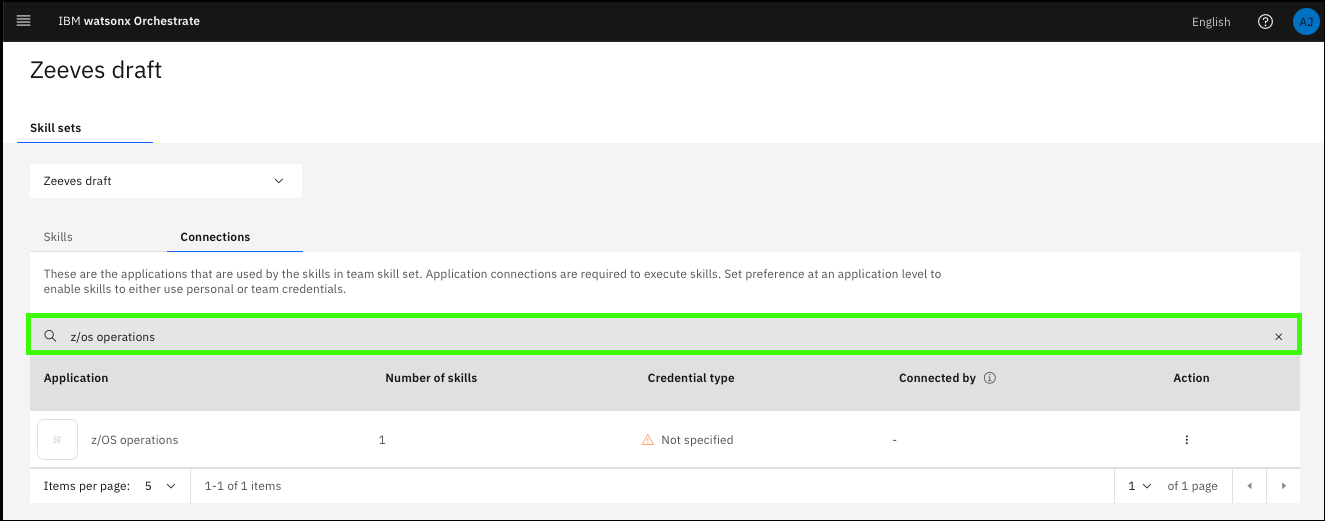

4. Enter your skill app name (z/OS operations) in the search bar.

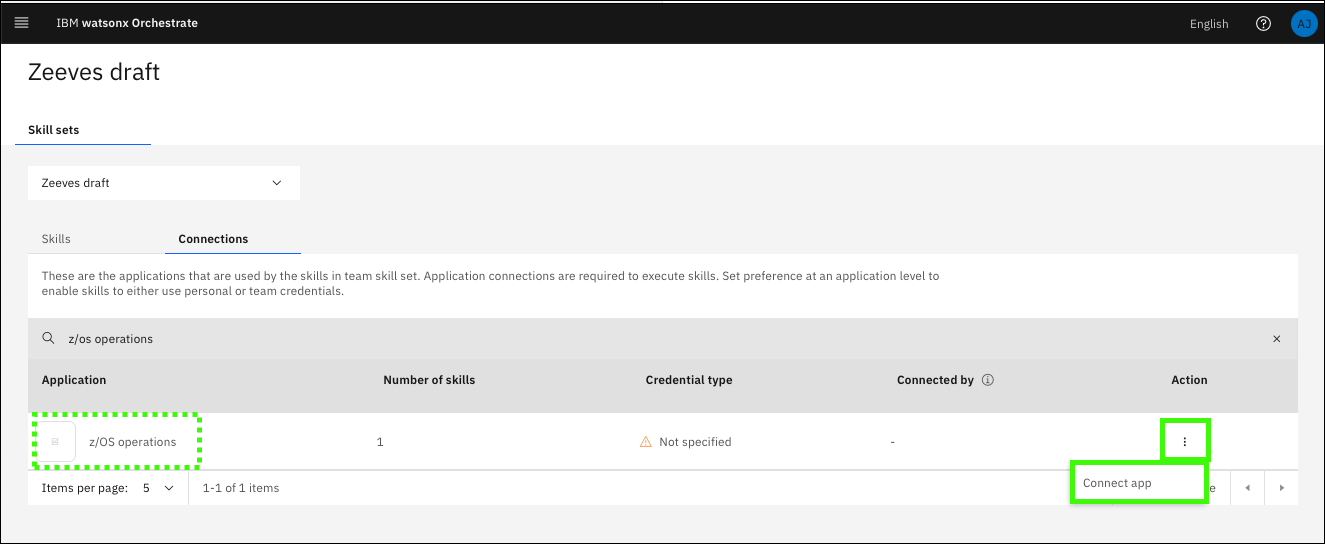

5. Click the ellipses icon () for the z/OS operations app and then click Connect app.

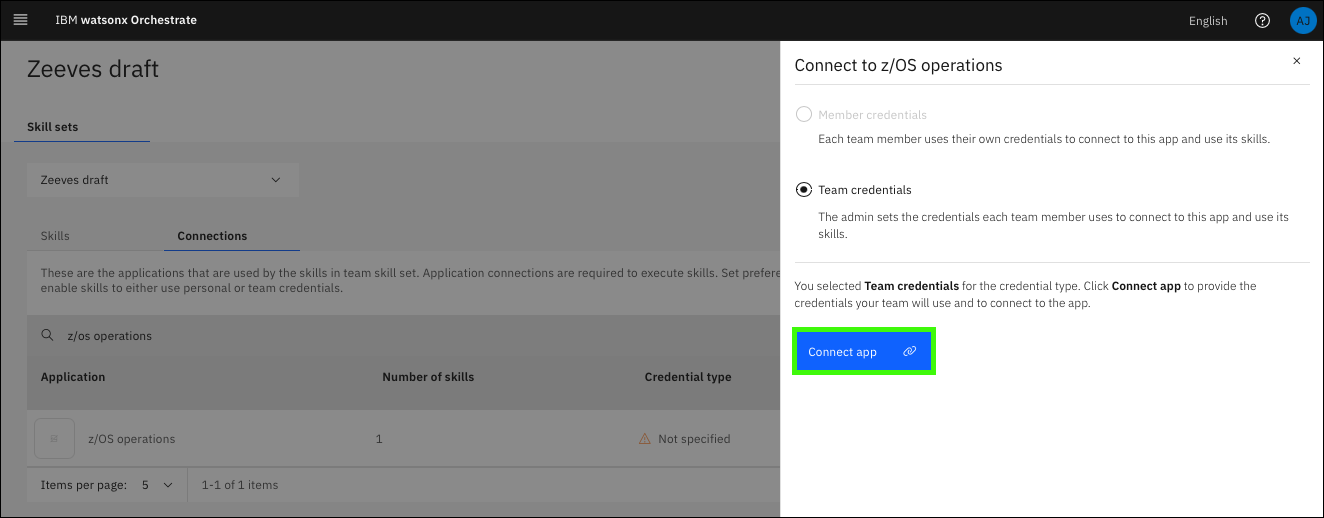

6. In the dialog, click Connect app.

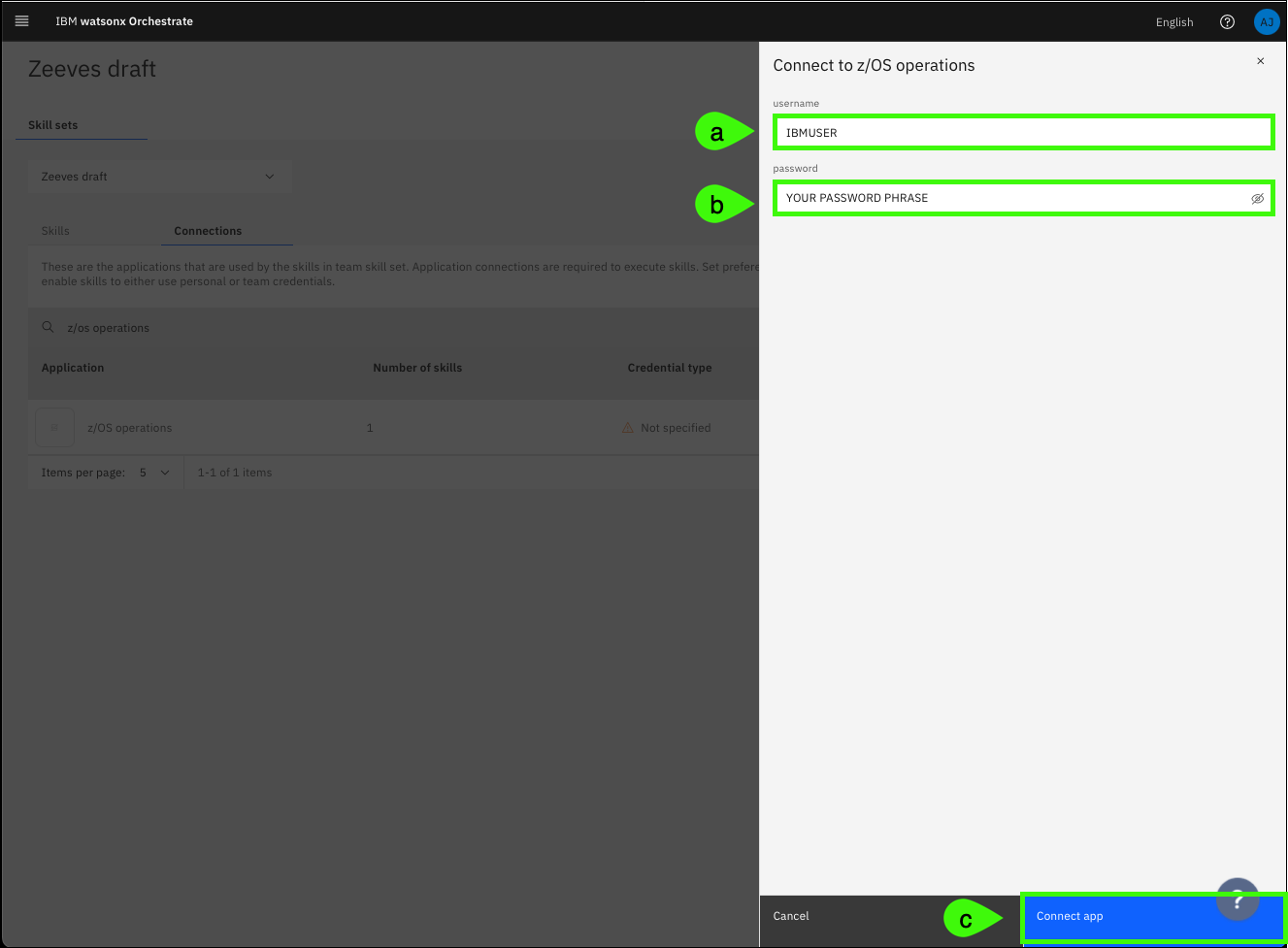

7. Enter (a) IBMUSER in the username field, (b) your WaaS password in the password field, and then (c) click Connect app.



Create an action for your assistant

Next, create a skill-based action that uses the z/OS IPL Information. Recall, with the z/OS Gather Facts skill flow that was created earlier, adding the skill as a skill-based action allows the skill to run based on user prompts to the assistant.

Skill-based actions also serve another purpose. After creating the skill-based action, you can then call that action from a custom-built action. This is accomplished through subactions. For this use case, create an action that triggers the z/OS IPL Information skill on z/OS to display the LPARs IPL information. That action is integrated into another custom-built action (as a subaction) to provide a customized user experience.

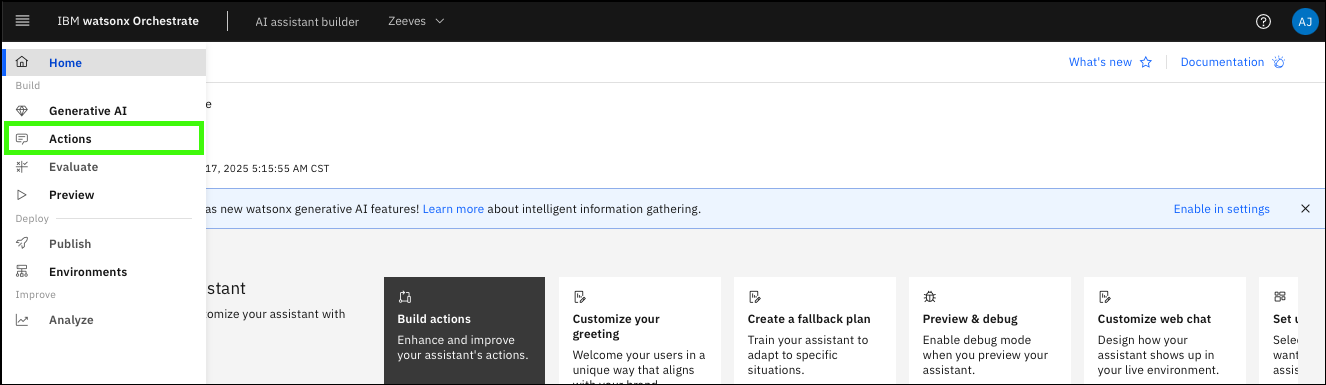

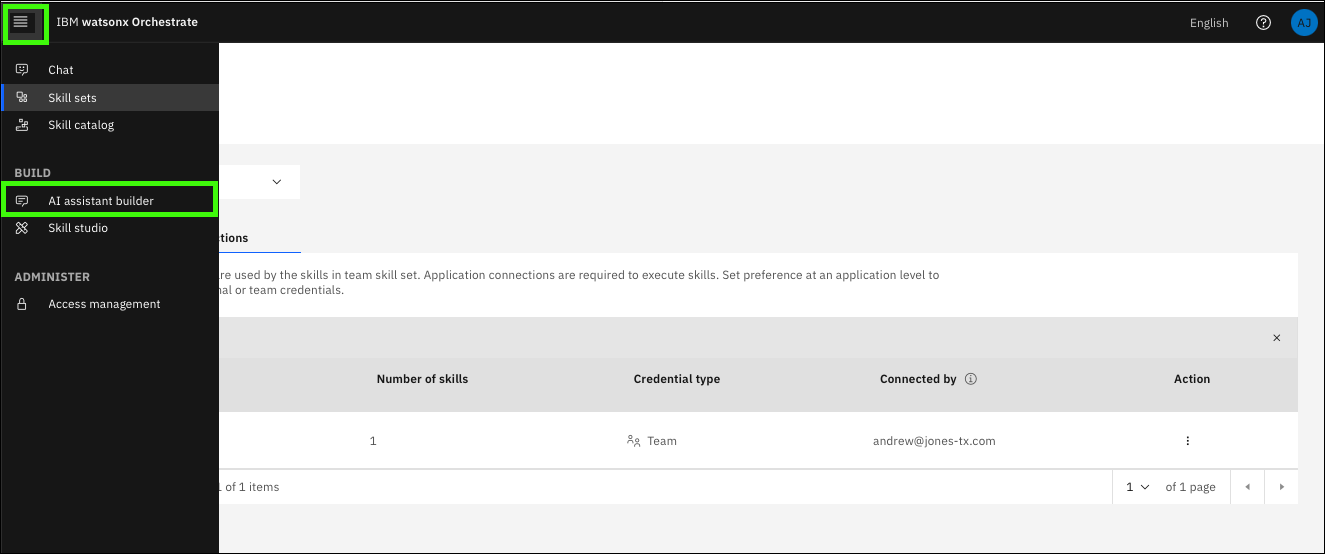

1. Open AI assistant builder in watsonx Orchestrate.



2. Select Actions.

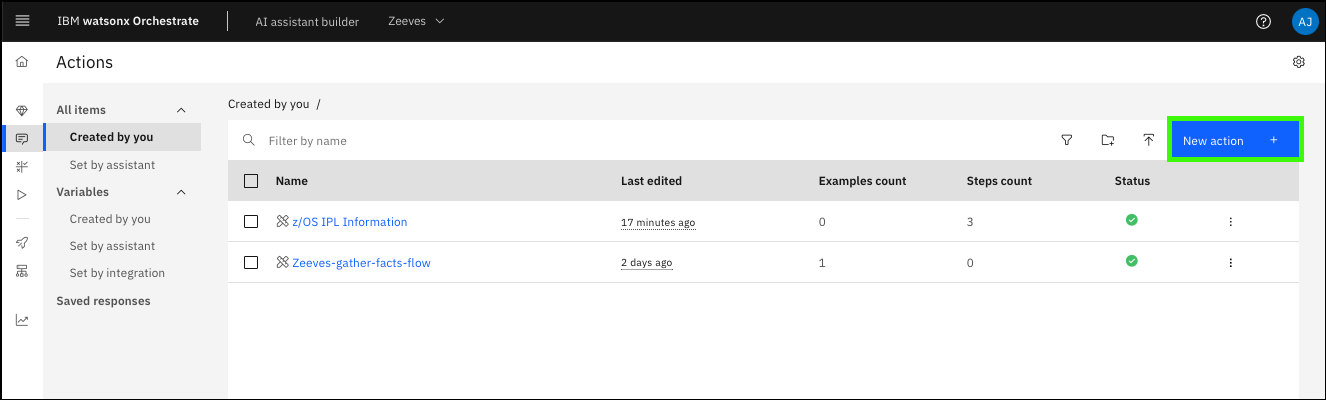

3. Click New action +.

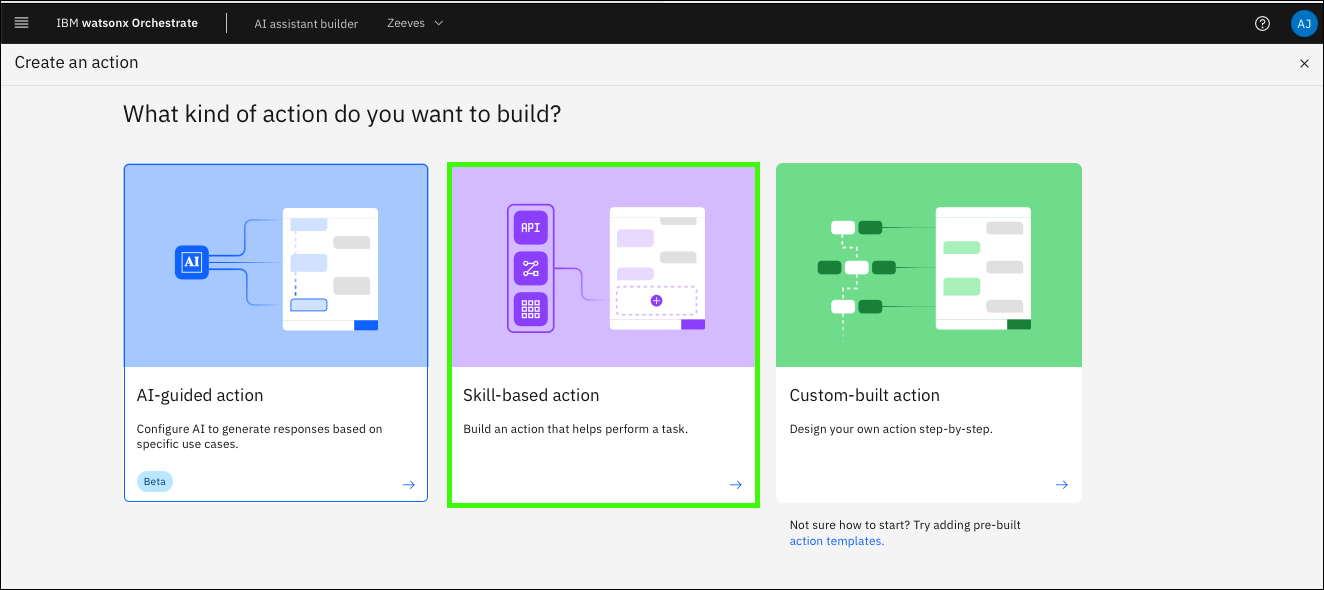

4. Click Skill-based action.

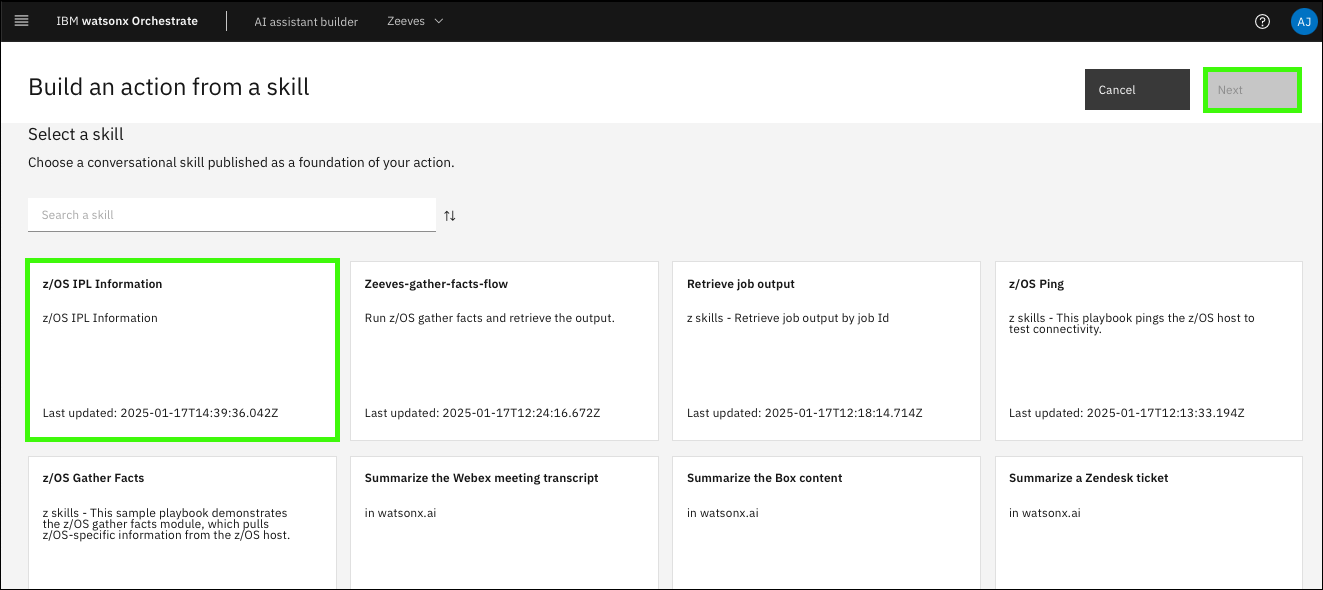

5. Click z/OS IPL Information and then click Next.

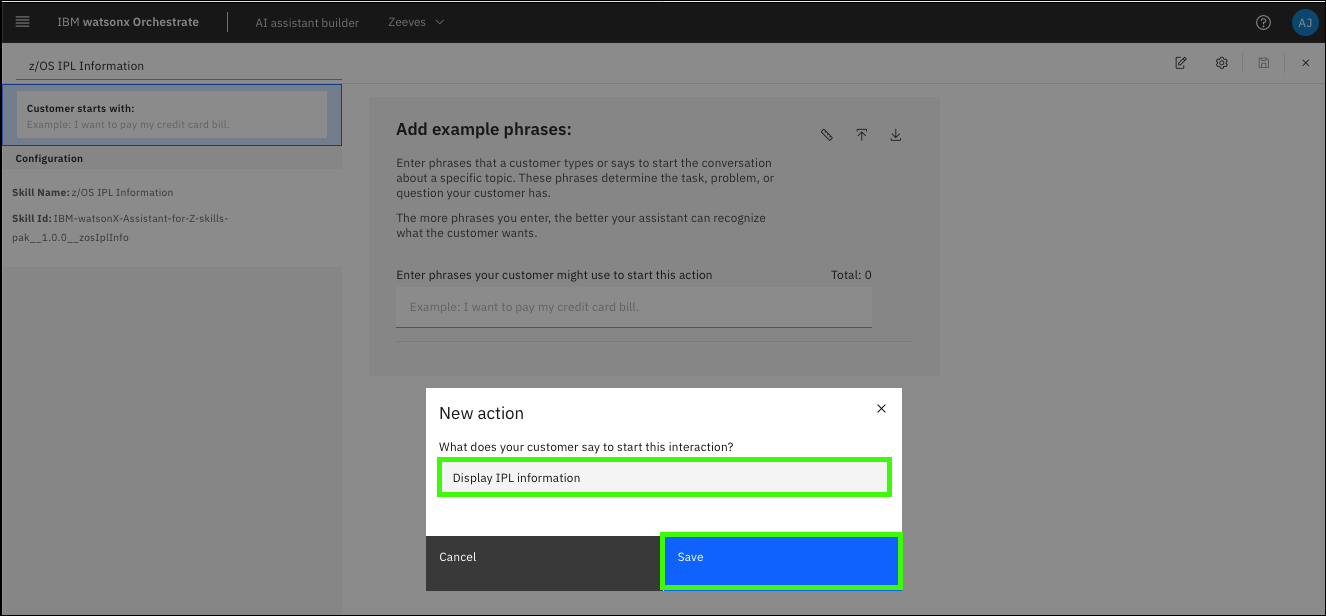

6. Enter a prompt like Display IPL information that starts the skill and then click Save.

   Prompt:

   Display IPL information

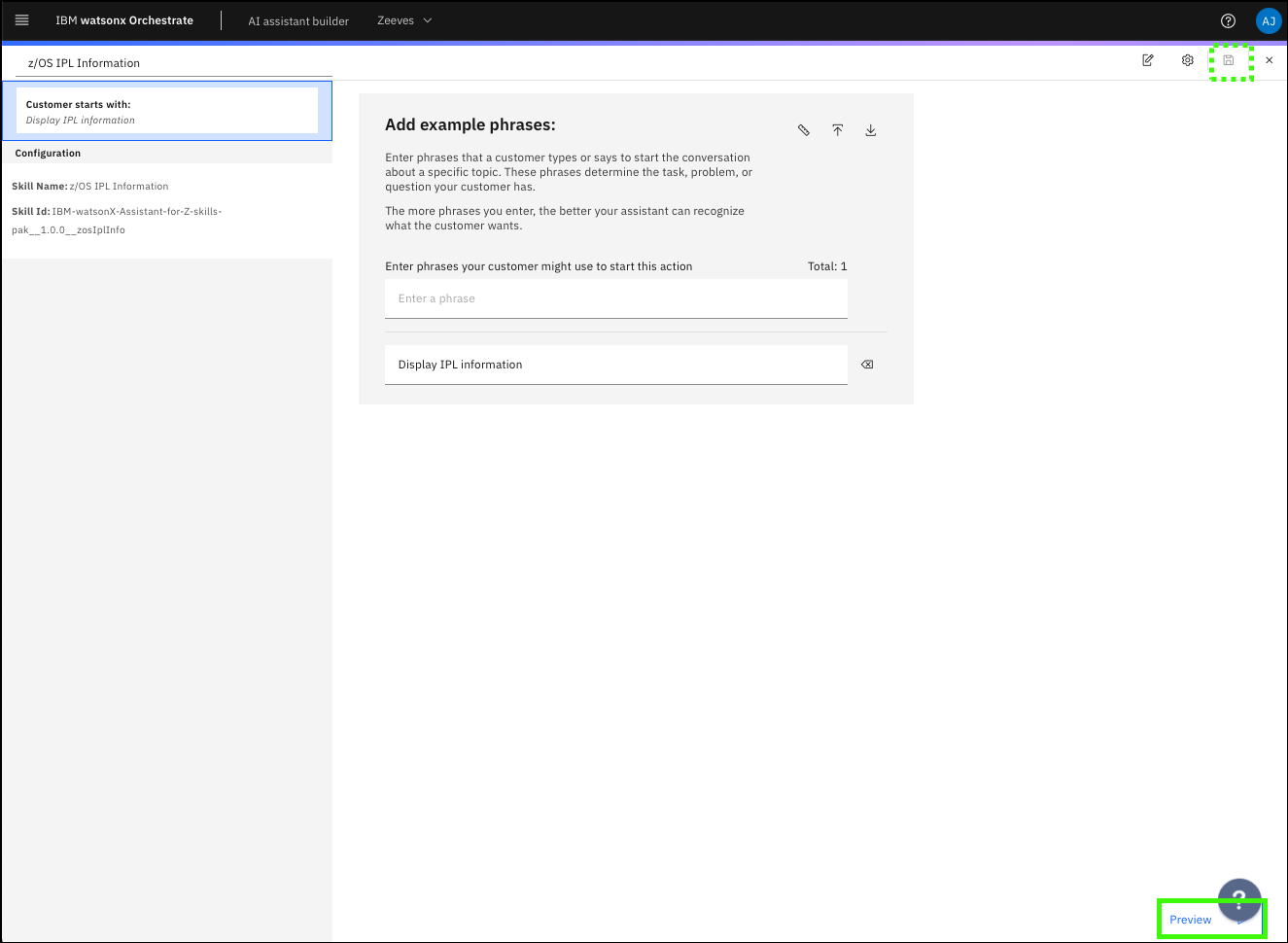

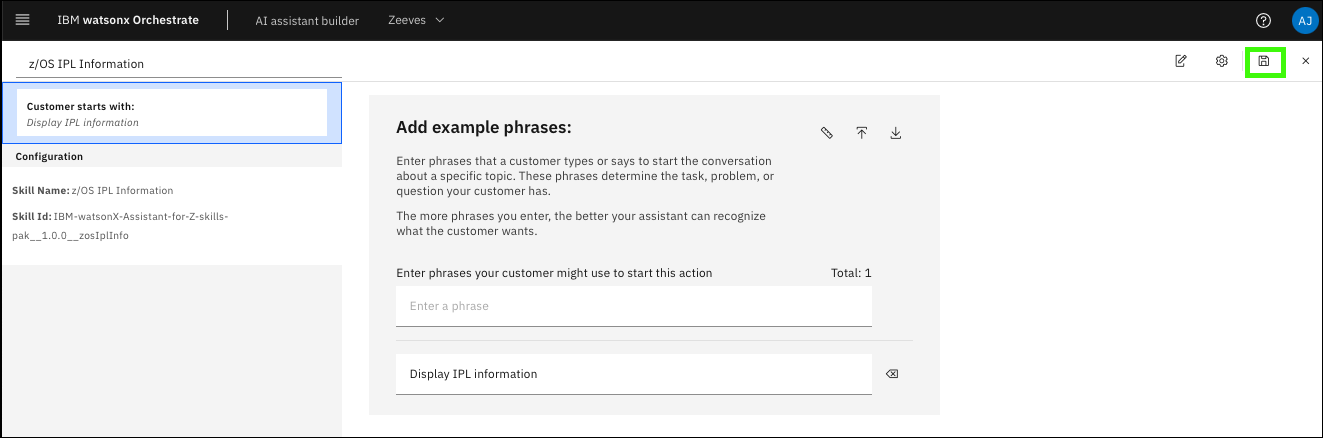

7. Click the Save icon ().



8. Click Preview.



   Wait for the Your changes are being added. message to disappear before proceeding.

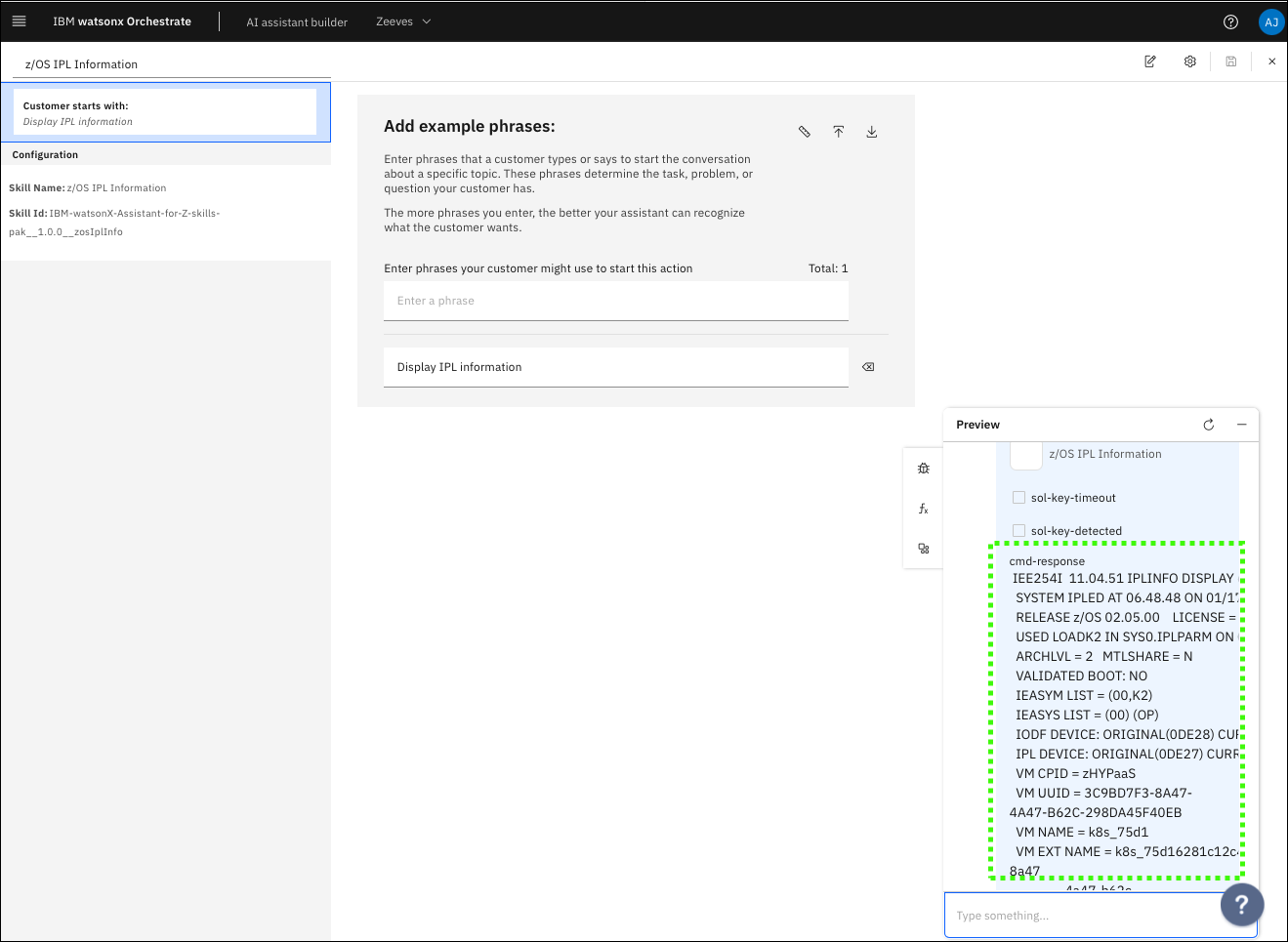

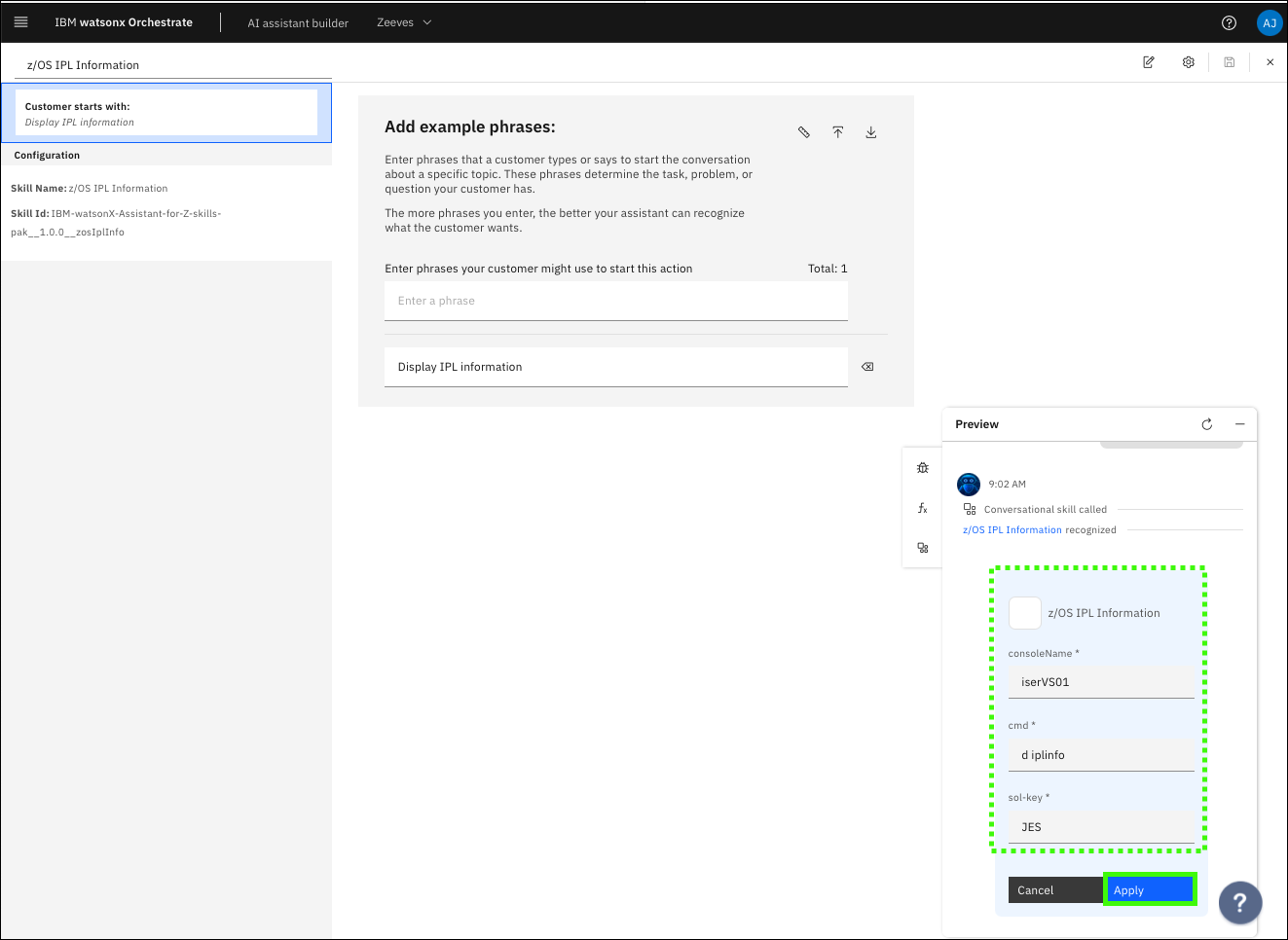

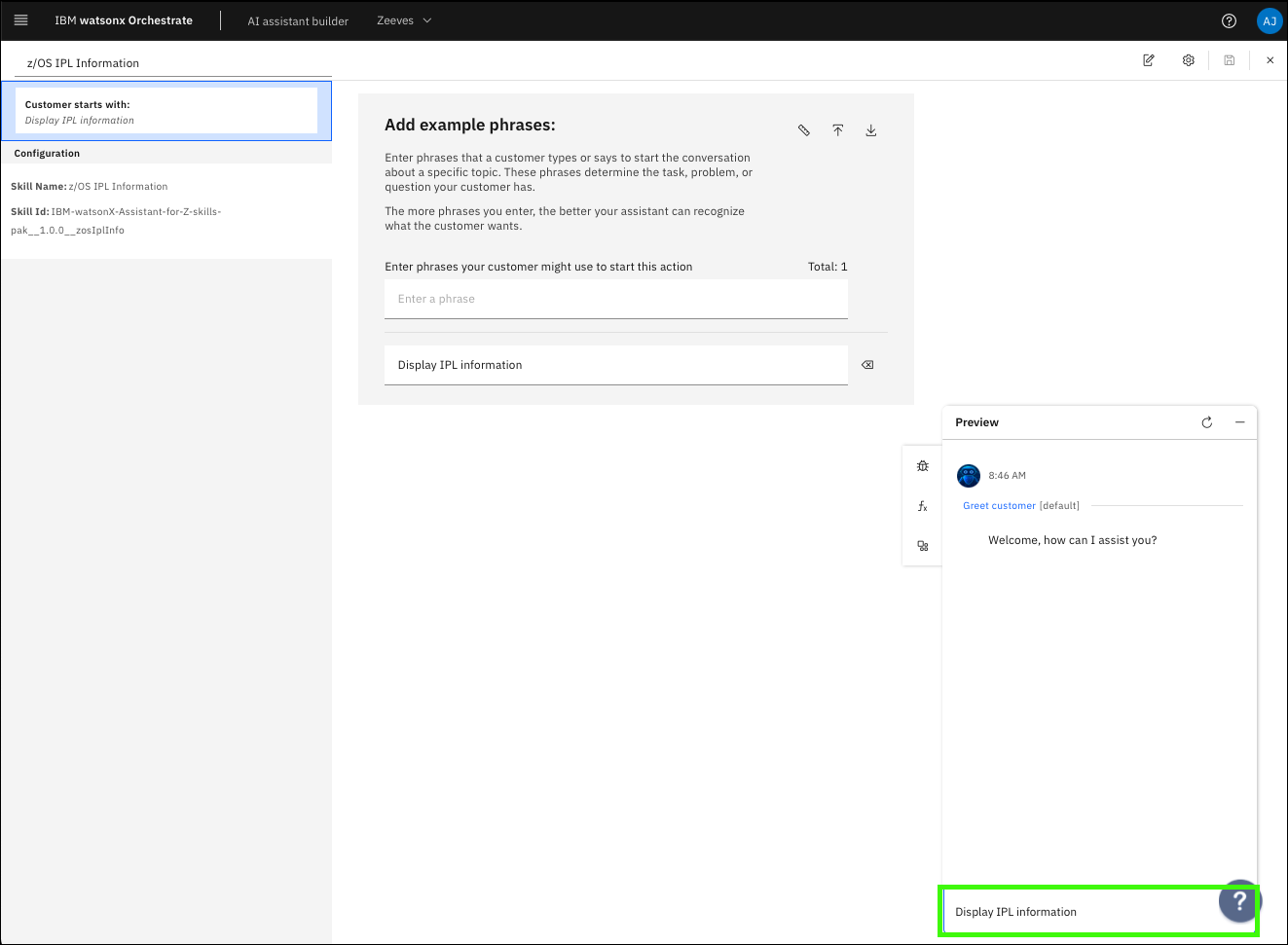

9. Enter the prompt (Display IPL information) to test the skill.



10. Using the defaults in the form, click Apply.



11. Verify the results.

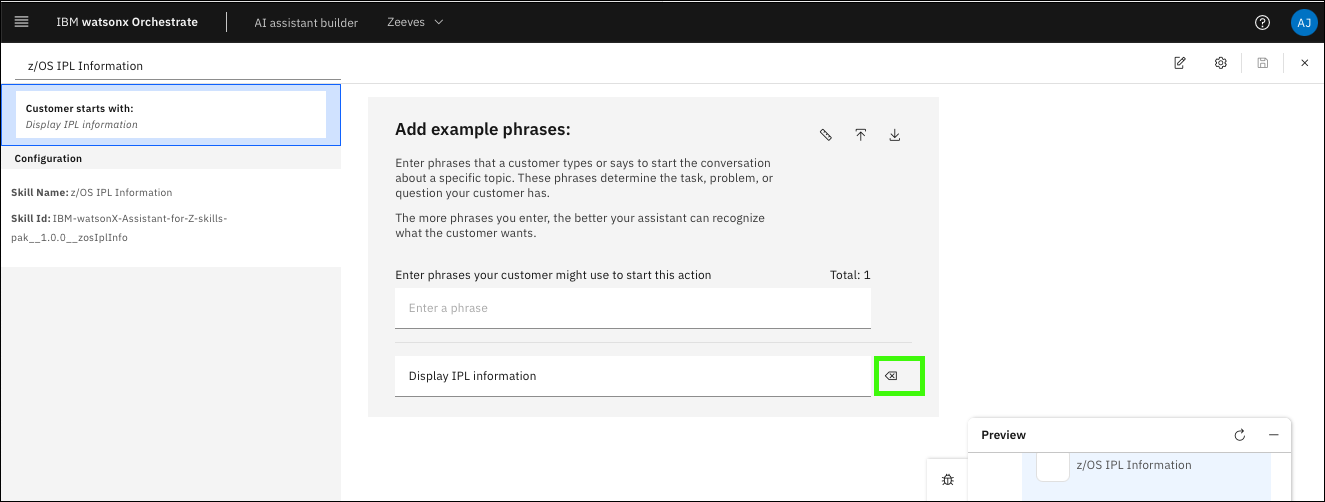

12. Click the delete icon () to remove the example phrase (Display IPL information) from the skill.

    Next, you will add this skill-based action as a subaction to a custom-build action. To have the custom-built action started rather than the skill-based action, the existing example phrases need to be removed.

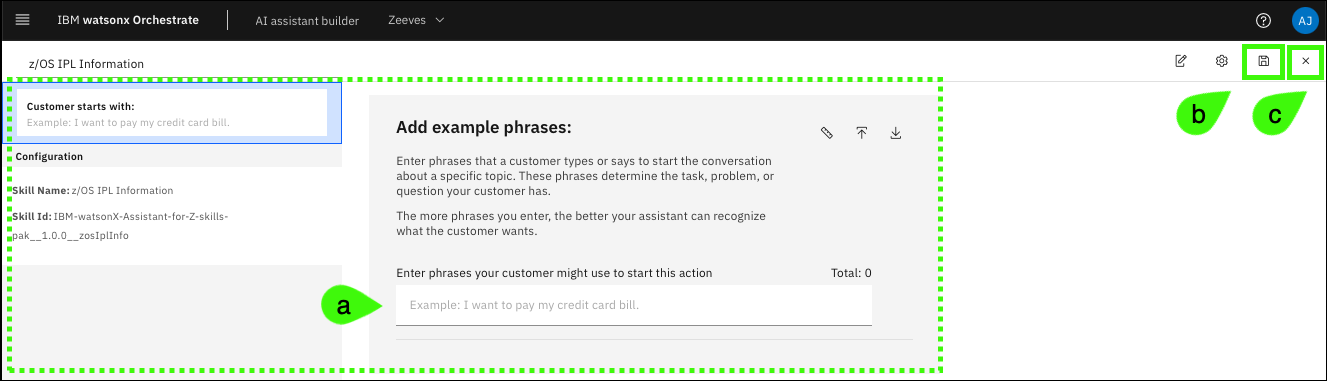

13. Verify (a) all example phrases are deleted, (b) click the Save icon (), and then (c) click x to close the action.



Create a custom-built action

Custom-built actions allow you to define each step of a conversation with your assistant. You can define steps with or without conditions to control the user responses. You can include your skill-based actions as sub-actions. You can pass generated values between the subactions.

Recall the use case of an early-tenure SysProg who is preparing for an upcoming IPL on one of their LPARs. After going through documentation, the SysProg found that there is information that is needed about their LPAR before they can begin the IPL process. To gather that information, the SysProg might ask the assistant “How do you retrieve the information needed to IPL a z/OS LPAR? Provide a detailed response”. A response the assistant might return is shown in the following image.

A custom-built action can help the SysProg to take the next steps that are required by adding next-step action suggestions and start skills to gather the needed information.

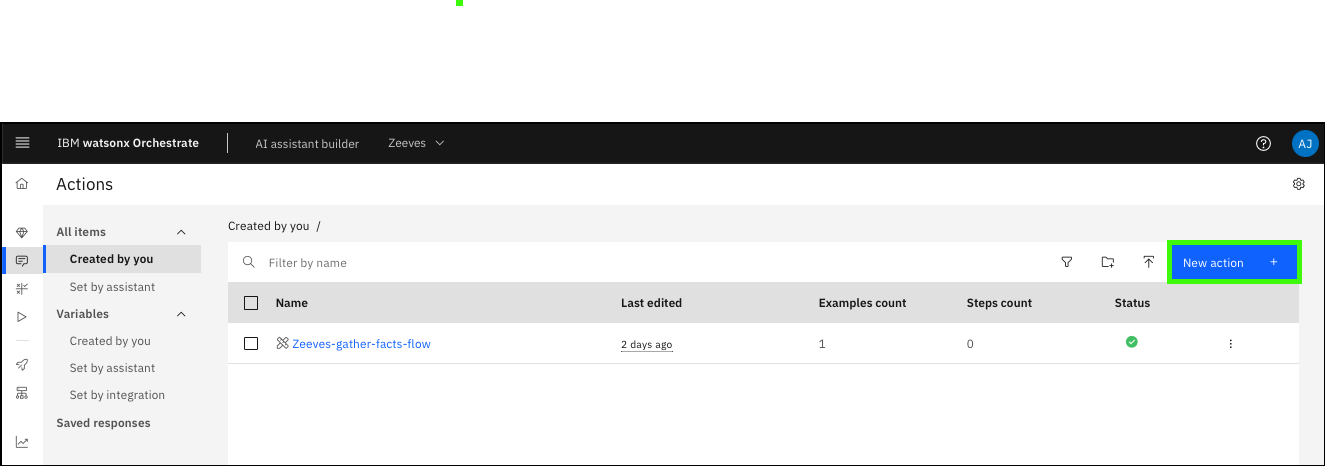

1. Click New action +.

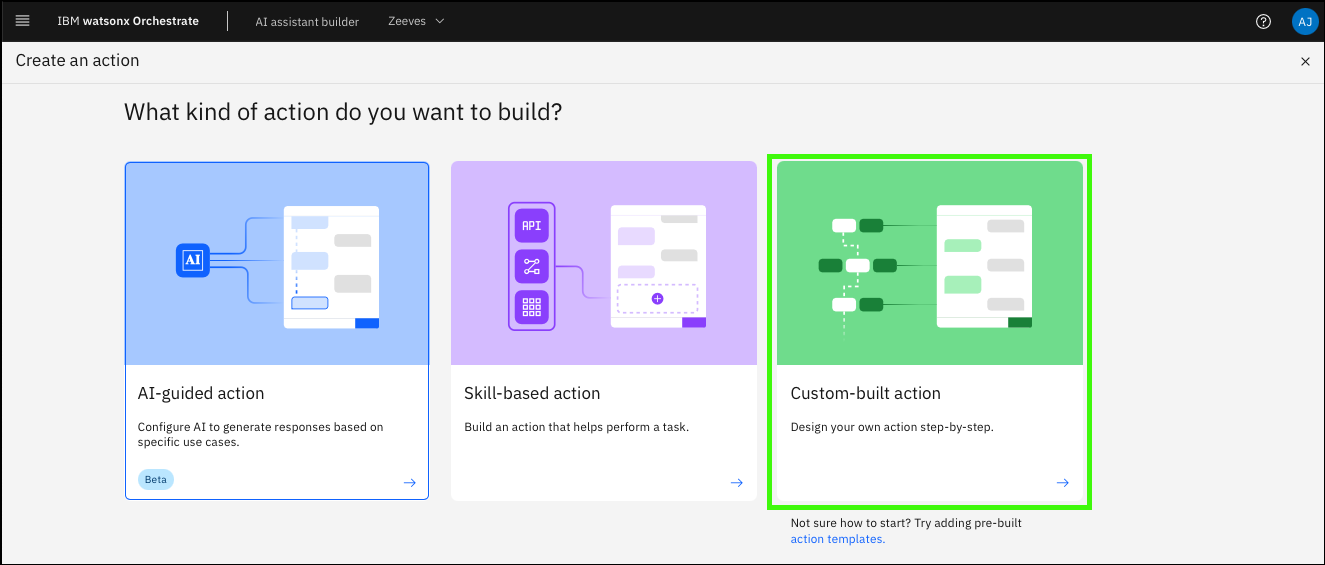

2. Click Custom-built action.

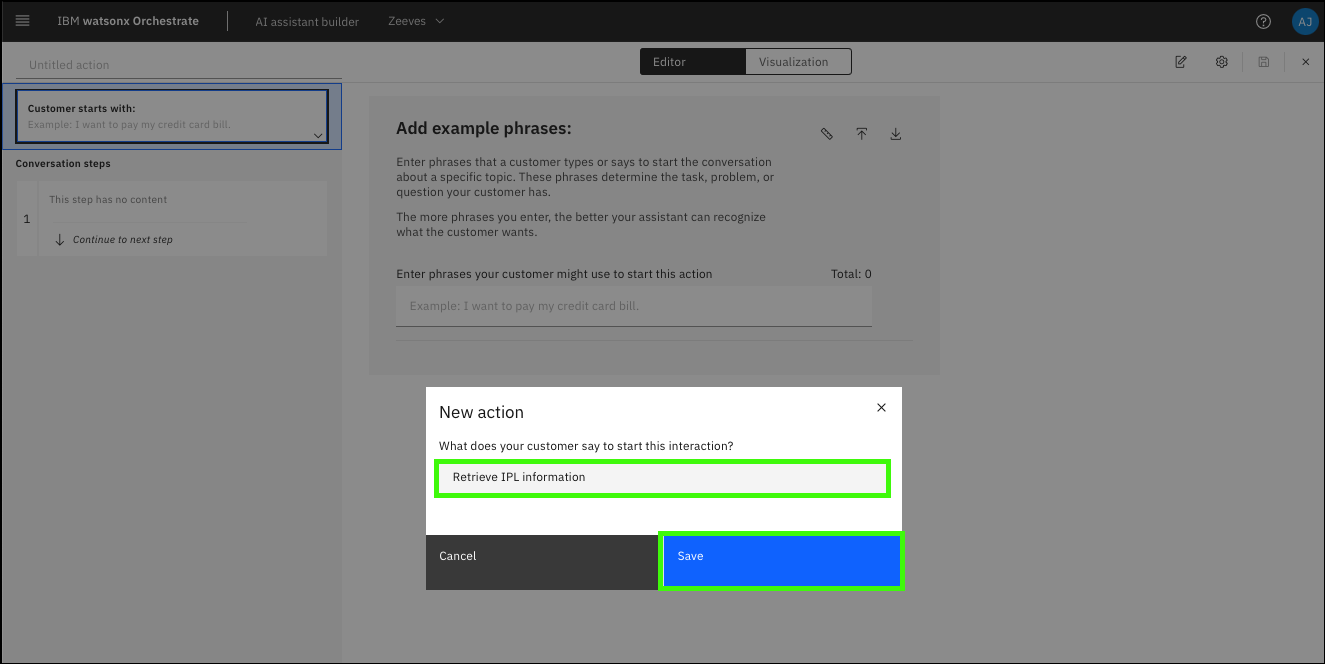

3. Enter an example phrase (Retrieve IPL information) to prompt the assistant to start the custom-built action and click Save.

   Prompt:

   Retrieve IPL information




4. Review the form to create a custom-built action.

   A custom-built action can consist of multiple steps with each step that is taken with or without conditions. Each step specifies the assistant's response and the next step to start.

   For client demonstrations and pilots...

   For client demonstrations and pilots, it is possible to add a custom search query such that when conversational search is executed in the 1st step, the query being used is hard-coded and isn’t necessarily what the end-user inputted. This can be done by clicking on the Edit settings option under Search for the answer and specifying a custom search query that specifies the exact query to be used.

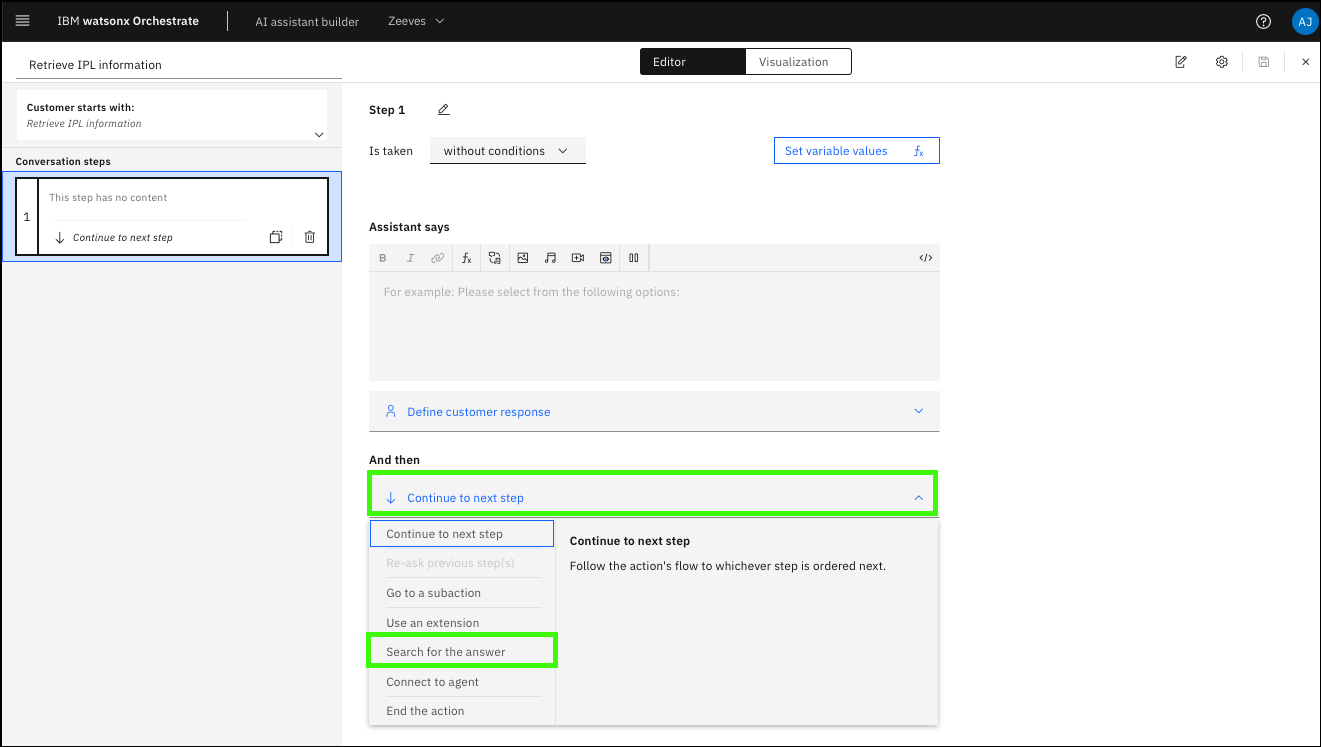

5. Click the And then drop-down list and select Search for the answer.

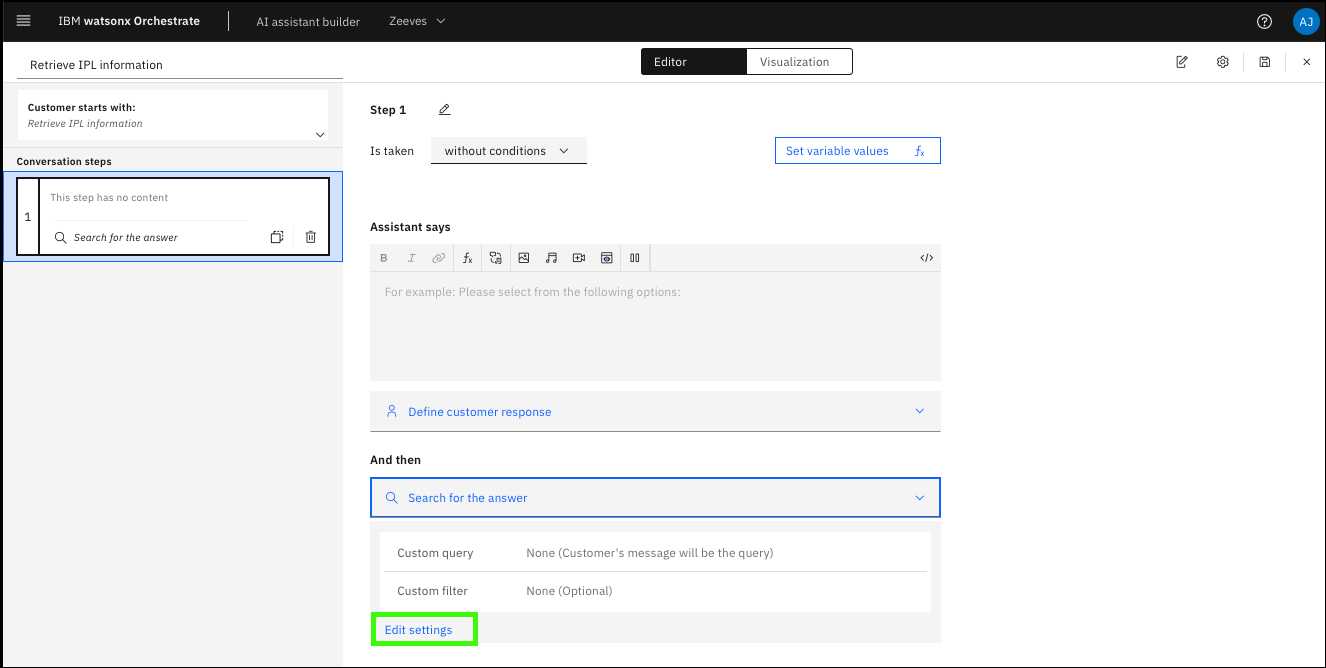

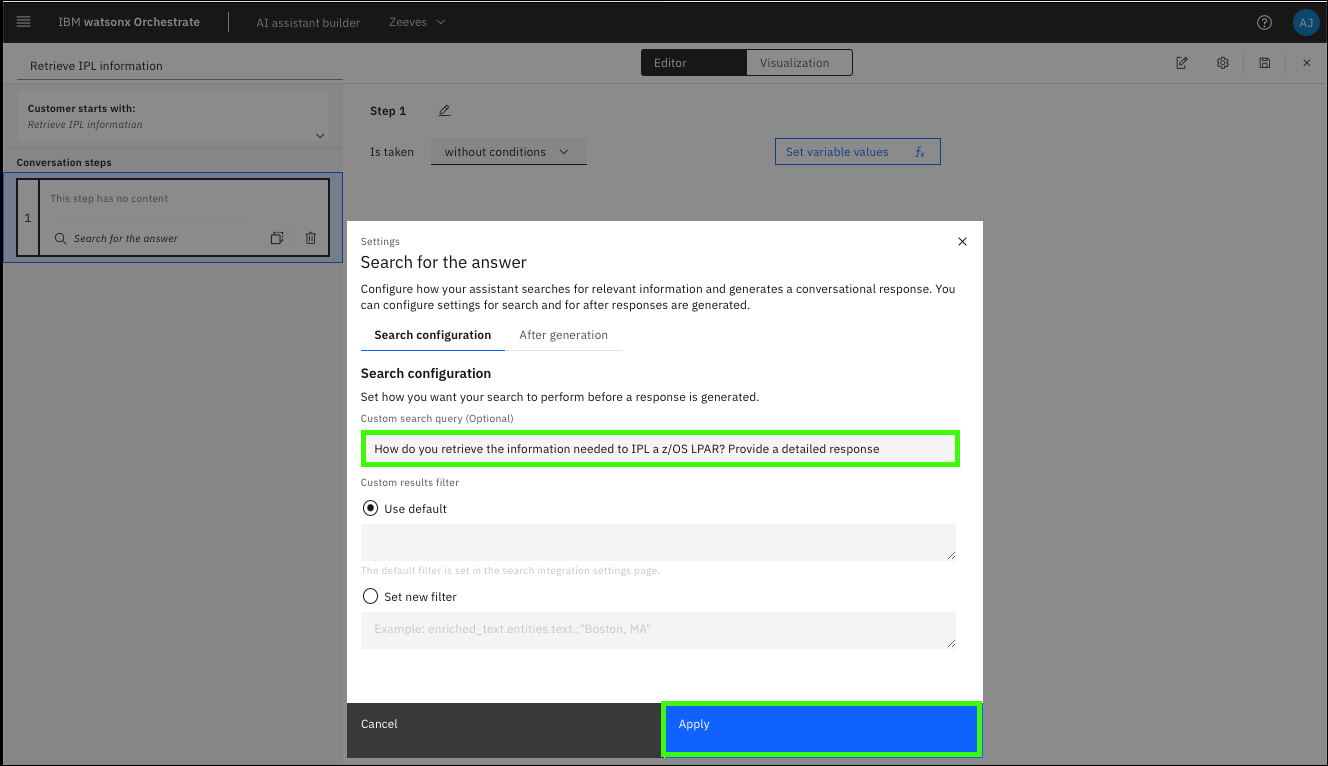

6. Click Edit settings.



7. Enter a Custom search query and click Apply.

   Custom search query:

   How do you retrieve the information needed to IPL a z/OS LPAR? Provide a detailed response

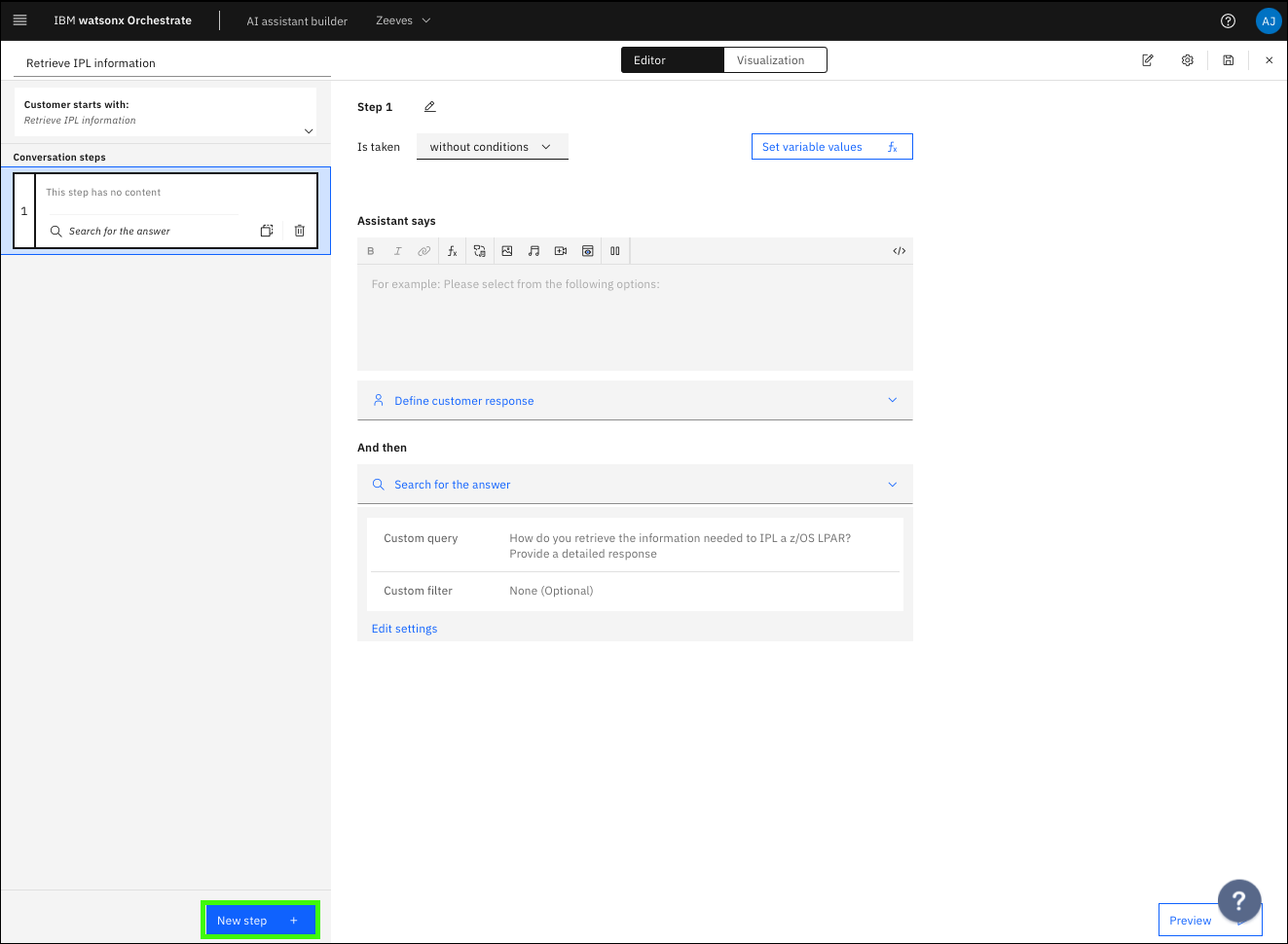

8. Click New step +.

   The new custom-built action only responds with a description of how to retrieve the IPL information. Now, infuse automation into the conversation and ask the user if they want to perform the action.

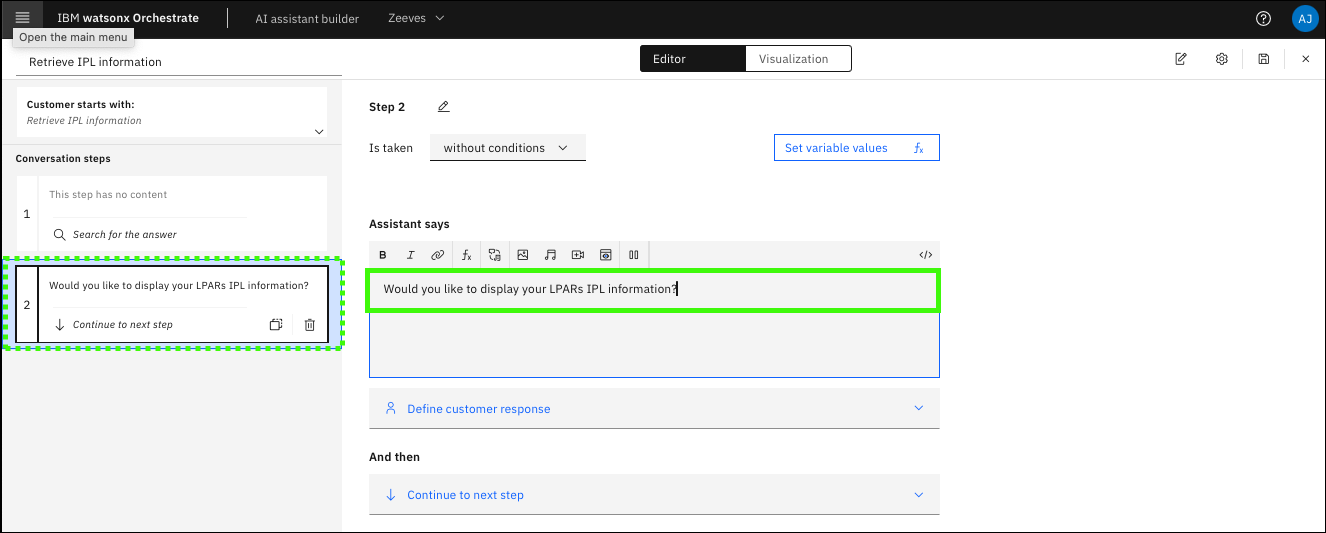

9. In the Assistant says field, enter a response asking if the user wants to display the IPL information.

   Assistant says:

   Would you like to display your LPARs IPL information?

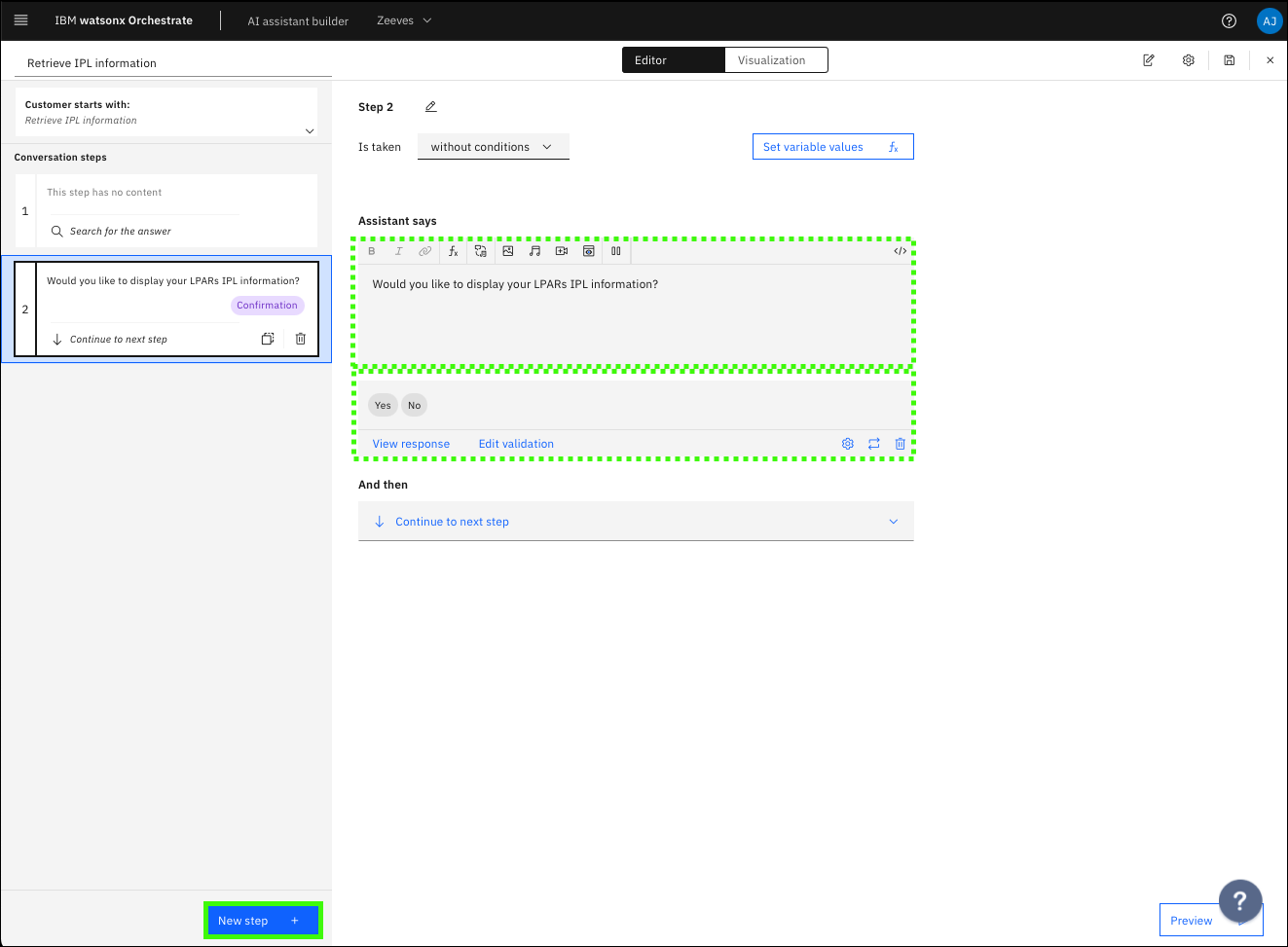

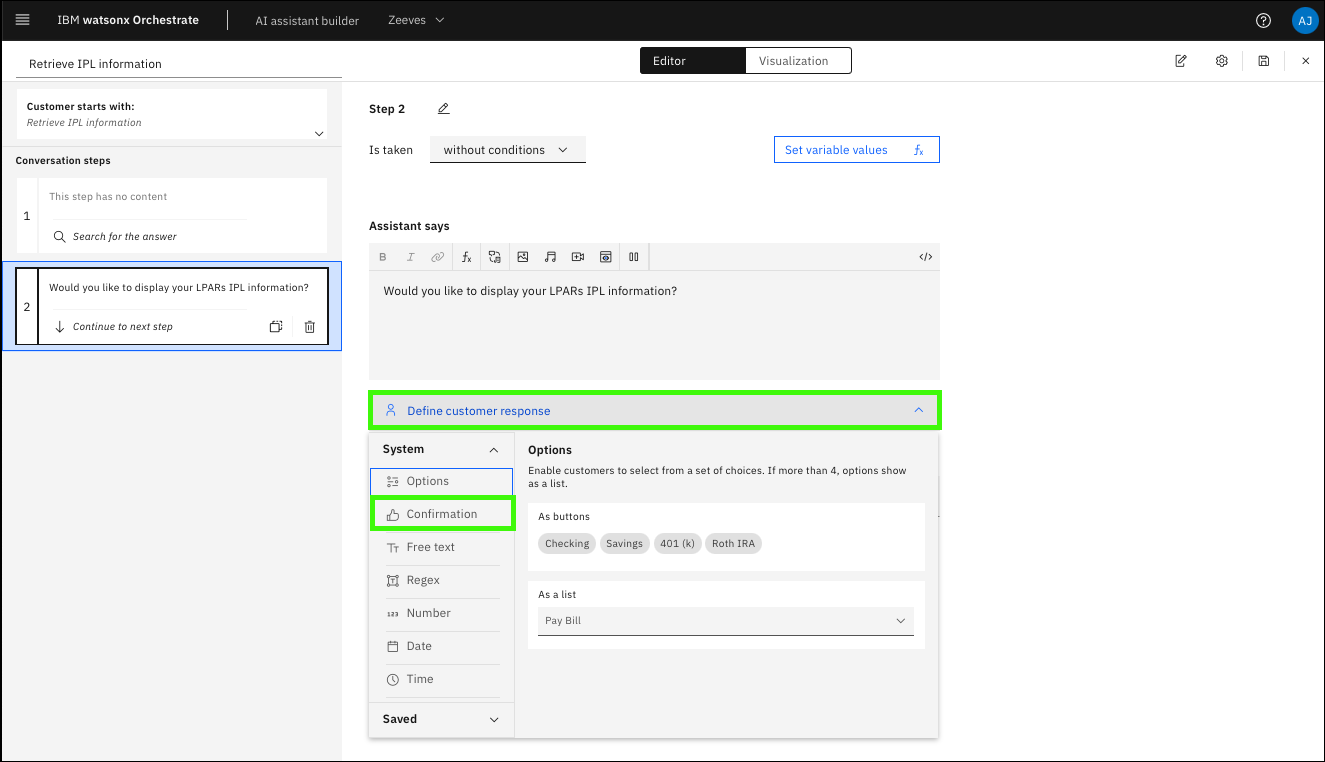

10. Click the Define customer response drop-down and select Confirmation.

    Now, after providing a conversational search-based response to the original question, the assistant asks the user if they want to display the IPL information and prompts the user to select Yes or No.



11. Click New step +.

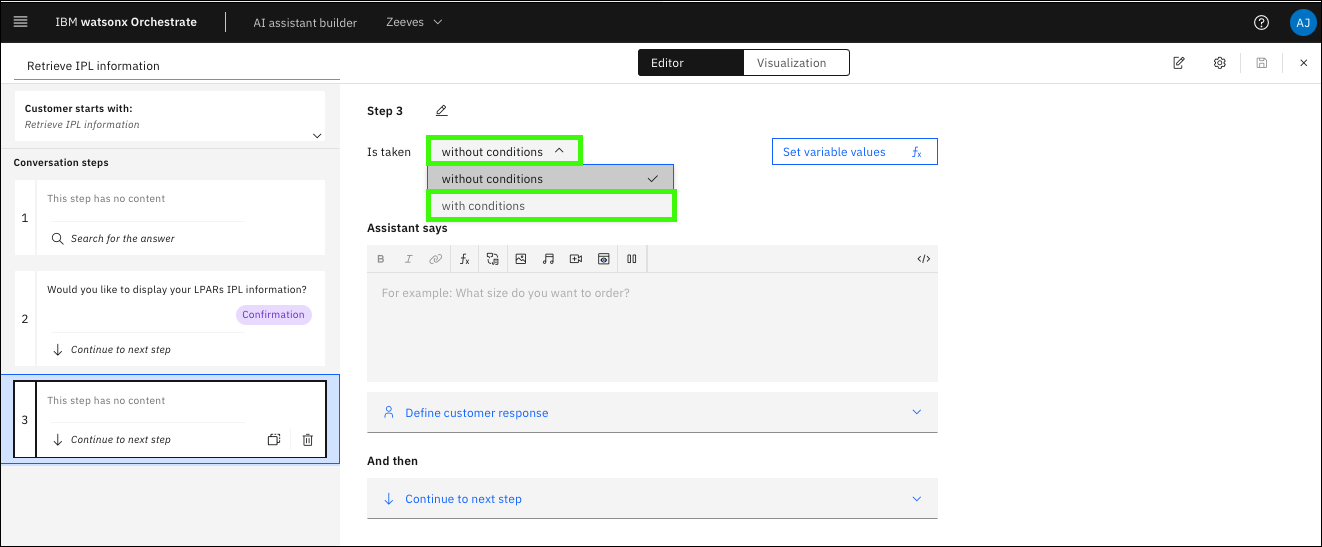

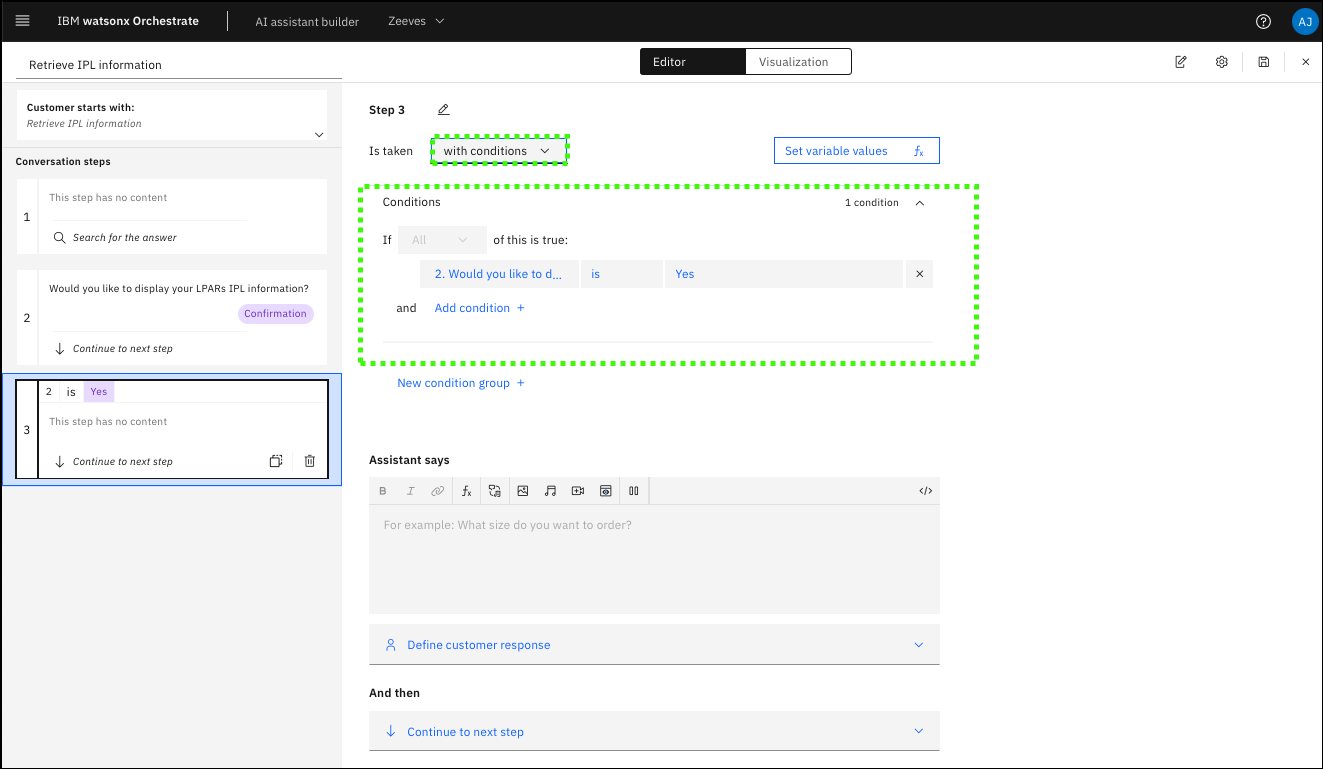

12. Click the Is taken drop-down and select with conditions.



13. Review the Conditions.

    Notice that the default condition is based on Step 2 and the user clicking Yes when prompted.

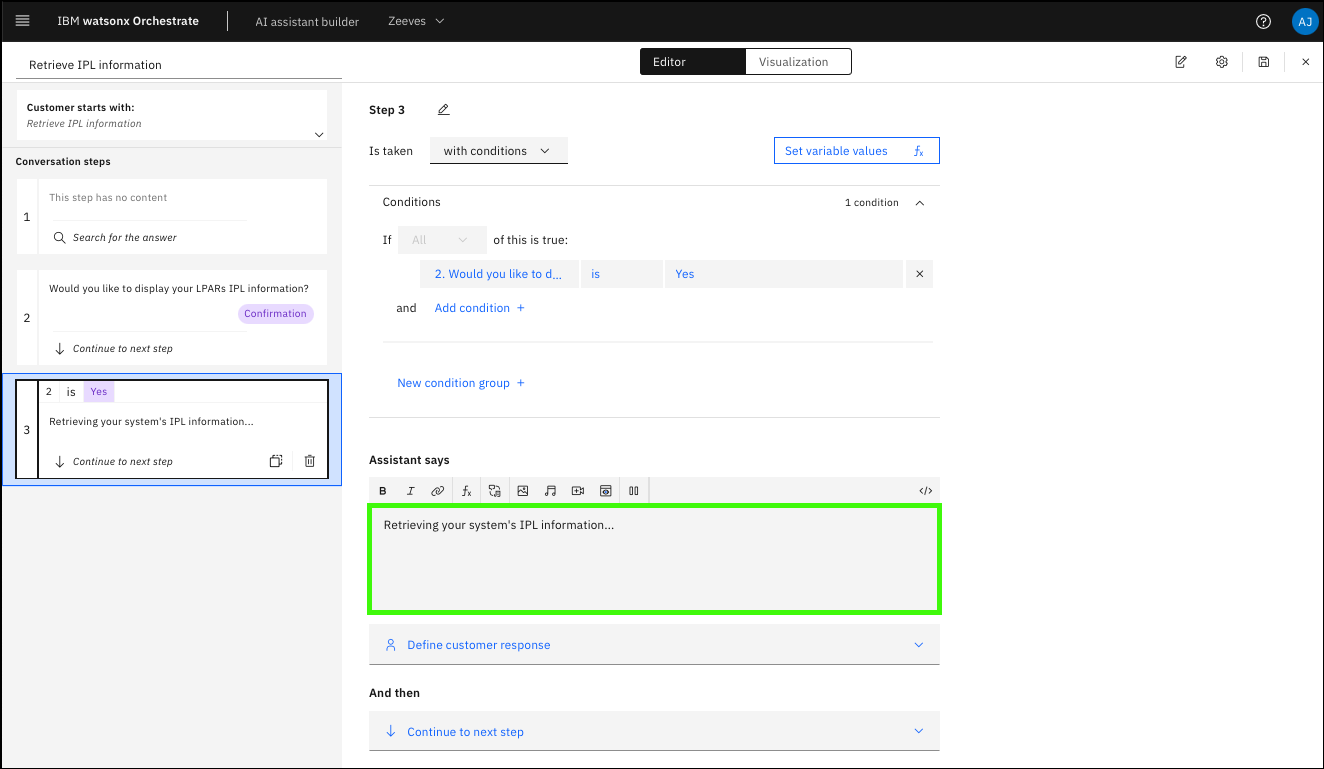

14. Enter Retrieving your system's IPL information... in the Assistant says field.

    Assistant says:

    Retrieving your system's IPL information...

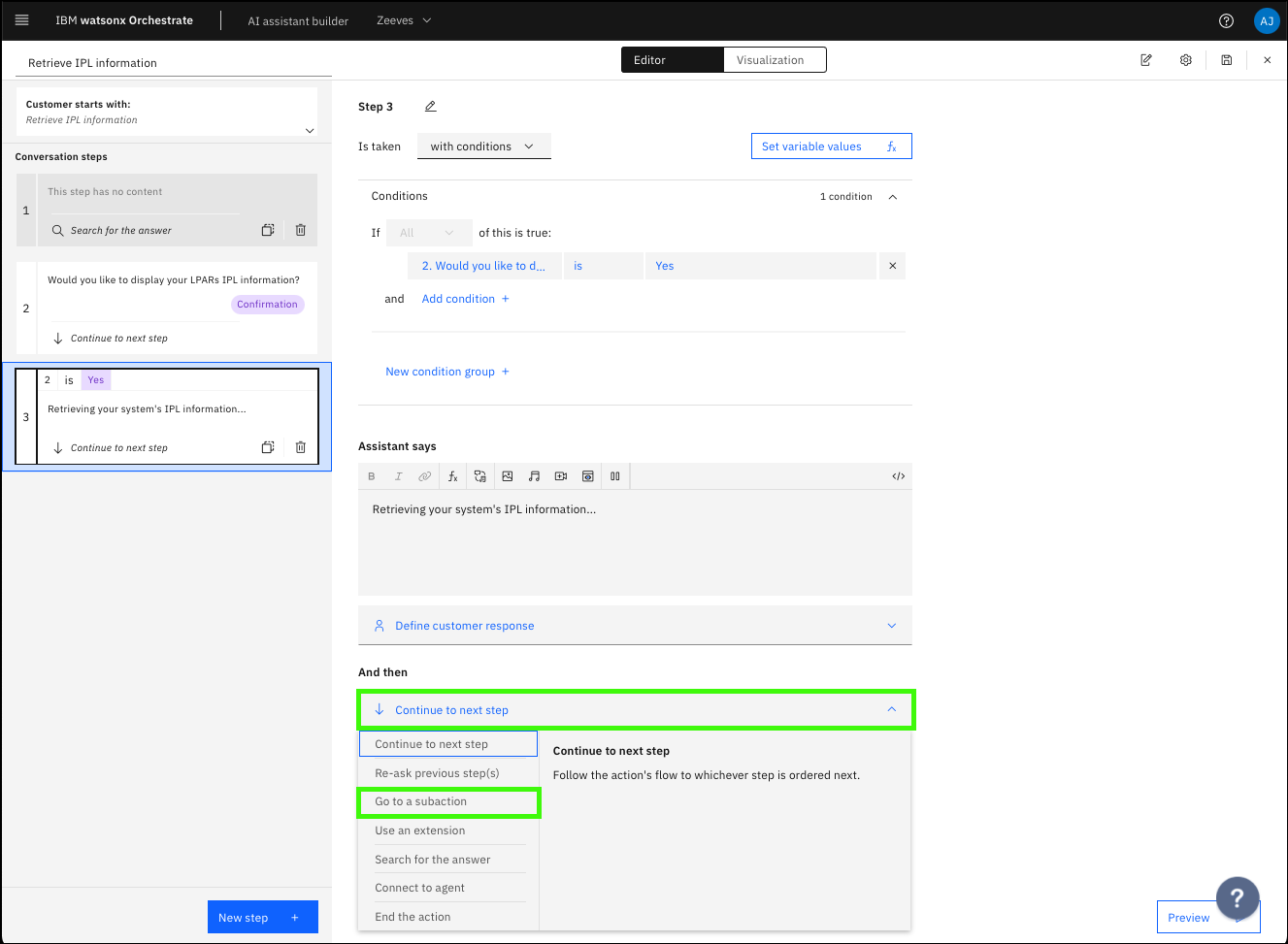

15. Click the And then drop-down and select Go to a subaction.

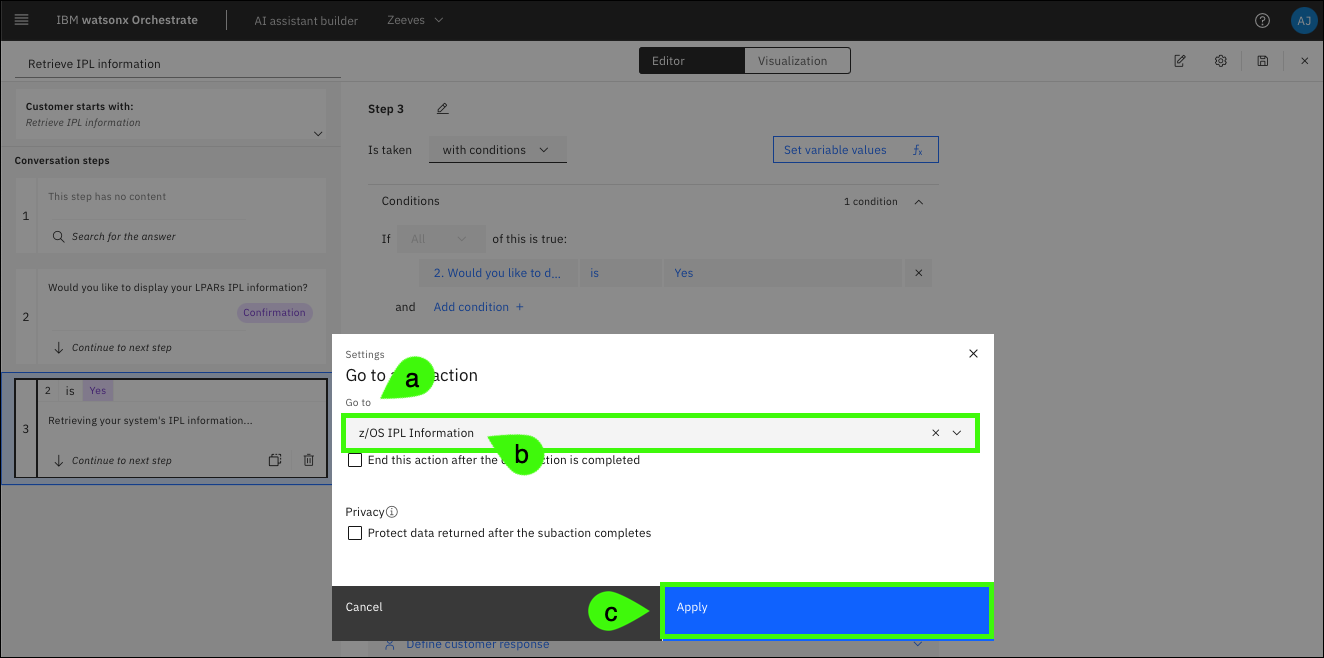

16. Click (a) the Go to drop-down, (b) select your skill-based action (z/OS IPL Information), and then (c) click Apply.

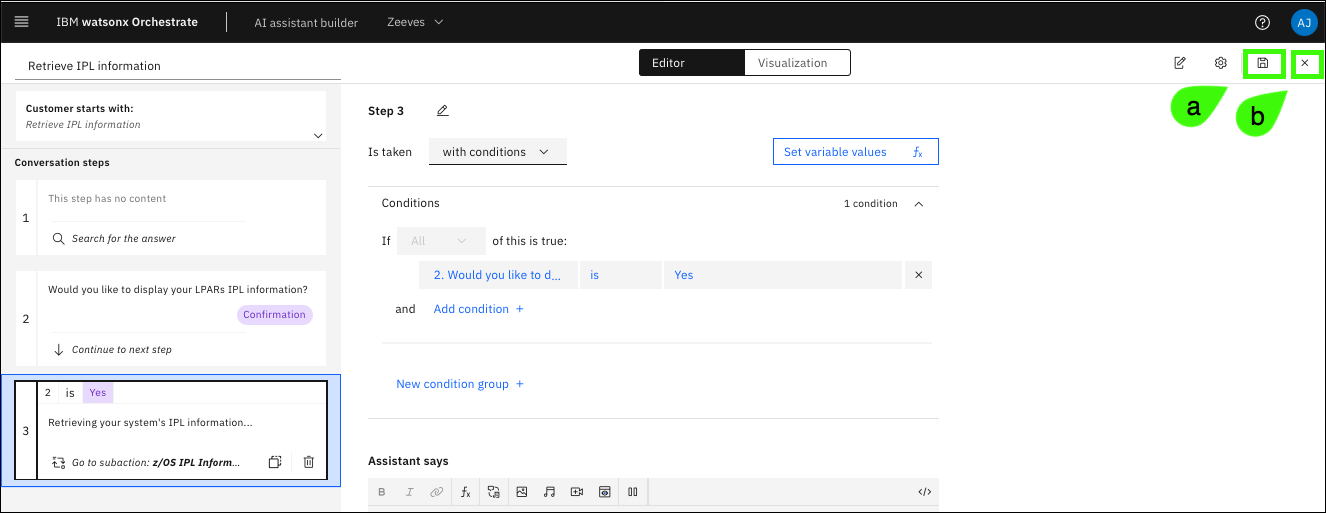

17. Click Save () and then click x.



Test the custom-built action

You can now practice demonstrating the flow of this use case. Recall the steps that were taken and the scenario of the early-tenure SysProg being tasked with preparing for an upcoming IPL.

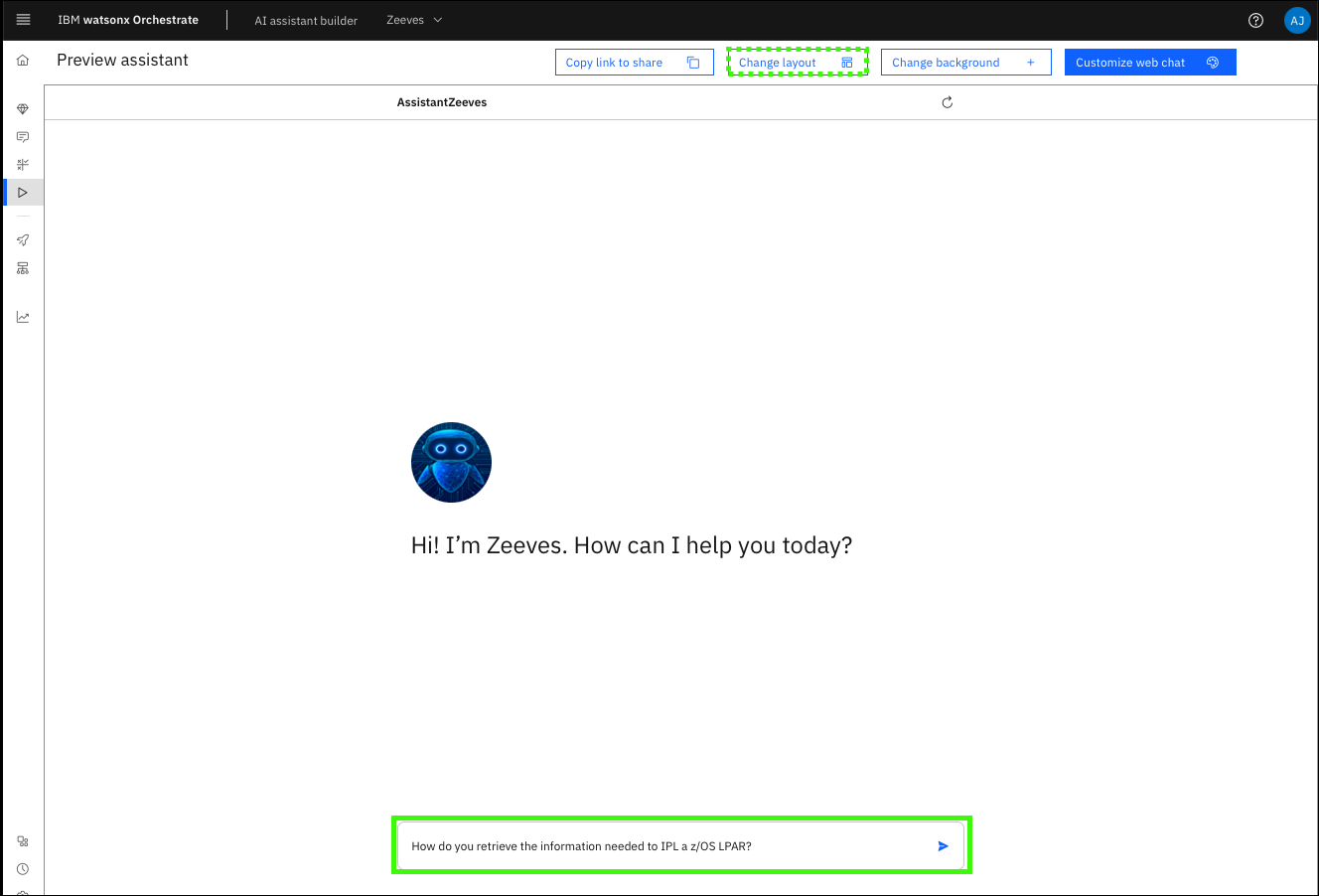

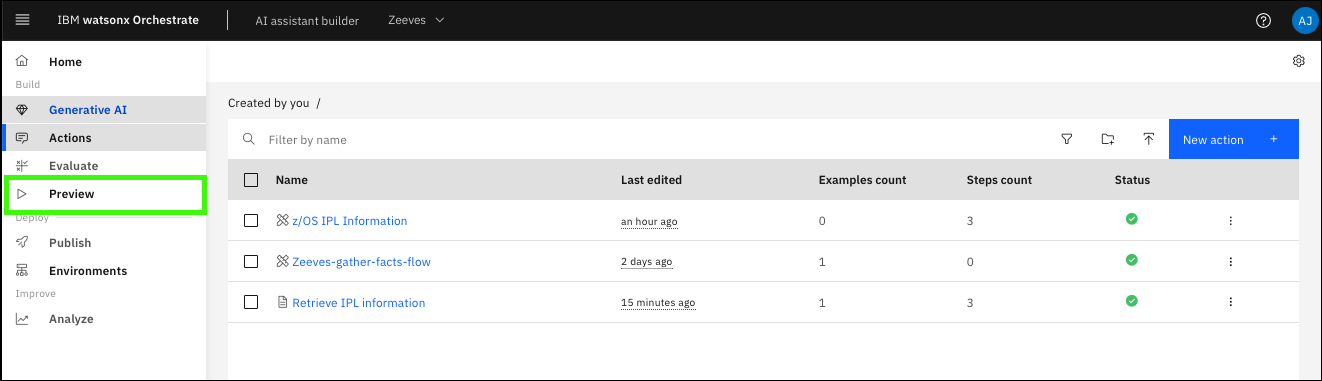

1. Click Preview.



2. Enter How do you retrieve the information needed to IPL a z/OS LPAR? in the assistant prompt.

   Prompt:

   How do you retrieve the information needed to IPL a z/OS LPAR?


   Use the Change layout option to open a full page view of the assistant.

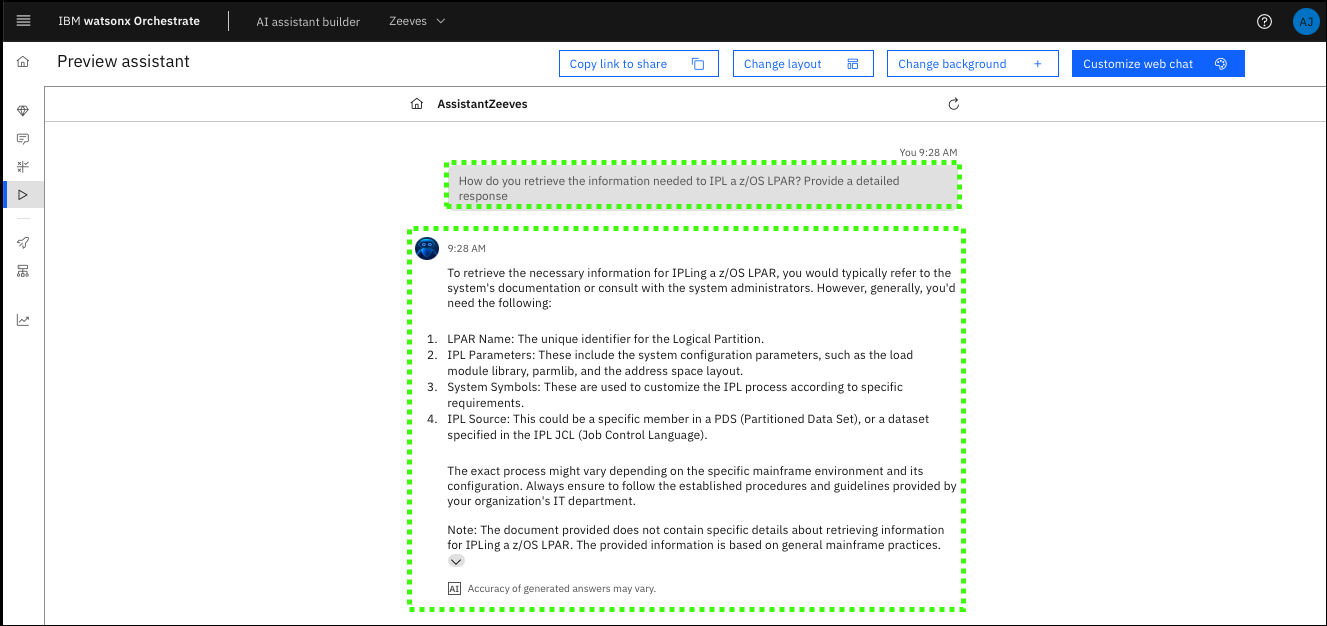

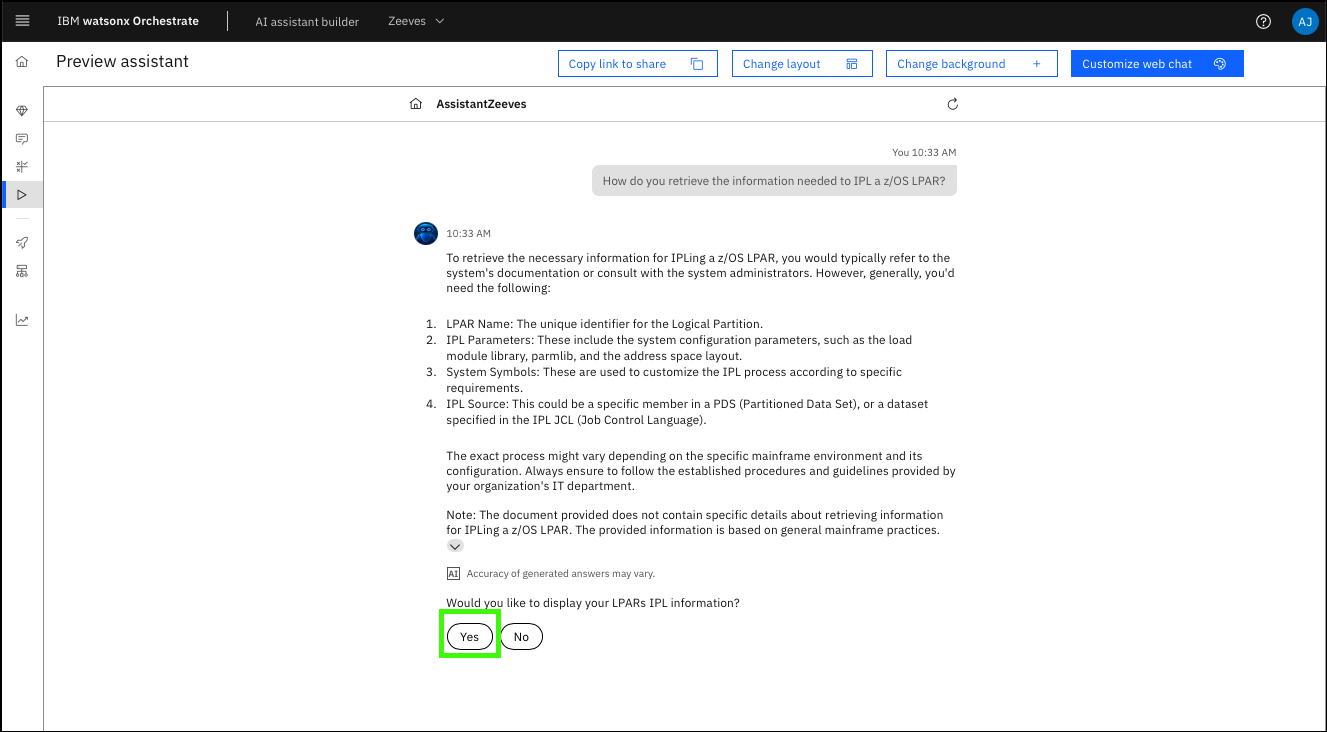

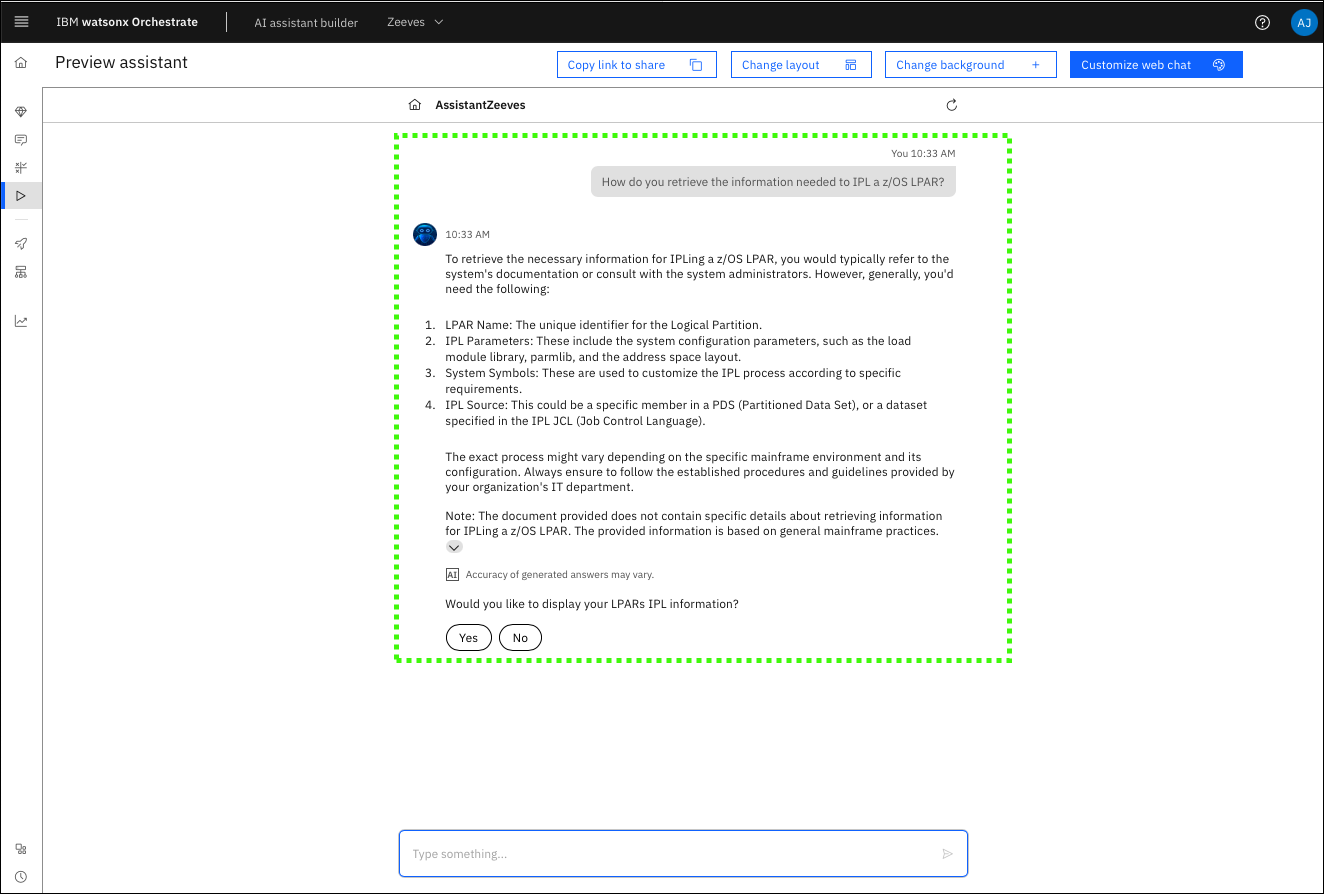

3. Review the response.

   By using the conversational search capability of watsonx Assistant for Z, grounded on Z-domain knowledge in the Z RAG, the user is able to quickly find an answer to their question. The assistant returns a response that shows the exact operator command they might use, and the types of details it provides which is relevant for preparing for an upcoming IPL. For example, the system’s release level, the LOAD LIB information used for the IPL, the IODF device, the IPL device, and other system information.

   You are also able to improve their productivity by infusing automations into the natural conversation that will provide them exactly the information they need to accomplish their task.



4. Click Yes.

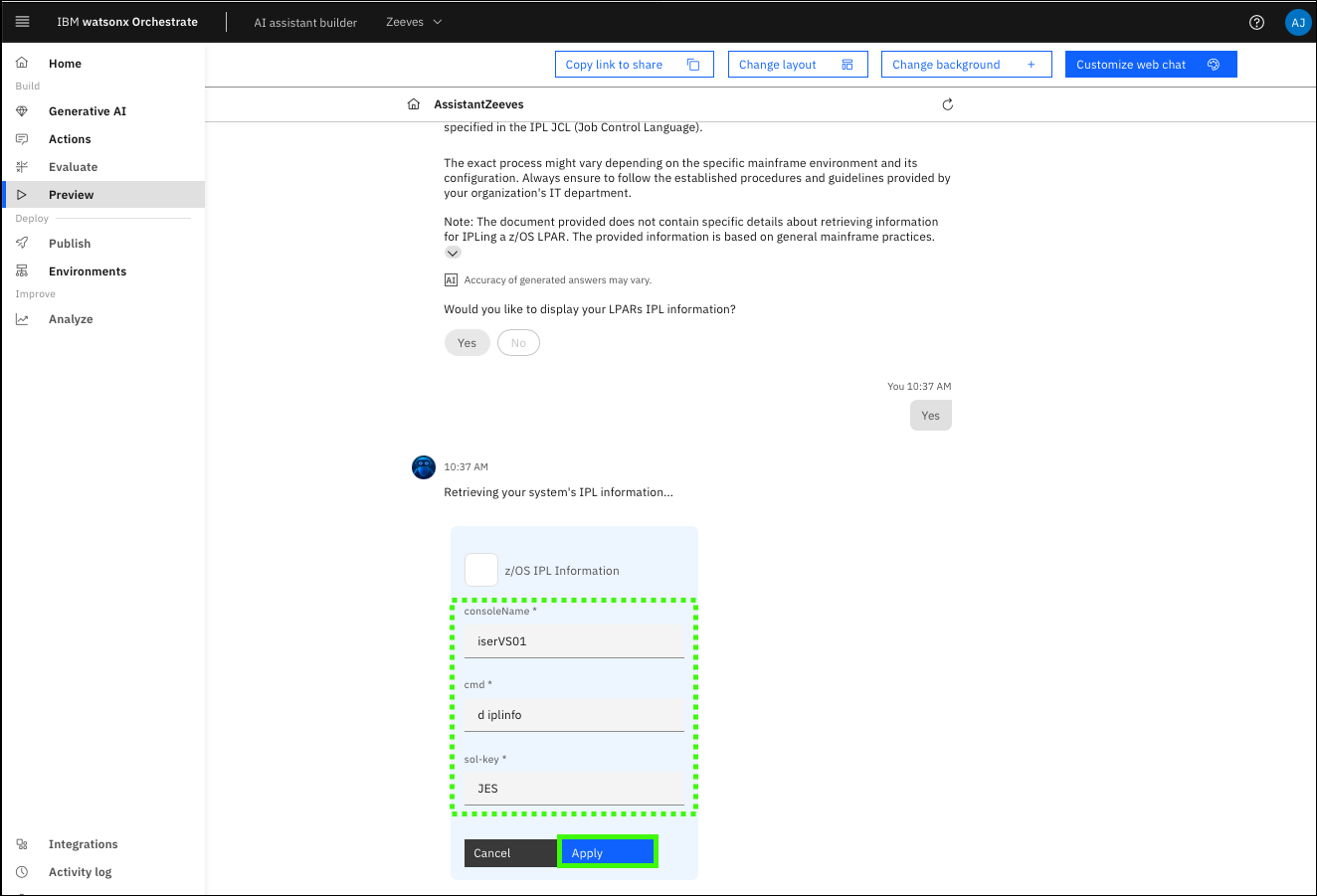

5. Using the defaults in the form, click Apply.

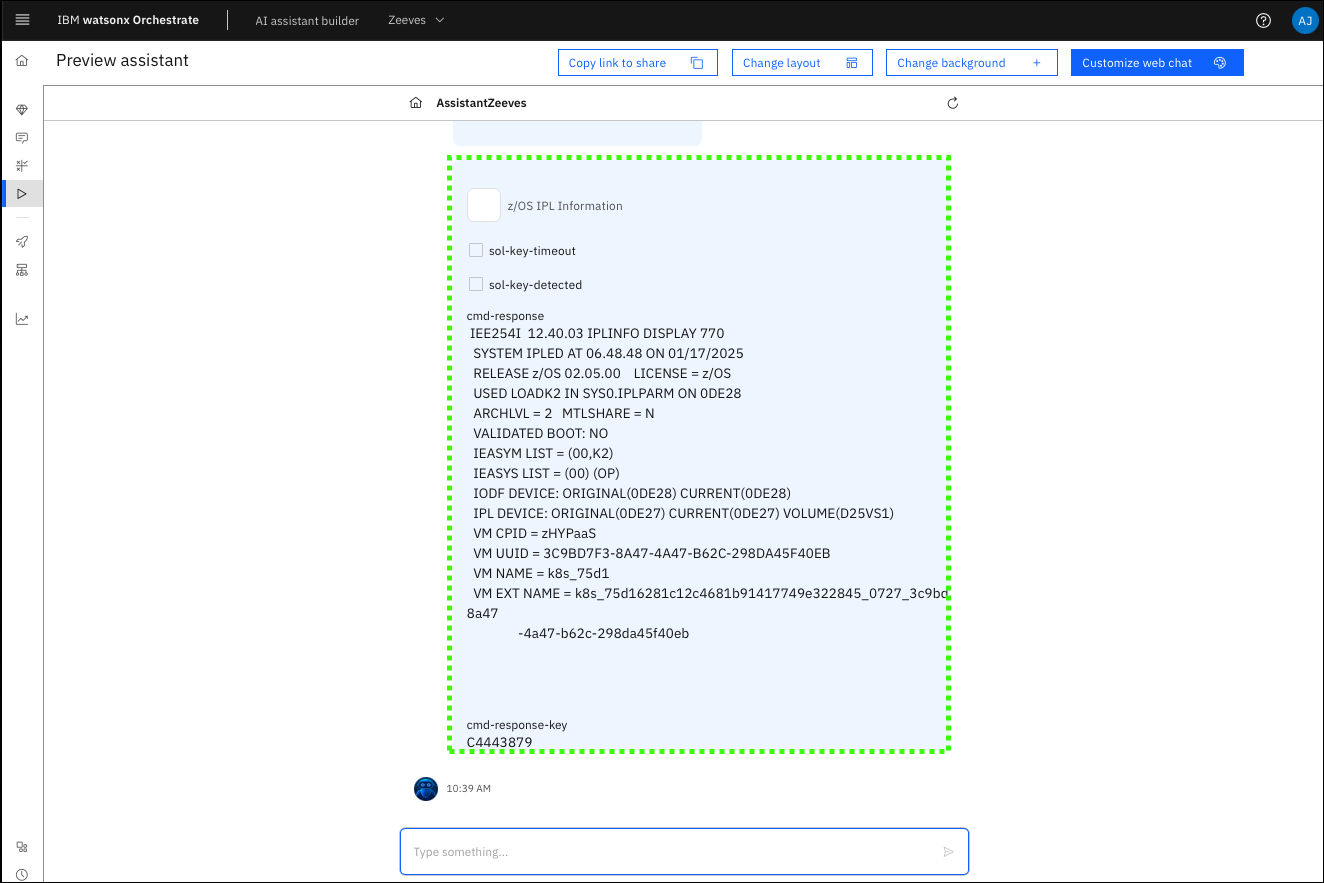

6. Review the response to the custom-built action.

   The output provides relevant pieces of information the early-tenure SysProg needs to prepare for an IPL on their z/OS LPAR. For example, when the system was last IPLed, the z/OS release they have running (2.5), the IPL volume (D25VS1), the IPL LOAD PARM (LOADK2) used during the last IPL, and other relevant details.



The ability to infuse skills and automations into the conversation allows the user to issue the operator command on their system directly within the assistant itself. The assistant provides a single interface for retrieving details that are required for the IPL process to go smoothly and increases the user's efficiency.
