Exercise 4: Use Tekton and Kabanero Pipelines to continuously deploy

In this exercise we're going to take our insurance quote application from exercise 3 and instead of deploying it as a stand alone app, we will push the code up to a GitHub repo and use Tekton pipelines to automatically deploy the app to our OpenShift cluster and speed up your deployment process.

Recall that the application from exercise 3 consists of:

• a front-end constructed with Node.js (we used the nodejs-express collection)
• a back-end constructed with Java (we used the java-spring-boot2 collection)

When you have completed this exercise, you will understand how to:

• leverage Tekton pipelines with Collections to deploy applications to OpenShift

Prerequisites

You should have already carried out the prerequisites defined in Exercise 3, and in addition:

First we delete the deployments, run the appsody deploy delete command to remove them.

cd ~/appsody-apps/quote-frontend
appsody deploy delete --namespace insurance-quote
cd ~/appsody-apps/quote-backend
appsody deploy delete --namespace insurance-quote

You should see output similar to the following:

$ appsody deploy delete --namespace insurance-quote
Deleting deployment using deployment manifest app-deploy.yaml
Attempting to delete resource from Kubernetes...
Running command: kubectl delete -f app-deploy.yaml --namespace insurance-quote
Deployment deleted

Note, we still have the insurance-quote namespace, the dacadoo-config config map, the appsody-operator deployment, and the images in our registry.

Steps

1. Launch the Tekton dashboard
2. Get a GitHub Access Token
3. Upload insurance quote frontend, and backend to GitHub
4. Add webhooks to Tekton to watch Github repo changes
5. Test it all out

1. Launch the Tekton dashboard

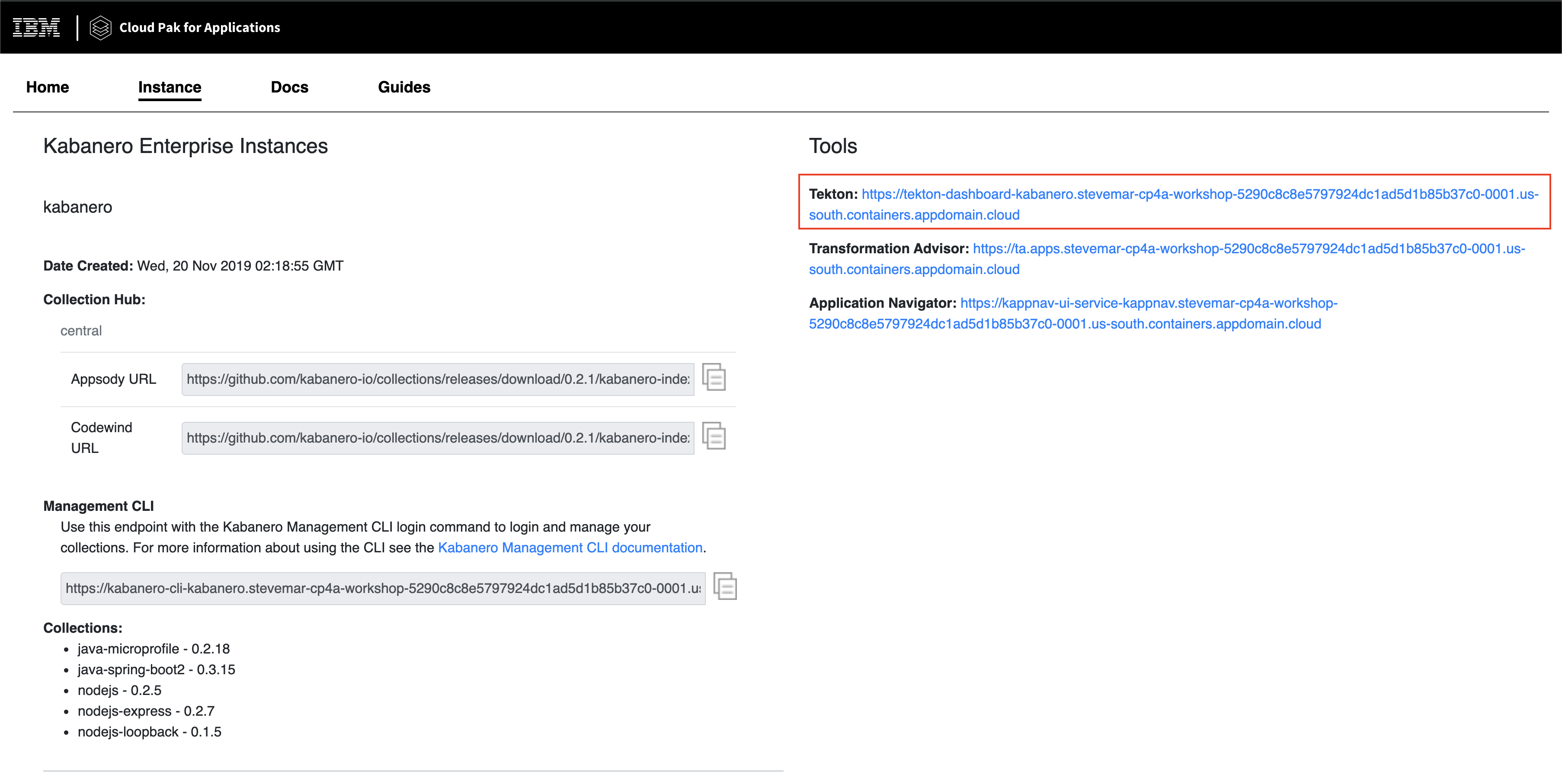

You can launch the tekton dashboard by accessing the Cloud Pak for Applications dashboard and selecting the Tekton link. Revisit the Pre-work section if unable to recall how to access the Cloud Pak for Applications dashboard.

You can also obtain the URL for the tekton dashboard by using oc get routes. We want to use the address that looks like tekton-dashboard-kabanero.xyz.domain.containers.appdomain.cloud.

$ oc get routes --namespace kabanero
NAME               HOST/PORT                                                                                                             PATH      SERVICES           PORT      TERMINATION          WILDCARD
icpa-landing       ibm-cp-applications.cpa-workshop-dev-5290c8c8e5797924dc1ad5d1b85b37c0-0001.us-east.containers.appdomain.cloud                   icpa-landing       <all>     reencrypt/Redirect   None
kabanero-cli       kabanero-cli-kabanero.cpa-workshop-dev-5290c8c8e5797924dc1ad5d1b85b37c0-0001.us-east.containers.appdomain.cloud                 kabanero-cli       <all>     passthrough          None
kabanero-landing   kabanero-landing-kabanero.cpa-workshop-dev-5290c8c8e5797924dc1ad5d1b85b37c0-0001.us-east.containers.appdomain.cloud             kabanero-landing   <all>     passthrough          None
tekton-dashboard   tekton-dashboard-kabanero.cpa-workshop-dev-5290c8c8e5797924dc1ad5d1b85b37c0-0001.us-east.containers.appdomain.cloud             tekton-dashboard   <all>     reencrypt/Redirect   None

Review pre-installed pipelines and tasks on Cloud Pak for Apps

There are 5 Pipelines, one for each collection kabanero comes with (java microprofile, spring, nodejs, express, and loopback). Pipelines are a first class structure in Tekton. Pipelines are a series of Tasks.

Run this command to see the available pipelines.

oc get pipeline -n kabanero

You will see something similar to this.

$ oc get pipeline -n kabanero
NAME                                           AGE
java-microprofile-build-deploy-pipeline        15d
java-spring-boot2-build-deploy-pipeline        15d
nodejs-build-deploy-pipeline                   15d
nodejs-express-build-deploy-pipeline           15d
nodejs-loopback-build-deploy-pipeline          15d
pipeline0                                      15d

These are visible through the UI, too:

There are 10 Tasks, two for each collection kabanero comes with. Each collection has 2 Tasks, a Build Task and a Deploy Task.

oc get tasks -n kabanero

You will see something similar to this.

$ oc get tasks -n kabanero
NAME                            AGE
java-microprofile-build-task    27d
java-microprofile-deploy-task   27d
java-spring-boot2-build-task    27d
java-spring-boot2-deploy-task   27d
monitor-result-task             27d
nodejs-build-task               27d
nodejs-deploy-task              27d
nodejs-express-build-task       27d
nodejs-express-deploy-task      27d
nodejs-loopback-build-task      27d
nodejs-loopback-deploy-task     27d
pipeline0-task                  27d

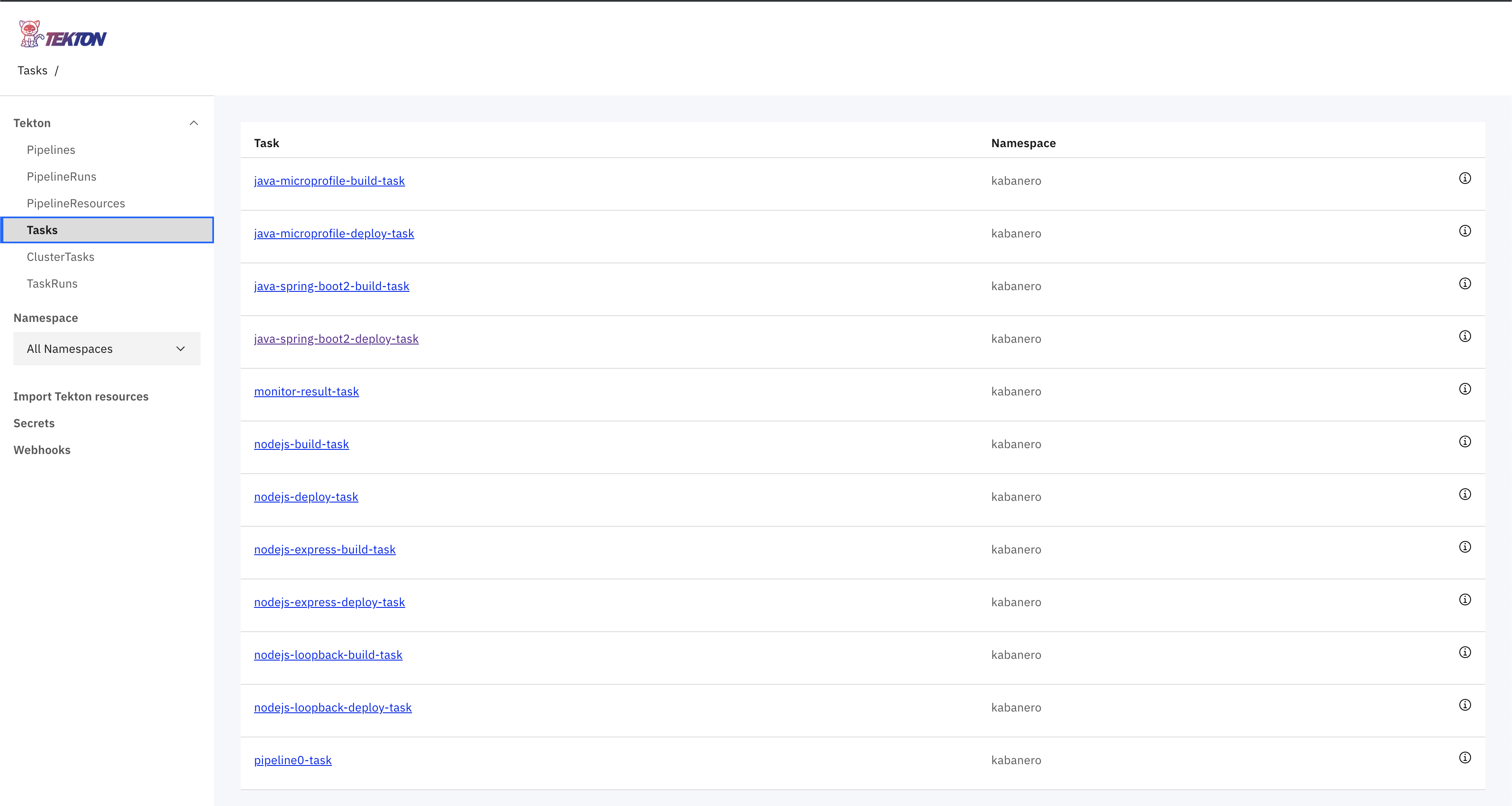

These are visible through the UI, too:

2. Update Kabanero to deploy to alternate namespaces with Tekton

Out of the box, Kabanero will only allow deployments to the kabanero namespace. It is recommended that you create separate namespaces either for individual applications or classes of application. To do this, you need to add these new namespaces to the kabanero custom resource. To find this resource

$ oc get kabaneros -n kabanero
NAME       AGE       VERSION   READY
kabanero   13d       0.1.0     True

Edit the kabanero custom resource

oc edit kabaneros kabanero -n kabanero

Add a targetNamespaces key to spec with, in this case, a single value of insurance-quote:

spec:
  collections:
    repositories:
    - activateDefaultCollections: true
      name: incubator
      url: https://github.com/kabanero-io/collections/releases/download/v0.1.2/kabanero-index.yaml
  targetNamespaces:
  - insurance-quote

Update app-deploy.yml to specify the namespace

Go to your frontend code cd ~/appsody-apps/quote-frontend and update app-deploy.yaml to include the namespace

apiVersion: appsody.dev/v1beta1
kind: AppsodyApplication
metadata:
  name: quote-frontend
  namespace: insurance-quote

Go to your backend code cd ~/appsody-apps/quote-backend and update app-deploy.yaml to include the namespace

apiVersion: appsody.dev/v1beta1
kind: AppsodyApplication
metadata:
  name: quote-backend
  namespace: insurance-quote

2. Get a GitHub Access Token

When using Tekton, building a pipeline will require code to be pulled from either a public or private repository. When configuring Tekton, for security reasons, we will create an Access Token instead of using a password.

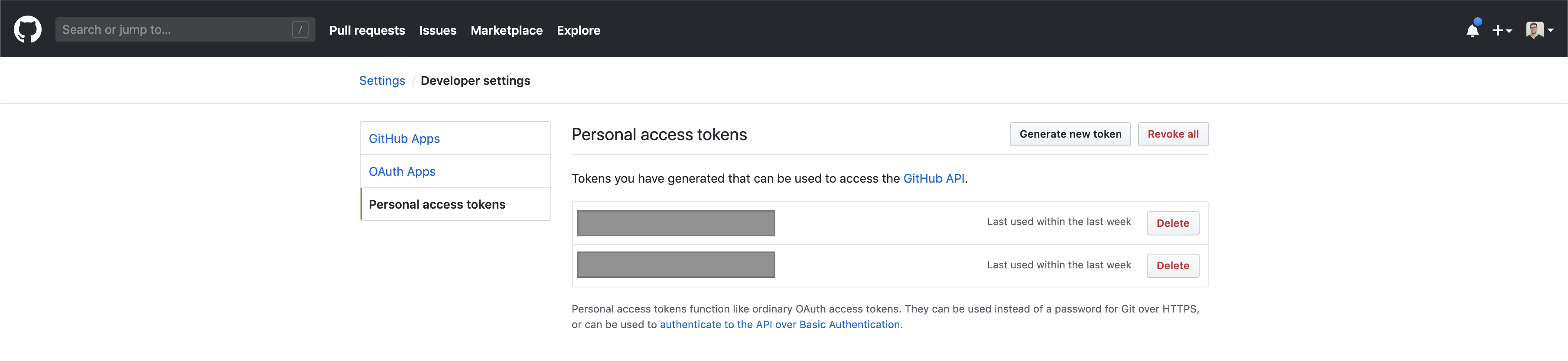

To create an Access Token, from Github.com click on your profile icon in the top left. Then go to Settings -> Developer Settings -> Personal Access Tokens. Or go directly to https://github.com/settings/tokens

Here we want to generate a token, so Click on the Generate a Token. The token permissions need to be the repo which gives read and write access to the repository.

Once the token is created, make sure to copy it down. We will need it later.

3. Upload insurance quote frontend, and backend to GitHub

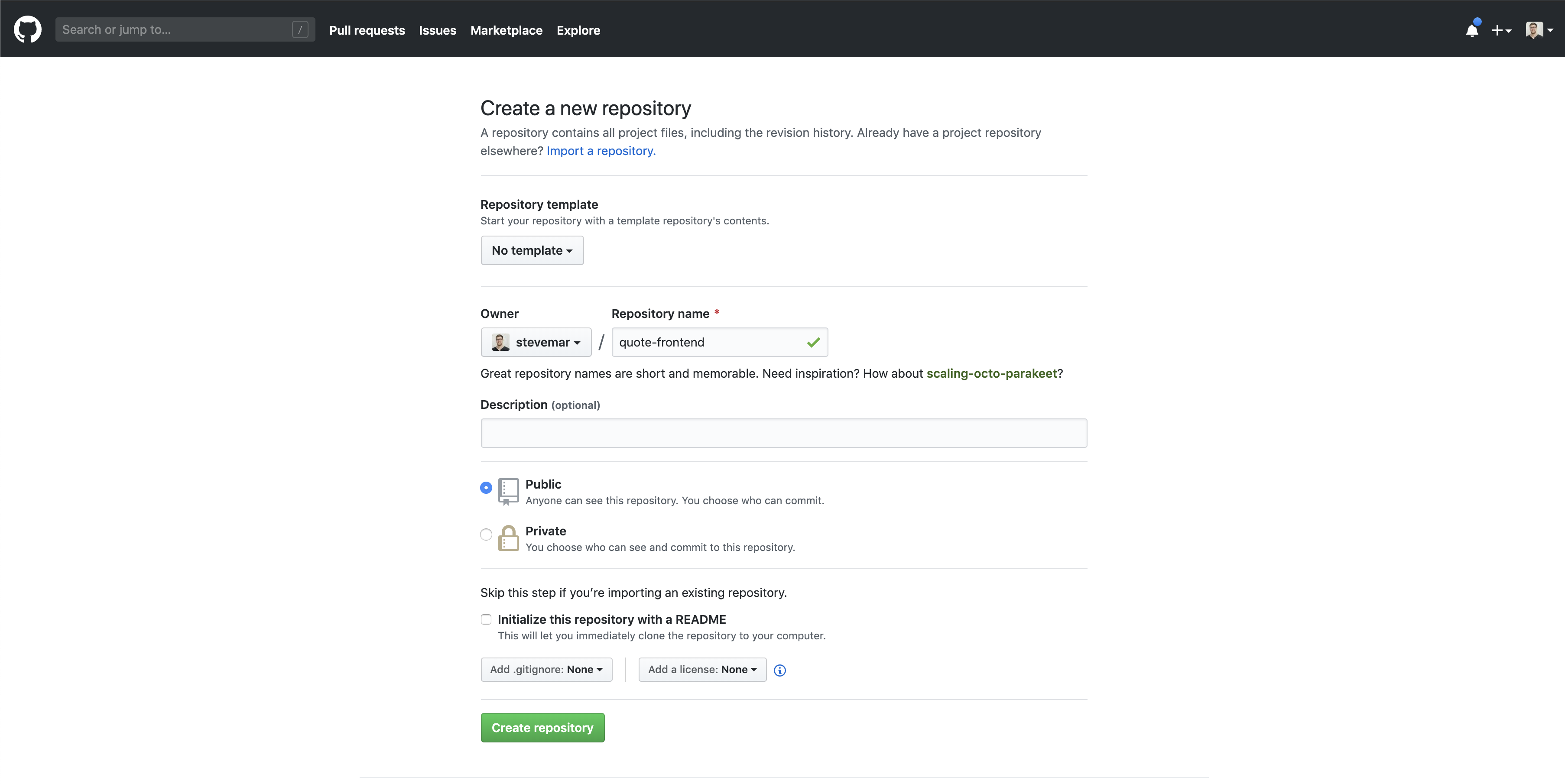

Go to https://github.com/new and create two new repositories, quote-frontend, and quote-backend. Do not initiatize the repos with a license file or README.

From your quote-backend directory, run the commands below, replacing <username> with your own.

git init
git add -A
git commit -m "first commit"
git remote add origin git@github.com:<username>/quote-backend.git
git push -u origin master

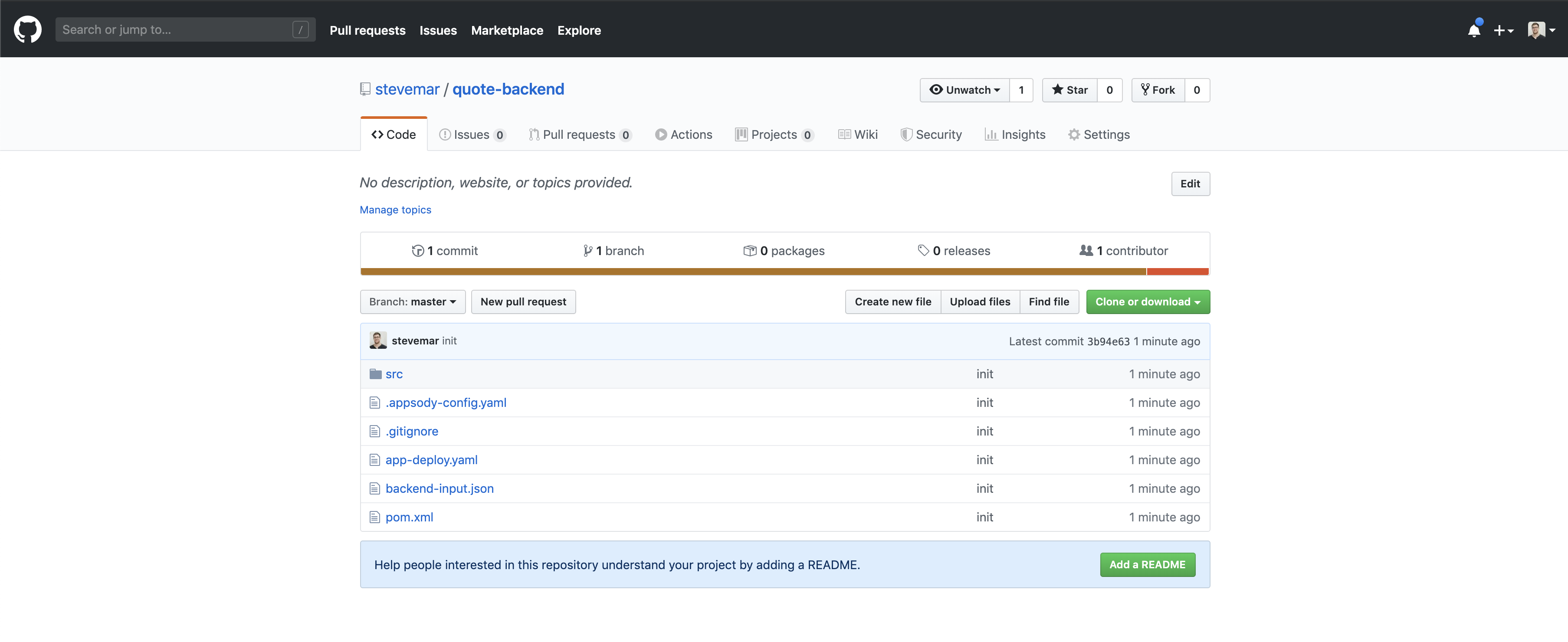

The repo for your backend code should look like this:

From your quote-frontend directory, run the commands below, replacing <username> with your own.

git init
git add -A
git commit -m "first commit"
git remote add origin git@github.com:<username>/quote-frontend.git
git push -u origin master

The repo for your frontend code should look like this:

4. Add webhooks to Tekton to watch Github repo changes

Configure the GitHub webhook to your repo. Go to Webhooks > Add Webhook and then create the webhook.

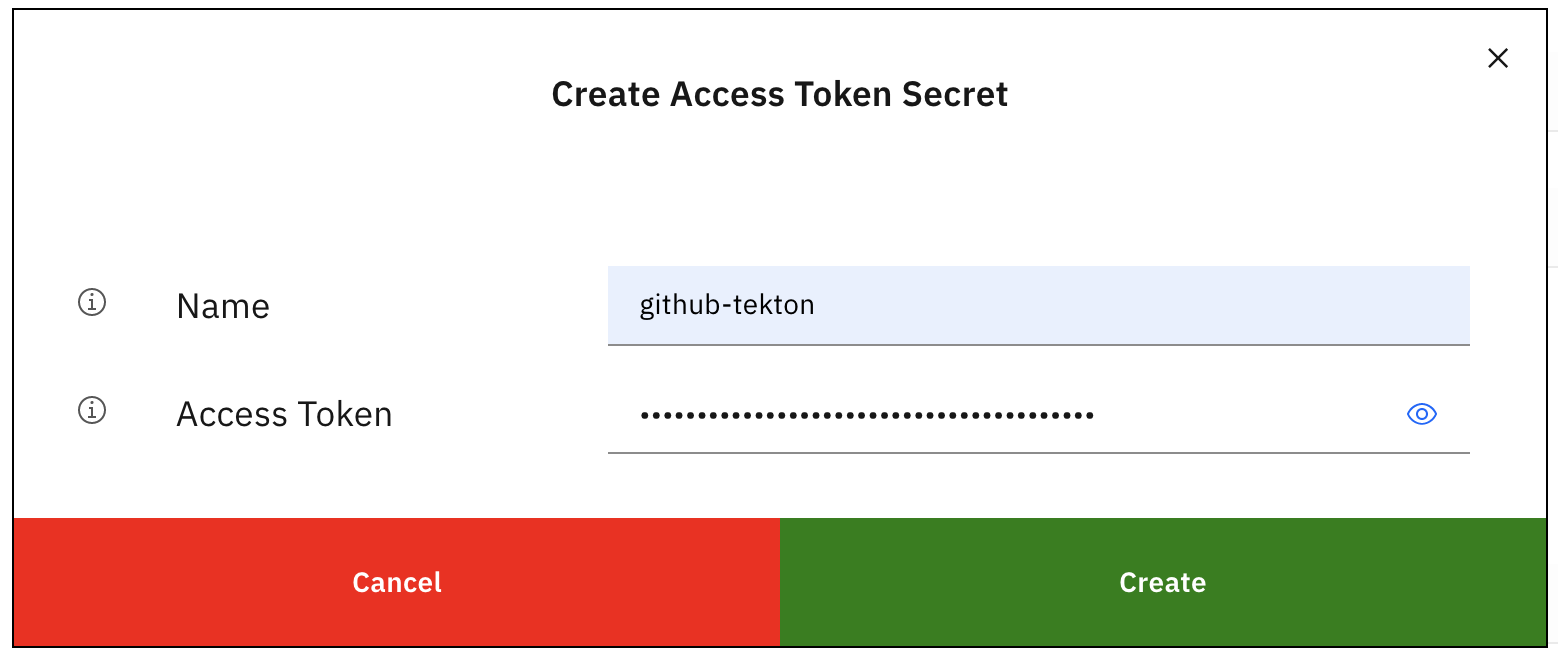

Note that the first time creating a webhook a new access token must also be created, use the access token from the earlier step:

Create a webhook for the backend

Name: backend-webhook
Repository URL: http://github.com/{username}/quote-backend
Access Token: github-tekton

Namespace: kabanero
Pipeline: java-spring-boot2-build-deploy-pipeline
Service account: kabanero-operator
Docker Registry: docker-registry.default.svc:5000/insurance-quote

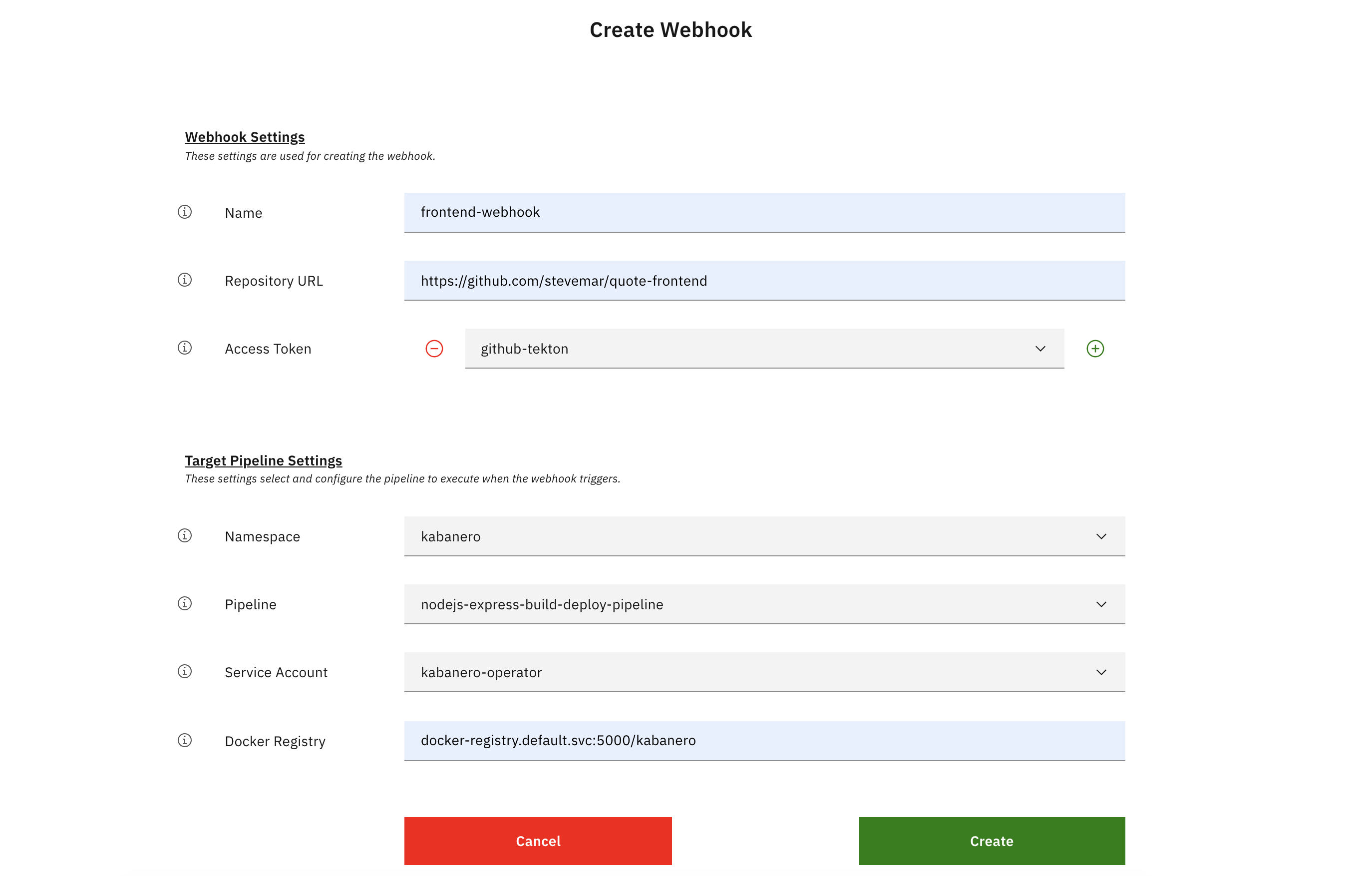

Create a webhook for the frontend

Name: frontend-webhook
Repository URL: http://github.com/{username}/quote-frontend
Access Token: github-tekton

Namespace: kabanero
Pipeline: nodejs-express-build-deploy-pipeline
Service account: kabanero-operator
Docker Registry: docker-registry.default.svc:5000/insurance-quote

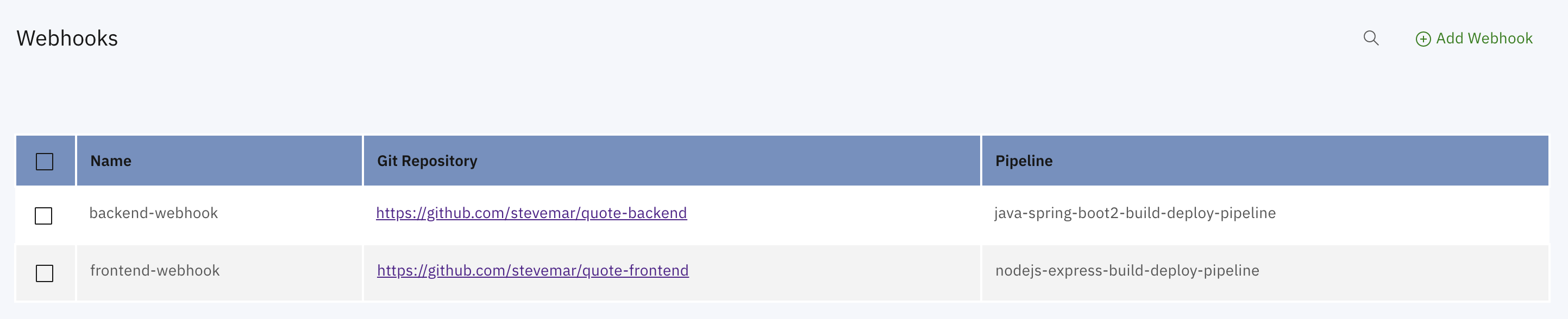

Verify both are created successfully.

Check Github repo settings

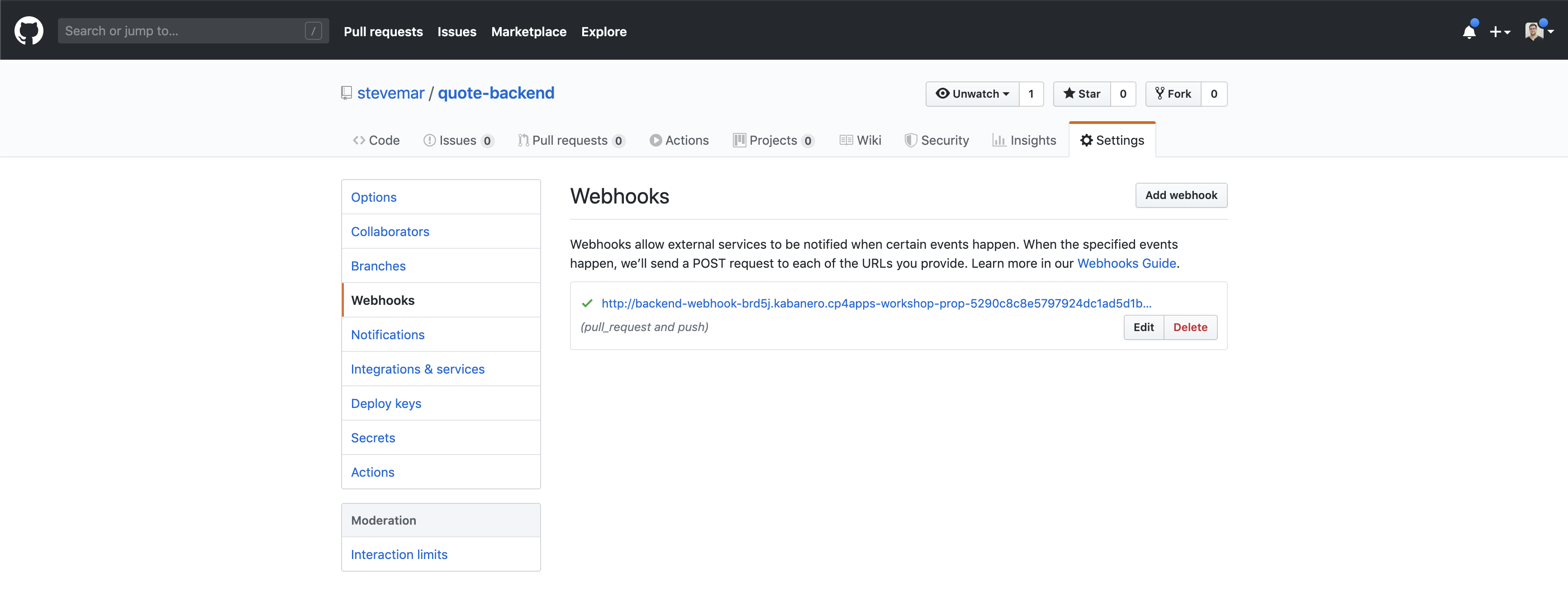

Go to the repo and check the settings tab to see the webhooks, Click the webhook

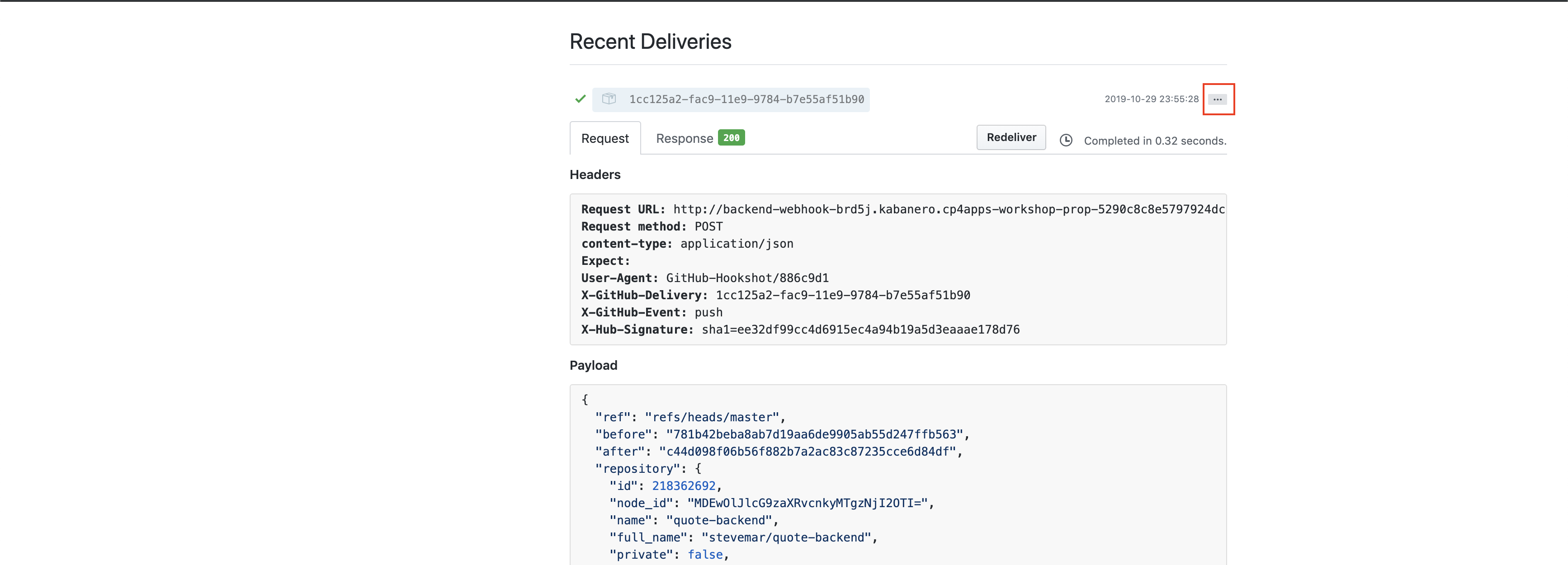

Scroll down to see any payloads being delivered. There is currently a bug where the first payload is not delivered. Not to worry, we'll be making changes to the code anyway, that will trigger a new payload.

5. Test it all out

In your quote-backend repo, change the file quote-backend/src/main/java/application/Quote.java. Change a value in a logger statement. Then commit this change and push to your github repo, for example:

git add -u
git commit -m "test change"
git push -f -u origin master

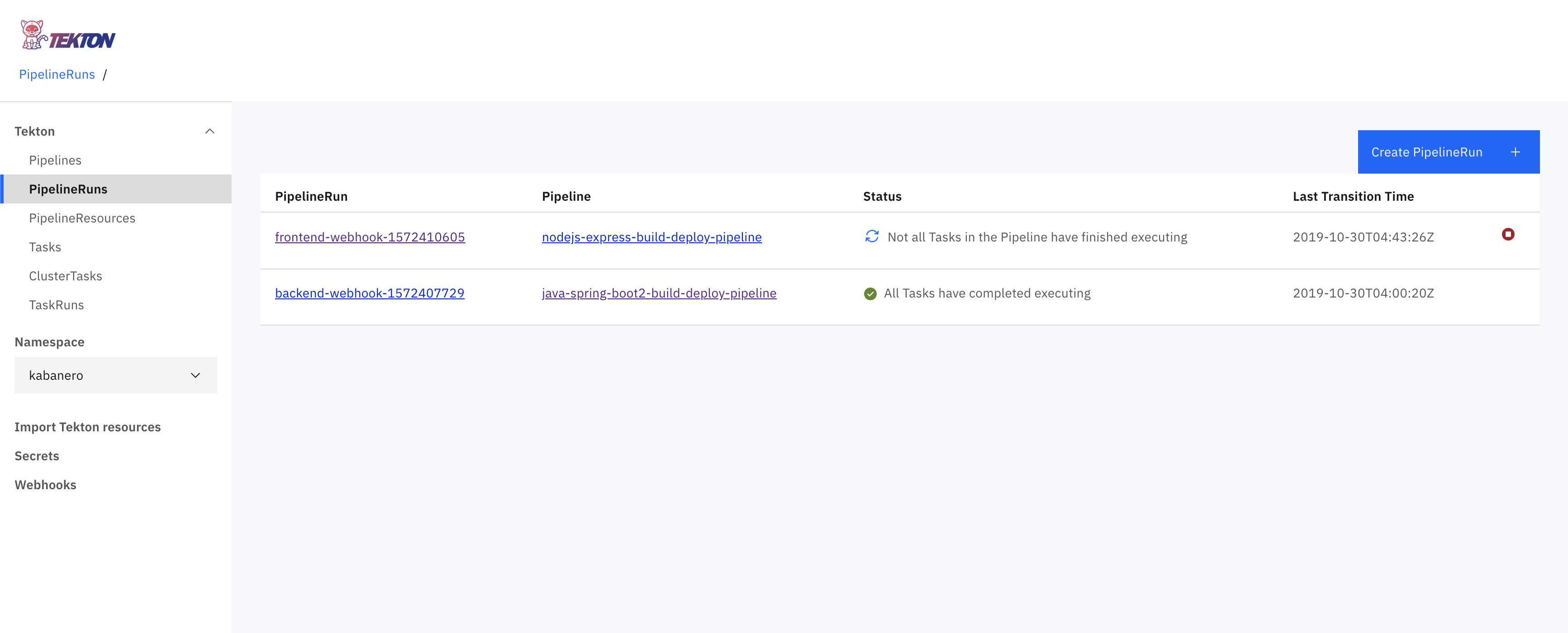

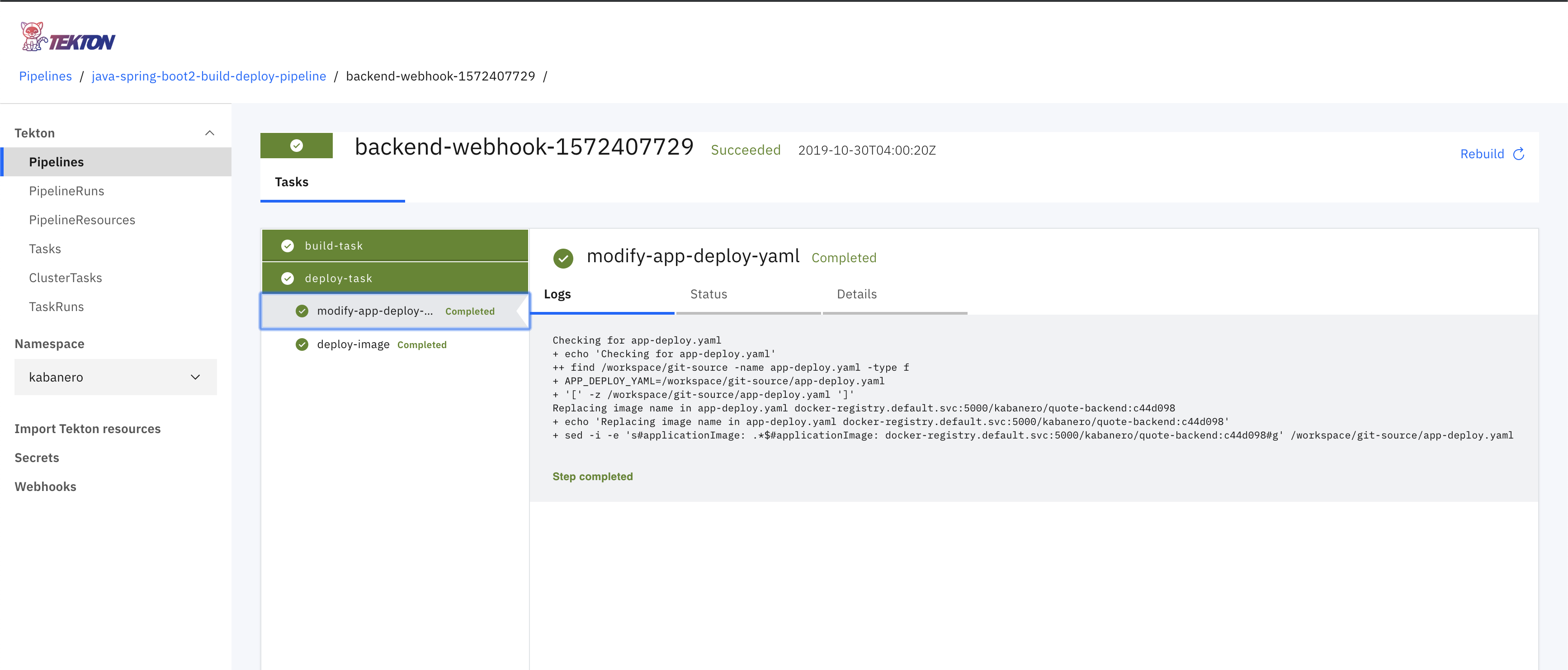

This will trigger the java-spring-boot2-build-deploy tekton pipeline. Go to the tekton dashboard and access the new pipeline run it created.

Wait until the task is complete, and then in your quote-frontend repo, change the file quote-frontend/app.js. Change a value in a comment statement. Then commit this change and push to your github repo, for example:

git add -u
git commit -m "test change"
git push -f -u origin master

This should trigger another pipeline run to be created, using the nodejs-express-build-deploy pipeline.

Wait until the task is complete, then find the route using oc get routes:

$ oc get routes -n insurance-quote | grep frontend
quote-frontend     quote-frontend-insurance-quote.cp4apps-workshop-prop-5290c8c8e5797924dc1ad5d1b85b37c0-0001.us-east.containers.appdomain.cloud

Open a browser to http://<url-from-above> and see the usual interface for the insurance quote app. Try entering information to ensure the frontend and backend are communicating.

Congratulations! You have deployed the sample application to OpenShift using Tekton. Day 1 of the workshop is now complete!
