Exercise 8: Create a custom Tekton Task and Pipleline

In this exercise, we will show how to create Tekton artifacts, and how to plug into the existing pipelines and environment knowledge that Kabanero provides to those artifacts.

When you have completed this exercise, you will understand how to

• create a custom Task in Tekton
• create a custom Pipeline in Tekton

Prerequisites

You should have already carried out the prerequisites defined in Exercise 7.

In addition, recall how to do the following from Exercise 4

• Access the Tekton Dashboard
• Get a GitHub Access Token

Steps

1. Upload custom stack test to GitHub
2. Create a custom Tekton Task
3. Create a custom Tekton Pipeline
4. Add a webhook to Tekton to watch Github for changes
5. Test it all out

1. Upload custom stack test to GitHub

From completing the previous exercise you should now have a code base in the following folder

cd ~/appsody-apps/test-custom-stack
ls -la

Should result in output that looks like the following:

$ ls -la
total 144
drwxr-xr-x  14 stevemar  staff    448 19 Nov 14:20 .
drwxr-xr-x   9 stevemar  staff    288 19 Nov 16:26 ..
-rw-r--r--   1 stevemar  staff     70 15 Nov 10:02 .appsody-config.yaml
-rw-r--r--   1 stevemar  staff   1316 15 Nov 10:02 .gitignore
-rw-r--r--   1 stevemar  staff    130 15 Nov 10:12 app.js
drwxr-xr-x   2 stevemar  staff     64 15 Nov 10:03 node_modules
-rw-r--r--   1 stevemar  staff  51421 15 Nov 10:02 package-lock.json
-rw-r--r--   1 stevemar  staff    455 19 Nov 12:52 package.json
drwxr-xr-x   3 stevemar  staff     96 15 Nov 10:02 test

We will now upload that code to Github.

Go to https://github.com/new and create a new repository, test-custom-stack. Do not initiatize the repos with a license file or README.

From your test-custom-stack directory, run the commands below, replacing <username> with your own.

git init
git add -A
git commit -m "first commit"
git remote add my-org https://github.com:<username>/test-custom-stack.git
git push -u my-org master

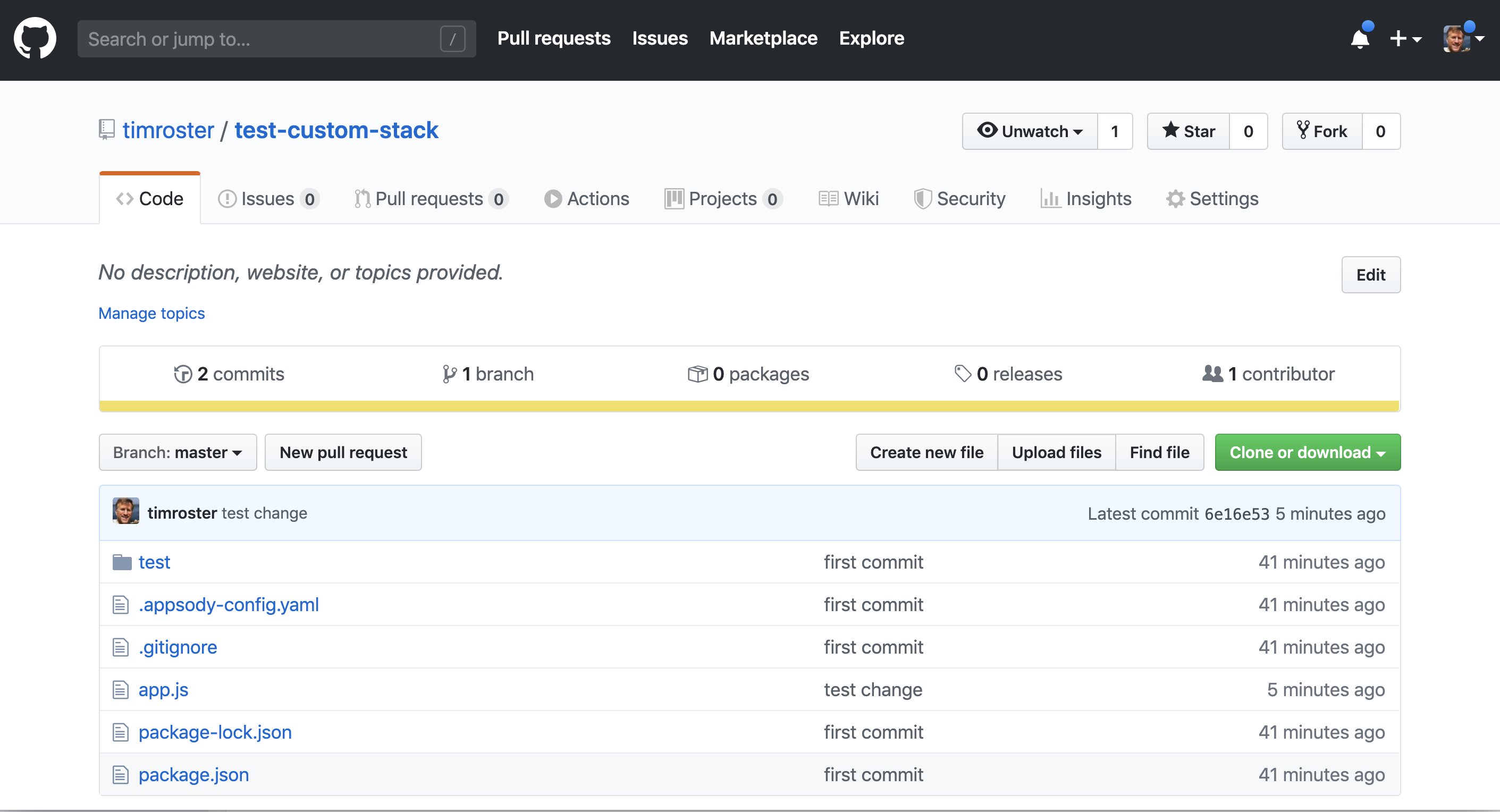

The repo should look like this:

2. Create a custom Tekton Task

Create a new directory to iterate on new tasks

cd ~/appsody-apps
mkdir tekton-tasks
cd tekton-tasks

Create a new file named test-task.yaml with the following contents:

apiVersion: tekton.dev/v1alpha1
kind: Task
metadata:
  name: test-task
spec:
  inputs:
    resources:
      - name: git-source
        type: git
  steps:
    - name: test-echo
      image: kabanero/nodejs-express:0.2
      workingDir: ${inputs.resources.git-source.path}
      command:
        - /bin/bash
      args:
        - -c
        - |
          set -e
          echo "APPSODY_INSTALL:"
          echo $APPSODY_INSTALL
          echo "APPSODY_TEST:"
          echo $APPSODY_TEST
          echo "APPSODY_WATCH_DIR:"
          echo $APPSODY_WATCH_DIR
          echo "------"
          echo "My working directory is:"
          pwd
          ls
          echo "------"
          echo "I built my first Kabanero based Tekton task"

Run the following to create the Task in Tekton:

oc apply -f test-task.yaml -n kabanero

3. Create a custom Tekton Pipeline

Create a new file named test-pipeline.yaml with the following contents:

apiVersion: tekton.dev/v1alpha1
kind: Pipeline
metadata:
  name: test-pipeline
spec:
  resources:
    - name: git-source
      type: git
    - name: docker-image
      type: image
  tasks:
    - name: test-task
      taskRef:
        name: test-task
      resources:
        inputs:
        - name: git-source
          resource: git-source

Run the following to create the Pipeline in Tekton:

oc apply -f test-pipeline.yaml -n kabanero

4. Add a webhook to Tekton to watch Github for changes

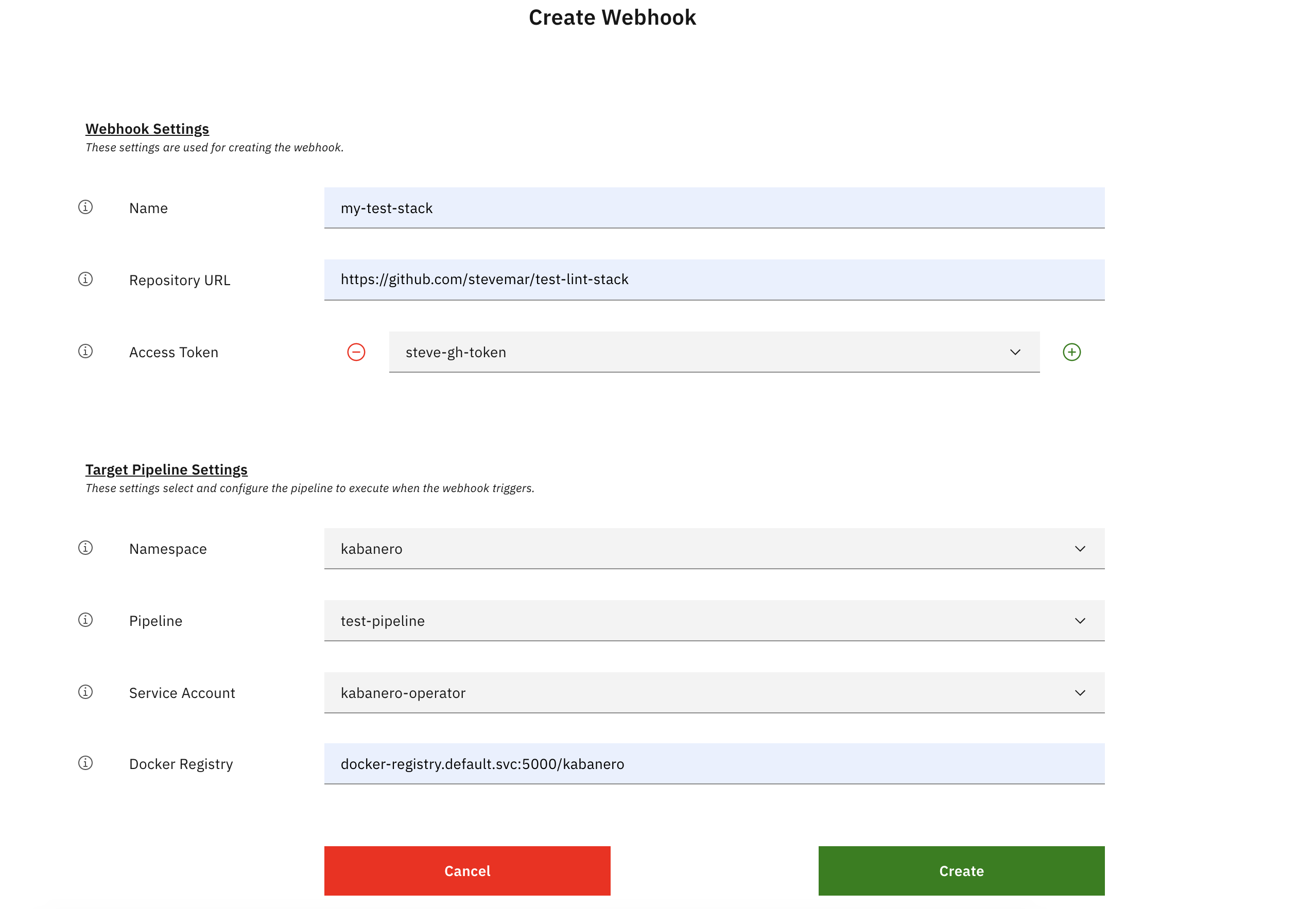

From the Tekton dashboard, we need to add a new webhook. Launch a browser and access the dashboard.

To configure the GitHub webhook to your repo. Go to Webhooks > Add Webhook and then create the webhook.

Create a webhook for the backend

Name: custom-stack-webhook
Repository URL: http://github.com/{username}/test-custom-stack
Access Token: github-tekton

Namespace: kabanero
Pipeline: test-pipeline
Service account: kabanero-operator
Docker Registry: docker-registry.default.svc:5000/kabanero

Return to your git repo and check the Settings > Webhooks panel to verify that the webhook has been added and is working.

5. Test it all out

In your test-custom-stack repo, change the file app.js. Change a value in the res.send("Hello from Appsody!"); function. Then commit this change and push to your github repo, for example:

git add -u
git commit -m "test change"
git push -f -u origin master

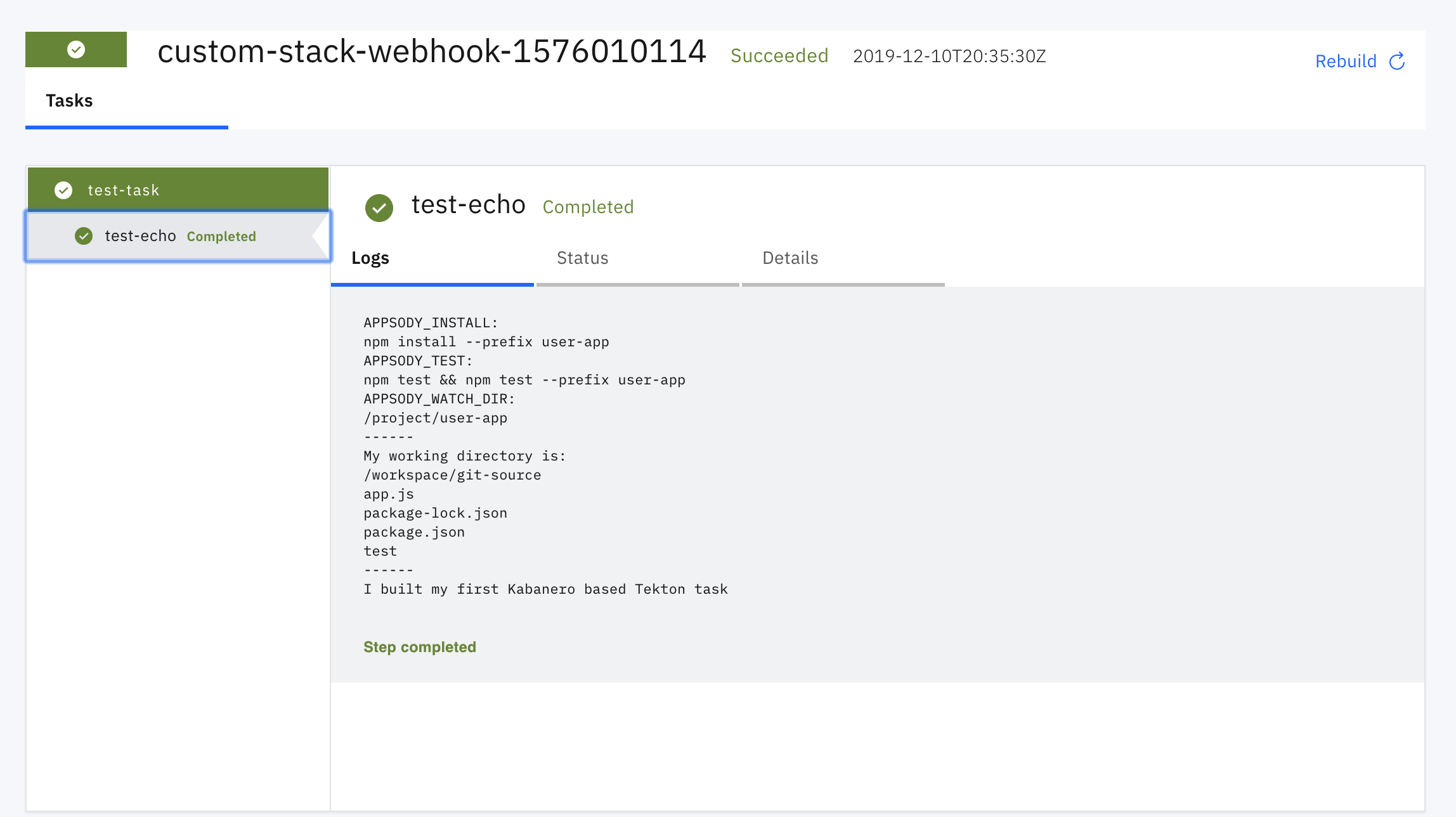

This will trigger the tekton pipleine. Go to the tekton dashboard and access the new pipeline it created.
