Accessing the Bastion Host of a Jam-in-a-Box - Single User Environment via Remote Desktop Protocol (RDP)

General

Access to a Jam-in-a-Box Single User Environment requires to connect to the bastion host via RDP. It cannot be accessed directly from your local browser.

This page provides hints on how to access a Jam-in-a-Box Single User Environment via RDP from both Mac and Windows.

Mac Users

Mac users normally need to download and install a separate application to be able to connect to a remote system via RDP. While multiple applications exist, below instructions showcase how to use Windows App from Microsoft as a free option (the previous version of the application was called Microsoft Remote Desktop).

  1. In case not already installed, download and install Windows App through your Mac App Store

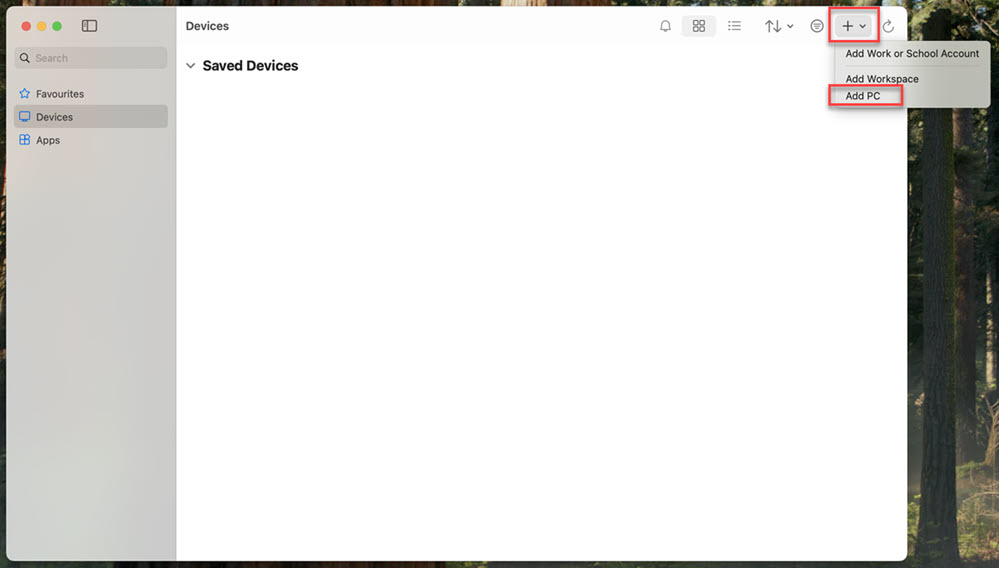

  2. Open Windows App and click the + sign in the top right corner, followed by Add PC

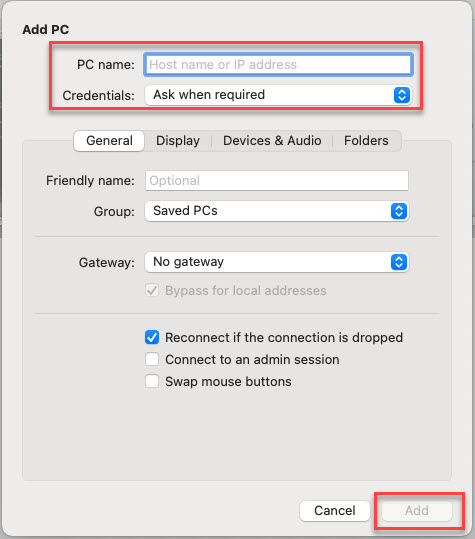

  3. Enter the RDP URL of your environment as PC name in the Add PC dialog. In the Credentials field, leave Ask when required. Afterwards, click the Add button

  4. In the Enter Your Credentials dialog, enter the credentials that were provided to you and click Continue

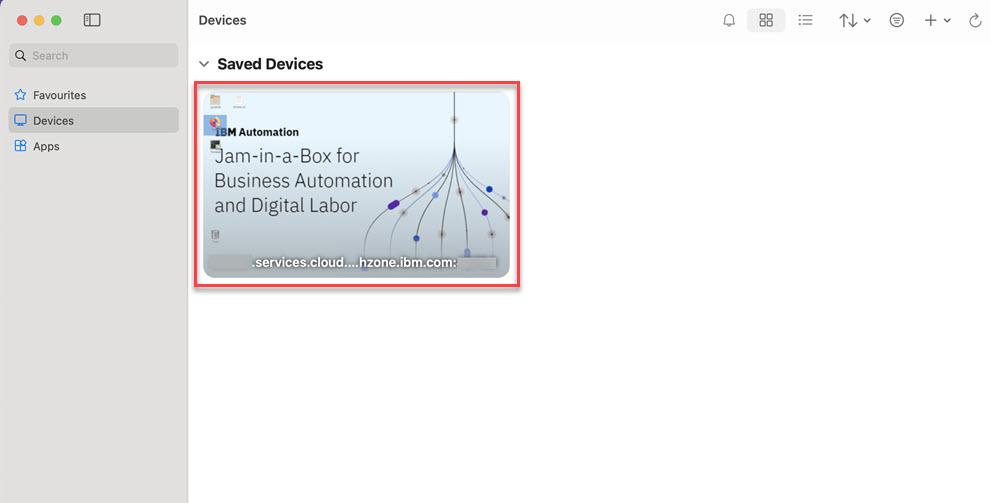

  5. Once you added a PC, a tile is created on the main page. To access the environment later on, click on the tile

Windows Users

Windows users should have the Remote Desktop Connection app pre-installed on their machine, with no need for any additional installation.

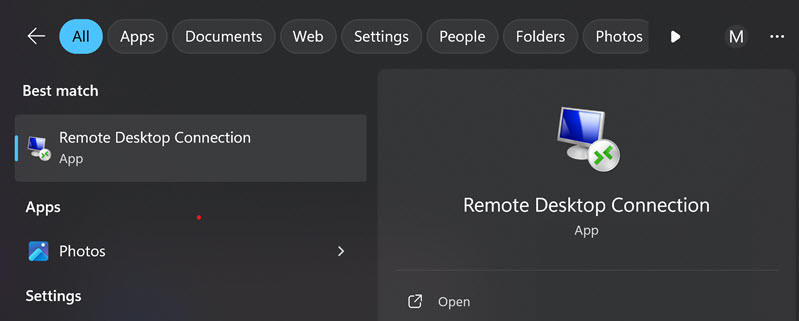

  1. Click on the Search icon in the taskbar and type Remote which should result in the app to be found

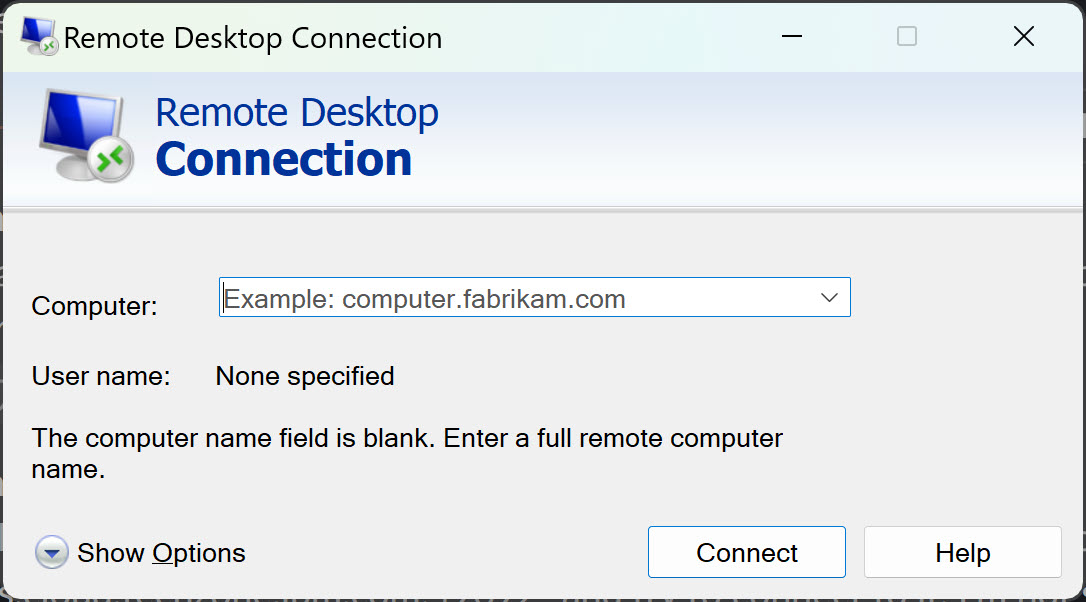

  2. Enter the RDP URL of your environment as Computer in the dialog shown when launching the App and click on Connect leaving all other settings unchanged

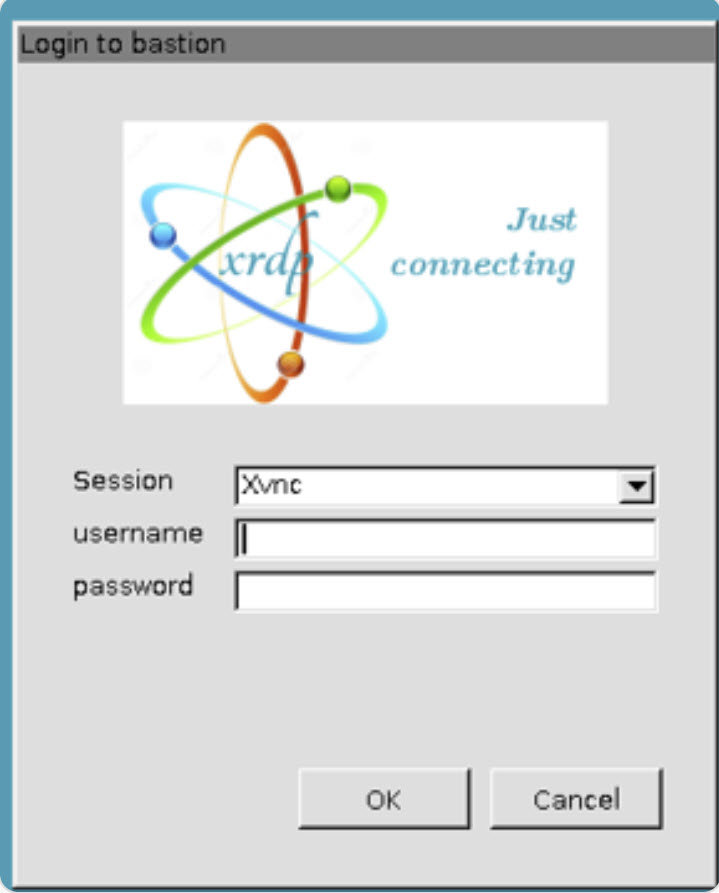

  3. Once connected to your environment, enter the username and password in the login dialog Login to bastion

Support

We aim to support successfully utilizing our Jam-in-a-Box.

Business Partners (require an invitation) and IBMers

To engage us, drop us a message at #jam-in-a-box-ba-dl.

All others

For anyone who doesn’t fall into the business partner or IBM employee category, please feel free to open a new issue on our GitHub repository. We’ll be more than happy to address your questions and concerns there.

Disclaimer

The information, tools, and artifacts describes and linked are provided AS-IS and without any warranty. Please also refer to the license that is part of this repository for details.
