Lab: DataStage with database connections

DataStage Flow Designer enables users to create, edit, load, and run DataStage jobs which can be used to perform integration of data from various sources in order to glean meaningful and valuable information.

The purpose of this lab is to design a DataStage job to satisfy the following problem statement:

As a data engineer, you have been asked by the Line of Business that you support, to produce a new data file that contains all employees whose total compensation is less than $50,000. The file must also contain the Department Name that the employee works in, and the mean average salary of all employees in that department who earn less than 50,000. In addition, the file must be sorted in descending order, based on the mean average salary amount. Finally, the application that will consume this file, expects the full name of the employee to be in one field, formatted as first, middle initial, last).

NOTE: You can use the Peek stage to check intermediate results in the job as demonstrated in Lab 1.

In this lab, you will learn:

  • How to create a job in DataStage.
  • How to load data from Db2 Warehouse into DataStage.
  • How to perform transformations such as modifying tables, joining tables, aggregating table data and sorting table data.
  • How to write tabular data from DataStage into a file.
  • How to run jobs.
  • How to view logs for jobs.

NOTE: You can use the Peek stage to check intermediate results in the job as demonstrated in Lab 1.

This lab is comprised of the following steps:

  1. Create a Transformation project
  2. Add database connection
  3. Create the job
  4. Compile and run the job
  5. View output

Before you start

Before we start the lab, let's switch to the iis-client VM and launch Firefox.

Switch to iis-client

Click on Classic Launchpad in the Bookmarks tab. The first time you try this out, you might see a certificate error. To get past it, click on Advanced... and then click Accept the Risk and Continue.

Classic Launchpad

Click on DataStage Flow Designer.

Select DFD

Login with the credentials isadmin/inf0Xerver.

Log into DFD

This brings up the DataStage Flow Designer. Click OK.

DFD is up

1. Create a Transformation project

  • On the IBM DataStage Flow Designer, click on the Projects tab and click + Create. In the modal that opens up, type in a name for the project and click Create.

Create project

The project takes a few minutes to be created and once ready, it will be visible on the Projects tab.

Project created

  • Click on the tile for your newly created project. In the modal that opens up, verify that the name of your project is provided as the Project Name and click OK to switch the project.

Switch project

2. Add database connection

The input tables - EMP (containing employee data) and DEPT (containing department data) - are already loaded in Db2 Warehouse. Let's add a Db2 warehouse instance as a Connection in DataStage.

  • Click on the Connections tab and then click + Create to add a new connection.

Create connection

  • Provide the following connection details and click OK. Click Save on the new modal that pops up.
Name: DB2WH
Connector type: JDBC
URL: jdbc:db2://db2w-kzwbsid.us-east.db2w.cloud.ibm.com:50001/BLUDB:sslConnection=true;
Username: bluadmin
Password: ****************

Add connection

A tile for the new connection will now be displayed in the Connections tab.

Created connection

3. Create the job

  • Click on the Jobs tab and then click + Create. Click Parallel Job.

Create parallel job

A new tab with the name Job_1* opens up where you can now start designing the parallel job.

The first step is to load the input tables DEPT and EMP into DataStage.

The DEPT table contains the following columns:

Column Name Data Type Nullable
DEPTNO VARCHAR(3) N
DEPTNAME VARCHAR(36) N
MGRNO CHAR(6) Y
ADMRDEPT CHAR(3) N
LOCATION CHAR(16) Y

The EMP table contains the following columns:

Column Name Data Type Nullable
EMPNO CHAR(6) N
FIRSTNME VARCHAR(12) N
MIDINIT CHAR(1) Y
LASTNAME VARCHAR(15) N
WORKDEPT VARCHAR(3) Y
PHONENO CHAR(4) Y
HIREDATE DATE(4) Y
JOB CHAR(8) Y
EDLEVEL SMALLINT N
SEX CHAR(1) Y
BIRTHDATE DATE(4) Y
SALARY DECIMAL(9,2) Y
BONUS DECIMAL(9,2) Y
COMM DECIMAL(9,2) Y
  • First, drag a Connection connector to the canvas. In the modal that opens up, select the DB2WH connection that was created earlier and click Next.

Create connection - select connection

  • On the next screen, select the BLUADMIN schema and click Next.

Create connection - select schema

  • On the next screen, select the DEPT table and click Next.

Create connection - select table

  • On the next screen, click Add to Job.

Create connection - add to job

  • Drag another Connection connector to the canvas and repeat the steps given above but this time, select the EMP table instead. Once you complete the steps, you should see the two Connection connectors on the canvas.

Create connection - completed

Use a Transformer stage to perform the following two modifications:

  1. Update the output of the EMP table by replacing any NULL MIDINIT values with " ". This is needed for a future step where we will combine the FIRSTNME, MIDINIT and LASTNAME columns to create the FULLNAME of the employee.
  2. Currently, the EMP table uses the WORKDEPT column to identify the department number whereas the DEPT table uses the DEPTNO column. Modify the output of the EMP table by changing the name of the WORKDEPT column to DEPTNO. This is needed for a future step where we will Join the two tables.

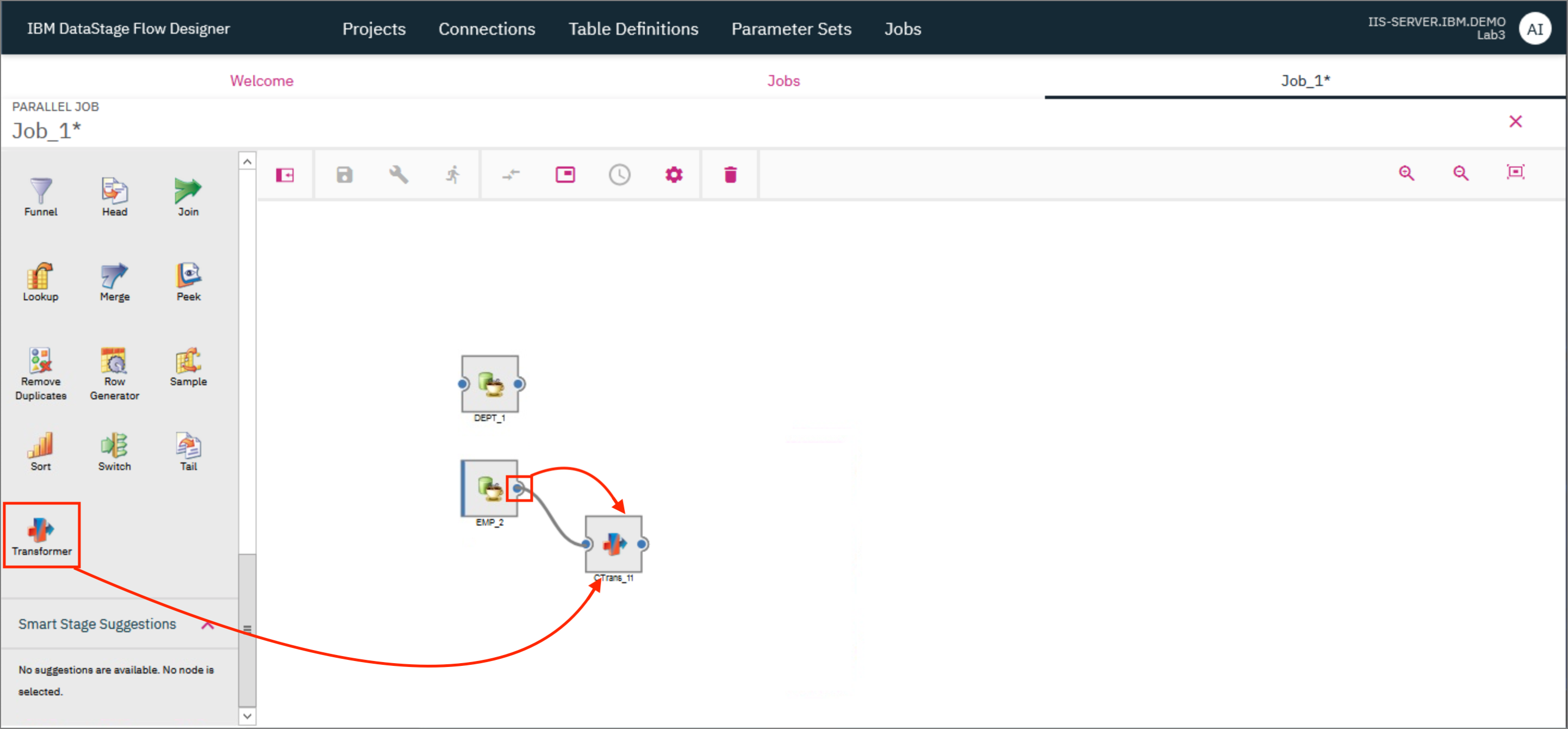

  3. Drag and drop a Transformer stage next to the Connection connector for the EMP table. Provide the output of the EMP table Connection connector as the input to the Transformer stage. For this, click on the little blue dot on the right side of the Connection connector and drag the mouse pointer to the Transformer stage.

NOTE: For another method to connect the Connection connector to the Transformation stage, click on the Connection connector to select it, then drag and drop the Transformation stage. The Transformation stage will automatically be connected to the Connection connector.

Add transformer for EMP

  • Drag and drop a Join stage to the canvas and provide the output of the Transformer stage as the input to this Join stage.

Add join stage

  • Double click on the Transformer stage to open up the stage page. In the Properties tab, click + Add. A new entry is added in the table below. Use this to define a "Stage variable" (a local variable that is available only within this stage) named MIDINITIAL which will represent the middle initial of the employee with any NULL values replaced with the empty string. Double click on {derivation} to open up the Derivation Builder.

Transformer - 1.1 - add MIDINITIAL

  • Begin building the derivation rule for MIDINITIAL by finding the NullToValue function in the table. Clicking on the entry in the table will insert it in the "Derivation" at the top. You can also use the search bar to look for the function. Replace the %input_column_input_column% with the <Link>.MIDINIT input variable which can also be found in the table and the %value% with " ". <Link> represents the identifier of the input link for the Transformer. Click OK to go back to the Stage page.

Transformer - 1.2 - add MIDINITIAL derivation

  • Update the Name of the stage variable to MIDINITIAL, the SQL type to Char, the Precision to 1 and the Scale to 0.

Transformer - 1.3 - complete MIDINITIAL

  • Now go to the Outputs tab and in the table find the entry for the MIDINIT column. Double click on the derivation value for this entry (it will open up the Derivation builder) and change the derivation value to use the newly created MIDINITIAL stage variable instead. Next, look for the entry for the WORKDEPT column. Double click on the WORKDEPT value under the Column name column and replace the text with DEPTNO. Click OK.

Transformer - 1.4 - updates on Output tab

  • Both the tables now have a column called DEPTNO which can be used to join the tables. Provide the output of the DEPT table Connection connector as the second input to the Join stage. Double clicking the Join stage brings up the stage page where you can verify that the DEPTNO is being used as the JOIN KEY and the Join Type is Inner.

Connect DEPT to Join

  • Next, add a Transformer stage to the canvas and provide the output of the Join stage as the input to the Transformer stage.

Add transformer stage

  • Double click the Transformer stage to open the stage page. We will add 2 stage variables to this Transformer stage. In the Properties tab, click + Add. A new entry is added in the table below. Use this to define a stage variable named TOTALCOMP which will represent the total compensation (the sum of bonus, commission and salary) of the employee. Double click on {derivation} to open up the Derivation Builder.

Transformer - 2.1 - add TOTALCOMP

  • Build the derivation rule for TOTALCOMP by finding the BONUS, COMM and SALARY input columns in the table. Clicking on the entries in the table will insert them in the "Derivation" at the top. Type in + signs between them in order to complete out the derivation. You can also use the search bar to look for the fields. When inserted in the "Derivation", the column names will be prepended with the identifier for the input link. Click OK to go back to the Stage page.

Transformer - 2 - build TOTALCOMP derivation

  • Update the Name of the stage variable to TOTALCOMP, the SQL type to Decimal, the Precision to 9 and the Scale to 2.

Transformer - 3 - complete TOTALCOMP

  • Repeat the process above to add another Stage variable FULLNAME which will represent the complete name of the employee. Provide the Derivation as CompactWhiteSpace(<Link>.FIRSTNME:" ":<Link>.MIDINIT:" ":<Link>.LASTNAME), the Name of the stage variable as FULLNAME, the SQL type as Varchar and the Precision as 36 and the Scale as 0. Click OK to save the changes and return to the canvas.

NOTE: <Link> needs to be replaced with the identifier of the input link. CompactWhiteSpace is a function that will compact any continuous white spaces into a single white space. : is the operator used for concatenation.

Transformer - 4 - complete FULLNAME

  • Next, add a Join stage and an Aggregator stage to the canvas. Connect the Transformer stage to both these stages such that the output of the Transformer stage is provided as the input to both these stages.

Add join and aggregator

Since the output links have now been added, we can provide the 2 stage variables TOTALCOMP and FULLNAME as outputs of the Transformer stage and once that is done, these values will be available as inputs in the subsequent stages.

  • Double click on the Transformer stage to open the stage page. Go to the Outputs tab. Click on +Add twice to add 2 new entries in the table. Update one entry with the Derivation value as TOTALCOMP, the Column name as TOTALCOMP, the SQL type as Decimal, the Precision as 9, the Scale as 2 and set Nullable to true. Update the second entry with the Derivation value as FULLNAME, the Column name as FULLNAME, the SQL type as Varchar, the Precision as 36 and the Scale as 0.

  • We also need to add a Constraint here, which will ensure that only the records with TOTALCOMP more than 50000 are sent in the output. Click on the empty space under Constraint to open up the Derivation Builder. Specify the derivation as TOTALCOMP>50000.

  • Switch to the second output link by clicking on the Link_<number> under Output name and repeat the above steps to add the 2 stage variables to the output and to add the constraint. Click OK to save the changes and return to the canvas.

Transformer - add output columns and constraint

  • Provide the output of the Aggregator stage as the input to the Join stage. Double click on the Aggregator stage to open the stage page. Select DEPTNAME as the grouping key.

Aggregator - 1 - add grouping key

  • Scroll down to the Aggregations and select the Aggregation Type as Calculation, Column as TOTALCOMP, Calculation Type as Mean Value and click Add Calculation +.

Aggregator - 2 - add calculation

  • Go to the Outputs tab and verify that you can see 2 output columns - MEAN_TOTALCOMP and DEPTNAME. Click OK to save the changes and return to the canvas.

Aggregator - 3 - confirm output columns

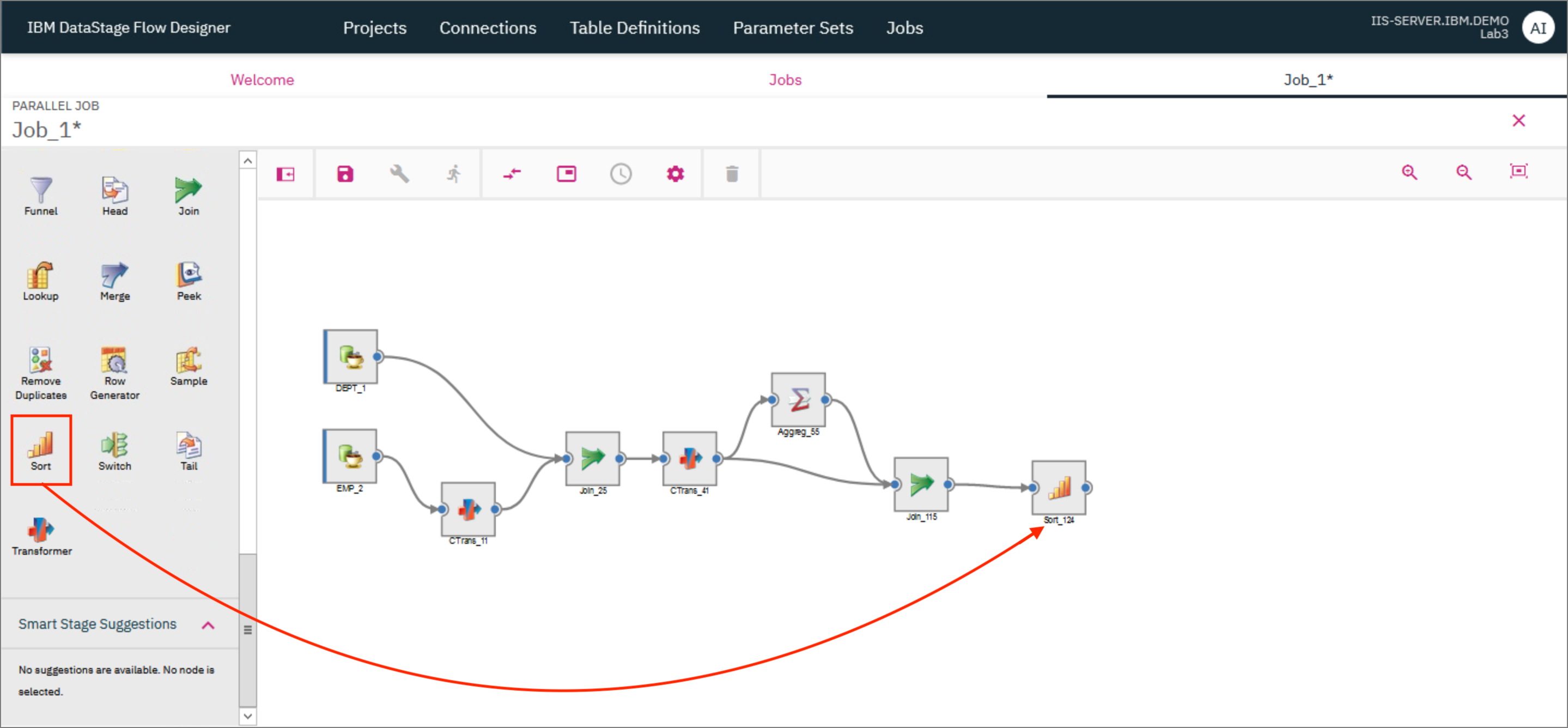

  • Drag and drop a Sort stage on the canvas and provide the output of the Join stage as the input of the Sort stage.

Add sort stage

  • Double click on the Join stage to open the stage page. On the Properties tab, verify that the Join Key is DEPTNAME and the Join Type is Inner.

Confirm join stage

  • Go to the Outputs tab and verify that you can see FULLNAME and MEAN_TOTALCOMP in the output column list.

Confirm join stage outputs

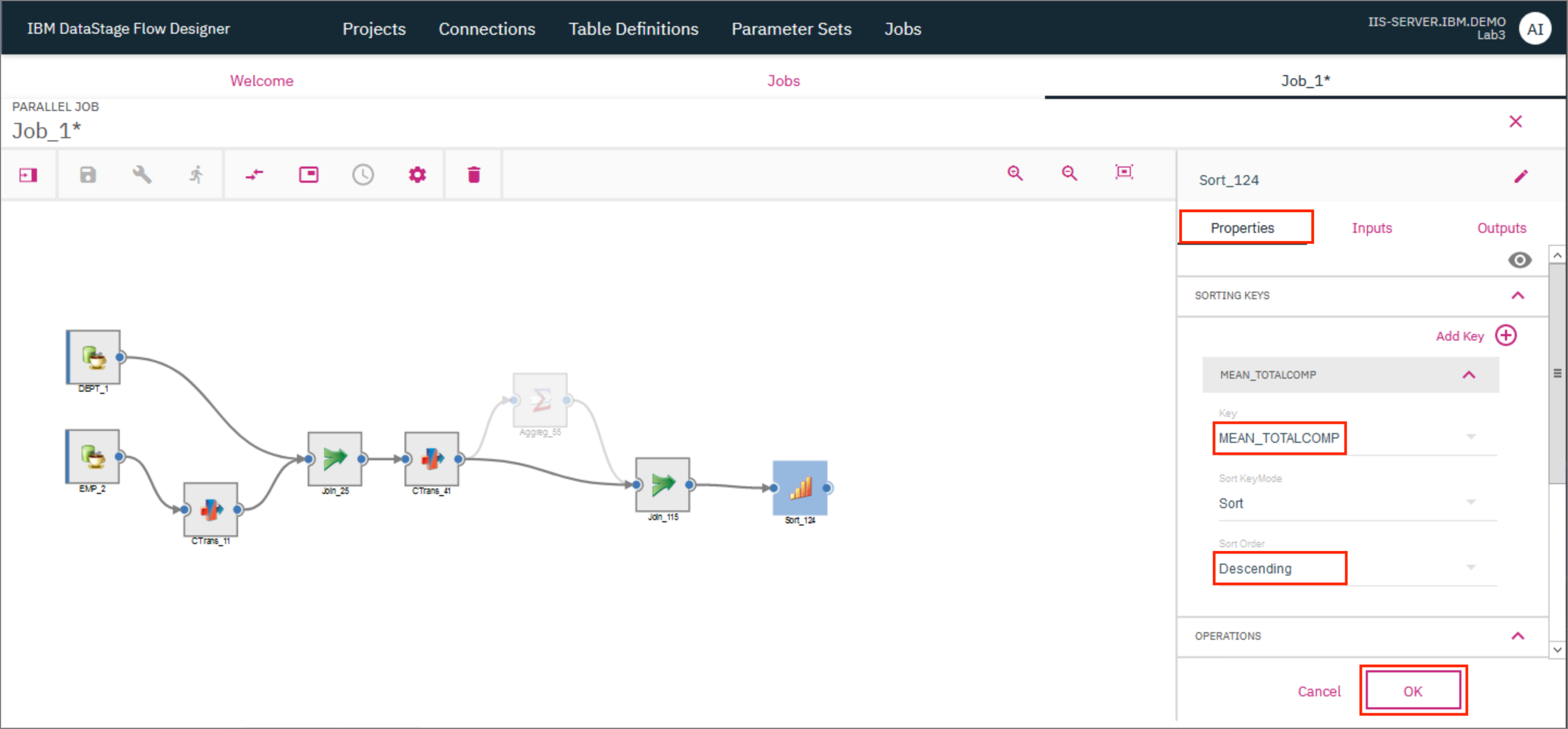

  • Double click on the Sort stage to open up the stage page. Specify the Sorting Key as MEAN_TOTALCOMP and the Sort Order as Descending. Click OK.

Update sort stage

  • Drag and drop a File connector to the canvas. In the modal that opens up, check the Add connector as target checkbox and click Add to Job.

Add file connector

  • Provide the output of the Sort stage as the input to the File connector. Double click the File connector to open the stage page, and provide the name of the output File as output.csv. Specify Comma-separated value (CSV) as the File format. Enable First row is header and provide Null value as "". Click OK.

Update file connector

4. Compile and run the job

  • Click the Save icon to save the job. If you wish to, you can provide a different name for the job in the modal that pops up. Click Save. Once the job is saved, click on the Compile icon to compile it. If compilation is successful, you should see a green check mark and the message Compiled successfully displayed on the screen.

Save compile

  • Click the Run icon to run the job. In the modal that opens up, click Run.

Run job

5. View output

  • The output file will be saved on the server. Switch to the server VM by clicking the first icon on the Environment VMs panel and selecting iis-server. Login as the root user with the password inf0Xerver.

switch to server VM

  • CD to the location where you had stored the file. If you provided a path starting at "/", then it will be stored at that location in the server. Since we had only provided output.csv as the file path in the File connector, the file will be available in the Transformation project's folder, i.e.,
/opt/IBM/InformationServer/Server/Projects/<project-name>/

CD to project folder

CONGRATULATIONS!! You have completed this lab!
