Semantic Product Search with Vector Search Builder and IBM Bob

Build meaning-based product search on Milvus with IBM Bob's Vector Search Builder mode, then add images, a price filter, and recommendation reasons with short natural-language instructions.

Building Blocks used:

data.lakehouse

Looking for Building Block skills?

Skills provide best practices for IBM technologies

Download skills →

1 Review use case

Shoppers search in their own words, but keyword search only matches the literal words in product names. At Fictional Online Store, a search for "red sneakers" misses the product "Red Running Shoes", so shoppers leave without finding it. Meaning-based search solves this, yet building it usually means choosing a vector database and an embedding model, wiring them into an API, and spending weeks on each new feature.

This hands-on kit uses the Vector Search Builder mode, a custom mode for IBM Bob, together with a Milvus instance that the instructor hosts and a local embedding model (paraphrase-multilingual-MiniLM-L12-v2, 384 dimensions), so participants need no API key. Participants connect to Milvus, load 12 sample products, and search by meaning on a search screen that a FastAPI app serves. They then ask IBM Bob to add product images, a price filter, and recommendation reasons. Each feature takes a short instruction, and IBM Bob changes the application code while the participant reviews and approves the steps.

The same pattern applies to enterprise document search, where titles use different words, and to customer support, where agents look for similar past questions. The hands-on runs in about 60 minutes, and every page is available in English and Japanese. It uses a local model and a shared Milvus for learning; for production, the summary page points to watsonx.ai for embeddings and watsonx.data for Milvus.

Start Here

Watch this short overview

Preview the application

Explore key screens from the demo

2 Try the interactive application

Experience the interactive demo and explore its features. A demo script is provided to help when presenting the application to partners.

Try the demo

Have questions, want a walkthrough or found a bug?

Contact the demo owner for assistance.

Submit a request →

3 Explore how it was built

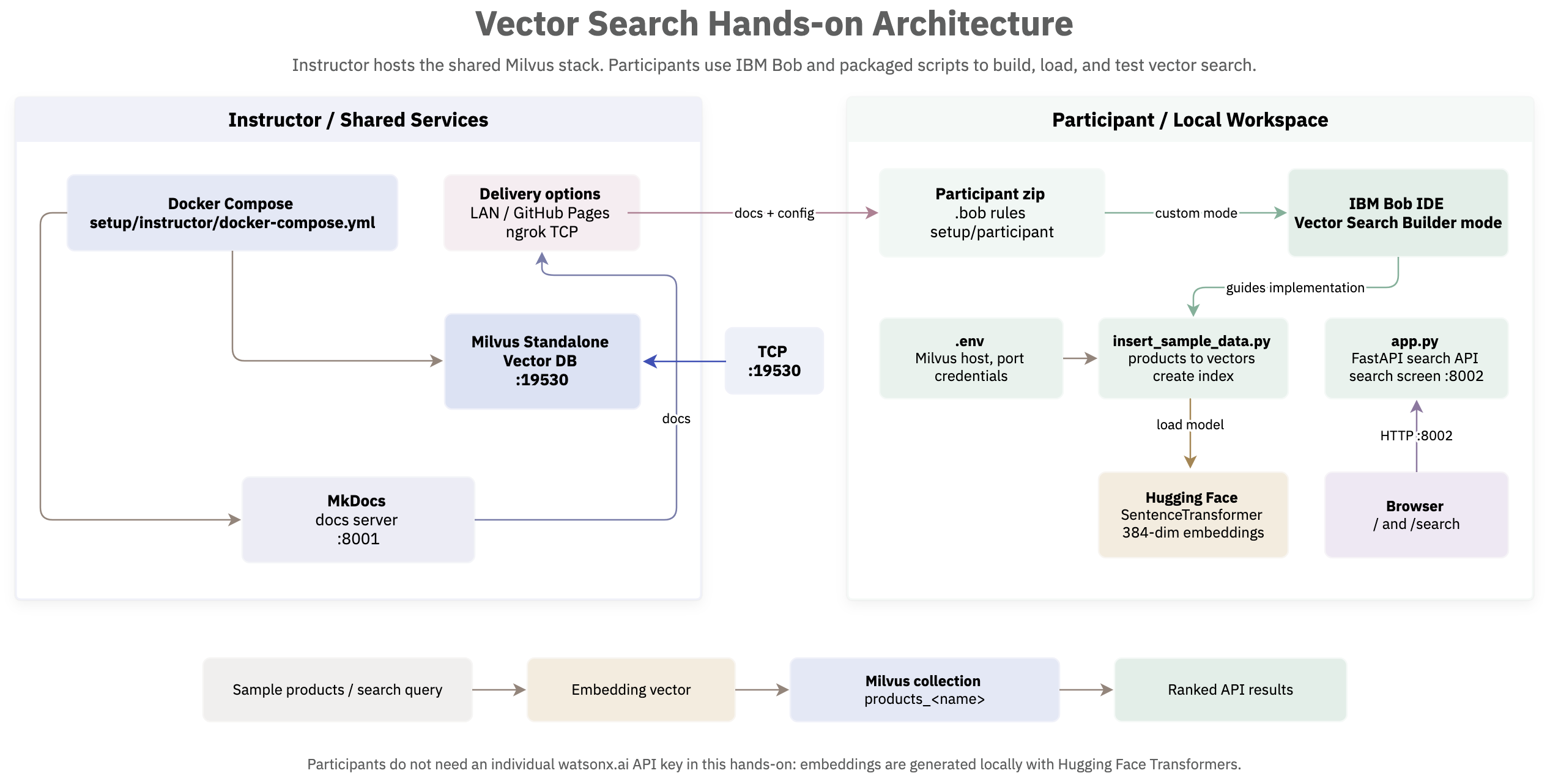

Instructor side: Docker Compose runs Milvus standalone (embedded etcd and local storage) and the documentation server. The documentation is shared on the local network, through GitHub Pages, or through ngrok. Participant side: the participant zip holds the Vector Search Builder mode rules (.bob) and the participant scripts. Participants open it in IBM Bob and select Vector Search Builder mode. Data flow: the scripts connect to Milvus with the MilvusClient API. The embedding model runs locally and turns product text into 384-dimensional vectors. insert_sample_data.py creates a collection (IVF_FLAT index, COSINE metric) and inserts 12 products. app.py (FastAPI) serves /search and the search screen on port 8002. No API keys: embeddings are generated locally with Hugging Face Transformers.

Architecture

4 Download and modify with IBM Bob

Download the source code and specifications for this application to set up and run it locally. Once downloaded, open the code in IBM Bob to modify and adapt it to your own use case.

Source Code

Semantic Product Search — Seller Demo Script (5 minutes)

1. Problem (0:00–0:30)

Key message: Shoppers search in their own words, but keyword search only matches literal product names — meaning-based search closes that gap.

Introduce Fictional Online Store as the example.
Explain: a search for “red sneakers” misses the product “Red Running Shoes” with keyword search.

2. Search screen (0:30–1:30)

Key message: Meaning-based search finds what shoppers intend, not just what they typed.

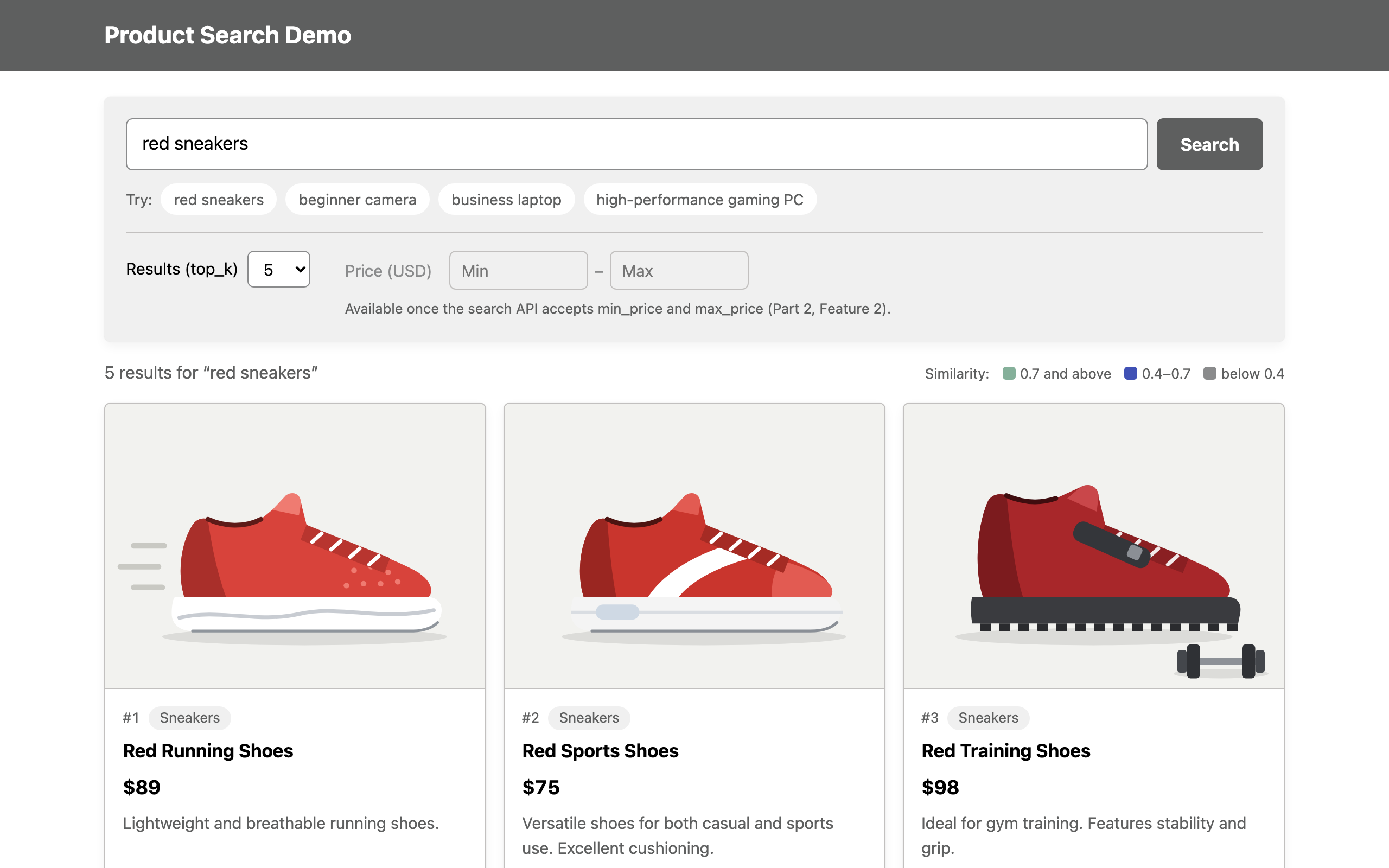

Search “red sneakers”: the three red shoes rank first by meaning. Point at the similarity bars.

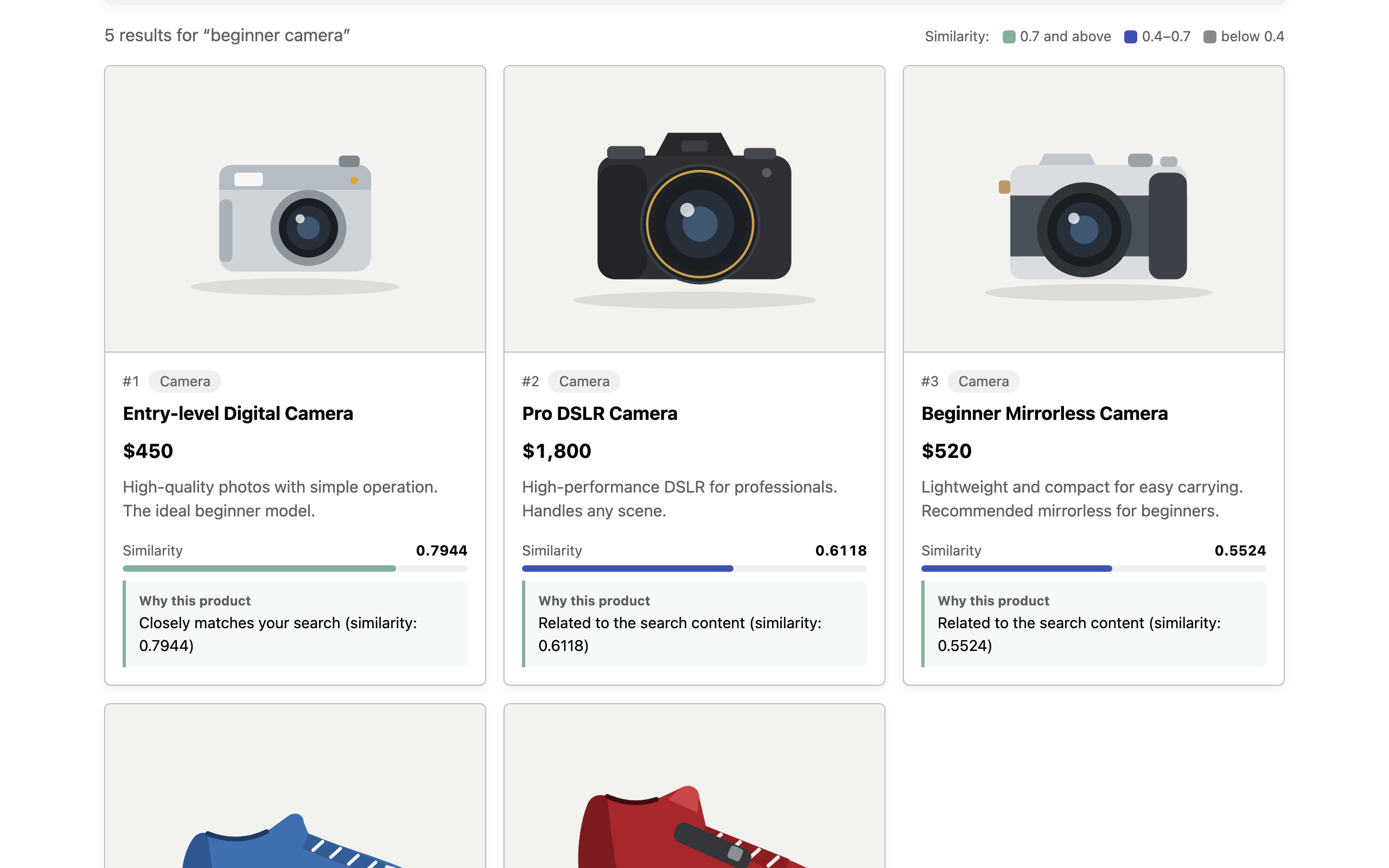

Click “beginner camera” and show the entry-level camera ranked first.

3. IBM Bob (1:30–3:00)

Key message: Each new feature is added with a short natural-language instruction — IBM Bob changes the code while you review and approve.

Show Vector Search Builder mode in IBM Bob.

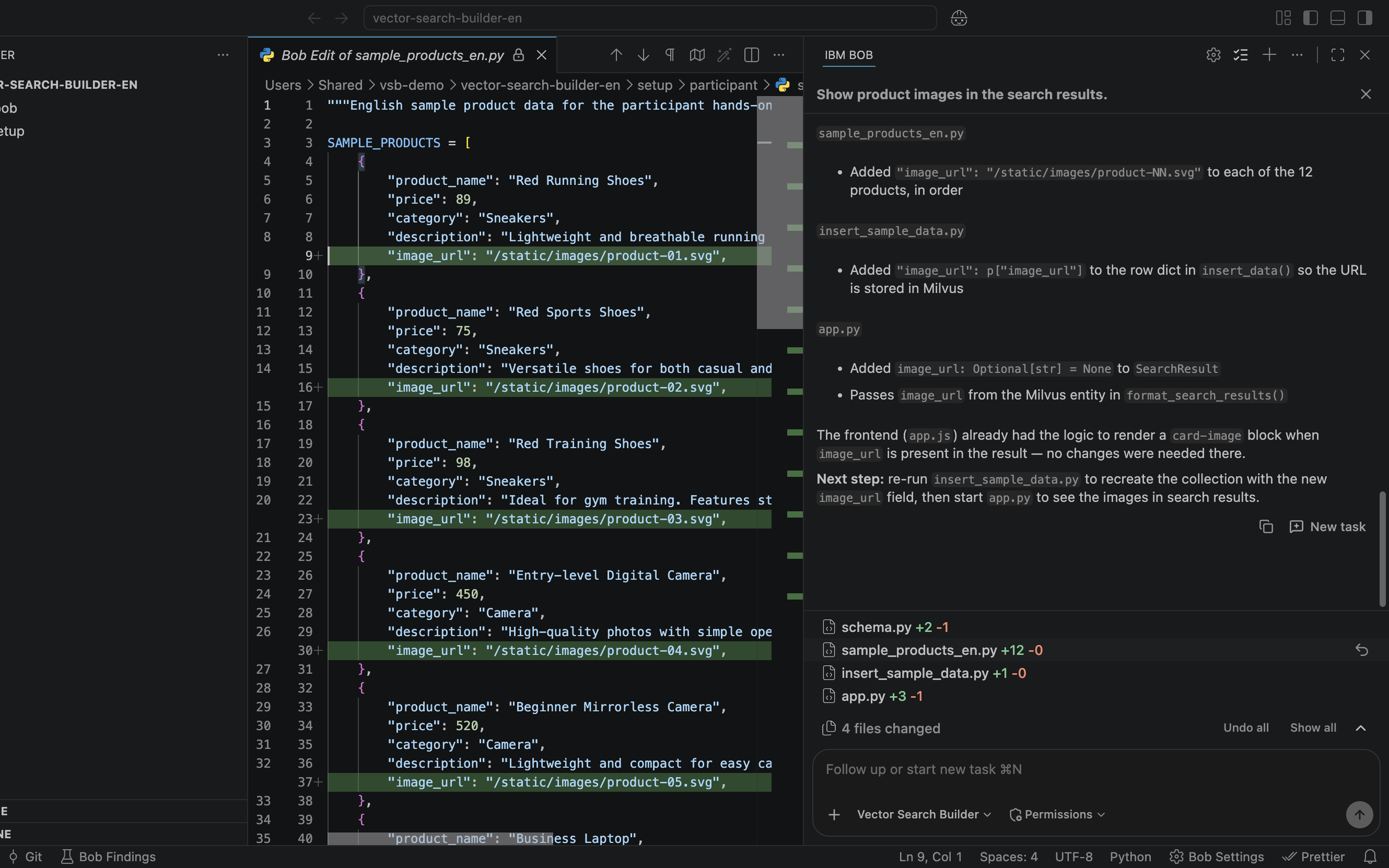

Give the image instruction and approve the commands Bob asks to run.
If it changed the schema, reinsert the sample data, restart the app and reload: images appear.

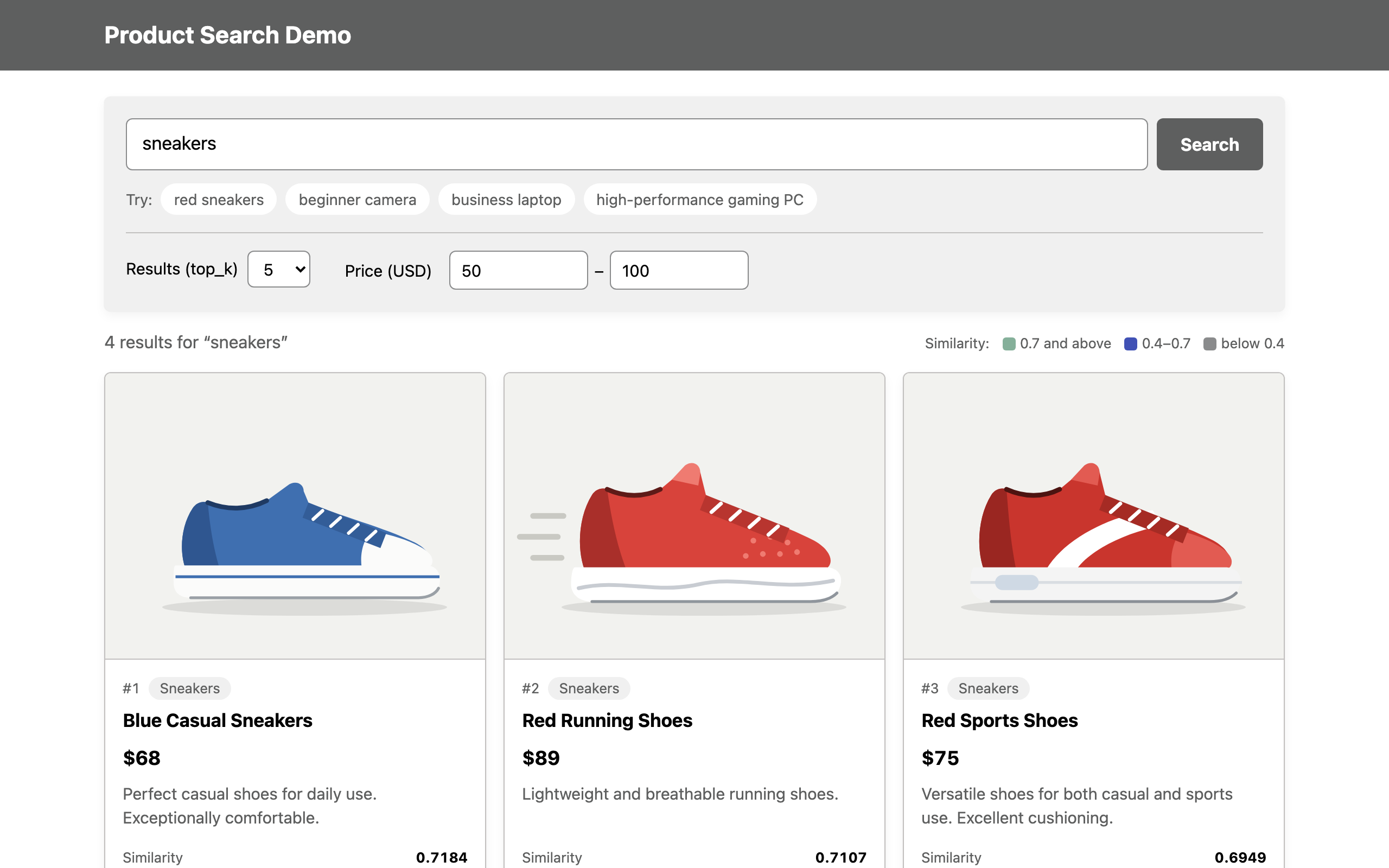

Mention the price filter and recommendation reasons are added the same way.

4. How it runs (3:00–4:00)

Key message: No API key required — the embedding model runs locally, so any participant can try this in about 60 minutes.

Explain: the instructor hosts Milvus; participants need IBM Bob, the participant zip, and the connection details.
The local embedding model (paraphrase-multilingual-MiniLM-L12-v2, 384 dimensions) generates vectors with no external API call.
The hands-on runs in about 60 minutes, in English or Japanese.

5. Where next (4:00–5:00)

Key message: The same pattern applies to enterprise document search, customer support, and any domain where titles use different words. For production, use IBM’s managed services.

The same pattern fits enterprise document search (where titles use different words) and customer support (similar past questions).
For production: use watsonx.ai for embeddings and watsonx.data for Milvus.
The full kit is on GitHub.
