Objectives

Image locations and references to the images has to change:

  • Image location of lab images
  • Edit build_all_mkdocs.sh

1. Image location of lab images

Previously it was needed to use absolute links to images which also had to include the name of the lab, e.g.:
Image Link Before

this needs to be changed to a relative link, as github pages add a first level in the URL being the name of the Github repository. Because of that the images needs to be located under the lab, e.g.:
Image Link After

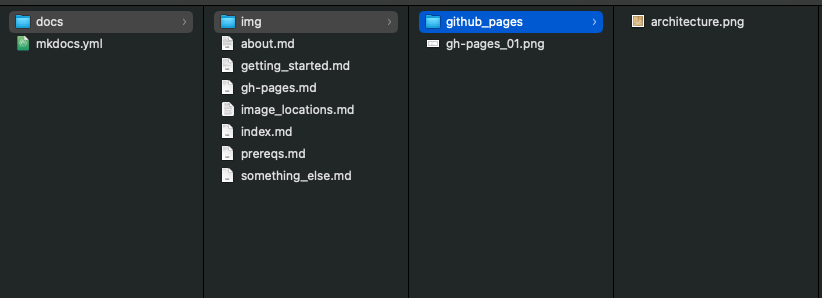

This also means that the image files must be in the labs img folder without an additional folder that needs to have the same name as the lab. Meaning this structure: Image Location Before

has to change to this structure: Image Location After

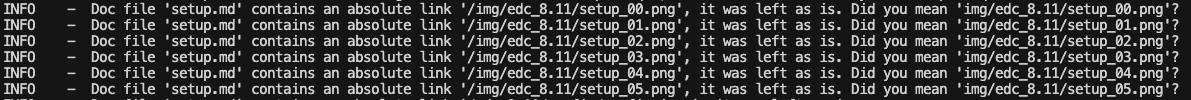

It also means, that the following kind of messages during the build should dissapper: Remove Image INFO during build

2. Edit build_all_mkdocs.sh

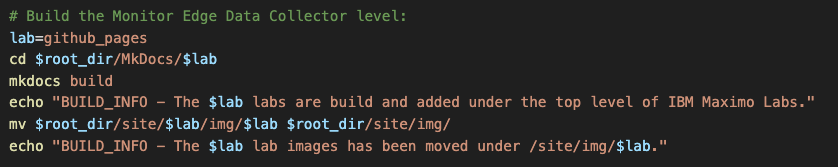

Once the image locations have changed (in the folder structure and in the links in the md files) then we need to change the build script from: Build script before

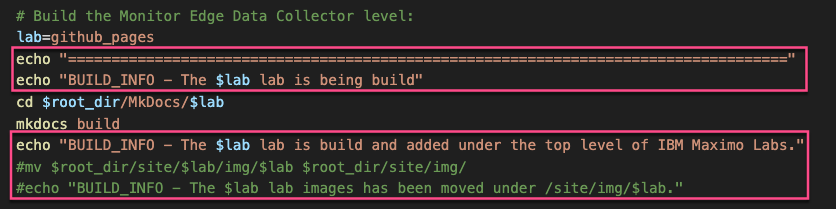

by removing the last two lines per lab, hence do not copy images to a central (but unavailable for github pages) location: Build script after While we are there also change/add the ecco strings to easier see what is happening during debug of building the whole site.
