Configure Cisco Spaces Integration

This guide explains how to configure Cisco Spaces integration in IBM MAS Monitor using the Activation Token generated earlier.

Steps to Configure the Integration

  1. Log in to IBM MAS Monitor
    Access your MAS Monitor environment by logging in with your credentials in Maximo Application Suite.

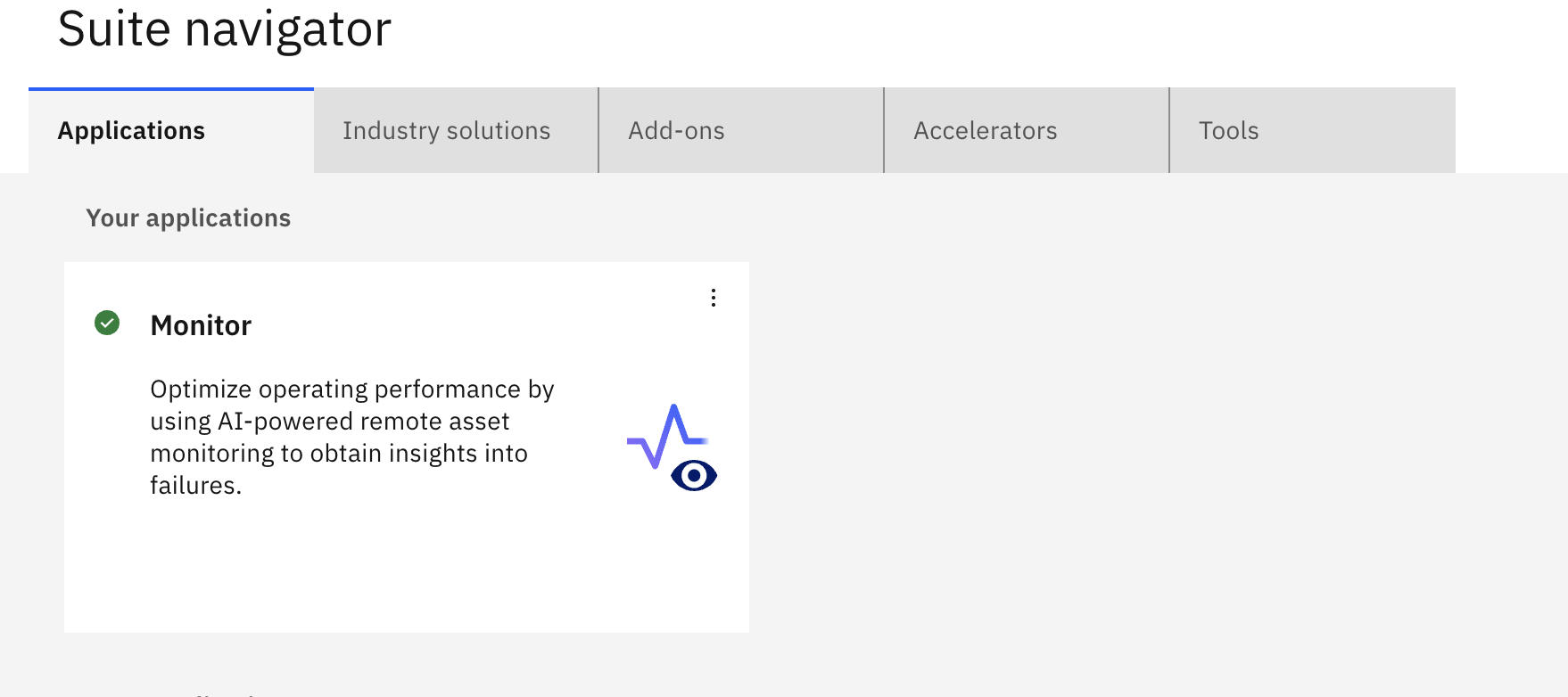

    Monitor App

  2. Navigate to Integrations
    Open the left-side navigation menu. Scroll to the Monitor applications list and select Setup → Integrations from the menu options.

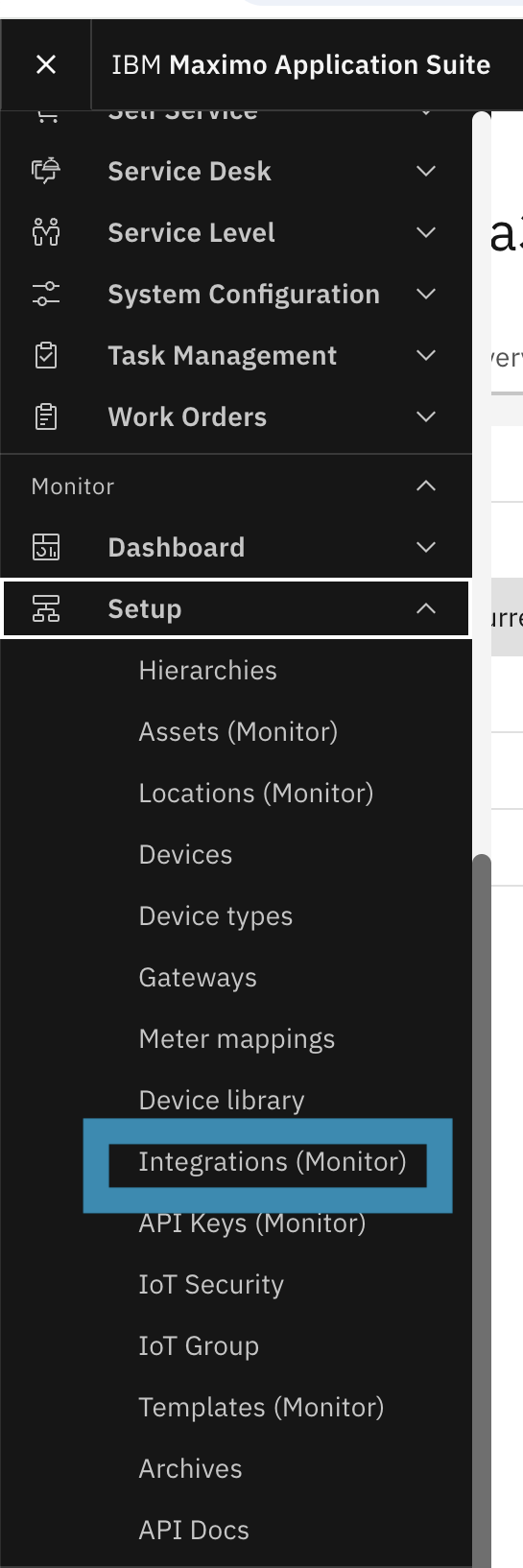

    Integration Menu

  3. Add a New Integration
    On the Integrations screen, click the Add Integration button to start configuring a new integration.

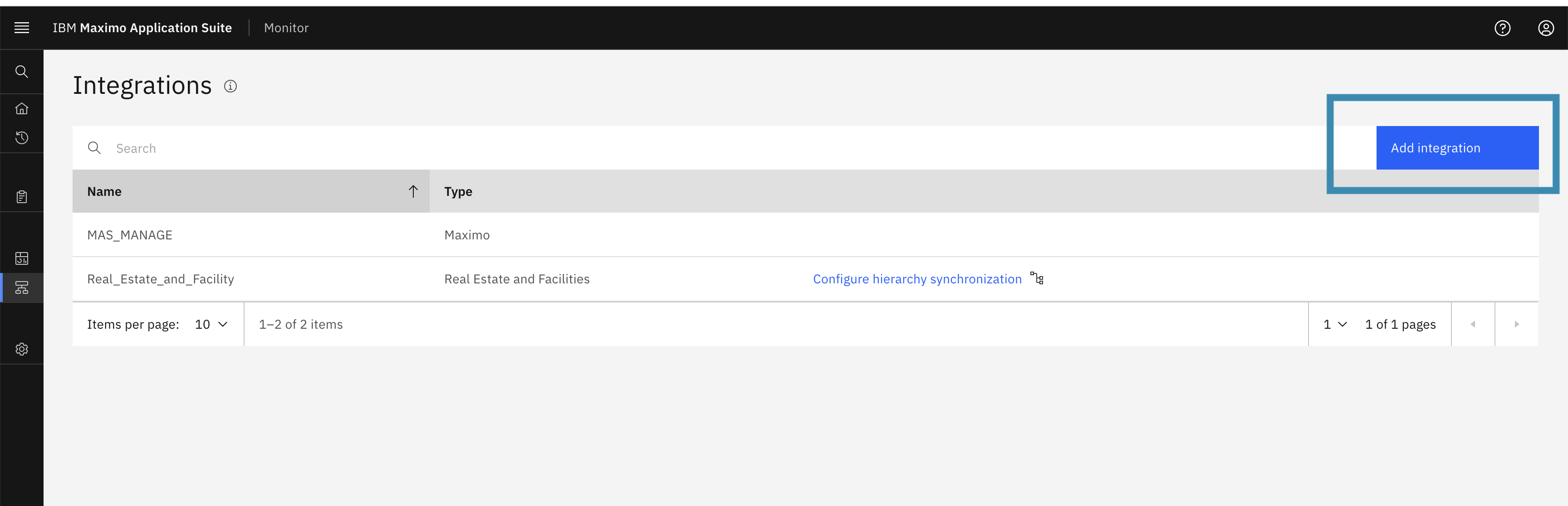

    Add Integration

  4. Select Cisco Spaces as the Integration Type
    In the integration configuration dialog, choose Cisco Spaces as the integration type.

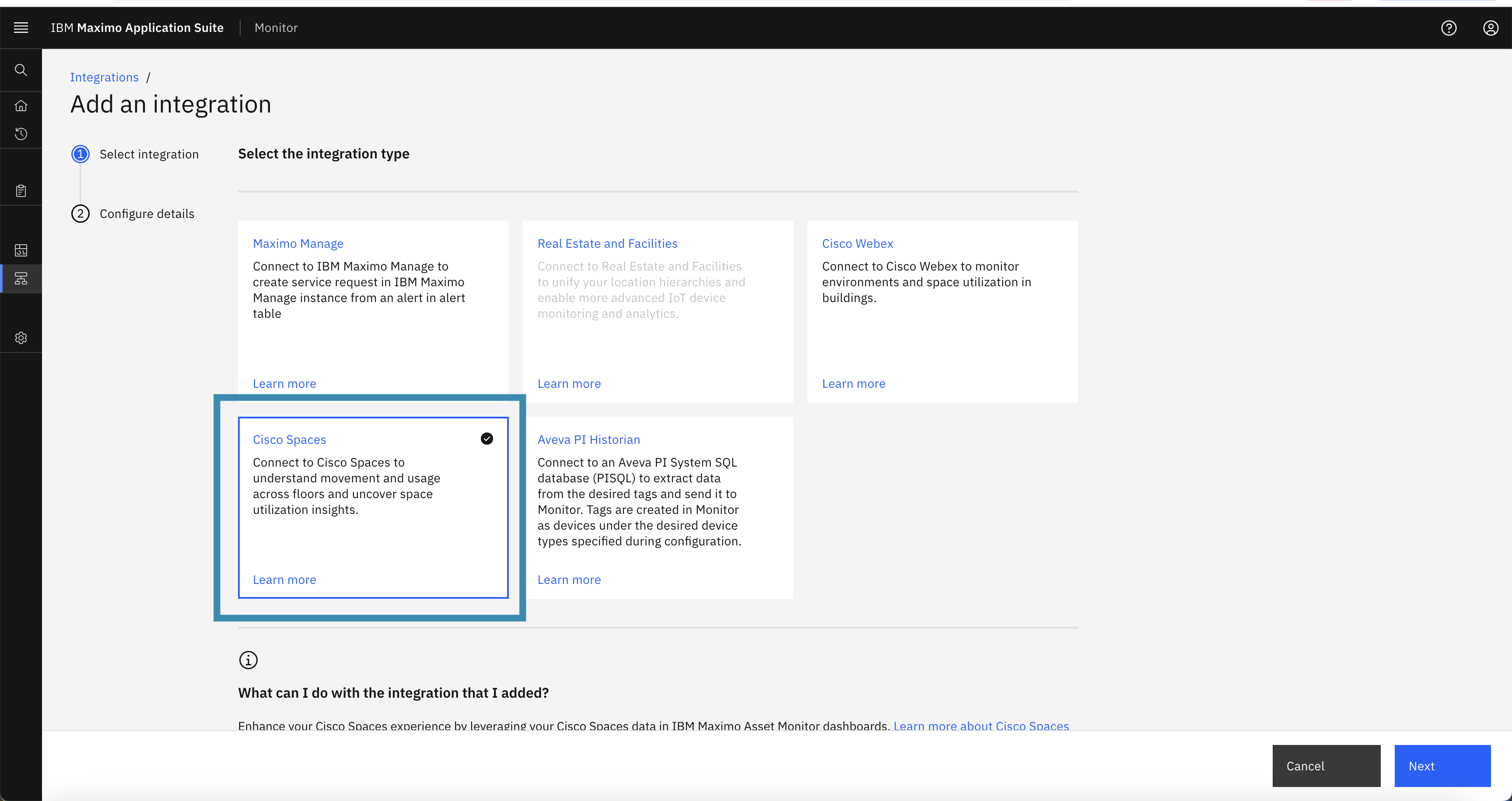

    Cisco Space integration

  5. Provide Integration Details

    • Enter a meaningful Integration Name.
    • Paste the Activation Token you copied from the previous exercise.
    • Click Finish to complete the integration setup.

    Warning

    • Ensure the Activation Token is correct.
    • Make sure the token has not expired.
    • Verify the token has not been used previously for activation. Once a token is activated, an activation key is stored in the database, making that token unusable for any other integration. One token can only be used for a single configuration.
    • Only a correct and valid token will be saved successfully; otherwise, the integration setup will fail with an error.

    Cisco Space add config

  6. Verify Integration
    Once the integration is added successfully, its details will appear on the Integrations list page. This confirms that the configuration has been saved.

    Cisco Spaces configuration

  7. View locations
    Within a few minutes, the list of locations associated with the Activation Token will be fetched automatically from Cisco Spaces and displayed in MAS Monitor.

    Locations not fetched
