Cisco Spaces Location Metrics

Once the Cisco Spaces integration is set up and events are being processed successfully, IBM MAS Monitor begins to display real-time and historical location-based metrics fetched directly from Cisco Spaces.

These metrics provide deep insights into user presence, movement, and positioning within a mapped floor or space.

Accessing Location Metrics

You can view metrics associated with a Cisco Spaces location using either of the following methods:

  1. Navigate via Floor Name Link

    • Go to the Cisco Spaces Locations table.
    • Click on the Floor Name (which is a clickable link) for the subscribed location.

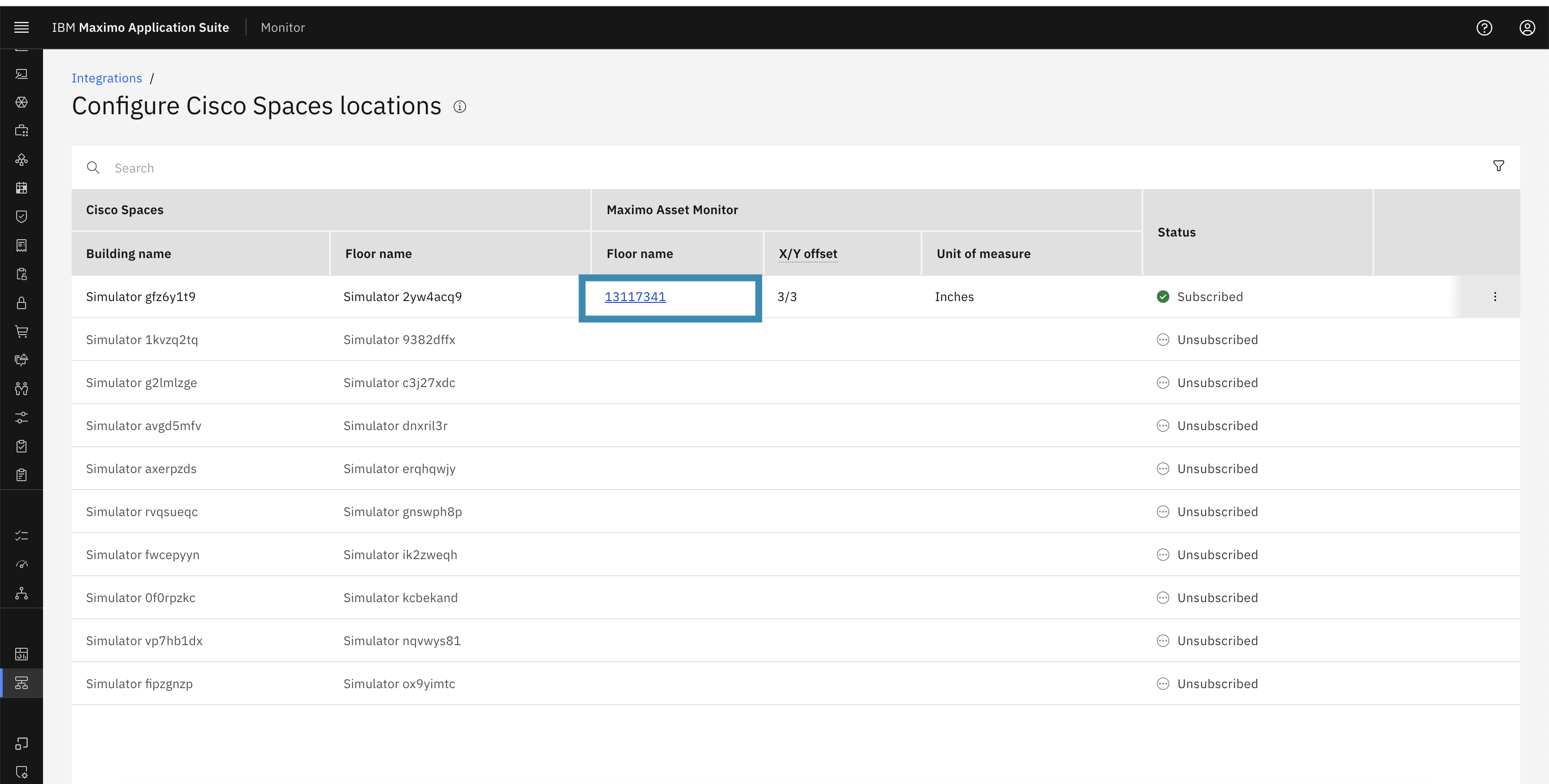

    Navigate 1

  2. Search from Locations Tab

    • Go to the Monitor → Locations tab.
    • Search for the location by its mapped Floor Name.
    • Select the matching location from the results to open the detailed location view.

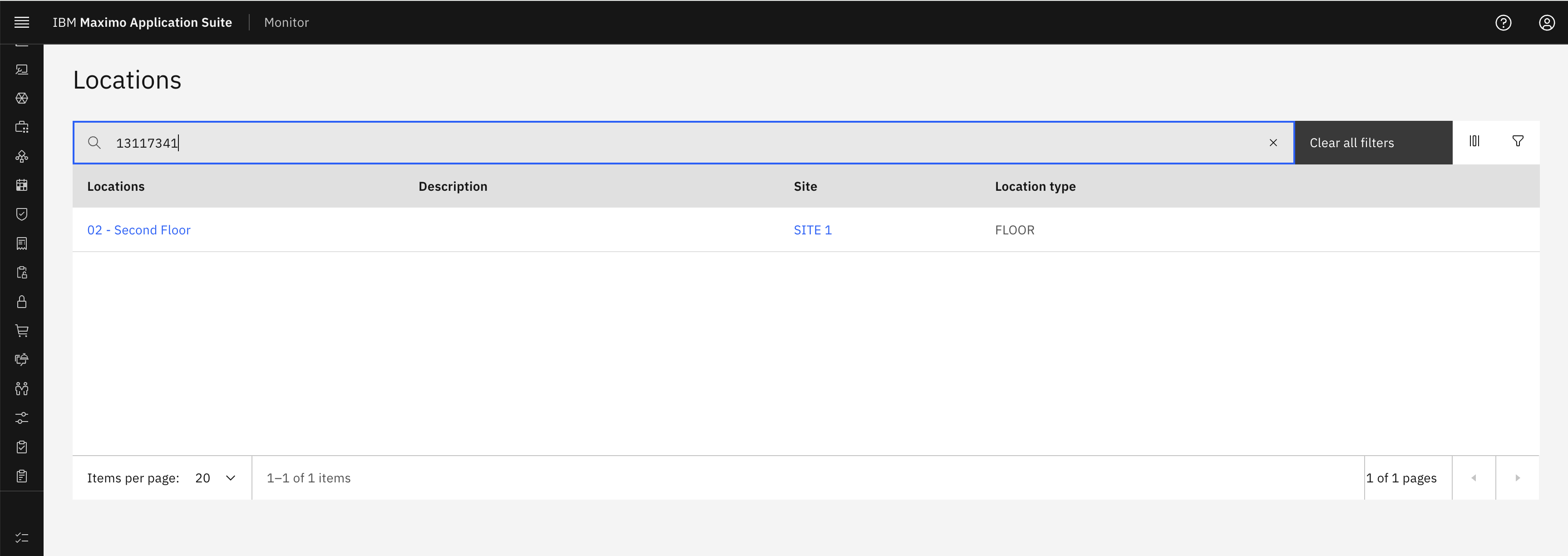

    Navigate 1

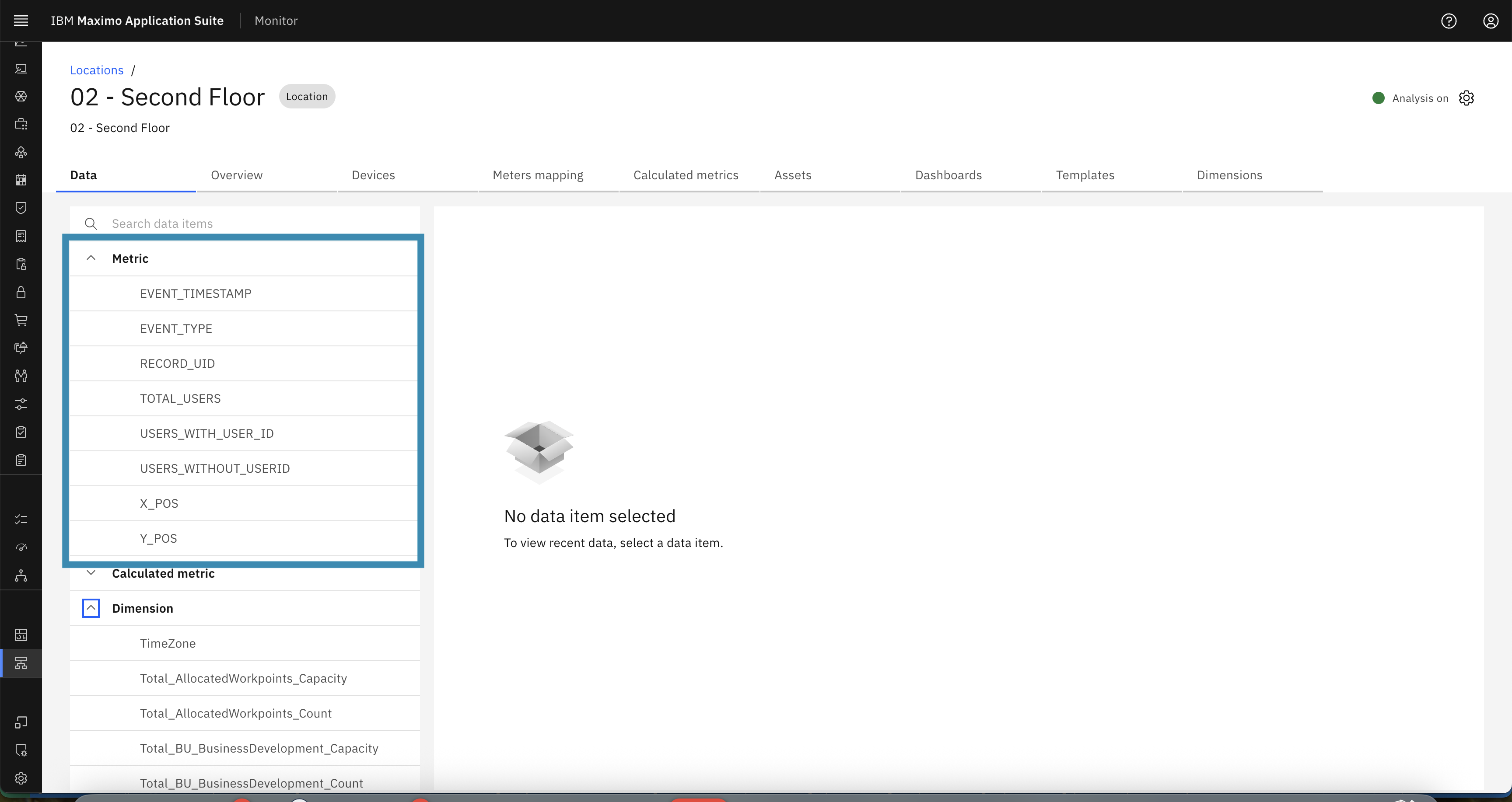

Once inside the location page, view the Metrics section to see Cisco Spaces data. Metrics

Metrics Fetched from Cisco Spaces

Below is the list of key metrics received from Cisco Spaces.

1. EVENT_TIMESTAMP

Represents the timestamp when the event is received.

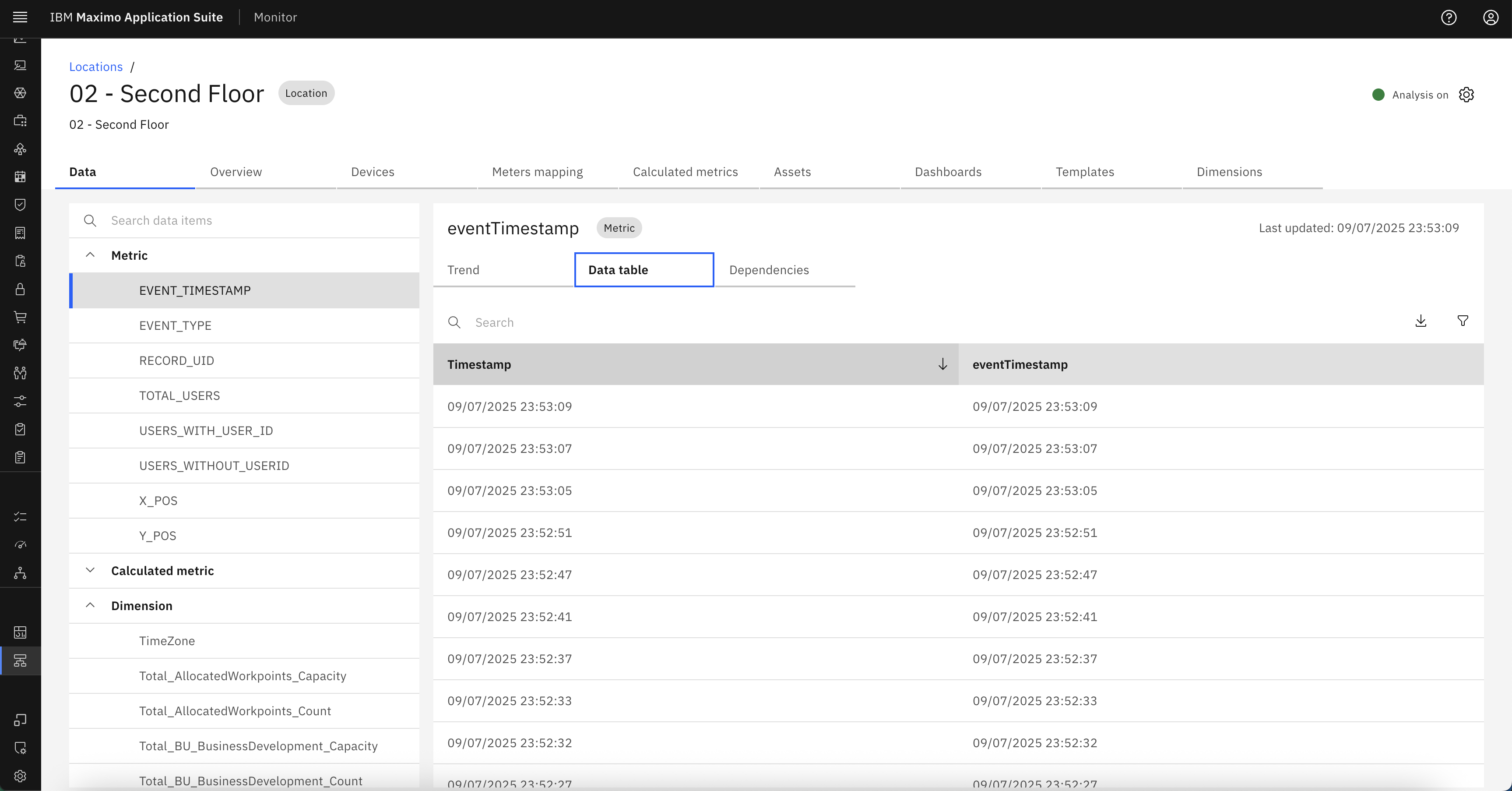

Event timestamp

2. EVENT_TYPE

Represents the type of event that occurred (e.g., entry, exit).

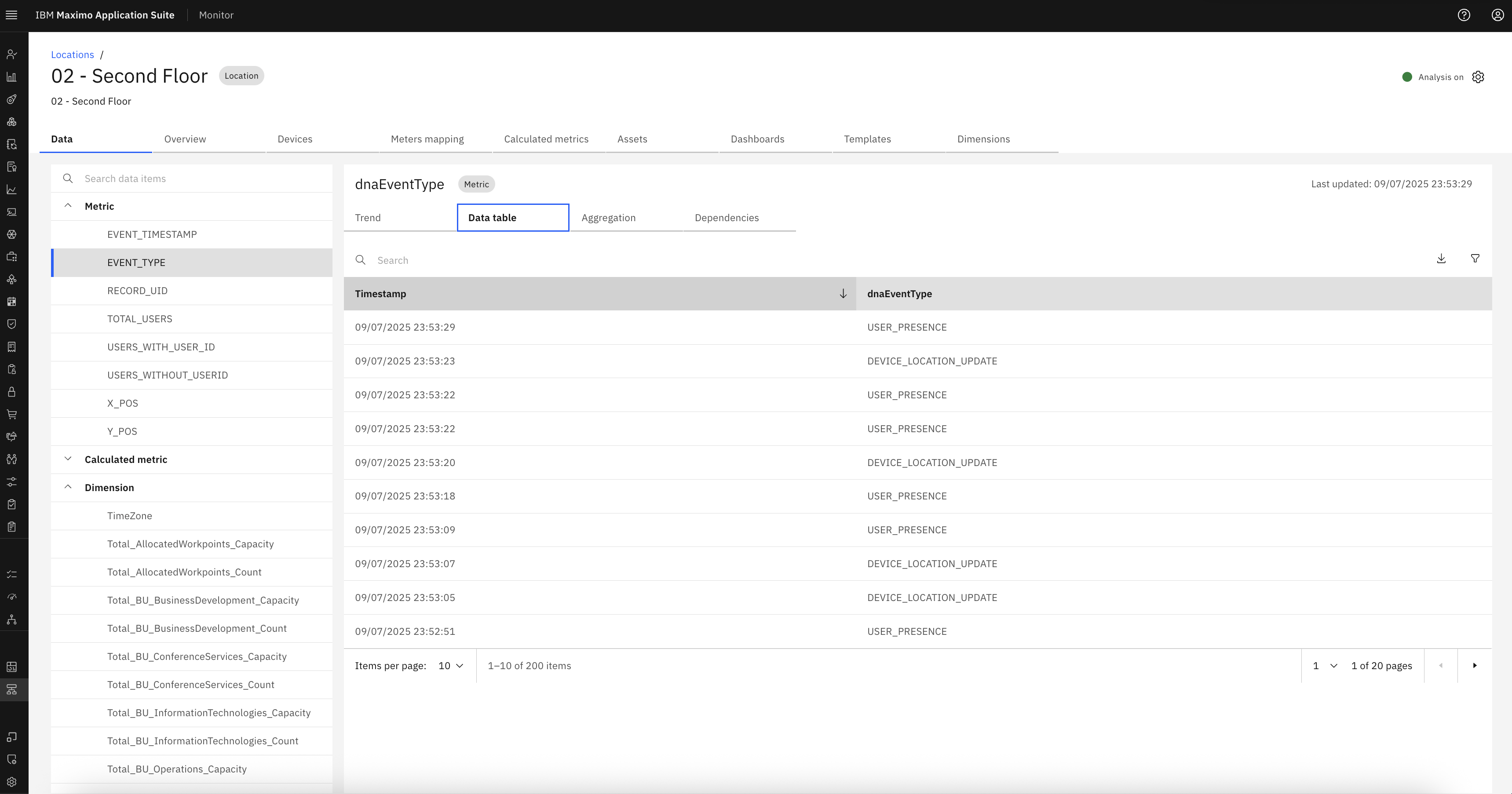

Event Type View
Event Type Chart

3. RECORD_UID

Unique identifier for the event record received from Cisco Spaces.

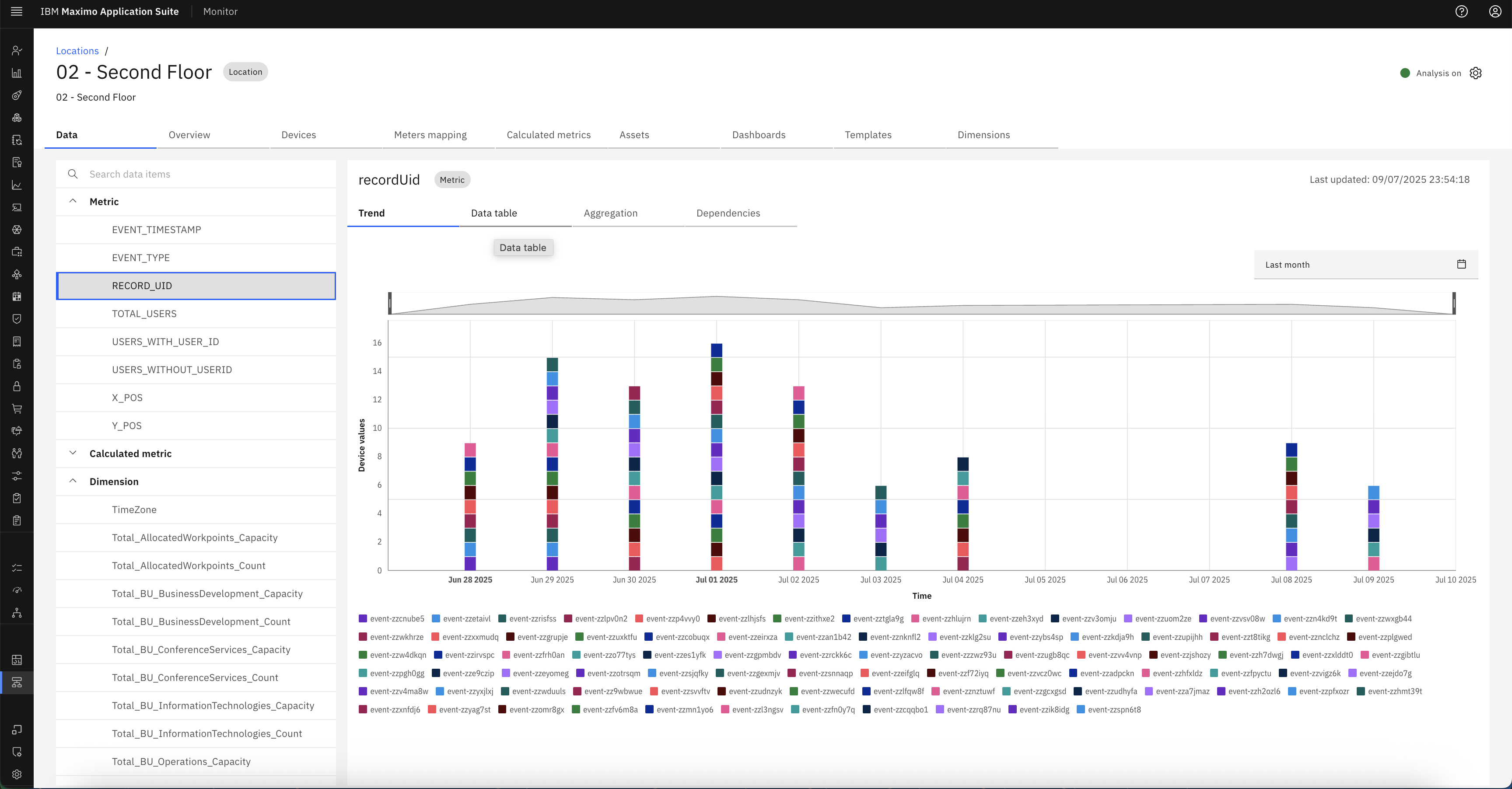

Record UID View

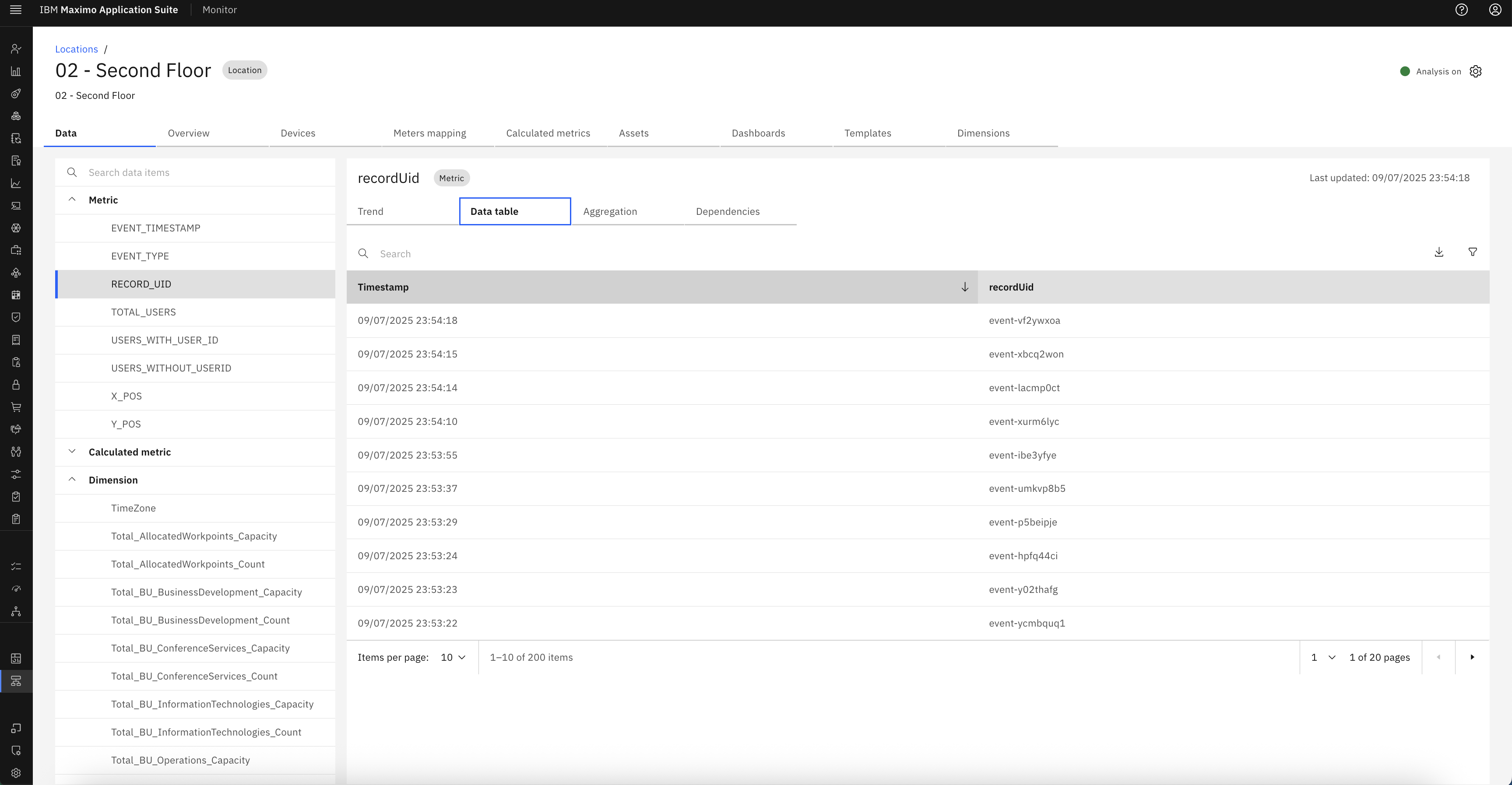

Record UID Details

4. TOTAL_USERS

Indicates the total number of users detected in the location at that timestamp.

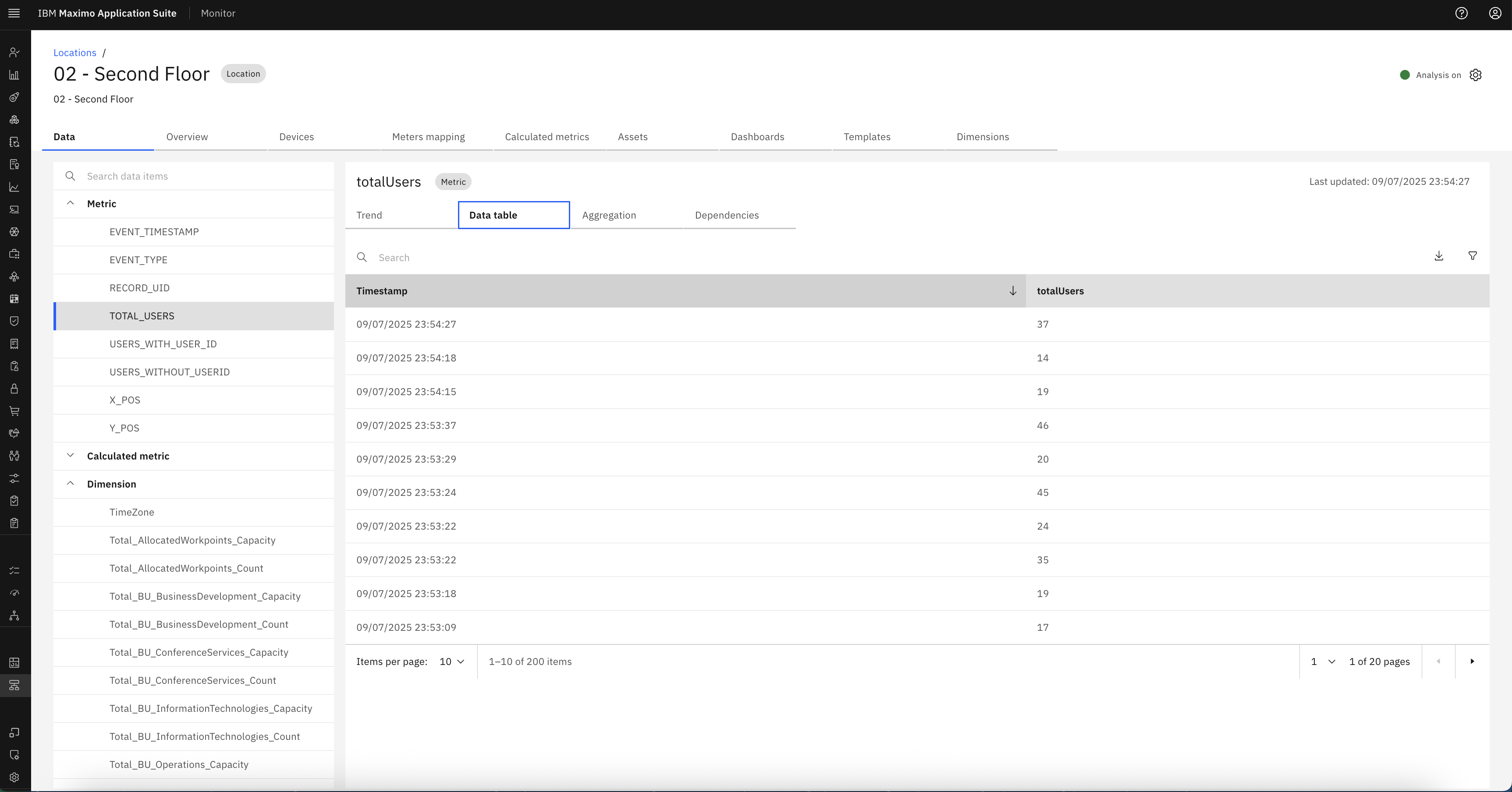

Total Users Value

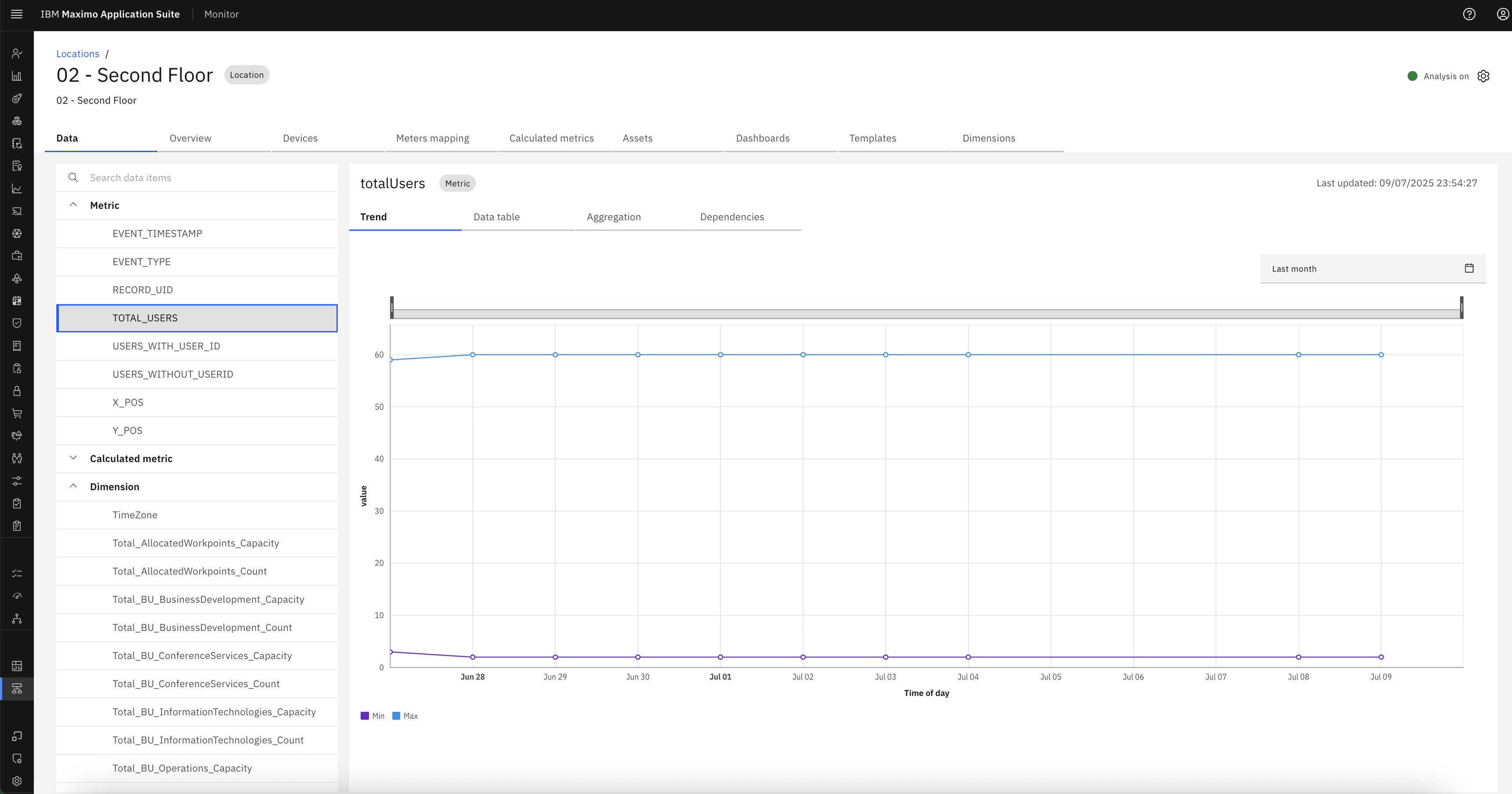

Total Users Graph

5. USERS_WITH_USER_ID

Number of users identified with a valid user ID.

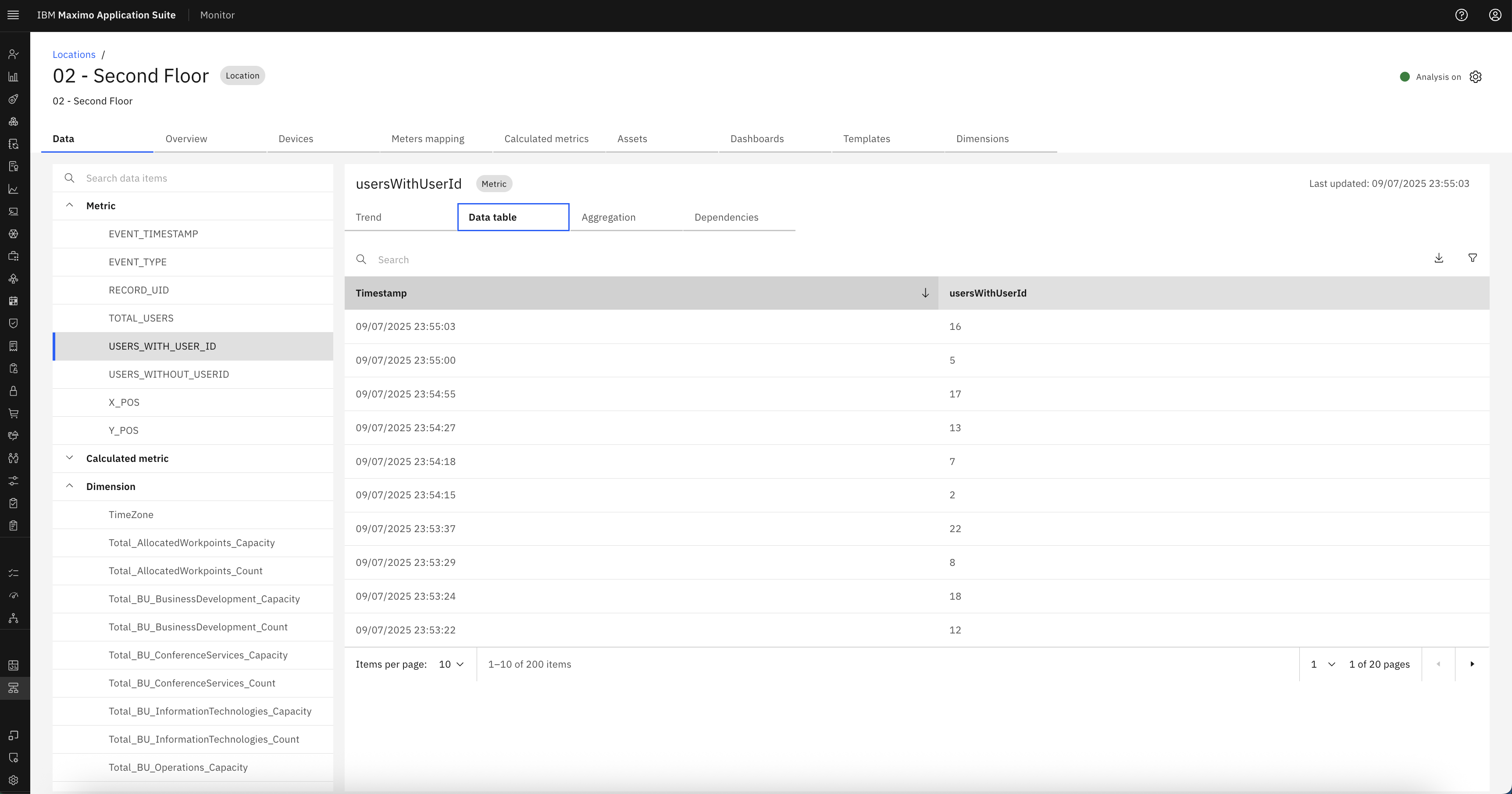

Users With ID Metric

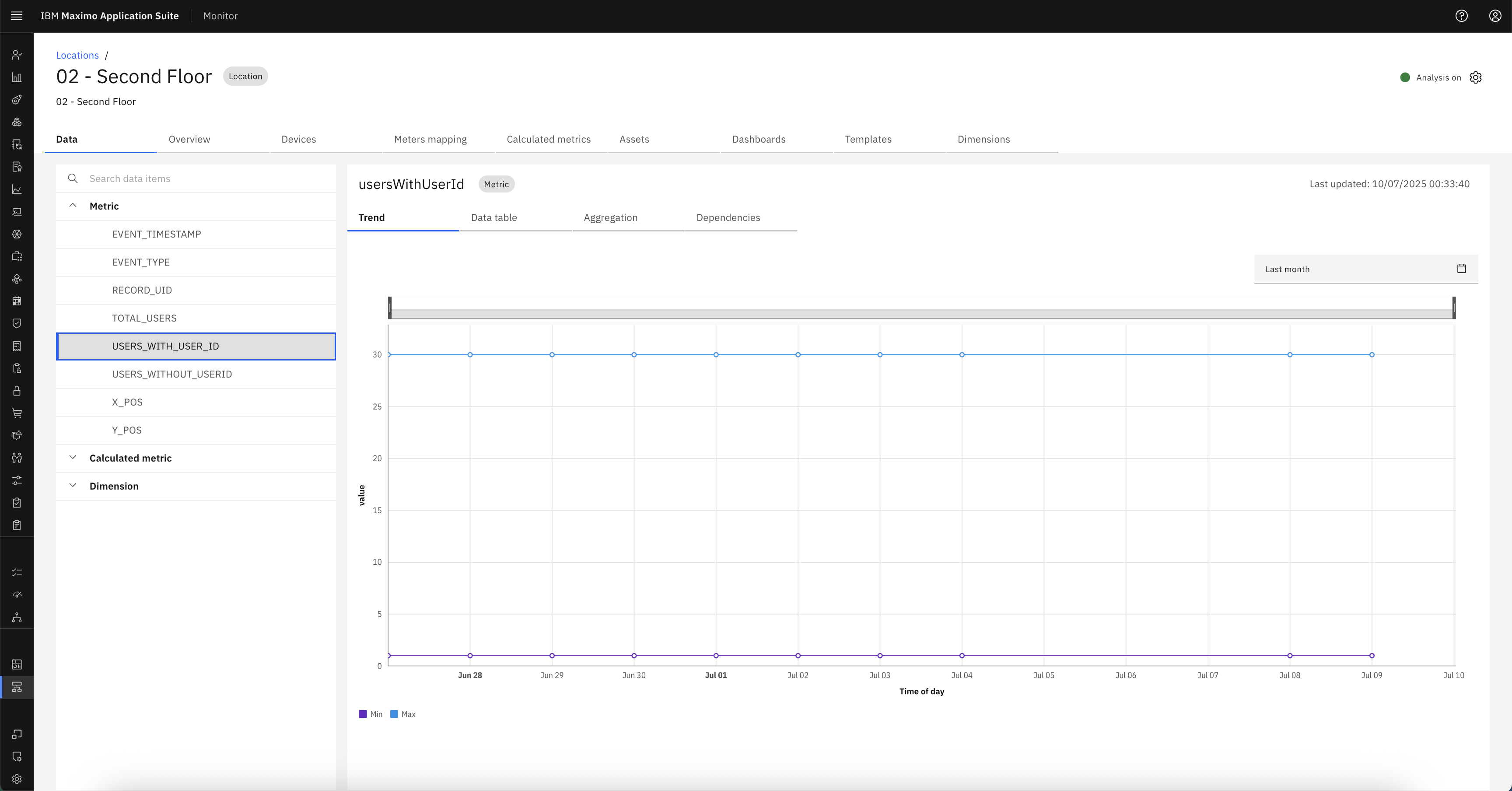

Users With ID Trend

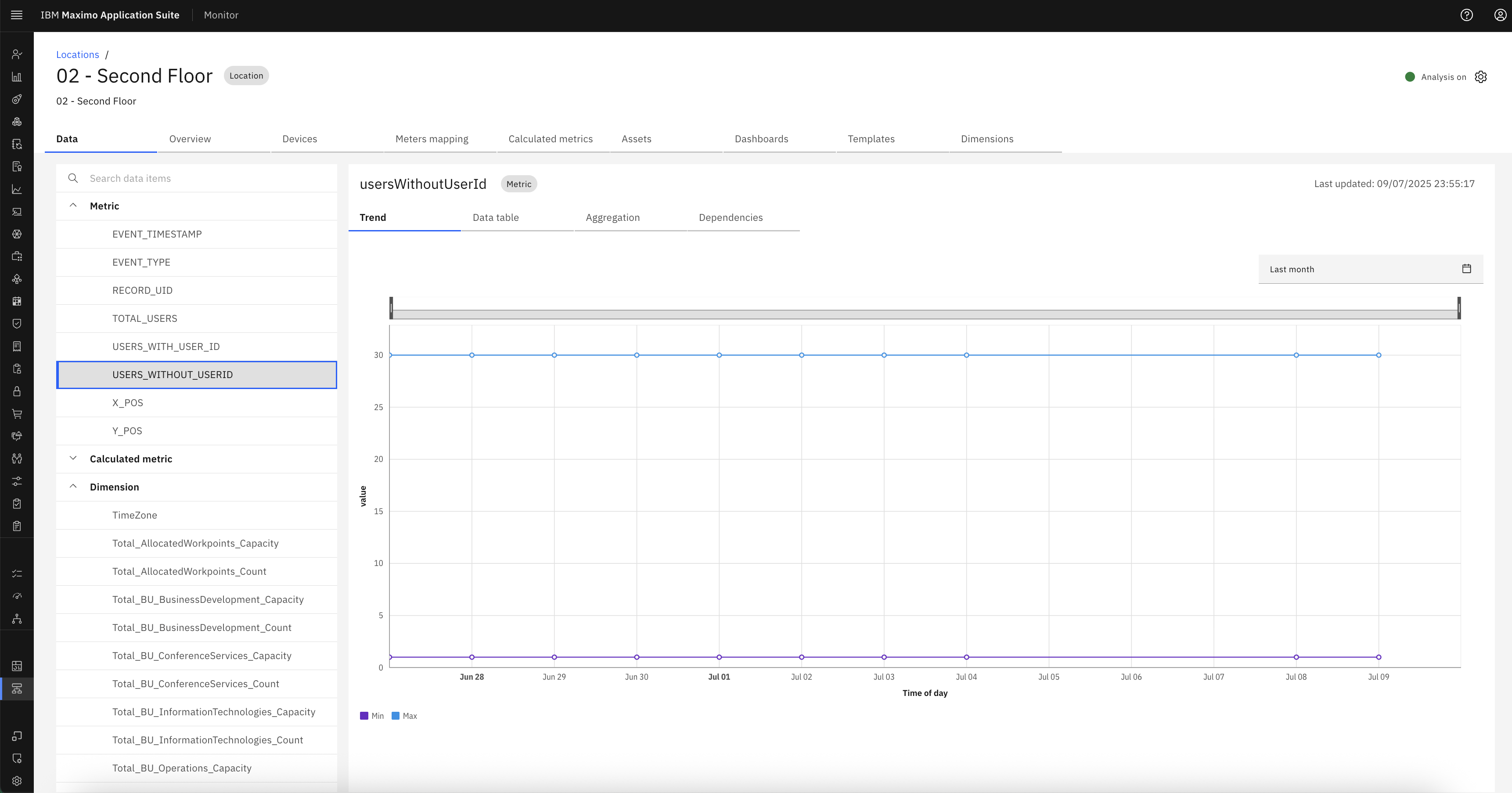

6. USER_WITHOUT_USERID

Number of anonymous users or users without an ID.

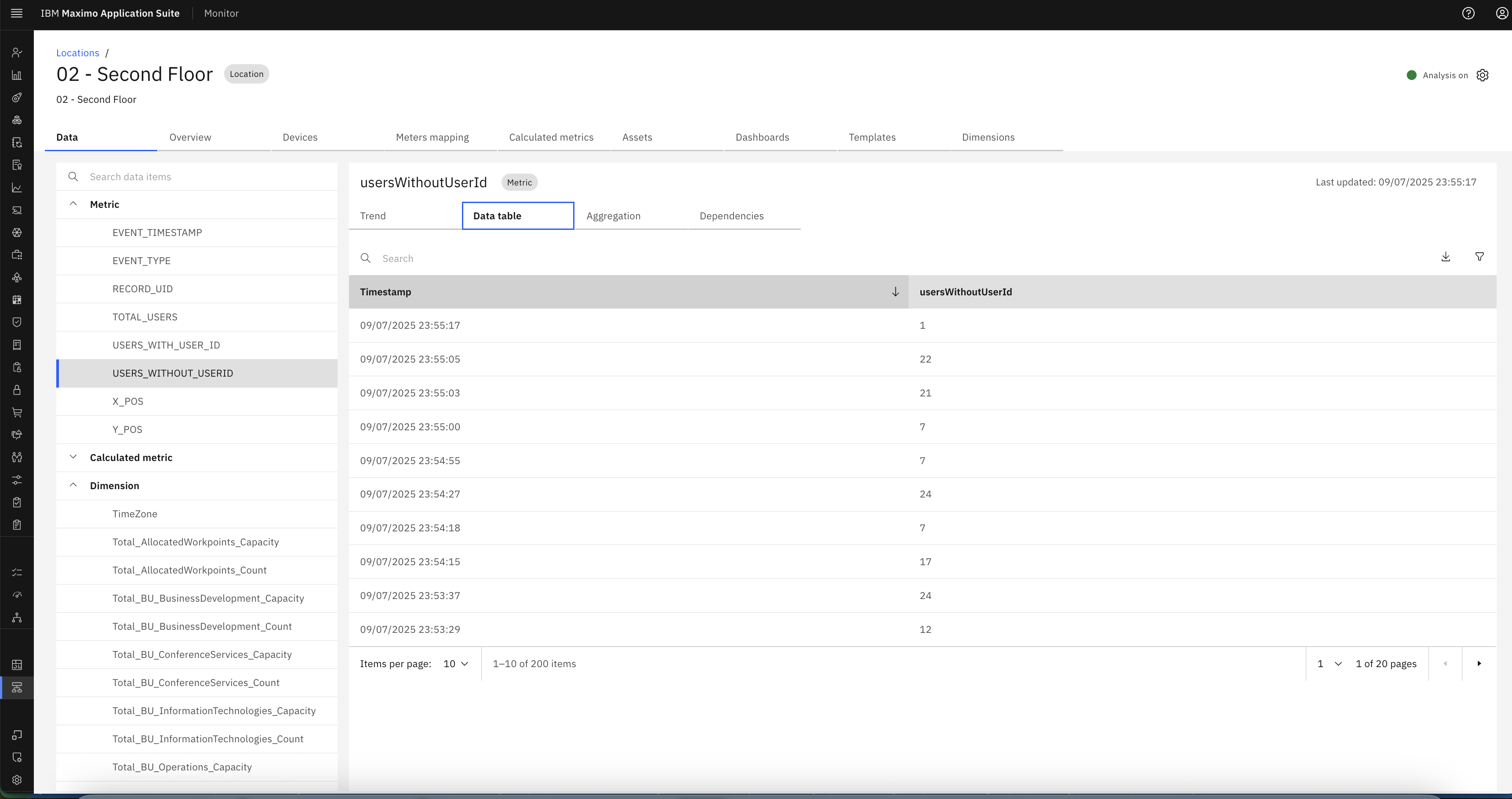

Users Without ID Metric
Users Without ID Chart

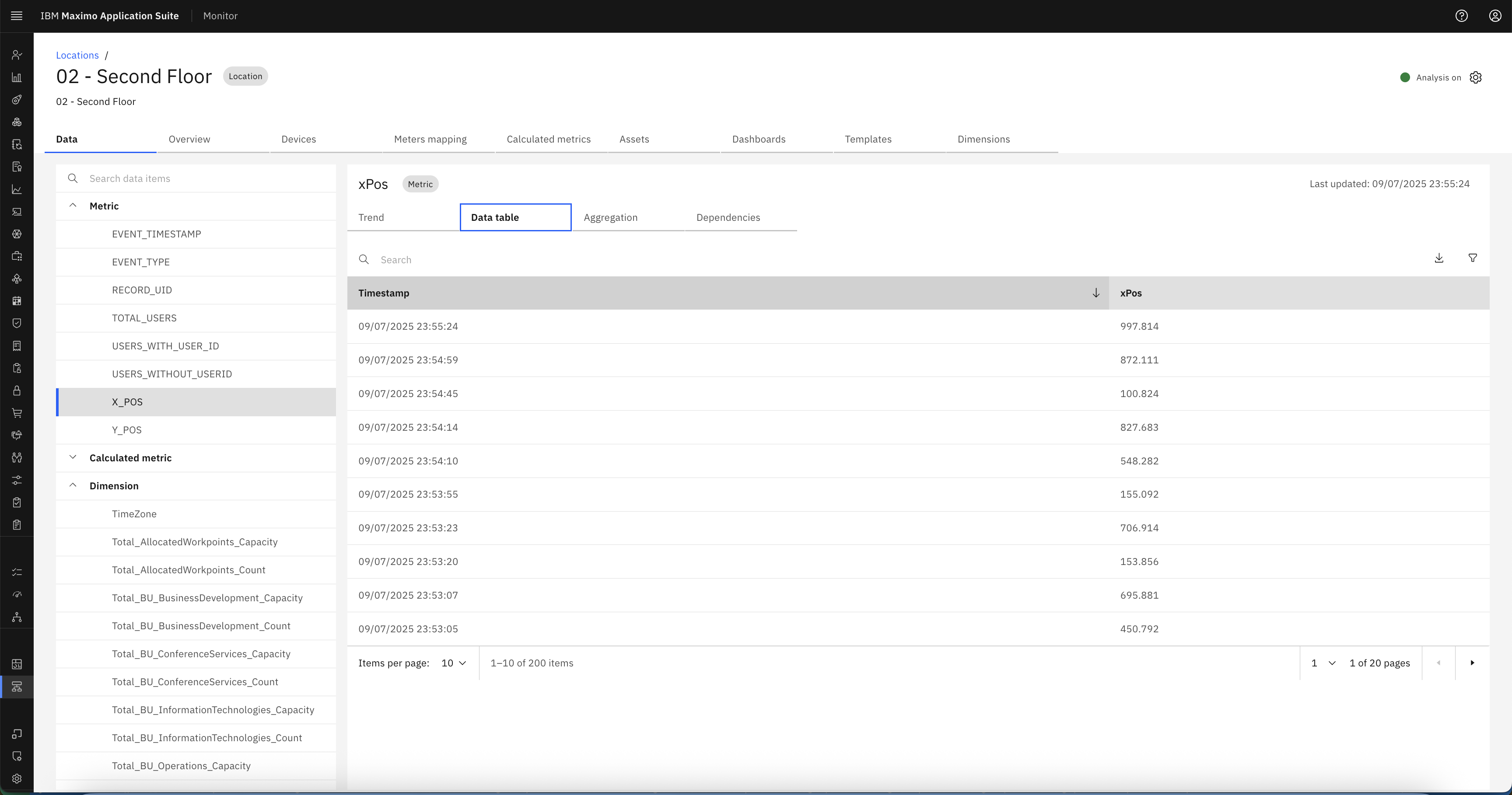

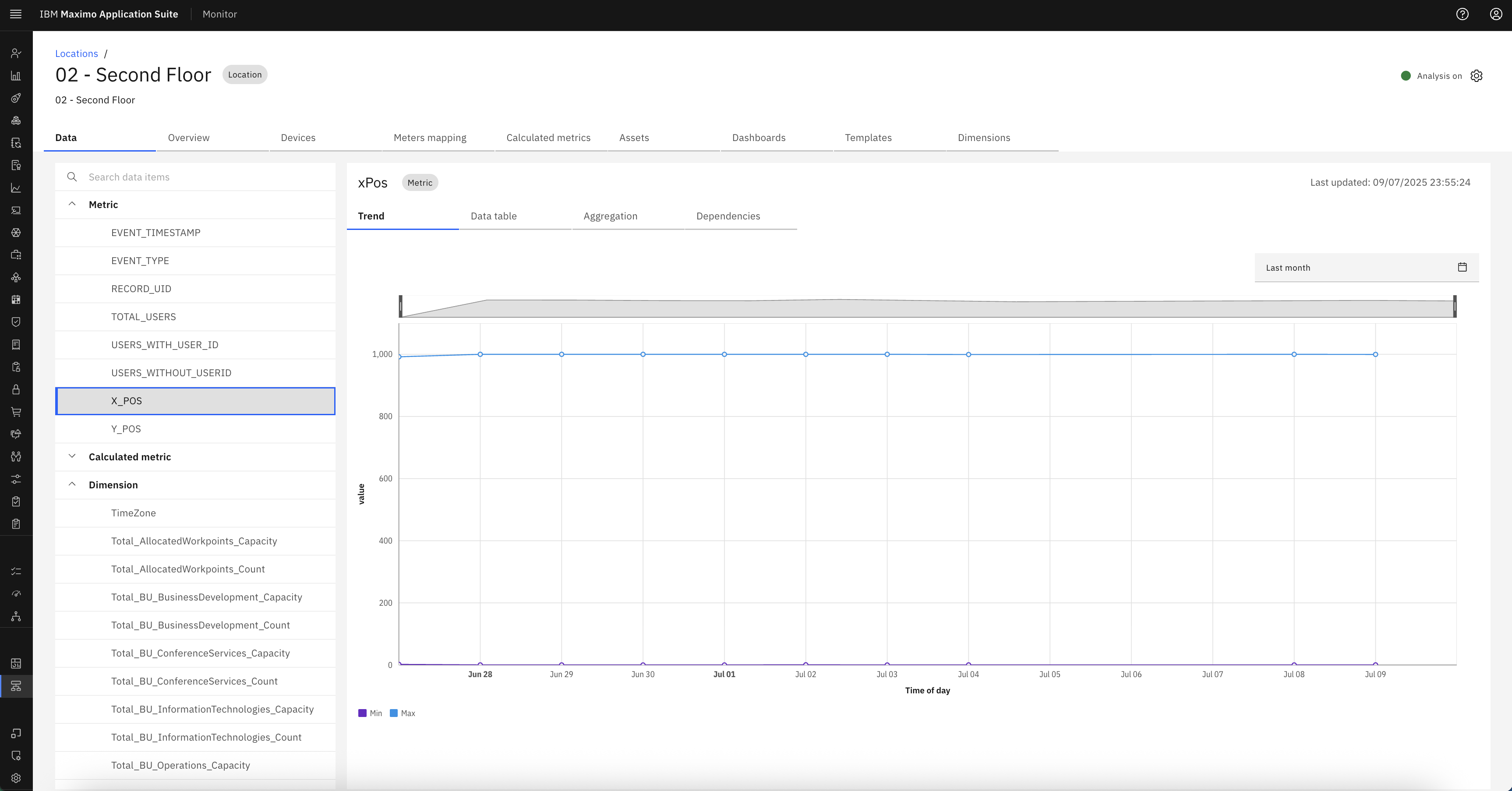

7. X_POS

X-coordinate of user position within the mapped space.

X Position Metric
X Position Distribution

8. Y_POS

Y-coordinate of user position within the mapped space.

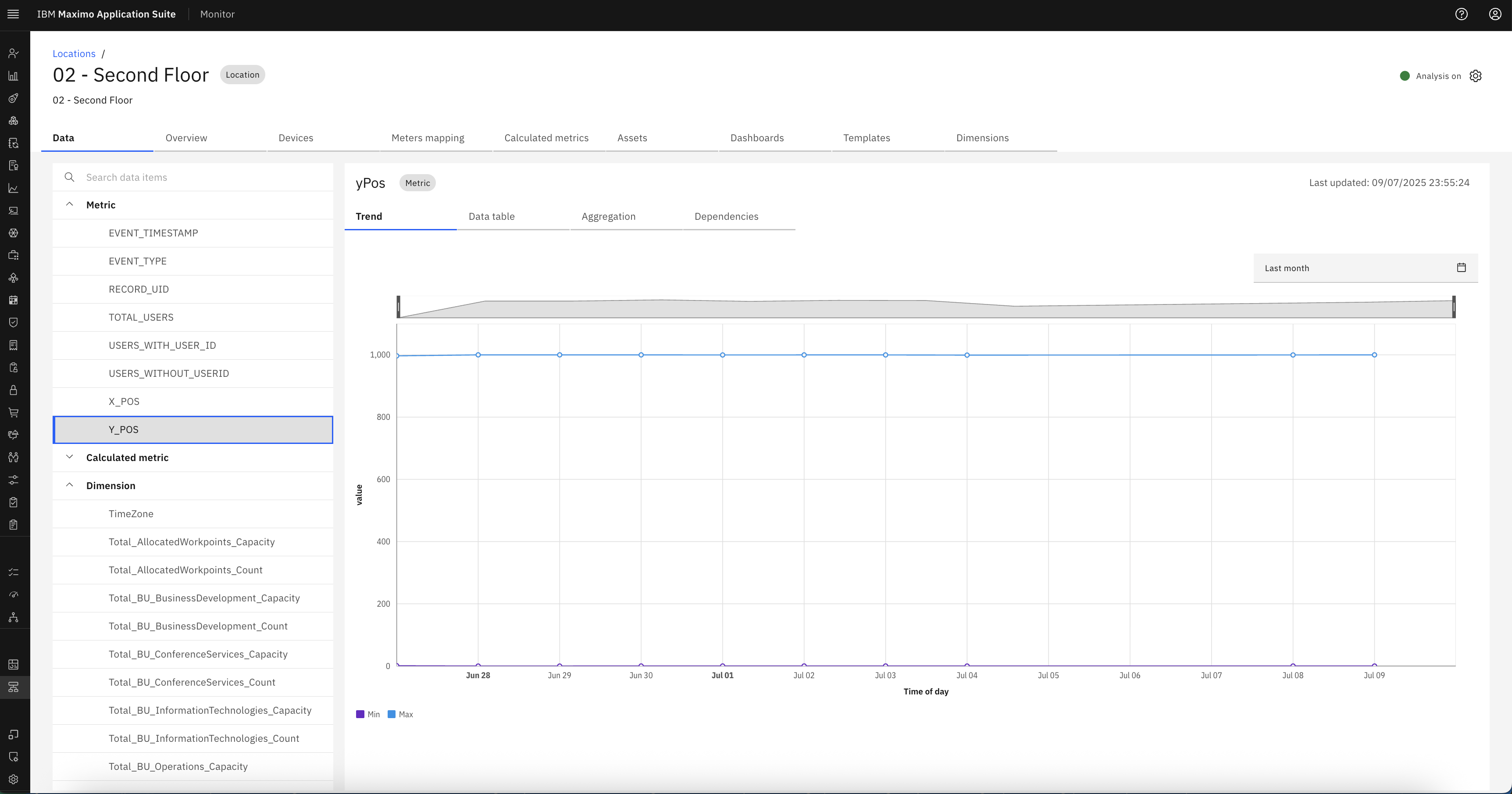

Y Position Metric
Y Position Distribution

Dimensions Fetched from Cisco Spaces

In addition to event metrics, Cisco Spaces also provides dimension details configured during the subscription phase. These include:

1. X-OFFSET

The horizontal offset configured in Edit Offset and Measurement.

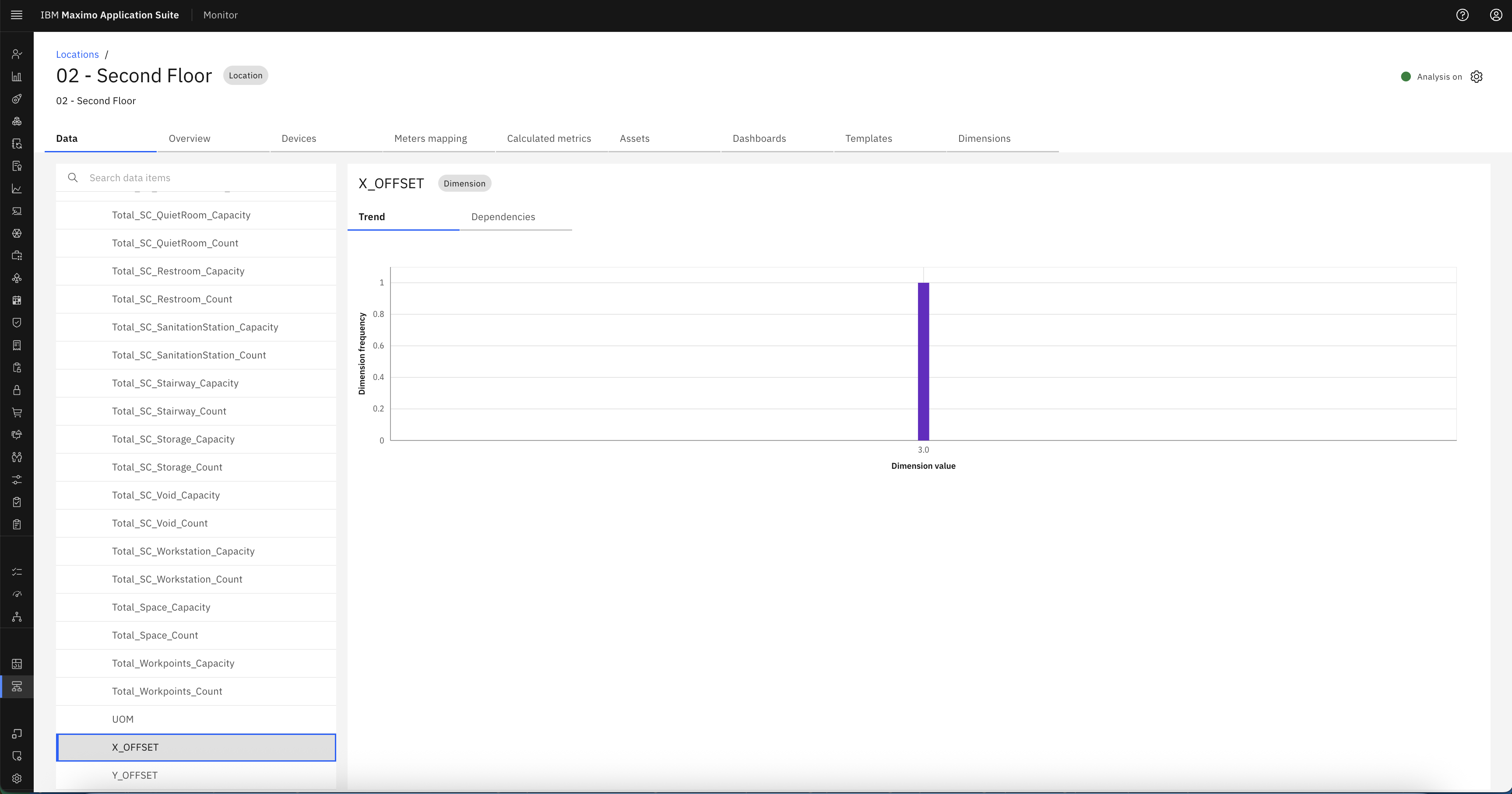

X Offset Setting

2. Y-OFFSET

The vertical offset configured in Edit Offset and Measurement.

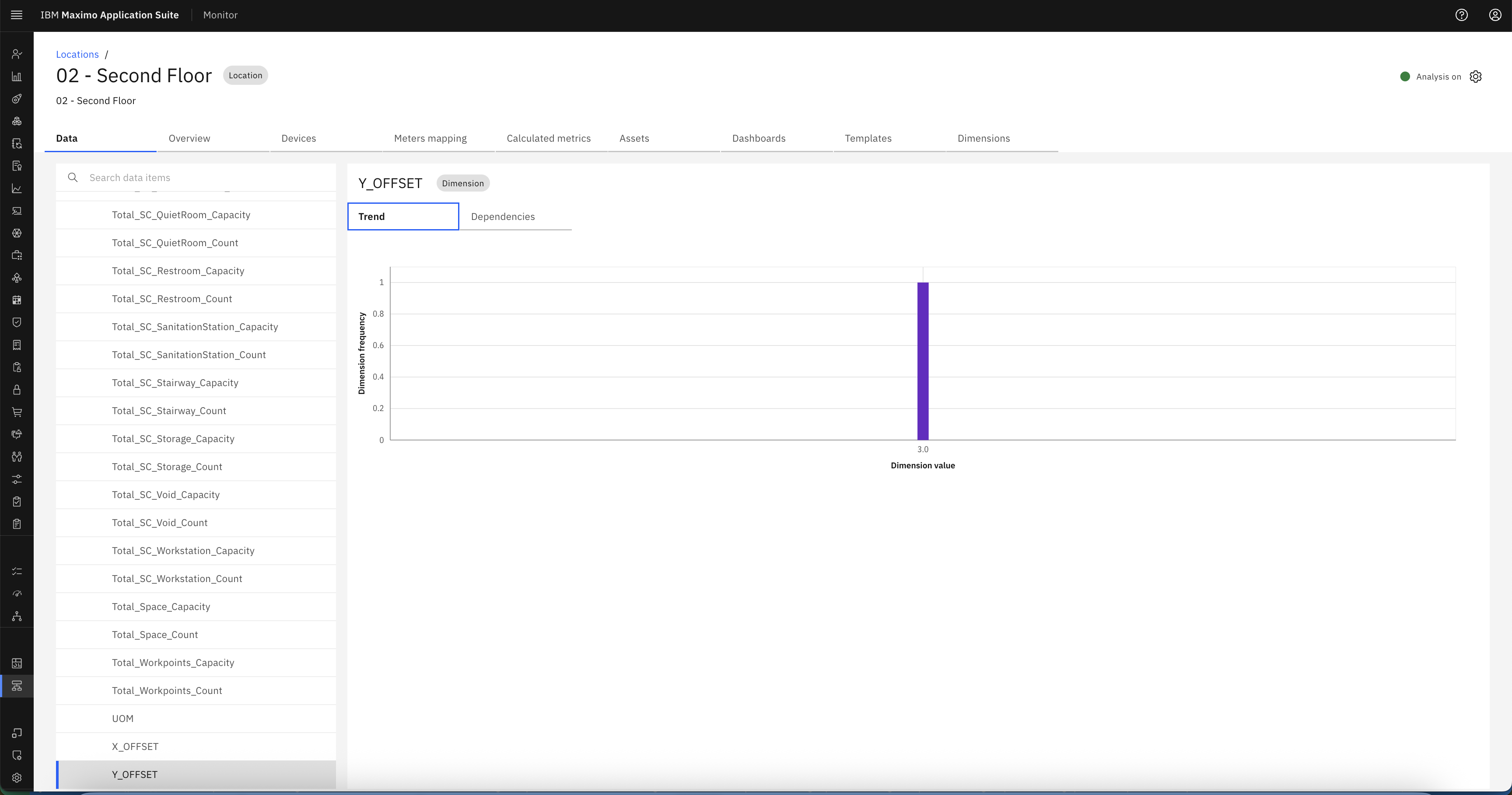

Y Offset Setting
