Subscribe to Cisco Spaces Location

In this guide, we will walk through the process of subscribing a Cisco Spaces location in IBM MAS Monitor. Subscribing a location links the Cisco Spaces location with an MREF floor, allowing MAS Monitor to begin tracking and visualizing user presence , user movement and other metrics for that area.

---

Step 1: Open the Actions Menu

Navigate to the list of Cisco Spaces locations in MAS Monitor.

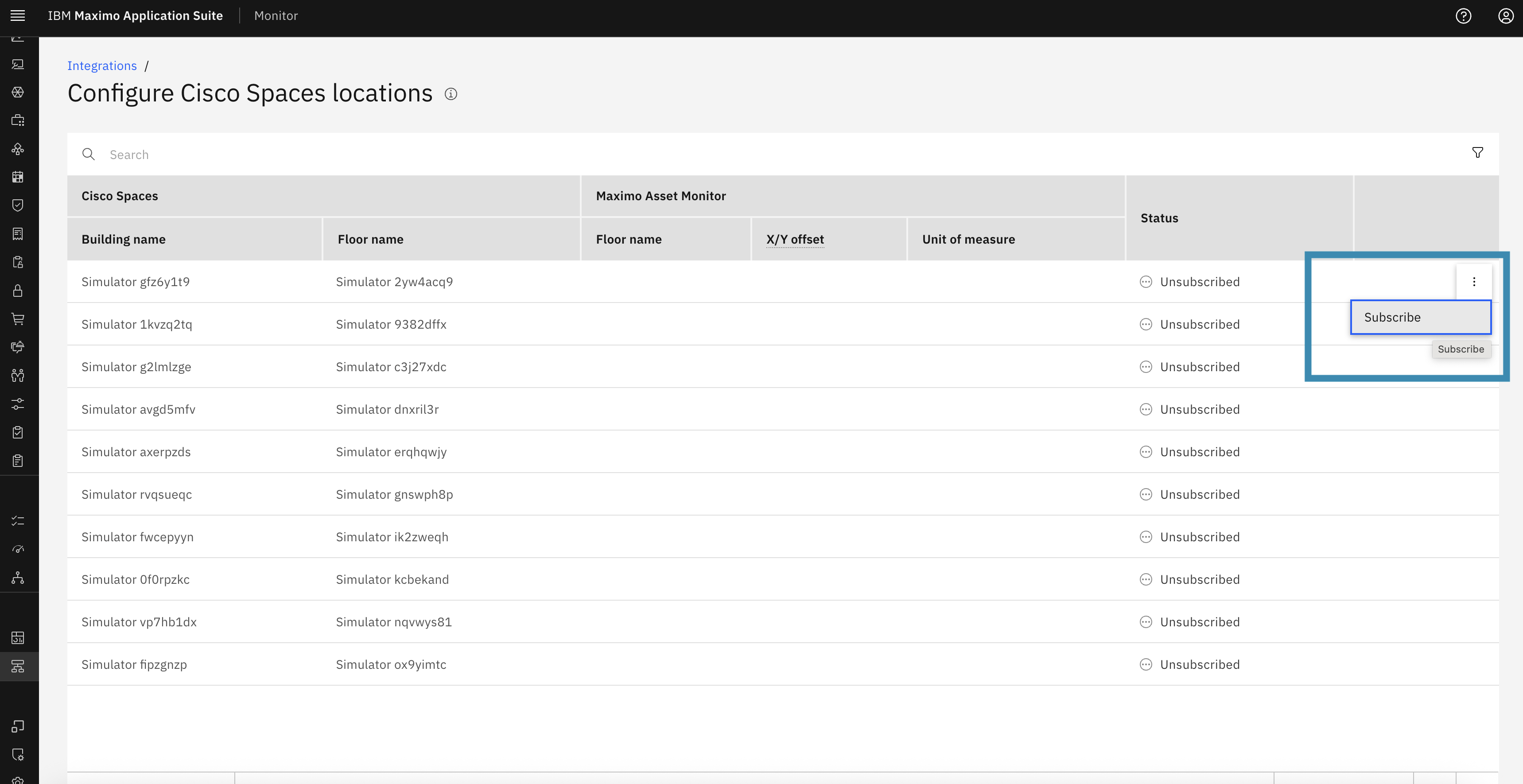

• On the rightmost side of the location entry, click the ellipsis (⋮) button to open the actions menu.
• You will see an option labeled Subscribe.

---

Step 2: Click on Subscribe

• Click the Subscribe button from the menu.

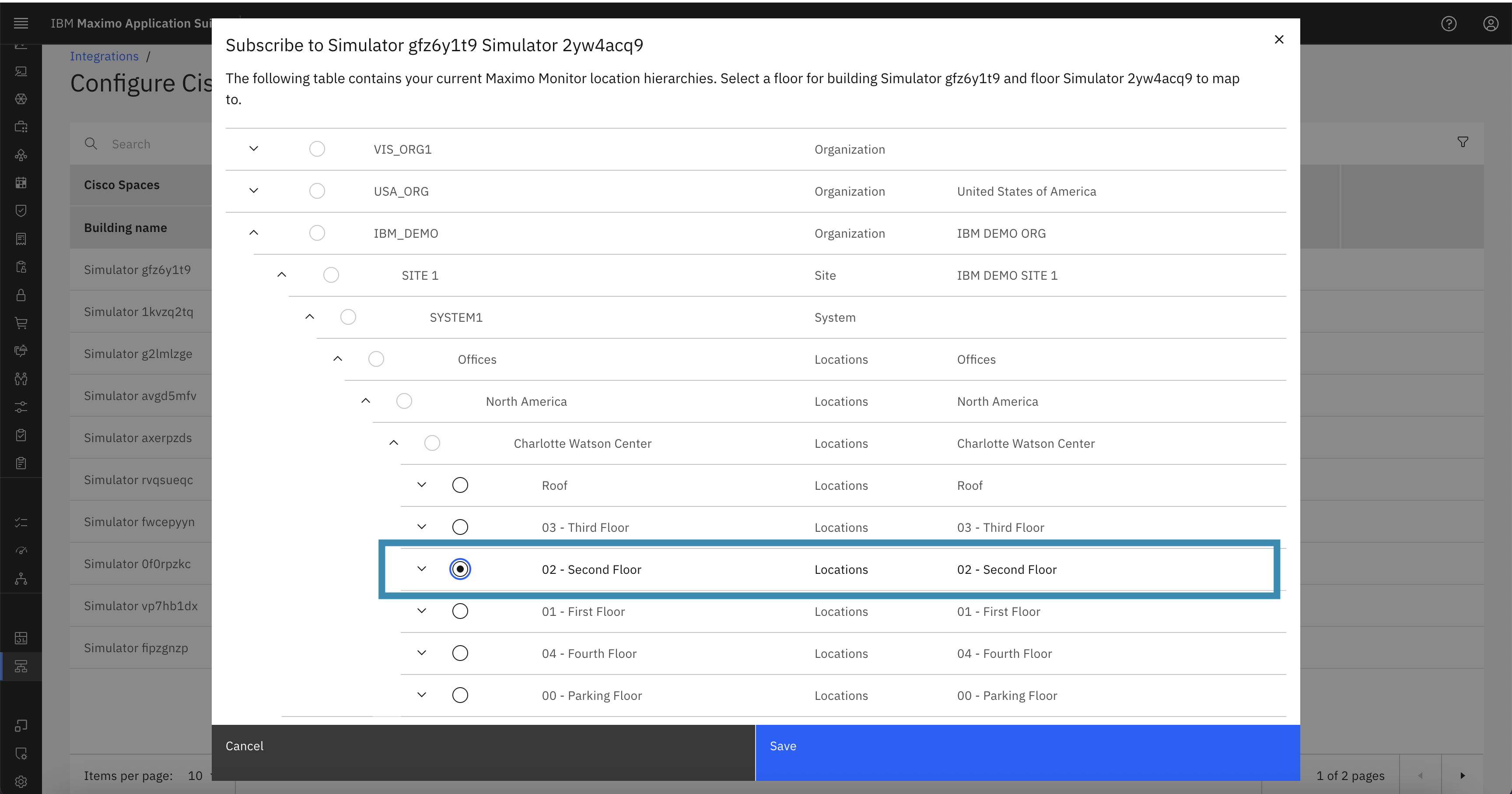

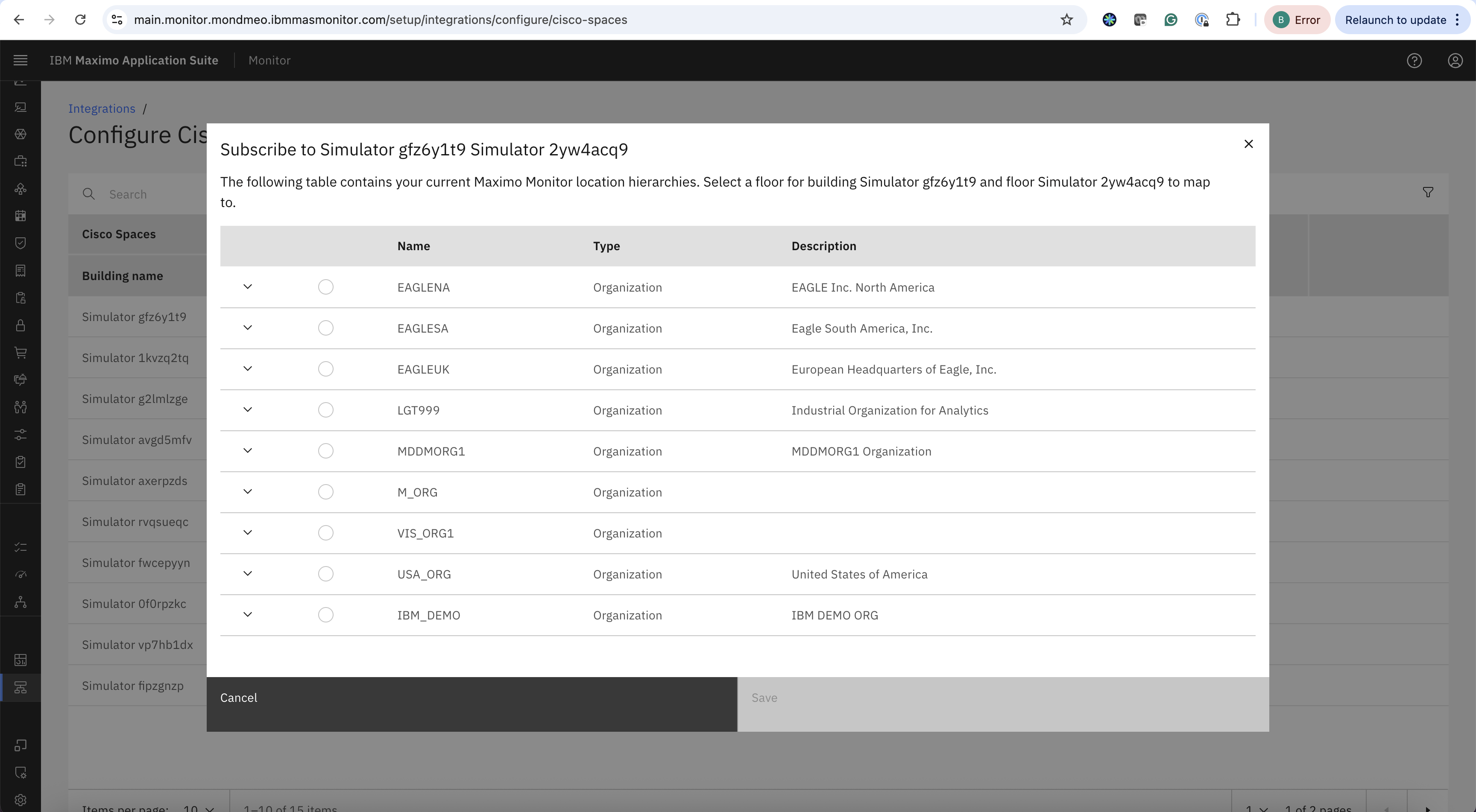

• A popup will appear asking you to associate the Cisco Spaces location with a corresponding MREF building floor.

---

Step 3: Confirm Subscription

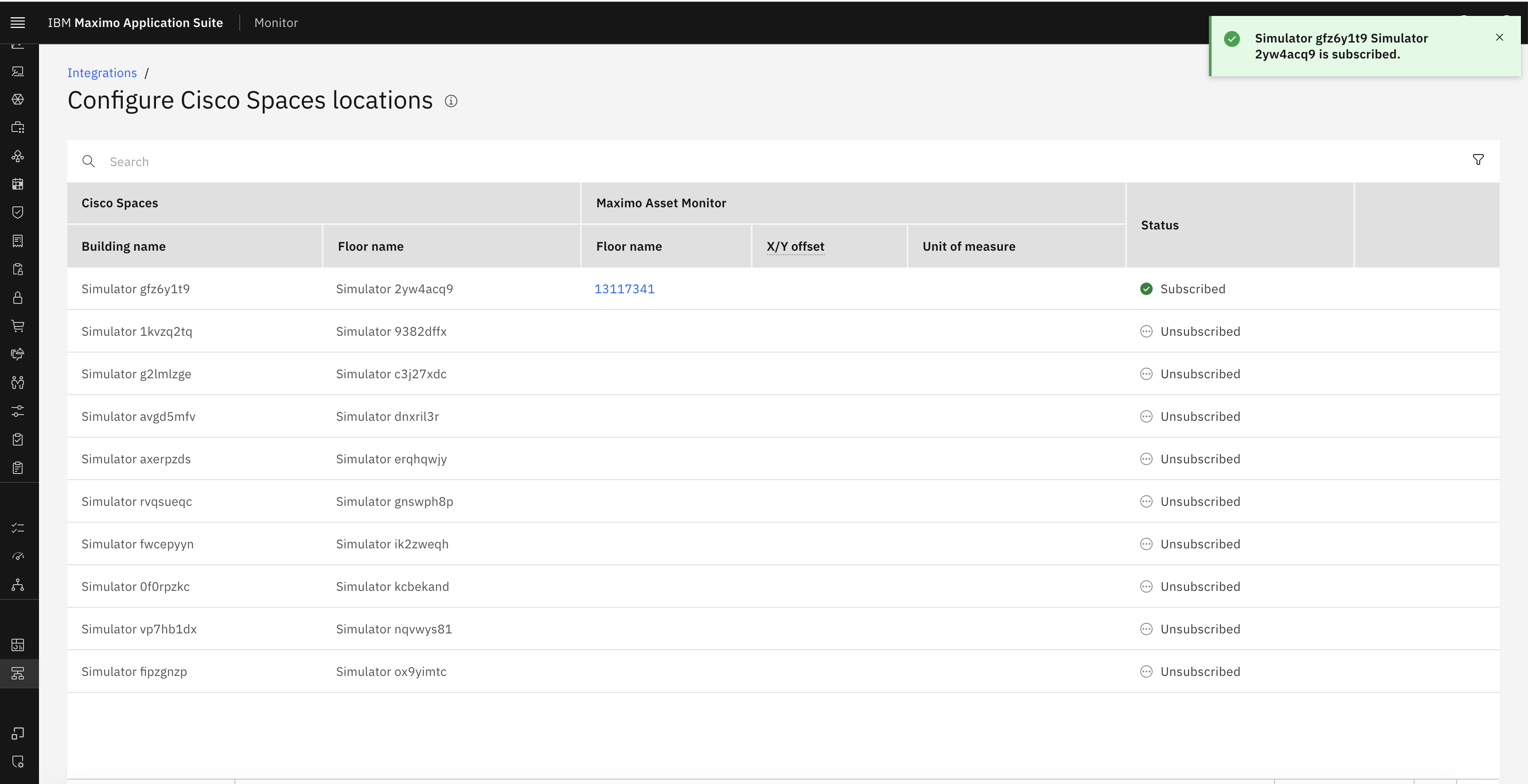

Once the location is successfully subscribed:

• The Status column will change from Unsubscribed to Subscribed.
• The Floor Name column will be populated with the name of the floor the location is mapped to.
• The floor name is a clickable link that navigates directly to the Locations page within MAS Monitor.

---

Step 4: View Updated Actions

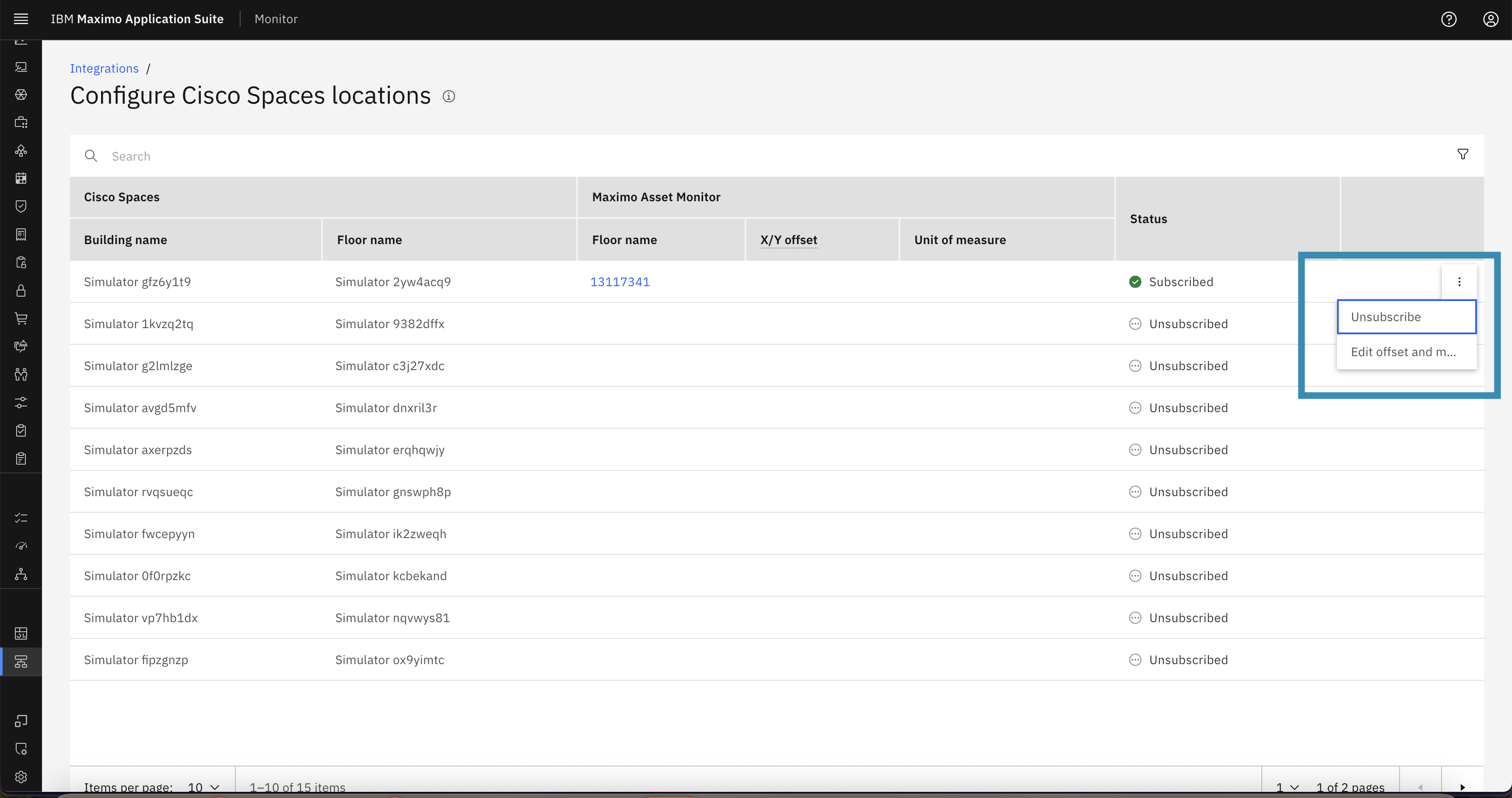

Now that the location is subscribed, clicking the ellipsis (⋮) menu will show two new options:

• Unsubscribe
• Edit Offset and Measurement

These actions allow further control over the location mapping and coordinate adjustment.

---

Step 5: Edit Offset and Measurement

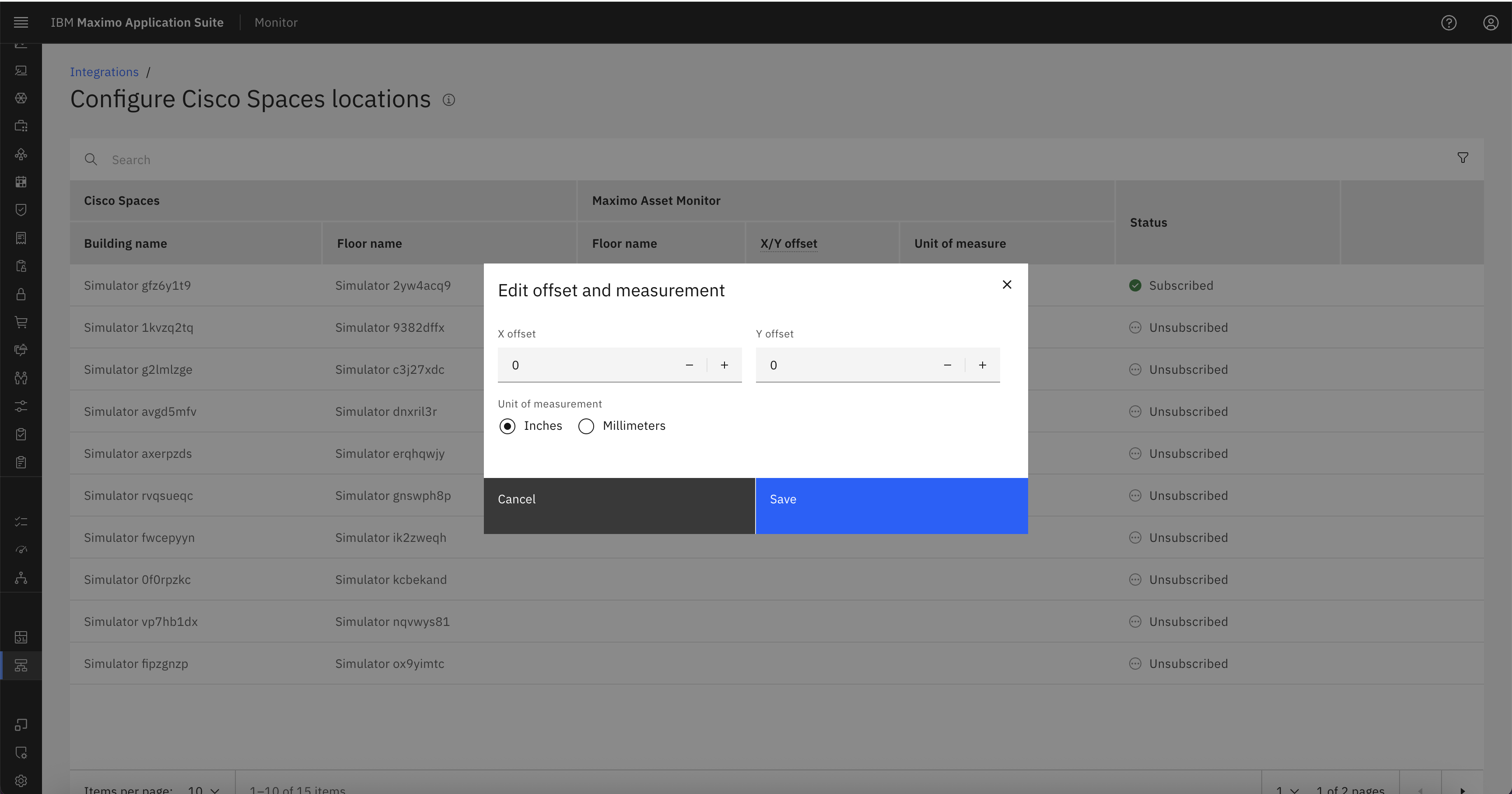

Selecting Edit Offset and Measurement opens a dialog box where you can:

• Set X-Offset and Y-Offset values to coordinate the alignment of the location on the floor map.
• Choose the Unit of Measurement, which can be either:
• Inches
• Millimeters

These offsets will be reflected as dimensions in the location data.

---

Step 6: Verify

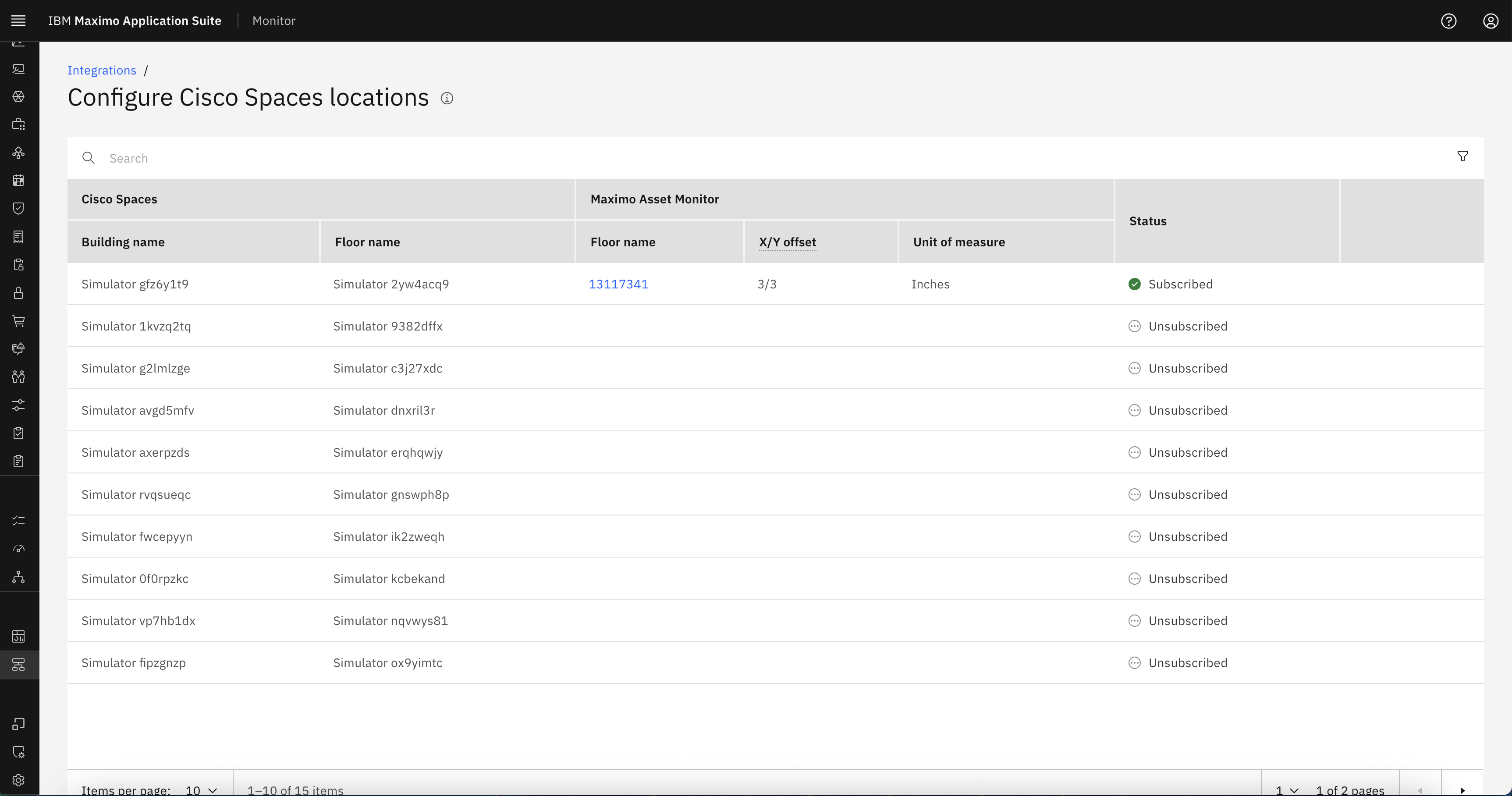

• Once your edits are saved, the X/Y Offset values will be displayed in the corresponding columns of the location table.
• The Unit of Measurement will also be updated accordingly.

---
