Objectives

In this Exercise you will learn how to add and remove locations in Cisco Webex devices.

Before you begin:
This Exercise requires that you have:

  1. completed the pre-requisites required for all labs
  2. completed the previous exercises

Assign Location to Cisco Webex device

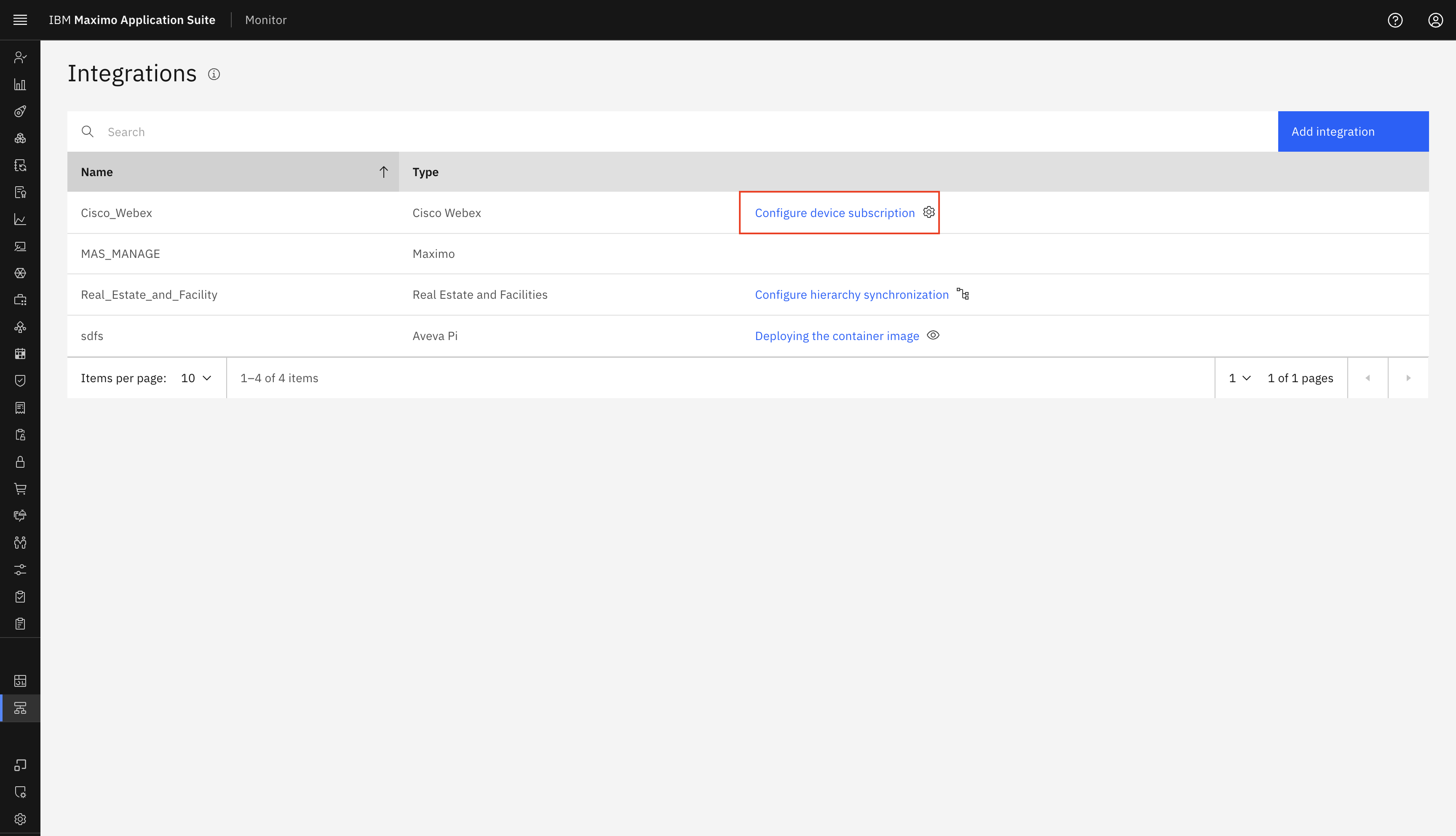

Please again go to Cisco Webex integration page. Click on Configure device subscription.
Cisco Webex device

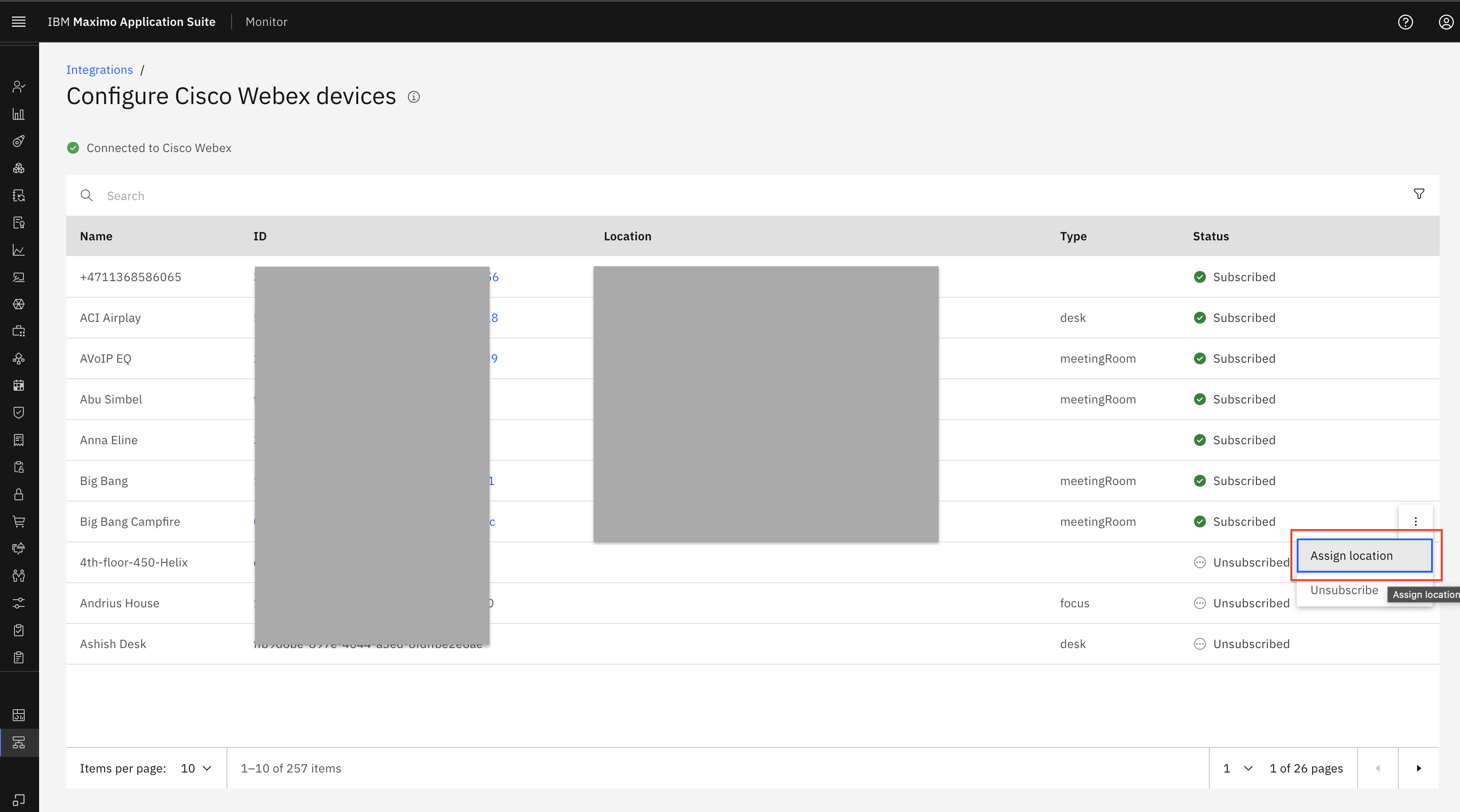

It will show all available devices and subscribed devices. From there, we get an option Assign location in the ellipses icon to assign the Cisco Webex device to a location.
Cisco Webex device

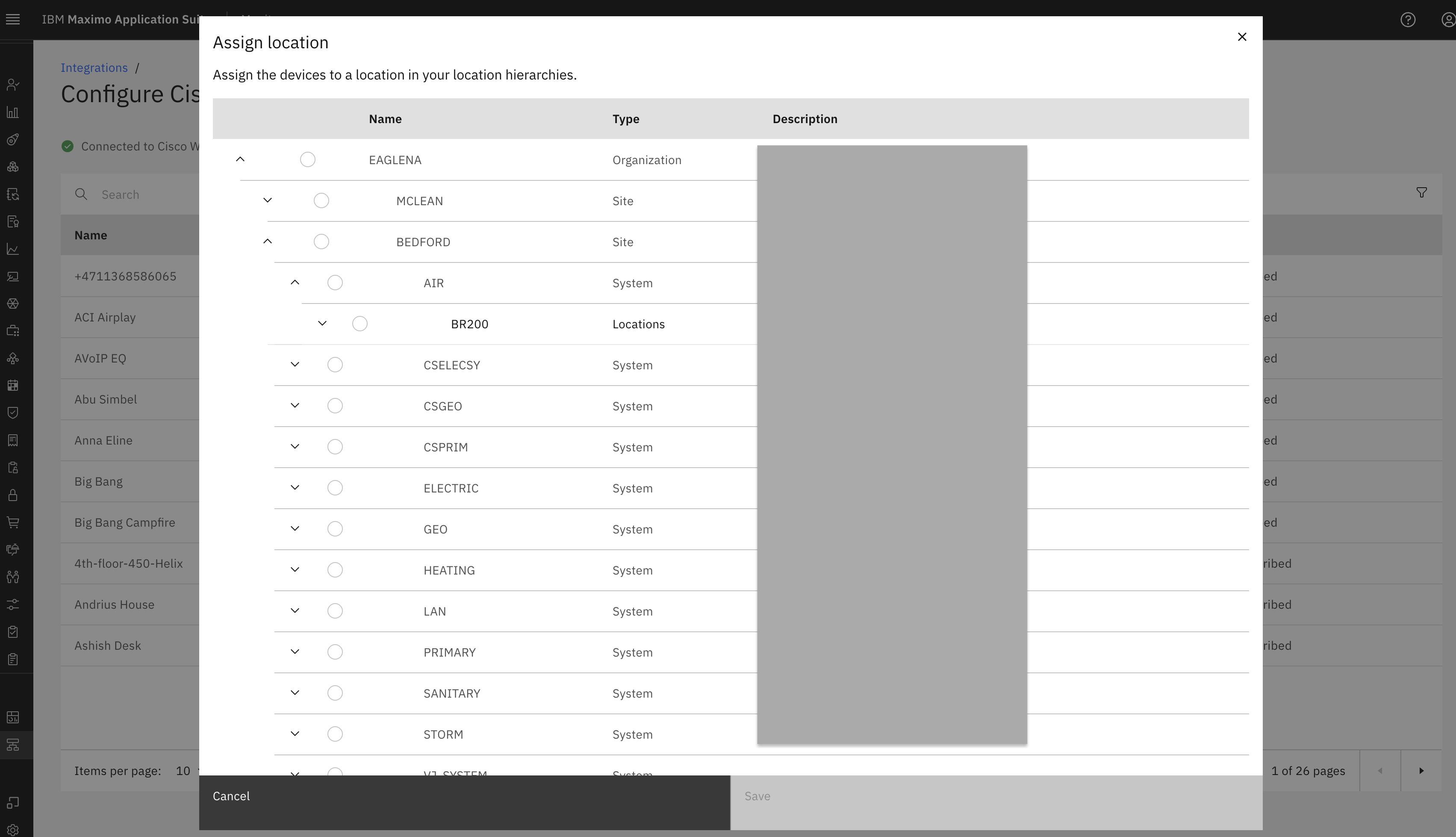

On click Assign location, we get a pop-up to assign device to a location in the Real Estate and Facilities location hierarchies:
Assign Location

After we assign a Webex device to a location. We can view that in Monitor Hierarchies as well as in the Devices section of that particular location.

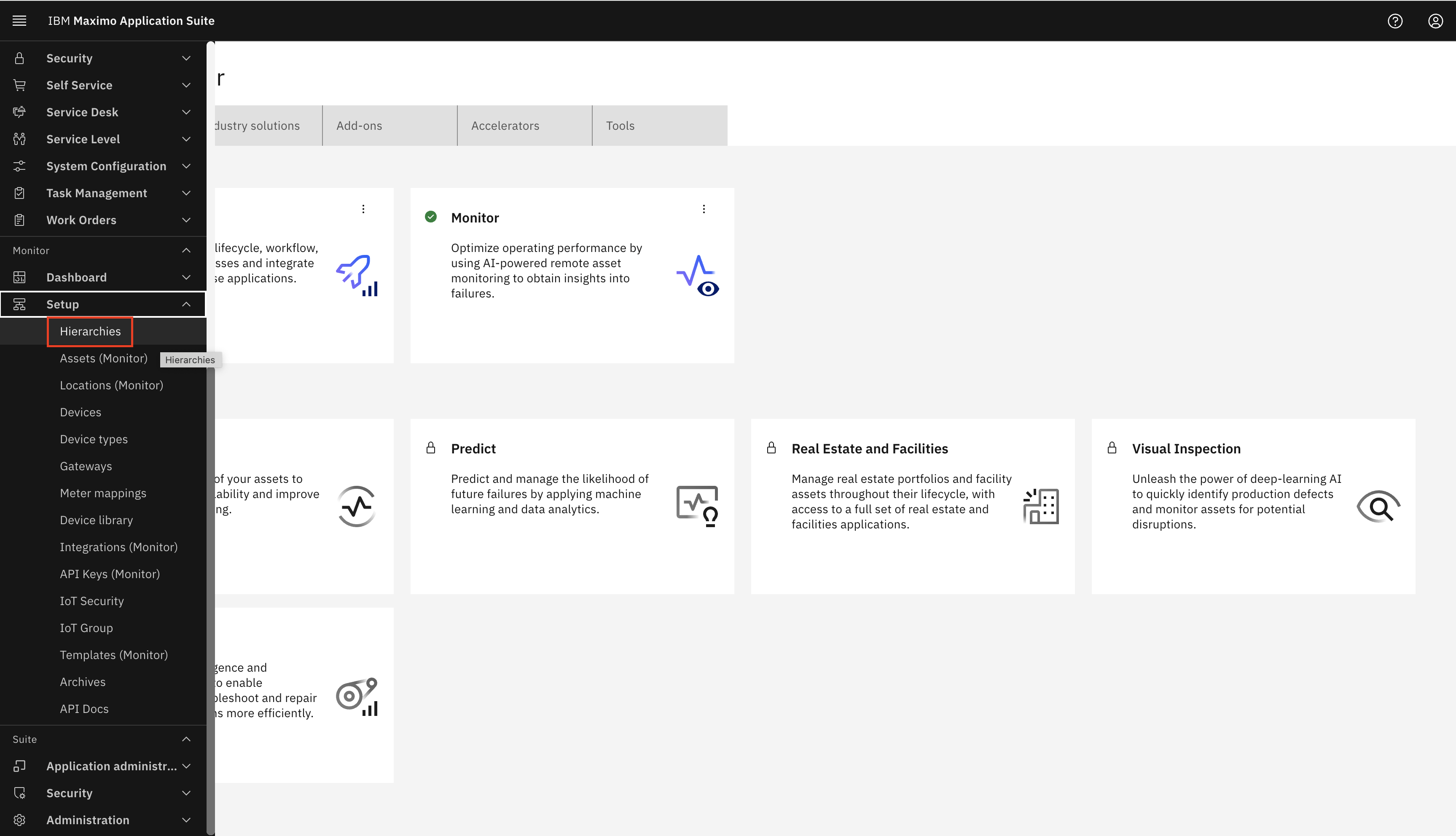

Expand Setup under the Monitor setup section in the left menu and select Hierarchies:
Add new device

In Hierarchies, we can check Location in below manner.

Organisation -> Site -> System -> Location.

Under Location where we have assigned Cisco Webex device, that specific device will be incorporated.
Select Location

View Location in Cisco Webex device

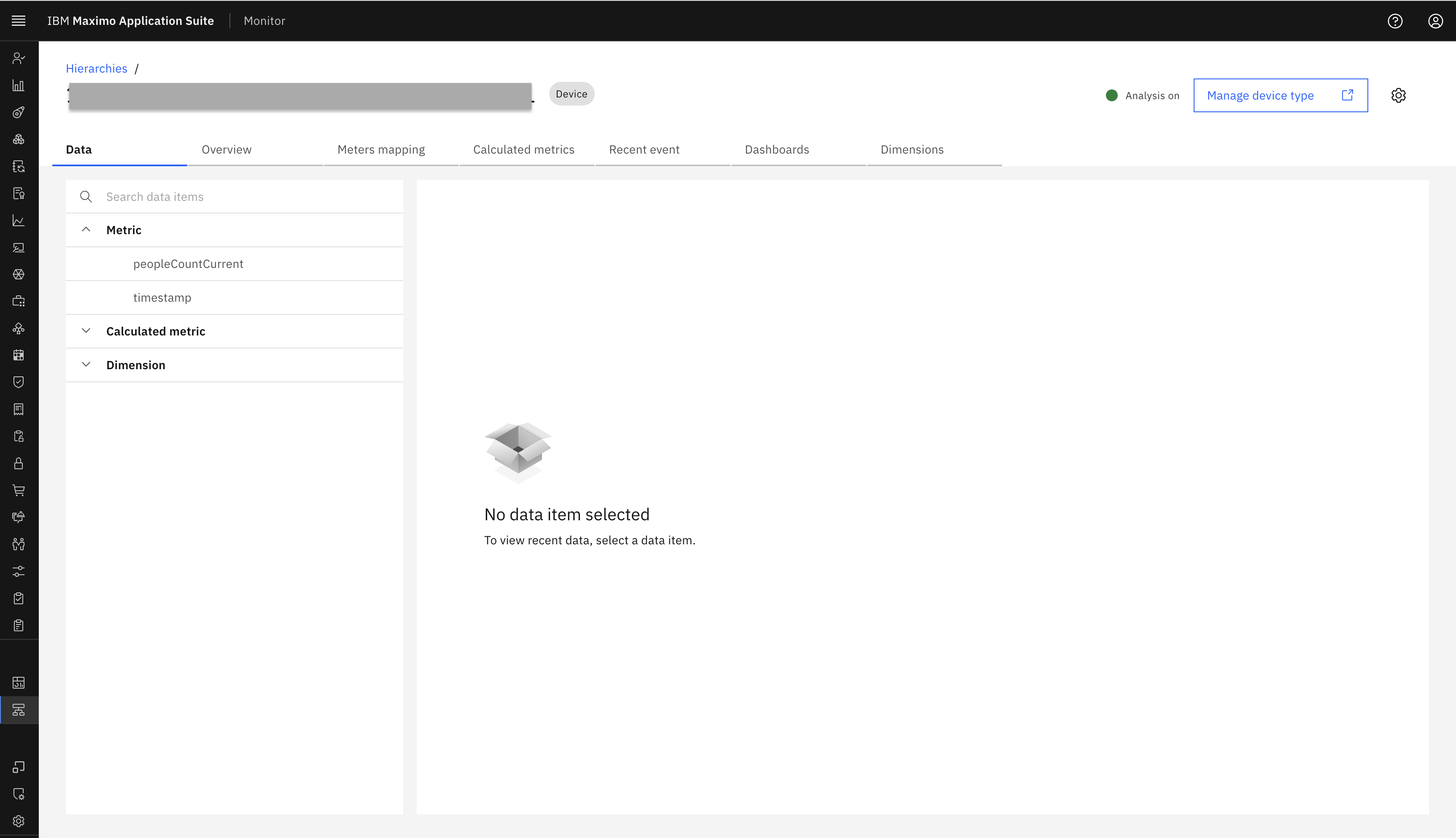

To check Location under Device, we need to click that device under Hierarchies. It will redirct to device page in Monitor. Select Cisco_Webex: BigBang device which we check above steps. It will open device page.
Select Device

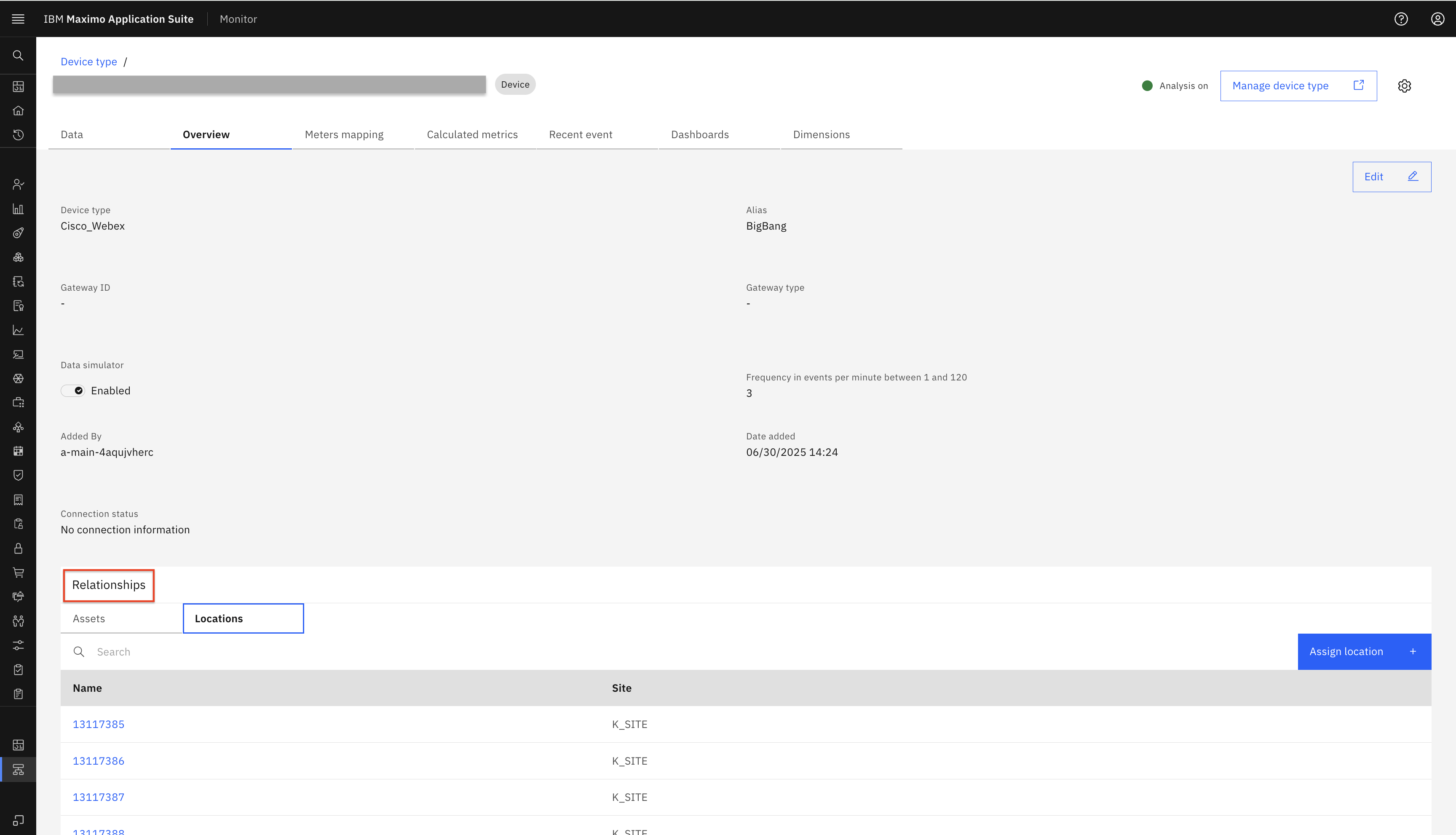

Here go to Overview tab, under Relationship section we can see all assign location.
Select Location

View Cisco Webex device in Location

We can even see Device under Location also. For it again we need to go to Hierarchies select location Charlotte Watson Center:
Select Location

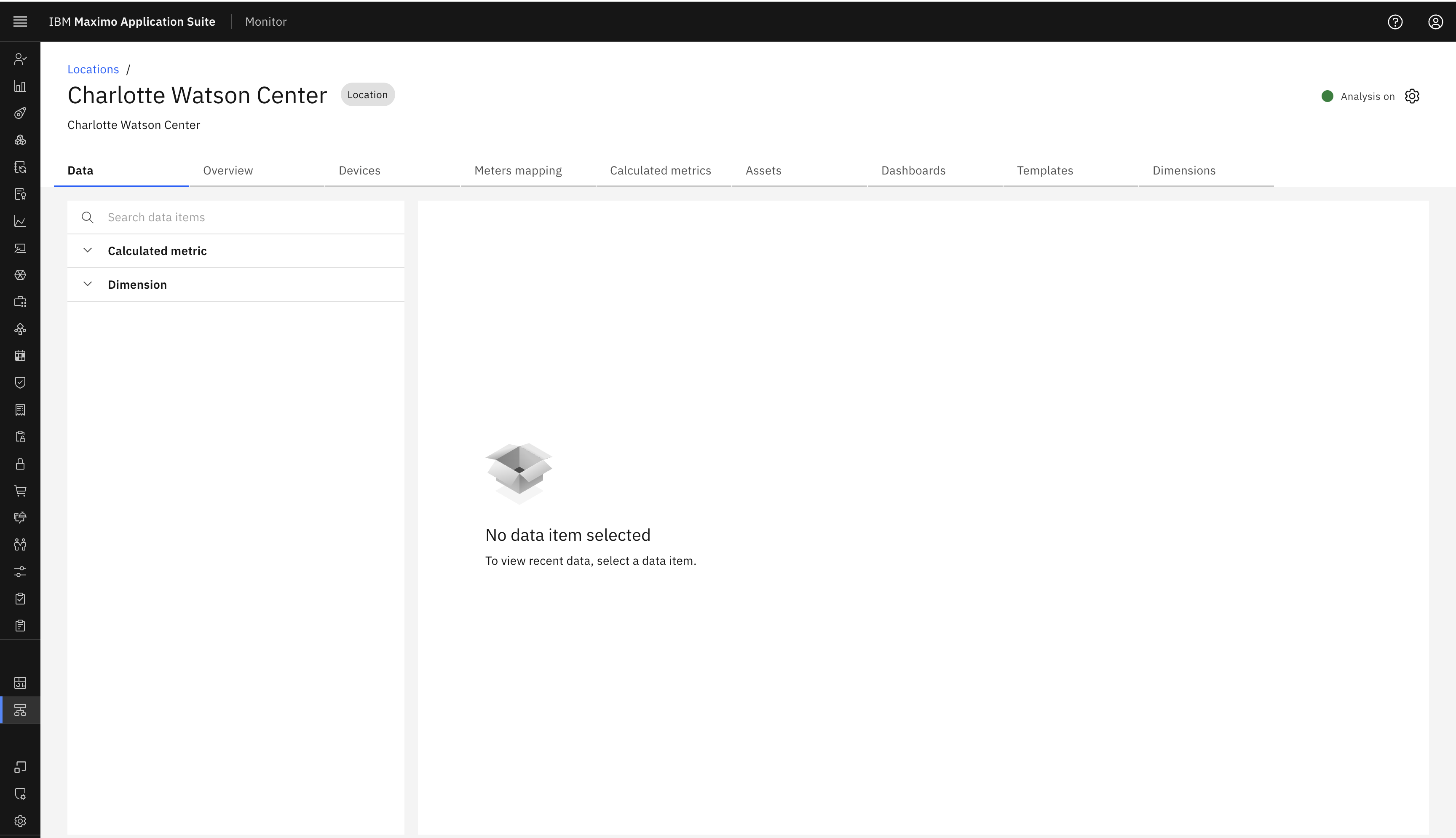

It will redirct to Location page in Monitor.
Select Device

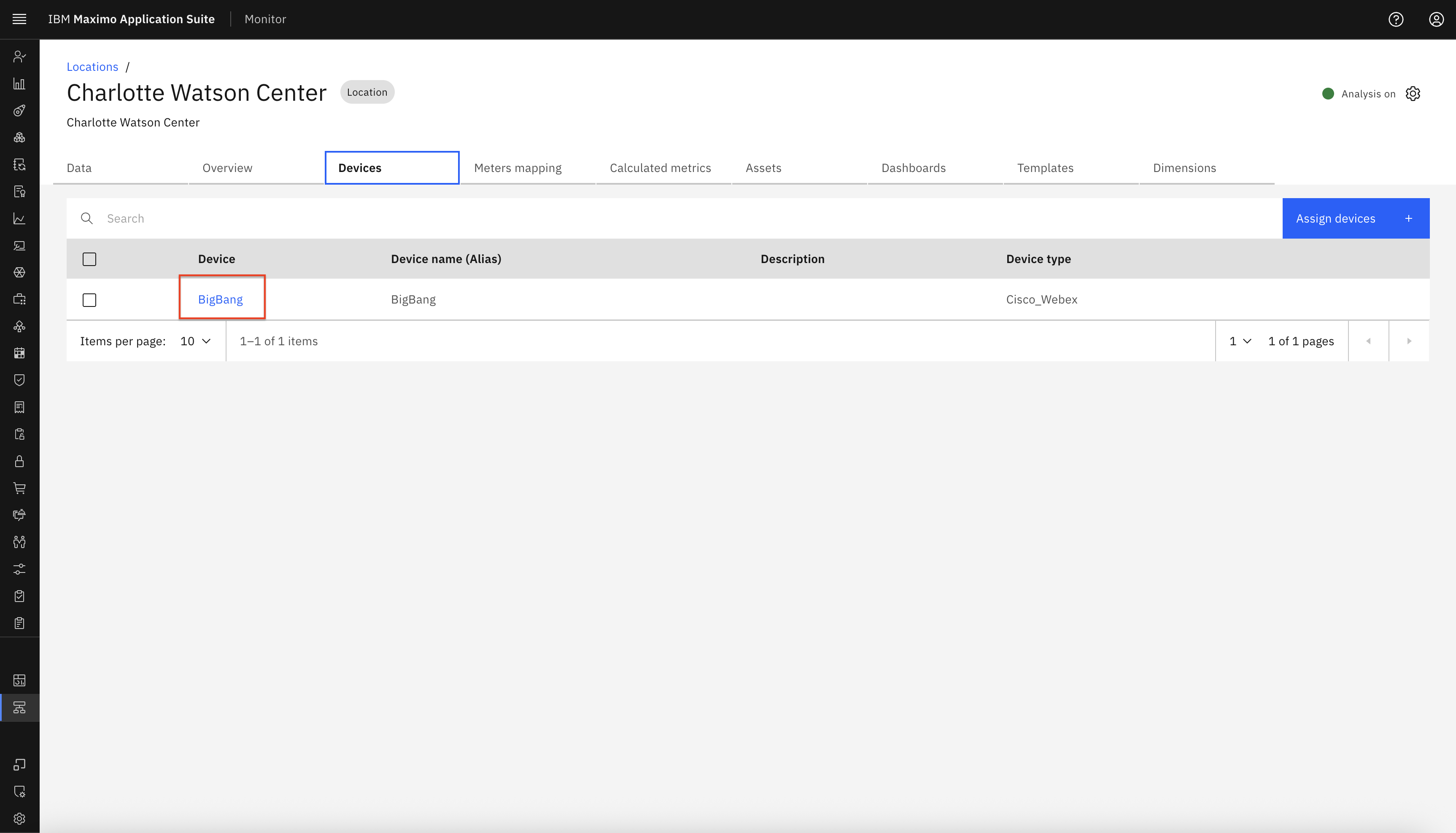

Now we need to go Devices tab under it. It will show all assigned devices.
Select Device

Unassign Location to Cisco Webex device

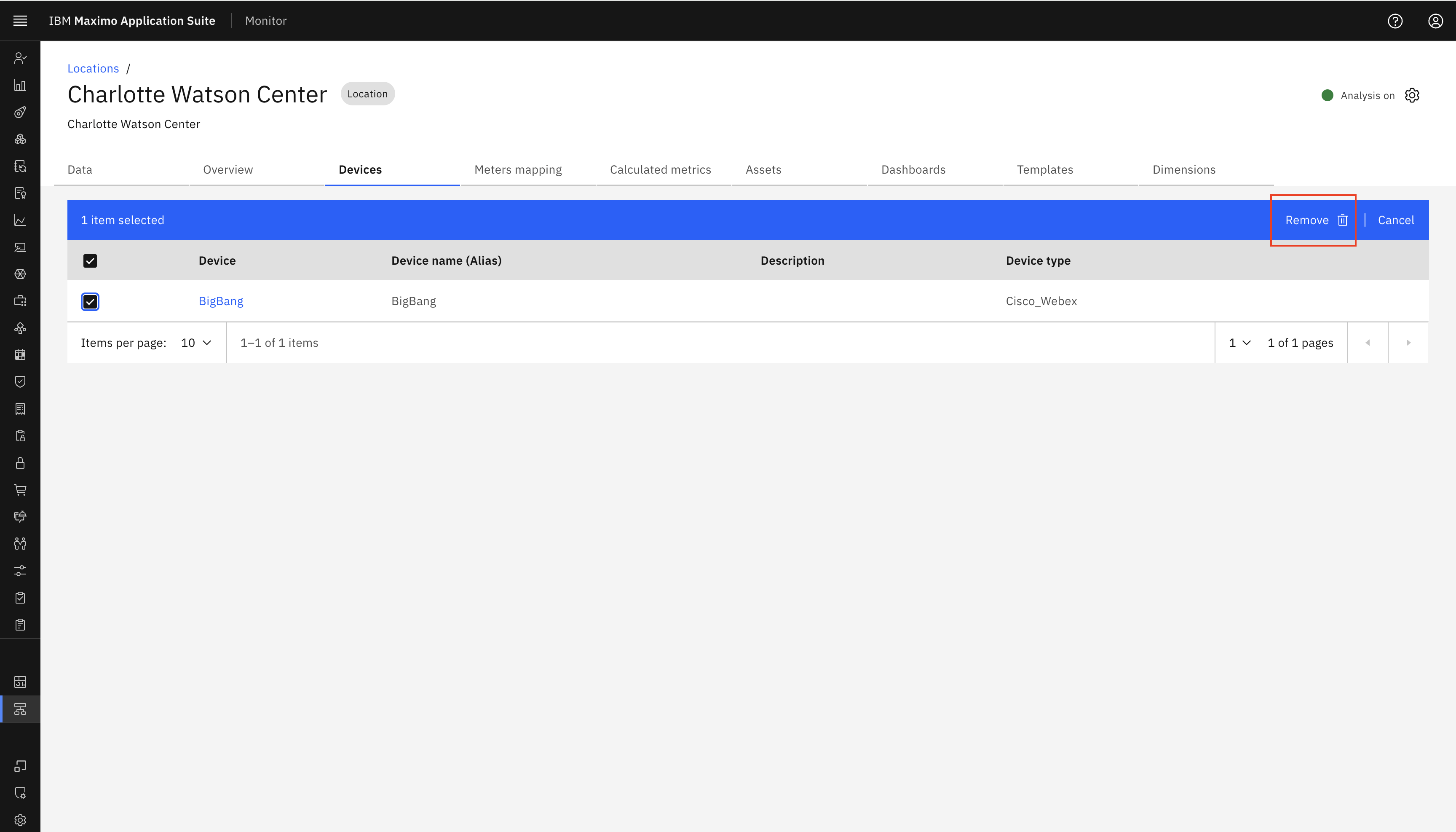

We can remove device from location. For it we need to select checkbox of assign device in Location Device tab. Click on remove button. It will unassign device from that location and vice versa:
Select Device

Same way we can remove Location from Device also. In Device there is one Overview tab. Under overview there is one Relationship section which contains Asset and Location details for that device. We can unassign location by clicking remove from there.
Select Location

Congratulations you have successfully add and remove location in Cisco Webex device to your Cisco Webex integration.
