Objectives

In this Exercise you will learn how to create the Cisco Webex Integration in Monitor.

Before you begin:
This Exercise requires that you have:

  1. completed the pre-requisites required for all labs
  2. completed the previous exercises

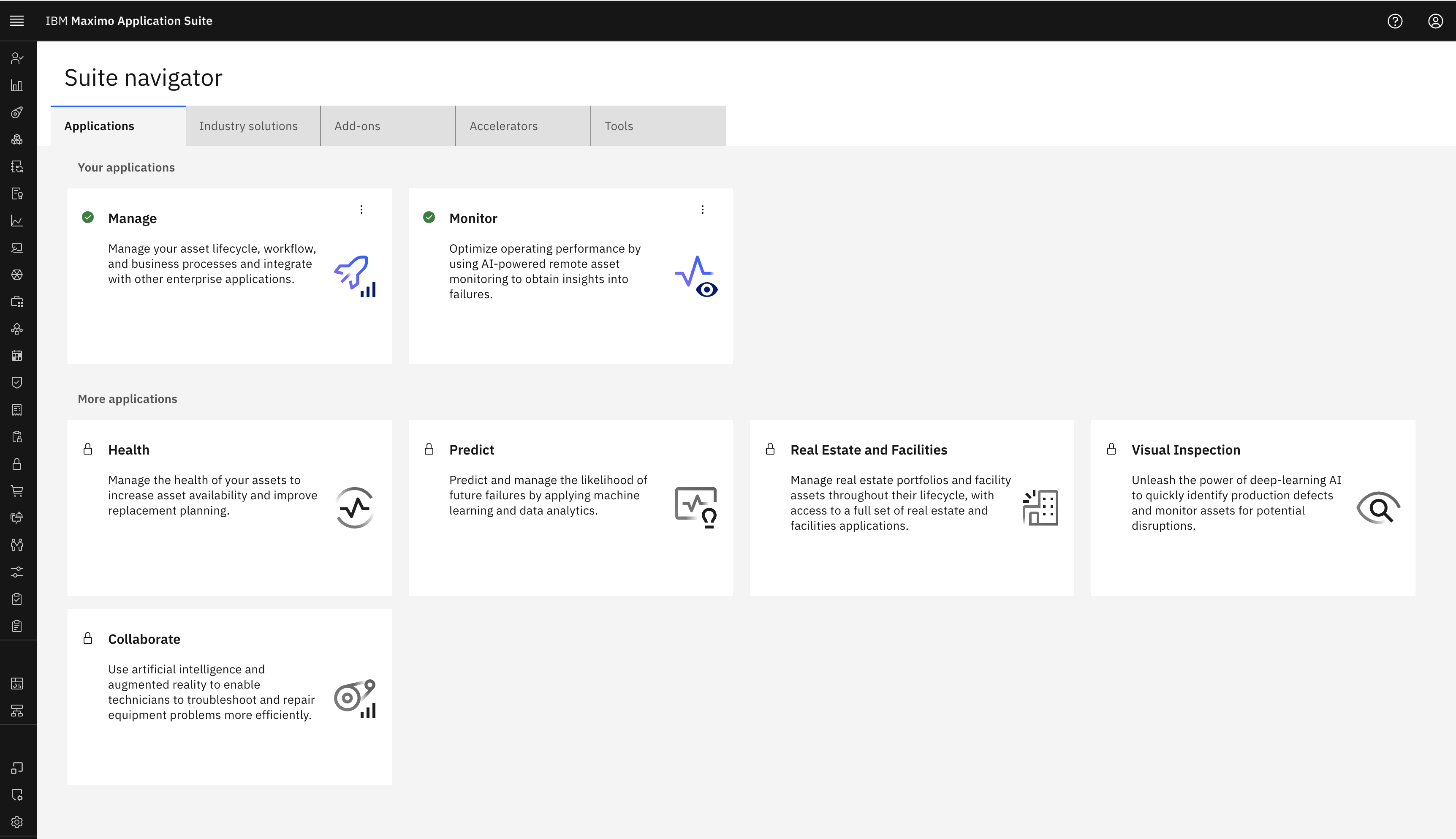

Login to MAS: MAS Monitor

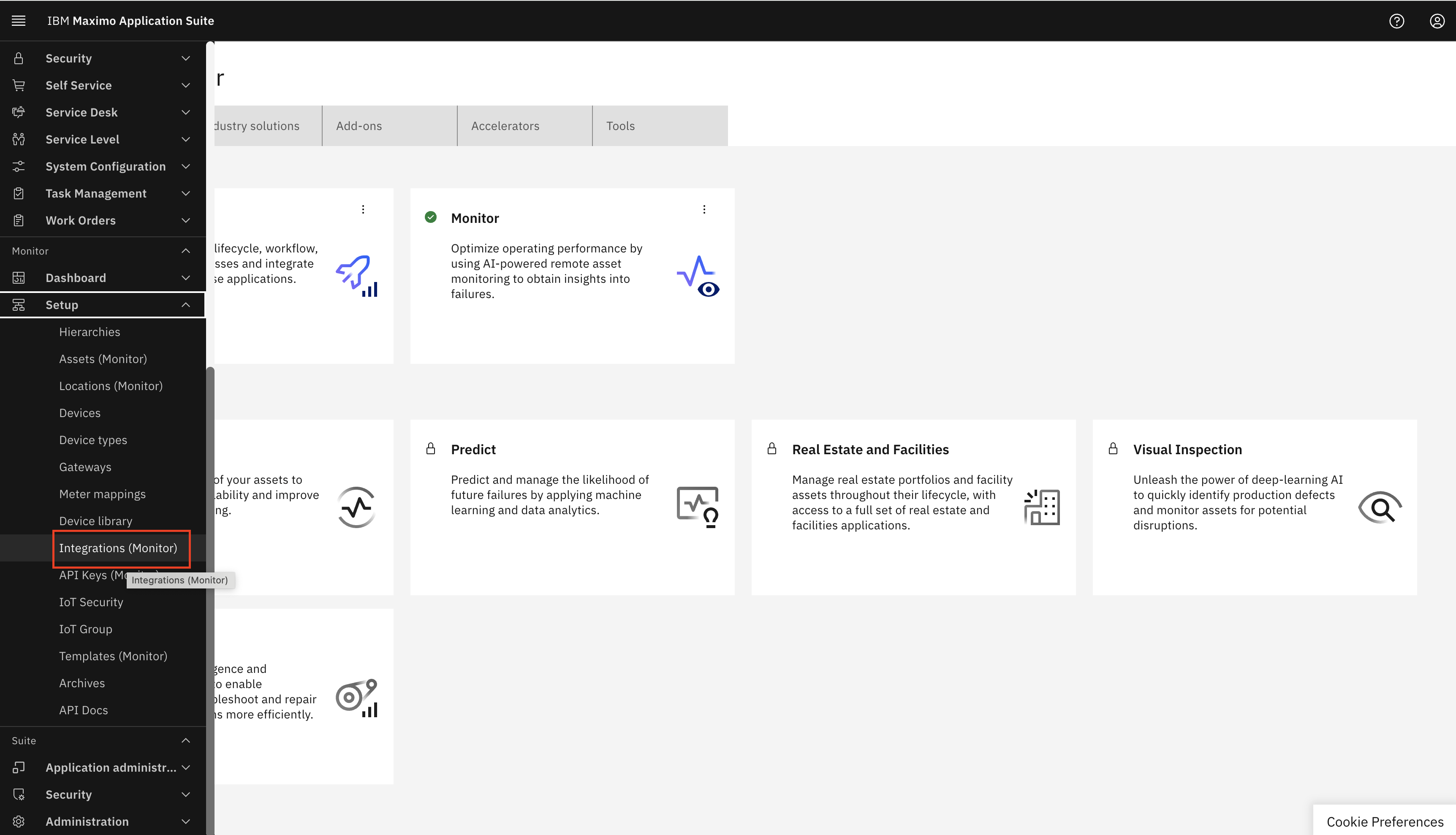

Expand Setup under the Monitor setup section in the left menu and select Integration: Create Integration

New in MAS 9.1

Monitor no longer have a main home page. All interaction with Monitor is initiated from the Monitor section in the left menu

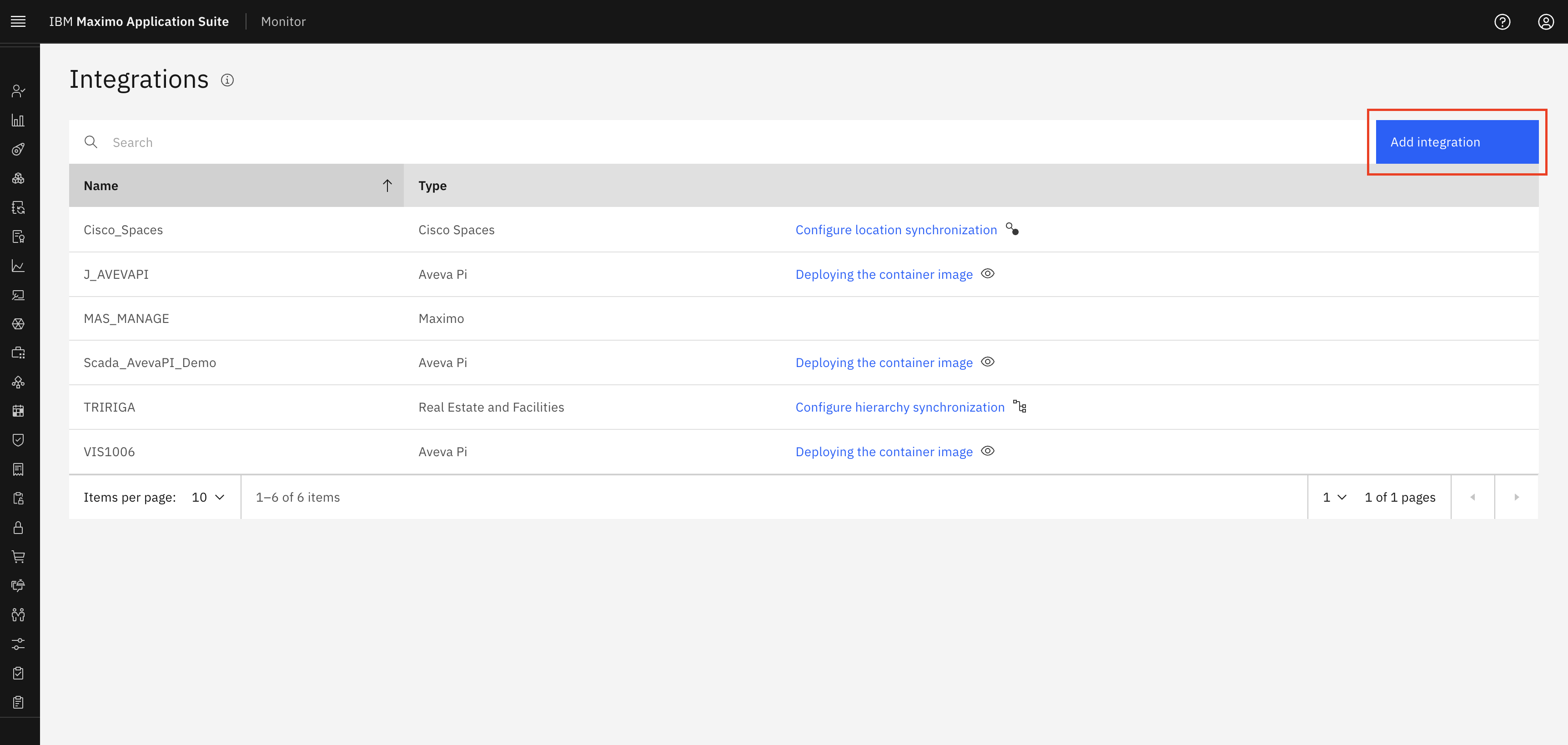

Select Add Integration:
Create Integration

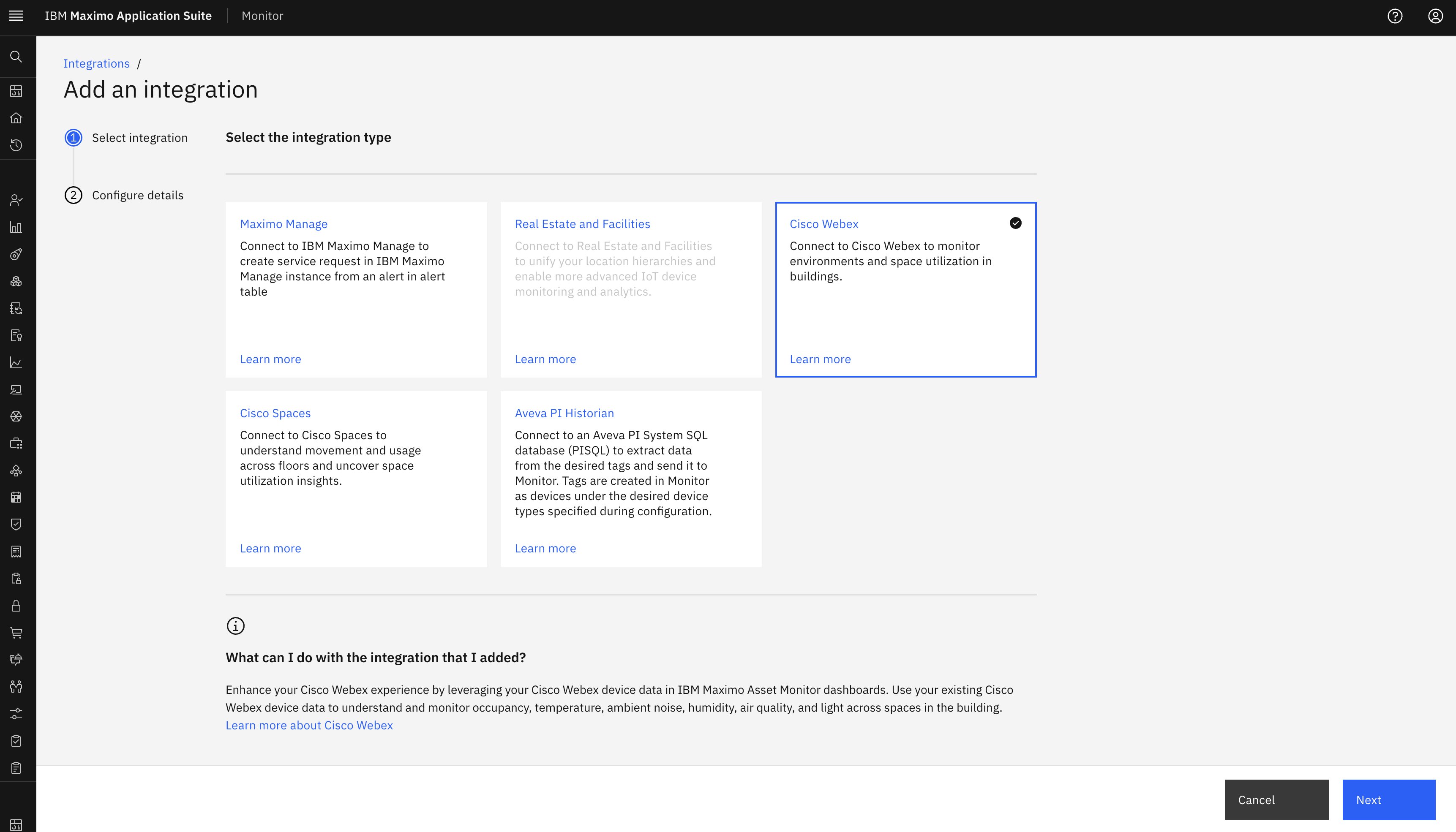

Select Cisco Webex and click Next:
Select Cisco Webex

Define the Integration name Integration name, JWT Token Activation key, Device client ID Device client ID and Device client secret Device client secret:
Select Cisco Webex

Tip

Activation key, Device client ID and Device client secret will be provided by Cisco Webex hub

Click Finish:
Create Integration

You will now see your new Cisco Webex integration.

Note

We will not be able to edit the Integration Name as with that name we have already created a Webex Device Type in Monitor

Congratulations you have successfully created the Cisco Webex integration in Monitor.
