TLS With Client Certificate or Token

Prerequisites

Before starting this exercise, ensure you have:

  • Access to Maximo Monitor

Configure Connection Security Level

  1. Open Maximo Application Suite and select Monitor Application
  2. Navigate to Setup > IoT Security Navigate to API Keys

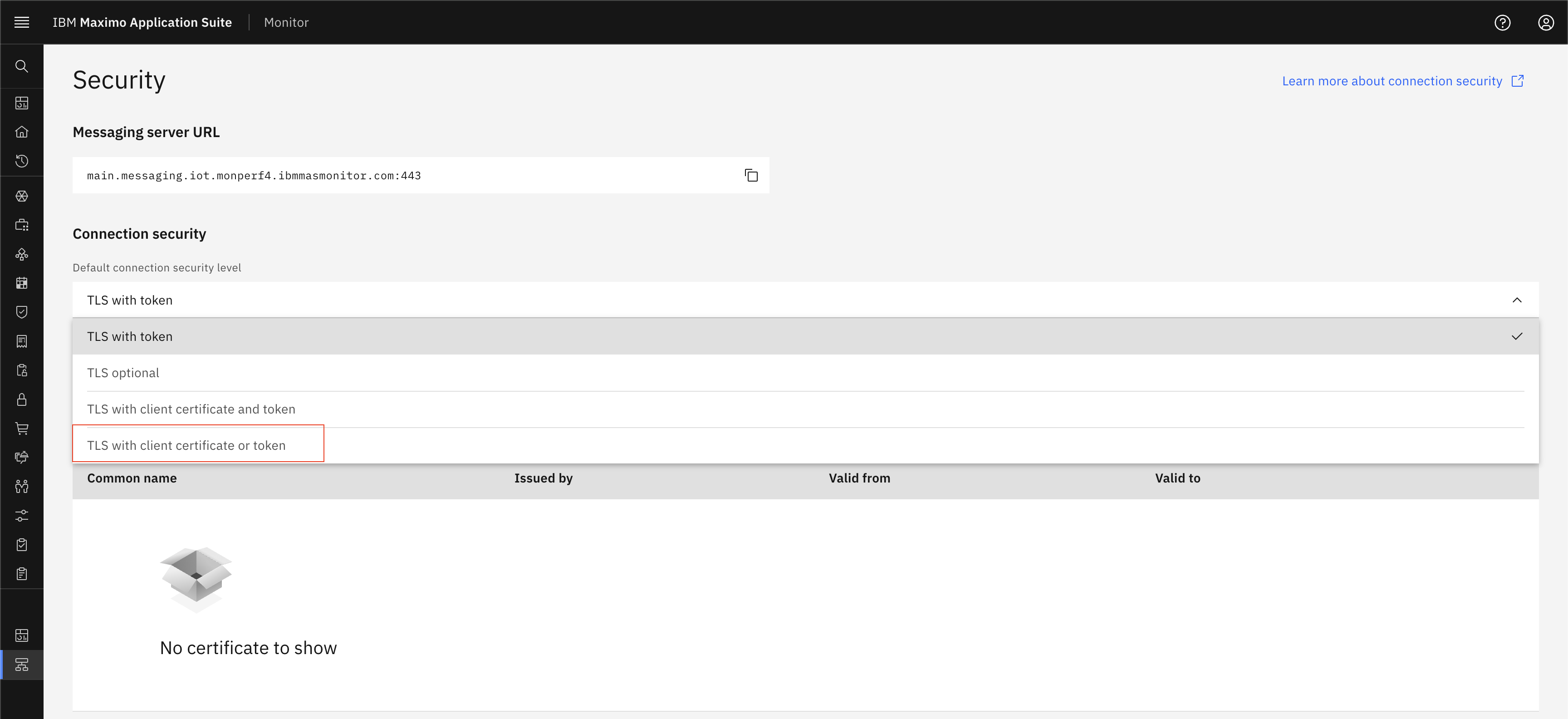

  3. Select TLS with Client Certificate or Token as the authentication method from dropdown Navigate to API Keys

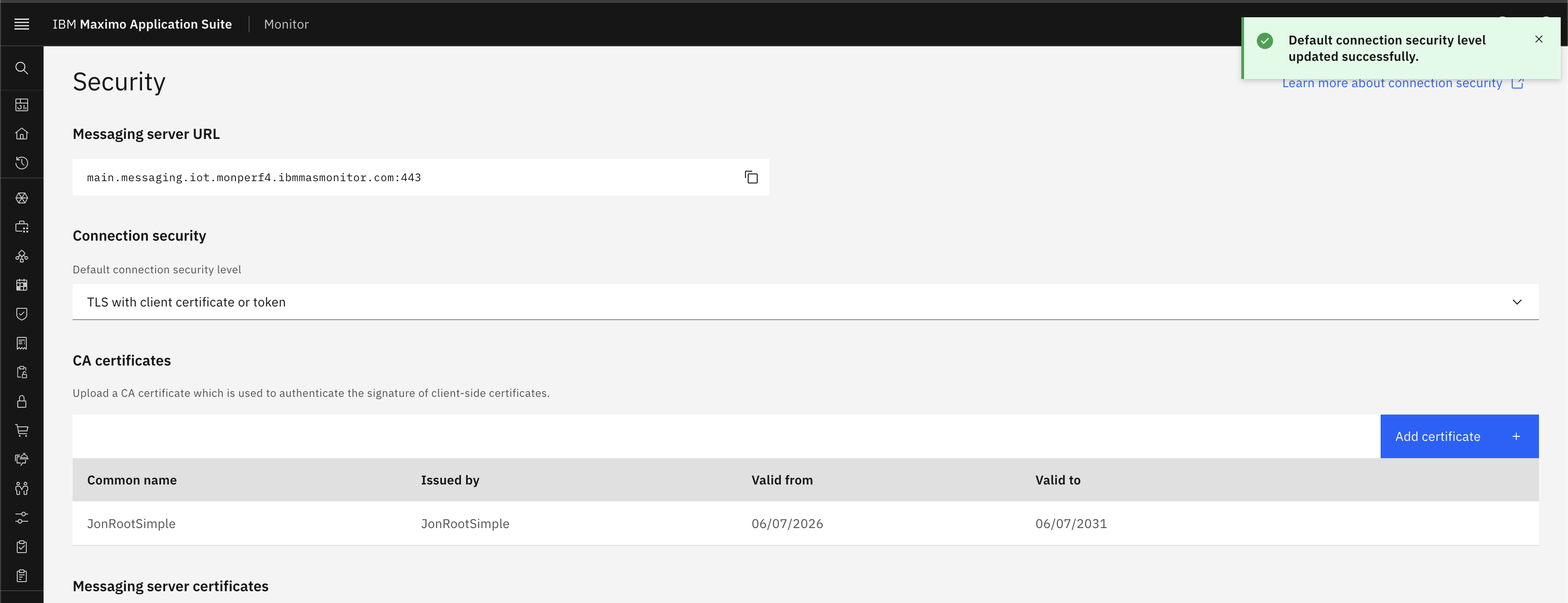

  4. Save the configuration Navigate to API Keys
  5. If you are doing authentication using Certificate then Add Certificate Authority (CA) certificate if using certificates

  6. Generate CA and client certificate and keys. 6.1. mkdir -p ~/work/mas/ca/simple 6.2. cd ~/work/mas/ca/simple 6.3. openssl genrsa -out ca.key 4096 6.4. openssl req -new -x509 -sha256 -days 1826 -key ca.key -out ca.crt -subj "/C=UK/ST=Hampshire/L=Winchester/O=JonTmp/CN=JonRootSimple" 6.5. openssl genrsa -out jonkafkatest1.key 4096 6.6. openssl req -new -key jonkafkatest1.key -out jonkafkatest1.csr -sha256 -subj "/C=UK/ST=Hampshire/L=Winchester/O=JonTmp/CN=d:<deviceType>:<deviceId>" 6.7. openssl x509 -req -in jonkafkatest1.csr -CA ca.crt -CAkey ca.key -out jonkafkatest1.crt -days 825 -sha256

  7. Add CA Certificate to the system Navigate to API Keys

  8. Provide details for CA Certificate and also you can view certificate details. Navigate to API Keys
  9. Click on Save button.
  10. Now you can create a DeviceType (Steps to create DeviceType) and devices (Steps to create Device).
  11. New device has username and password(token) is generated. Keep those username and password for future use.
  12. Or you can generate certificates for device and devicetype and add CA certificate in the system and keep client certificate and key for further device authentication.
  13. Add metric and event on device type (Steps to add metric).
  14. Now you can use Swagger UI (Selecy API Docs Menu and select HTTP Messaging API click on View APIs) or any messaging tool like MQTTX to test device authentication using username and password.
  15. User needs to provide either username and password or certificate and key for device authentication.
  16. Provide parameters and topic for device and send data.

  17. Once you send data, Verify data should be shown in device recent event and data table.

    Device Recent Navigate to API Keys

    Device Data Table Navigate to API Keys

Best Practices

Recommendations

  • Prioritize certificates for new device deployments
  • Document which devices use which authentication method

Related Topics: - TLS With Token - TLS With Client Certificate and Token
