Welcome to the Maximo Monitor 9.1
Managed Gateway Modbus Lab

Info

This Maximo Monitor lab demonstrates the use of a standard device from the Device library.

In this lab you will learn how to setup a Managed Gateway within Maximo Monitor 9.1 and adding a couple of OT devices from the Device Library.

You will learn the steps needed to successfully setup a Managed Gateway using some virtual simulated Variable Frequency Drives (VFD) that will deliver the device data over Modbus/TCP via the Managed Gateway into Maximo Monitor using the pre-configured connector for Lenze i550 VFD from the Device Connector Library.

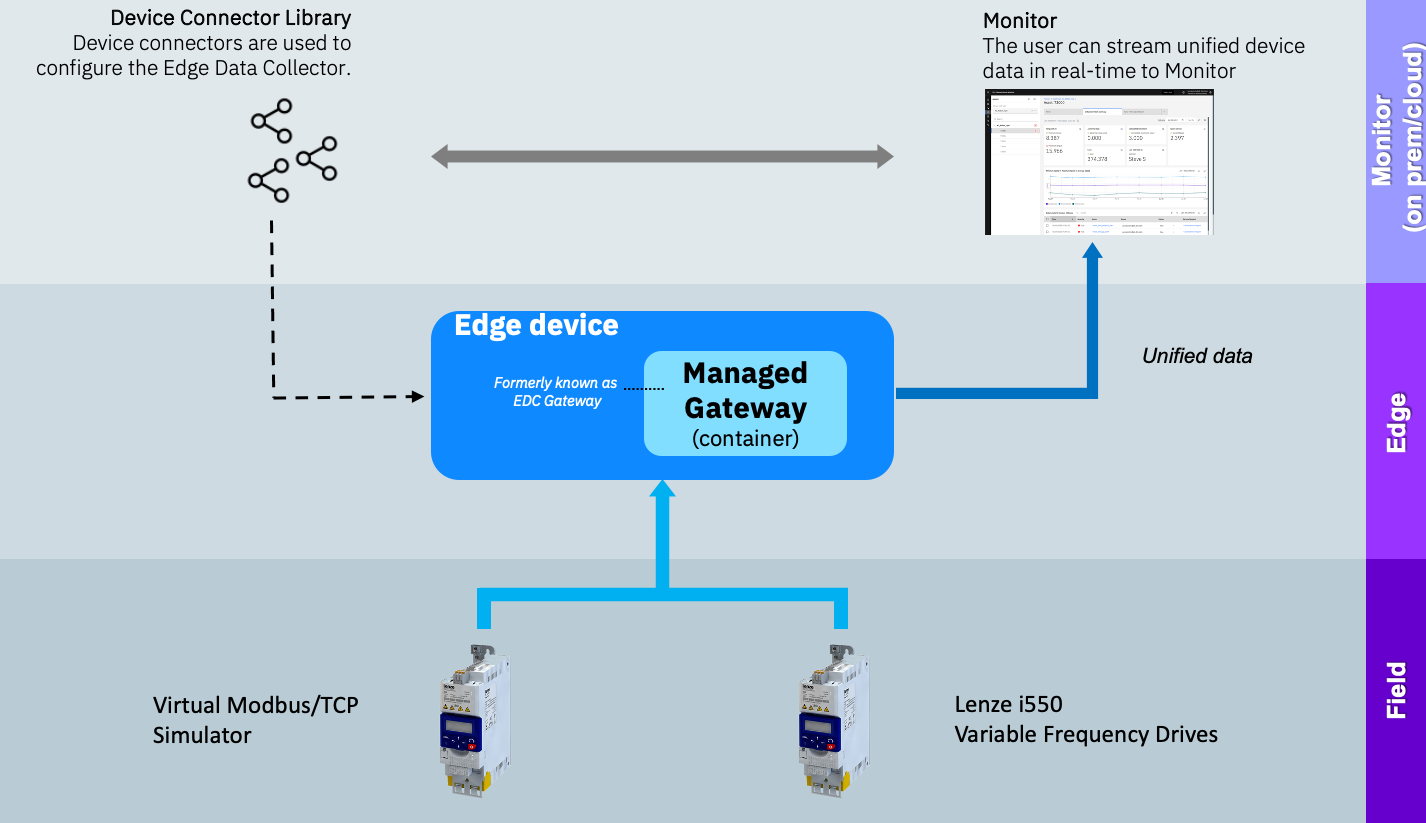

Architecture

The exercises will cover:

  • Setting up the simulator environment
  • Create a Managed Gateway
  • Add devices to the Manage Gateway
  • Verify data flow from Modbus/TCP Variable Frequency Drives all the way into Maximo Monitor
  • Have fun

Note

Expected time needed to run the complete lab: 1 hour

Updated: 2025-06-12
