Objectives

In this Exercise you will learn how to create the Managed Gateway in Monitor.

Before you begin:
This Exercise requires that you have:

  1. completed the pre-requisites required for all labs
  2. completed the previous exercises

Login to MAS: MAS Monitor

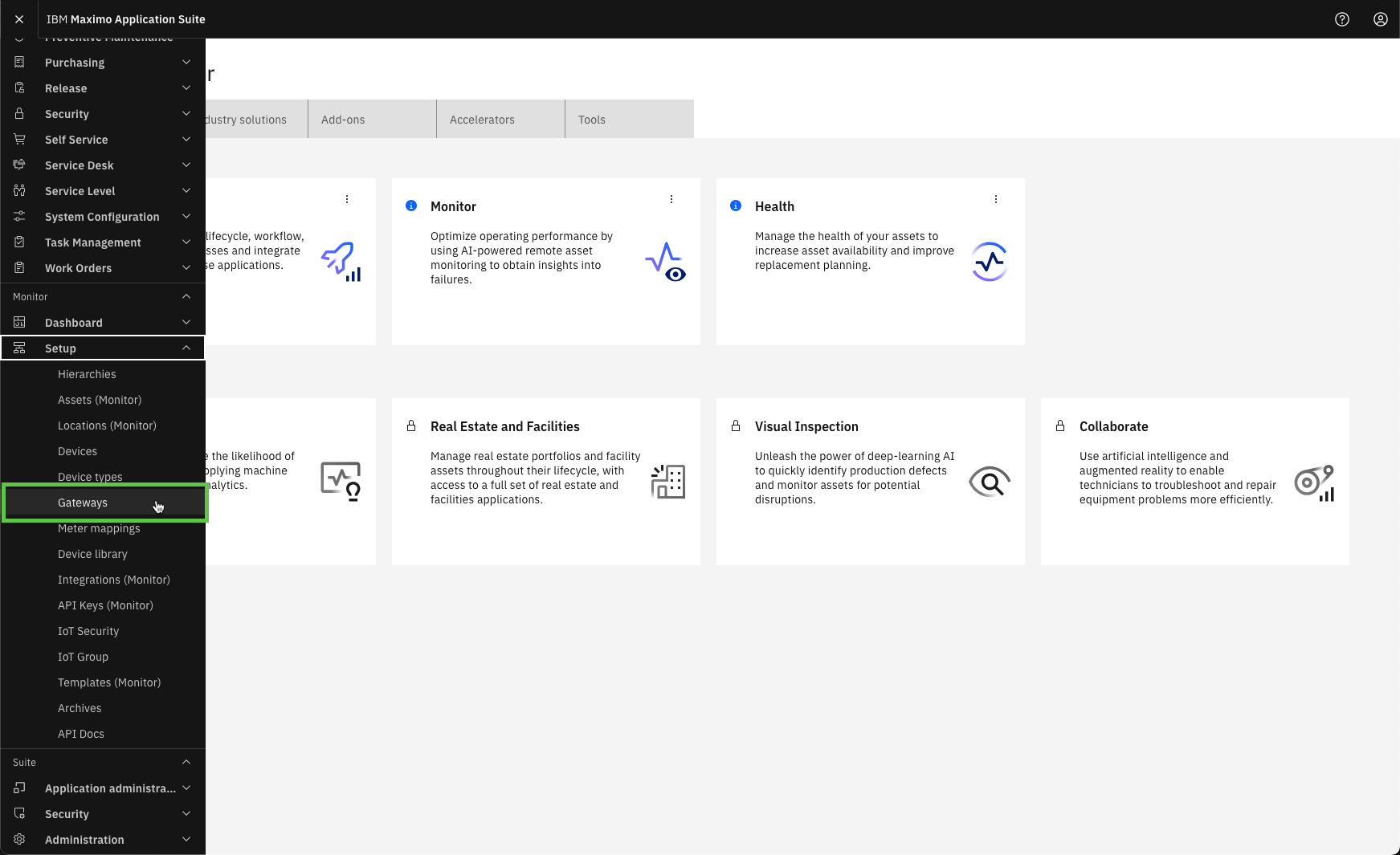

Expand Setup under the Monitor section in the left menu and select Gateways: Create Gateway

New in MAS 9.1

Monitor no longer have a main home page. All interaction with Monitor is initiated from the Monitor section in the left menu

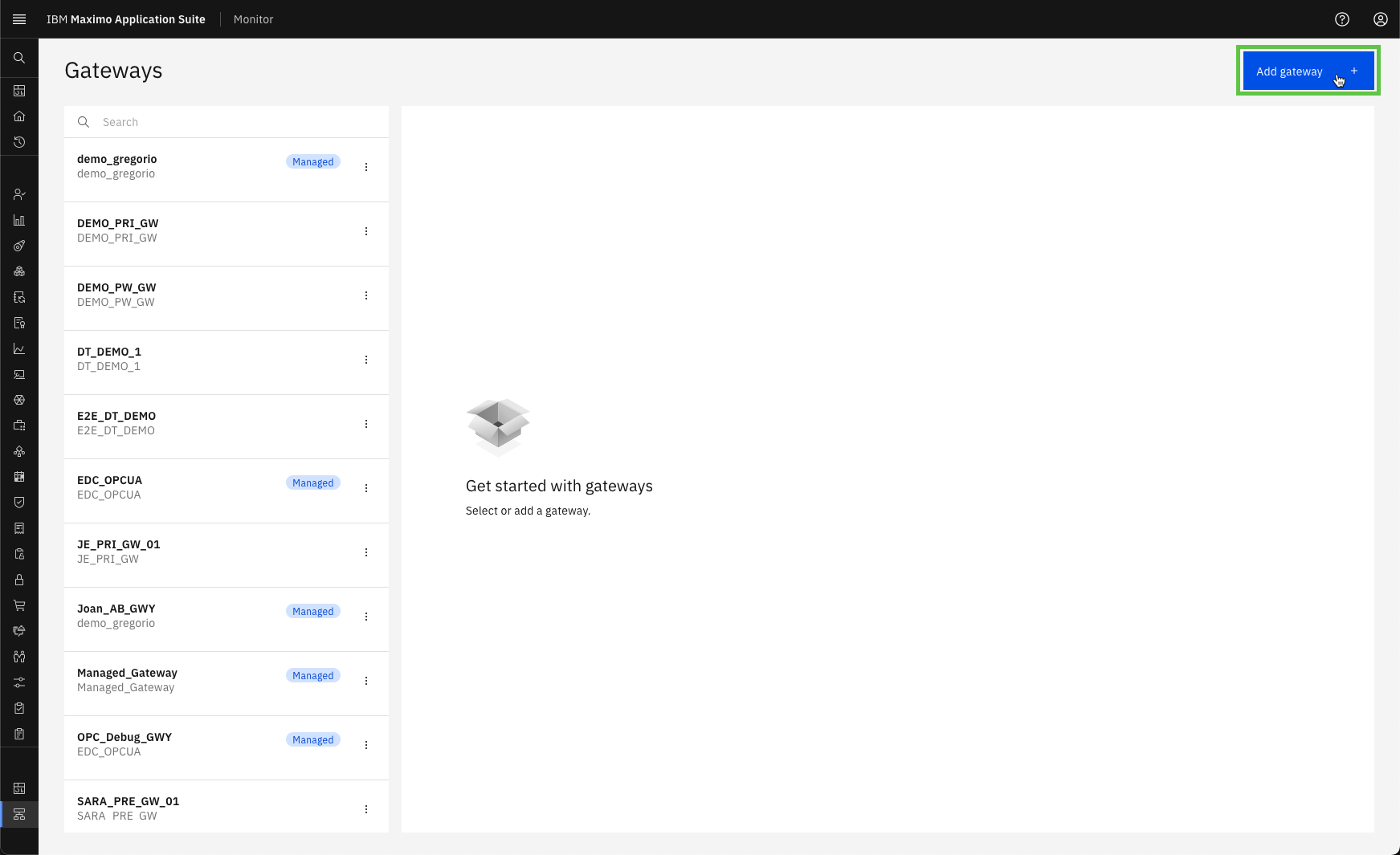

Select Add gateway: Create Gateway

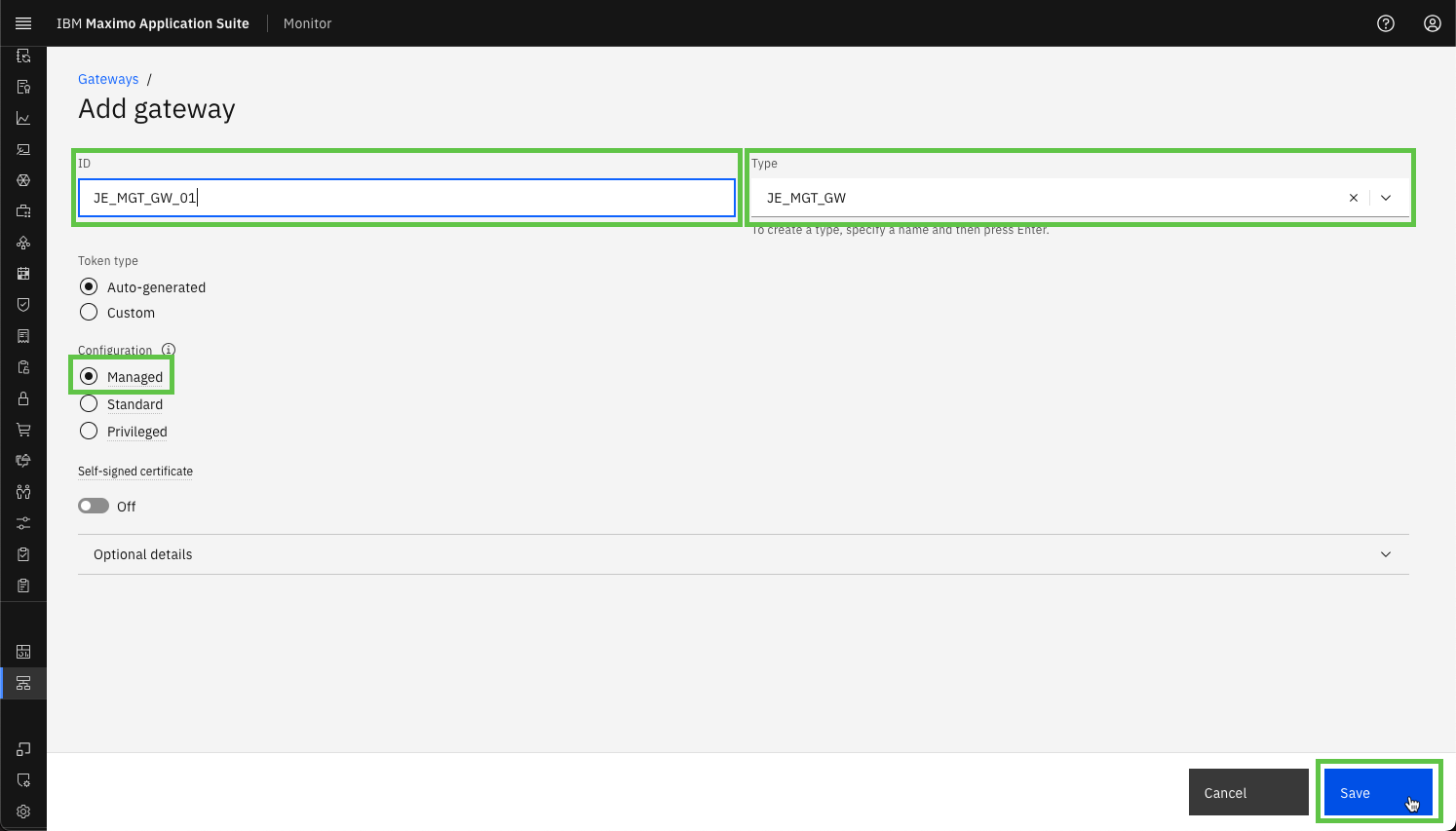

Define the gateway ID XX_MGT_GW_01 and the gateway Type XX_MGT_GW.

Tip

XX in the gateway ID and Type should be your initials in case other people are following this lab in the same Maximo Application Suite environment.

Make sure the gateway Configuration is Managed and click Save: Create Gateway

You will now see your new Managed Gateway, including a Managed tag in both the list of Gateways as well as in the gateway definition: Create Gateway

Note

Credentials are automatically "baked into" the docker image for the Managed Gateway.
This means that the credentials will not be presented to you, as with the other gateway configuration types.

Congratulations you have successfully created the Managed Gateway in Monitor.
