Objectives

In this Exercise you will learn how to:

  • setup meter/metric mappings

Before you begin:

This Exercise requires that you have:

  1. completed the pre-requisites required for all labs

Setup meter/metric mappings for Assets

  1. Log in to MAS and navigate to the Assets page ( Monitor → Setup → Assets (Monitor) ) in the Monitor UI. Navigate asset

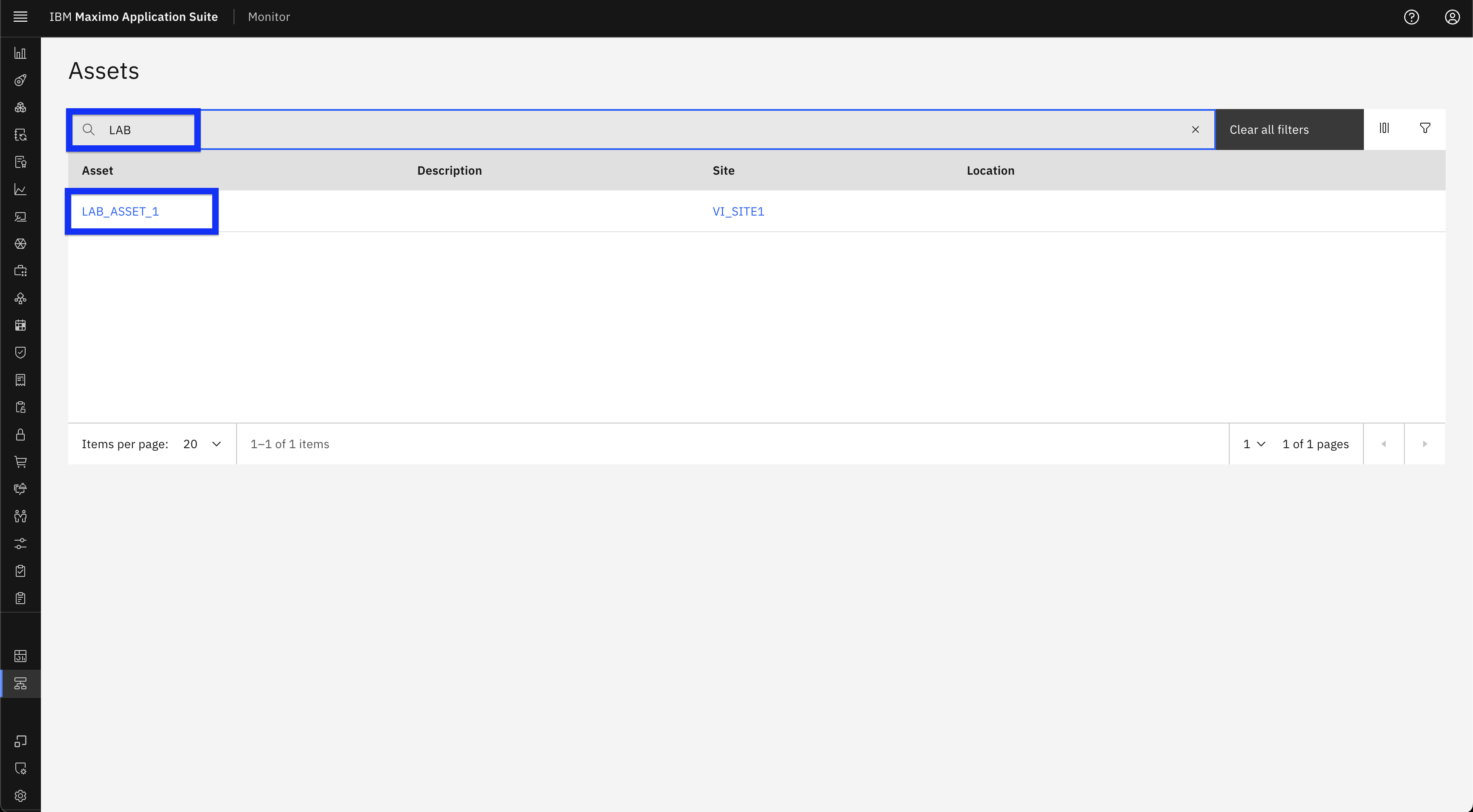

  2. Search for the Asset by name and click on it. Navigate asset

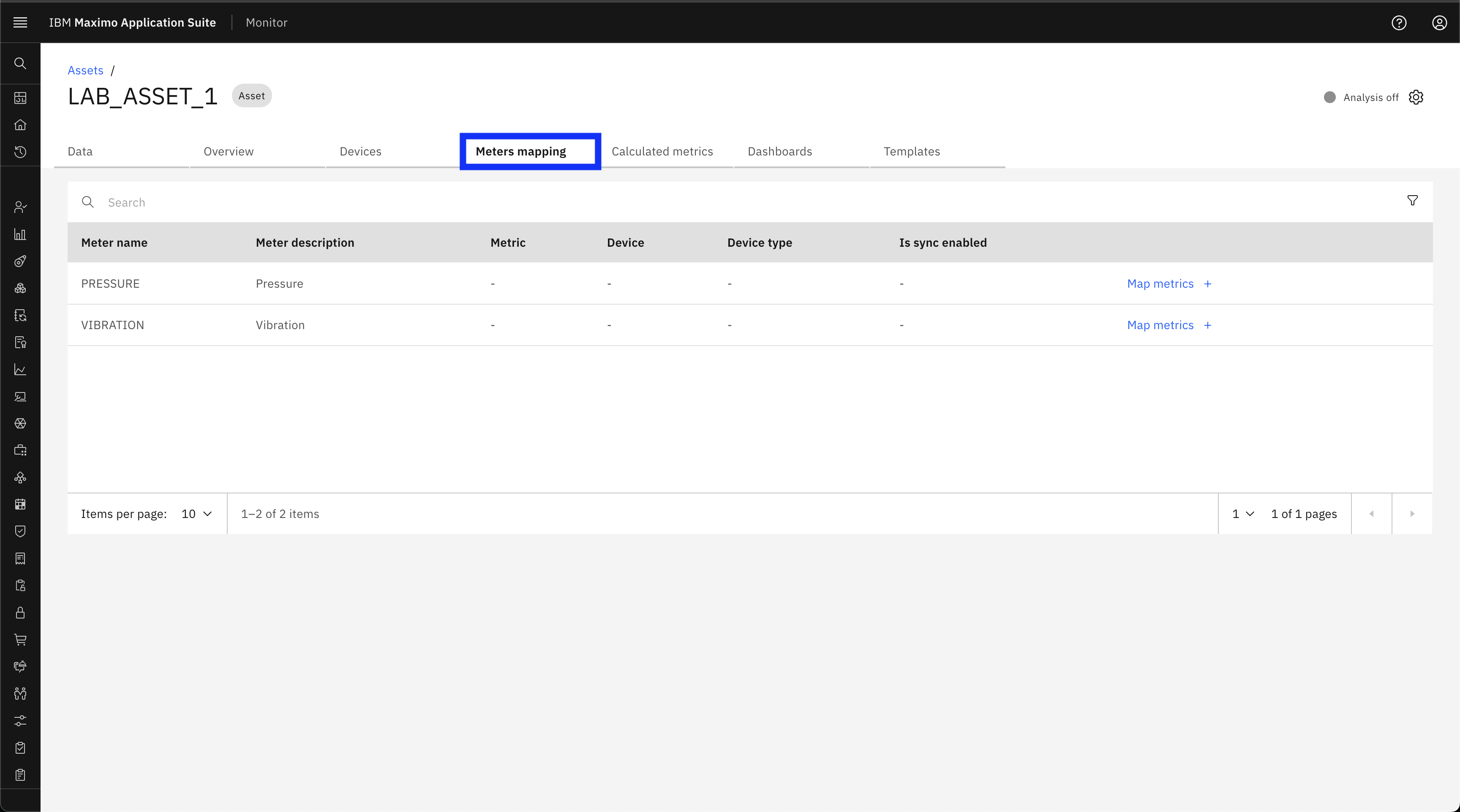

  3. Click on Meters mapping Tab to view list of Meters that link to Asset. Meters mapping tab

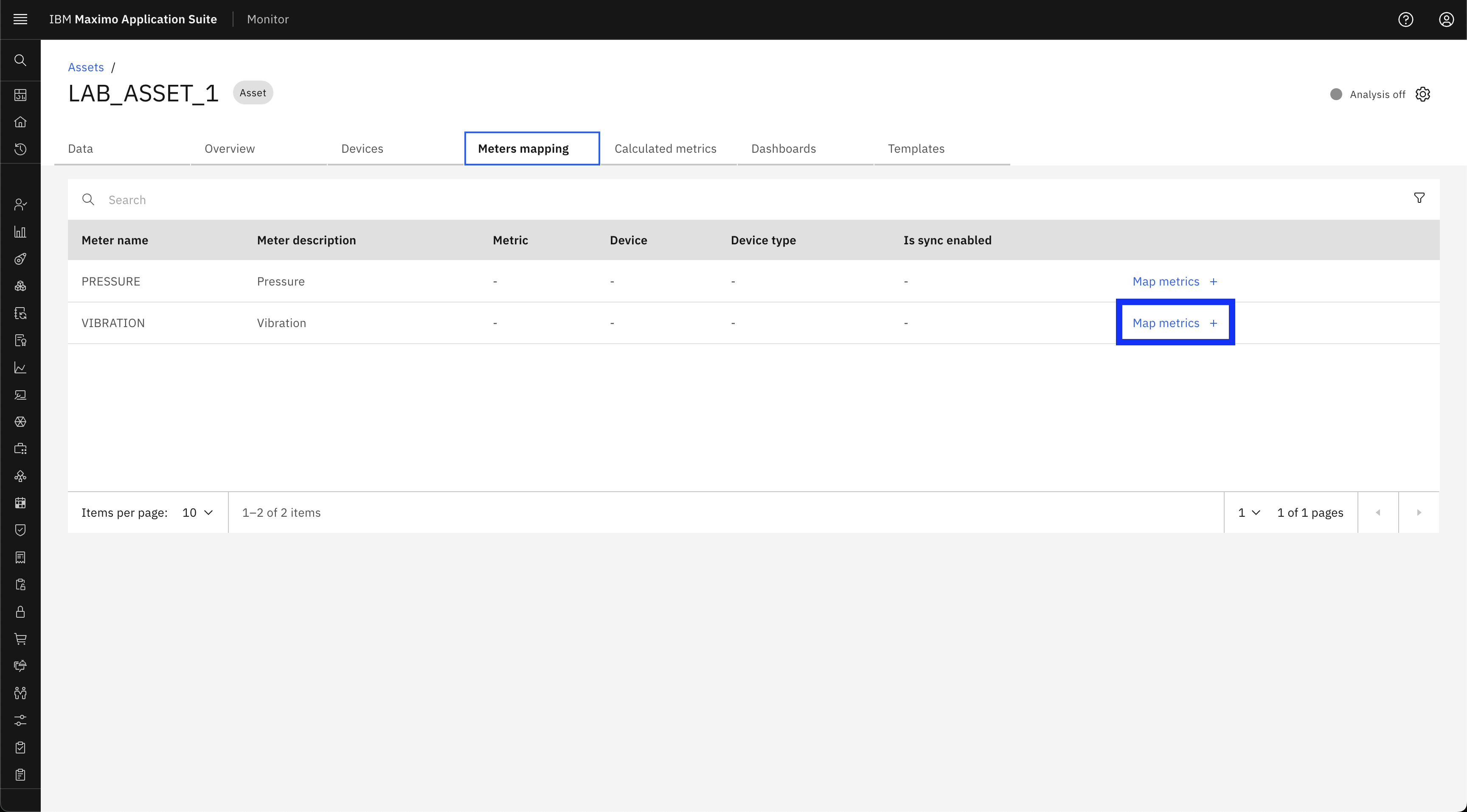

  4. Click on Map Metrics to open the Add Meter Mapping model window. Meters mapping tab

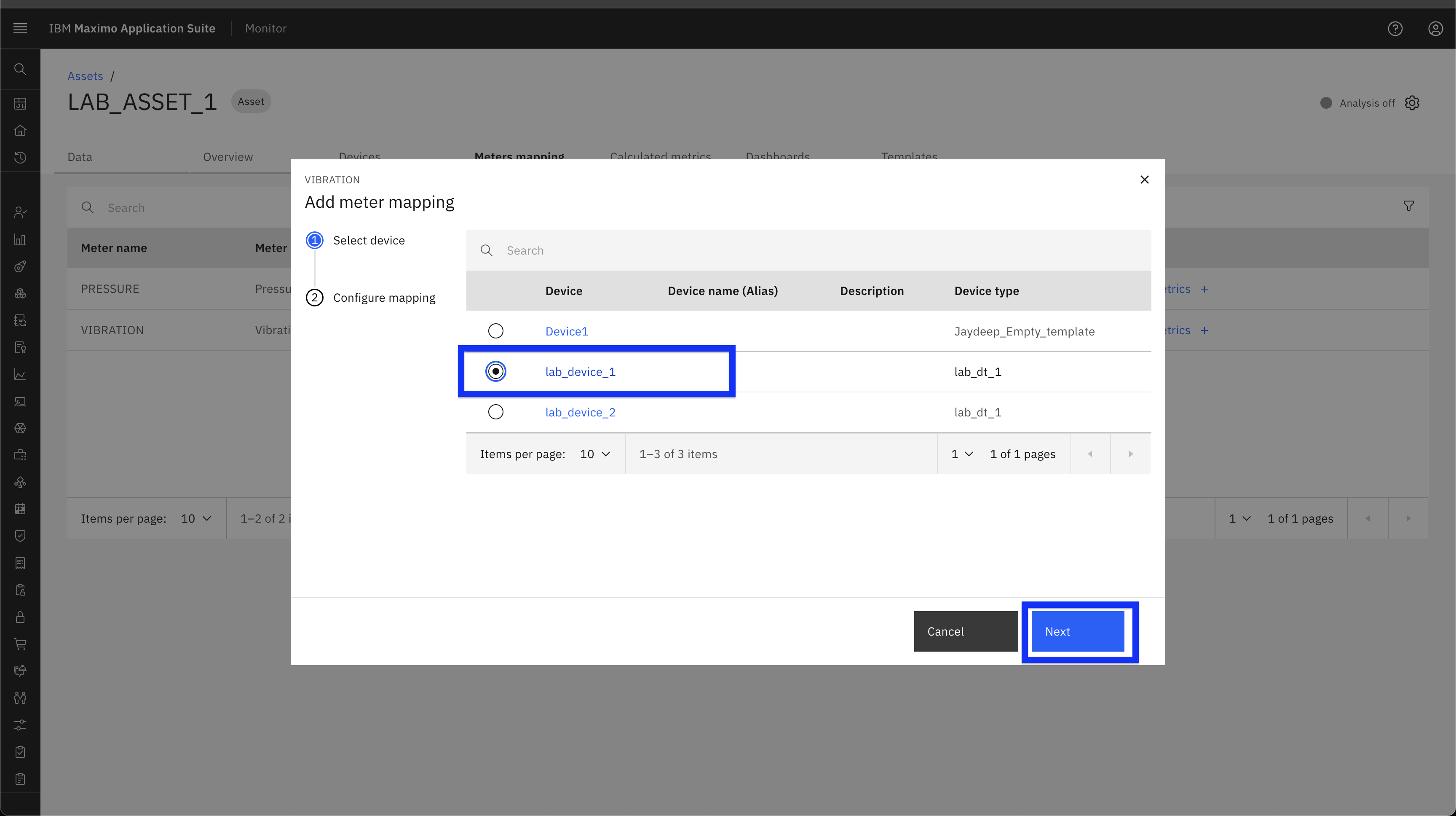

  5. Select a device that contains the desired metric, then click Next. Add meter mapping tab

  6. Choose a metric and set the initial date, then click Submit. Add meter mapping tab

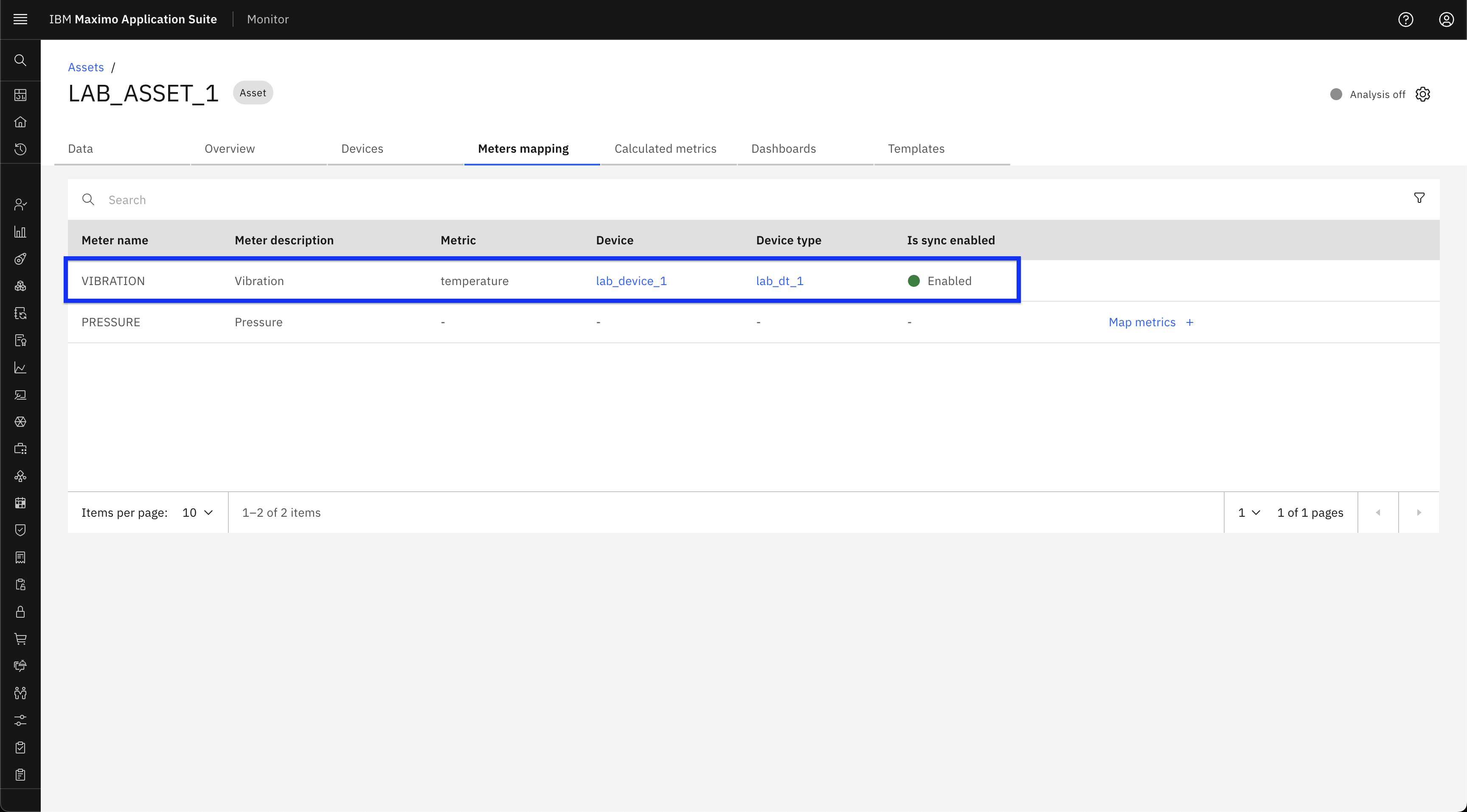

  7. Verify that the new mapping appears in the Mapping Table. meter mapping table

Setup meter/metric mappings for Location

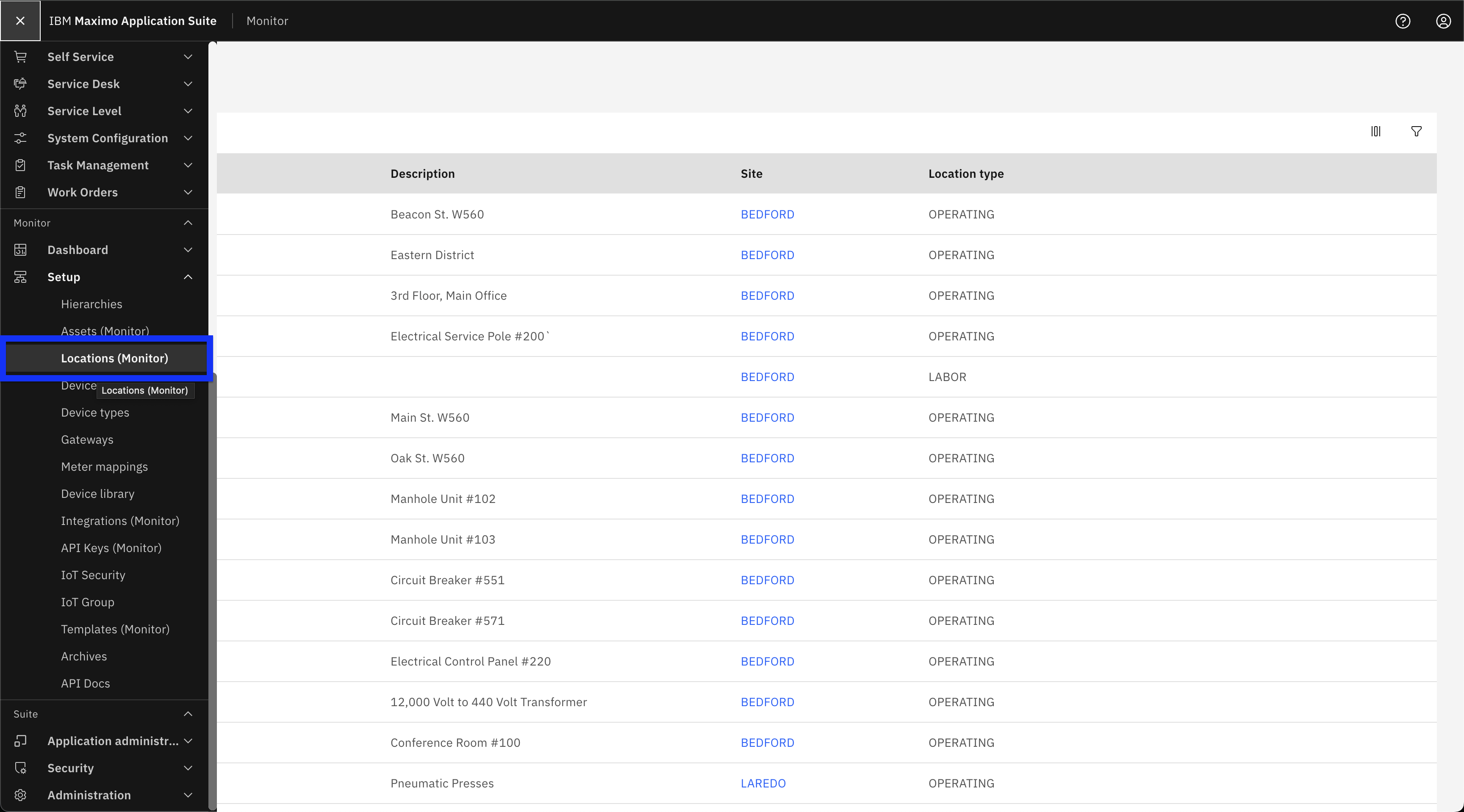

  1. Navigate to the Location page ( Monitor → Setup → Locations (Monitor) ) in Monitor UI. Navigate Location

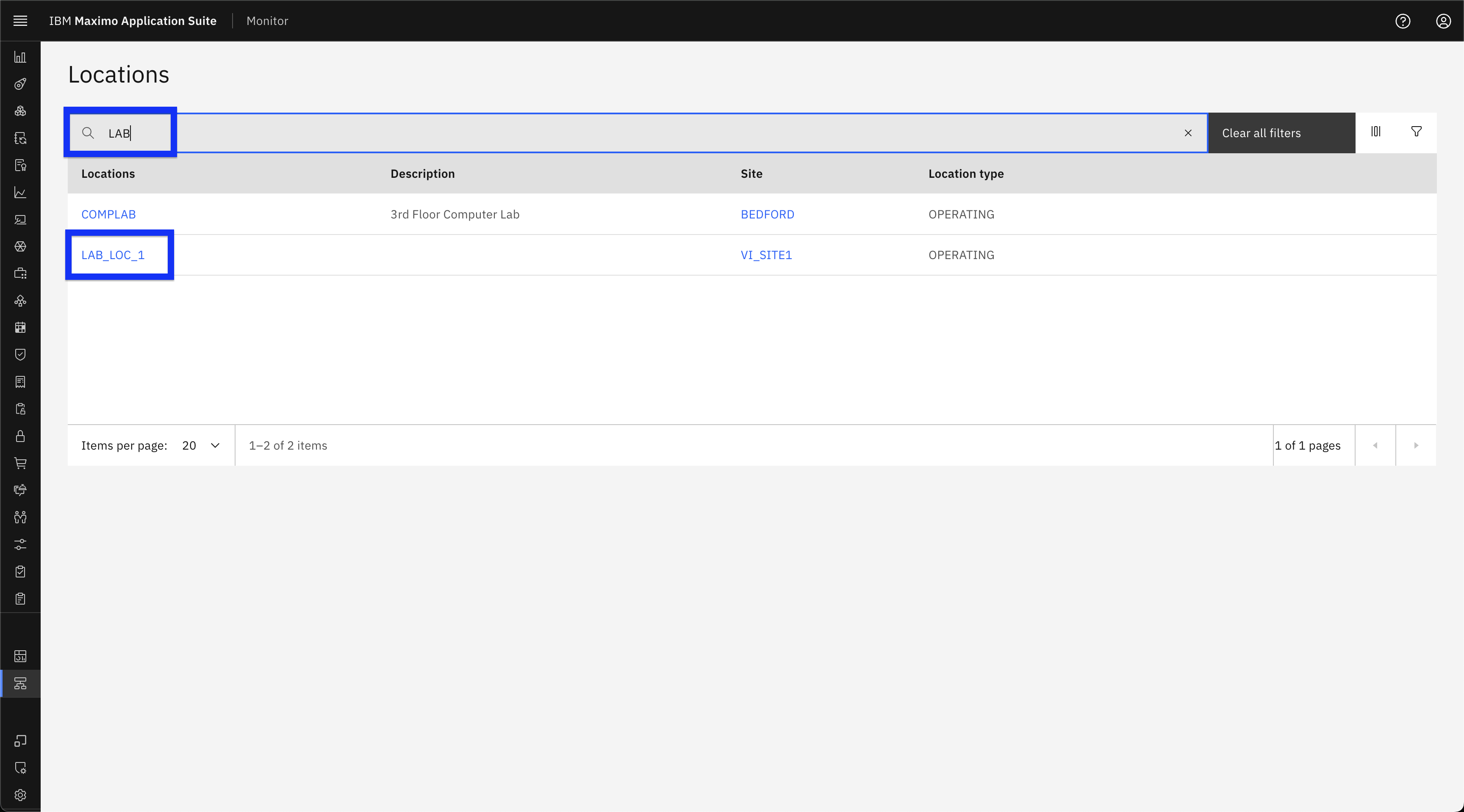

  2. Search for the Location by name and click on it. Navigate Location

  3. Refer to the Asset section above and continue from Step 3 to complete the process. Practice the process on your own.

Accessing Meter/Metrics Mappings

You can view all meter-to-metric associations in a centralized location. To access them, follow the steps below:

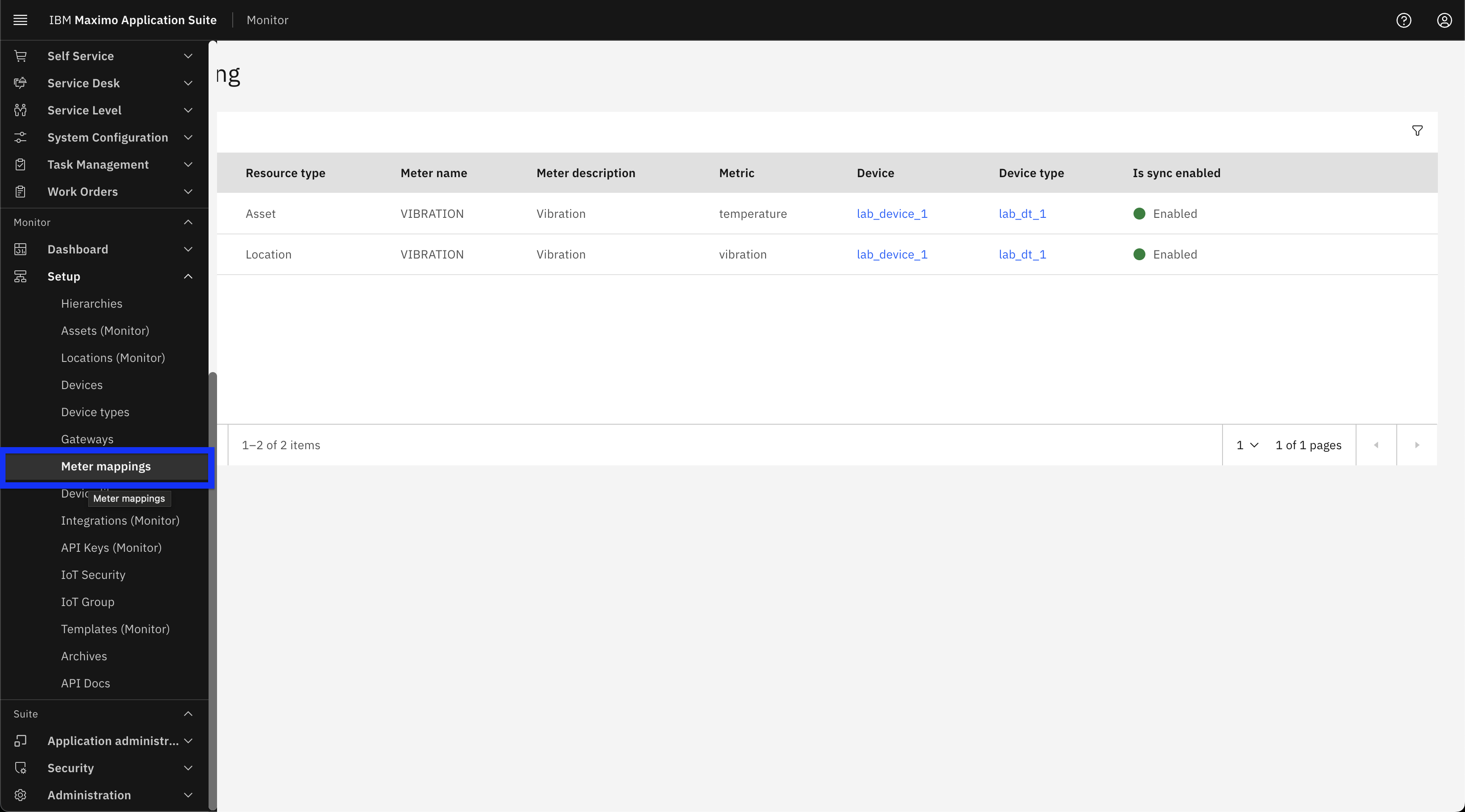

  1. Navigate to the Meter Mappings page from side menu bar ( Monitor → Setup → Meter Mappings ) view meter mapping

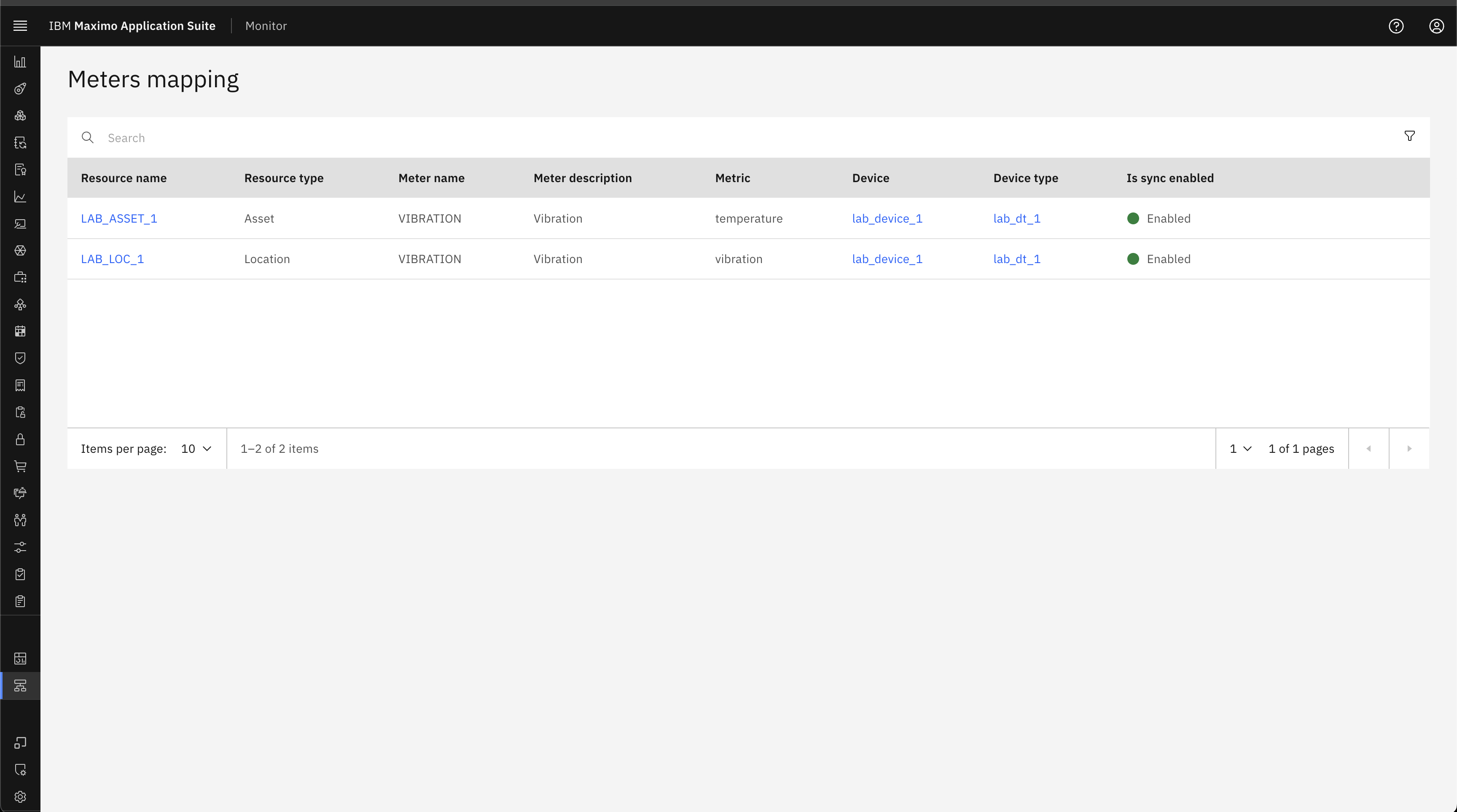

  2. Verify that you can view all Asset and Location meters that are mapped to metrics. view meter mapping

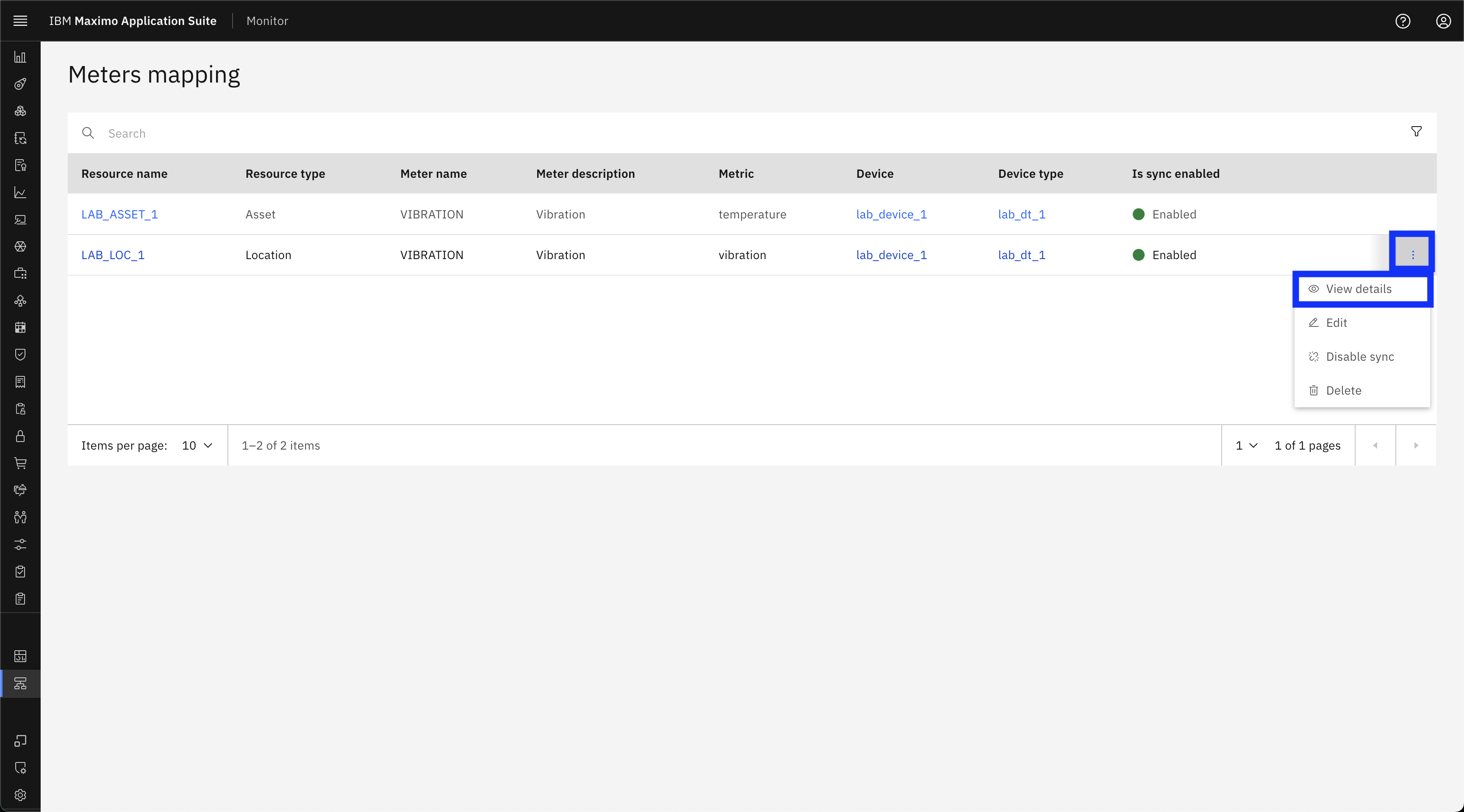

  3. Click the three-dot menu next to the meter mapping and select View Details. view meter mapping

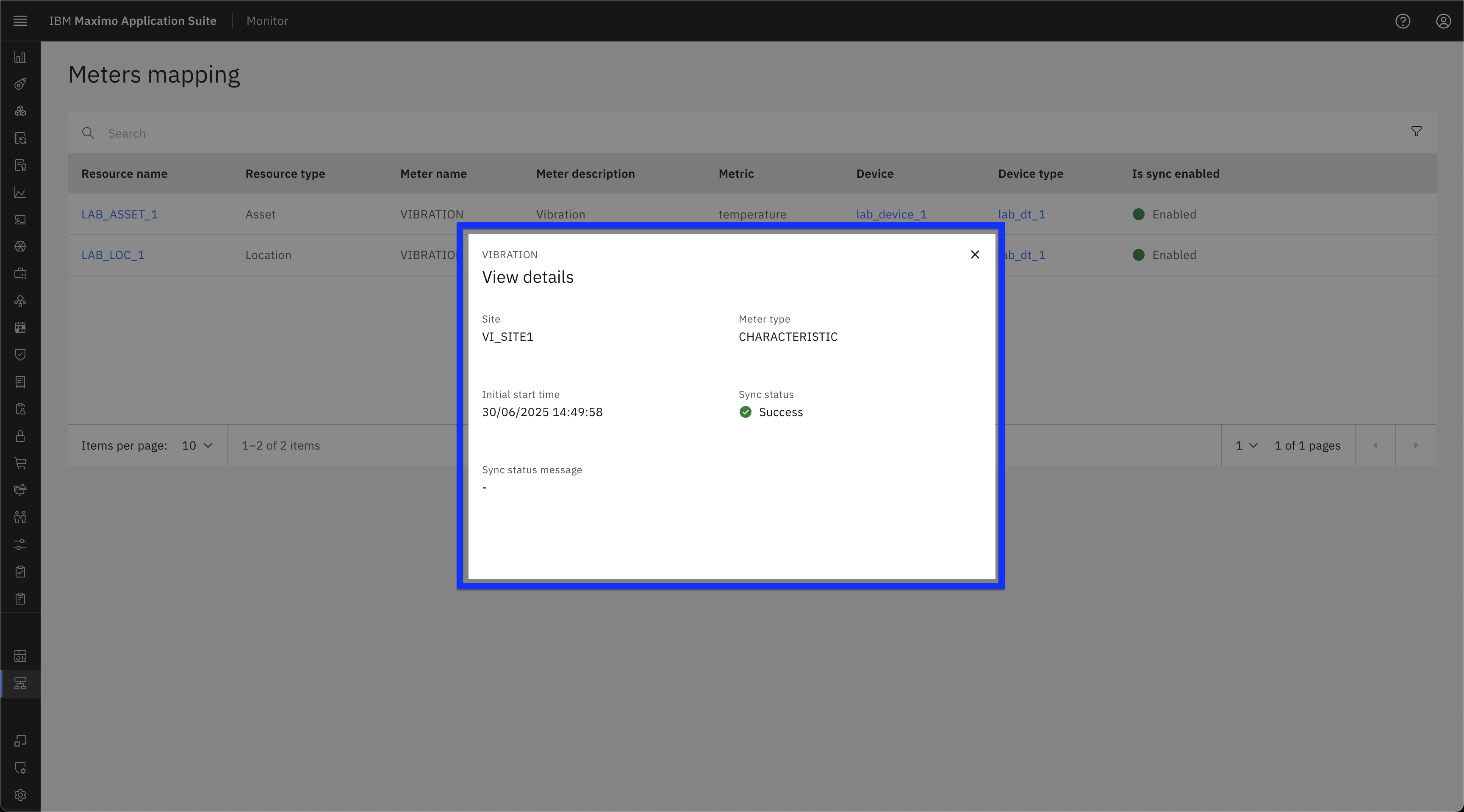

  4. The Meter Mapping Details panel will open, showing the configuration. view meter mapping

🎉 Congratulations! You have successfully setup meter/metric mappings.
