Objectives

In this Exercise you will learn how to:

  • Toggle sync enable/disable for Meter/Metrics Mappings

Before you begin:

This Exercise requires that you have:

  1. completed the pre-requisites required for all labs
  2. completed the previous exercises

Disable Sync

  1. Navigate to the Meter Mappings page in the MAS Monitor UI. refer to previous exercise.

  2. Click the three-dot menu next to the meter mapping you want to modify.

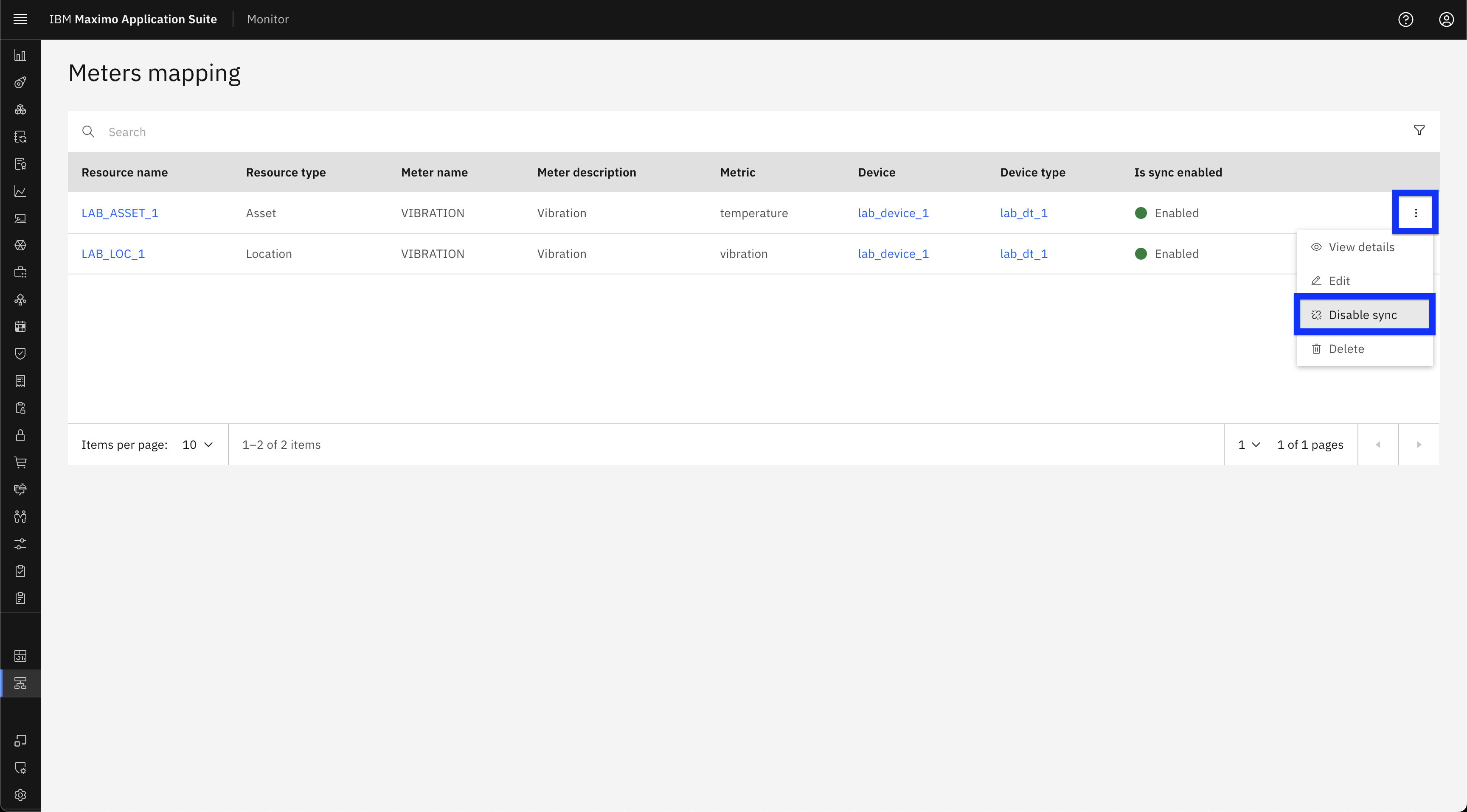

  3. From the dropdown, select Disable Sync. Toggle sync

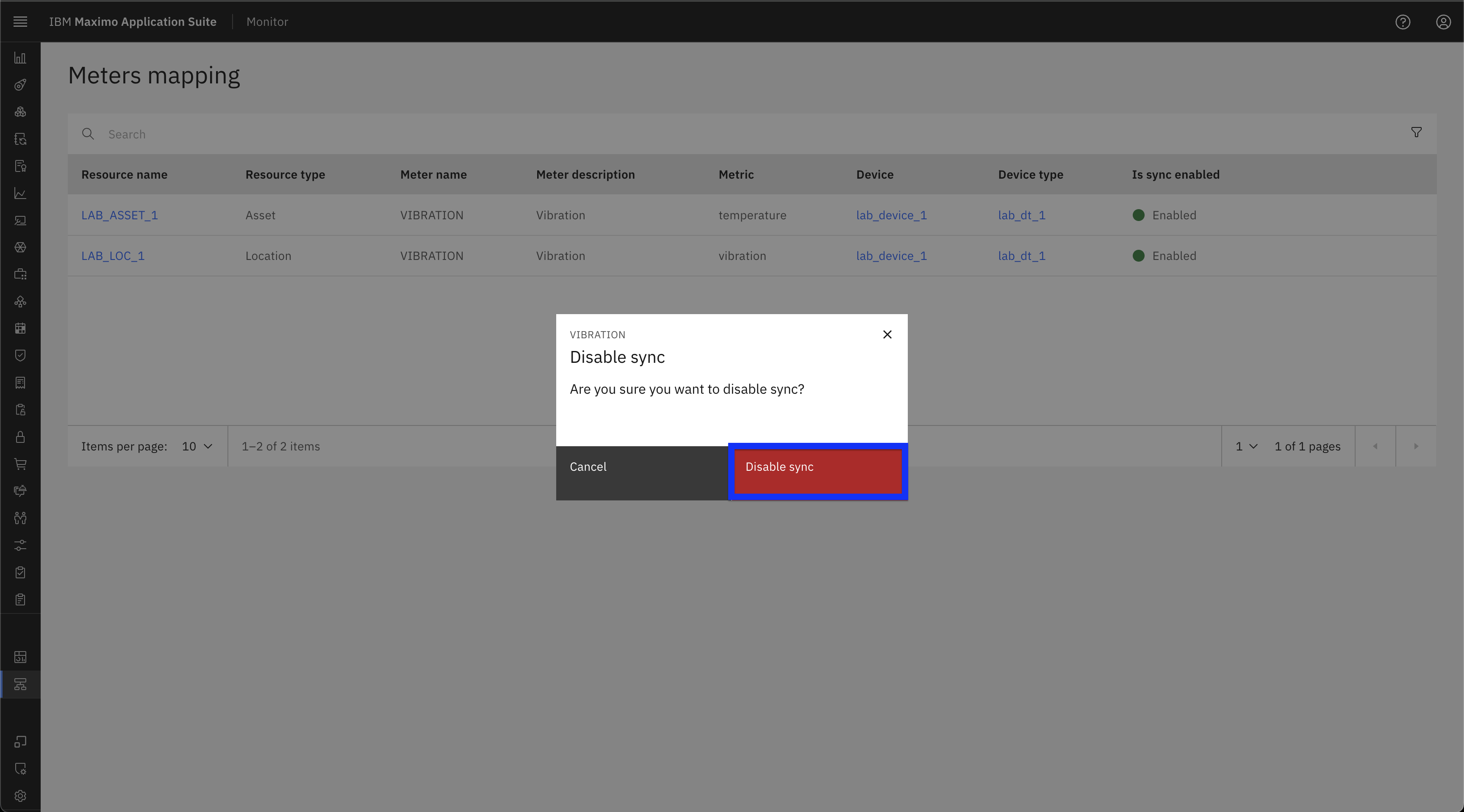

  4. Confirm the action by clicking Disable sync. Toggle sync

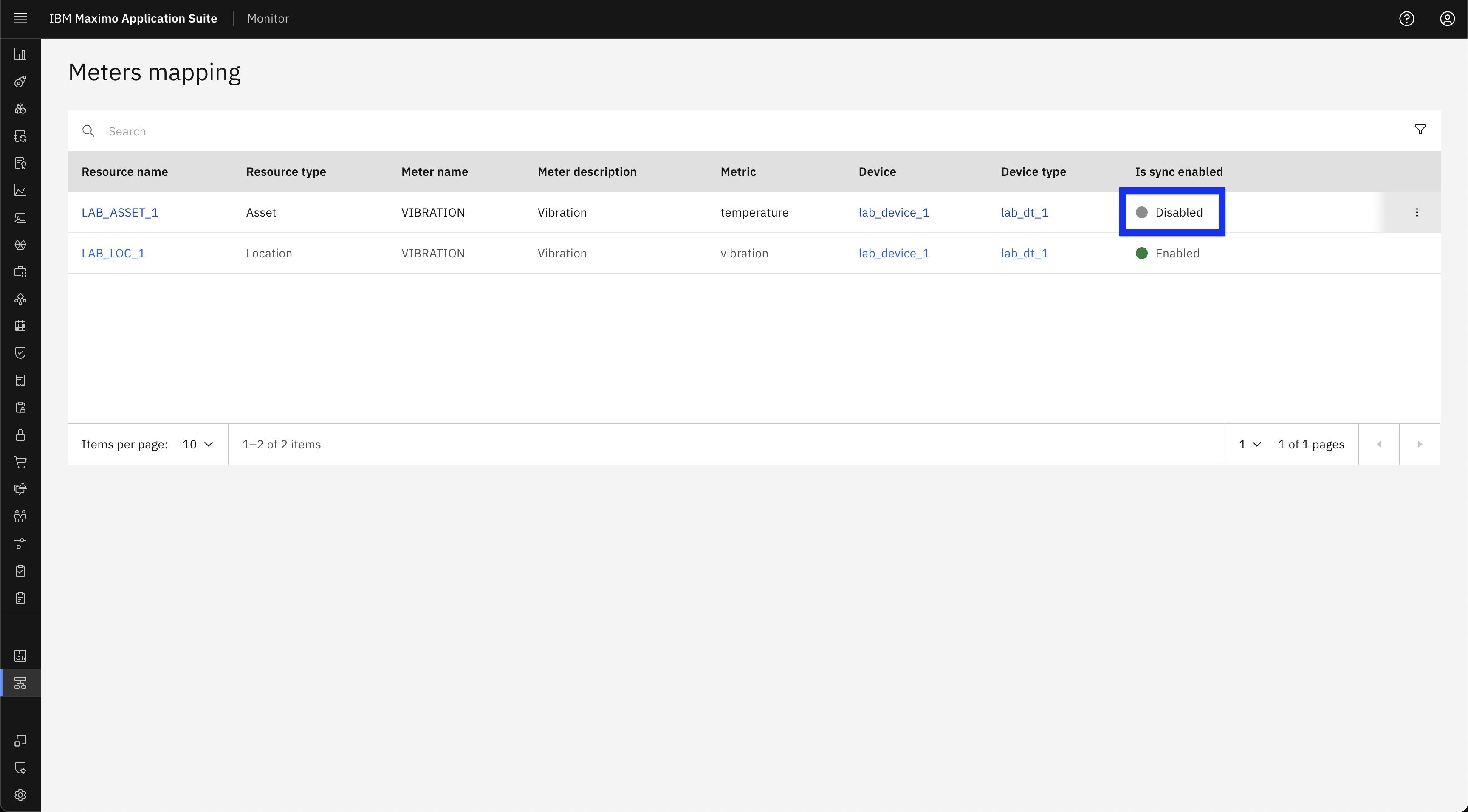

  5. Verify that the sync status has been updated accordingly in the Meter Mappings table. Toggle sync

Enable Sync

  1. Navigate to the Meter Mappings page in the MAS Monitor UI. refer to previous exercise.

  2. Click the three-dot menu next to the meter mapping you want to modify.

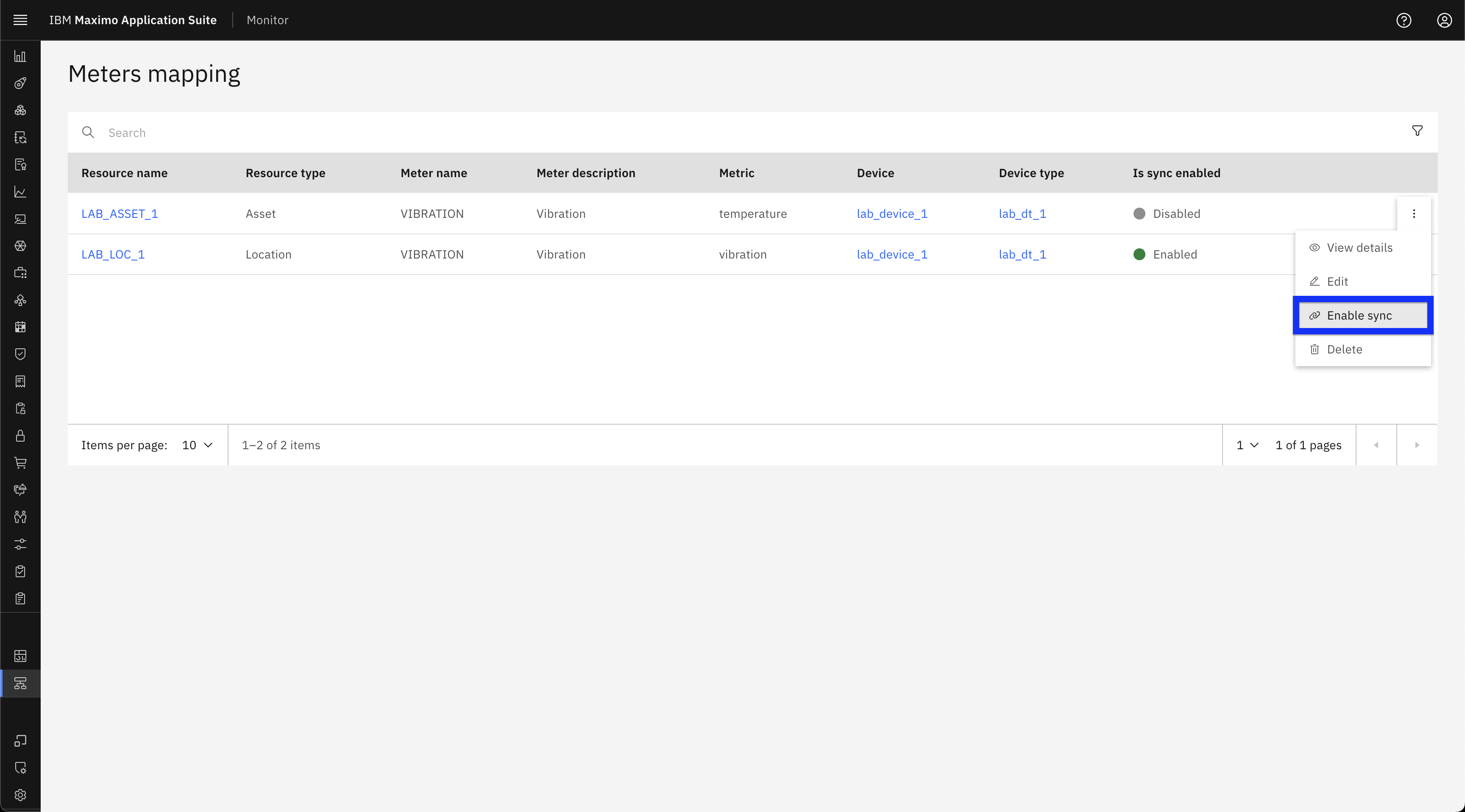

  3. From the dropdown, select Enable Sync. Toggle sync

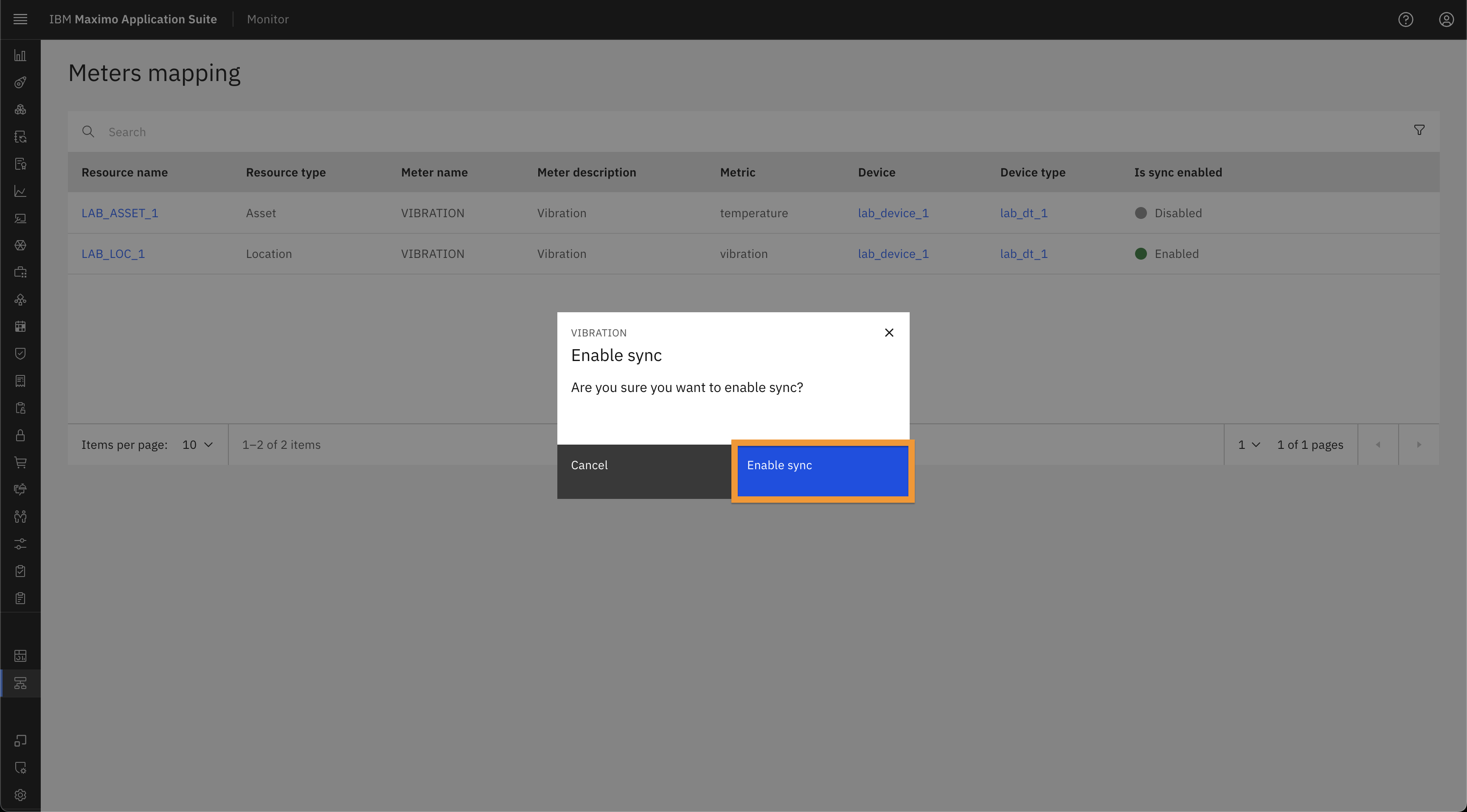

  4. Confirm the action by clicking Enable sync. Toggle sync

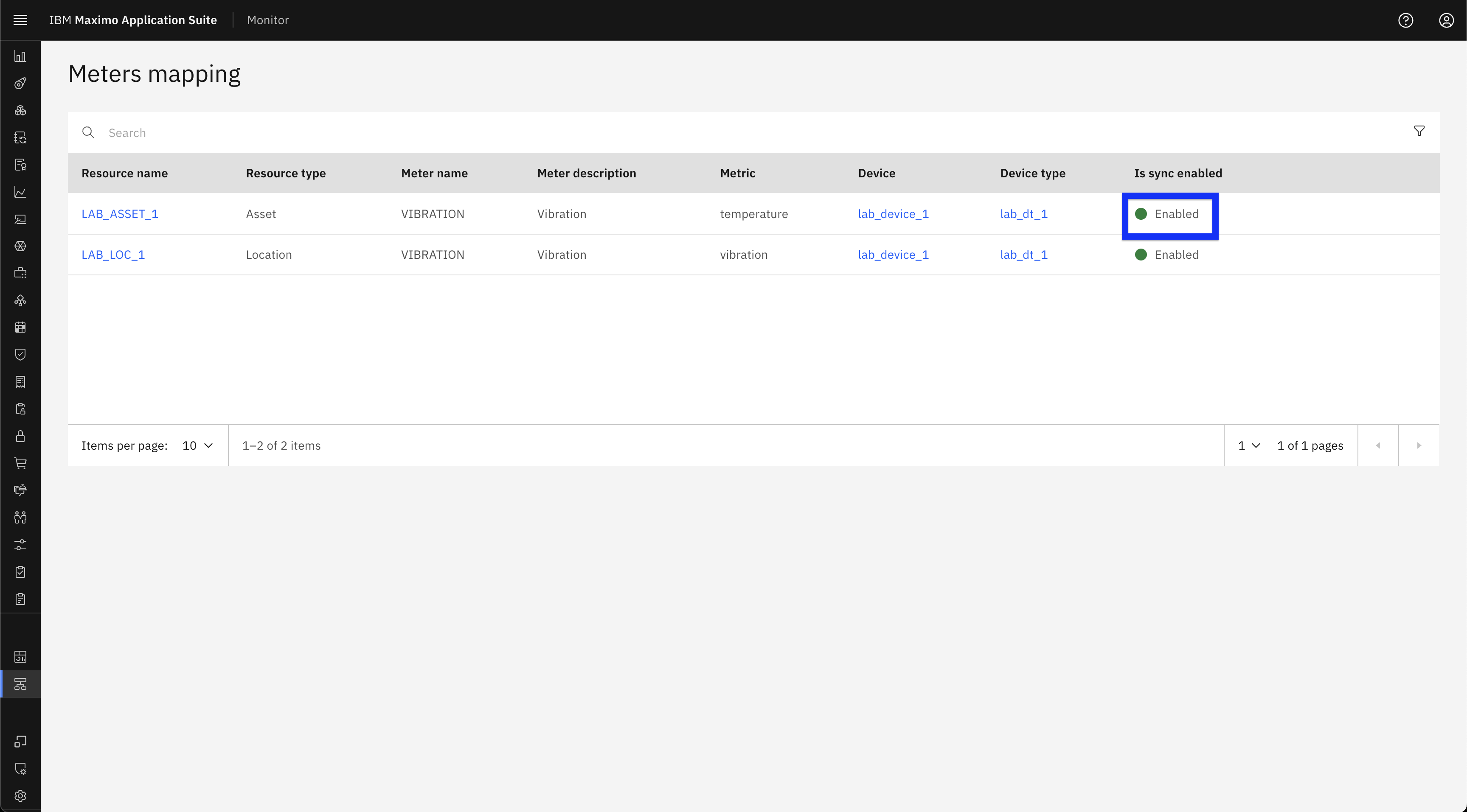

  5. Verify that the sync status has been updated accordingly in the Meter Mappings table. Toggle sync

Expected Outcome:

  • If sync is enabled, the meter mapping will begin pushing data to the meter.
  • If sync is disabled, data will no longer be pushed.
  • Confirm that the sync status is updated in the Meter Mappings table.

🎉 Congratulations! You have successfully learn how to toggle sync enable/disable for meter/metric mappings.
