Objectives
In this Exercise you will learn how to:
- View meter data in the Manage UI
Before you begin:
This Exercise requires that you have:
- completed the pre-requisites required for all labs
- completed the previous exercises
Attention
You should have the necessary permissions to view meter readings in the Maximo Manage.
Follow the steps below to view meter data in the Manage UI:
-
Log in to MAS and navigate to Asset or Location page in Manage UI:

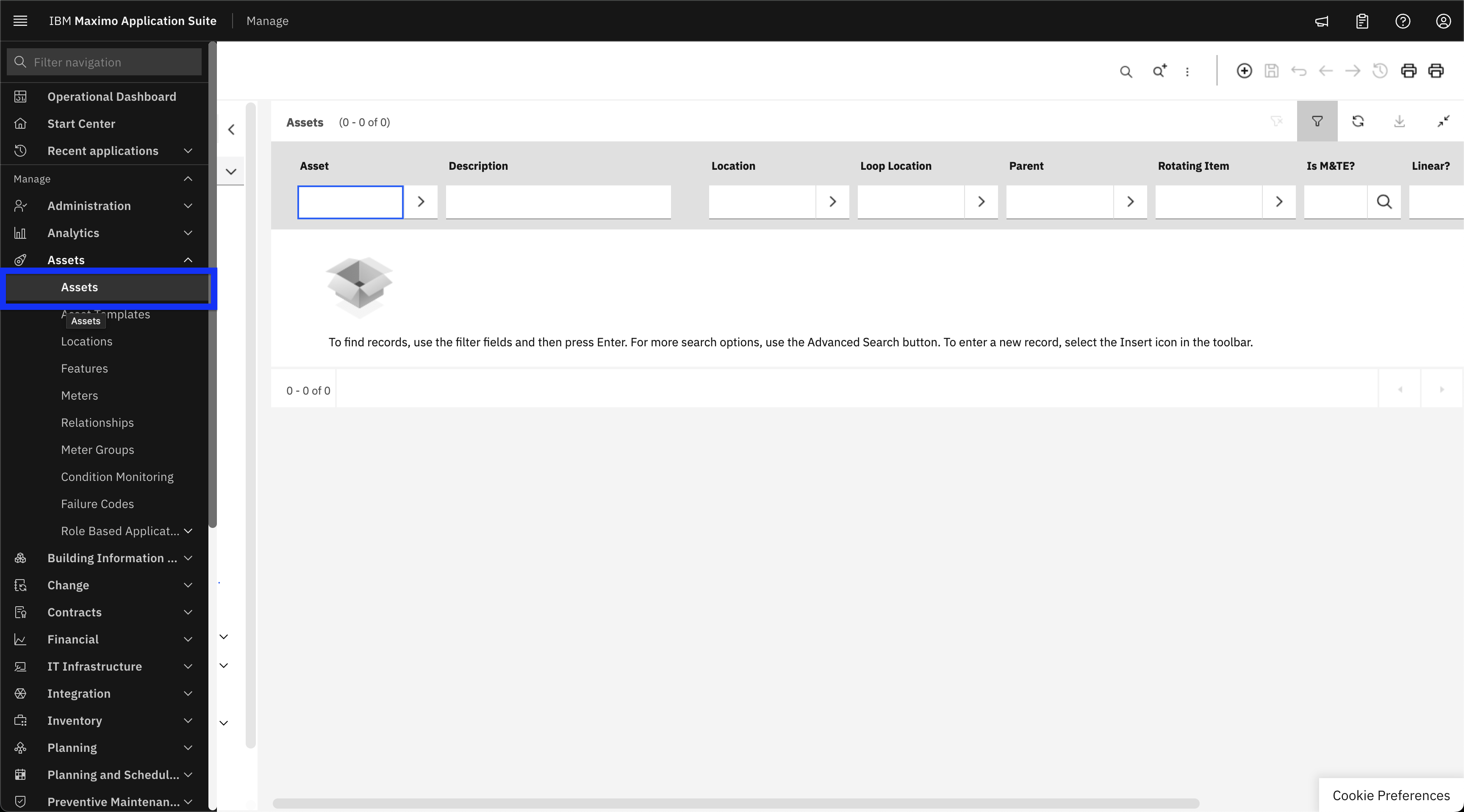

- For Asset: ( Manage → Assets → Assets )

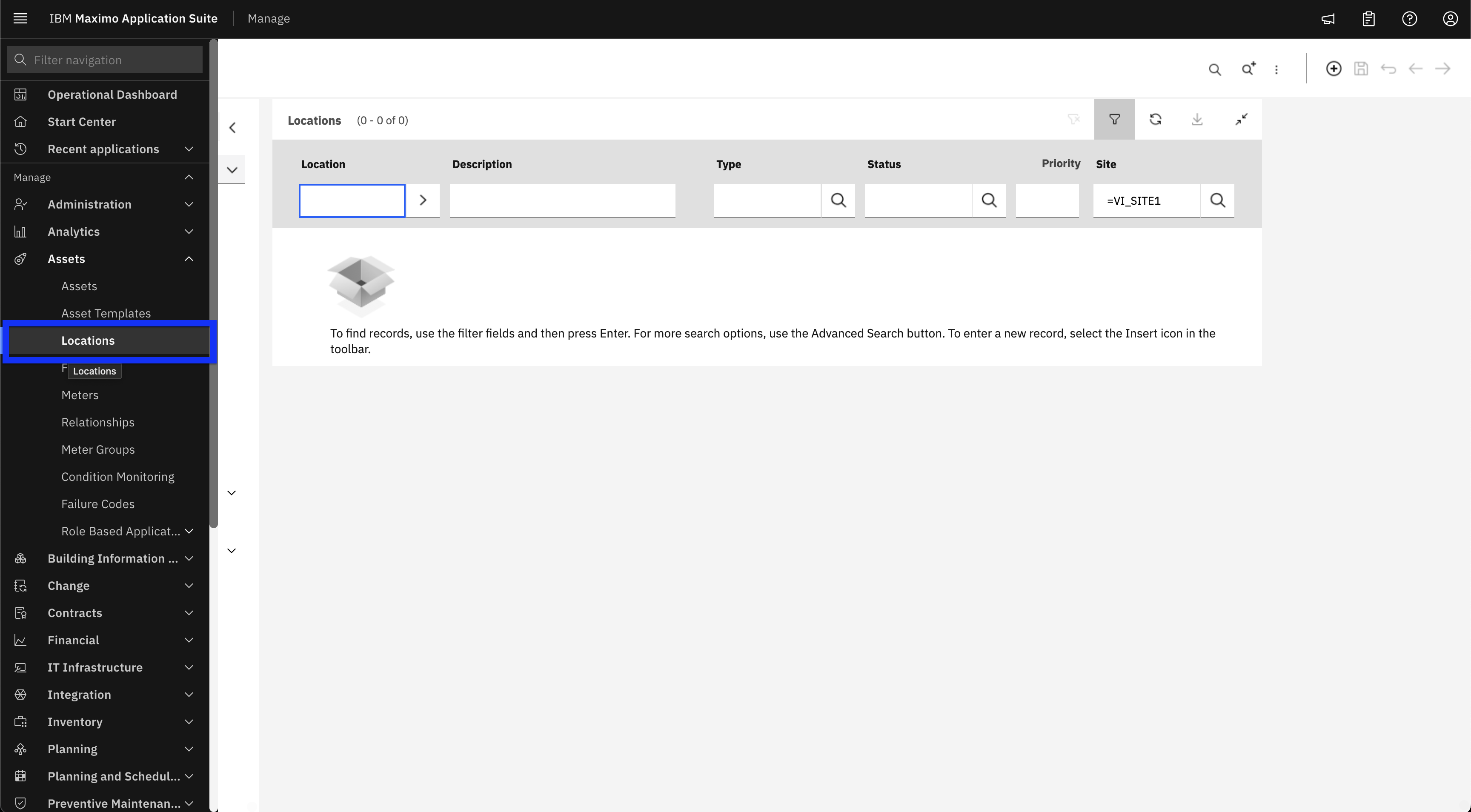

- For Location: ( Manage → Assets → Locations )
- For Asset: ( Manage → Assets → Assets )
-

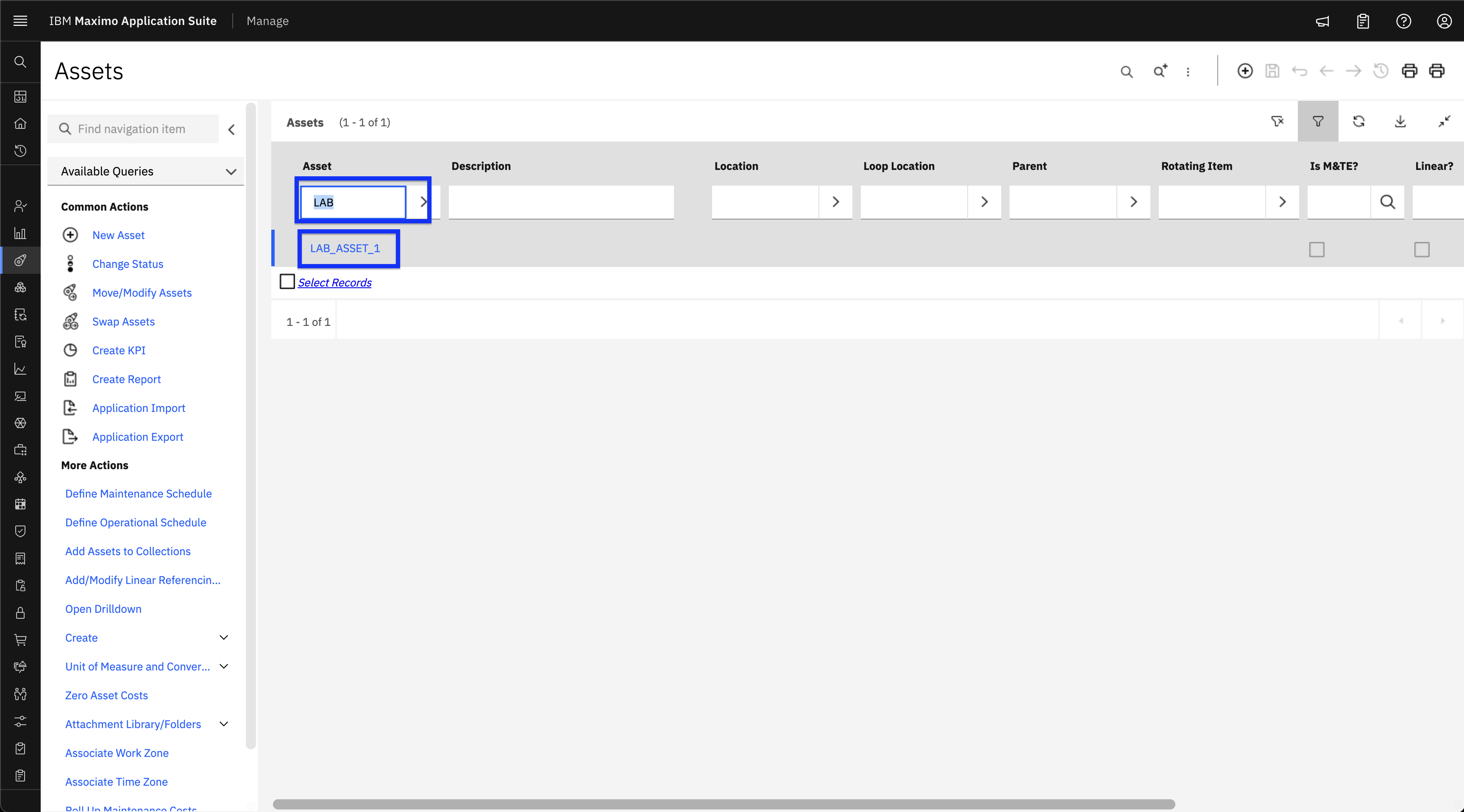

Search for the Asset or Location by name and click on it to view its meters.
-
In the left panel, click Manage Meter Reading History
-

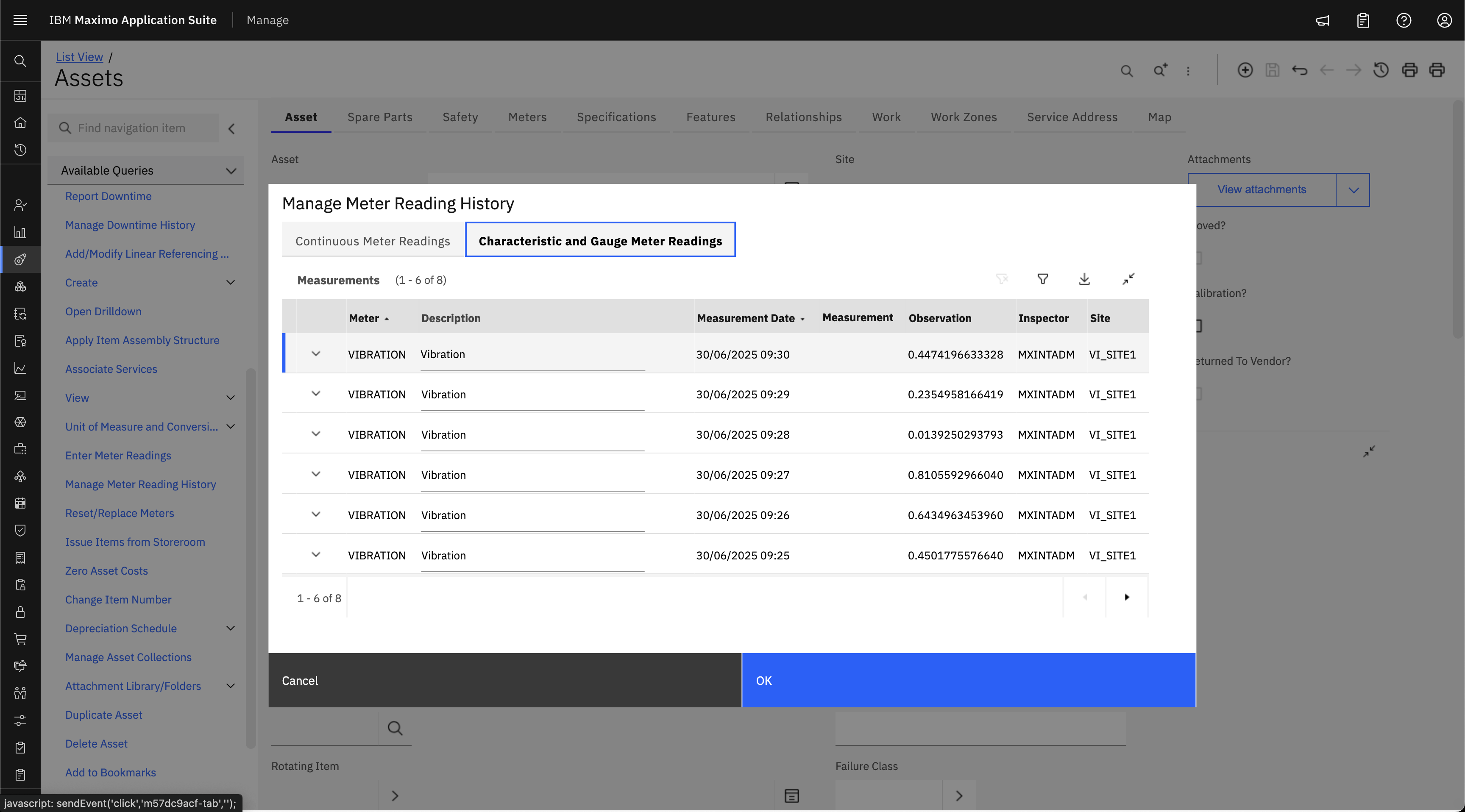

Click Characteristic and Gauge Meter Readings depending on meter type, to view all meters data.
Attention
Metric data is pushed to meters in batches every 5 minutes. Please allow some time for the readings to appear in the meter view.
🎉 Congratulations! You have successfully learn how to view meter data in the Manage UI.
