Add Data Restriction in Security Group

Objectives

In this exercise, you will learn how to:

  • Configure data restrictions in Security Groups
  • Apply filters to limit resource visibility
  • Test data restrictions with different filter conditions
  • Understand how resource-based access control works with various resource types

Before you begin:
This exercise assumes that you have:

  1. Completed Creating Security Groups
  2. Completed Creating Users and Assigning Groups
  3. Have existing resources (Assets, Locations, Systems, etc.) in your Monitor environment

Understanding Data Restrictions

Data restrictions control which specific resources a user can see within Monitor applications. By adding conditions to Security Groups, you can filter data based on various attributes like names, UUIDs, descriptions, status, and more.

Steps to Add Data Restrictions

Follow these steps to add data restrictions to the Security Group you created in the previous exercise:

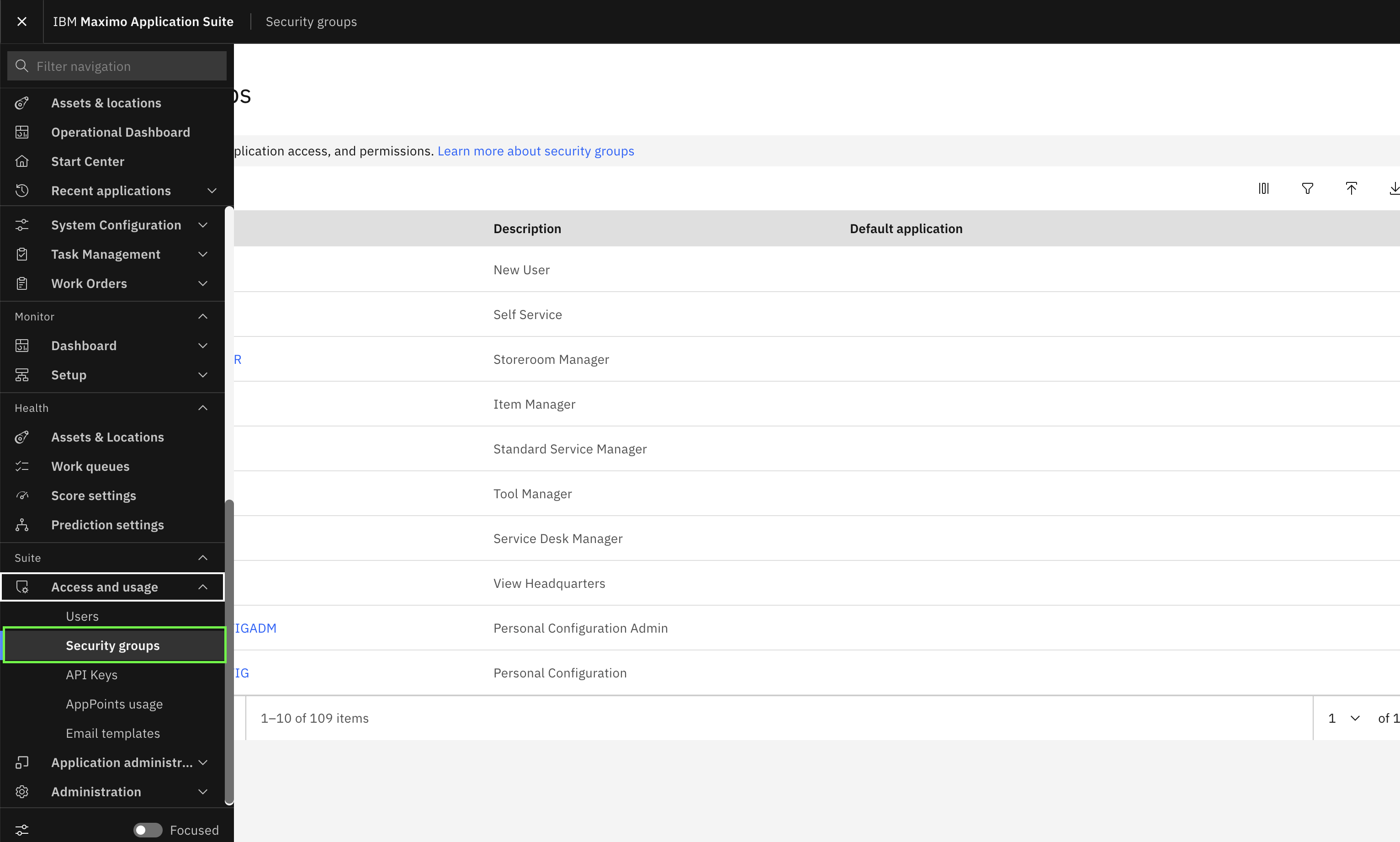

Step 1: Navigate to Security Groups

  1. Login to Monitor with an Admin user
  2. Go to Suite → Access and usage → Security Groups

Security Groups Navigation

Step 2: Open the Security Group

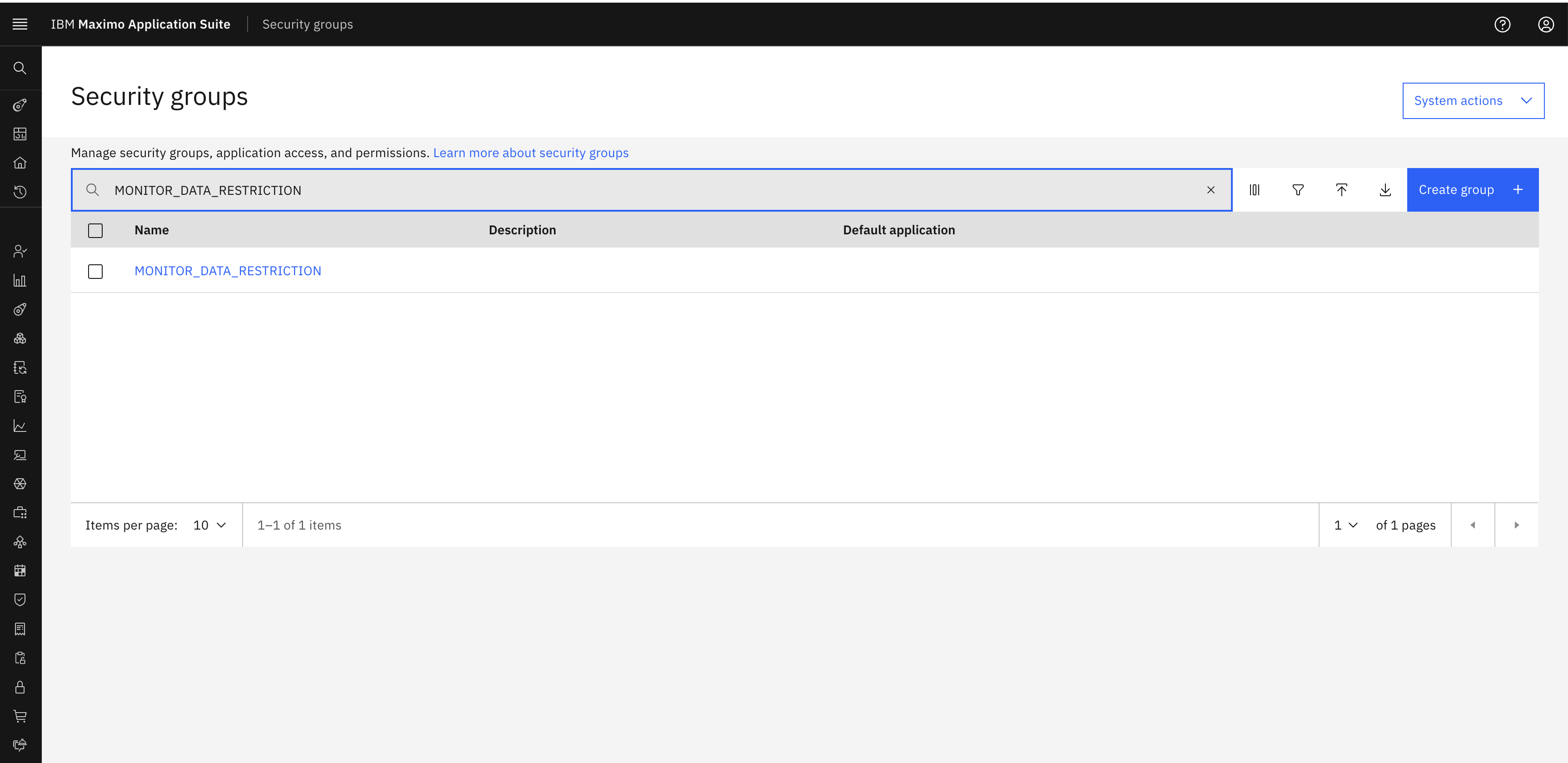

  1. In the Security Groups list, search for the security group you created (e.g., MONITOR_DATA_RESTRICTION)
  2. Click on the security group name to open it

Search Security Group

Step 3: Navigate to Restrictions Tab

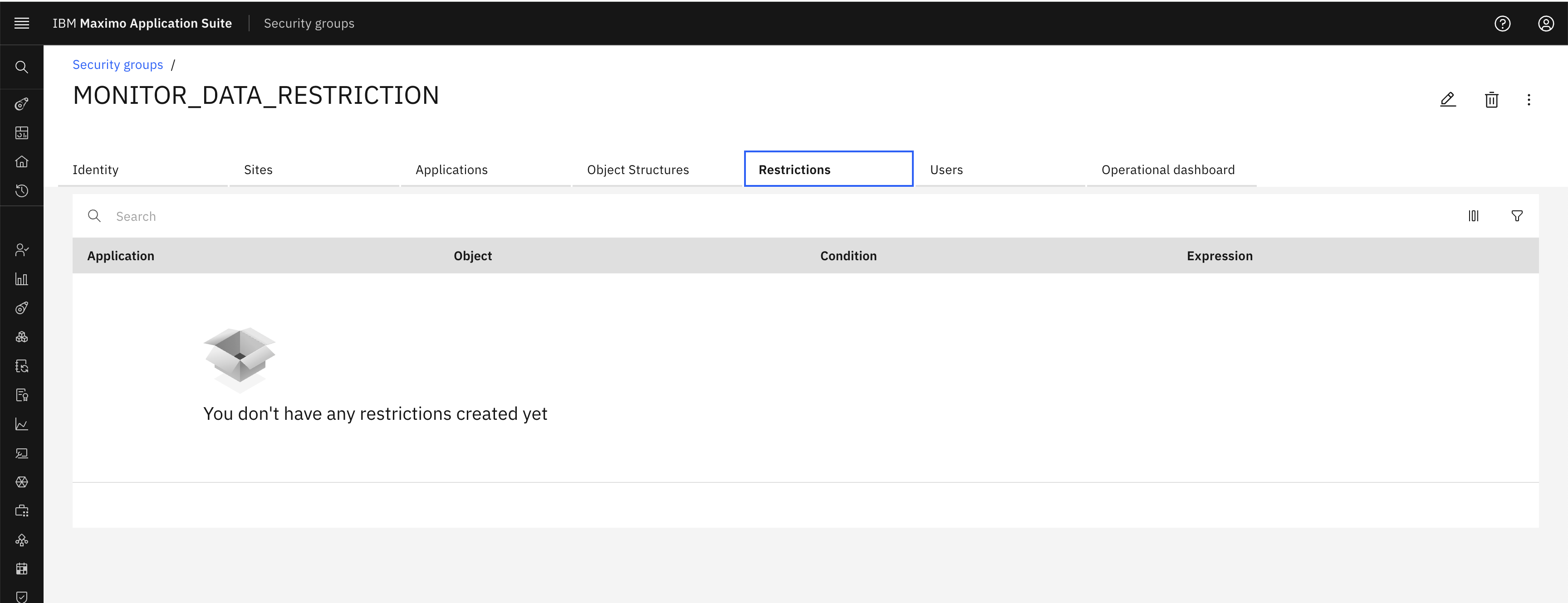

  1. Once the security group opens, click on the Restrictions tab
  2. You will see an empty restrictions list if no restrictions have been added yet

Restrictions Tab

Step 4: Edit and Add Restriction

  1. Click the Edit icon (pencil icon) to enable editing mode
  2. Click the Add restriction button

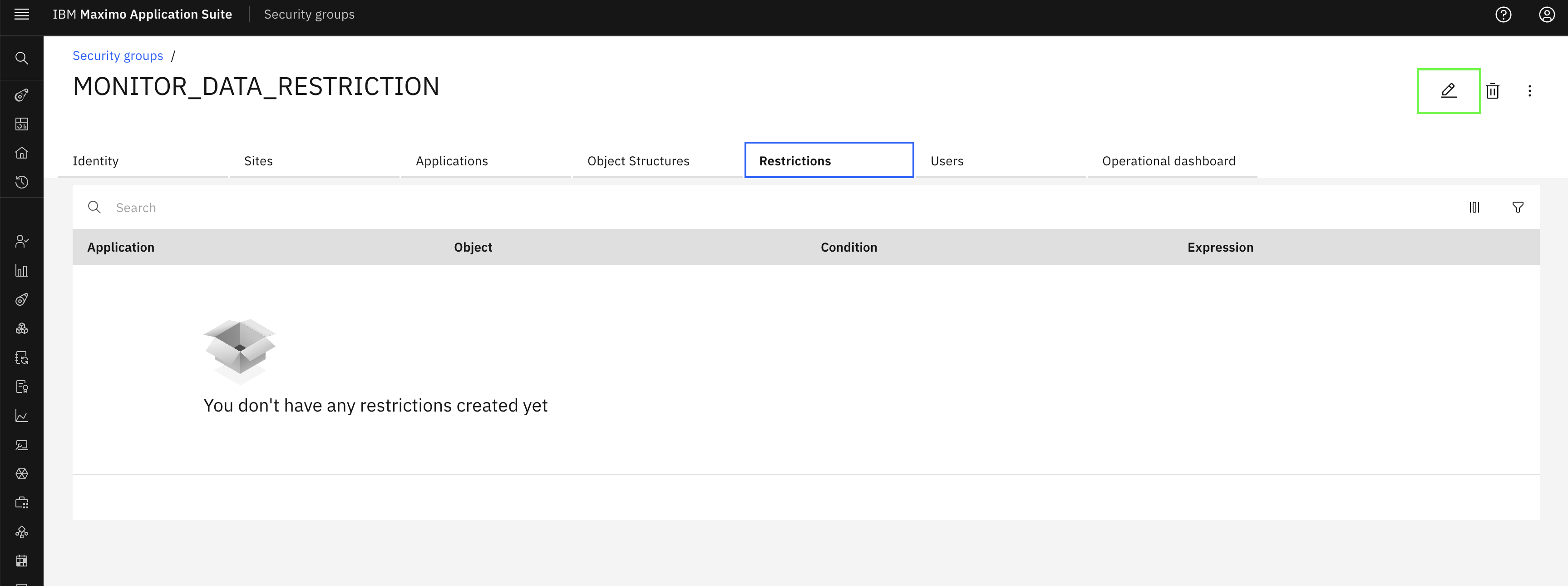

Edit Security Group

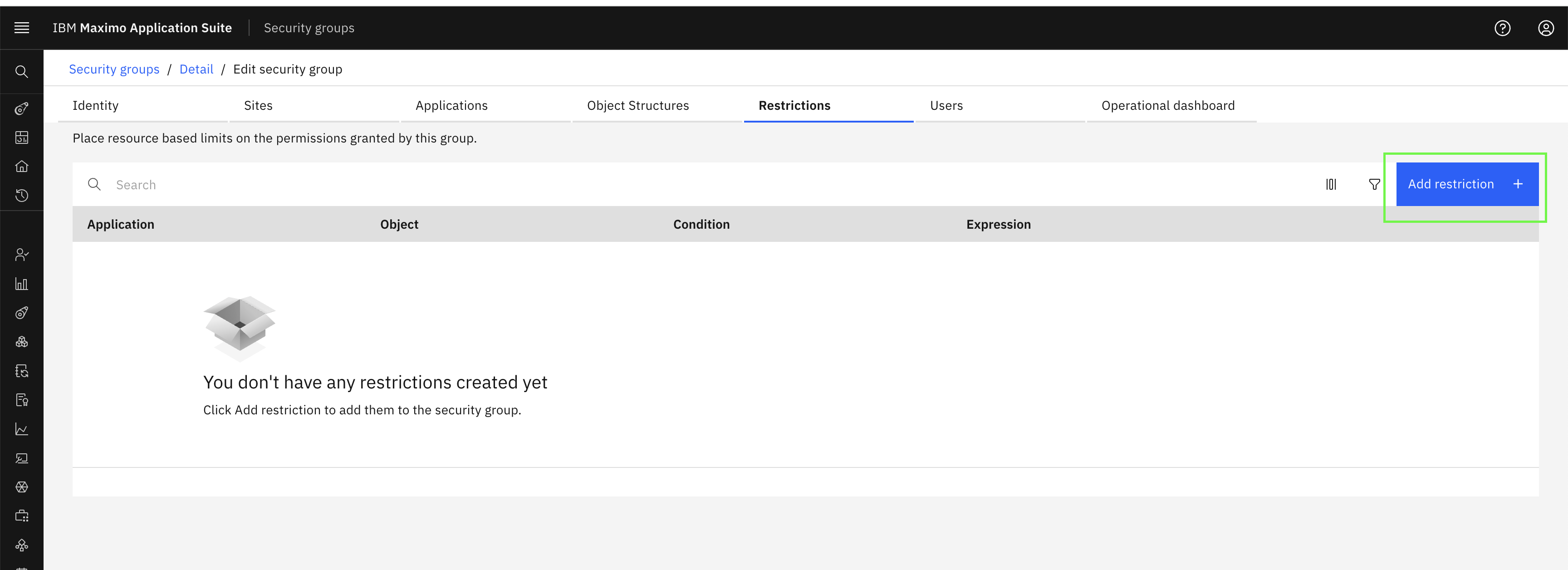

Add Restriction Button

Step 5: Create Data Restriction

A "Create data restriction" modal will open. Follow these steps:

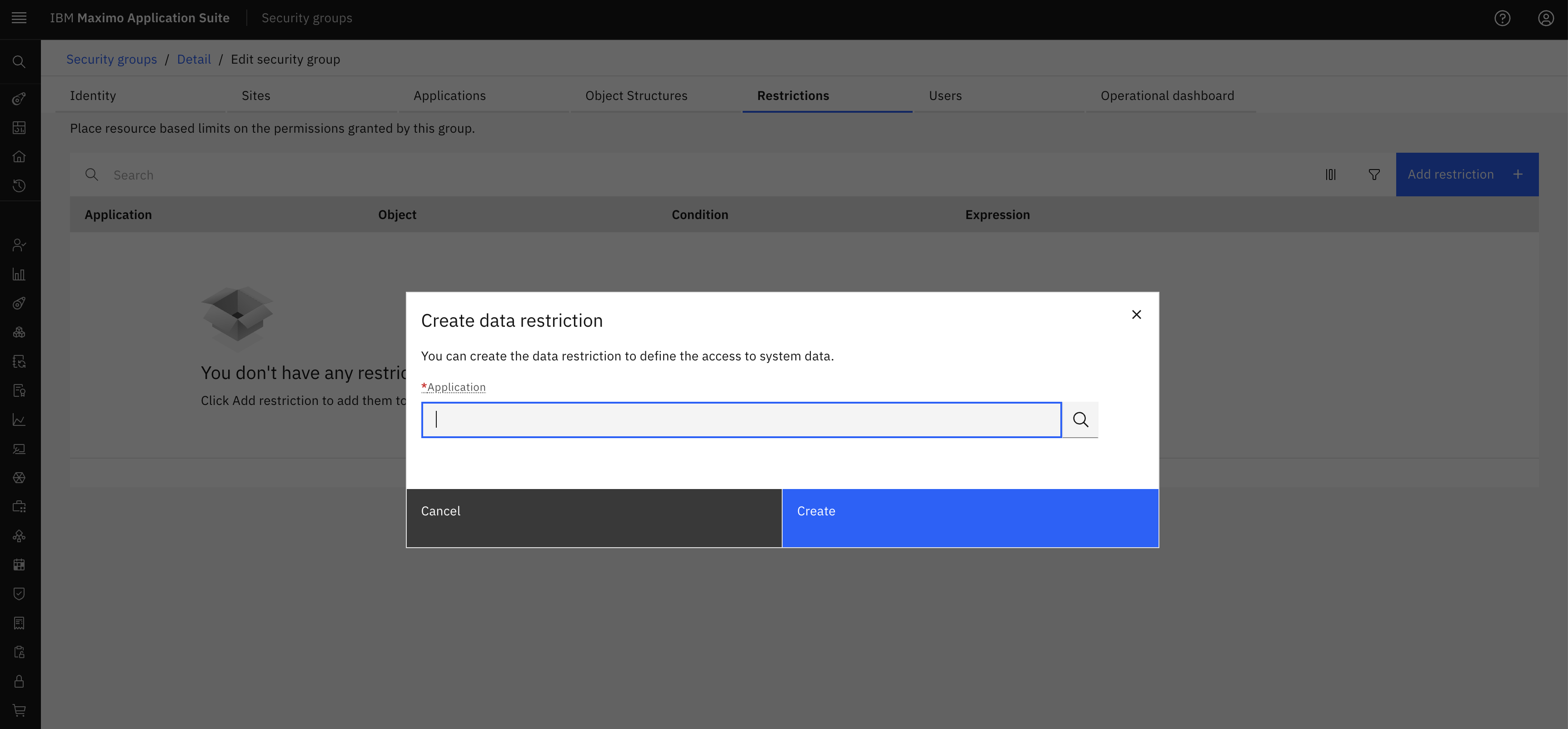

Search for Application: In the Application field, search for the Monitor application you want to add restrictions to

Example: MONITOR_SETUP_LOCATIONS

Search Application

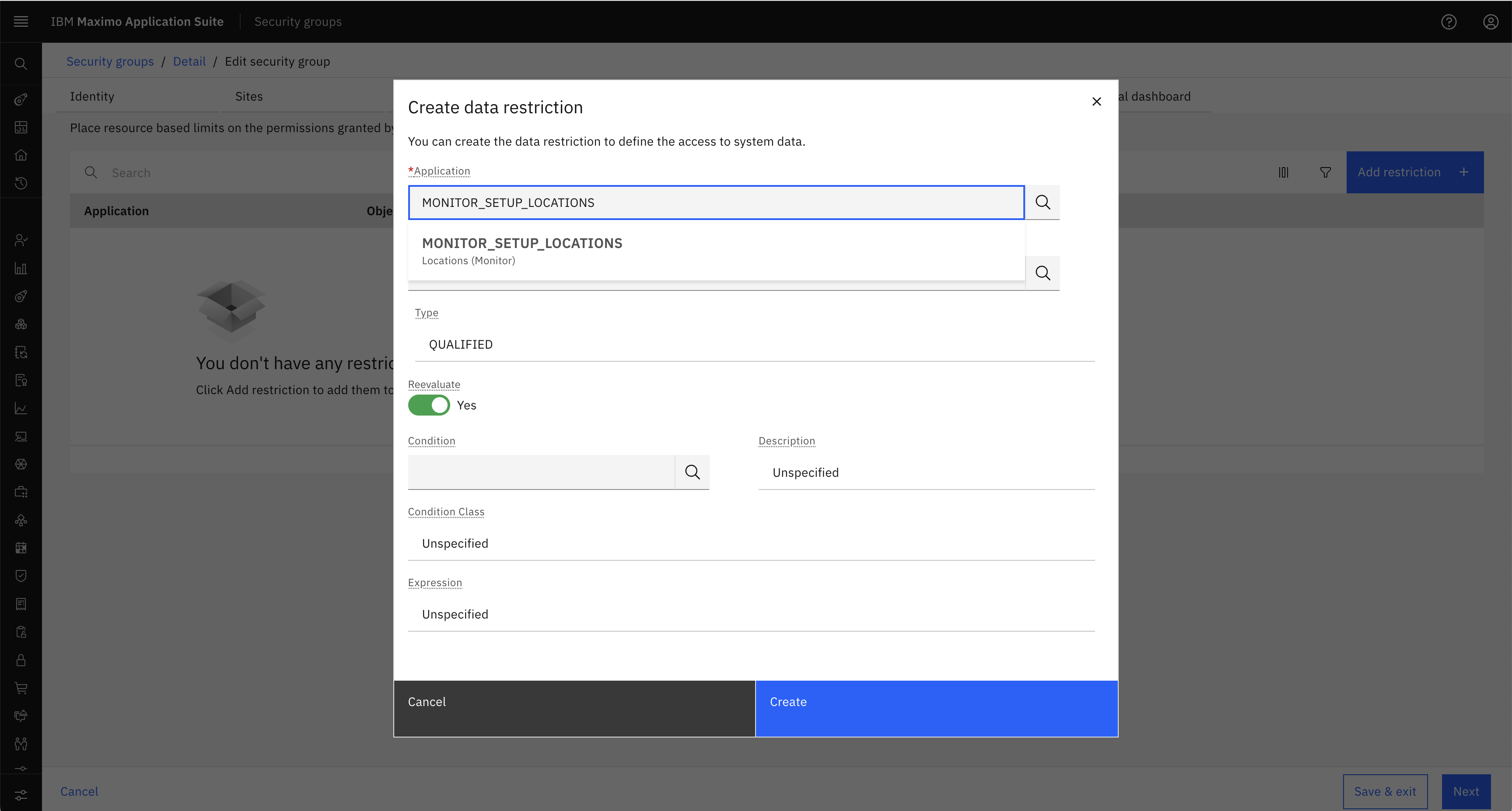

Select Application: Click on the application from the dropdown list

Example: Select MONITOR_SETUP_LOCATIONS from the list

Select Application

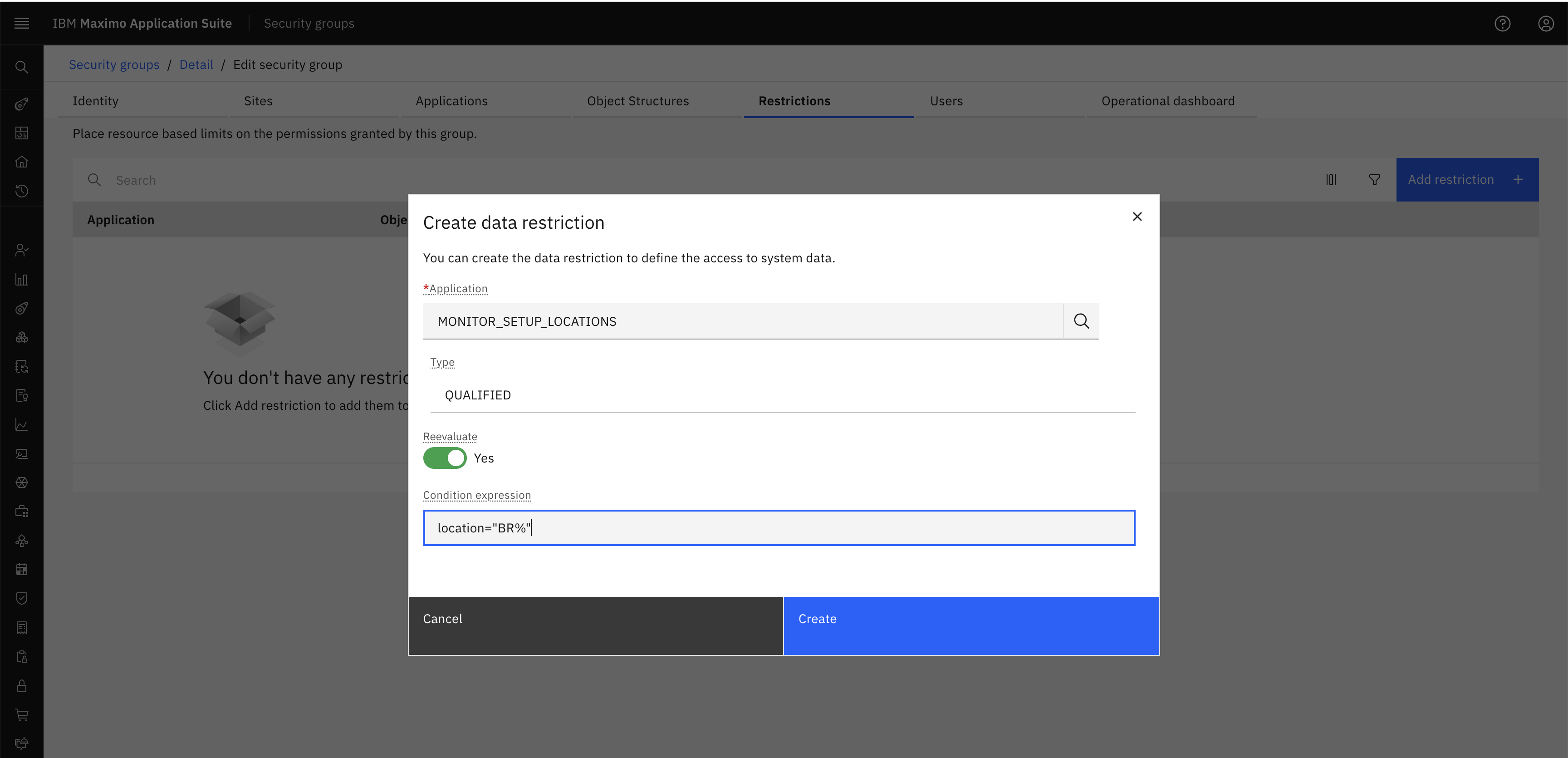

Add Condition: In the "Condition expression" field, enter your filter condition

Example: location="BR%"

This will restrict the user to only see locations starting with "BR"

Add Condition

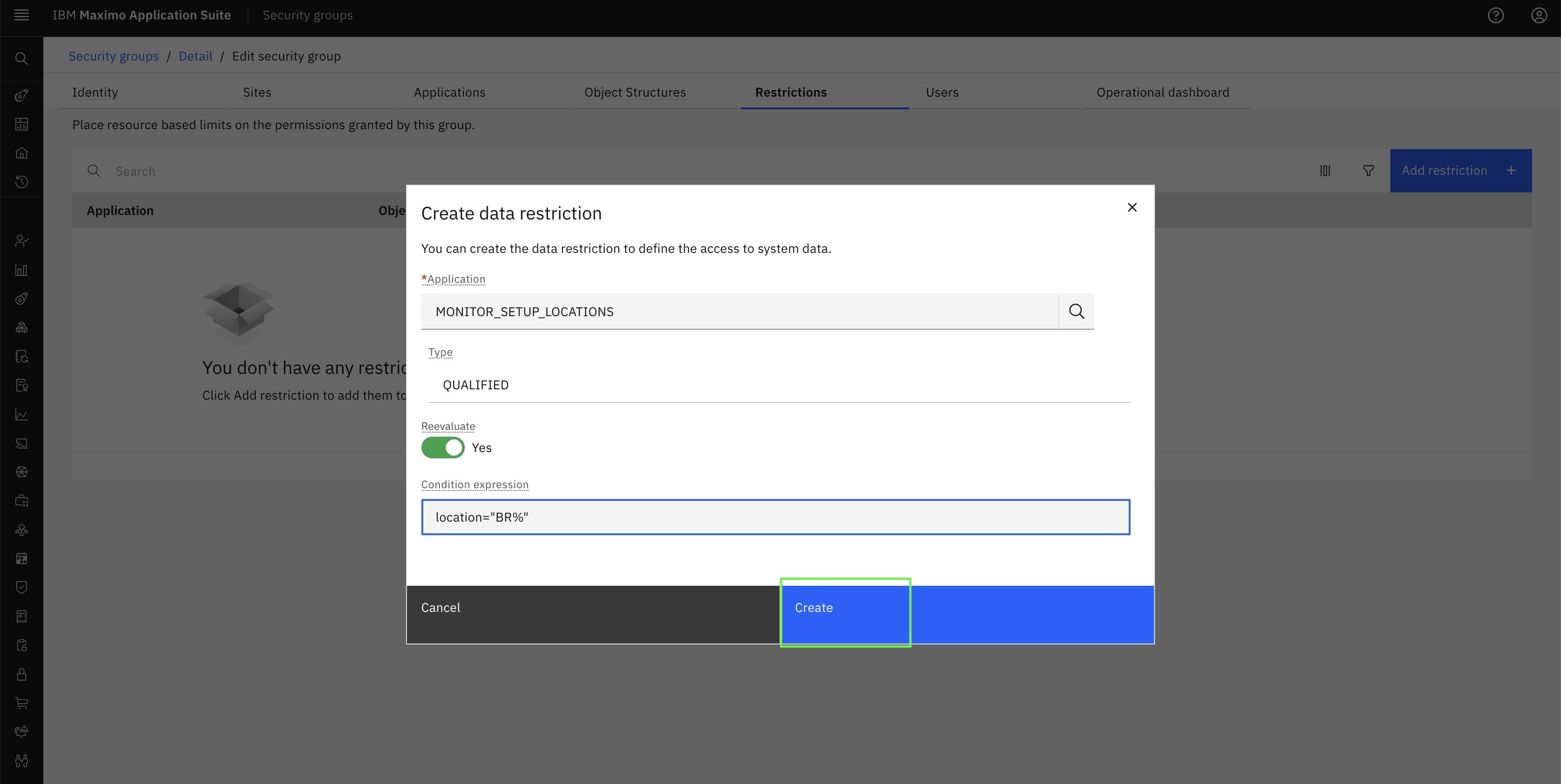

Click Create to save the restriction

Create Restriction

Step 6: View Created Restriction

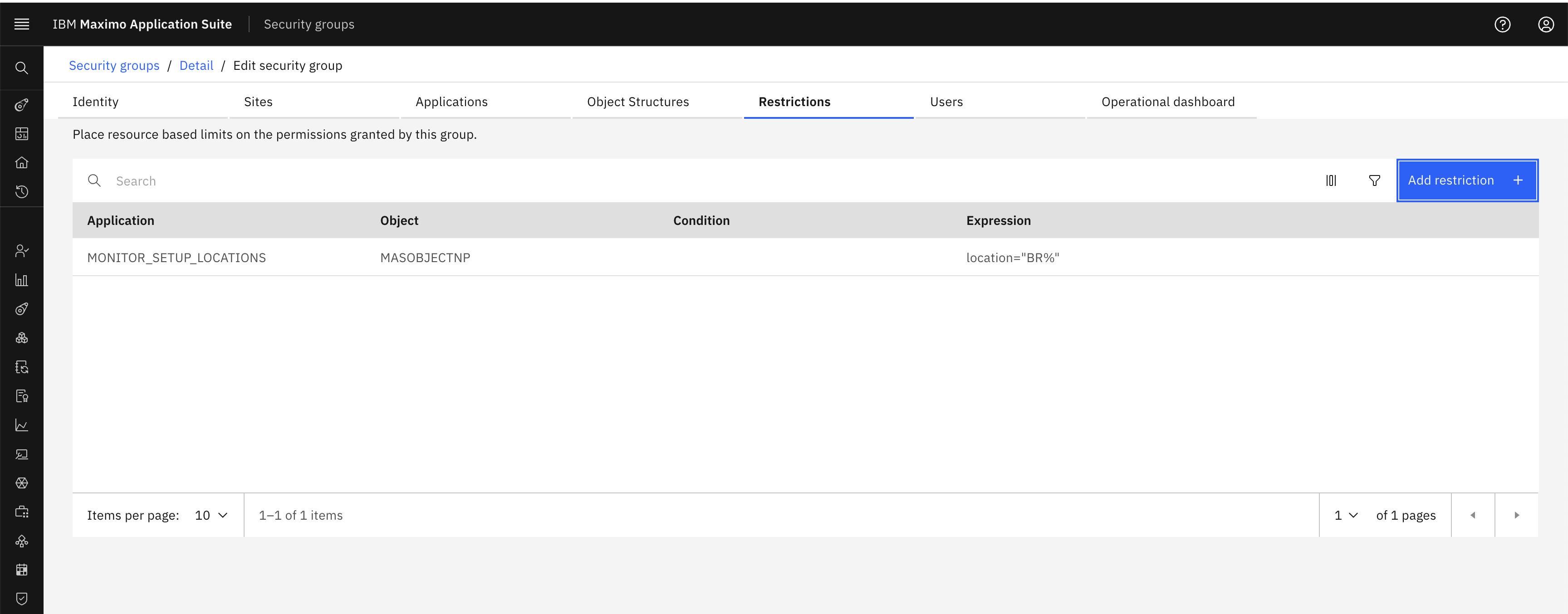

The created restriction will now appear in the Restrictions tab, showing:

  • Application: The Monitor application (e.g., MONITOR_SETUP_LOCATIONS)
  • Object: The Maximo object being restricted (e.g., MASOBJECTNP)
  • Condition: Empty (system managed)
  • Expression: Your filter condition (e.g., location="BR%")

View Restriction

Step 7: Add Multiple Restrictions (Optional)

You can add multiple restrictions to the same security group:

  1. Click Add restriction button again
  2. Select a different application (e.g., MONITOR_DB_LOCATIONS)
  3. Add the same or different condition
  4. Click Create

Repeat this process for all applications where you want to apply data restrictions.

Tip

You can add restrictions for both Dashboard (MONITOR_DB_*) and Setup (MONITOR_SETUP_*) applications to ensure consistent filtering across all Monitor interfaces.

Step 8: Save Changes

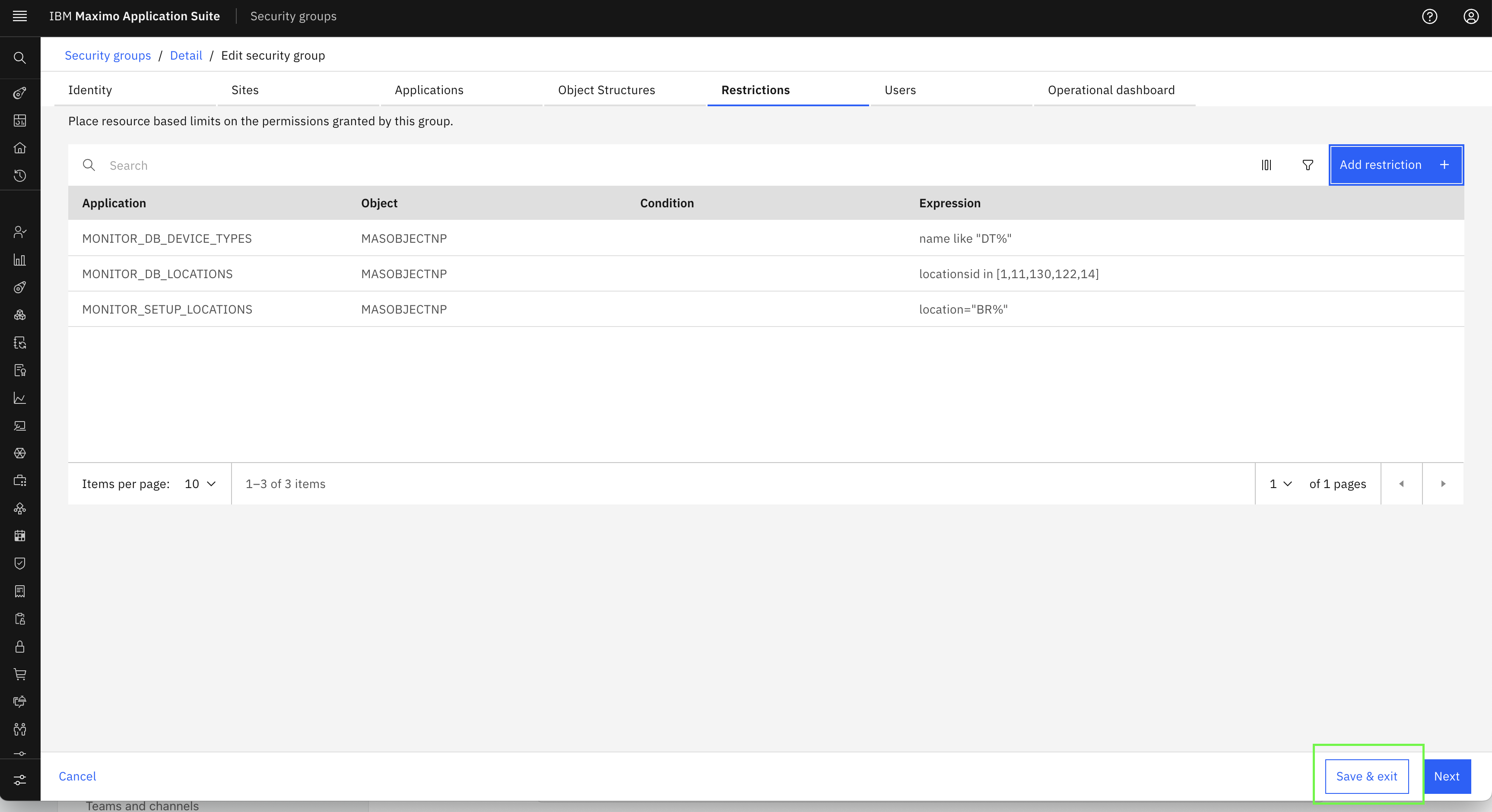

  1. After adding all desired restrictions, click Save & exit at the bottom of the page
  2. The restrictions are now active and will be applied to all users assigned to this security group

Save and Exit

Note

Users assigned to this security group will only see resources matching the specified conditions.

If a user is assigned to multiple security groups with different data restrictions, the restrictions are combined automatically. The user will have access to resources allowed by ANY of their assigned security groups.

Congratulations! You've successfully added data restrictions to Security Groups. The examples below provide a comprehensive reference for various filter conditions you can use.

RBAC Examples for Hierarchy Resources

The following table shows various scenarios for filtering hierarchy resources:

Table 1: RBAC Examples for Hierarchy Resources

Scenario Applications Condition Expected Output
Organization name filter MONITOR_DB_ORGANIZATIONS
MONITOR_SETUP_ORGANIZATIONS		 orgid="P%" Organizations starting with P are displayed on the dashboard and setup group.
Site name filter MONITOR_DB_SITES
MONITOR_SETUP_SITES		 siteid="M%" All the sites starting with M are displayed on the dashboard and setup group.
System name filter MONITOR_DB_SYSTEMS
MONITOR_SETUP_SYSTEMS		 systemid="M%" All the systems starting with M are displayed on the dashboard and setup group.
Location name filter MONITOR_DB_LOCATIONS
MONITOR_SETUP_LOCATIONS		 location="M%"
location="P%"		 All the locations starting with M and P are displayed on the dashboard and setup group.
Asset name filter MONITOR_DB_ASSETS
MONITOR_SETUP_ASSETS		 assetnum="M%" All the assets starting with M are displayed on the dashboard and setup group.
Description filter MONITOR_DB_ORGANIZATIONS
MONITOR_SETUP_ORGANIZATIONS
MONITOR_DB_SITES
MONITOR_SETUP_SITES
MONITOR_DB_SYSTEMS
MONITOR_SETUP_SYSTEMS
MONITOR_DB_ASSETS
MONITOR_SETUP_ASSETS
MONITOR_DB_LOCATIONS
MONITOR_SETUP_LOCATIONS		 description="%esc%" Only the hierarchy levels with description "%esc%" are displayed on the dashboard and setup group.
Org UUID filter MONITOR_DB_ORGANIZATIONS
MONITOR_SETUP_ORGANIZATIONS		 organizationid in [1,6,114,115,217,350] Only selected organizations are displayed in setup and dashboard.
Site UUID filter MONITOR_DB_SITES
MONITOR_SETUP_SITES		 siteuid in [1,6,7,9,11,20] Only selected sites are displayed in the setup and dashboard.
System UUID filter MONITOR_DB_SYSTEMS
MONITOR_SETUP_SYSTEMS		 locsystemid in [1,2,4,5,8,9] Only the selected systems are displayed in setup and dashboard.
Location UUID filter MONITOR_DB_LOCATIONS
MONITOR_SETUP_LOCATIONS		 locationsid in [1,11,130,122,14] Only the selected locations are displayed in setup and dashboard.
Asset UUID filter MONITOR_DB_ASSETS
MONITOR_SETUP_ASSETS		 assetid in [1,76,84,149,1276,104] Only the selected assets are displayed in setup and dashboard.
Organization and site status filter MONITOR_DB_ORGANIZATIONS
MONITOR_SETUP_ORGANIZATIONS
MONITOR_DB_SITES
MONITOR_SETUP_SITES		 active=1 Only active organizations and sites are displayed in setup and dashboard.
Organization category filter MONITOR_DB_ORGANIZATIONS
MONITOR_SETUP_ORGANIZATIONS		 category="COUNT"
or
category="AVG"		 Only organizations with specified category type are displayed.
System with org/site filter MONITOR_DB_SYSTEMS
MONITOR_SETUP_SYSTEMS		 orgid="M%"
siteid="M%"		 Only systems with orgid and siteid starting with M are displayed.
Location with multiple filters MONITOR_DB_LOCATIONS
MONITOR_SETUP_LOCATIONS		 orgid="M%"
siteid="M%"
type=FLOOR
status=OPERATING
systemid="M%"		 Locations matching all specified conditions are displayed.
Asset with multiple filters MONITOR_DB_ASSETS
MONITOR_SETUP_ASSETS		 type=<asset_type>
status=<status>
orgid=<org_name>
siteid=<site_name>
location=<location_name>
systemid=<system_name>		 Assets matching the specified combination of filters are displayed.

RBAC Examples for Device Types

Note

Queries defined for MONITOR_DB_DEVICES and MONITOR_SETUP_DEVICES will not apply directly to devices. To apply restrictions on devices, the system uses the queries defined in MONITOR_SETUP_DEVICE_TYPES and MONITOR_DB_DEVICE_TYPES. Device access is controlled through their associated device types.

The following table shows various scenarios for filtering device types:

Table 2: RBAC Examples for Device Types

Application Condition Expected Output
MONITOR_DB_DEVICE_TYPES name='DT1' Device type with name DT1 is displayed on the Dashboard page.
MONITOR_SETUP_DEVICE_TYPES name='DT1' Device type with name DT1 is displayed on the Setup page.
MONITOR_DB_DEVICE_TYPES uuid in ('34b3f40b-e253-428d-a500-d4dfe17c901b', '4b57c0b5-169b-4e1d-bd6c-298ea35808c0') Device types with specified UUIDs are displayed.
MONITOR_SETUP_DEVICE_TYPES uuid in ('34b3f40b-e253-428d-a500-d4dfe17c901b', '4b57c0b5-169b-4e1d-bd6c-298ea35808c0') Device types with specified UUIDs are displayed.
MONITOR_DB_DEVICE_TYPES name in ('Cisco_Webex', 'CJ_TESTKAFKA_PL', 'DT1') Only the specified 3 device types are displayed.
MONITOR_SETUP_DEVICE_TYPES name in ('Cisco_Webex', 'CJ_TESTKAFKA_PL', 'DT1') Only the 3 specified device types and their assigned devices are displayed.
MONITOR_DB_DEVICE_TYPES name like 'Empty%' Only device types starting with "Empty" are displayed.
MONITOR_SETUP_DEVICE_TYPES name like 'Empty%' Only device types starting with "Empty" are displayed.
MONITOR_DB_DEVICE_TYPES name like 't%' and description = 'hello' Device types starting with "t" and having description "hello" are displayed.
MONITOR_SETUP_DEVICE_TYPES name like 't%' and description = 'hello' Device types starting with "t" and having description "hello" are displayed.
MONITOR_DB_DEVICE_TYPES name='DT1' and description='qwerty' Device type DT1 with description "qwerty" is displayed.
MONITOR_SETUP_DEVICE_TYPES name='DT1' and description='qwerty' Device type DT1 with description "qwerty" is displayed.
MONITOR_DB_DEVICE_TYPES name NOT LIKE 'E%' Device types that do not start with "E" are displayed.
MONITOR_SETUP_DEVICE_TYPES name NOT LIKE 'E%' Device types that do not start with "E" are displayed.
MONITOR_DB_DEVICE_TYPES uuid='295e0c1f-423d-4296-90b4-94eaf3184449' Device type with the specified UUID is displayed.
MONITOR_SETUP_DEVICE_TYPES uuid='295e0c1f-423d-4296-90b4-94eaf3184449' Device type with the specified UUID is displayed.
MONITOR_DB_DEVICE_TYPES name like 'e%' or name like 'C%' Device types starting with "e" or "C" are displayed.

Filter Syntax Examples

Here are common filter syntax patterns you can use:

assetnum="USA"
orgid!="M2_ORG"
assetnum IN ["123","456","789"]
active=true
active=0
category IN ["COUNT","AVG"]
active=true AND siteid="BEDFORD"
assetnum="M2%"

Parameter Reference for Hierarchy Resources

Table 3: Parameter Terms and Examples

Organization Parameters

Parameter Description Example
orgid Name of the organization orgid = "EAGLEN%"
organizationid UUID of the organization organizationid in [1,114,310,312,6000]
description Description of the organization description like "%sec%"
description in ["%AGLE%","%esc%"]
active Status of the organization true, false, 0, 1
category Type of organization category="COUNT" or category="AVG"

Site Parameters

Parameter Description Example
siteid Name of the site siteid="BEDFORD"
siteuid Site UUID siteuid IN [1,6,7,9,11]
description Description of the site description like "%esc%"
active Status of the site 0, 1

System Parameters

Parameter Description Example
systemid System name systemid like "M%"
locsystemid System UUID locsystemid in [1,2,4,5,8,9]
description Description of the system description like "%esc%"
orgid Organization name orgid="M%"
siteid Site name siteid="M%"

Location Parameters

Parameter Description Example
location Name of the location location like "M%"
locationsid Location UUID locationsid in [1,11,107,108,109]
description Description of the location description = "%esc%"
type Location type name type="FLOOR" or type="OPERATING"
status Status of the location status="OPERATING" or status="ACTIVE"
orgid Organization name orgid="M%"
siteid Site name siteid="M%"
systemid System name systemid="M%"

Asset Parameters

Parameter Description Example
assetnum Name of the asset assetnum like "M%"
assetid Asset UUID assetid in [1,104,117,123]
description Description of the asset description like '%esc%'
type Type of the asset type="PRODUCTION"
status Status of the asset status="OPERATING"
orgid Organization name orgid="M%"
siteid Site name siteid="BEDFORD"
location Location name location="FLOOR1"
systemid System name systemid="M%"

Device Type

Device type data restrictions allow you to control access to specific device types based on various attributes.

Supported Attributes:

Attribute Description Example
name Name of the device type name='ms_test_1' and description='test device type'
name (pattern matching) Name pattern using LIKE name like 'ms_test%'
name (multiple values) Multiple device type names name in ('type_1','type_2')
uuid Device type UUID uuid in ('uuid1','uuid2','uuid3')
alias Alias of the device type alias='device_alias_1'
alias (pattern matching) Alias pattern using LIKE alias like 'device%'
description Description of the device type description like '%test%'

Congratulations! You have successfully learned how to configure data restrictions in Security Groups. Continue to the next section to explore practical scenarios for each resource type: Resource Restriction Scenarios
