Objectives

In this exercise, you will learn how to:

  • Login as users with different roles
  • Observe and compare UI behavior based on assigned Security Groups
  • Understand how RBAC enforces access control in Monitor

Before you begin:
This exercise assumes that you have:

  1. Completed Creating Security Groups
  2. Completed Creating Users and Assigning Groups

RBAC controls how a user experiences the Monitor application. Based on their assigned Security Groups, users will see a different UI, and different levels of functionality will be enabled.

Scenario 1: Readonly User Access

User Info: - Username: readonly_user
- Groups: MONITOR_READ_ONLY, MAXADMIN

Expected Behavior: - Can view the Dashboard pages - Cannot create, edit, or delete entries - Setup pages like Security, Device Types, etc. are not visible

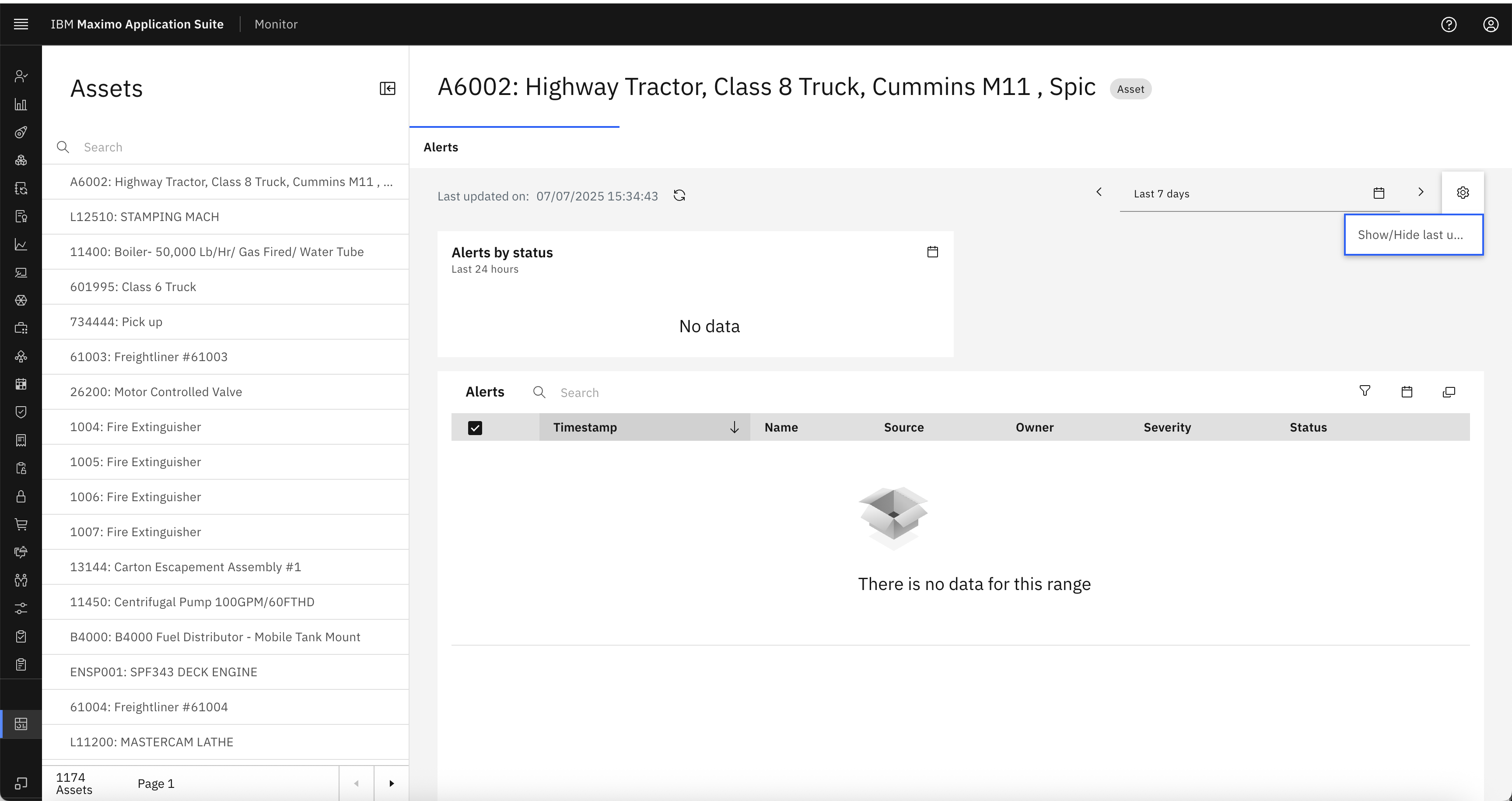

Readonly User Dashboard

Info

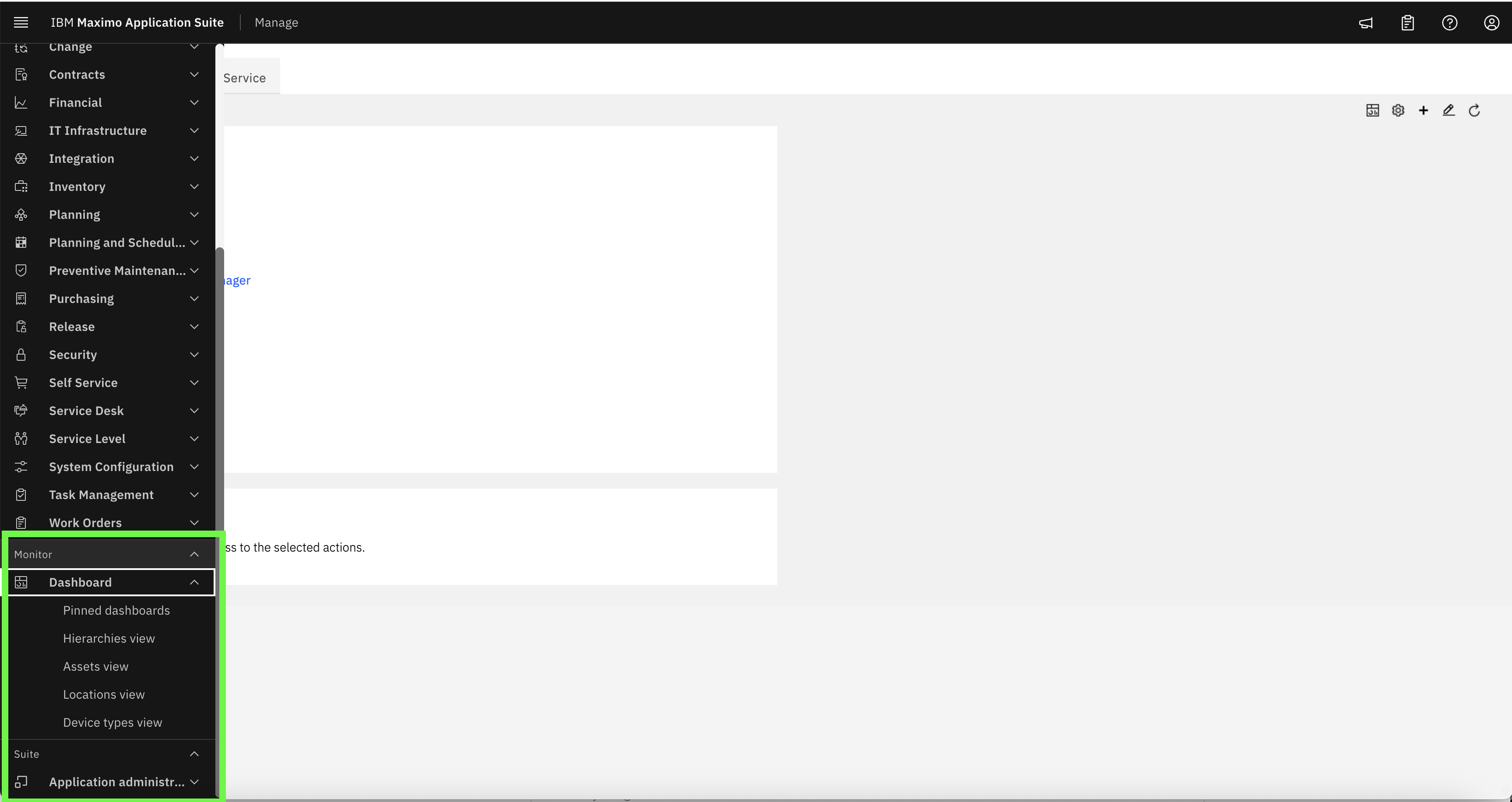

Notice that CRUD buttons (like Add/Edit/Delete) are not available, and Setup is hidden from the left menu.

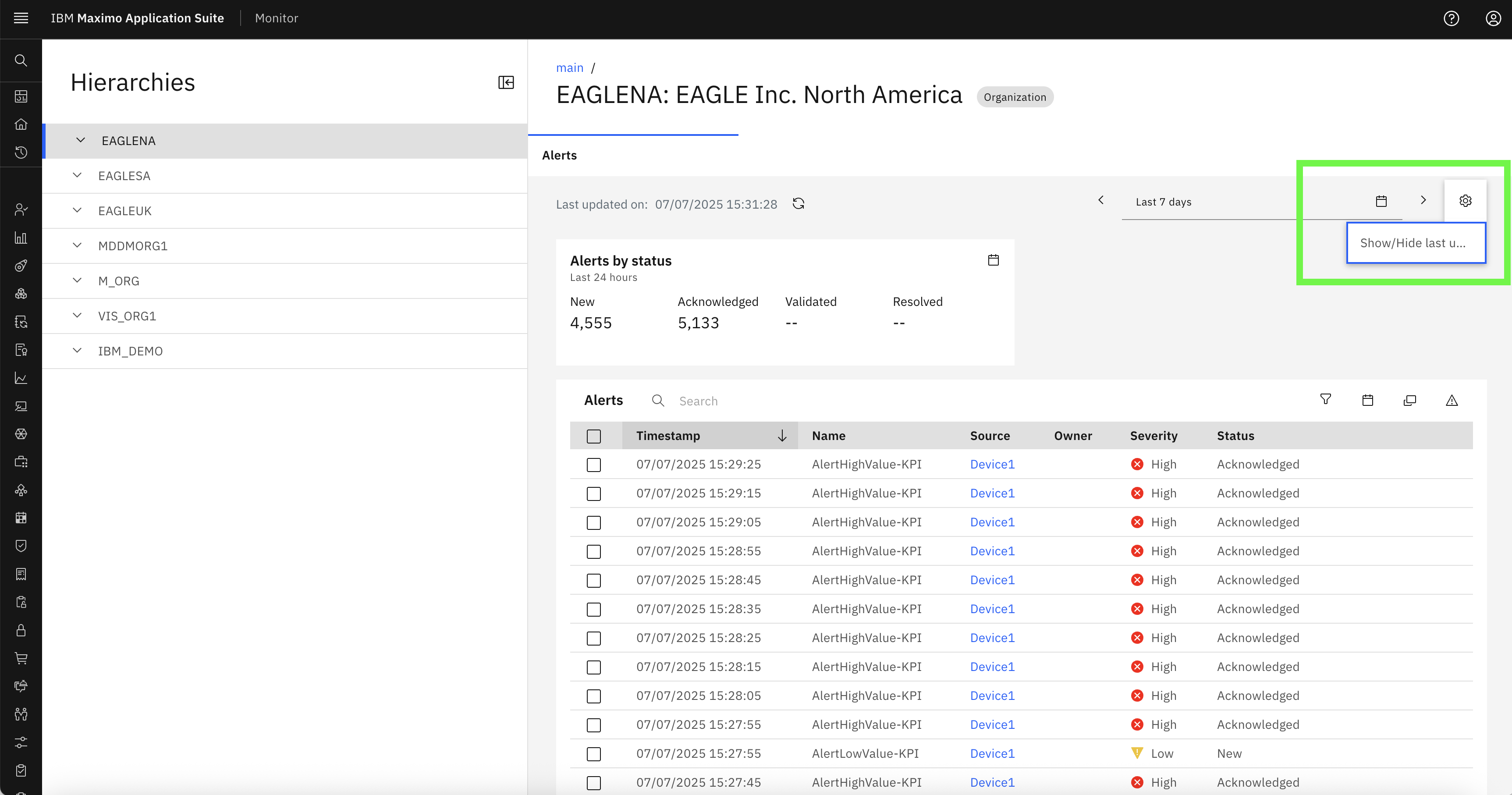

  • The User Can Only View The Dashboard and cannot make any changes:

Readonly User Dashboard
Readonly User Dashboard

Scenario 2: Normal User Access

User Info: - Username: normal_user
- Groups: MONITOR_USERS, MAXADMIN

Expected Behavior: - Can access Dashboard pages - Can perform CRUD operations on dashboards - Cannot access Setup pages

Normal User Dashboard

Tip

This role is ideal for operational users who manage dashboard data but should not modify system configurations.

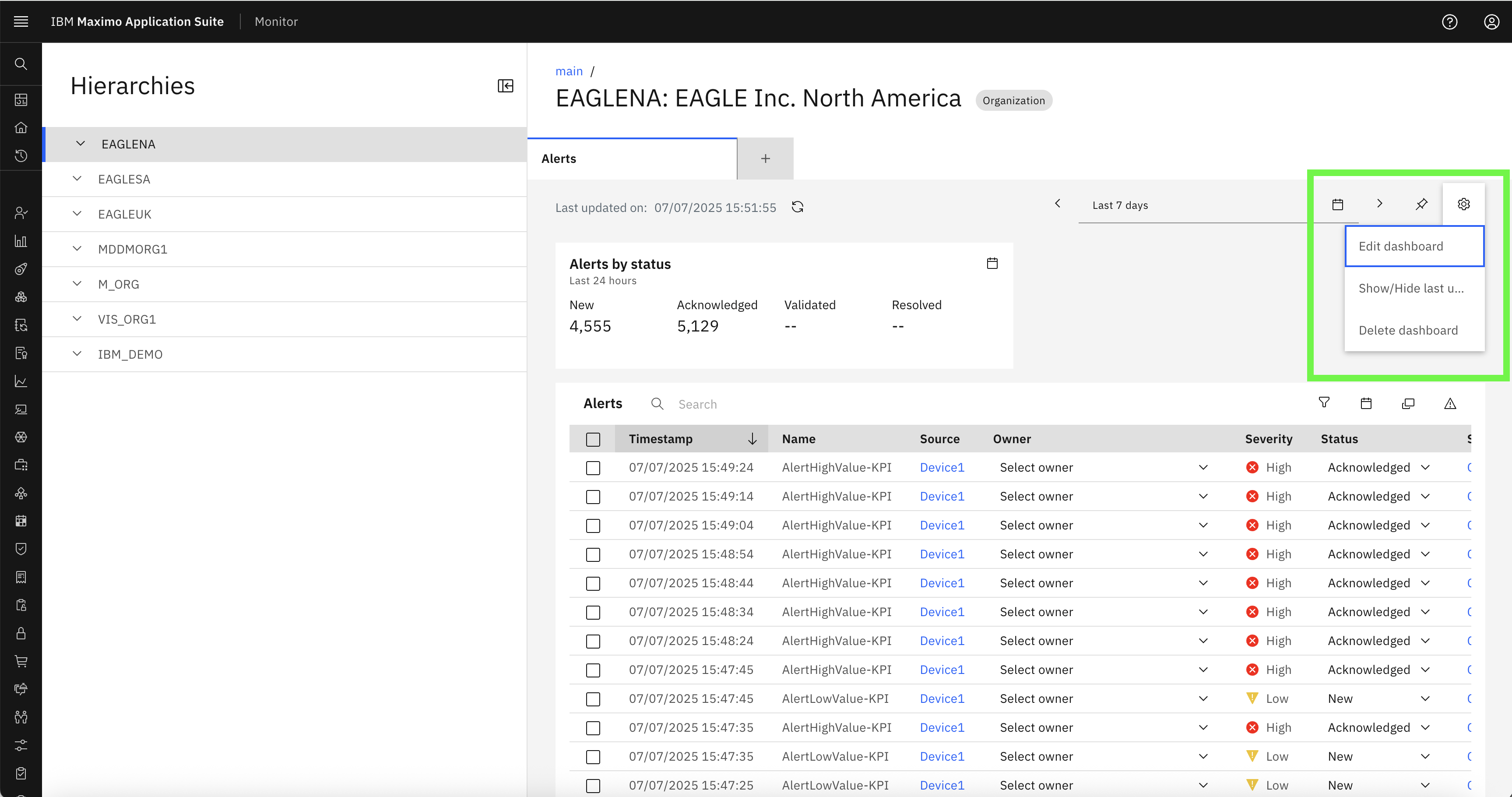

  • The user can access as well as Edit Dashboard
    Normal User Dashboard

Scenario 3: Admin User Access

User Info: - Username: admin_user
- Groups: MONITOR_ADMIN, MAXADMIN

Expected Behavior: - Full access to Dashboard and Setup - Can create/edit/delete dashboards and setup pages.

Admin User Setup Page

Note

Admins see all modules and can manage both users and system-level configurations.

  • The User can perfrom CRUD operations on the Dashboard :
    Normal User Dashboard

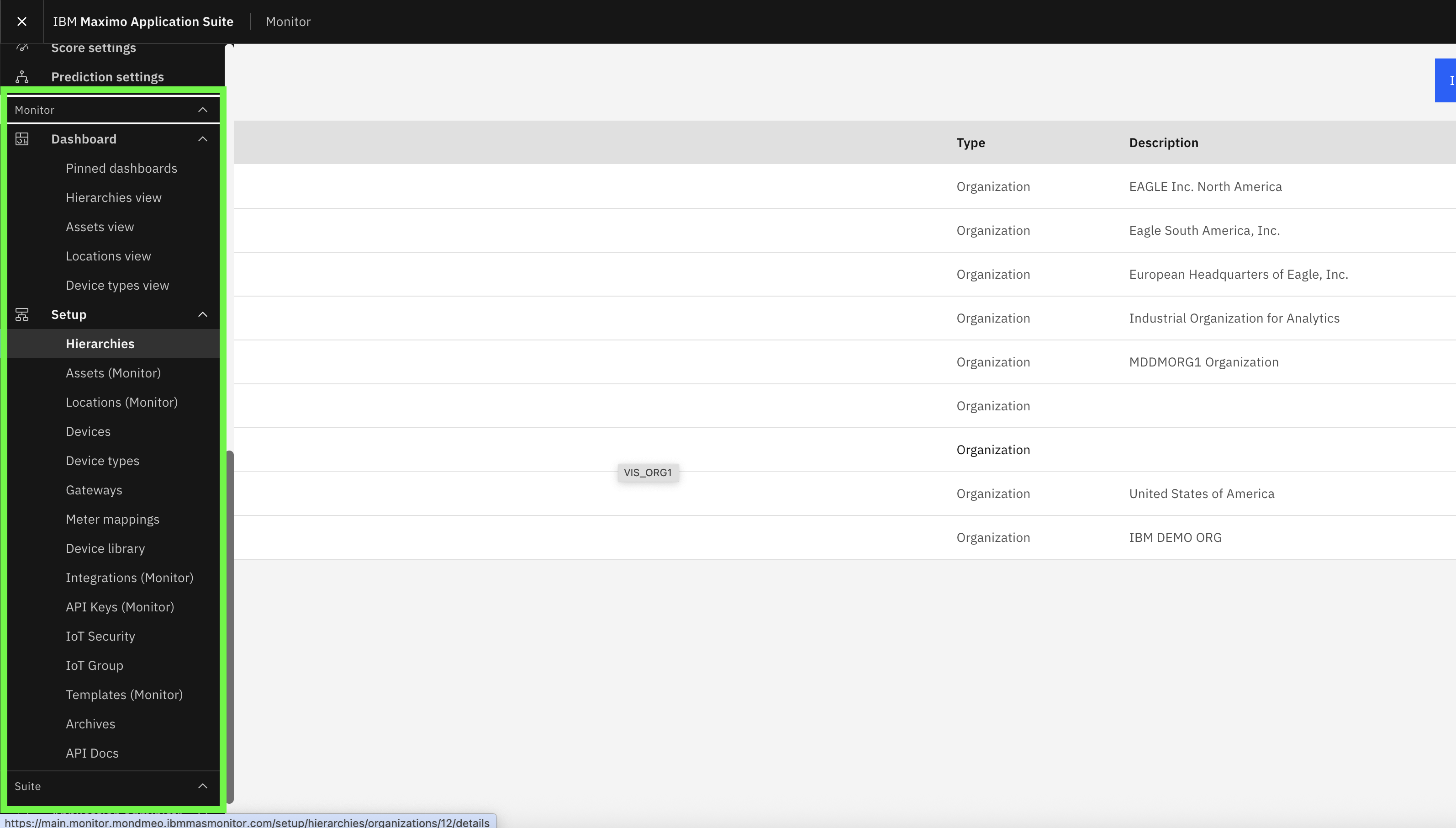

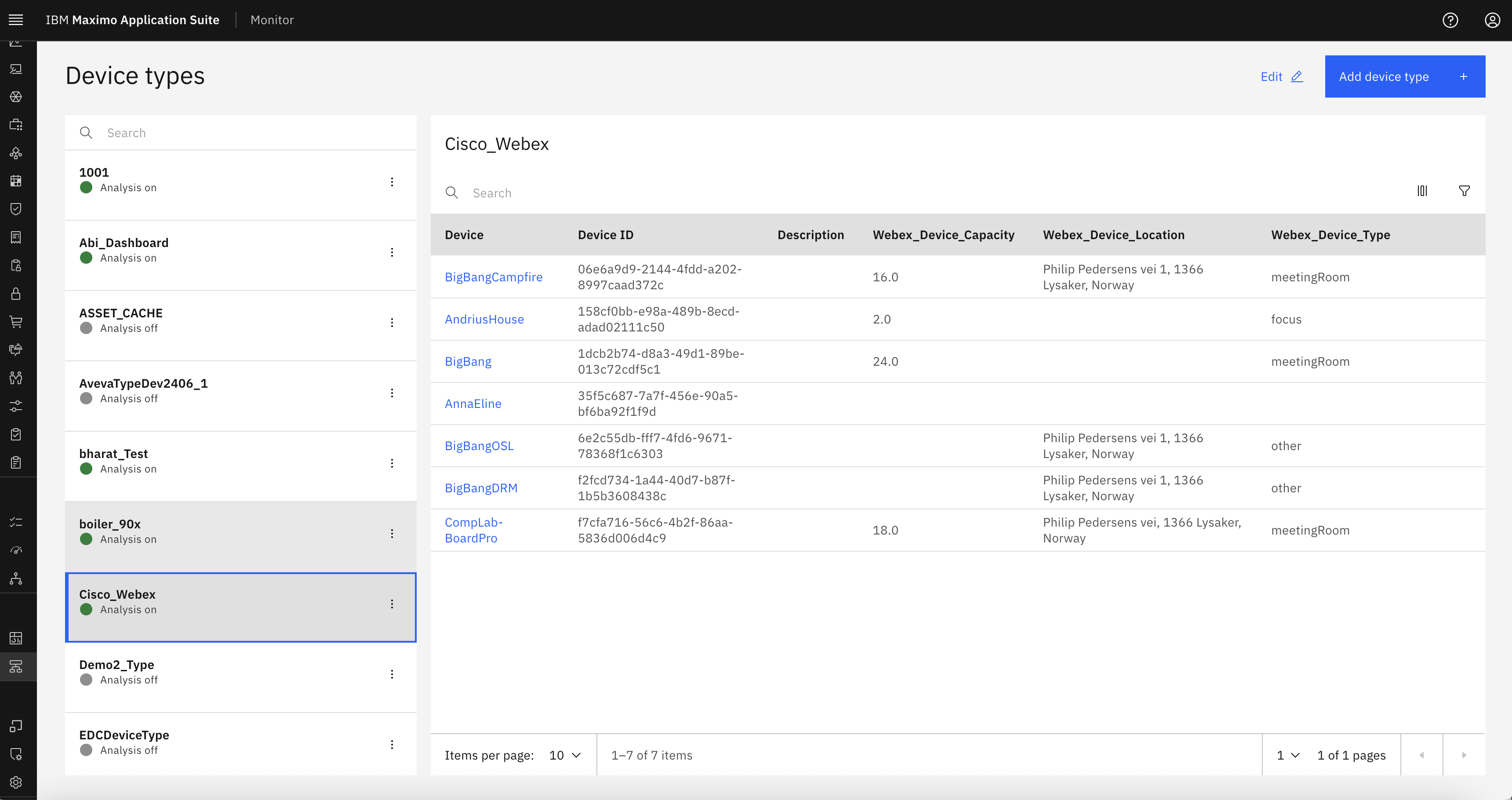

  • The User can access all the setup pages like Device Types, Integrations etc :
    Normal User Dashboard

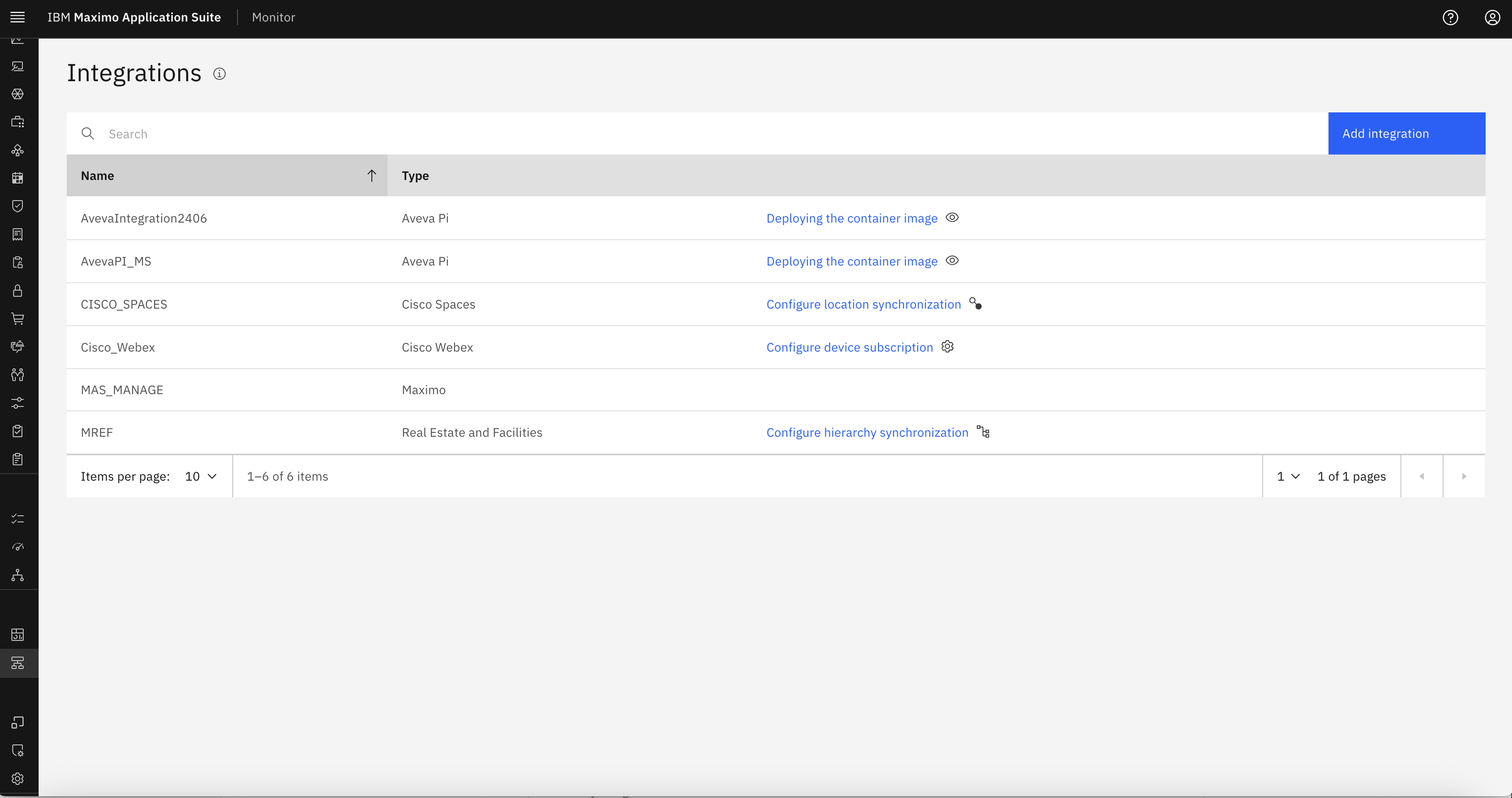

  • Integrations:
    Normal User Dashboard

Summary Comparison of out of the Box security groups.

Role Dashboard Access CRUD Operations Setup Access Assigned Groups
Readonly User ✅ View only ❌ No ❌ No MONITOR_READ_ONLY, MAXADMIN
Normal User ✅ Full access ✅ Yes ❌ No MONITOR_USERS, MAXADMIN
Admin User ✅ Full access ✅ Yes ✅ Full MONITOR_ADMIN, MAXADMIN

Congratulations!
You have successfully verified how user access behavior changes based on assigned RBAC roles.
