AlertsByOccurrencesCount

Objective

In this exercise, you will configure an AlertByOccurrencesCount to detect when a condition becomes true N times within a time window T. This frequency-based alert converts intermittent noise into meaningful pattern alerts.

What is an AlertByOccurrencesCount?

An AlertByOccurrencesCount triggers when a defined condition becomes true at least N times within a sliding or tumbling window T. This is the foundational frequency alert that detects recurring spikes or events.

Goals

  • Convert Noise to Patterns: Transform intermittent events into meaningful alerts
  • Reduce False Positives: Filter out one-off anomalies
  • Detect Recurring Issues: Identify persistent problems requiring attention

Execution Modes Supported

  • Sliding window
  • Tumbling window

Occurrence Mode

  • RISING EDGE
  • EVERY TYPE EVALUATION

Occurrence Detection:

An occurrence represents a discrete event where the configured condition becomes true.

Configuration Parameters

Parameter Type Required Default Description
condition string Yes - Boolean expression (e.g., df['temp'] > 80)
min_occurrence(N) int Yes - Minimum number of breaches required
occurrence_mode string Yes - RISING_EDGE or EVERY_TYPE_EVALUATION
time_window(T) int Yes - Time window in minutes/hours/days
window_type string Yes - SLIDING or TUMBLING
cooldown int No - Minimum time between consecutive alerts
cooldown_unit String No Minute Cooldown Unit in minutes/hours/days

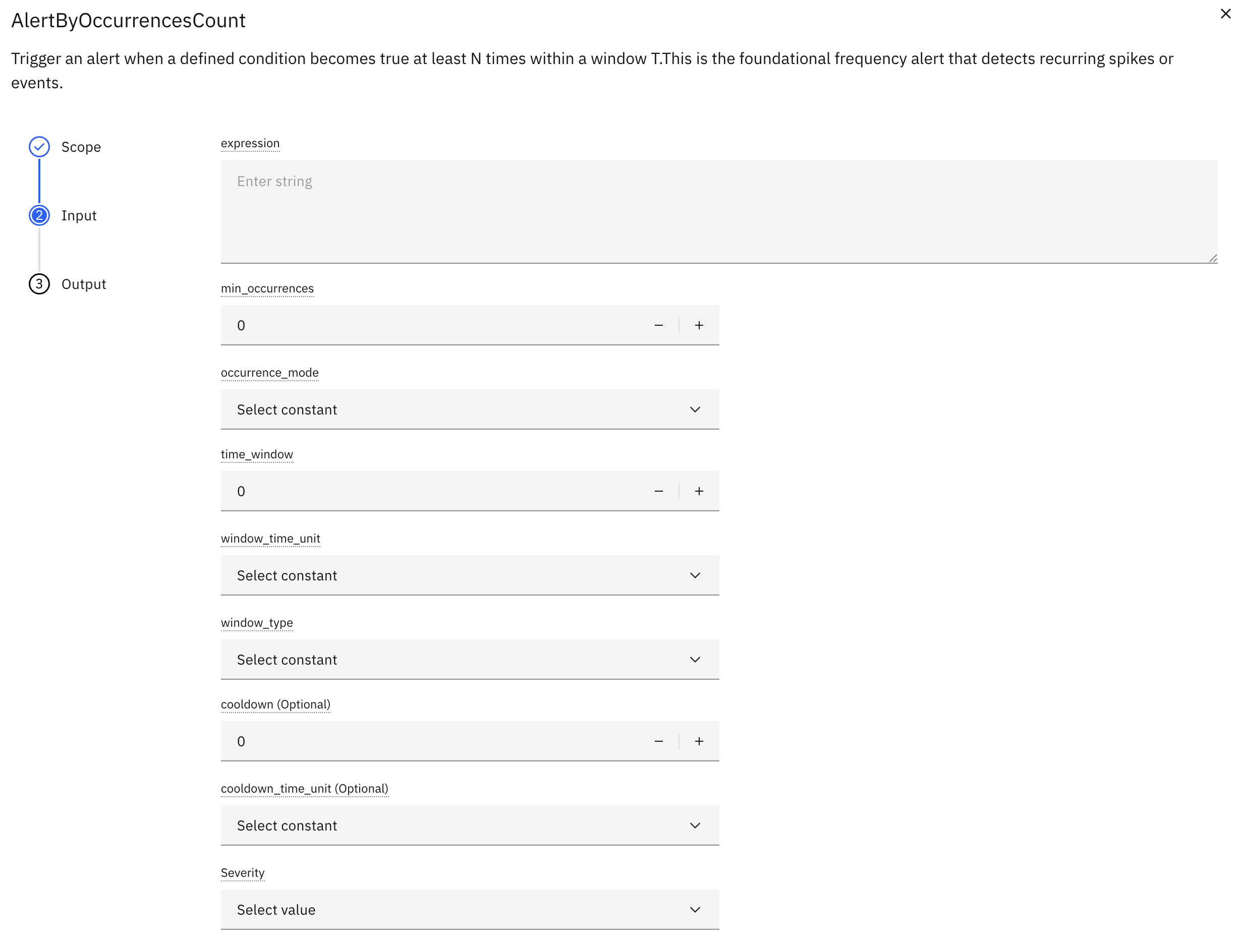

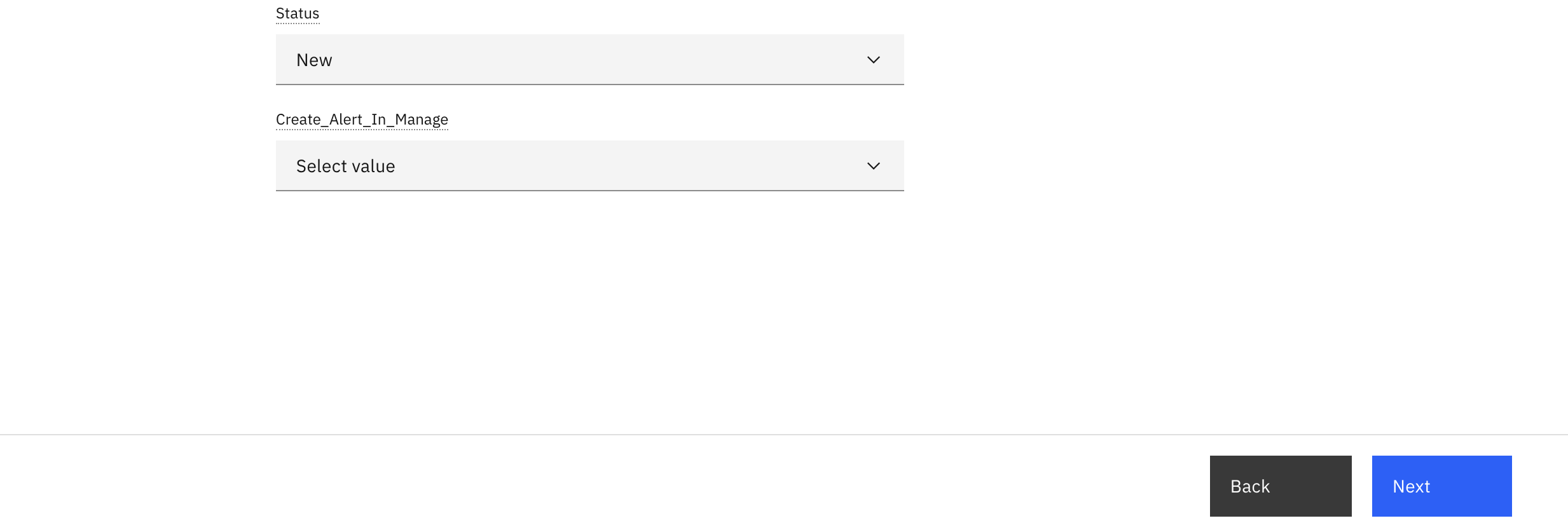

UI Configuration

n_occurrences n_occurrences

Configuration Steps

Step 1: Configure AlertsByOccurrencesCount

  1. Navigate to device type from left menu
  2. Select your device type and click Edit
  3. Navigate to the Calculated Metrics tab
  4. Click Create Calculated Metric
  5. Select AlertByOccurrencesCount from the KPI catalog

Step 2: Configure Alert Parameters

Expression:

# Temperature threshold
df['temp'] > 80

# Multiple conditions
(df['temp'] > 80) & (df['humidity'] > 70)

Occurrence Mode:

  • RISING_EDGE: Record an occurrence only when the condition transitions from false → true.
  • EVERY_EVALUATION: Record every occurrences.

Threshold(min_occurrences) (N):

Example: 5 occurrences
  • Higher N = fewer false positives, slower detection
  • Lower N = faster detection, more sensitive

Time Window (T):

Example: 10 minutes
  • Duration for counting occurrences within the evaluation window

Window Type:

  • Sliding Window:
    Continuous evaluation
    More responsive
    Better for real-time monitoring

  • Tumbling Window:
    Fixed intervals
    Better for reporting
    Clearer time boundaries

Cooldown Period:

Example: 15 minutes
  • Prevents alert fatigue
  • Allows time for corrective action

Alert Actions:

  1. select alert severity (Critical, High, Medium, Low)
  2. select alert creation status(New, Resolved, Acknowledge, validated)
  3. select create alert in manage(True, False)

Example Timeline

Occurrences Mode:

1. RISING_EDGE:

Record an occurrence only when the condition transitions from false → true.

Behavior: - If condition stays true across multiple data points, do not count additional occurrences - A new occurrence is recorded only after condition becomes false and then true again

Example:

Time Condition Occurrence Notes
t1 false
t2 true ✅ First transition: false → true
t3 true Still true, no new occurrence
t4 false
t5 true ✅ Second transition: false → true

2. EVERY_TYPE_EVALUATION:

At each event in the batch, if the condition is true, count as an occurrence.

Example:

Time Condition Occurrence Notes
t1 false
t2 true ✅ Condition is true
t3 true ✅ Condition is true
t4 false
t5 true ✅ Condition is true

Execution Modes

Sliding Window: - Continuously evaluates occurrences within a moving time window - Window moves with each batch run - More responsive to recent events

Example:

Configuration:
- Condition: temp > 80
- N = 3 occurrences
- T = 10 minutes (window size)
- Mode: EVERY_TYPE_EVALUATION

Example Timeline:

Time temp Condition Occurrence Window (10 min) Count Alert
12:00 75 false 0
12:02 85 true ✅ #1 11:52-12:02 1
12:04 78 false 11:54-12:04 1
12:06 88 true ✅ #2 11:56-12:06 2
12:08 72 false 11:58-12:08 2
12:10 90 true ✅ #3 12:00-12:10 3 🚨 Alert (Count resets to 0)
12:12 79 false 12:02-12:12 0
12:14 86 true ✅ #1 12:04-12:14 1
12:16 77 false 12:06-12:16 1
12:18 89 true ✅ #2 12:08-12:18 2
12:20 91 true ✅ #3 12:10-12:20 3 🚨 Alert (Count resets to 0)

Key Characteristics: - Window continuously slides forward
- At 12:10: Window is 12:00-12:10, contains 3 occurrences → Alert fires, count resets to 0
- At 12:12: Window is 12:02-12:12, count is 0 (reset after alert)
- At 12:14: New occurrence #1 detected, count = 1
- At 12:20: Window is 12:10-12:20, contains 3 new occurrences → Alert fires, count resets to 0
- After each alert, occurrence count clears and starts from 0
- More responsive to recent patterns

Tumbling Window: - Fixed, non-overlapping time windows - Better for reporting-like use cases - Resets at window boundaries

Example:

Configuration: - Condition: temp > 80 - N = 3 occurrences - T = 10 minutes (window size) - Mode: RISING_EDGE

Example Timeline:

Window 1: 12:00-12:10

Time temp Condition Occurrence Count in Window
12:00 75 false 0
12:02 85 true ✅ #1 1
12:04 78 false 1
12:06 88 true ✅ #2 2
12:08 72 false 2
12:10 90 true ✅ #3 3

Result: Window closes at 12:10 with 3 occurrences → 🚨 Alert Fired

Window 2: 12:10-12:20 (New window starts, count resets)

Time temp Condition Occurrence Count in Window
12:12 79 false 0
12:14 86 true ✅ #1 1
12:16 77 false 1
12:18 89 true ✅ #2 2
12:20 84 true 2

Note

The temperature exceeded 80 at 12:20, this occurrence was not counted because the window type is rising edge. Only transitions where the condition changes from false → true are considered valid events

Result: Window closes at 12:20 with 2 occurrences → ❌ No Alert (< 3)

Window 3: 12:20-12:30 (New window starts, count resets)

Time temp Condition Occurrence Count in Window
12:22 87 true ✅ #1 1
12:24 78 false 1
12:26 91 true ✅ #2 2
12:28 75 false 2
12:30 88 true ✅ #3 3

Result: Window closes at 12:30 with 3 occurrences → 🚨 Alert Fired

Key Characteristics:
- Fixed, non-overlapping windows
- Count resets at window boundaries
- Occurrences from previous windows don't carry over
- Better for periodic reporting
- Clearer time boundaries
- Less frequent alerts compared to sliding window

Comparison: Sliding vs Tumbling

Aspect Sliding Window Tumbling Window
Window Movement Continuous, moves with each evaluation Fixed intervals, resets at boundaries
Occurrence Carryover Yes, occurrences can span multiple evaluations No, count resets each window
Responsiveness High, detects patterns quickly Lower, waits for window to close
Alert Frequency Can be higher Typically lower
Use Case Real-time monitoring, immediate detection Periodic reporting, scheduled analysis

When to Use Each Mode

Use Sliding Window When: - You need immediate detection of recurring issues - Real-time monitoring is critical - Pattern detection should be continuous - Example: Detecting repeated API failures, monitoring critical sensors

Use Tumbling Window When: - You need periodic summaries or reports - Clear time boundaries are important - You want to avoid alert overlap - Example: Hourly quality checks, daily performance reports, shift-based monitoring

Backtrack Support

AlertsByOccurrencesCount supports backtracking to handle historical data scenarios, including data corrections and retroactive alert resolution.

Use Case 1: Resolving Alerts After Data Correction

Scenario:
1. Sensor sends incorrect high values, triggering an alert
2. AlertsByOccurrencesCount fires (Status: New)
3. Corrected data is uploaded via CSV file upload
4. Pipeline runs in backtrack mode
5. Alert status automatically updates from New to Resolved

How It Works

When you upload corrected historical data:

  1. Upload Corrected Data: Use CSV file upload to replace incorrect values
  2. Run Pipeline in Backtrack: Execute the pipeline in backtrack mode for the affected time range
  3. Re-evaluation: The system re-evaluates the condition with corrected data
  4. Alert Status Update: If occurrences no longer meet threshold N, alert status changes to Resolved

Example: Data Value Correction

Configuration: - Condition: temp > 80 - N = 3 occurrences - T = 10 minutes - Mode: RISING_EDGE

Original Data (Incorrect):

Time Original temp Condition Occurrence Count
12:00 75 false 0
12:02 95 true ✅ #1 1
12:04 92 true 1
12:06 88 true 1
12:08 78 false 1
12:10 91 true ✅ #2 2
12:12 77 false 2
12:14 89 true ✅ #3 3

Result: Alert fires at 12:14 (Status: New)

Corrected Data (After CSV Upload):

Time Corrected temp Condition Occurrence Count
12:00 75 false 0
12:02 85 true ✅ #1 1
12:04 76 false 1
12:06 79 false 1
12:08 78 false 1
12:10 77 false 1
12:12 77 false 1
12:14 79 false 1

Result: After backtrack, count = 1 (< N=3), Alert status changes to Resolved

Use Case 2: Creating Alerts After Adding Missing Events

Scenario:
1. Some sensor readings were not captured initially
2. No alert was triggered
3. Missing events are added via CSV file upload
4. Pipeline runs in backtrack mode
5. New alert is created (Status: New)

Example: Adding Missing Events

Original Data (Incomplete):

Time temp Condition Occurrence Count
12:00 75 false 0
12:10 77 false 0
12:20 79 false 0

Result: No alert (insufficient data points)

After Adding Missing Events:

Time temp Condition Occurrence Count
12:00 75 false 0
12:02 85 true ✅ #1 1
12:04 78 false 1
12:06 88 true ✅ #2 2
12:08 77 false 2
12:10 90 true ✅ #3 3
12:12 77 false 3
12:14 79 false 3
12:16 78 false 3
12:18 79 false 3
12:20 79 false 3

Result: After backtrack, count = 3 (≥ N), New alert created at 12:10

Benefits

  • Data Integrity: Alerts reflect accurate data after corrections
  • Retroactive Analysis: Historical patterns are correctly identified
  • Automatic Management: No manual alert closure needed

Summary

You have learned:

✅ occurrence-based alert concepts
✅ Configure condition expressions and occurrence modes
✅ Set appropriate N, T, and cooldown parameters
✅ Handle sliding window evaluations
✅ Handle Tumbling window evaluations
✅ Understand post-alert reset events counts
✅ Support backtrack scenarios

Next Steps

Proceed to Exercise 3: Create Alert in Manage.

Congratulations! You have successfully configured AlertsByOccurrencesCount for frequency-based monitoring.
