Introduction: Provisionning A Kuberntese Infrastructure

This document describes how to provision the back-end infrastructure for your project.

As a prerequisite, Terraform should be installed on the machine used for the following operations.

The infrastructure consists on;

  • A "Virtual Private Cloud" (VPC) on IBM Cloud.
  • Either an OpenShift or an IKS cluster inside the VPC with all the requirements (e.g.: subnets, cidr...).
  • A Database for PostgreSQL managed service (to be implemented).
  • An instance of AppID service (to be implemented).

Step 1: Setting up the infrastructure - OpenShift Cluster

The steps to follow to provision the infrastrure are,

Step 1.1: Clone the following Github repository
git clone https://github.com/cloud-native-toolkit/iascable`
  • Go to the cloned folder;
cd iascable
  • Install the required modules and packages
npm install and npm run build
Step 1.2: Create the examples/baseline-openshift.yaml Yaml file
apiVersion: cloud.ibm.com/v1alpha1
kind: BillOfMaterial
metadata:
 name: baseline-openshift
spec:
 modules:

  - name: ibm-resource-group
  - name: ibm-vpc
  - name: ibm-vpc-gateways
  - name: ibm-vpc-subnets
    alias: cluster-subnets
    variables:
    - name: subnet_count
      value: 1
    - name: subnet_label
      value: cluster
  - name: ibm-ocp-vpc
    dependencies:
    - name: subnets
      ref: cluster-subnets
Step 1.3: Login into IBM Cloud
  • Log into IBM Cloud

ibmcloud login
or
ibmcloud login --sso

Step 1.4: Generate the required YAML file
./iascable build -i ./examples/baseline-openshift.yaml
Step 1.5: Set Terraform and properties variables
  • Edit the "/iascable/output/baseline-openshift.auto.tfvars" and enter values for the following parameters;
  • resource_group_name
  • ibmcloud_api_key
  • region
  • name_prefix
  • namespace_name
## resource_group_name: The name of the resource group
resource_group_name="your-resource-group-name"
## region: The IBM Cloud region where the cluster will be/has been installed.
region="eu-de" (or other IBM Cloud regions)
## ibmcloud_api_key: The IBM Cloud api token
ibmcloud_api_key="your-ibm-cloud-api-key"
## namespace_name: The namespace that should be created
namespace_name="your-namesspace-name"

​ Save and quit the file.

  • Edit the "credential.properties" file and complete it as the following;
# Add the values for the Credentials to access the IBM Cloud
# Instructions to access this information can be found in the README.MD
classic.username="your-ibm-cloud-account-ID"
classic.api.key="your-ibm-cloud-classic-api-key"
ibmcloud.api.key="your-ibm-cloud-api-key"

# Authentication to OCP can either be performed with username/password or token
# If token is provided it will take precedence
login.user=""
login.password=""
login.token=""
server.url=""

Save and quit the file.

Step 1.6: Provision the VPC & OpenShift cluster with Terraform
  • Open a terminal window and run the following commands:
    cd output/baseline-openshift/terraform
    terraform init
    terraform plan
    terraform apply

Step 2: Setting up the infrastructure - IKS (IBM Kubernetes Services) Cluster

The steps to follow to provision the infrastrure are,

Step 2.1: Clone the following Github repository
git clone https://github.com/cloud-native-toolkit/iascable`
  • Go to the cloned folder;
cd iascable
  • Install the required modules and packages
npm install and npm run build
Step 2.2: Create the examples/baseline-iks.yaml Yaml file;
apiVersion: cloud.ibm.com/v1alpha1
kind: BillOfMaterial
metadata:
 name: baseline-openshift
spec:
 modules:

  - name: ibm-resource-group
  - name: ibm-vpc
  - name: ibm-vpc-gateways
  - name: ibm-vpc-subnets
    alias: cluster-subnets
    variables:
    - name: subnet_count
      value: 1
    - name: subnet_label
      value: cluster
  - name: ibm-ocp-vpc
    dependencies:
    - name: subnets
      ref: cluster-subnets
Step 2.3: Log into IBM Cloud

ibmcloud login --sso
or
ibmcloud login

Step 2.4: Generate the required YAML file
./iascable build -i ./examples/baseline-iks.yaml
Step 2.5: Set Terraform and properties variables
  • Edit the "/iascable/output/baseline-iks.auto.tfvars" and enter values for the following parameters;
  • resource_group_name
  • ibmcloud_api_key
  • region
## resource_group_name: The name of the resource group
resource_group_name="your-resource-group-name"
## region: The IBM Cloud region where the cluster will be/has been installed.
region="eu-de" (or other IBM Cloud regions)
## ibmcloud_api_key: The IBM Cloud api token
ibmcloud_api_key="your-ibm-cloud-api-key"

​ Save and quit the file.

  • Edit the "credential.properties" file and complete it as the following;
# Add the values for the Credentials to access the IBM Cloud
# Instructions to access this information can be found in the README.MD
classic.username="your-ibm-cloud-account-ID"
classic.api.key="your-ibm-cloud-classic-api-key"
ibmcloud.api.key="your-ibm-cloud-api-key"

# Authentication to OCP can either be performed with username/password or token
# If token is provided it will take precedence
login.user=""
login.password=""
login.token=""
server.url=""

Save and quit the file.

Step 2.6: Provision the VPC & IKS cluster with Terraform
    cd output/baseline-openshift/terraform
    terraform init
    terraform plan
    terraform apply

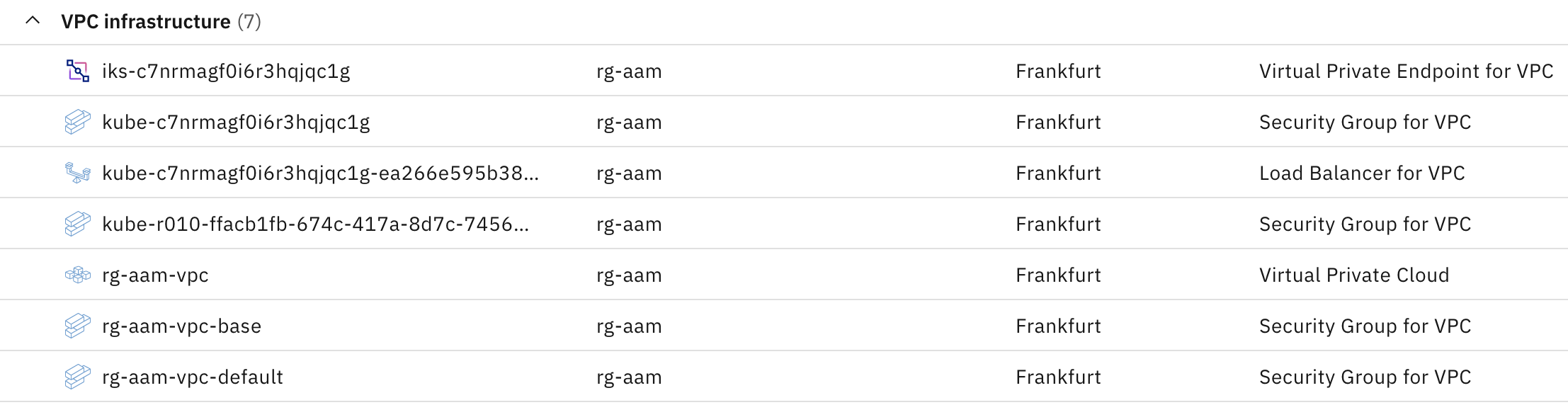

VPC-Infrastructure-by-Terraform-1

  • VPC & Infrastructure provisioned by Terraform

VPC-Infrastructure-by-Terraform-2

  • VPC features

VPC-Infrastructure-by-Terraform-Subnets

  • VPC subnets

IKS-Infrastructure-by-Terraform-1

  • IKS cluster provisoned with Terraform

Step 3: Optional - Changing some default variables

Step 3.1: Set the number of Worker Pools and Worker Nodes

In both OpenShift and IKS, the defaut configuration provides a cluster with 3 worker pools and 3 worker nodes per pool. If a smaller cluster is needed, for OpenShift the default value can be changed in sub folder "../baseline-openshift/terraform/variables.tf" through the "worker-count" variable.

variable "worker_count" {
  type = number
  description = "The number of worker nodes that should be provisioned for classic infrastructure"
  default = 3
}

For IKS the default value can be changed in sub folder "../baseline-iks/terraform/variables.tf" through the "worker-count" same variable.

Step 3.2: Changing the default cluster flavor

For both OCP/IKS, the default values for the cluster falvor are set in the same "variables.tf" as mentioned above. For a change of the cluster flavor, modify the "cluster_flavor" variable (https://cloud.ibm.com/docs/containers?topic=containers-clusters).

variable "cluster_flavor" {
  type = string
  description = "The machine type that will be provisioned for classic infrastructure"
  default = "bx2.4x16"
}

To obtain the list of available flavors for IKS clusters proceed as follows;

ibmcloud login (or ibmcloud login --sso if not done already)

ibmcloud target -g <resource_group_name>

ibmcloud ks locations

Example output:
❯ ibmcloud ks locations
VPC Infrastructure Zones

Zone         Metro                 Country               Geography
eu-gb-3      London (lon)          United Kingdom (uk)   Europe (eu)
jp-tok-2     Tokyo (tok)           Japan (jp)            Asia Pacific (ap)
eu-de-1      Frankfurt (fra)       Germany (de)          Europe (eu)
us-east-3    Washington DC (wdc)   United States (us)    North America (na)
ca-tor-3     Toronto (tor)         Canada (ca)           North America (na)
br-sao-3     Sao Paulo (sao)       Brazil (br)           South America (sa)
ca-tor-2     Toronto (tor)         Canada (ca)           North America (na)
jp-osa-2     Osaka (osa)           Japan (jp)            Asia Pacific (ap)
us-east-2    Washington DC (wdc)   United States (us)    North America (na)
au-syd-3     Sydney (syd)          Australia (au)        Asia Pacific (ap)
au-syd-2     Sydney (syd)          Australia (au)        Asia Pacific (ap)
jp-osa-1     Osaka (osa)           Japan (jp)            Asia Pacific (ap)
br-sao-2     Sao Paulo (sao)       Brazil (br)           South America (sa)
eu-gb-1      London (lon)          United Kingdom (uk)   Europe (eu)
eu-de-3      Frankfurt (fra)       Germany (de)          Europe (eu)
jp-tok-3     Tokyo (tok)           Japan (jp)            Asia Pacific (ap)
au-syd-1     Sydney (syd)          Australia (au)        Asia Pacific (ap)
br-sao-1     Sao Paulo (sao)       Brazil (br)           South America (sa)
jp-osa-3     Osaka (osa)           Japan (jp)            Asia Pacific (ap)
us-south-2   Dallas (dal)          United States (us)    North America (na)
jp-tok-1     Tokyo (tok)           Japan (jp)            Asia Pacific (ap)
ca-tor-1     Toronto (tor)         Canada (ca)           North America (na)
eu-gb-2      London (lon)          United Kingdom (uk)   Europe (eu)
us-east-1    Washington DC (wdc)   United States (us)    North America (na)
us-south-1   Dallas (dal)          United States (us)    North America (na)
us-south-3   Dallas (dal)          United States (us)    North America (na)
eu-de-2      Frankfurt (fra)       Germany (de)          Europe (eu)

Classic Infrastructure Zones

Zone    Metro                   Country               Geography
mil01   Milan (mil)             Italy (it)            Europe (eu)
osl01   Oslo (osl)              Norway (no)           Europe (eu)
osa23   Osaka (osa)†            Japan (jp)            Asia Pacific (ap)
lon06   London (lon)†           United Kingdom (uk)   Europe (eu)
lon02   London (lon)†           United Kingdom (uk)   Europe (eu)
che01   Chennai (che)           India (in)            Asia Pacific (ap)
lon04   London (lon)†           United Kingdom (uk)   Europe (eu)
seo01   Seoul (seo)             Korea (kr)            Asia Pacific (ap)
dal12   Dallas (dal)†           United States (us)    North America (na)
dal10   Dallas (dal)†           United States (us)    North America (na)
wdc04   Washington DC (wdc)†    United States (us)    North America (na)
osa21   Osaka (osa)†            Japan (jp)            Asia Pacific (ap)
osa22   Osaka (osa)†            Japan (jp)            Asia Pacific (ap)
sjc03   San Jose (sjc)          United States (us)    North America (na)
mex01   Mexico City (mex-cty)   Mexico (mex)          North America (na)
syd04   Sydney (syd)†           Australia (au)        Asia Pacific (ap)
hkg02   Hong Kong (hkg-mtr)     Hong Kong (hkg)       Asia Pacific (ap)
mon01   Montreal (mon)          Canada (ca)           North America (na)
tok04   Tokyo (tok)†            Japan (jp)            Asia Pacific (ap)
par01   Paris (par)             France (fr)           Europe (eu)
syd01   Sydney (syd)†           Australia (au)        Asia Pacific (ap)
wdc07   Washington DC (wdc)†    United States (us)    North America (na)
ams03   Amsterdam (ams)         Netherlands (nl)      Europe (eu)
fra04   Frankfurt (fra)†        Germany (de)          Europe (eu)
tor01   Toronto (tor)           Canada (ca)           North America (na)
fra05   Frankfurt (fra)†        Germany (de)          Europe (eu)
sjc04   San Jose (sjc)          United States (us)    North America (na)
tok02   Tokyo (tok)†            Japan (jp)            Asia Pacific (ap)
hou02   Houston (hou)           United States (us)    North America (na)
sao01   Sao Paulo (sao)         Brazil (br)           South America (sa)
lon05   London (lon)†           United Kingdom (uk)   Europe (eu)
tok05   Tokyo (tok)†            Japan (jp)            Asia Pacific (ap)
wdc06   Washington DC (wdc)†    United States (us)    North America (na)
syd05   Sydney (syd)†           Australia (au)        Asia Pacific (ap)
dal13   Dallas (dal)†           United States (us)    North America (na)
sng01   Singapore (sng-mtr)     Singapore (sng)       Asia Pacific (ap)
fra02   Frankfurt (fra)†        Germany (de)          Europe (eu)

† denotes the zone is in a multizone region.

>>ibmcloud ks flavors --zone eu-de-1

For more information about these flavors, see 'https://ibm.biz/flavors'
Name           Cores   Memory   Network Speed   OS             Server Type   Storage   Secondary Storage   Flavor Class   Provider
bx2.16x64      16      64GB     16Gbps          UBUNTU_18_64   virtual       100GB     0B                  bx2            vpc-gen2
bx2.2x8†       2       8GB      4Gbps           UBUNTU_18_64   virtual       100GB     0B                  bx2            vpc-gen2
bx2.32x128     32      128GB    16Gbps          UBUNTU_18_64   virtual       100GB     0B                  bx2            vpc-gen2
bx2.48x192     48      192GB    16Gbps          UBUNTU_18_64   virtual       100GB     0B                  bx2            vpc-gen2
bx2.4x16       4       16GB     8Gbps           UBUNTU_18_64   virtual       100GB     0B                  bx2            vpc-gen2
bx2.8x32       8       32GB     16Gbps          UBUNTU_18_64   virtual       100GB     0B                  bx2            vpc-gen2
cx2.16x32      16      32GB     16Gbps          UBUNTU_18_64   virtual       100GB     0B                  cx2            vpc-gen2
cx2.2x4†       2       4GB      4Gbps           UBUNTU_18_64   virtual       100GB     0B                  cx2            vpc-gen2
cx2.32x64      32      64GB     16Gbps          UBUNTU_18_64   virtual       100GB     0B                  cx2            vpc-gen2
cx2.48x96      48      96GB     16Gbps          UBUNTU_18_64   virtual       100GB     0B                  cx2            vpc-gen2
cx2.4x8†       4       8GB      8Gbps           UBUNTU_18_64   virtual       100GB     0B                  cx2            vpc-gen2
cx2.8x16       8       16GB     16Gbps          UBUNTU_18_64   virtual       100GB     0B                  cx2            vpc-gen2
mx2.128x1024   128     1024GB   16Gbps          UBUNTU_18_64   virtual       100GB     0B                  mx2            vpc-gen2
mx2.16x128     16      128GB    16Gbps          UBUNTU_18_64   virtual       100GB     0B                  mx2            vpc-gen2
mx2.2x16†      2       16GB     4Gbps           UBUNTU_18_64   virtual       100GB     0B                  mx2            vpc-gen2
mx2.32x256     32      256GB    16Gbps          UBUNTU_18_64   virtual       100GB     0B                  mx2            vpc-gen2
mx2.48x384     48      384GB    16Gbps          UBUNTU_18_64   virtual       100GB     0B                  mx2            vpc-gen2
mx2.4x32       4       32GB     8Gbps           UBUNTU_18_64   virtual       100GB     0B                  mx2            vpc-gen2
mx2.64x512     64      512GB    16Gbps          UBUNTU_18_64   virtual       100GB     0B                  mx2            vpc-gen2
mx2.8x64       8       64GB     16Gbps          UBUNTU_18_64   virtual       100GB     0B                  mx2            vpc-gen2

Put the desired flavor in the file.

For the OpenShift clusters the command is (https://cloud.ibm.com/docs/containers?topic=containers-clusters);

ibmcloud oc flavors --zone ZONE --provider (classic | vpc-gen2) [--show-storage] [--output json] [-q]

Example:
ibmcloud oc flavors --zone us-south-1 --provider vpc-gen2
