Deploy vnext Version and Apply Traffic Shifting¶

Did you notice that the Fibonacci sequence started with 1? Many would argue that the sequence should actually start with 0. There's a vnext version of the application that starts the sequence with 0 instead of 1. This container image has been built, deployed to dockerhub, and tagged as vnext. We'll deploy that as v2 of our app, and then route a small percentage of the traffic to it.

Traffic shifting

Update First Revision Name¶

When we first deployed our application, we didn't provide a revision name, so Knative assigned a random revision name, something like fib-knative-lhghx-1. Let's give the service the revision name fib-knative-one since in this version of the application the sequence begins with one. Naming our own revisions can be helpful for readability, but it isn't required. We'll later use this revision name to route traffic between two different revisions.
```
kn service update fib-knative --revision-name fib-knative-one
```

Deploy vnext¶

Let's deploy the next version of our application, where the Fibonacci sequence begins with 0. We will again deploy from a docker image on dockerhub.
```
 kn service update fib-knative --image docker.io/ibmcom/fib-knative:vnext --revision-name fib-knative-zero
```
First, notice that this revision is named fib-knative-zero, since the Fibonacci sequence will now start with zero. You can see that we're using the vnext version of our application.

Let's see the details for our Service, again using kn service describe

kn service describe fib-knative

Example output:

Name:       fib-knative
Namespace:  default
Age:        1m
URL:        http://fib-knative-default.bmv-dev-16-5290c8c8e5797924dc1ad5d1b85b37c0-0000.us-south.containers.appdomain.cloud

Revisions:
  100%  @latest (fib-knative-zero) [2] (9s)
        Image:  docker.io/ibmcom/fib-knative:vnext (pinned to c13569)

Conditions:
  OK TYPE                   AGE REASON
  ++ Ready                   5s
  ++ ConfigurationsReady     6s
  ++ RoutesReady             5s

We can see that our latest revision (fib-knative-zero) has 100% of the traffic being routed to it.

We can try out the application by curling the URL. We should see that the sequence now starts with zero.
```
curl $MY_APP_URL/5
```
Expected Output:
```
[0, 1, 1, 2, 3]
```

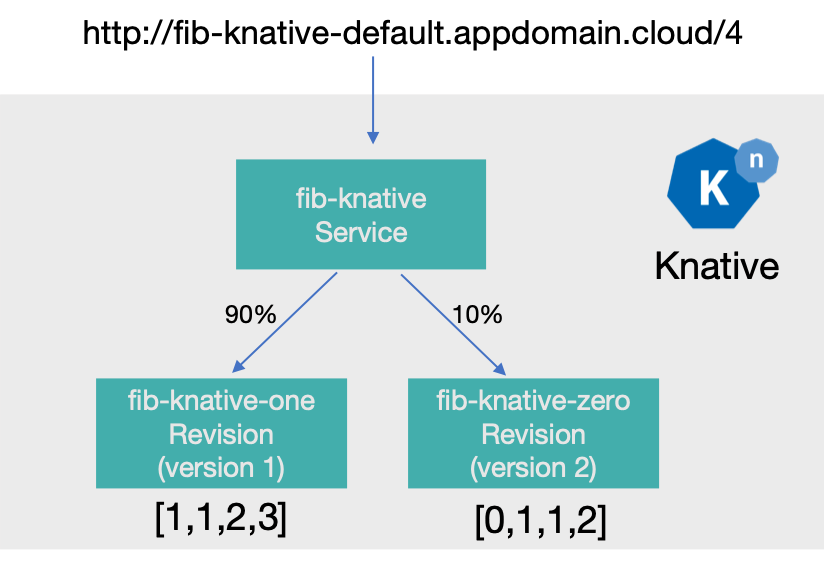

What if we didn't want 100% of our traffic going to this new revision? Maybe we want to slowly roll users over from our old version to the new version, or do some A/B testing of the new version to see what users prefer. Let's update the service to send 10% of the traffic to our new revision (fib-knative-zero), and 90% to the old revision (fib-knative-one)
```
kn service update fib-knative --traffic fib-knative-zero=10 --traffic fib-knative-one=90
```

Again, we can use kn service describe to see these changes. Notice the Revisions section. You can see that 10% of the traffic will be sent to fib-knative-zero, and 90% of the traffic will be sent to fib-knative-one.

kn service describe fib-knative

Expected Output:

Revisions:
  10%  fib-knative-zero (current @latest) [2] (58m)
        Image:  docker.io/ibmcom/fib-knative:vnext (pinned to c13569)
  90%  fib-knative-one [1] (59m)
        Image:  docker.io/ibmcom/fib-knative (pinned to 9eac25)

Let's run some load against the app, just requesting the first number in the Fibonacci sequence so that we can clearly see which revision is being called.
```
while sleep 0.5; do curl "$MY_APP_URL/1"; done
```
Expected Output:
```
[1][1][0][1][1][1][1][1][1][1][1]
```
We should see that the curl requests are routed approximately 90/10 between the two revisions. Let's kill this process using ctrl + c.

Congratulations! You've deployed two versions of the fib-knative application, and then updated the rollout percentage of your application.
