CI/CD

Enable Continuous Integration and Continuous Delivery for your Operator Collections.

Using GitHub Workflow Actions for Deployment

You can use GitHub Workflows to automate the Operator Collection signing process. Workflow files are written in YAML and should be placed in the .github/workflows directory of your repository.

Create a local git repository at the root of your Operator Collection workspace, if you haven’t already.
Create a file called release.yml inside your .github/workflows directory. If the directory does not exist, create it.

Copy the following YAML code into your .github/workflows/release.yml file then push your committed changes to GitHub. Its function is to build, sign, and upload your Operator Collection signature files at release.

  name: Release

on:
  push: # this workflow is triggered when tags are pushed to GitHub
    tags:
      - "**"

permissions:
  contents: write

jobs:
  release:
    name: Release
    runs-on: ubuntu-latest

    steps:
      - name: Determine tag
        run: "echo \"RELEASE_TAG=${GITHUB_REF#refs/tags/}\" >> $GITHUB_ENV"

      - name: Create release
        uses: actions/github-script@v7
        with:
          github-token: "${{ secrets.GITHUB_TOKEN }}"
          script: |
            try {
              const response = await github.rest.repos.createRelease({
                draft: false,
                generate_release_notes: true,
                name: process.env.RELEASE_TAG,
                owner: context.repo.owner,
                prerelease: false,
                repo: context.repo.repo,
                tag_name: process.env.RELEASE_TAG,
              });
              core.exportVariable('RELEASE_ID', response.data.id);
              core.exportVariable('RELEASE_UPLOAD_URL', response.data.upload_url);
            } catch (error) {
              core.setFailed(error.message);
            }

  publish:
    name: Publish
    needs: release
    runs-on: ubuntu-latest
    environment: release

    env:
      FULL_COLLECTION_PATH: "${GITHUB_WORKSPACE}/${{ vars.COLLECTION_PATH }}"

    steps:
      - name: Determine tag
        run: "echo \"RELEASE_TAG=${GITHUB_REF#refs/tags/}\" >> $GITHUB_ENV"

      - name: Check-out repository
        uses: actions/checkout@v4
        with:
          fetch-depth: 0
          ref: ${{ env.RELEASE_TAG }}

      # install, remove, and modify dependencies as needed

      - name: Install Ansible
        run: pip install ansible==8.0.0

      - name: Install Operator Collection SDK
        run: ansible-galaxy collection install git+https://github.com/IBM/operator-collection-sdk.git#ibm/operator_collection_sdk -f

      - name: Create local/builds folder it it doesn't exist...
        run: mkdir -p "${{ env.FULL_COLLECTION_PATH }}/local/builds"

      - name: Build Collection
        run: |
          ansible-galaxy collection build ${{ env.FULL_COLLECTION_PATH }} -f --output-path ${{ env.FULL_COLLECTION_PATH }}/local/builds
          echo "COLLECTION_BUILD=$(ls ${{ env.FULL_COLLECTION_PATH }}/local/builds)" >> $GITHUB_ENV
          echo "COLLECTION_BUILD_LOCATION=${{ env.FULL_COLLECTION_PATH }}/local/builds/$(ls ${{ env.FULL_COLLECTION_PATH }}/local/builds)" >> $GITHUB_ENV

      - name: Sign Collection
        run: |
          openssl genrsa -out privatekey.pem 2048
          openssl rsa -in privatekey.pem -out ${{ vars.COLLECTION_NAME }}.pub -outform PEM -pubout
          openssl dgst -sha256 -sign privatekey.pem -out ${{ vars.COLLECTION_NAME }}-${RELEASE}.sig ${COLLECTION_BUILD_LOCATION}
          openssl dgst -sha256 -verify ${{ vars.COLLECTION_NAME }}.pub -signature ${{ vars.COLLECTION_NAME }}-${RELEASE}.sig ${COLLECTION_BUILD_LOCATION}
          echo "PUBLIC_KEY=$(readlink -f ${{ vars.COLLECTION_NAME }}.pub)" >> $GITHUB_ENV
          echo "SIGNATURE=$(readlink -f ${{ vars.COLLECTION_NAME }}-${RELEASE}.sig)" >> $GITHUB_ENV
        env:
          RELEASE:  ${{ env.RELEASE_TAG }}

      - name: Upload Collection and Signature Files to GitHub
        run: |
          gh release upload ${RELEASE_TAG} ${COLLECTION_BUILD_LOCATION}
          gh release upload ${RELEASE_TAG} ${PUBLIC_KEY}
          gh release upload ${RELEASE_TAG} ${SIGNATURE}
        env:
          GITHUB_TOKEN: ${{ github.TOKEN }}

      - name: Build Offline Collection
        run: |
          rm -rf ${{ env.FULL_COLLECTION_PATH }}/local/
          cd ${{ env.FULL_COLLECTION_PATH }}
          ansible-playbook ibm.operator_collection_sdk.create_offline_requirements
          ansible-galaxy collection build ${{ env.FULL_COLLECTION_PATH }} -f --output-path ${{ env.FULL_COLLECTION_PATH }}/local/builds
          COLLECTION_BUILD=$(ls ${{ env.FULL_COLLECTION_PATH }}/local/builds)
          mv ${{ env.FULL_COLLECTION_PATH }}/local/builds/${COLLECTION_BUILD} ${{ env.FULL_COLLECTION_PATH }}/local/builds/${{ vars.COLLECTION_NAME }}-offline-${RELEASE}.tar.gz
          echo "COLLECTION_BUILD_OFFLINE_LOCATION=${{ env.FULL_COLLECTION_PATH }}/local/builds/$(ls ${{ env.FULL_COLLECTION_PATH }}/local/builds)" >> $GITHUB_ENV
        env:
          RELEASE:  ${{ env.RELEASE_TAG }}

      - name: Sign Offline Collection
        run: |
          openssl genrsa -out privatekey-offline.pem 2048
          openssl rsa -in privatekey-offline.pem -out ${{ vars.COLLECTION_NAME }}-offline.pub -outform PEM -pubout
          openssl dgst -sha256 -sign privatekey-offline.pem -out ${{ vars.COLLECTION_NAME }}-${RELEASE}-offline.sig ${COLLECTION_BUILD_OFFLINE_LOCATION}
          openssl dgst -sha256 -verify ${{ vars.COLLECTION_NAME }}-offline.pub -signature ${{ vars.COLLECTION_NAME }}-${RELEASE}-offline.sig ${COLLECTION_BUILD_OFFLINE_LOCATION}
          echo "PUBLIC_KEY_OFFLINE=$(readlink -f ${{ vars.COLLECTION_NAME }}-offline.pub)" >> $GITHUB_ENV
          echo "SIGNATURE_OFFLINE=$(readlink -f ${{ vars.COLLECTION_NAME }}-${RELEASE}-offline.sig)" >> $GITHUB_ENV
        env:
          RELEASE:  ${{ env.RELEASE_TAG }}

      - name: Upload Offline Collection and Signature Files to GitHub
        run: |
          gh release upload ${RELEASE_TAG} ${COLLECTION_BUILD_OFFLINE_LOCATION}
          gh release upload ${RELEASE_TAG} ${PUBLIC_KEY_OFFLINE}
          gh release upload ${RELEASE_TAG} ${SIGNATURE_OFFLINE}
        env:
          GITHUB_TOKEN: ${{ github.TOKEN }}

      - name: Publish Collection to Ansible Galaxy
        run: ansible-galaxy collection publish -vvvv --api-key ${GALAXY_API_KEY} ${COLLECTION_BUILD_LOCATION}
        env:
          GALAXY_API_KEY: ${{ secrets.GALAXY_API_KEY }}

In order for this workflow to work properly, you’ll need to add a couple environment secrets and variables to GitHub:

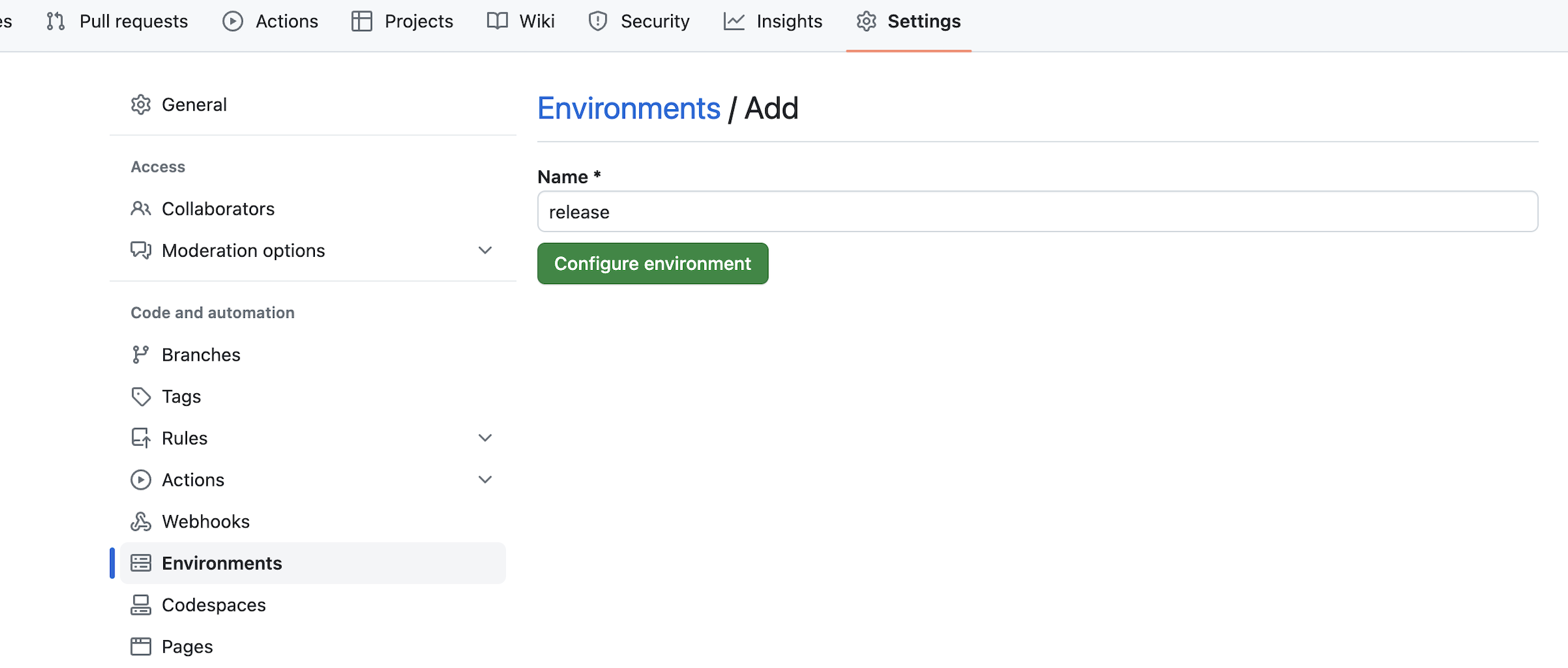

Start by navigating to Settings > Environments in your Operator Collection’s GitHub repository and creating a New environment named release.
Note: The environment name can be modified. Just be sure to match whatever is written in the environment field of the publish job with the name you’ve created.

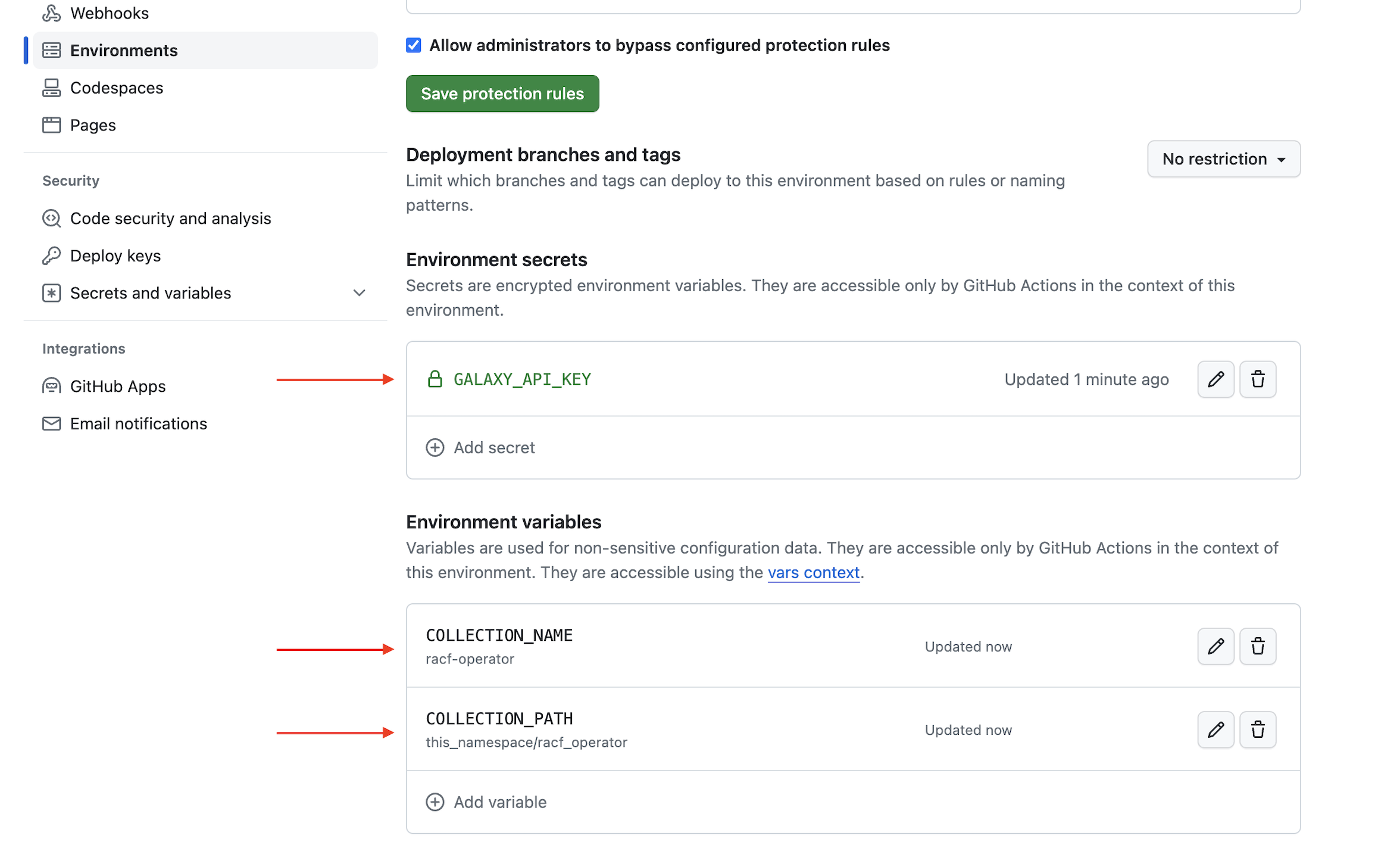

In your newly created environment, add the following environment secrets and variables for use in your release workflow. For details on how to add environment secrets and variables, consult GitHub’s documentation.

Variable	description
`COLLECTION_PATH`	(Enviornment Variable) The path from repository root to the folder that holds both your `galaxy` and `operator-config` files, i.e. “ibm/operator-collection-sdk”.
`COLLECTION_NAME`	(Enviornment Variable) The name of your Operator Collection. One term where words are demarcated with hyphens or underscore, i.e. “file-manager”.
`GALAXY_API_KEY`	(Secret) Your Ansible Galaxy API access token. Remove this secret and the publishing step if you would not like to upload your signed collections to Ansible Galaxy.

Release Variables

Note: Secrets and variables prefixed with GITHUB_ such as GITHUB_TOKEN and GITHUB_WORKSPACE will be created automatically for each workflow job, no further action is needed.

Trigger the workflow. Because we configured this work flow to run when tags are pushed to GitHub, we need only create and push a tag, to test our changes:
```
  git tag <tag>
git push origin <tag>

```
where <tag> adheres to the semantic versioning format, i.e. 1.0.0.

Offline Collections

The workflow YAML block posted above includes steps to build, sign/verify, and upload offline versions of your collections to GitHub. These steps have the following names:

  - name: Build Offline Collection
    ...

- name: Sign Offline Collection
    ...

- name: Upload Offline Collection and Signature Files to GitHub
    ...

Publishing to Ansible Galaxy

To automate the process of publishing a collection to Ansible® Galaxy, the release.yml workflow file includes the following step in under jobs > publish > steps. This step requires that you add the GALAXY_API_KEY to your enviornment secrets in GitHub as shown above.

  - name: Publish Collection to Ansible Galaxy
    run: ansible-galaxy collection publish -vvvv --api-key ${GALAXY_API_KEY} ${COLLECTION_BUILD_LOCATION}
    env:
      GALAXY_API_KEY: ${{ secrets.GALAXY_API_KEY }}
