Create and Query Basic Hudi Tables¶
In this section, you will create basic Hudi tables with Spark and query them with Presto.
This section is comprised of the following steps:
- Create and Query Basic Hudi Tables
- 1. Create Hudi tables
- 2. Query table with Presto
- 3. Add data to table and query
1. Create Hudi tables¶
In this section we'll explore Hudi tables. Currently, it is not possible to create Hudi tables from Presto, so we will use Spark to create our tables. To do so, we'll enter the Spark container and start the spark-shell:
It may take a few moments to initialize before you see the scala> prompt, indicating that the shell is ready to accept commands. Enter "paste" mode by typing the following and pressing enter:
For example:
Copy and paste the below code, which imports required packages, creates a Spark session, and defines some variables that we will reference in subsequent code.
import org.apache.spark.sql.{SparkSession, SaveMode}
import scala.util.Random
import java.util.UUID
val spark = SparkSession.builder()
.appName("HudiToMinIO")
.config("spark.serializer", "org.apache.spark.serializer.KryoSerializer")
.config("spark.sql.catalogImplementation", "hive")
.config("hive.metastore.uris", "thrift://hive-metastore:9083")
.config("spark.sql.hive.convertMetastoreParquet", "false")
.config("spark.hadoop.fs.s3a.endpoint", "http://minio:9000")
.config("spark.hadoop.fs.s3a.access.key", "minio")
.config("spark.hadoop.fs.s3a.secret.key", "minio123")
.config("spark.hadoop.fs.s3a.path.style.access", "true")
.config("spark.hadoop.fs.s3a.impl", "org.apache.hadoop.fs.s3a.S3AFileSystem")
.config("spark.hadoop.fs.s3a.connection.ssl.enabled", "false")
.config("spark.sql.extensions", "org.apache.spark.sql.hudi.HoodieSparkSessionExtension")
.config("spark.sql.catalog.spark_catalog", "org.apache.spark.sql.hudi.catalog.HoodieCatalog")
.config("spark.kryo.registrator", "org.apache.spark.HoodieSparkKryoRegistrar")
.enableHiveSupport()
.getOrCreate()
import spark.implicits._
import org.apache.hudi.QuickstartUtils._
import scala.collection.JavaConversions._
import org.apache.spark.sql.SaveMode._
import org.apache.hudi.DataSourceReadOptions._
import org.apache.hudi.DataSourceWriteOptions._
import org.apache.hudi.config.HoodieWriteConfig._
val basePath = "s3a://warehouse/hudi-tables"
val dbName = "default"
def hudiOptions(tableName: String, tableType: String, precombineField: String, partitionField: Option[String] = None): Map[String, String] = {
Map(
"hoodie.table.name" -> tableName,
"hoodie.datasource.write.recordkey.field" -> "uuid",
"hoodie.datasource.write.precombine.field" -> precombineField,
"hoodie.datasource.write.table.name" -> tableName,
"hoodie.datasource.write.operation" -> "upsert",
"hoodie.datasource.write.table.type" -> tableType,
"hoodie.datasource.write.hive_style_partitioning" -> "true",
"hoodie.datasource.hive_sync.enable" -> "true",
"hoodie.datasource.hive_sync.mode" -> "hms",
"hoodie.datasource.hive_sync.database" -> dbName,
"hoodie.datasource.hive_sync.table" -> tableName,
) ++ partitionField.map(f => Map("hoodie.datasource.write.partitionpath.field" -> f)).getOrElse(Map.empty)
}
val dataGen = new DataGenerator
Make sure you include a newline character at the very end. Press Ctrl+D to begin executing the pasted code.
We will complete the same process with our next code block, which will create and populate our table with randomly generated data about taxi trips. Here we specify that we want the table to be a "Copy on Write" table, but this is not strictly necessary - this is the default table type in Hudi. Notice that we are including an extra column, commit_num that will show us the commit in which any given row was added.
val inserts = convertToStringList(dataGen.generateInserts(50))
val data = spark.read.json(spark.sparkContext.parallelize(inserts, 2))
val tableName = "trips_table"
data.withColumn("commit_num", lit("update1")).write.format("hudi").
options(getQuickstartWriteConfigs).
options(hudiOptions(tableName, "COPY_ON_WRITE", "ts")).
mode(Overwrite).
save(s"$basePath/$tableName");

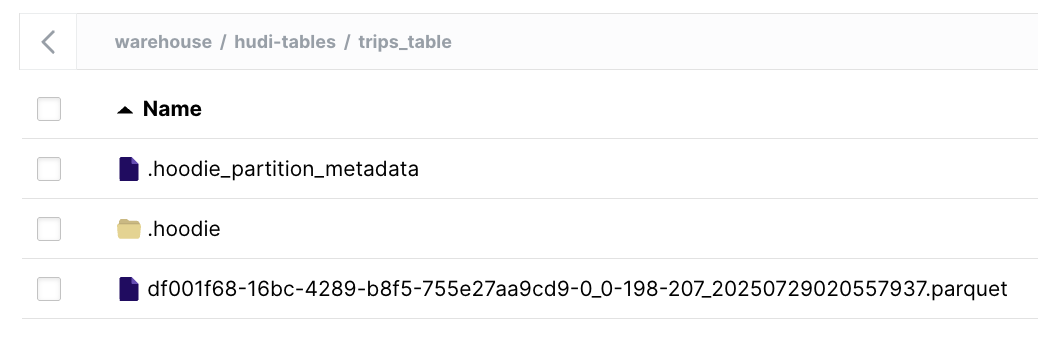

Before we go on to query these tables, let's take a look at what files and directories have been created for this table in our s3 storage. Go to MinIO UI http://localhost:9091 and log in with the username and password that we defined in docker-compose.yaml (minio/minio123). Under the hudi-tables path, there should be a single sub-path called trips_table. Below is a look at the file structure.
We have one parquet data file, a Hudi-specific metadata file, and another sub-path, .hoodie. The latter is where Hudi keeps most of the metadata for the trips_table, including the commit history. We can see that there is one set of commit files created to keep track of the initial data we've inserted into the table. Feel free to explore these files further.
2. Query table with Presto¶
Now let's query this table with Presto. In a new terminal tab or window, exec into the Presto container and start the Presto CLI to query our table.
We first specify that we want to use the Hudi catalog and default schema for all queries here on out. The 'default' schema has been implicitly created for us in Presto because it already exists in the Hive metastore. Then, execute a show tables command:
For example:
Next, list the available tables:
For example:
As expected, we see a single table here with the name of the table we created in the spark-shell. We can run a select * on this data.
For example:
Note
Note: Press "q" to exit out out after you see "(END)"
The results (omitted here for space) show more than you may expect to see with a traditional table. The columns prefixed with _hoodie are metadata properties that Hudi uses to manage the table state. You can also see the original columns at far right of the table (begin_lat, begin_lon, fare, etc.).
Let's execute a query that pares down these results slightly:
select _hoodie_commit_time, commit_num, _hoodie_file_name, fare, begin_lon, begin_lat from trips_table order by _hoodie_commit_time;
For example:
presto:default> select _hoodie_commit_time, commit_num, _hoodie_file_name, fare, begin_lon, begin_lat from trips_table order by _hoodie_commit_time;
_hoodie_commit_time | commit_num | _hoodie_file_name | fare | begin_lon | begin_lat
---------------------+------------+----------------------------------------------------------------------------+--------------------+----------------------+----------------------
20250729020557937 | update1 | df001f68-16bc-4289-b8f5-755e27aa9cd9-0_0-198-207_20250729020557937.parquet | 5.064924039635443 | 0.3329328066900805 | 0.05829265790920446
20250729020557937 | update1 | df001f68-16bc-4289-b8f5-755e27aa9cd9-0_0-198-207_20250729020557937.parquet | 84.00133794186554 | 0.7041966710545763 | 0.3988839560181455
20250729020557937 | update1 | df001f68-16bc-4289-b8f5-755e27aa9cd9-0_0-198-207_20250729020557937.parquet | 26.57512568578202 | 0.4130226064649045 | 0.14944324629969385
20250729020557937 | update1 | df001f68-16bc-4289-b8f5-755e27aa9cd9-0_0-198-207_20250729020557937.parquet | 61.44682955106423 | 0.13477337728703764 | 0.025339371609693573
20250729020557937 | update1 | df001f68-16bc-4289-b8f5-755e27aa9cd9-0_0-198-207_20250729020557937.parquet | 47.886740443749254 | 0.48671796674575485 | 0.6158099753827585
20250729020557937 | update1 | df001f68-16bc-4289-b8f5-755e27aa9cd9-0_0-198-207_20250729020557937.parquet | 74.20408022629255 | 0.8293284066906385 | 0.10155019269585785
20250729020557937 | update1 | df001f68-16bc-4289-b8f5-755e27aa9cd9-0_0-198-207_20250729020557937.parquet | 43.160518375539205 | 0.8898173709112844 | 0.9937697164202349
20250729020557937 | update1 | df001f68-16bc-4289-b8f5-755e27aa9cd9-0_0-198-207_20250729020557937.parquet | 55.642805813402006 | 0.9727806198646577 | 0.19982748870912004
(additional rows omitted here...)
3. Add data to table and query¶
Now, let's go back to our spark-shell terminal tab and add more data to our tables using paste mode. Note that our commit_num column value has changed.
Note
Note: If you exit your spark-shell and have to issue another docker exec -it spark /opt/spark/bin/spark-shell to restart it, you need to get into paste mode and reimport all the required packages again as you did above in step 1.
val updates = convertToStringList(dataGen.generateUpdates(50))
val updatedData = spark.read.json(spark.sparkContext.parallelize(updates, 2));
updatedData.withColumn("commit_num", lit("update2")).write.format("hudi").
options(getQuickstartWriteConfigs).
options(hudiOptions(tableName, "COPY_ON_WRITE", "ts")).
mode(Append).
save(s"$basePath/$tableName");
Now if we query the tables in the Presto CLI, we see that there are multiple commit times, as shown by our first two columns in the below query. Make sure to hold Return in order to see all 100 rows of the updated table.
select _hoodie_commit_time, commit_num, _hoodie_file_name, fare, begin_lon, begin_lat from trips_table order by _hoodie_commit_time;
For example:
presto:default> select _hoodie_commit_time, commit_num, _hoodie_file_name, fare, begin_lon, begin_lat from trips_table order by _hoodie_commit_time;
_hoodie_commit_time | commit_num | _hoodie_file_name | fare | begin_lon | begin_lat
---------------------+------------+----------------------------------------------------------------------------+--------------------+----------------------+----------------------
20250729020557937 | update1 | dd513af1-2291-4fea-a588-06e7c55fec23-0_0-50-53_20250729230015275.parquet | 25.200733895704396 | 0.9805032518130713 | 0.3250925842689032
20250729020557937 | update1 | dd513af1-2291-4fea-a588-06e7c55fec23-0_0-50-53_20250729230015275.parquet | 80.22532741048674 | 0.23558979258614088 | 0.9106955060439053
20250729020557937 | update1 | dd513af1-2291-4fea-a588-06e7c55fec23-0_0-50-53_20250729230015275.parquet | 84.00133794186554 | 0.7041966710545763 | 0.3988839560181455
20250729020557937 | update1 | dd513af1-2291-4fea-a588-06e7c55fec23-0_0-50-53_20250729230015275.parquet | 27.793208764156986 | 0.9676738239915396 | 0.5075033998567434
20250729020557937 | update1 | dd513af1-2291-4fea-a588-06e7c55fec23-0_0-50-53_20250729230015275.parquet | 61.44682955106423 | 0.13477337728703764 | 0.025339371609693573
20250729020557937 | update1 | dd513af1-2291-4fea-a588-06e7c55fec23-0_0-50-53_20250729230015275.parquet | 90.97255481383131 | 0.7196037664723752 | 0.9539455886006297
20250729020557937 | update1 | dd513af1-2291-4fea-a588-06e7c55fec23-0_0-50-53_20250729230015275.parquet | 51.61325440476856 | 0.36749492639453507 | 0.7666637026082733
(additional rows omitted here...)
20250729230015275 | update2 | dd513af1-2291-4fea-a588-06e7c55fec23-0_0-50-53_20250729230015275.parquet | 48.68719058185585 | 0.4795784679677898 | 0.25038172085518196
20250729230015275 | update2 | dd513af1-2291-4fea-a588-06e7c55fec23-0_0-50-53_20250729230015275.parquet | 75.48568723276352 | 0.15381057911655593 | 0.9767478911589815
20250729230015275 | update2 | dd513af1-2291-4fea-a588-06e7c55fec23-0_0-50-53_20250729230015275.parquet | 45.81290455568438 | 0.02795404977976812 | 0.712778116485955
20250729230015275 | update2 | dd513af1-2291-4fea-a588-06e7c55fec23-0_0-50-53_20250729230015275.parquet | 57.516128683731594 | 0.9507437299992999 | 0.651681577874527
20250729230015275 | update2 | dd513af1-2291-4fea-a588-06e7c55fec23-0_0-50-53_20250729230015275.parquet | 77.6244653745167 | 0.6935649065845402 | 0.49277090579957905
20250729230015275 | update2 | dd513af1-2291-4fea-a588-06e7c55fec23-0_0-50-53_20250729230015275.parquet | 0.09544772278234914 | 0.6651362795967237 | 0.8866112536048135
20250729230015275 | update2 | dd513af1-2291-4fea-a588-06e7c55fec23-0_0-50-53_20250729230015275.parquet | 94.61601725825764 | 0.02466985290858581 | 0.53126878881263

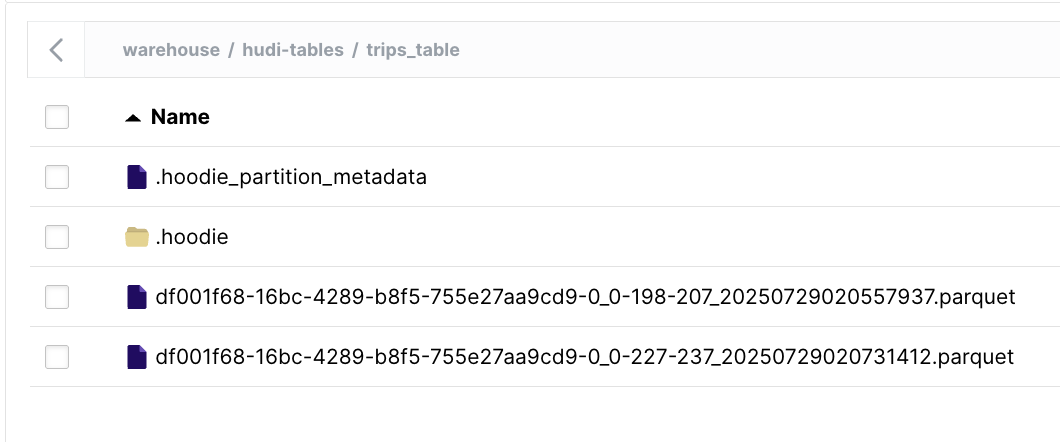

We can see that the values in the _hoodie_file_name have changed for the entries from the first commit. This is to be expected, as we created a "Copy on Write" table (the default table type in Hudi). We can also look in the MinIO UI again to see the different files that have been created. Notice that there is a new data file that holds the data added in the most recent commit as well as the previous commit's data as well.

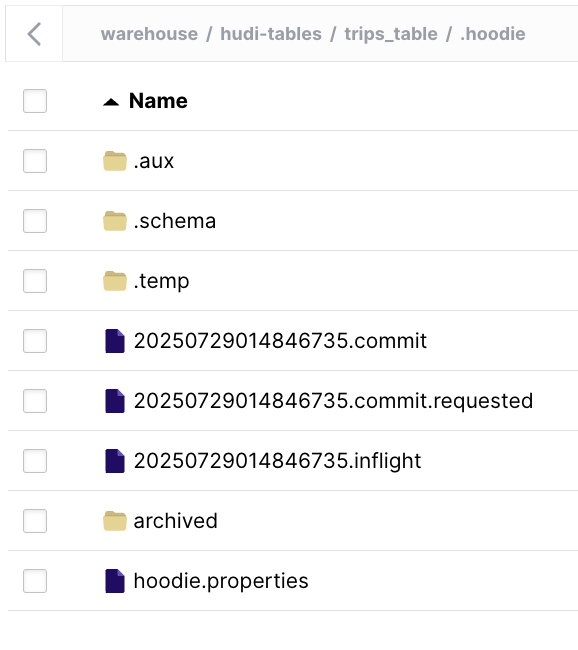

In the .hoodie directory, we can also see additional commit files that have been added since the last time we checked. At this point, feel free to continue executing queries and adding data as desired to get familiar with Hudi functionality. You may also move on to lab 3.
Optional shutdown¶
If you do not intend to go on to lab 3 right now, you can shut down your lakehouse cluster with the following command:
This command will stop all containers and remove the volumes. You can omit the -v parameter if you want to keep your existing data for the trips_table in your MinIO storage and come back to complete lab 3 later.
