Explore Hudi Table & Query Types¶
In this section, you will create different types of Hudi tables with Spark and query them with Presto.
This section is comprised of the following steps:
- Explore Hudi Table \& Query Types
- 1. Create MoR Hudi table
- 2. Query MoR table with Presto
- 3. Add data to MoR table and query
- 4. Create partitioned CoW Hudi table
- 5. Query CoW table with Presto
If you previously stopped your lakehouse containers, restart them now with:
1. Create MoR Hudi table¶
In this section we'll explore Hudi Merge-on-Read (MoR) tables. MoR tables store data using file versions with combination of columnar (e.g parquet) + row based (e.g avro) file formats. Updates are logged to delta files & later compacted to produce new versions of columnar files synchronously or asynchronously. Currently, it is not possible to create Hudi tables from Presto, so we will use Spark to create our tables. To do so, we'll enter the Spark container and start the spark-shell:
It may take a few moments to initialize before you see the scala> prompt, indicating that the shell is ready to accept commands. Enter "paste" mode by typing the following and pressing enter:
For example:
Copy and paste the below code, which imports required packages, creates a Spark session, and defines some variables that we will reference in subsequent code.
Note
Note: you do not need to copy/paste the below code if you completed lab 2 and have not restarted your spark-shell, but, regardless, doing so should be harmless.
import org.apache.spark.sql.{SparkSession, SaveMode}
import scala.util.Random
import java.util.UUID
val spark = SparkSession.builder()
.appName("HudiToMinIO")
.config("spark.serializer", "org.apache.spark.serializer.KryoSerializer")
.config("spark.sql.catalogImplementation", "hive")
.config("hive.metastore.uris", "thrift://hive-metastore:9083")
.config("spark.sql.hive.convertMetastoreParquet", "false")
.config("spark.hadoop.fs.s3a.endpoint", "http://minio:9000")
.config("spark.hadoop.fs.s3a.access.key", "minio")
.config("spark.hadoop.fs.s3a.secret.key", "minio123")
.config("spark.hadoop.fs.s3a.path.style.access", "true")
.config("spark.hadoop.fs.s3a.impl", "org.apache.hadoop.fs.s3a.S3AFileSystem")
.config("spark.hadoop.fs.s3a.connection.ssl.enabled", "false")
.config("spark.sql.extensions", "org.apache.spark.sql.hudi.HoodieSparkSessionExtension")
.config("spark.sql.catalog.spark_catalog", "org.apache.spark.sql.hudi.catalog.HoodieCatalog")
.config("spark.kryo.registrator", "org.apache.spark.HoodieSparkKryoRegistrar")
.enableHiveSupport()
.getOrCreate()
import spark.implicits._
import org.apache.hudi.QuickstartUtils._
import scala.collection.JavaConversions._
import org.apache.spark.sql.SaveMode._
import org.apache.hudi.DataSourceReadOptions._
import org.apache.hudi.DataSourceWriteOptions._
import org.apache.hudi.config.HoodieWriteConfig._
val basePath = "s3a://warehouse/hudi-tables"
val dbName = "default"
def hudiOptions(tableName: String, tableType: String, precombineField: String, partitionField: Option[String] = None): Map[String, String] = {
Map(
"hoodie.table.name" -> tableName,
"hoodie.datasource.write.recordkey.field" -> "uuid",
"hoodie.datasource.write.precombine.field" -> precombineField,
"hoodie.datasource.write.table.name" -> tableName,
"hoodie.datasource.write.operation" -> "upsert",
"hoodie.datasource.write.table.type" -> tableType,
"hoodie.datasource.write.hive_style_partitioning" -> "true",
"hoodie.datasource.hive_sync.enable" -> "true",
"hoodie.datasource.hive_sync.mode" -> "hms",
"hoodie.datasource.hive_sync.database" -> dbName,
"hoodie.datasource.hive_sync.table" -> tableName,
) ++ partitionField.map(f => Map("hoodie.datasource.write.partitionpath.field" -> f)).getOrElse(Map.empty)
}
Make sure you include a newline character at the very end. Press Ctrl+D to begin executing the pasted code.
We will complete the same process with our next code block, which will create and populate our MoR table with randomly generated data about taxi trips. Notice that we are including an extra column, commit_num that will show us the commit in which any given row was added.
val dataGen = new DataGenerator
val inserts = convertToStringList(dataGen.generateInserts(10))
val data = spark.read.json(spark.sparkContext.parallelize(inserts, 2))
val morTableName = "mor_trips_table"
data.withColumn("commit_num", lit("update1")).write.format("hudi").
options(getQuickstartWriteConfigs).
options(hudiOptions(morTableName, "MERGE_ON_READ", "ts")).
mode(Overwrite).
save(s"$basePath/$morTableName");

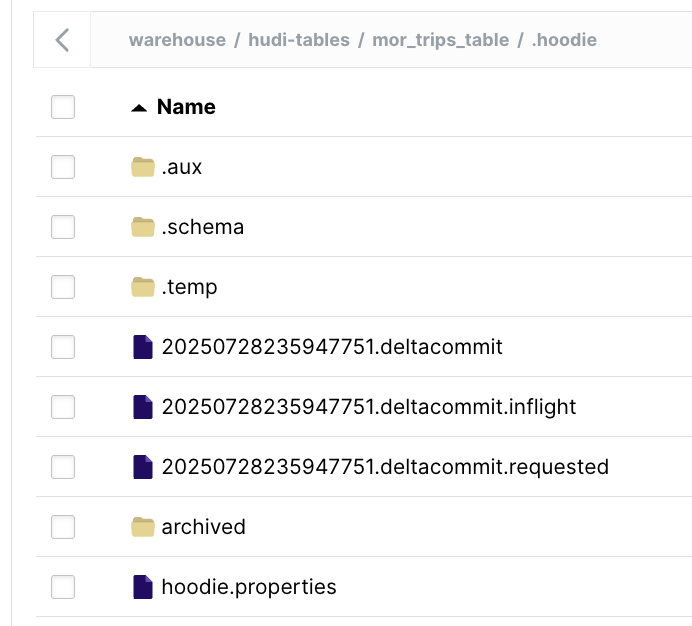

Before we go on to query these tables, let's take a look at what files and directories have been created for this table in our s3 storage. Go to MinIO UI http://localhost:9091 and log in with the username and password that we defined in docker-compose.yaml (minio/minio123). Under the hudi-tables path, there should be a sub-path called mor_trips_table. Click into this path and explore the created files and directory structure, especially those in the .hoodie directory. This is where Hudi keeps metadata for the mor_trips_table. We can see that there is one set of deltacommit files created to keep track of the initial data we've inserted into the table.
2. Query MoR table with Presto¶
Now let's query these tables with Presto. In a new terminal tab or window, exec into the Presto container and start the Presto CLI to query our table.
We first specify that we want to use the Hudi catalog and default schema for all queries here on out. Then, execute a show tables command:
For example:
Next, list the available tables:
For example:
presto:default> show tables;
Table
--------------------
mor_trips_table_ro
mor_trips_table_rt
trips_table
(3 rows)
Note
You may not have the trips_table depending on when you completed lab 2 and if you shut down or restarted your lakehouse cluster.
Notice how Hudi is implicity showing us two versions of the MoR table - one suffixed with _ro for "read-optimized" and one suffixed with _rt for "real-time". As expected, each provides a different view. Right now, querying them shows the same information since we've only inserted data into the table once at time of creation. Run the below query on both tables to verify this.
select _hoodie_commit_time, commit_num, _hoodie_file_name, fare, begin_lon, begin_lat from mor_trips_table_ro order by _hoodie_commit_time;
For example:
presto:default> select _hoodie_commit_time, commit_num, _hoodie_file_name, fare, begin_lon, begin_lat from mor_trips_table_ro order by _hoodie_commit_time;
_hoodie_commit_time | commit_num | _hoodie_file_name | fare | begin_lon | begin_lat
---------------------+------------+----------------------------------------------------------------------------+--------------------+---------------------+---------------------
20250729021205937 | update1 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-256-264_20250729021205937.parquet | 60.34776367964548 | 0.04838041157380535 | 0.8043080489965999
20250729021205937 | update1 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-256-264_20250729021205937.parquet | 77.87647707179 | 0.48628479602261987 | 0.5108935227213224
20250729021205937 | update1 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-256-264_20250729021205937.parquet | 92.66658188648728 | 0.19250097971954727 | 0.29883236260196766
20250729021205937 | update1 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-256-264_20250729021205937.parquet | 87.60866855274442 | 0.7072482413115851 | 0.4050368427403227
20250729021205937 | update1 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-256-264_20250729021205937.parquet | 2.542602090419077 | 0.32513116973946665 | 0.5223409231279434
20250729021205937 | update1 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-256-264_20250729021205937.parquet | 64.50549995709942 | 0.644801818366808 | 0.27416484281668874
20250729021205937 | update1 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-256-264_20250729021205937.parquet | 87.90342171962 | 0.6392049453784305 | 0.988424424914435
20250729021205937 | update1 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-256-264_20250729021205937.parquet | 4.683013253665058 | 0.9524155201748359 | 0.5358882850214233
20250729021205937 | update1 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-256-264_20250729021205937.parquet | 52.45373021236392 | 0.16908935729553864 | 0.5977389933638982
20250729021205937 | update1 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-256-264_20250729021205937.parquet | 63.153644129279854 | 0.08661048702300178 | 0.3591754879402138
(10 rows)
3. Add data to MoR table and query¶
Now, let's go back to our spark-shell terminal tab and add more data to our tables using paste mode. Note that our commit_num column value has changed.
val updates = convertToStringList(dataGen.generateUpdates(10))
val updatedData = spark.read.json(spark.sparkContext.parallelize(updates, 2));
updatedData.withColumn("commit_num", lit("update2")).write.format("hudi").
options(getQuickstartWriteConfigs).
options(hudiOptions(morTableName, "MERGE_ON_READ", "ts")).
mode(Append).
save(s"$basePath/$morTableName");
Now if we query the tables in the Presto CLI, we see that the MoR RO ("read-optimized") and RT ("real-time") tables are starting to look different. As you can guess by the names, the RT table has the freshest data, and the RO table still shows our previous state.
select _hoodie_commit_time, commit_num, _hoodie_file_name, fare, begin_lon, begin_lat from mor_trips_table_rt order by _hoodie_commit_time;
For example:
presto:default> select _hoodie_commit_time, commit_num, _hoodie_file_name, fare, begin_lon, begin_lat from mor_trips_table_rt order by _hoodie_commit_time;
_hoodie_commit_time | commit_num | _hoodie_file_name | fare | begin_lon | begin_lat
---------------------+------------+----------------------------------------------------------------------------+--------------------+---------------------+---------------------
20250729021205937 | update1 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-256-264_20250729021205937.parquet | 92.66658188648728 | 0.19250097971954727 | 0.29883236260196766
20250729021205937 | update1 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-256-264_20250729021205937.parquet | 77.87647707179 | 0.48628479602261987 | 0.5108935227213224
20250729021205937 | update1 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-256-264_20250729021205937.parquet | 87.60866855274442 | 0.7072482413115851 | 0.4050368427403227
20250729021205937 | update1 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-256-264_20250729021205937.parquet | 2.542602090419077 | 0.32513116973946665 | 0.5223409231279434
20250729021205937 | update1 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-256-264_20250729021205937.parquet | 87.90342171962 | 0.6392049453784305 | 0.988424424914435
20250729021205937 | update1 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-256-264_20250729021205937.parquet | 52.45373021236392 | 0.16908935729553864 | 0.5977389933638982
20250729021301565 | update2 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0 | 99.1562254763212 | 0.6294358584439047 | 0.8543808877516004
20250729021301565 | update2 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0 | 97.86876579077843 | 0.895279012685712 | 0.2650495107524782
20250729021301565 | update2 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0 | 15.893431524875934 | 0.22687250146427174 | 0.01766360374572995
20250729021301565 | update2 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0 | 11.38881031161545 | 0.8233625060614379 | 0.912094209732618
(10 rows)
And
select _hoodie_commit_time, commit_num, _hoodie_file_name, fare, begin_lon, begin_lat from mor_trips_table_ro order by _hoodie_commit_time;
For example:
presto:default> select _hoodie_commit_time, commit_num, _hoodie_file_name, fare, begin_lon, begin_lat from mor_trips_table_ro order by _hoodie_commit_time;
_hoodie_commit_time | commit_num | _hoodie_file_name | fare | begin_lon | begin_lat
---------------------+------------+----------------------------------------------------------------------------+--------------------+---------------------+---------------------
20250729021205937 | update1 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-256-264_20250729021205937.parquet | 4.683013253665058 | 0.9524155201748359 | 0.5358882850214233
20250729021205937 | update1 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-256-264_20250729021205937.parquet | 60.34776367964548 | 0.04838041157380535 | 0.8043080489965999
20250729021205937 | update1 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-256-264_20250729021205937.parquet | 92.66658188648728 | 0.19250097971954727 | 0.29883236260196766
20250729021205937 | update1 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-256-264_20250729021205937.parquet | 2.542602090419077 | 0.32513116973946665 | 0.5223409231279434
20250729021205937 | update1 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-256-264_20250729021205937.parquet | 87.90342171962 | 0.6392049453784305 | 0.988424424914435
20250729021205937 | update1 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-256-264_20250729021205937.parquet | 52.45373021236392 | 0.16908935729553864 | 0.5977389933638982
20250729021205937 | update1 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-256-264_20250729021205937.parquet | 63.153644129279854 | 0.08661048702300178 | 0.3591754879402138
20250729021205937 | update1 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-256-264_20250729021205937.parquet | 77.87647707179 | 0.48628479602261987 | 0.5108935227213224
20250729021205937 | update1 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-256-264_20250729021205937.parquet | 87.60866855274442 | 0.7072482413115851 | 0.4050368427403227
20250729021205937 | update1 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-256-264_20250729021205937.parquet | 64.50549995709942 | 0.644801818366808 | 0.27416484281668874
(10 rows)

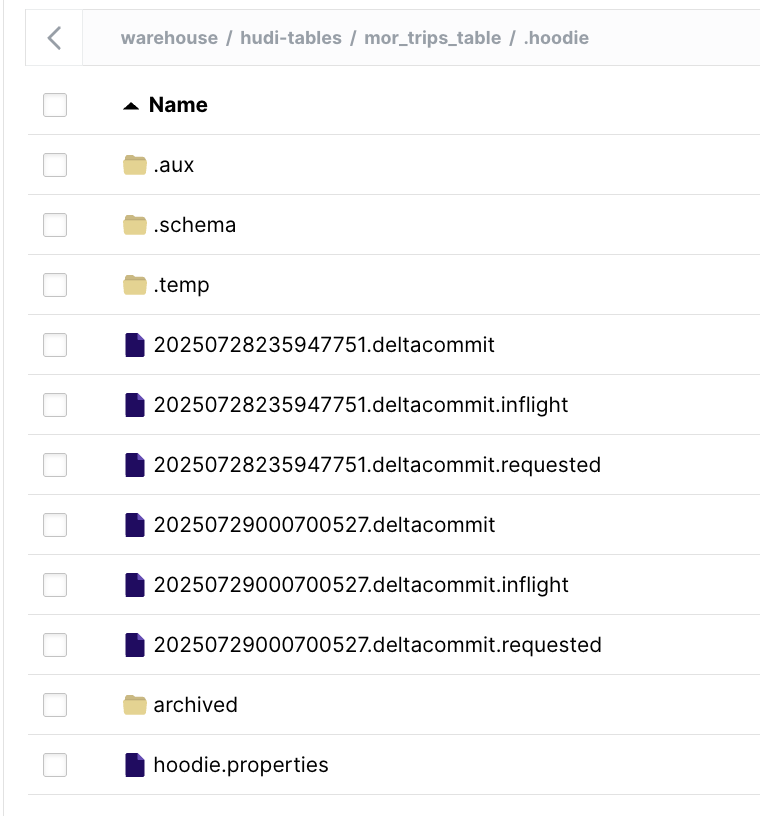

We can also look in the MinIO UI again to see the different files that have been created. Notice in the .hoodie path that we have two sets of deltacommit files

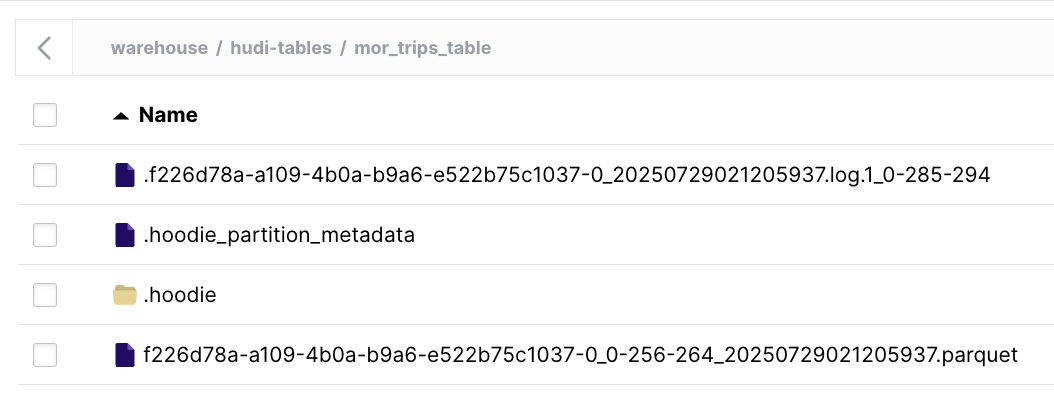

We can also see, from the main mor_trips_table path, that we have log files. This is where Hudi stores the data that has been inserted since our table was created.
Let's add data in the spark-shell one more time, this time specifying that we want to compact the MoR table after the second commit. This means that both the changes made in this operation and in the previous "insert" operation will be made "final".
val moreUpdates = convertToStringList(dataGen.generateUpdates(100))
val moreUpdatedData = spark.read.json(spark.sparkContext.parallelize(moreUpdates, 2));
moreUpdatedData.withColumn("commit_num", lit("update3")).write.format("hudi").
options(getQuickstartWriteConfigs).
options(hudiOptions(morTableName, "MERGE_ON_READ", "ts")).
option("hoodie.compact.inline", "true").
option("hoodie.compact.inline.max.delta.commits", "2").
mode(Append).
save(s"$basePath/$morTableName");
Now when we query both tables in the Presto CLI, we see that the RO and RT MoR tables are once again in line.
select _hoodie_commit_time, commit_num, _hoodie_file_name, fare, begin_lon, begin_lat from mor_trips_table_rt order by _hoodie_commit_time;
For example:
presto:default> select _hoodie_commit_time, commit_num, _hoodie_file_name, fare, begin_lon, begin_lat from mor_trips_table_rt order by _hoodie_commit_time;
_hoodie_commit_time | commit_num | _hoodie_file_name | fare | begin_lon | begin_lat
---------------------+------------+----------------------------------------------------------------------------+--------------------+----------------------+---------------------
20250729021301565 | update2 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-324-330_20250729021428973.parquet | 15.893431524875934 | 0.22687250146427174 | 0.01766360374572995
20250729021427840 | update3 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-324-330_20250729021428973.parquet | 83.72026345530593 | 0.9215019802670729 | 0.3342282415053993
20250729021427840 | update3 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-324-330_20250729021428973.parquet | 70.75181768700271 | 0.729623028385541 | 0.7839574214459966
20250729021427840 | update3 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-324-330_20250729021428973.parquet | 9.768372582023833 | 0.4207368731538873 | 0.12793027848861438
20250729021427840 | update3 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-324-330_20250729021428973.parquet | 16.883429270325678 | 0.06563367485824312 | 0.10377660872667782
20250729021427840 | update3 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-324-330_20250729021428973.parquet | 60.2809650191646 | 0.8928407027516947 | 0.35471878303496784
20250729021427840 | update3 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-324-330_20250729021428973.parquet | 30.06619331487149 | 0.2676792805368092 | 0.4255539475116672
20250729021427840 | update3 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-324-330_20250729021428973.parquet | 88.05938803140756 | 0.015739965020097335 | 0.9567504820036522
20250729021427840 | update3 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-324-330_20250729021428973.parquet | 60.56303585997367 | 0.2315469742599775 | 0.4746664494938815
20250729021427840 | update3 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-324-330_20250729021428973.parquet | 71.6883114598098 | 0.9559151875258244 | 0.6027024841832427
(10 rows)
And
select _hoodie_commit_time, commit_num, _hoodie_file_name, fare, begin_lon, begin_lat from mor_trips_table_ro order by _hoodie_commit_time;
For example:
presto:default> select _hoodie_commit_time, commit_num, _hoodie_file_name, fare, begin_lon, begin_lat from mor_trips_table_ro order by _hoodie_commit_time;
_hoodie_commit_time | commit_num | _hoodie_file_name | fare | begin_lon | begin_lat
---------------------+------------+----------------------------------------------------------------------------+--------------------+----------------------+---------------------
20250729021301565 | update2 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-324-330_20250729021428973.parquet | 15.893431524875934 | 0.22687250146427174 | 0.01766360374572995
20250729021427840 | update3 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-324-330_20250729021428973.parquet | 71.6883114598098 | 0.9559151875258244 | 0.6027024841832427
20250729021427840 | update3 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-324-330_20250729021428973.parquet | 9.768372582023833 | 0.4207368731538873 | 0.12793027848861438
20250729021427840 | update3 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-324-330_20250729021428973.parquet | 30.06619331487149 | 0.2676792805368092 | 0.4255539475116672
20250729021427840 | update3 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-324-330_20250729021428973.parquet | 16.883429270325678 | 0.06563367485824312 | 0.10377660872667782
20250729021427840 | update3 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-324-330_20250729021428973.parquet | 88.05938803140756 | 0.015739965020097335 | 0.9567504820036522
20250729021427840 | update3 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-324-330_20250729021428973.parquet | 60.2809650191646 | 0.8928407027516947 | 0.35471878303496784
20250729021427840 | update3 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-324-330_20250729021428973.parquet | 60.56303585997367 | 0.2315469742599775 | 0.4746664494938815
20250729021427840 | update3 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-324-330_20250729021428973.parquet | 83.72026345530593 | 0.9215019802670729 | 0.3342282415053993
20250729021427840 | update3 | f226d78a-a109-4b0a-b9a6-e522b75c1037-0_0-324-330_20250729021428973.parquet | 70.75181768700271 | 0.729623028385541 | 0.7839574214459966
(10 rows)

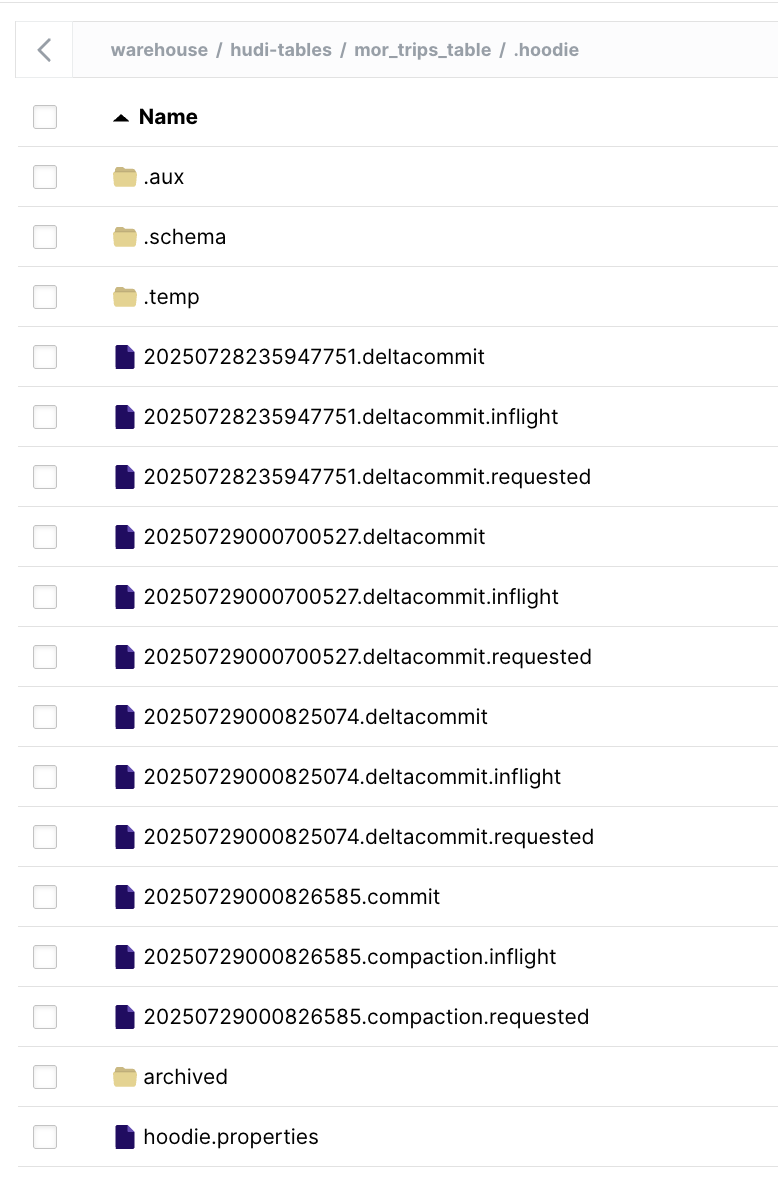

In the MinIO UI, we are able to see a third set of deltacommits as well as the compaction commit.
4. Create partitioned CoW Hudi table¶
In this section we'll explore Hudi partitioned Copy-on-Write (CoW) tables. CoW tables store data using exclusively columnar file formats (e.g parquet). Updates version & rewrites the files by performing a synchronous merge during write. Let's create a COW table with partitions in Spark so that we can also see how partitioning changes the directory structure of our tables. From within the spark-shell session from the previous sections, enter the following code in paste mode:
val cowTableName = "cow_trips_table"
val countries = Seq("US", "IN", "DE")
val data = (1 to 500).map { i =>
(UUID.randomUUID().toString(), s"user_$i", 20 + Random.nextInt(40), countries(Random.nextInt(countries.length)))
}.toDF("uuid", "name", "age", "country")
data.write.format("hudi")
.options(getQuickstartWriteConfigs)
.options(hudiOptions(cowTableName, "COPY_ON_WRITE", "age", Some("country")))
.mode(Overwrite)
.save(s"$basePath/$cowTableName")

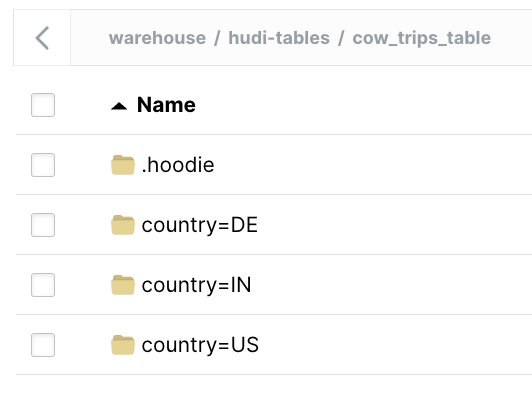

In the MinIO UI, we can see that we now have a new table path - cow_trips_table - under hudi_tables. When we explore this path more, we can see the partition directories that have been created for this table according to our specified partition path, "country". Within each are the columnar data files that are associated with that partition.
Additionally, in the .hoodie directory, we can see that there is a single set of commit files. Notice how this differs from our MoR table, which creates deltacommit files.
5. Query CoW table with Presto¶
From our Presto CLI tab, we can query the new table. First verify that it has synced to the Hive metastore by running a show tables command:
For example:
presto:default> show tables;
Table
--------------------
cow_trips_table
mor_trips_table_ro
mor_trips_table_rt
trips_table
(4 rows)
Note
You may not have the trips_table depending on when you completed lab 2 and if you shut down or restarted your lakehouse cluster.
We can then run a select statement:
select _hoodie_commit_time, _hoodie_partition_path, _hoodie_file_name, uuid, name, age, country from cow_trips_table limit 10;
For example:
presto:default> select _hoodie_commit_time, _hoodie_partition_path, _hoodie_file_name, uuid, name, age, country from cow_trips_table limit 10;
_hoodie_commit_time | _hoodie_partition_path | _hoodie_file_name | uuid | name | age | country
---------------------+------------------------+----------------------------------------------------------------------------+--------------------------------------+----------+-----+---------
20250729001157020 | country=IN | c74bc599-44e3-43fd-9851-6ed16c7c0b96-0_1-111-120_20250729001157020.parquet | f2a61600-ddcb-4deb-8692-43c6fc3c7460 | user_319 | 49 | IN
20250729001157020 | country=IN | c74bc599-44e3-43fd-9851-6ed16c7c0b96-0_1-111-120_20250729001157020.parquet | fd13dca9-daf1-4f61-975e-21c914326347 | user_7 | 31 | IN
20250729001157020 | country=IN | c74bc599-44e3-43fd-9851-6ed16c7c0b96-0_1-111-120_20250729001157020.parquet | ebe3334a-cca0-4abe-955d-dd7e9f27cfbd | user_133 | 34 | IN
20250729001157020 | country=IN | c74bc599-44e3-43fd-9851-6ed16c7c0b96-0_1-111-120_20250729001157020.parquet | 59fd628a-eebe-436b-852f-6c248249029d | user_160 | 36 | IN
20250729001157020 | country=IN | c74bc599-44e3-43fd-9851-6ed16c7c0b96-0_1-111-120_20250729001157020.parquet | a0141e4a-1a23-4e92-8a5f-564d64b205d7 | user_208 | 30 | IN
20250729001157020 | country=IN | c74bc599-44e3-43fd-9851-6ed16c7c0b96-0_1-111-120_20250729001157020.parquet | ba89f773-109f-4f8c-aebe-6aa237d39b31 | user_41 | 45 | IN
20250729001157020 | country=IN | c74bc599-44e3-43fd-9851-6ed16c7c0b96-0_1-111-120_20250729001157020.parquet | 01e17303-89b7-4ffc-b95f-689018acf730 | user_383 | 37 | IN
20250729001157020 | country=IN | c74bc599-44e3-43fd-9851-6ed16c7c0b96-0_1-111-120_20250729001157020.parquet | e67bcdbc-0a57-4800-a9b5-57426eb82112 | user_317 | 56 | IN
20250729001157020 | country=IN | c74bc599-44e3-43fd-9851-6ed16c7c0b96-0_1-111-120_20250729001157020.parquet | 0594e246-7b62-4ddb-b442-8759864fa270 | user_39 | 51 | IN
20250729001157020 | country=IN | c74bc599-44e3-43fd-9851-6ed16c7c0b96-0_1-111-120_20250729001157020.parquet | fa8d99e4-6100-41a1-b2c1-dec3a1688608 | user_373 | 45 | IN
(10 rows)
Notice that you can see the relevant Hudi metadata information for each row of the data.
Note
Note: this information is also available for the MoR tables, but we chose to omit it in the previous section for brevity.
From here, you can experiment with adding data to our partitioned CoW table and exploring how the queries and s3 storage files change. You can also explore more advanced queries of the Hudi metadata on the MoR tables.
Shutdown¶
When you're all done with the labs, to clean up your environment you can do these steps:
In the spark-shell terminal, to exit the scala prompt, you enter ctrl-c
In the presto-cli terminal, to exit the presto prompt, you enter ctrl-d
Then, to stop all your running Docker/Podman containers, you issue:
Note
Note: you need to be in the src or the src/conf folders while issuing the docker compose
This command will stop all containers and remove the volumes.
