Create and Query Delta Lake Tables¶
In this section, you will create different a Delta Lake table with Spark and query it with Presto.
This section is comprised of the following steps:
- Create and Query Delta Lake Tables
- 1. Create a Delta Lake table
- 2. Query table with Presto
- 3. Add data to table and query
If you previously stopped your lakehouse containers, restart them now with:
1. Create a Delta Lake table¶
In this section we'll explore Delta Lake tables. Currently, it is not possible to create Delta tables from Presto, so we will use Spark to create our tables. To do so, we'll enter the Spark container and start the spark-shell:
It may take a few moments to initialize before you see the scala> prompt, indicating that the shell is ready to accept commands. Enter "paste" mode by typing the following and pressing enter:
For example:
Copy and paste the below code, which imports required packages, creates a Spark session, and defines some variables that we will reference in subsequent code.
Note
Note: while the code looks similar, it is a bit different from that in our labs 2 and 3. Don't skip this step.
import org.apache.spark.sql.{SparkSession, SaveMode}
import scala.util.Random
import java.util.UUID
val spark = SparkSession.builder()
.appName("DeltaToMinIO")
.config("spark.serializer", "org.apache.spark.serializer.KryoSerializer")
.config("spark.sql.catalogImplementation", "hive")
.config("hive.metastore.uris", "thrift://hive-metastore:9083")
.config("spark.sql.hive.convertMetastoreParquet", "false")
.config("spark.hadoop.fs.s3a.endpoint", "http://minio:9000")
.config("spark.hadoop.fs.s3a.access.key", "minio")
.config("spark.hadoop.fs.s3a.secret.key", "minio123")
.config("spark.hadoop.fs.s3a.path.style.access", "true")
.config("spark.hadoop.fs.s3a.impl", "org.apache.hadoop.fs.s3a.S3AFileSystem")
.config("spark.hadoop.fs.s3a.connection.ssl.enabled", "false")
.config("spark.sql.extensions", "io.delta.sql.DeltaSparkSessionExtension")
.config("spark.sql.catalog.spark_catalog", "org.apache.spark.sql.delta.catalog.DeltaCatalog")
.enableHiveSupport()
.getOrCreate()
import spark.implicits._
import org.apache.hudi.QuickstartUtils._
import scala.collection.JavaConversions._
import org.apache.spark.sql.SaveMode._
val basePath = "s3a://warehouse/delta-tables"
val dbName = "default"
Make sure you include a newline character at the very end. Press Ctrl+D to begin executing the pasted code.
We will complete the same process with our next code block, which will create and populate our table with randomly generated data about taxi trips. Notice that we are including an extra column, commit_num that will show us the commit in which any given row was added.
val dataGen = new DataGenerator
val inserts = convertToStringList(dataGen.generateInserts(10))
val data = spark.read.json(spark.sparkContext.parallelize(inserts, 2))
val tableName = "trips_table"
data.withColumn("commit_num", lit("update1")).write.format("delta").
mode(Overwrite).
save(s"$basePath/$tableName");
Before we go on to query these tables, let's take a look at what files and directories have been created for this table in our s3 storage. Go to MinIO UI http://localhost:9091 and log in with the username and password that we defined in docker-compose.yaml (minio/minio123). Under the delta-tables path, there should be a sub-path called trips_table. Click into this path and explore the created files and directory structure, include those in the _delta_log directory. This is where Delta keeps metadata for the trips_table. TODO add more details here including potential screenshot.
2. Query table with Presto¶
Now let's query these tables with Presto. In a new terminal tab or window, exec into the Presto container and start the Presto CLI to query our table.
There are a handful of ways to query a Delta Lake table with Presto. The first is by registering a table with an external location that corresponds to the path where the table is stored.
CREATE TABLE delta.default.trips_table (dummyColumn INT) WITH (external_location = 's3a://warehouse/delta-tables/trips_table');
TODO explain the dummy column and otherwise why we're doing this.
Now we can list the available tables:
For example:
and also read from our table with a statement such as:
We can also query our table using a special syntax that supplies the direct path to the table. Note how in this command, we don't specify a table name at all, just the path to the data.
select commit_num, fare, begin_lon, begin_lat from delta."$path$"."s3a://warehouse/delta-tables/trips_table";
For example:
presto:default> select commit_num, fare, begin_lon, begin_lat from delta."$path$"."s3a://warehouse/delta-tables/trips_table";
commit_num | fare | begin_lon | begin_lat
------------+--------------------+----------------------+----------------------
update1 | 34.158284716382845 | 0.46157858450465483 | 0.4726905879569653
update1 | 43.4923811219014 | 0.8779402295427752 | 0.6100070562136587
update1 | 64.27696295884016 | 0.4923479652912024 | 0.5731835407930634
update1 | 93.56018115236618 | 0.14285051259466197 | 0.21624150367601136
update1 | 17.851135255091155 | 0.5644092139040959 | 0.40613510977307
update1 | 33.92216483948643 | 0.9694586417848392 | 0.1856488085068272
update1 | 66.62084366450246 | 0.03844104444445928 | 0.0750588760043035
update1 | 41.06290929046368 | 0.8192868687714224 | 0.651058505660742
update1 | 27.79478688582596 | 0.6273212202489661 | 0.11488393157088261
(10 rows)
TODO show other ways to query the table
3. Add data to table and query¶
Now, let's go back to our spark-shell terminal tab and add more data to our tables using paste mode. Note that our commit_num column value has changed.
val updates = convertToStringList(dataGen.generateUpdates(10))
val updatedData = spark.read.json(spark.sparkContext.parallelize(updates, 2));
updatedData.withColumn("commit_num", lit("update2")).write.format("delta").
mode(Append).
save(s"$basePath/$tableName");
Now we can query the table in the Presto CLI using the snapshot identifier. Since we've added data to our table twice, we now have 2 snapshots - a v0 snapshot and a v1 snapshot. Let's query them to see the difference.
For example:
presto> select commit_num, fare, begin_lon, begin_lat from delta.default."trips_table@v1";
commit_num | fare | begin_lon | begin_lat
------------+--------------------+----------------------+----------------------
update1 | 34.158284716382845 | 0.46157858450465483 | 0.4726905879569653
update1 | 43.4923811219014 | 0.8779402295427752 | 0.6100070562136587
update1 | 64.27696295884016 | 0.4923479652912024 | 0.5731835407930634
update1 | 93.56018115236618 | 0.14285051259466197 | 0.21624150367601136
update1 | 17.851135255091155 | 0.5644092139040959 | 0.40613510977307
update1 | 33.92216483948643 | 0.9694586417848392 | 0.1856488085068272
update1 | 66.62084366450246 | 0.03844104444445928 | 0.0750588760043035
update1 | 41.06290929046368 | 0.8192868687714224 | 0.651058505660742
update1 | 27.79478688582596 | 0.6273212202489661 | 0.11488393157088261
update2 | 9.384124531808036 | 0.6999655248704163 | 0.16603428449020086
update2 | 91.99515909032544 | 0.2783086084578943 | 0.2110206104048945
update2 | 49.527694252432056 | 0.5142184937933181 | 0.7340133901254792
update2 | 29.47661370147079 | 0.010872312870502165 | 0.1593867607188556
update2 | 86.75932789048282 | 0.13755354862499358 | 0.7180196467760873
update1 | 19.179139106643607 | 0.7528268153249502 | 0.8742041526408587
update2 | 98.3428192817987 | 0.3349917833248327 | 0.4777395067707303
update2 | 2.375516772415698 | 0.42849372303000655 | 0.014159831486388885
update2 | 90.9053809533154 | 0.19949323322922063 | 0.18294079059016366
update2 | 63.72504913279929 | 0.888493603696927 | 0.6570857443423376
update2 | 90.25710109008239 | 0.4006983139989222 | 0.08528650347654165
(20 rows)
We can see that this table includes commits both from update 1 and update 2. Let's see what version v0 looks like.
For example:
presto> select commit_num, fare, begin_lon, begin_lat from delta.default."trips_table@v1";
commit_num | fare | begin_lon | begin_lat
------------+--------------------+----------------------+----------------------
update1 | 34.158284716382845 | 0.46157858450465483 | 0.4726905879569653
update1 | 43.4923811219014 | 0.8779402295427752 | 0.6100070562136587
update1 | 64.27696295884016 | 0.4923479652912024 | 0.5731835407930634
update1 | 93.56018115236618 | 0.14285051259466197 | 0.21624150367601136
update1 | 17.851135255091155 | 0.5644092139040959 | 0.40613510977307
update1 | 33.92216483948643 | 0.9694586417848392 | 0.1856488085068272
update1 | 66.62084366450246 | 0.03844104444445928 | 0.0750588760043035
update1 | 41.06290929046368 | 0.8192868687714224 | 0.651058505660742
update1 | 27.79478688582596 | 0.6273212202489661 | 0.11488393157088261
(10 rows)
Here we see the data only from our first commit, which was the original creation of the table.
Similar to Iceberg, you can also query snapshots by timestamp as well. To make this query, you'll have to choose a time between the first and second commit to the table. One easy way to determine this is by looking at the Minio UI. Look at the time when the 0000000000000.json file was created in your local time. Convert this to 12 hours time, and then also add or subtract an offset to determine the GMT time of this timestamp. So, for example, I created my table at 5:43 pm CDT. This means that I created my table at 17:43 CDT and there is a -5 hours offset between CDT and GMT, which means my final timestamp is 22:43 GMT. This means I will make the following query:
For example:
presto> select commit_num, fare, begin_lon, begin_lat from delta.default."trips_table@t2025-08-27 22:45";
commit_num | fare | begin_lon | begin_lat
------------+--------------------+---------------------+---------------------
update1 | 34.158284716382845 | 0.46157858450465483 | 0.4726905879569653
update1 | 43.4923811219014 | 0.8779402295427752 | 0.6100070562136587
update1 | 64.27696295884016 | 0.4923479652912024 | 0.5731835407930634
update1 | 93.56018115236618 | 0.14285051259466197 | 0.21624150367601136
update1 | 17.851135255091155 | 0.5644092139040959 | 0.40613510977307
update1 | 33.92216483948643 | 0.9694586417848392 | 0.1856488085068272
update1 | 66.62084366450246 | 0.03844104444445928 | 0.0750588760043035
update1 | 41.06290929046368 | 0.8192868687714224 | 0.651058505660742
update1 | 27.79478688582596 | 0.6273212202489661 | 0.11488393157088261
update1 | 19.179139106643607 | 0.7528268153249502 | 0.8742041526408587
(10 rows)
We can once again see that we're only given the data from our first commit.

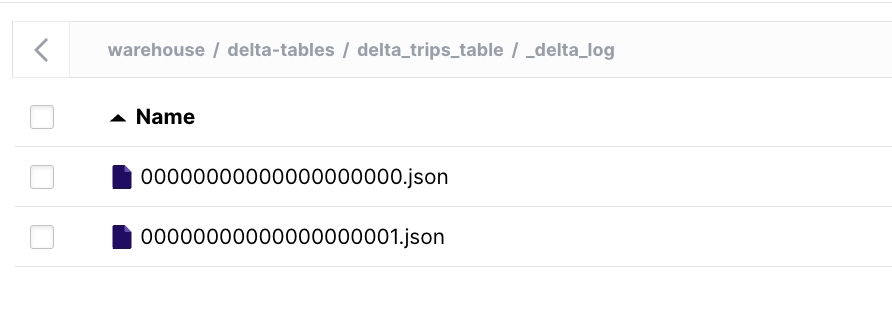

We can also look in the MinIO UI again to see the different files that have been created. Notice in the _delta_log path that we have two json metadata files, the name of which corresponds to the snapshot number.
From here, you can experiment with adding data to our table and exploring how the queries and s3 storage files change.
Shutdown¶
When you're all done with the labs, to clean up your environment you can do these steps:
In the spark-shell terminal, to exit the scala prompt, you enter ctrl-c
In the presto-cli terminal, to exit the presto prompt, you enter ctrl-d
Then, to stop all your running Docker/Podman containers, you issue:
Note
Note: you need to be in the src or the src/conf folders while issuing the docker compose
This command will stop all containers and remove the volumes.
