mic::environments::Environment Class Reference

Abstract class representing an environment. More...

#include <Environment.hpp>

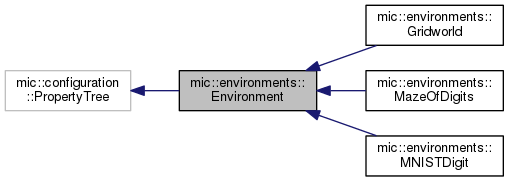

Inheritance diagram for mic::environments::Environment:

Collaboration diagram for mic::environments::Environment:

Public Member Functions
	Environment (std::string node_name_)
virtual	~Environment ()
virtual void	initializeEnvironment ()=0
mic::types::TensorXfPtr &	getEnvironment ()
virtual size_t	getEnvironmentWidth ()
virtual size_t	getEnvironmentHeight ()
virtual size_t	getEnvironmentSize ()
virtual size_t	getObservationWidth ()
virtual size_t	getObservationHeight ()
virtual size_t	getObservationSize ()
virtual size_t	getChannels ()
size_t	getROISize ()
virtual std::string	environmentToString ()=0
virtual std::string	observationToString ()=0
virtual mic::types::MatrixXfPtr	encodeEnvironment ()=0
virtual mic::types::MatrixXfPtr	encodeObservation ()=0
virtual mic::types::Position2D	getAgentPosition ()=0
bool	moveAgent (mic::types::Action2DInterface ac_)
virtual bool	moveAgentToPosition (mic::types::Position2D pos_)=0
virtual void	moveAgentToInitialPosition ()
virtual float	getStateReward (mic::types::Position2D pos_)=0
virtual bool	isStateAllowed (long x_, long y_)
virtual bool	isStateAllowed (mic::types::Position2D pos_)=0
virtual bool	isStateTerminal (long x_, long y_)
virtual bool	isStateTerminal (mic::types::Position2D pos_)=0
virtual bool	isActionAllowed (long x_, long y_, size_t action_)
virtual bool	isActionAllowed (mic::types::Position2D pos_, mic::types::Action2DInterface ac_)
virtual bool	isActionAllowed (mic::types::Action2DInterface ac_)

Protected Attributes
mic::configuration::Property < size_t >	width
	Property: width of the environment. More...
mic::configuration::Property < size_t >	height
	Property: height of the environment. More...
mic::configuration::Property < size_t >	roi_size
	Property: size of the ROI (region of interest). More...
size_t	channels
	Number of channels. More...
bool	pomdp_flag
	Flag related to. More...
mic::types::Position2D	initial_position
	Property: initial position of the agent. More...
mic::types::TensorXfPtr	environment_grid
	Tensor storing the environment. More...
mic::types::TensorXfPtr	observation_grid

Detailed Description

Abstract class representing an environment.

Author

tkornuta

Definition at line 40 of file Environment.hpp.

Constructor & Destructor Documentation

mic::environments::Environment::Environment

(

std::string

node_name_

)

Constructor. Registers properties.

Parameters

node_name_

Name of the node in configuration file.

Definition at line 28 of file Environment.cpp.

References height, pomdp_flag, roi_size, and width.

mic::environments::Environment::~Environment ( )

virtual

Virtual destructor. Empty.

Definition at line 43 of file Environment.cpp.

Member Function Documentation

virtual mic::types::MatrixXfPtr mic::environments::Environment::encodeEnvironment ( )

pure virtual

Encodes the current state of the environment in as a matrix of size [1, width * height * channels].

Returns

Matrix of size [1, width * height * channels].

Implemented in mic::environments::Gridworld, mic::environments::MazeOfDigits, and mic::environments::MNISTDigit.

virtual mic::types::MatrixXfPtr mic::environments::Environment::encodeObservation ( )

pure virtual

Encodes the current observation taken in the environment in as a matrix of size [1, roi_size * roi_size * channels].

Returns

Matrix of size [1, roi_size * roi_size * channels].

Implemented in mic::environments::Gridworld, mic::environments::MazeOfDigits, and mic::environments::MNISTDigit.

virtual std::string mic::environments::Environment::environmentToString ( )

pure virtual

Returns the current state of the environment in the form of a string.

Returns

String with description of the environment.

Implemented in mic::environments::Gridworld, mic::environments::MazeOfDigits, and mic::environments::MNISTDigit.

virtual mic::types::Position2D mic::environments::Environment::getAgentPosition ( )

pure virtual

Calculates the agent position.

Returns

Agent position.

Implemented in mic::environments::Gridworld, mic::environments::MazeOfDigits, and mic::environments::MNISTDigit.

Referenced by isActionAllowed(), and moveAgent().

virtual size_t mic::environments::Environment::getChannels ( )

inlinevirtual

Returns number of channels (depth) of the environment.

Returns

Height.

Definition at line 105 of file Environment.hpp.

References channels.

mic::types::TensorXfPtr& mic::environments::Environment::getEnvironment ( )

inline

Returns the tensor storing the environment.

Returns

Tensor storing the environment.

Definition at line 63 of file Environment.hpp.

References environment_grid.

Referenced by mic::application::MazeOfDigitsDLRERPOMPD::initializePropertyDependentVariables(), and mic::application::MNISTDigitDLRERPOMDP::initializePropertyDependentVariables().

virtual size_t mic::environments::Environment::getEnvironmentHeight ( )

inlinevirtual

Returns current height of the environment.

Returns

Height.

Definition at line 75 of file Environment.hpp.

References height.

Referenced by mic::application::GridworldValueIteration::initializePropertyDependentVariables(), mic::application::GridworldQLearning::initializePropertyDependentVariables(), mic::application::GridworldDeepQLearning::initializePropertyDependentVariables(), mic::application::GridworldDRLExperienceReplay::initializePropertyDependentVariables(), mic::application::MazeOfDigitsDLRERPOMPD::initializePropertyDependentVariables(), mic::application::MNISTDigitDLRERPOMDP::initializePropertyDependentVariables(), mic::application::GridworldValueIteration::performSingleStep(), mic::application::GridworldDeepQLearning::streamNetworkResponseTable(), mic::application::GridworldDRLExperienceReplay::streamNetworkResponseTable(), mic::application::GridworldQLearning::streamQStateTable(), and mic::application::GridworldValueIteration::streamStateActionTable().

virtual size_t mic::environments::Environment::getEnvironmentSize ( )

inlinevirtual

Returns the environment size (width * height * channels).

Returns

Size of the environment.

Definition at line 81 of file Environment.hpp.

References channels, height, and width.

Referenced by mic::application::GridworldDRLExperienceReplay::getPredictedRewardsForGivenState(), mic::application::GridworldDRLExperienceReplay::initializePropertyDependentVariables(), mic::application::GridworldDRLExperienceReplay::performSingleStep(), and mic::application::GridworldDRLExperienceReplay::streamNetworkResponseTable().

virtual size_t mic::environments::Environment::getEnvironmentWidth ( )

inlinevirtual

Returns current width of the environment.

Returns

Width.

Definition at line 69 of file Environment.hpp.

References width.

Referenced by mic::application::GridworldValueIteration::initializePropertyDependentVariables(), mic::application::GridworldQLearning::initializePropertyDependentVariables(), mic::application::GridworldDeepQLearning::initializePropertyDependentVariables(), mic::application::GridworldDRLExperienceReplay::initializePropertyDependentVariables(), mic::application::MazeOfDigitsDLRERPOMPD::initializePropertyDependentVariables(), mic::application::MNISTDigitDLRERPOMDP::initializePropertyDependentVariables(), mic::application::GridworldValueIteration::performSingleStep(), mic::application::GridworldDeepQLearning::streamNetworkResponseTable(), mic::application::GridworldDRLExperienceReplay::streamNetworkResponseTable(), mic::application::GridworldQLearning::streamQStateTable(), and mic::application::GridworldValueIteration::streamStateActionTable().

virtual size_t mic::environments::Environment::getObservationHeight ( )

inlinevirtual

Returns the height of the observation.

Returns

Height.

Definition at line 93 of file Environment.hpp.

References height, pomdp_flag, and roi_size.

Referenced by mic::application::GridworldDRLExperienceReplayPOMDP::initializePropertyDependentVariables(), mic::application::MNISTDigitDLRERPOMDP::initializePropertyDependentVariables(), mic::application::MazeOfDigitsDLRERPOMPD::initializePropertyDependentVariables(), mic::application::GridworldDRLExperienceReplayPOMDP::streamNetworkResponseTable(), mic::application::MNISTDigitDLRERPOMDP::streamNetworkResponseTable(), and mic::application::MazeOfDigitsDLRERPOMPD::streamNetworkResponseTable().

virtual size_t mic::environments::Environment::getObservationSize ( )

inlinevirtual

Returns the observation size, depending on the process type: FOMDP (width * height * channels) or POMDP (roi_size * roi_size * channels).

Returns

Size of the observation.

Reimplemented in mic::environments::MazeOfDigits.

Definition at line 99 of file Environment.hpp.

References channels, height, pomdp_flag, roi_size, and width.

Referenced by mic::application::GridworldDRLExperienceReplayPOMDP::getPredictedRewardsForGivenState(), mic::application::MNISTDigitDLRERPOMDP::getPredictedRewardsForGivenState(), mic::application::GridworldDRLExperienceReplayPOMDP::initializePropertyDependentVariables(), mic::application::MNISTDigitDLRERPOMDP::initializePropertyDependentVariables(), mic::application::GridworldDRLExperienceReplayPOMDP::performSingleStep(), mic::application::MNISTDigitDLRERPOMDP::performSingleStep(), mic::application::GridworldDRLExperienceReplayPOMDP::streamNetworkResponseTable(), and mic::application::MNISTDigitDLRERPOMDP::streamNetworkResponseTable().

virtual size_t mic::environments::Environment::getObservationWidth ( )

inlinevirtual

Returns the width of the observation.

Returns

Width.

Definition at line 87 of file Environment.hpp.

References pomdp_flag, roi_size, and width.

Referenced by mic::application::GridworldDRLExperienceReplayPOMDP::initializePropertyDependentVariables(), mic::application::MNISTDigitDLRERPOMDP::initializePropertyDependentVariables(), mic::application::MazeOfDigitsDLRERPOMPD::initializePropertyDependentVariables(), mic::application::GridworldDRLExperienceReplayPOMDP::streamNetworkResponseTable(), mic::application::MNISTDigitDLRERPOMDP::streamNetworkResponseTable(), and mic::application::MazeOfDigitsDLRERPOMPD::streamNetworkResponseTable().

size_t mic::environments::Environment::getROISize ( )

inline

Returns size of the region of interest.

Returns

ROI size.

Definition at line 111 of file Environment.hpp.

References roi_size.

virtual float mic::environments::Environment::getStateReward ( mic::types::Position2D  pos_ )

pure virtual

Returns the reward associated with the given state.

Parameters

pos_	Position (state).

Returns

Reward for being in given state (r).

Implemented in mic::environments::Gridworld, mic::environments::MazeOfDigits, and mic::environments::MNISTDigit.

virtual void mic::environments::Environment::initializeEnvironment ( )

pure virtual

(Re)initializes the environment - gets given MNIST digit (sample number), sets agent, goal etc.

Implemented in mic::environments::MazeOfDigits, mic::environments::Gridworld, and mic::environments::MNISTDigit.

bool mic::environments::Environment::isActionAllowed ( long  x_, long  y_, size_t  action_  )

virtual

Checks whether performing given action starting in given state is allowed.

Parameters

x_	X state coordinate
y_	Y state coordinate
action_	Action to be performed starting from given state.

Returns

True if action is allowed, false otherwise.

Definition at line 70 of file Environment.cpp.

References isStateAllowed().

Referenced by mic::application::GridworldValueIteration::computeBestValue(), mic::application::GridworldQLearning::computeBestValue(), mic::application::GridworldDeepQLearning::computeBestValueForCurrentState(), mic::application::GridworldDRLExperienceReplay::computeBestValueForGivenStateAndPredictions(), mic::application::GridworldDRLExperienceReplayPOMDP::computeBestValueForGivenStateAndPredictions(), mic::application::MazeOfDigitsDLRERPOMPD::computeBestValueForGivenStateAndPredictions(), mic::application::MNISTDigitDLRERPOMDP::computeBestValueForGivenStateAndPredictions(), mic::application::GridworldValueIteration::computeQValueFromValues(), mic::application::GridworldQLearning::selectBestAction(), mic::application::GridworldDeepQLearning::selectBestActionForCurrentState(), mic::application::GridworldDRLExperienceReplay::selectBestActionForGivenState(), mic::application::GridworldDRLExperienceReplayPOMDP::selectBestActionForGivenState(), mic::application::MazeOfDigitsDLRERPOMPD::selectBestActionForGivenState(), mic::application::MNISTDigitDLRERPOMDP::selectBestActionForGivenState(), mic::application::GridworldDeepQLearning::streamNetworkResponseTable(), mic::application::GridworldDRLExperienceReplay::streamNetworkResponseTable(), mic::application::GridworldDRLExperienceReplayPOMDP::streamNetworkResponseTable(), mic::application::MazeOfDigitsDLRERPOMPD::streamNetworkResponseTable(), mic::application::MNISTDigitDLRERPOMDP::streamNetworkResponseTable(), and mic::application::GridworldQLearning::streamQStateTable().

bool mic::environments::Environment::isActionAllowed ( mic::types::Position2D  pos_, mic::types::Action2DInterface  ac_  )

virtual

Checks whether performing given action starting in given state is allowed.

Parameters

pos_	Starting state (position).
ac_	Action to be performed.

Returns

True if action is allowed, false otherwise.

Definition at line 79 of file Environment.cpp.

References isStateAllowed().

bool mic::environments::Environment::isActionAllowed ( mic::types::Action2DInterface  ac_ )

virtual

Checks whether performing given action from the current agent state is allowed.

Parameters

ac_	Action to be performed.

Returns

True if action is allowed, false otherwise.

Definition at line 85 of file Environment.cpp.

References getAgentPosition(), and isStateAllowed().

bool mic::environments::Environment::isStateAllowed ( long  x_, long  y_  )

virtual

Checks if position is allowed, i.e. within the gridworld boundaries and there is no wall at that place.

Parameters

x_	X state coordinate
y_	Y state coordinate

Returns

True if the position is allowed, false otherwise.

Definition at line 62 of file Environment.cpp.

Referenced by isActionAllowed().

virtual bool mic::environments::Environment::isStateAllowed ( mic::types::Position2D  pos_ )

pure virtual

Checks if position is allowed, i.e. within the gridworld boundaries and there is no wall at that place.

Parameters

pos_	Position to be checked.

Returns

True if the position is allowed, false otherwise.

Implemented in mic::environments::Gridworld, mic::environments::MazeOfDigits, and mic::environments::MNISTDigit.

bool mic::environments::Environment::isStateTerminal ( long  x_, long  y_  )

virtual

Checks if position is terminal, i.e. agent is standing in a pit or reached the goal. Returns reward associated with given state.

Parameters

x_	X state coordinate
y_	Y state coordinate

Returns

The reward associated with "final" action (might be positive or negative), equal to zero means that the position is not final.

Definition at line 66 of file Environment.cpp.

virtual bool mic::environments::Environment::isStateTerminal ( mic::types::Position2D  pos_ )

pure virtual

Checks if position is terminal, i.e. agent is standing in a pit or reached the goal. Returns reward associated with given state.

Parameters

pos_	Position (state) to be checked.

Returns

The reward associated with "final" action (might be positive or negative), equal to zero means that the position is not final.

Implemented in mic::environments::Gridworld, mic::environments::MazeOfDigits, and mic::environments::MNISTDigit.

bool mic::environments::Environment::moveAgent

(

mic::types::Action2DInterface

ac_

)

Moves agent according to the selected action.

Parameters

ac_	Action to be performed.

Returns

True if action was performed, false if destination state was invalid.

Definition at line 48 of file Environment.cpp.

References getAgentPosition(), and moveAgentToPosition().

Referenced by mic::application::GridworldQLearning::performSingleStep(), mic::application::GridworldDeepQLearning::performSingleStep(), mic::application::GridworldDRLExperienceReplay::performSingleStep(), mic::application::GridworldDRLExperienceReplayPOMDP::performSingleStep(), mic::application::MNISTDigitDLRERPOMDP::performSingleStep(), and mic::application::MazeOfDigitsDLRERPOMPD::performSingleStep().

void mic::environments::Environment::moveAgentToInitialPosition ( )

virtual

Moves the agent to the initial position.

Parameters

pos_	Position to be checked.
pos_	The position to be set.

Definition at line 57 of file Environment.cpp.

References initial_position, and moveAgentToPosition().

Referenced by mic::environments::MNISTDigit::initializeEnvironment().

virtual bool mic::environments::Environment::moveAgentToPosition ( mic::types::Position2D  pos_ )

pure virtual

Moves the agent to given position.

Parameters

pos_	Desired position of the agent.

Returns

True if position is valid and was reached, false otherwise.

Implemented in mic::environments::Gridworld, mic::environments::MazeOfDigits, and mic::environments::MNISTDigit.

Referenced by moveAgent(), and moveAgentToInitialPosition().

virtual std::string mic::environments::Environment::observationToString ( )

pure virtual

Returns the current observation taken in the environment in the form of a string.

Returns

String with description of the observation.

Implemented in mic::environments::Gridworld, mic::environments::MazeOfDigits, and mic::environments::MNISTDigit.

Member Data Documentation

size_t mic::environments::Environment::channels

protected

Number of channels.

Definition at line 244 of file Environment.hpp.

Referenced by mic::environments::MNISTDigit::encodeEnvironment(), mic::environments::MazeOfDigits::encodeEnvironment(), mic::environments::Gridworld::encodeEnvironment(), mic::environments::MNISTDigit::encodeObservation(), mic::environments::Gridworld::encodeObservation(), getChannels(), getEnvironmentSize(), mic::environments::MazeOfDigits::getObservationSize(), getObservationSize(), mic::environments::Gridworld::Gridworld(), mic::environments::Gridworld::initBookGrid(), mic::environments::Gridworld::initBridgeGrid(), mic::environments::Gridworld::initClassicCliffGrid(), mic::environments::Gridworld::initDebug2x2Grid(), mic::environments::Gridworld::initDebug3x3Grid(), mic::environments::Gridworld::initDiscountGrid(), mic::environments::Gridworld::initExemplaryDQLGrid(), mic::environments::Gridworld::initExemplaryGrid(), mic::environments::MazeOfDigits::initExemplaryMaze(), mic::environments::MazeOfDigits::initFullyRandomMaze(), mic::environments::Gridworld::initHardRandomGrid(), mic::environments::Gridworld::initializeEnvironment(), mic::environments::MNISTDigit::initializePropertyDependentVariables(), mic::environments::Gridworld::initMazeGrid(), mic::environments::Gridworld::initModifiedDQLGrid(), mic::environments::MazeOfDigits::initRandomPathMaze(), mic::environments::MazeOfDigits::initRandomStructuredMaze(), mic::environments::Gridworld::initSimpleRandomGrid(), mic::environments::MazeOfDigits::MazeOfDigits(), mic::environments::MNISTDigit::MNISTDigit(), mic::environments::MazeOfDigits::operator=(), mic::environments::MNISTDigit::operator=(), and mic::environments::Gridworld::operator=().

mic::types::TensorXfPtr mic::environments::Environment::environment_grid

protected

Tensor storing the environment.

Definition at line 253 of file Environment.hpp.

Referenced by mic::environments::MazeOfDigits::encodeAgentGrid(), mic::environments::Gridworld::encodeAgentGrid(), mic::environments::MNISTDigit::encodeEnvironment(), mic::environments::MazeOfDigits::encodeEnvironment(), mic::environments::Gridworld::encodeEnvironment(), mic::environments::MNISTDigit::environmentToString(), mic::environments::MazeOfDigits::environmentToString(), mic::environments::Gridworld::environmentToString(), mic::environments::MNISTDigit::getAgentPosition(), mic::environments::MazeOfDigits::getAgentPosition(), mic::environments::Gridworld::getAgentPosition(), getEnvironment(), mic::environments::MNISTDigit::getStateReward(), mic::environments::MazeOfDigits::getStateReward(), mic::environments::Gridworld::getStateReward(), mic::environments::Gridworld::Gridworld(), mic::environments::Gridworld::initBookGrid(), mic::environments::Gridworld::initBridgeGrid(), mic::environments::Gridworld::initClassicCliffGrid(), mic::environments::Gridworld::initDebug2x2Grid(), mic::environments::Gridworld::initDebug3x3Grid(), mic::environments::Gridworld::initDiscountGrid(), mic::environments::Gridworld::initExemplaryDQLGrid(), mic::environments::Gridworld::initExemplaryGrid(), mic::environments::MazeOfDigits::initExemplaryMaze(), mic::environments::MazeOfDigits::initFullyRandomMaze(), mic::environments::Gridworld::initHardRandomGrid(), mic::environments::MNISTDigit::initializeEnvironment(), mic::environments::MNISTDigit::initializePropertyDependentVariables(), mic::environments::Gridworld::initMazeGrid(), mic::environments::Gridworld::initModifiedDQLGrid(), mic::environments::MazeOfDigits::initRandomPathMaze(), mic::environments::MazeOfDigits::initRandomStructuredMaze(), mic::environments::Gridworld::initSimpleRandomGrid(), mic::environments::Gridworld::isGridTraversible(), mic::environments::MazeOfDigits::isStateAllowed(), mic::environments::Gridworld::isStateAllowed(), mic::environments::MNISTDigit::isStateTerminal(), mic::environments::MazeOfDigits::isStateTerminal(), mic::environments::Gridworld::isStateTerminal(), mic::environments::MazeOfDigits::MazeOfDigits(), mic::environments::MNISTDigit::observationToString(), mic::environments::MazeOfDigits::observationToString(), mic::environments::Gridworld::observationToString(), mic::environments::MNISTDigit::operator=(), mic::environments::MazeOfDigits::operator=(), mic::environments::Gridworld::operator=(), mic::environments::MazeOfDigits::reRandomAgentPosition(), and mic::environments::MazeOfDigits::setBiggerDigit().

mic::configuration::Property<size_t> mic::environments::Environment::height

protected

Property: height of the environment.

Definition at line 238 of file Environment.hpp.

Referenced by mic::environments::MazeOfDigits::encodeAgentGrid(), mic::environments::Gridworld::encodeAgentGrid(), mic::environments::MNISTDigit::encodeEnvironment(), mic::environments::MazeOfDigits::encodeEnvironment(), mic::environments::Gridworld::encodeEnvironment(), Environment(), mic::environments::MNISTDigit::getAgentPosition(), mic::environments::MazeOfDigits::getAgentPosition(), mic::environments::Gridworld::getAgentPosition(), getEnvironmentHeight(), getEnvironmentSize(), getObservationHeight(), mic::environments::MazeOfDigits::getObservationSize(), getObservationSize(), mic::environments::Gridworld::Gridworld(), mic::environments::Gridworld::initBookGrid(), mic::environments::Gridworld::initBridgeGrid(), mic::environments::Gridworld::initClassicCliffGrid(), mic::environments::Gridworld::initDebug2x2Grid(), mic::environments::Gridworld::initDebug3x3Grid(), mic::environments::Gridworld::initDiscountGrid(), mic::environments::Gridworld::initExemplaryDQLGrid(), mic::environments::Gridworld::initExemplaryGrid(), mic::environments::MazeOfDigits::initExemplaryMaze(), mic::environments::MazeOfDigits::initFullyRandomMaze(), mic::environments::Gridworld::initHardRandomGrid(), mic::environments::MNISTDigit::initializeEnvironment(), mic::environments::Gridworld::initializeEnvironment(), mic::environments::MazeOfDigits::initializeEnvironment(), mic::environments::MNISTDigit::initializePropertyDependentVariables(), mic::environments::Gridworld::initMazeGrid(), mic::environments::Gridworld::initModifiedDQLGrid(), mic::environments::MazeOfDigits::initRandomPathMaze(), mic::environments::MazeOfDigits::initRandomStructuredMaze(), mic::environments::Gridworld::initSimpleRandomGrid(), mic::environments::MazeOfDigits::MazeOfDigits(), mic::environments::MNISTDigit::operator=(), mic::environments::MazeOfDigits::operator=(), mic::environments::Gridworld::operator=(), and mic::environments::MazeOfDigits::reRandomAgentPosition().

mic::types::Position2D mic::environments::Environment::initial_position

protected

Property: initial position of the agent.

Definition at line 250 of file Environment.hpp.

Referenced by mic::environments::Gridworld::Gridworld(), mic::environments::Gridworld::initBookGrid(), mic::environments::Gridworld::initBridgeGrid(), mic::environments::Gridworld::initClassicCliffGrid(), mic::environments::Gridworld::initDebug2x2Grid(), mic::environments::Gridworld::initDebug3x3Grid(), mic::environments::Gridworld::initDiscountGrid(), mic::environments::Gridworld::initExemplaryDQLGrid(), mic::environments::Gridworld::initExemplaryGrid(), mic::environments::MazeOfDigits::initExemplaryMaze(), mic::environments::MazeOfDigits::initFullyRandomMaze(), mic::environments::Gridworld::initHardRandomGrid(), mic::environments::MNISTDigit::initializeEnvironment(), mic::environments::Gridworld::initMazeGrid(), mic::environments::Gridworld::initModifiedDQLGrid(), mic::environments::MazeOfDigits::initRandomPathMaze(), mic::environments::MazeOfDigits::initRandomStructuredMaze(), mic::environments::Gridworld::initSimpleRandomGrid(), mic::environments::MazeOfDigits::MazeOfDigits(), moveAgentToInitialPosition(), mic::environments::MNISTDigit::operator=(), mic::environments::MazeOfDigits::operator=(), mic::environments::Gridworld::operator=(), and mic::environments::MazeOfDigits::reRandomAgentPosition().

mic::types::TensorXfPtr mic::environments::Environment::observation_grid

protected

Tensor storing the "observation".

Definition at line 258 of file Environment.hpp.

Referenced by mic::environments::MNISTDigit::getObservation(), mic::environments::MazeOfDigits::getObservation(), mic::environments::Gridworld::getObservation(), mic::environments::Gridworld::Gridworld(), mic::environments::Gridworld::initializeEnvironment(), mic::environments::MazeOfDigits::initializeEnvironment(), mic::environments::MNISTDigit::initializePropertyDependentVariables(), mic::environments::MazeOfDigits::MazeOfDigits(), mic::environments::MNISTDigit::operator=(), mic::environments::MazeOfDigits::operator=(), and mic::environments::Gridworld::operator=().

bool mic::environments::Environment::pomdp_flag

protected

Flag related to.

Definition at line 247 of file Environment.hpp.

Referenced by mic::environments::MNISTDigit::encodeObservation(), mic::environments::MazeOfDigits::encodeObservation(), mic::environments::Gridworld::encodeObservation(), Environment(), getObservationHeight(), mic::environments::MazeOfDigits::getObservationSize(), getObservationSize(), getObservationWidth(), mic::environments::Gridworld::initializeEnvironment(), mic::environments::MazeOfDigits::initializeEnvironment(), mic::environments::MNISTDigit::initializePropertyDependentVariables(), mic::environments::MNISTDigit::observationToString(), mic::environments::MazeOfDigits::observationToString(), and mic::environments::Gridworld::observationToString().

mic::configuration::Property<size_t> mic::environments::Environment::roi_size

protected

Property: size of the ROI (region of interest).

Definition at line 241 of file Environment.hpp.

Referenced by mic::environments::MNISTDigit::encodeObservation(), mic::environments::MazeOfDigits::encodeObservation(), mic::environments::Gridworld::encodeObservation(), Environment(), mic::environments::MNISTDigit::getObservation(), mic::environments::MazeOfDigits::getObservation(), mic::environments::Gridworld::getObservation(), getObservationHeight(), mic::environments::MazeOfDigits::getObservationSize(), getObservationSize(), getObservationWidth(), getROISize(), mic::environments::Gridworld::initializeEnvironment(), mic::environments::MazeOfDigits::initializeEnvironment(), and mic::environments::MNISTDigit::initializePropertyDependentVariables().

mic::configuration::Property<size_t> mic::environments::Environment::width

protected

Property: width of the environment.

Definition at line 235 of file Environment.hpp.

Referenced by mic::environments::MazeOfDigits::encodeAgentGrid(), mic::environments::Gridworld::encodeAgentGrid(), mic::environments::MNISTDigit::encodeEnvironment(), mic::environments::MazeOfDigits::encodeEnvironment(), mic::environments::Gridworld::encodeEnvironment(), Environment(), mic::environments::MNISTDigit::getAgentPosition(), mic::environments::MazeOfDigits::getAgentPosition(), mic::environments::Gridworld::getAgentPosition(), getEnvironmentSize(), getEnvironmentWidth(), mic::environments::MazeOfDigits::getObservationSize(), getObservationSize(), getObservationWidth(), mic::environments::Gridworld::Gridworld(), mic::environments::Gridworld::initBookGrid(), mic::environments::Gridworld::initBridgeGrid(), mic::environments::Gridworld::initClassicCliffGrid(), mic::environments::Gridworld::initDebug2x2Grid(), mic::environments::Gridworld::initDebug3x3Grid(), mic::environments::Gridworld::initDiscountGrid(), mic::environments::Gridworld::initExemplaryDQLGrid(), mic::environments::Gridworld::initExemplaryGrid(), mic::environments::MazeOfDigits::initExemplaryMaze(), mic::environments::MazeOfDigits::initFullyRandomMaze(), mic::environments::Gridworld::initHardRandomGrid(), mic::environments::MNISTDigit::initializeEnvironment(), mic::environments::Gridworld::initializeEnvironment(), mic::environments::MazeOfDigits::initializeEnvironment(), mic::environments::MNISTDigit::initializePropertyDependentVariables(), mic::environments::Gridworld::initMazeGrid(), mic::environments::Gridworld::initModifiedDQLGrid(), mic::environments::MazeOfDigits::initRandomPathMaze(), mic::environments::MazeOfDigits::initRandomStructuredMaze(), mic::environments::Gridworld::initSimpleRandomGrid(), mic::environments::MazeOfDigits::MazeOfDigits(), mic::environments::MNISTDigit::operator=(), mic::environments::MazeOfDigits::operator=(), mic::environments::Gridworld::operator=(), and mic::environments::MazeOfDigits::reRandomAgentPosition().

---

The documentation for this class was generated from the following files:

• src/types/Environment.hpp
• src/types/Environment.cpp
