Class storing the state of the application (modes, sleep interval etc.). Defined in the form of a singleton, with double-checked locking pattern (DCLP) based access to instance. More...

#include <ApplicationState.hpp>

Inheritance diagram for mic::application::ApplicationState:

[legend]

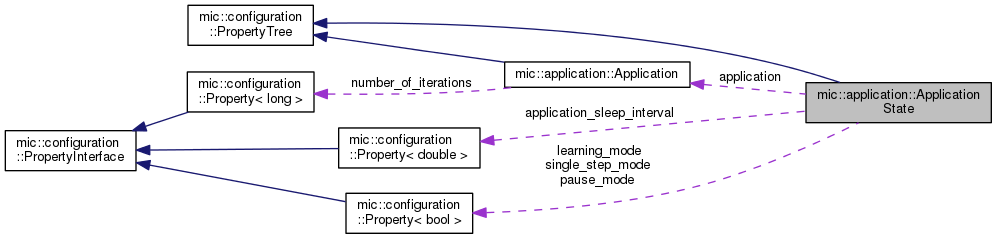

Collaboration diagram for mic::application::ApplicationState:

[legend]

Public Member Functions
double	Quit ()

void	setQuit ()

void	resetQuit ()

double	isPaused ()

void	pressPause ()

double	isSingleStepModeOn ()

void	pressSingleStep ()

double	isLearningModeOn ()

void	pressLearning ()

void	setLearningModeOn ()

void	setLearningModeOff ()

double	usingNCURSES ()

void	startUsingNCURSES ()

void	stopUsingNCURSES ()

double	usingOpenGL ()

void	startUsingOpenGL ()

void	stopUsingOpenGL ()

double	getSleepInterval ()

void	setSleepIntervalS (double sleep_interval_in_seconds)

void	setSleepIntervalMS (double sleep_interval_in_miliseconds)

void	setSleepIntervalUS (double sleep_interval_in_microseconds)

void	multiplySleepInterval (double m_=1.5)

void	divideSleepInterval (double d_=1.5)

void	displayStatus ()

boost::mutex &	dataSynchronizationMutex ()

void	setApplication (mic::application::Application *application_)

Public Member Functions inherited from mic::configuration::PropertyTree
	PropertyTree (std::string node_name_)

virtual	~PropertyTree ()

void	registerProperty (PropertyInterface &prop)

std::string	getNodeName () const

void	loadPropertiesFromConfigNode (boost::property_tree::ptree const &pt_)

void	printProperties ()

void	printPropertiesWithValues ()

PropertyInterface *	getProperty (const std::string &name)

Static Public Member Functions
static ApplicationState *	getInstance ()

Private Member Functions
	ApplicationState ()

void	setSleepInterval (double sleep_interval_)

virtual void	initializePropertyDependentVariables ()

Private Attributes
bool	quit_flag
	Quit application flag. More...

mic::configuration::Property < bool >	pause_mode
	Property: pause application mode. More...

mic::configuration::Property < bool >	single_step_mode
	Property: single step mode. More...

mic::configuration::Property < bool >	learning_mode
	Property: learning/testing mode. More...

bool	using_ncurses
	Flag denoting whether application is using NCurses-based CLI. More...

bool	using_opengl
	Flag denoting whether application is using OpenGL-based visualization. More...

mic::configuration::Property < double >	application_sleep_interval

mic::application::Application *	application

Static Private Attributes
static boost::atomic < ApplicationState * >	instance_

static boost::mutex	instantiation_mutex

static boost::mutex	internal_data_synchronization_mutex

static boost::mutex	external_data_synchronization_mutex

Detailed Description

Class storing the state of the application (modes, sleep interval etc.). Defined in the form of a singleton, with double-checked locking pattern (DCLP) based access to instance.

Author: tkornuta

Definition at line 53 of file ApplicationState.hpp.

Constructor & Destructor Documentation

mic::application::ApplicationState::ApplicationState ( )

private

Private constructor. Sets default values of all flags (FALSE).

Definition at line 66 of file ApplicationState.cpp.

References application_sleep_interval, learning_mode, pause_mode, quit_flag, mic::configuration::PropertyTree::registerProperty(), single_step_mode, using_ncurses, and using_opengl.

Referenced by getInstance().

Here is the call graph for this function:

Member Function Documentation

boost::mutex& mic::application::ApplicationState::dataSynchronizationMutex ( )

inline

Grants access to data synchronization mutex.

Definition at line 232 of file ApplicationState.hpp.

References external_data_synchronization_mutex.

void mic::application::ApplicationState::displayStatus ( )

Displays (with the use of logger) current status of AppState variables.

Definition at line 248 of file ApplicationState.cpp.

References application, application_sleep_interval, mic::application::Application::displayStatus(), learning_mode, LOG, LSTATUS, pause_mode, quit_flag, single_step_mode, using_ncurses, and using_opengl.

Here is the call graph for this function:

void mic::application::ApplicationState::divideSleepInterval ( double d_ = 1.5 )

Decreases the sleep interval by dividing it by a given value. Access secured with scoped lock.

Parameters

d_ Divisor.

Definition at line 239 of file ApplicationState.cpp.

References application_sleep_interval, internal_data_synchronization_mutex, LOG, and LSTATUS.

ApplicationState * mic::application::ApplicationState::getInstance ( )

static

Method for accessing the object instance, with double-checked locking optimization.

Returns: Instance of ApplicationState singleton.

Definition at line 45 of file ApplicationState.cpp.

References ApplicationState(), instance_, and instantiation_mutex.

Here is the call graph for this function:

double mic::application::ApplicationState::getSleepInterval ( )

Returns current value of time interval. Access secured with scoped lock.

Returns: Sleep interval

Definition at line 210 of file ApplicationState.cpp.

References application_sleep_interval, and internal_data_synchronization_mutex.

virtual void mic::application::ApplicationState::initializePropertyDependentVariables ( )

inlineprivatevirtual

Method responsible for initialization of all variables that are property-dependent - here not required, yet empty.

Implements mic::configuration::PropertyTree.

Definition at line 304 of file ApplicationState.hpp.

double mic::application::ApplicationState::isLearningModeOn ( )

Returns learning_mode flag state. Access secured with scoped lock.

Returns: learning_mode state.

Definition at line 137 of file ApplicationState.cpp.

References internal_data_synchronization_mutex, and learning_mode.

double mic::application::ApplicationState::isPaused ( )

Returns pause_mode flag state. Access secured with scoped lock.

Returns: Pause_mode state.

Definition at line 109 of file ApplicationState.cpp.

References internal_data_synchronization_mutex, and pause_mode.

double mic::application::ApplicationState::isSingleStepModeOn ( )

Returns single_step_mode flag state. Access secured with scoped lock.

Returns: single_step_mode state.

Definition at line 123 of file ApplicationState.cpp.

References internal_data_synchronization_mutex, and single_step_mode.

void mic::application::ApplicationState::multiplySleepInterval ( double m_ = 1.5 )

Increases the sleep interval by multiplying it by a given value. Access secured with scoped lock.

Parameters

m_	Multiplier.

Definition at line 227 of file ApplicationState.cpp.

References application_sleep_interval, internal_data_synchronization_mutex, LOG, and LSTATUS.

void mic::application::ApplicationState::pressLearning ( )

Change the state of learning_mode flag, as flag is "bimodal", then acts as pressing "pause" button in e.g. VCR (turns it on/off). Access secured with scoped lock.

Definition at line 142 of file ApplicationState.cpp.

References internal_data_synchronization_mutex, and learning_mode.

void mic::application::ApplicationState::pressPause ( )

Change the state of pause_mode flag, as flag is "bimodal", then acts as pressing "pause" button in e.g. VCR (turns it on/off). Access secured with scoped lock.

Definition at line 114 of file ApplicationState.cpp.

References internal_data_synchronization_mutex, and pause_mode.

void mic::application::ApplicationState::pressSingleStep ( )

Change the state of single_step_mode flag, as flag is "bimodal", then acts as pressing "pause" button in e.g. VCR (turns it on/off). Access secured with scoped lock.

Definition at line 128 of file ApplicationState.cpp.

References internal_data_synchronization_mutex, and single_step_mode.

double mic::application::ApplicationState::Quit ( )

Returns quit flag state. Access secured with scoped lock.

Returns: Quit flag state.

Definition at line 91 of file ApplicationState.cpp.

References internal_data_synchronization_mutex, and quit_flag.

void mic::application::ApplicationState::resetQuit ( )

Change the state of quit flag to false. Access secured with scoped lock.

Definition at line 101 of file ApplicationState.cpp.

References internal_data_synchronization_mutex, and quit_flag.

void mic::application::ApplicationState::setApplication ( mic::application::Application * application_ )

Registers application in APP_STATE.

Definition at line 273 of file ApplicationState.cpp.

References application.

void mic::application::ApplicationState::setLearningModeOff ( )

Change the state of learning_mode to false. Access secured with scoped lock.

Definition at line 152 of file ApplicationState.cpp.

References internal_data_synchronization_mutex, and learning_mode.

void mic::application::ApplicationState::setLearningModeOn ( )

Change the state of learning_mode to true. Access secured with scoped lock.

Definition at line 147 of file ApplicationState.cpp.

References internal_data_synchronization_mutex, and learning_mode.

void mic::application::ApplicationState::setQuit ( )

Change the state of quit flag to true. Access secured with scoped lock.

Definition at line 96 of file ApplicationState.cpp.

References internal_data_synchronization_mutex, and quit_flag.

void mic::application::ApplicationState::setSleepInterval ( double sleep_interval_ )

private

Sets new value of sleep interval. Access secured with scoped lock.

Parameters

sleep_interval_ New value of sleep interval (in ms).

Definition at line 202 of file ApplicationState.cpp.

References application_sleep_interval, and internal_data_synchronization_mutex.

Referenced by setSleepIntervalMS(), setSleepIntervalS(), and setSleepIntervalUS().

void mic::application::ApplicationState::setSleepIntervalMS ( double sleep_interval_in_miliseconds )

Sets new value of sleep interval (in ms).

Parameters

sleep_interval_in_miliseconds New value of sleep interval [ms].

Definition at line 219 of file ApplicationState.cpp.

References setSleepInterval().

Here is the call graph for this function:

void mic::application::ApplicationState::setSleepIntervalS ( double sleep_interval_in_seconds )

Sets new value of sleep interval (in s).

Parameters

sleep_interval_in_seconds New value of sleep interval [s].

Definition at line 215 of file ApplicationState.cpp.

References setSleepInterval().

Here is the call graph for this function:

void mic::application::ApplicationState::setSleepIntervalUS ( double sleep_interval_in_microseconds )

Sets new value of sleep interval (in us).

Parameters

sleep_interval_in_microseconds New value of sleep interval [us].

Definition at line 223 of file ApplicationState.cpp.

References setSleepInterval().

Here is the call graph for this function:

void mic::application::ApplicationState::startUsingNCURSES ( )

Sets using_ncurses flag. Access secured with scoped lock.

Definition at line 167 of file ApplicationState.cpp.

References internal_data_synchronization_mutex, and using_ncurses.

void mic::application::ApplicationState::startUsingOpenGL ( )

Sets using_opengl flag. Access secured with scoped lock.

Definition at line 186 of file ApplicationState.cpp.

References internal_data_synchronization_mutex, and using_opengl.

void mic::application::ApplicationState::stopUsingNCURSES ( )

Resets using_ncurses flag. Access secured with scoped lock.

Definition at line 172 of file ApplicationState.cpp.

References internal_data_synchronization_mutex, and using_ncurses.

void mic::application::ApplicationState::stopUsingOpenGL ( )

Resets using_opengl flag. Access secured with scoped lock.

Definition at line 192 of file ApplicationState.cpp.

References internal_data_synchronization_mutex, and using_opengl.

double mic::application::ApplicationState::usingNCURSES ( )

Returns using_ncurses flag state. Access secured with scoped lock.

Returns: using_ncurses state.

Definition at line 161 of file ApplicationState.cpp.

References internal_data_synchronization_mutex, and using_ncurses.

double mic::application::ApplicationState::usingOpenGL ( )

Returns using_opengl flag state. Access secured with scoped lock.

Returns: using_opengl state.

Definition at line 181 of file ApplicationState.cpp.

References internal_data_synchronization_mutex, and using_opengl.

Member Data Documentation

mic::application::Application* mic::application::ApplicationState::application

private

Pointer to the currently executed application.

Definition at line 304 of file ApplicationState.hpp.

Referenced by displayStatus(), and setApplication().

mic::configuration::Property<double> mic::application::ApplicationState::application_sleep_interval

private

Property: sleep interval in [ms], used for slowing/fastening the computations. The interval belongs to the range between <1ms, 10s>. Set to 1000.0 (1s) by default.

Definition at line 287 of file ApplicationState.hpp.

Referenced by ApplicationState(), displayStatus(), divideSleepInterval(), getSleepInterval(), multiplySleepInterval(), and setSleepInterval().
