CloudPak for AIOps / Concert Operate SSO

This section describes how to configure Single Sign-On (SSO) for CloudPak for AIOps / Concert Operate using Keycloak as the OpenID Connect (OIDC) Identity Provider and OpenLDAP as the user directory. It can also be used as a reference to build launch in context for SevOne devices from Cloud Pak for AIOps / Concert Operate. You can also use this guide in conjunction with the SevOne NMS SSO and SevOne DI SSO guides to enable cross launch between Cloud Pak for AIOps / Concert Operate and SevOne NMS and SevOne DI.

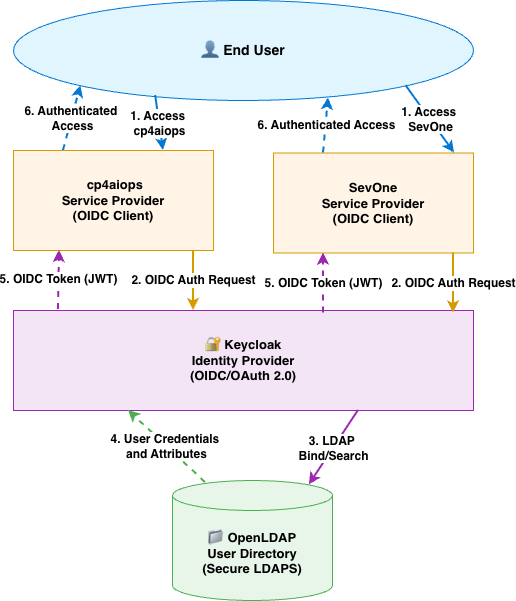

Overview and Architecture

Single Sign-On (SSO) is an authentication method that lets a user log in once and access multiple applications or systems without signing in again.

Single Sign-On (SSO) between CloudPak for AIOps and SevOne is typically achieved by integrating both platforms with a common OIDC or SAML provider, such as Keycloak, and a common user and groups directory provider, such as LDAP, or Active Directory, rather than by establishing a direct authentication relationship between the two products. In this model, users authenticate once through the shared identity provider, which validates credentials against the organization’s directory service and then issues the identity and access claims required by each application. This approach provides a consistent login experience across Cloud Pak for AIOps and SevOne, simplifies user administration, centralizes authentication policy, and supports role-based access control through mapped groups or claims.

This guide configures Single Sign-On (SSO) for IBM Cloud Pak for AIOps 4.13.1 using Keycloak as the OpenID Connect (OIDC) Identity Provider and OpenLDAP as the user directory. CP4AIOps uses IBM Cloud Pak Foundational Services (Common Services) for its SSO layer.

important

At the time of writing, CloudPak for AIOps 4.13 was used to configure and validate the SSO integration described in this guide. The procedures and configuration examples presented are generally applicable to IBM Concert Operate 5.1 and later, which is newer release of CloudPak for AIOps (CP4AIOps).

Component	Role	Protocol
OpenLDAP	User directory — single source of truth for users and groups	LDAP / port 389 (non-secure)
Keycloak	OpenID Connect (OIDC) Identity Provider — federates users from LDAP, issues OIDC tokens	HTTPS / port 8443
CloudPak for AIOps / Concert Operate	Service Provider — AIOps platform consuming OIDC tokens	HTTPS / port 443 (secure)
IBM Foundational Services	IAM layer — handles OIDC registration and token validation within CP4AIOps	HTTPS / port 443 (secure)

important

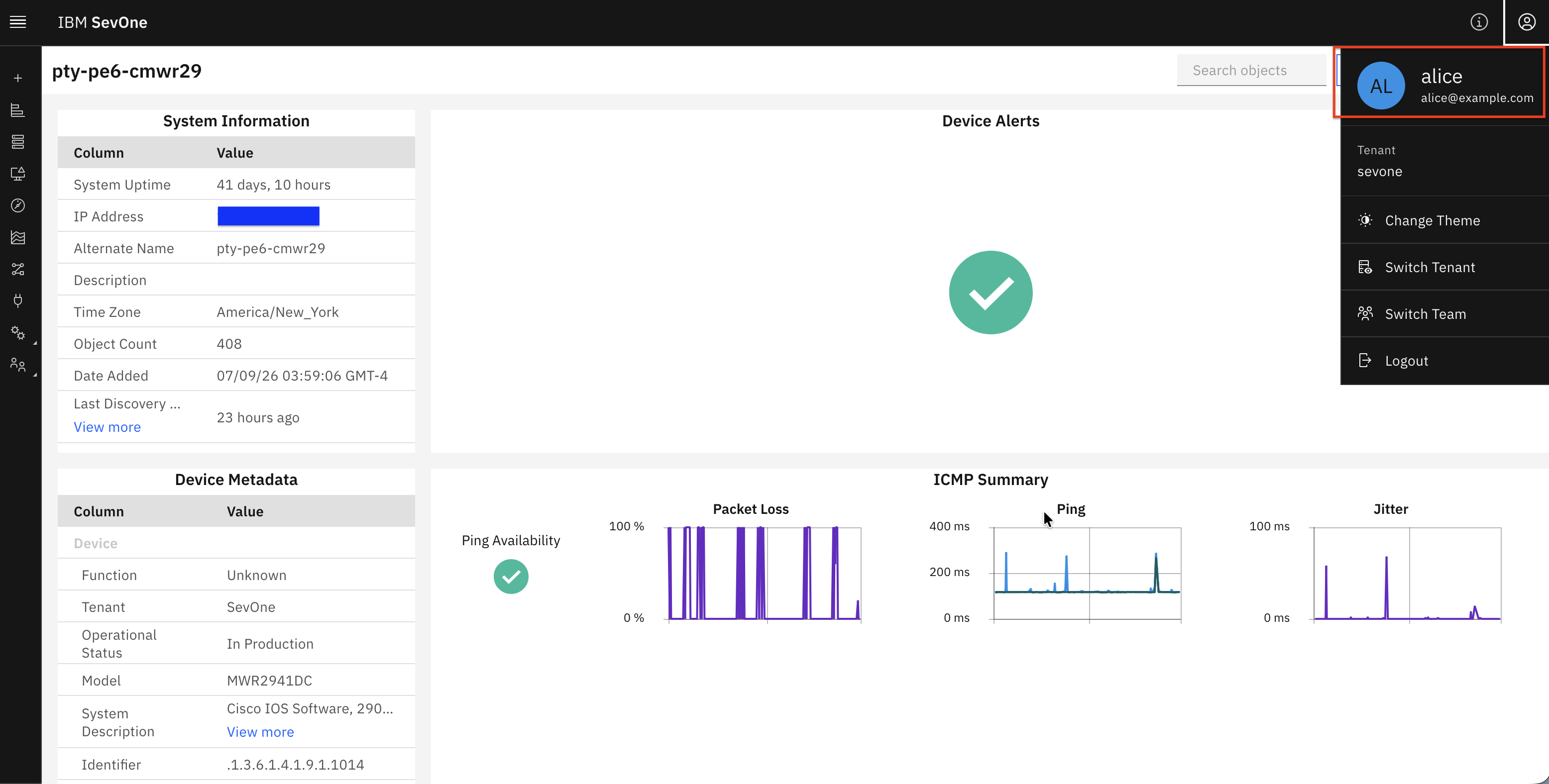

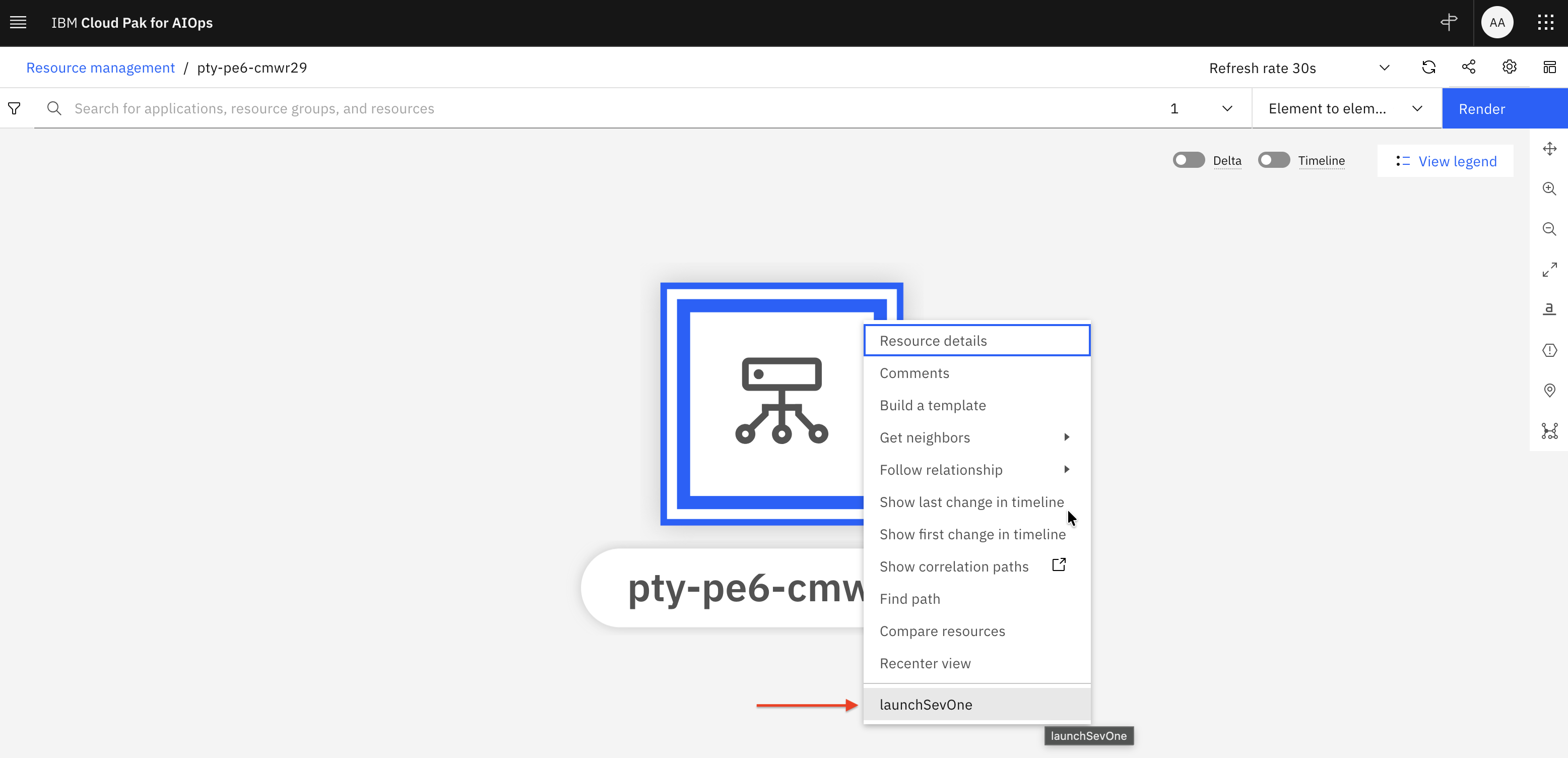

sevone-realm IS REQUIRED to enable cross launch between Cloud Pak for AIOps / Concert Operate and SevOne NMS and SevOne DI. This guides uses sevone-realm because it is the realm configured for the SevOne application within Keycloak that will be used to achieve CP4AIOps right-click functionality to launch SevOne in context.

Prerequisites

Software	Version	Notes
OpenLDAP	2.6.x	Running on port 389 (or 636 for LDAPS), users must have uid and mail attributes
Keycloak	26.x or later	Secure Keycloak with Self Signed Certificate or CA signed, configured with SAN (Subject Alternative Names),admin credentials required
CloudPak for AIOps / Concert Operate	4.13.1 / 5.1 or later	Installed on OpenShift 4.12+
IBM Foundational Services	4.x	Installed as part of CP4AIOps / Concert Operate

OpenLDAP Verification

Skip this step as we will use CloudPak for AIOps / Concert Operate to verify OpenLDAP accessibility. The OpenLDAP is the same as the one used in SevOne NMS SSO and SevOne DI SSO guides. To recap, the LDAP structure that we will use for this example is as follows:

dc=example,dc=com (Base DN)
├── ou=users (Organizational Unit for users)
│   ├── uid=alice
│   ├── uid=bob
│   └── uid=charlie
└── ou=groups (Organizational Unit for groups)
    ├── cn=network_ops_engineer
    ├── cn=network_admin
    └── cn=network_svc_mgr

Keycloak Configuration: TLS Cert, Subject Alternate Name (SAN), Realm, LDAP Federation & Client

Keycloak must serve a TLS certificate with a Subject Alternative Name (SAN) matching its hostname. Platform auth service under IBM Foundational Services component will fail with x509: certificate relies on legacy Common Name field if the Keycloak certificate has no SAN.

Keycloak Config: TLS Cert, Subject Alternate Name (SAN)

Skip this step if you have already configured Keycloak with a certificate that includes the necessary SAN entries. Below is an example of a SAN configuration file for generating a self-signed certificate for Keycloak. You can use this configuration with OpenSSL to create a certificate that includes the necessary SAN entries.

Host: Keycloak

cat > /opt/keycloak/conf/keycloak-san.cnf << 'EOF'
[req]
default_bits       = 2048
prompt             = no
default_md         = sha256
distinguished_name = dn
x509_extensions    = v3_req

[dn]
CN = keycloak.example.com

[v3_req]
subjectAltName   = @alt_names
keyUsage         = critical, digitalSignature, keyEncipherment
extendedKeyUsage = serverAuth

[alt_names]
DNS.1 = keycloak.example.com
DNS.2 = keycloak
EOF

Host: Keycloak

sudo openssl req -x509 -newkey rsa:2048 -nodes \
  -keyout /opt/keycloak/conf/keycloak.key \
  -out    /opt/keycloak/conf/keycloak.crt \
  -days 825 -config /opt/keycloak/conf/keycloak-san.cnf

# Verify SAN is present
openssl x509 -in /opt/keycloak/conf/keycloak.crt -noout -text \
  | grep -A3 "Subject Alternative Name"

sudo systemctl restart keycloak

important

Substitute Keycloak hostname, keycloak.example.com in the above example. Keycloak hostname, keycloak.example.com used in the configuration must be changed to actual Keycloak hostname in your environment.

Keycloak Config: Realm, LDAP Federation & Client

Log in to Keycloak Admin Console

1. Login to Keycloak Admin Console from your browser using the URL: https://keycloak.example.com:8443/admin/master/console/ (replace keycloak.example.com with your Keycloak hostname).
2. Accept the certificate warning if prompted.
3. Log in with your Keycloak admin credentials.

Select Realm: sevone-realm

1. On Keycloak Admin Console, click Manage realms on the top-left area.
2. Choose sevone-realm in the list of realms. We are going to use the sevone-realm which we created earlier in SevOne NMS SSO guide.
3. For Cloud Pak for AIOps / Concert Operate SSO, we will use the same sevone-realm and create a new OIDC client in the sevone-realm realm.

Create OIDC Client: cp4aiops-client

1. In sevone-realm, click Clients → Create client
2. Configure General Settings:
   • Client Type: OpenID Connect
   • Client ID: cp4aiops-client
   • Name: CP4AIOps SSO Client
   • Description: CP4AIOps SSO Client
3. Click Next
4. Configure Capability config:
   • Client authentication: ON
   • Authorization: OFF
   • Standard flow: ON
   • Direct access grants: ON
   • Service accounts roles: ON
   • Implicit flow: ON
   • Standard Token Exchange: OFF
   • JWT Authorization Grant: OFF
   • OAuth 2.0 Device Authorization Grant: OFF
   • OIDC CIBA Grant: OFF
5. Set Require PKCE to ON and PKCE Method to S256
6. Click Next
7. Configure Login settings:
   • Root URL: https://cp-console-cp4aiops.apps.example.com
   • Home URL: Leave empty
   • Valid redirect URIs: https://cp-console-cp4aiops.apps.example.com/ibm/api/social-login/redirect/keycloak-oidc
   • Valid post logout redirect URIs: https://cp-console-cp4aiops.apps.example.com/*
   • Web origins: https://cp-console-cp4aiops.apps.example.com
   • Admin URL: Leave empty
8. Click Save

Here are guidelines for the above Login settings configuration:

Setting	Value	Description
Root URL	https://<cp-console-url>	cp-console URL, such as cp-console-cp4aiops.apps.example.com
Valid redirect URIs	https://<cp-console-url>/ibm/api/social-login/redirect/<name-of-the-oidc-in-CloudPak>	Valid redirect URL to follow format in Value column
Valid post logout redirect URIs	https://<cp-console-url>/*	cp-console URL including /*
Web origins	https://<cp-console-url>	cp-console URL

important

"keycloak-oidc" is the OIDC name in CloudPak for AIOps / Concert Operate configuration and must be used as the last segment of the "Valid redirect URIs" in Keycloak Login settings as above.

important

Substitute CloudPak for AIOps hostname, example.com in the above example. CloudPak for AIOps hostname, cp-console-cp4aiops.apps.example.com used in the configuration must be changed to actual CloudPak for AIOps hostname or ipAddress in your environment.

important

To find the CloudPak for AIOps route, use oc command below
oc get route cpd -n <cp4aiops-namespace> -o jsonpath='{.spec.host}'

Retrieve Client Secret

1. In sevone-realm, on the cp4aiops-client client page, click the Credentials tab
2. Copy the Client Secret value — you will need it in next steps to configure CloudPak for AIOps SSO.
3. Save it: oidc_client_secret: <paste-here>

Configure LDAP User Federation

1. Skip this step if you have already configured LDAP federation in SevOne NMS SSO guide.

Synchronize Users from LDAP

1. Skip this step if you have already synchronized users from LDAP in SevOne NMS SSO guide.

Create Group Mapper

1. Skip this step if you have already created group mapper in SevOne NMS SSO guide.

Synchronize Groups from LDAP

1. Skip this step if you have already synchronized groups from LDAP in SevOne NMS SSO guide.

Edit profile Client Scope

We are going to crete a new Mapper called custom-sub.

1. In sevone-realm, click the Client scopes on left panel
2. Click profile under Name column from the list of client scopes in Client scopes page
3. On Profile page, go to Mappers tab
4. On Mappers tab, select Add mapper → select By configuration from drop down list and finally, select User Property.
5. Configure the following settings for the new mapper:

Setting	Value
Mapper type	User Property
Name	custom-sub
Property	username
Token Claim Name	sub
Claim JSON Type	String
Add to ID token	ON
Add to access token	ON
Add to lightweight access token	OFF
Add to userinfo	ON
Add to token introspection	ON

6. Click Save to create the new mapper.
7. Logout from Keycloak.

CloudPak for AIOps Config: LDAP configuration

In addition to OIDC (for authentication), CloudPak Foundational Services can also connect directly to LDAP for user/group search and role mapping. This guide follows the IBM Foundational Services LDAP connection guide. The configuration below is specific to OpenLDAP structure.

Configure LDAP via the CP4AIOps Management Console

1. Log in to the CP4AIOps Management Hub: https://<cp4aiops-route>/zen/#/homepage
2. Click the hamburger menu (☰) → Administration → Identity Provider
3. On the Identity providers page → click New connection → select LDAP
4. On New LDAP server connection page, let's configure all the sections.

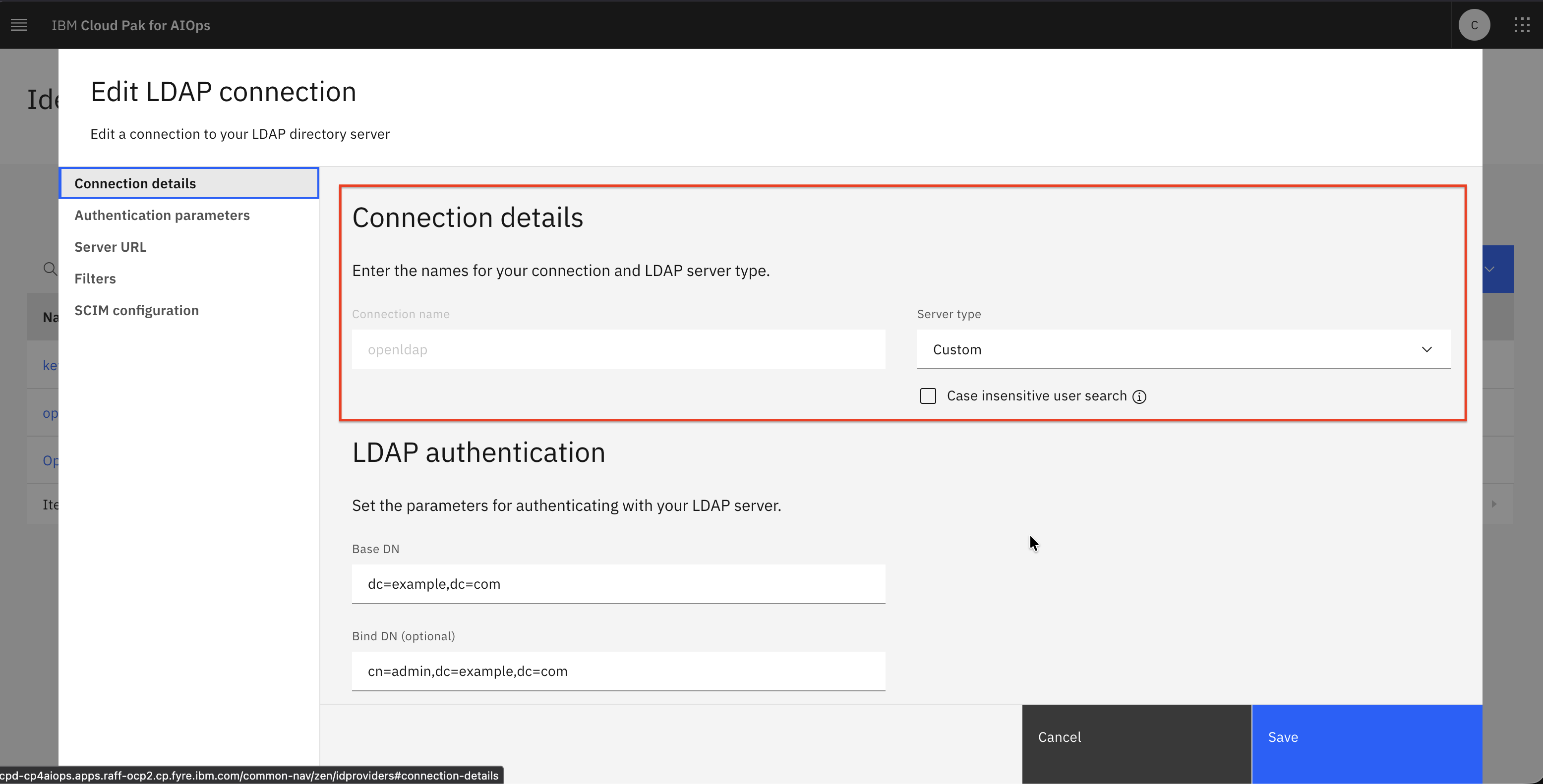

5. Configure Connection details section:

Field	Value
Connection name	openldap
Server type	Custom

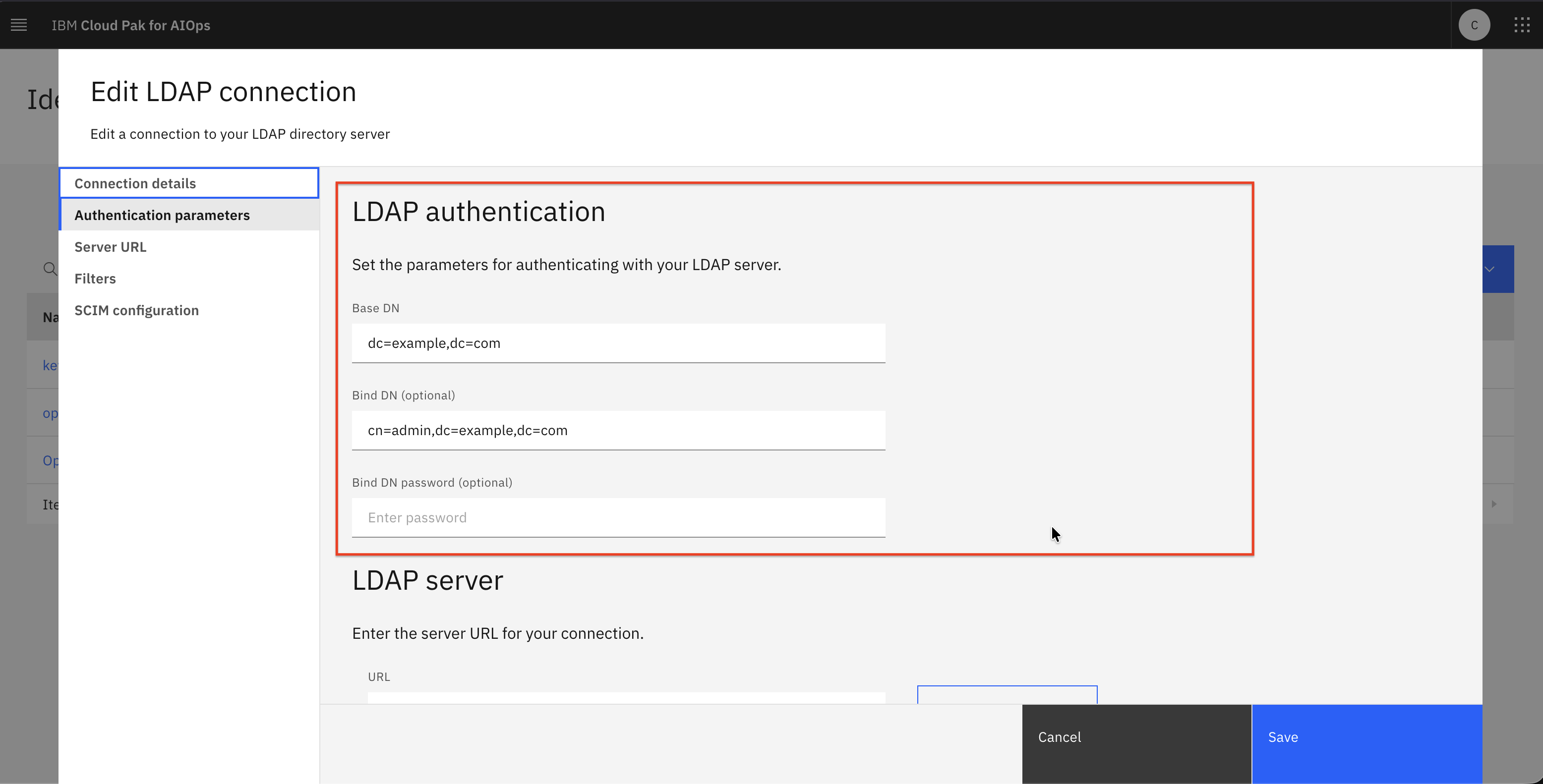

6. Configure LDAP authentication section:

Field	Value
Base DN	dc=example,dc=com
Bind DN (optional)	cn=admin,dc=example,dc=com
Bind DN password (optional)	secret

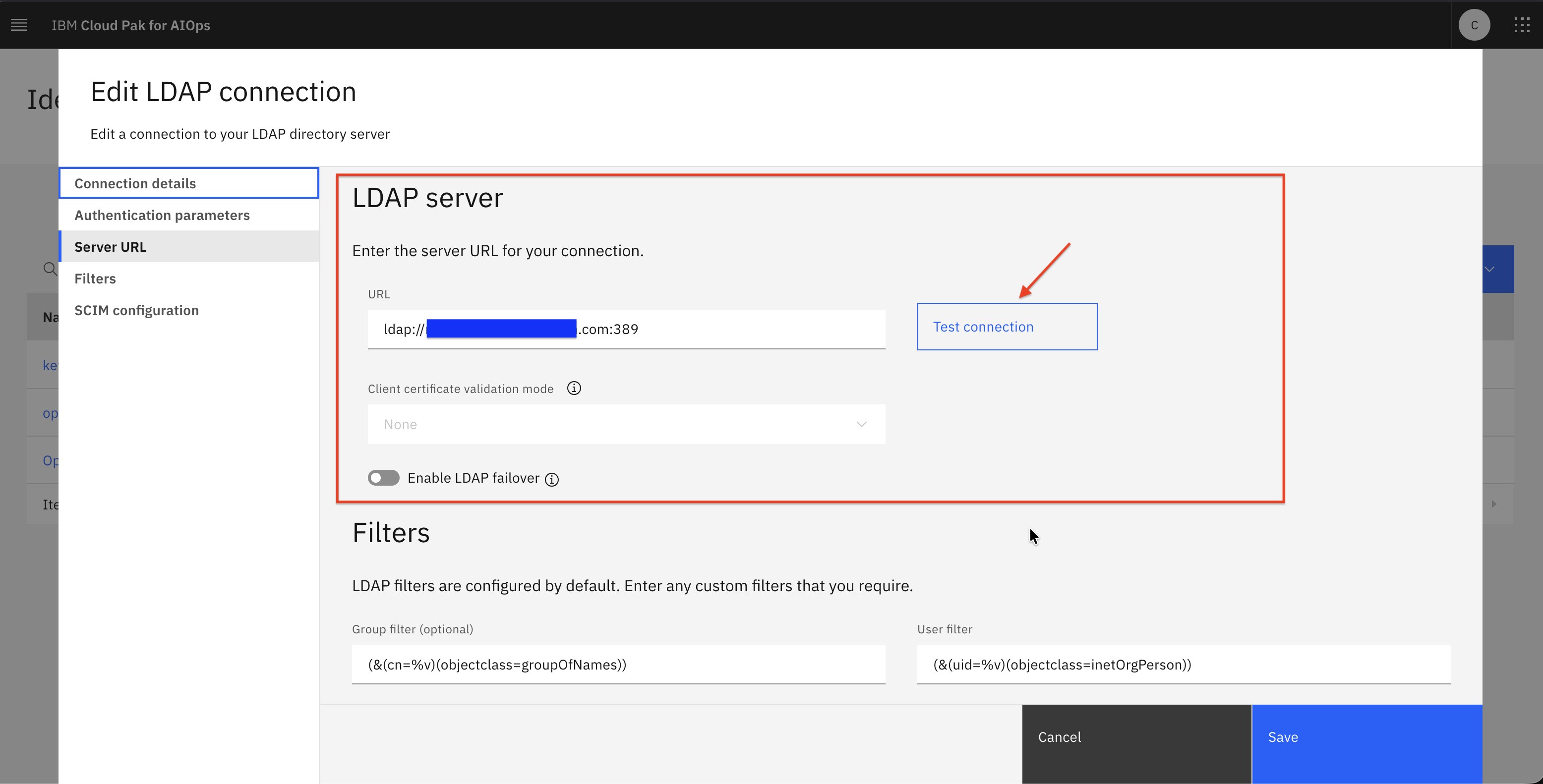

7. Configure LDAP server section:

Field	Value
LDAP server URL	ldap://<openldap.example.com>:389
Client certificate validation mode	Leave empty
Enable LDAP failover	OFF

8. Click Test connection → expect green success indicator message such as "Successful connection to ldap://openldap.example.com:389"

9. Configure Filters section:

Field	Value
Group filter	(&(cn=%v)(objectclass=groupOfNames))
User filter	(&(uid=%v)(objectclass=inetOrgPerson))
Group ID map	*:cn
User ID map	*:uid
Group member ID map (optional)	groupOfNames:member

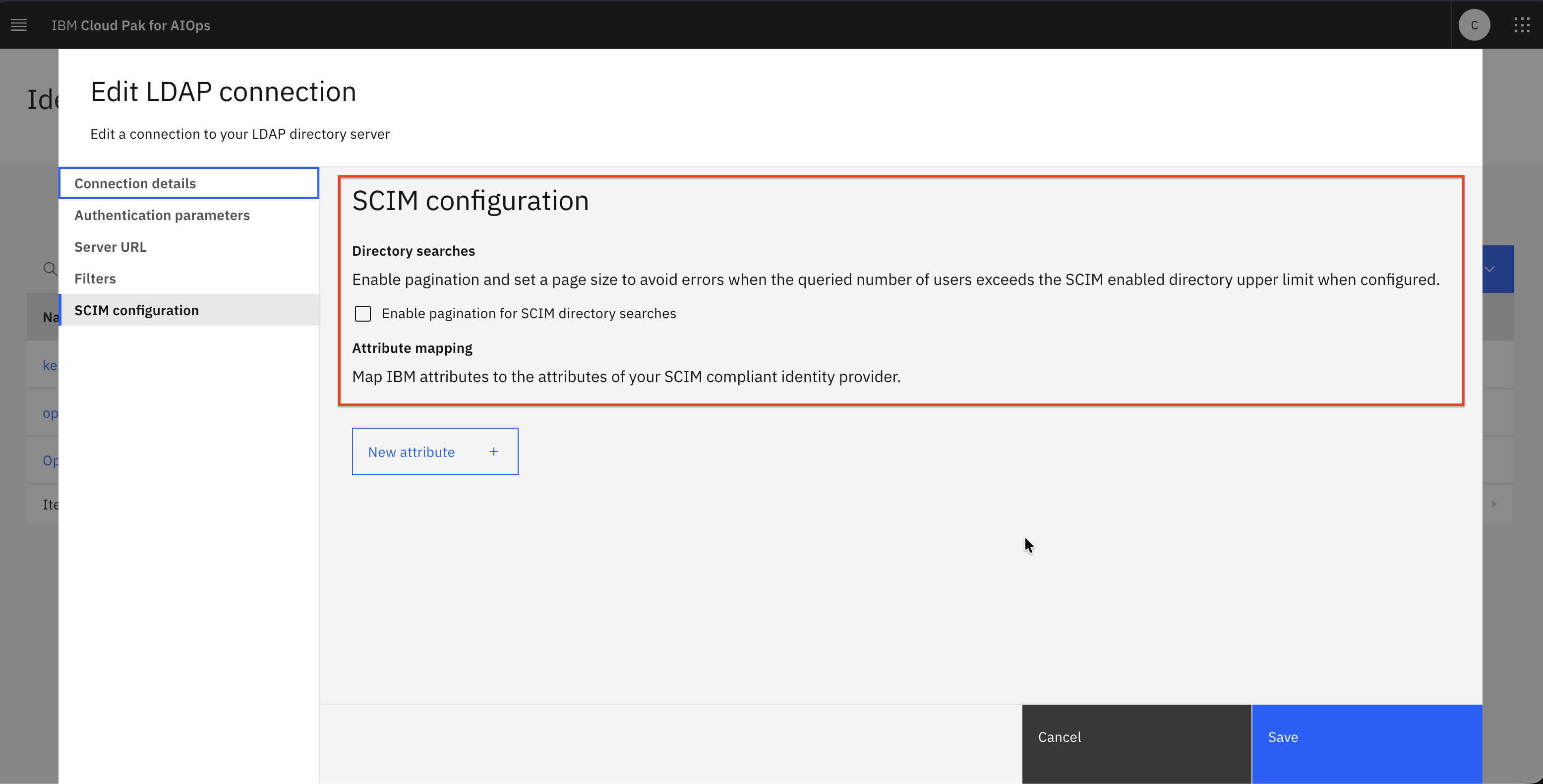

10. Configure SCIM configuration section:

Field	Value
Enable pagination for SCIM directory searches	Leave unchecked

11. Click Create to save the new LDAP connection

note

For production, use LDAPS such as ldaps://<openldap.example.com>:636

CloudPak for AIOps Config: OIDC Configuration

We will configure OIDC in CP4AIOps Foundational Services in conjunction with OpenLDAP. CP4AIOps uses IBM Cloud Pak Foundational Services (Common Services) IAM. OIDC is configured by creating a New OIDC Connection on Identity Provider Configuration page at https://<cp-console-url>/common-nav/zen/idproviders

Create Keycloak CA Certificate Secret

CP4AIOps must trust Keycloak's TLS certificate. Copy the Keycloak Self Signed cert or CA cert under a Secret. To achieve that, edit platform-auth-ldaps-ca-cert secret in cp4aiops namespace to include the Keycloak CA cert in PEM format under data.certificate.

1. On the OCP Bastion VM, run the following commands:

Host: OCP Bastion VM

# Copy the Keycloak cert to your local machine
openssl s_client -connect keycloak.example.com:8443 -showcerts 2>&1 < /dev/null \
  | sed -ne '/-BEGIN CERTIFICATE-/,/-END CERTIFICATE-/p' > keycloak_certs.pem

#Login
oc login https://api.ocp1.example.com:6443 -u kubeadmin -p secret

# Set the namespace to cp4aiops
oc project cp4aiops

# Create the secret in the cp4aiops namespace with the Keycloak Self Signed or CA cert
oc create secret generic platform-auth-ldaps-ca-cert \
  --from-file=certificate=./keycloak_certs.pem \
  --dry-run=client -o yaml | kubectl apply -f -

2. After adding the Keycloak self signed cert, the secret will have the following structure where the certificate is under data.certificate in base64 encoded format. Use command oc edit secret platform-auth-ldaps-ca-cert -n cp4aiops to view the secret structure.

Host: OCP Bastion VM

...snippet...
      namespace: cp4aiops
  ownerReferences:
    - apiVersion: operator.ibm.com/v1alpha1
      kind: Authentication
      name: example-authentication
      uid: 15149324-9334-459e-95f9-c16f70475783
      controller: true
      blockOwnerDeletion: true
  labels:
    app.kubernetes.io/managed-by: ibm-iam-operator
    app.kubernetes.io/part-of: im
data:
  certificate: LS0tLS1C...N2ckZzbWc0aAozM0NESkF1Mld1YUJKU3RGNnN3TCtBPT0KLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo=
type: Opaque

3. Exit from the secret editor.

Register Keycloak as OIDC Identity Provider in CP4AIOps

1. Launch web browser, navigate to the CP4AIOps Login page
   i.e. https://cpd-cp4aiops.apps.example.ibm.com/zen/#/homepage and login as cpadmin
2. On CP4AIOps Landing page, navigate to Manage Users → Identity provider configuration
3. On Identity provider configuration page, click New OIDC connection
4. Choose OIDC as the connection type.

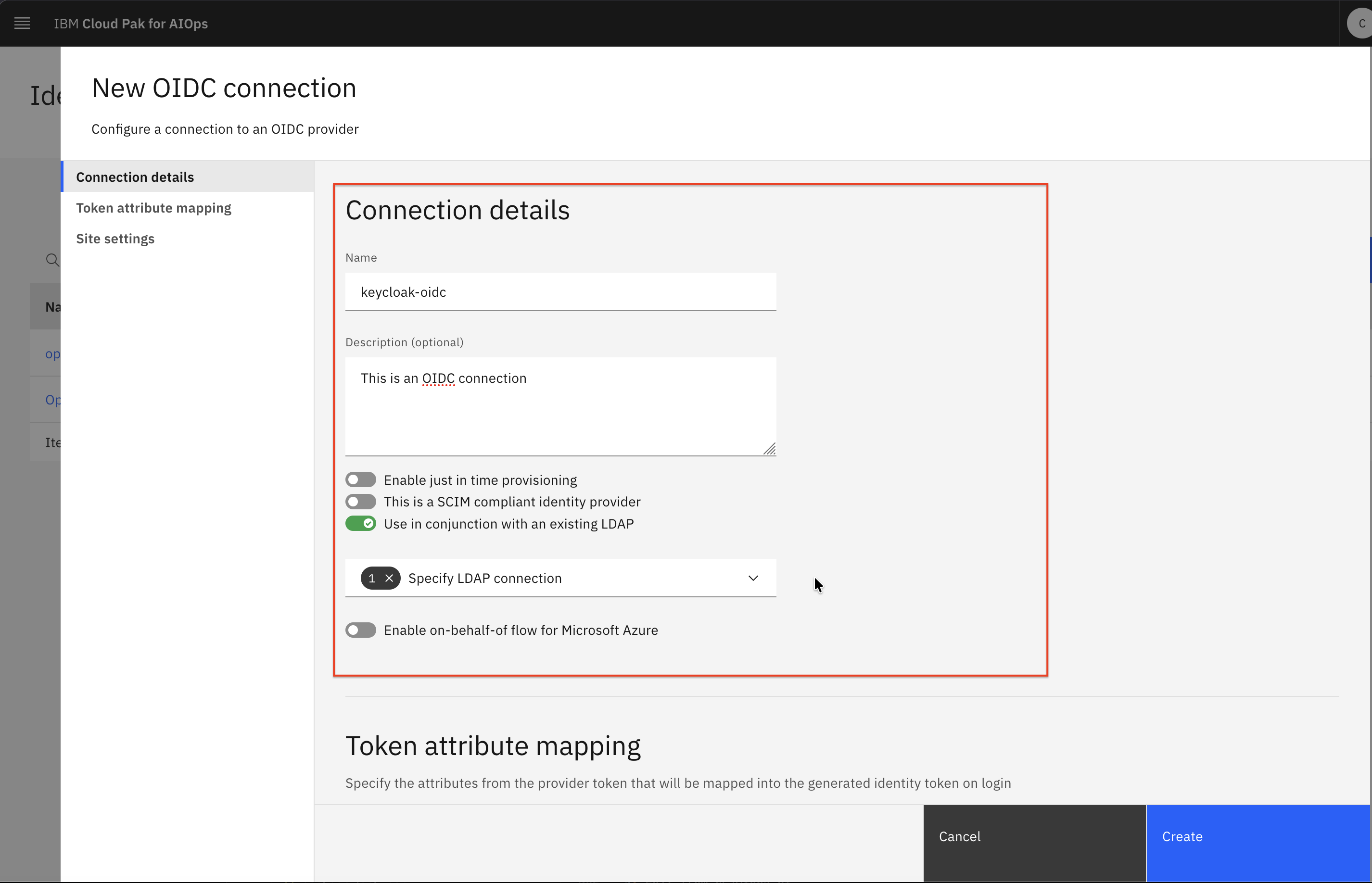

5. Configure Connection details section:

Field	Value	Explanation
Name	keycloak-oidc	This value matches with Keycloak OIDC Client Login setting
Description	This is an OIDC connection	Any meaningful description
Use in conjunction with an existing LDAP	ON	Set to ON as our setup requires OpenLDAP for user directory
Enable just in time provisioning	OFF	Set to OFF
This is a SCIM compliant identity provider	OFF	Set to OFF
Specify LDAP connection	Choose openldap	This is the LDAP connection created in earlier steps
Enable on-behalf-of flow for Microsoft Azure	OFF	Set to OFF

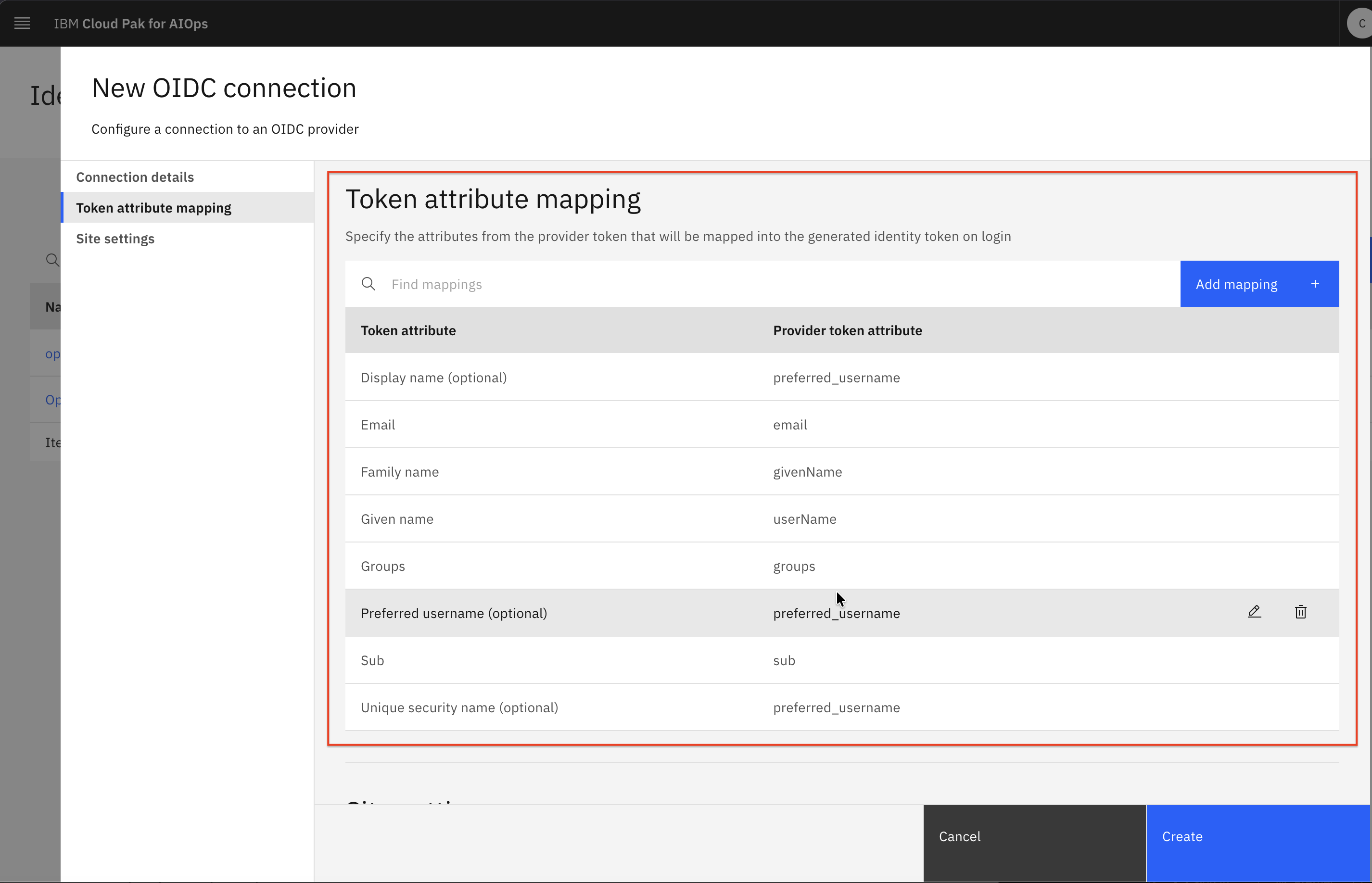

6. Configure Token attribute mapping section:

Token attribute	Provider token attribute
Display name(optional)	preferred_username
Email	email
Family name	givenName
Given name	userName
Groups	groups
Preferred username (optional)	preferred_username
Sub	sub
Unique security name (optional)	preferred_username

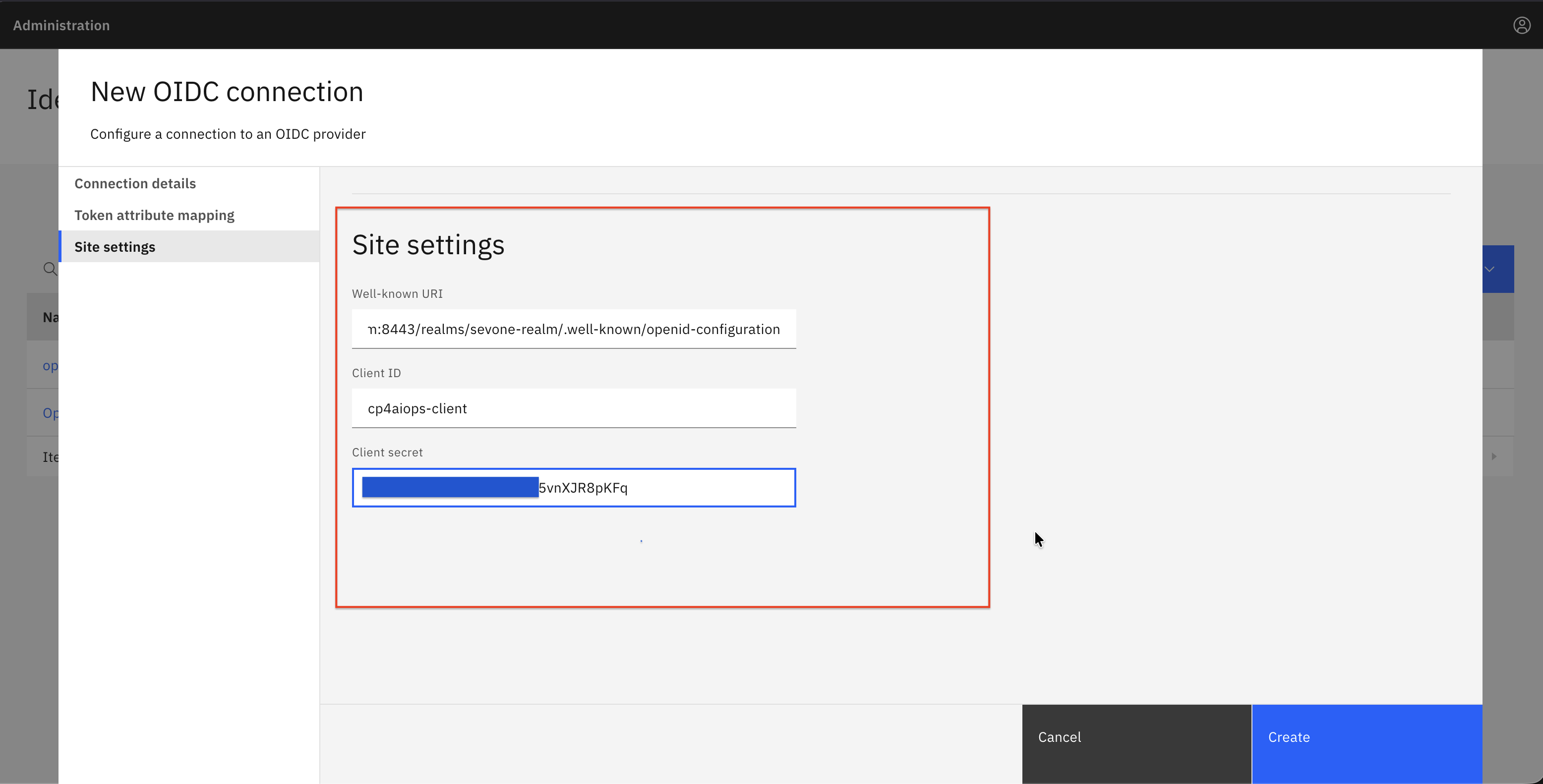

7. Configure Site settings section:

Settings	Value
Well-known URI	https://<keycloak.example.com>:<keycloak-port>/realms/{realm}/.well-known/openid-configuration
Client ID	cp4aiops-client
Client secret	<oidc_client_secret>

8. Click Save button
9. Exit from CP4AIOps UI

important

The Well-known URI in Site settings section can be tested using curl -k such as curl -k https://keycloak.example.com:8443/realms/sevone-realm/.well-known/openid-configuration

important

The discovery_url must be the full RFC 8414 discovery endpoint. CP4AIOps will fetch it at registration time. If Keycloak's TLS cert is not trusted, this call will fail with x509: certificate signed by unknown authority. Ensure the CA cert secret was created in earlier step.

Restart platform-auth-service pod in CP4AIOps cluster

1. Login to CP4AIOps cluster using oc login
2. Restart platform-auth-service pod under cp4aiops namespace

Host: OCP Bastion VM

#Login
oc login https://api.ocp1.example.com:6443 -u kubeadmin -p secret

# set project to cp4aiops
oc project cp4aiops

# get pod platform-auth-service
oc get pods | grep platform-auth-service

# delete platform-auth-service pods
oc delete pod $(oc get pods | grep platform-auth-service | awk '{print $1}')

3. After platform-auth-service pod under cp4aiops namespace has been restarted, run the following commands to verify Keycloak cert is present in JKS keystore file.

Host: OCP Bastion VM

# set project to cp4aiops
oc project cp4aiops

# rsh to platform-auth-service pod
oc rsh $(oc get pods | grep platform-auth-service | awk '{print $1}')

# rsh to platform-auth-service pod
sh-4.4$ keytool -list -v -keystore /opt/ibm/wlp/output/defaultServer/resources/security/key.jks -storepass insecurePass |grep -i "alias"

sh-4.4$ exit

4. JKS file should contain the last entry which is Keycloak certificate

Expected output from keytool

sh-4.4$ keytool -list -v -keystore /opt/ibm/wlp/output/defaultServer/resources/security/key.jks -storepass insecurePass |grep -i "alias"
Alias name: ca2
Alias name: default
Alias name: https://127.0.0.1:443/idauth/oidc/endpoint/op
Alias name: icp-ldap-0
Alias name: oidc123
Alias name: keycloak.example.com:8443

important

Must restart the platform-auth-service pod for changes to take effect. These changes include the new OIDC connection and the new cert addition to JKS keystore in platform-auth-service pod.

CloudPak for AIOps Config: User Roles Assignment

As admin, we will assign LDAP users with Roles in CP4AIOps before allowing LDAP users to login to CP4AIOps.

Assign Role to LDAP Users

1. Launch web browser, navigate to the CP4AIOps Login page
   i.e. https://cpd-cp4aiops.apps.example.com/zen/#/homepage and login as cpadmin
2. On CP4AIOps landing page, click the hamburger menu (☰) → Administration → Access control
3. On the Access control page → click Add users +
4. Search for users such as alice, bob, charlie
5. Click and assign any of these roles deemed fit for the user → Account administrator → Administrator → Automation Administrator → Automation Analyst → Automation Developer → Automation Operator → Service Administrator → User
6. Finally, click Add to save the role assignments

CloudPak for AIOps SSO Login: Verification and Testing

Verify SSO Login Button

1. Launch new Private/Incognito Firefox window and navigate to the CP4AIOps Login page
   i.e. https://cpd-cp4aiops.apps.example.com/zen/#/homepage

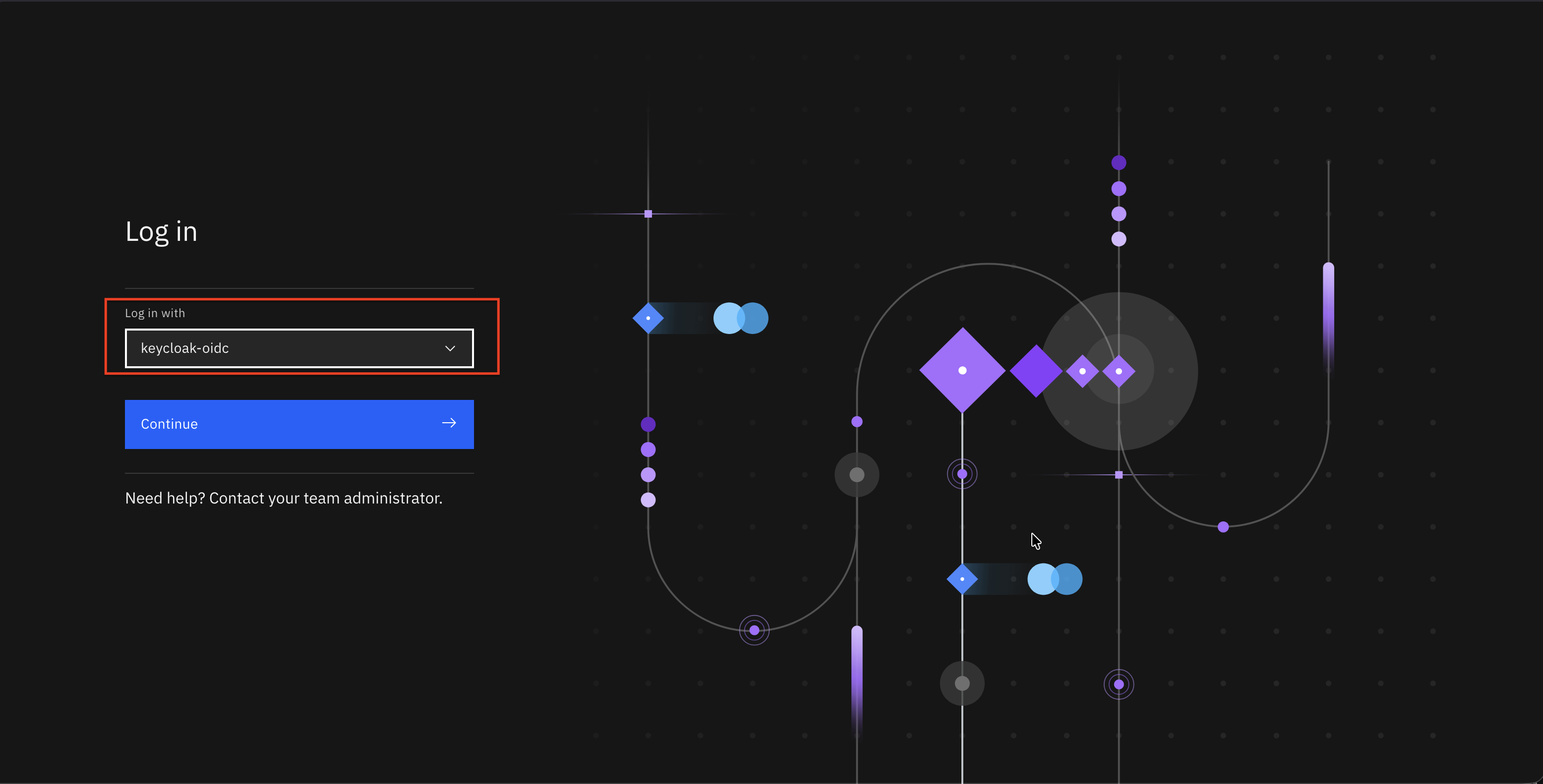

2. You should see keycloak-oidc as an option under Log in with drop down list
3. Select keycloak-oidc under Log in with drop down list

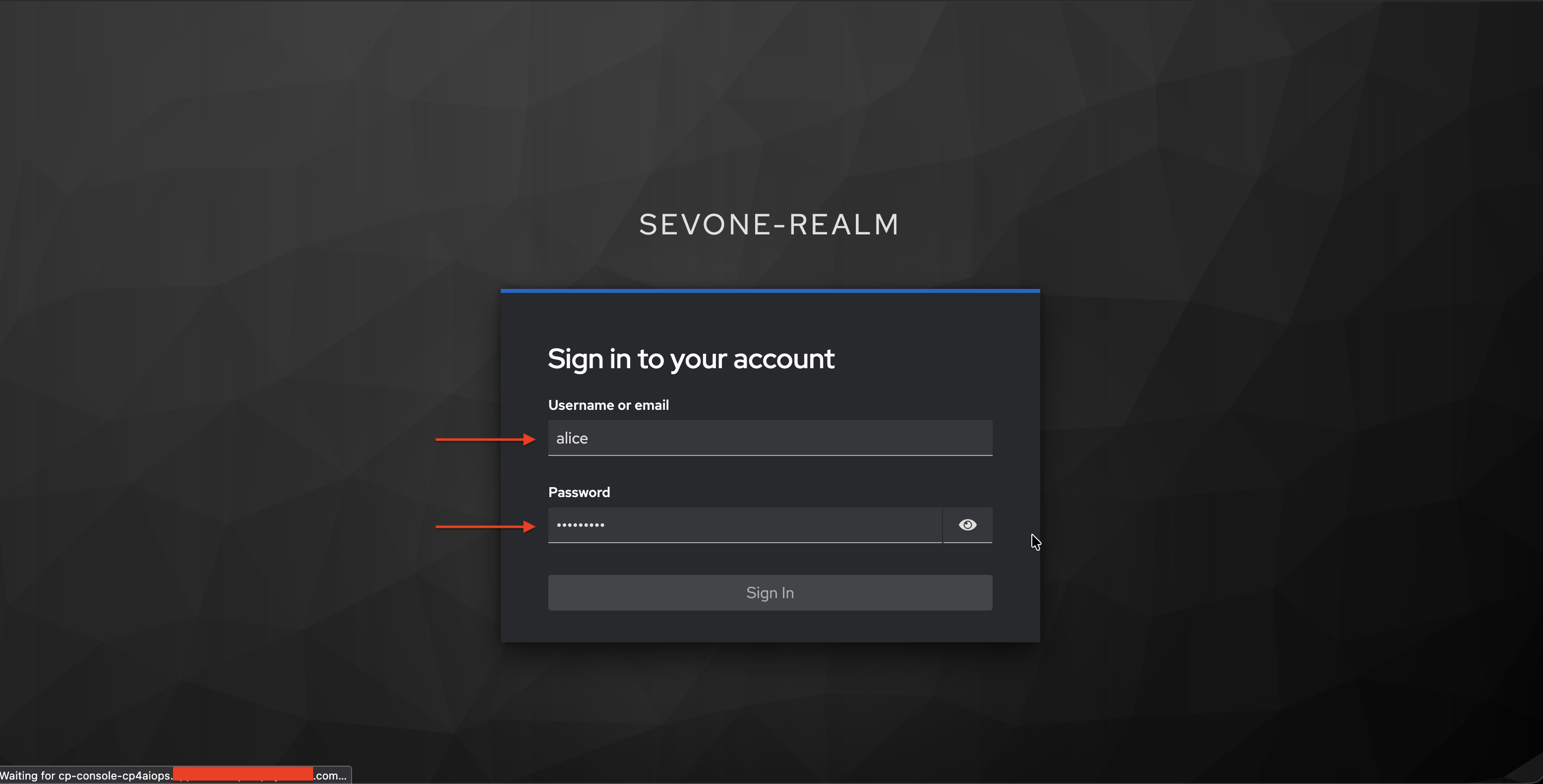

4. You will be redirected to Keycloak login page
5. On Keycloak login page, enter your OpenLDAP user credentials (e.g., alice, bob, charlie) and click Sign In.

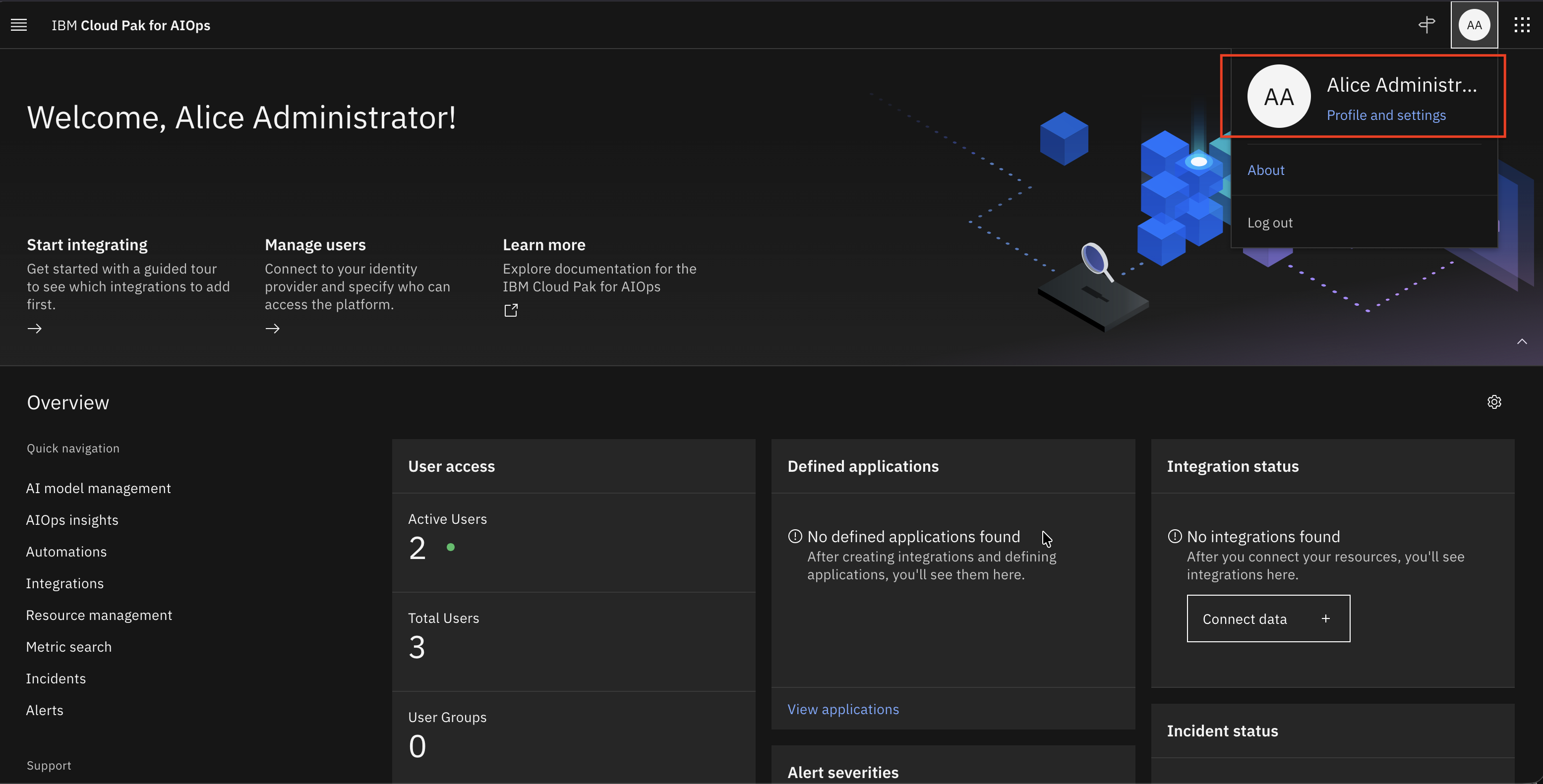

6. You should be redirected back to CP4AIOps landing page, you will see you logged in as LDAP user on top right corner

7. Next, we will do cross launch from CP4AIOps to SevOne for SevOne discovered devices.

Perform SevOne Observer discovery and configure right-click tool for launch in context

1. Configure SevOne Observer and perform the Observer discovery
2. Use Topology tools to add menu option in topology to launch SevOne DI for discovered devices

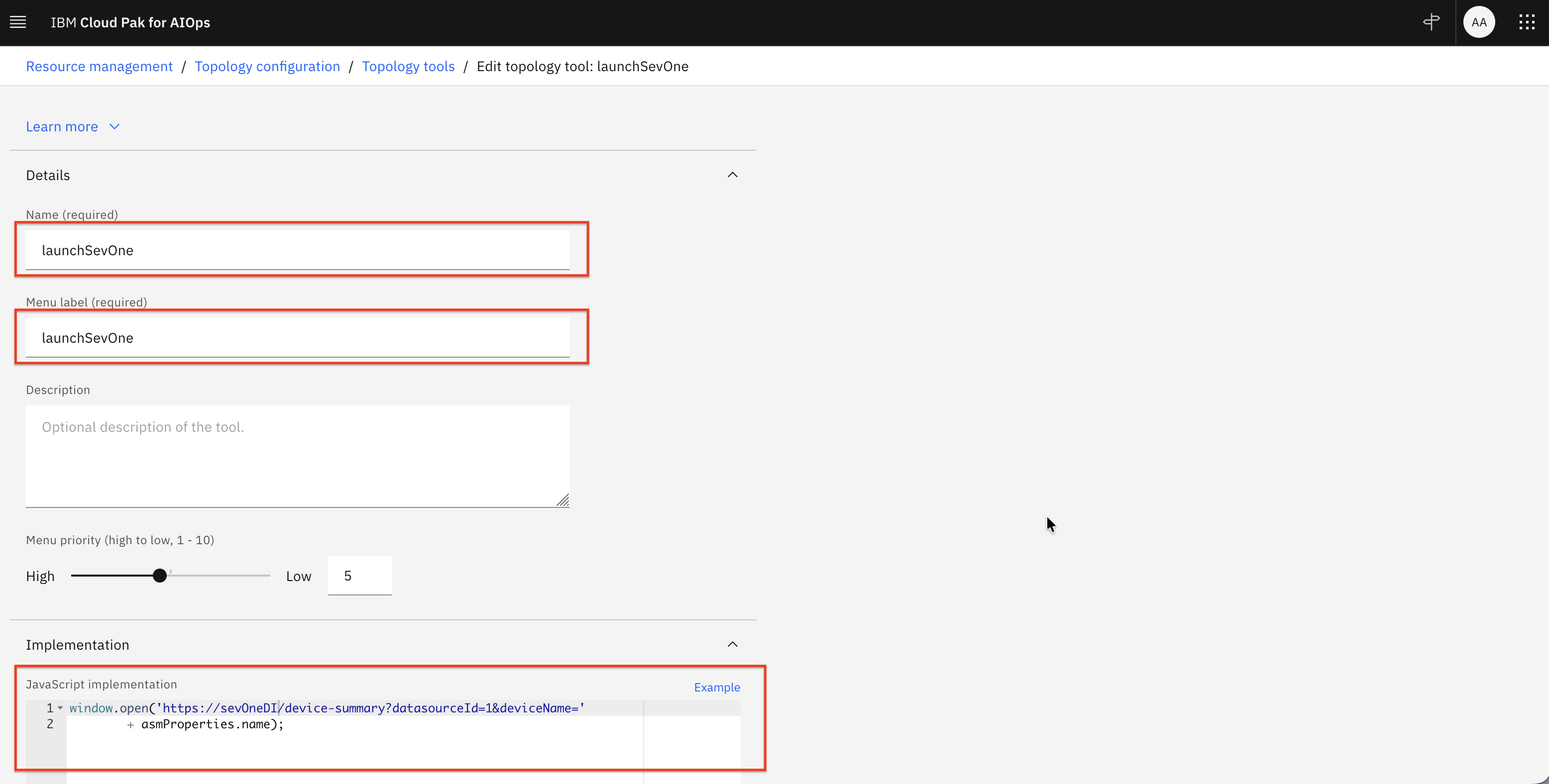

3. Assign name to the topology tool such as launchSevOne and its configuration as below

4. Define JavaScript implementation to the topology tool such as code block below

Example JavaScript for Topology tool

window.open('https://sevoneDI.example.com/device-summary?datasourceId=1&deviceName='
        + asmProperties.name);

5. In CP4AIOps topology, do right click for a SevOne discovered device where you will get launchSevOne menu option.

6. You will be directed to the SevOne DI dashboard for the selected device, indicating that Single Sign-On (SSO) has been successfully configured between SevOne and CloudPak for AIOps.

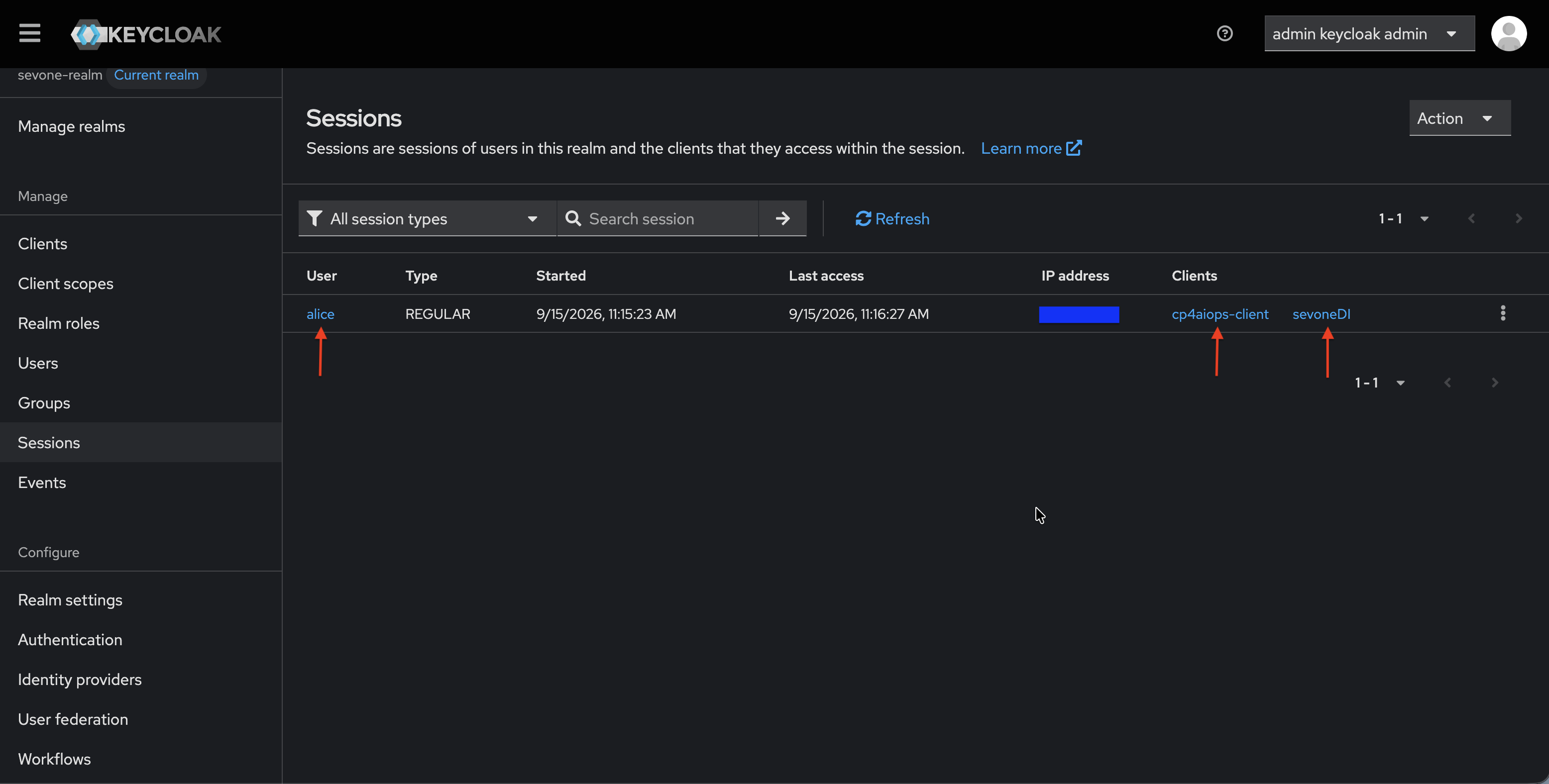

7. To further validate the configuration, log in to the Keycloak administration console as an administrator. Under sevone-realm → Sessions, you should see that user alice has active sessions for both cp4aiops-client and sevoneDI, confirming successful authentication across the two applications.

================================

Congratulations! You have successfully configured CP4AIOps SSO with Keycloak and OpenLDAP.

You can now log in to CP4AIOps using your LDAP credentials through Keycloak. You can also perform cross launch from CP4AIOps to SevOne.

================================
