Template-typed Matrix of dynamic size. Uses OpenBLAS if found by CMAKE - overloaded, specializations of * operator for types: float, double. More...

#include <Matrix.hpp>

Inheritance diagram for mic::types::Matrix< T >:

[legend]

Collaboration diagram for mic::types::Matrix< T >:

[legend]

Public Member Functions
EIGEN_STRONG_INLINE	Matrix ()

EIGEN_STRONG_INLINE	Matrix (int Rows_, int Cols_)

EIGEN_STRONG_INLINE	Matrix (const Eigen::Matrix< T, Eigen::Dynamic, 1 > &vector_)

EIGEN_STRONG_INLINE	Matrix (const Eigen::Matrix< T, Eigen::Dynamic, Eigen::Dynamic > &matrix_)

EIGEN_STRONG_INLINE	Matrix (mic::types::Tensor< T > &tensor_)

EIGEN_STRONG_INLINE Eigen::Matrix< T, Eigen::Dynamic, Eigen::Dynamic > &	operator= (const Eigen::Matrix< T, Eigen::Dynamic, Eigen::Dynamic > &mat_)

EIGEN_STRONG_INLINE Eigen::Matrix< T, Eigen::Dynamic, Eigen::Dynamic >	operator* (const Eigen::Matrix< T, Eigen::Dynamic, Eigen::Dynamic > &mat_)

void	setValue (T value_)

void	enumerate ()

void	randn (T mean=0, T stddev=1)

void	rand (T min=0, T max=1)

void	elementwiseFunction (T(*func)(T))

void	elementwiseFunctionScalar (T(*func)(T, T), T scalar_)

void	elementwiseFunctionMatrix (T(*func)(T, T), Eigen::Matrix< T, Eigen::Dynamic, Eigen::Dynamic > &mat_)

void	matrixColumnVectorFunction (T(*func)(T, T), Eigen::Matrix< T, Eigen::Dynamic, 1 > &v_)

void	matrixRowVectorFunction (T(*func)(T, T), Eigen::Matrix< T, Eigen::Dynamic, 1 > &v_)

void	repeatVector (Eigen::Matrix< T, Eigen::Dynamic, 1 > &in)

Eigen::Matrix< T, Eigen::Dynamic, 1 >	colwiseReturnMaxIndices ()

T	calculateCrossEntropy (Eigen::Matrix< T, Eigen::Dynamic, Eigen::Dynamic > &targets_)

void	zeros ()

T &	operator[] (int idx)

T	operator[] (int idx) const

template<>
Eigen::MatrixXd	operator* (const Eigen::MatrixXd &mat_)

template<>
Eigen::MatrixXf	operator* (const Eigen::MatrixXf &mat_)

Private Member Functions
template<class Archive >
void	save (Archive &ar, const unsigned int version) const

template<class Archive >
void	load (Archive &ar, const unsigned int version)

Friends
class	boost::serialization::access

Detailed Description

template<typename T>
class mic::types::Matrix< T >

Template-typed Matrix of dynamic size. Uses OpenBLAS if found by CMAKE - overloaded, specializations of * operator for types: float, double.

Template Parameters

T	Template parameter denoting elementary type of data used (int, float, double etc.)

Date: Mar 7, 2016

Author: tkornuta

Definition at line 64 of file Matrix.hpp.

Constructor & Destructor Documentation

template<typename T>

EIGEN_STRONG_INLINE mic::types::Matrix< T >::Matrix ( )

inline

Constructor. Calls default Eigen::MatrixXf constructor.

Definition at line 71 of file Matrix.hpp.

template<typename T>

EIGEN_STRONG_INLINE mic::types::Matrix< T >::Matrix	(	int	Rows_,
		int	Cols_
	)

inline

Constructor. Calls default Eigen::MatrixXf constructor.

Parameters

Rows_	Number of rows.
Cols_	Number of columns.

Definition at line 81 of file Matrix.hpp.

template<typename T>

EIGEN_STRONG_INLINE mic::types::Matrix< T >::Matrix ( const Eigen::Matrix< T, Eigen::Dynamic, 1 > & vector_ )

inline

Copying constructor on the basis of a vector. Sets dimensions to rows = size(), cols = 1.

Parameters

vector_ Vector

Definition at line 91 of file Matrix.hpp.

template<typename T>

EIGEN_STRONG_INLINE mic::types::Matrix< T >::Matrix ( const Eigen::Matrix< T, Eigen::Dynamic, Eigen::Dynamic > & matrix_ )

inline

Copying constructor on the basis of another matrix.

Parameters

matrix_ Matrix to be copied.

Definition at line 103 of file Matrix.hpp.

template<typename T>

EIGEN_STRONG_INLINE mic::types::Matrix< T >::Matrix ( mic::types::Tensor< T > & tensor_ )

inline

Copying constructor on the basis of a tensor. Copies dimensions and data. Note: tensor must be 2D.

Parameters

tensor_ Tensor

Definition at line 116 of file Matrix.hpp.

References mic::types::Tensor< T >::data(), mic::types::Tensor< T >::dims(), and mic::types::Tensor< T >::size().

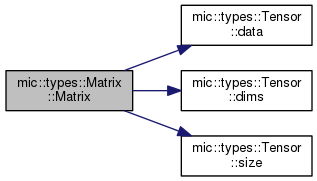

Here is the call graph for this function:

Member Function Documentation

template<typename T>

T mic::types::Matrix< T >::calculateCrossEntropy ( Eigen::Matrix< T, Eigen::Dynamic, Eigen::Dynamic > & targets_ )

inline

Calculates the cross entropy as measure of how accurate given matrix (treated as prediction) fits to the desired (target) matrix.

Parameters

targets_ Desired results (targets) in the form of a matrix of answers.

Returns

Definition at line 396 of file Matrix.hpp.

template<typename T>

Eigen::Matrix<T, Eigen::Dynamic, 1> mic::types::Matrix< T >::colwiseReturnMaxIndices ( )

inline

Returns a vector of indices indicating maximal elements in consecutive matrix columns (colwise).

Returns: Vector of indices.

Definition at line 366 of file Matrix.hpp.

template<typename T>

void mic::types::Matrix< T >::elementwiseFunction ( T(*)(T) func )

inline

Applies elementwise function to all matrix elements.

Parameters

func	Function to be applied.

Definition at line 242 of file Matrix.hpp.

template<typename T>

void mic::types::Matrix< T >::elementwiseFunctionMatrix	(	T(*)(T, T)	func,
		Eigen::Matrix< T, Eigen::Dynamic, Eigen::Dynamic > &	mat_
	)

inline

Applies elementwise function to all matrix elements and uses additional Matrix mat_ data as function parameter.

Parameters

func	Function to be applied.
mat_	Matrix passed to function as argument.

Definition at line 276 of file Matrix.hpp.

template<typename T>

void mic::types::Matrix< T >::elementwiseFunctionScalar	(	T(*)(T, T)	func,
		T	scalar_
	)

inline

Applies elementwise function to all matrix elements passing scalar as function argument.

Parameters

func	Function to be applied.
scalar_	Scalar passed to function as argument.

Definition at line 259 of file Matrix.hpp.

template<typename T>

void mic::types::Matrix< T >::enumerate ( )

inline

Enumerates - sets values of elements to their indices.

Definition at line 185 of file Matrix.hpp.

Referenced by TEST().

template<typename T>

template<class Archive >

void mic::types::Matrix< T >::load	(	Archive &	ar,
		const unsigned int	version
	)

inlineprivate

Serialization load - loads the matrix object to archive.

Parameters

ar	Used archive.
version	Version of the matrix class.

Definition at line 456 of file Matrix.hpp.

template<typename T>

void mic::types::Matrix< T >::matrixColumnVectorFunction	(	T(*)(T, T)	func,
		Eigen::Matrix< T, Eigen::Dynamic, 1 > &	v_
	)

inline

Applies function to all matrix elements and uses additional vector data as function parameter - columnwise.

Parameters

func	Used function
v_	Vector passed to function

Definition at line 299 of file Matrix.hpp.

template<typename T>

void mic::types::Matrix< T >::matrixRowVectorFunction	(	T(*)(T, T)	func,
		Eigen::Matrix< T, Eigen::Dynamic, 1 > &	v_
	)

inline

Applies function to all matrix elements and uses additional vector data as function parameter - rowwise.

Parameters

func	Used function
v_	Vector passed to function

Definition at line 325 of file Matrix.hpp.

template<>

Eigen::MatrixXd mic::types::Matrix< double >::operator* ( const Eigen::MatrixXd & mat_ )

inline

Author: tkornuta

Definition at line 40 of file MatrixXdSpecializations.hpp.

template<>

Eigen::MatrixXf mic::types::Matrix< float >::operator* ( const Eigen::MatrixXf & mat_ )

inline

Author: tkornuta

Definition at line 43 of file MatrixXfSpecializations.hpp.

template<typename T>

EIGEN_STRONG_INLINE Eigen::Matrix<T, Eigen::Dynamic, Eigen::Dynamic> mic::types::Matrix< T >::operator* ( const Eigen::Matrix< T, Eigen::Dynamic, Eigen::Dynamic > & mat_ )

inline

Overloaded multiplication operator.

Parameters

mat_	Input matrix

Returns: Resulting matrix - multiplication of this and input mat_.

Definition at line 162 of file Matrix.hpp.

template<typename T>

EIGEN_STRONG_INLINE Eigen::Matrix<T, Eigen::Dynamic, Eigen::Dynamic>& mic::types::Matrix< T >::operator= ( const Eigen::Matrix< T, Eigen::Dynamic, Eigen::Dynamic > & mat_ )

inline

Overloaded assignment operator - calls base operator.

Parameters

mat_	Input matrix

Returns: An exact copy of the input matrix.

Definition at line 149 of file Matrix.hpp.

template<typename T>

T& mic::types::Matrix< T >::operator[] ( int idx )

inline

Definition at line 419 of file Matrix.hpp.

template<typename T>

T mic::types::Matrix< T >::operator[] ( int idx ) const

inline

Definition at line 423 of file Matrix.hpp.

template<typename T>

void mic::types::Matrix< T >::rand	(	T	min = `0`,
		T	max = `1`
	)

inline

Set values of all matrix elements to random numbers from range <min, max> - uniform distribution.

Parameters

min	Min value.
max	Max value.

Returns: Random real value.

Definition at line 221 of file Matrix.hpp.

template<typename T>

void mic::types::Matrix< T >::randn	(	T	mean = `0`,
		T	stddev = `1`
	)

inline

Set values of all matrix elements to random with a normal distribution.

Parameters

mean	Mean
stddev	Variance

Definition at line 199 of file Matrix.hpp.

Referenced by TEST().

template<typename T>

void mic::types::Matrix< T >::repeatVector ( Eigen::Matrix< T, Eigen::Dynamic, 1 > & in )

inline

Sets the consecutive columns to be equal to given vector.

Parameters

in	Input vector, that will be "cloned".

Definition at line 352 of file Matrix.hpp.

template<typename T>

template<class Archive >

void mic::types::Matrix< T >::save	(	Archive &	ar,
		const unsigned int	version
	)		const

inlineprivate

Serialization save - saves the matrix object to archive.

Parameters

ar	Used archive.
version	Version of the matrix class.

Definition at line 438 of file Matrix.hpp.

template<typename T>

void mic::types::Matrix< T >::setValue ( T value_ )

inline

Sets values of all element to the value given as parameter.

Parameters

value_ The value to be set.

Definition at line 173 of file Matrix.hpp.

template<typename T>

void mic::types::Matrix< T >::zeros ( )

inline

Set zeros.

Definition at line 415 of file Matrix.hpp.

Referenced by TEST().

Friends And Related Function Documentation

template<typename T>

friend class boost::serialization::access

friend

Definition at line 430 of file Matrix.hpp.

The documentation for this class was generated from the following file:

src/types/Matrix.hpp
