Generating DDL for a Db2 object

Db2 Developer Extension provides the capability to generate DDL for a Db2 object. Data Definition Language (DDL) is a subset of SQL commands that are used to create and modify database objects. You can generate DDL to completely re-create a database or only certain parts of it. By generating DDL for database objects, you can:

  • Keep a snapshot of the database structure.
  • Set up a test system where the database acts like the production system but contains no data.
  • Produce templates for new objects based on the existing ones.

You can generate DDL for the following Db2 objects:

  • Tables
  • Views
  • Procedures
  • Functions
  • Triggers
  • Indexes
  • Aliases
  • Check constraints
  • Comments
  • Sequences
  • Security label components
  • Service classes
  • User-defined types
  • Variables

Generating DDL for a table

  1. Click the database connection and click the schema that you want.
  2. Click the Tables section to expand all the tables.
  3. Select the required table and right-click it.

  4. From the menu, click the option Generate DDL.

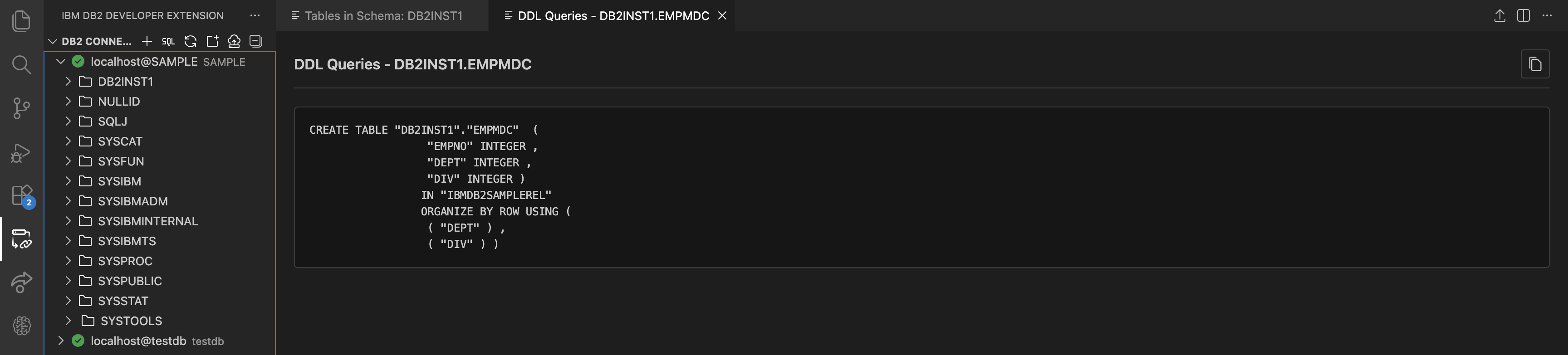

    The extension opens the DDL for the selected table structure in a read-only editor tab. You can copy the DDL for an object but cannot run it directly.

    Generate DDL

You can follow the same steps to generate DDL for other object types, such as Views.
