IBM Z® Open Editor

COBOL linting with IBM ZCodeScan

IBM® ZCodeScan enables developers to scan COBOL applications for security vulnerabilities and perform code reviews across z/OS® applications.

ZCodeScan in Z Open Editor includes the following features:

  • Security vulnerabilities scanner to identify potential issues in COBOL source code, including SQL injection risks, buffer overflow issues, unprotected credentials, and other security concerns.

  • Built-in rules to easily set up code reviews. These rules cover typical best practices in COBOL coding, such as proper variable initialization, safe call statements, and secure SQL usage.

  • Custom rules to define organization-specific coding standards and best practices. Custom rule models allow you to extend ZCodeScan with domain-specific rules tailored to your development needs. Custom rules are defined in separate rule model files (e.g., rules-domains.yaml) and referenced in your ZAPP profile configuration. To learn more about custom rules, see the IBM Developer for z/OS documentationopen in new window.

  • Real-time code review with linting which provides instant feedback on code quality within Z Open Editor as you edit your COBOL programs.

IBM ZCodeScan is provided as part of IBM Developer for z/OS Enterprise Edition, which also includes a Command Line Interface (CLI) that enables code reviews to be run from anywhere for increased flexibility. For example, the CLI can be invoked from a developer's workstation, a pipeline orchestrator, or any build framework. To learn more about the CLI, see the IBM Developer for z/OS documentationopen in new window.

Currently, IBM ZCodeScan can scan only COBOL programs and copybook files that are free of syntax errors. See Known Issues for a complete list.

Configuring ZCodeScan Rules

Important: Starting with Z Open Editor 6.2.0, ZCodeScan configuration must be done through ZAPP file(s). Configuration via zcodescan-rules.yaml at the workspace root only is no longer supported.

Overview

ZCodeScan configuration is now managed through ZAPP profiles. You can define global rules and application-specific rule overrides using YAML files referenced in your zapp.yaml configuration.

Note:

  • If no ZCodeScan profile is declared in the ZAPP file(s), all the predefined rules will be applied to your source code.

Creating a ZAPP Profile for ZCodeScan

Create or update the zapp.yaml file at your workspace root and define a ZCodeScan profile with the following structure:

profiles:
  - name: zcodescan
    type: zcodescan
    settings:
      rules:
        - type: local
          locations:
            - "zcodescan/sam-rules.yaml"
            - "zcodescan/rules.yaml"
      customRuleModels:
        - type: local
          locations:
            - "zcodescan/rules-domains.yaml"
      customRuleJars:
        - type: local
          locations:
            - "zcodescan/rules-domains.jar"

Note:

  • The locations property supports glob patterns, allowing you to target multiple YAML files with a single pattern. For example, you can use patterns like "zcodescan/*-rules.yaml" to match all rule files in the directory, or "zcodescan/**/*.yaml" to recursively match YAML files in subdirectories.
  • To learn more about custom rules, see the IBM Developer for z/OS documentationopen in new window.

Global Rules Configuration

Define global rules in a file such as zcodescan/rules.yaml. This file contains standard rules with their default severities that apply across your entire workspace.

Example structure:

rules:
rules:
  - id: zcodescan.cobol.rules.BinarySubscriptRule
    severity: LOW
  - id: zcodescan.cobol.rules.RequireEndClauseRule
    severity: HIGH
    statements:
      - name: "If"
        value: true
      - name: "Call"
        value: true
  - id: zcodescan.cobol.rules.UnprotectedAuthCredentialRule
    severity: LOW

Application-Specific Rule Overrides

Create application-specific rules files (e.g., zcodescan/sam-rules.yaml) to override global definitions for particular applications. This allows you to adjust rule severities or enable/disable specific rules To override the global rules in the profile this file must be before the global rule file..

Example:

rules:
  - id: zcodescan.cobol.rules.BinarySubscriptRule
    severity: BLOCKER
  - id: zcodescan.cobol.rules.UnprotectedAuthCredentialRule
    severity: OFF

Note:

Running a Code Scan

On-Demand Scan

Manually trigger a scan from the editor:

  1. Open a COBOL program file.
  2. Right-click in the editor and select Execute IBM ZCodeScan.
  3. Alternatively, open the VS Code Command Palette and select IBM Z Open Editor: Execute IBM ZCodeScan.

Live Scan

To enable ZCodeScan in Z Open Editor:

  1. Open User settings (Cmd/Ctrl + ,)
  2. Go to IBM Z® Open Editor or search for zcodescan
  3. Enable Zcodescan: Enable Live Z Code Scan

ZCodeScan will now run on your COBOL files and provide instant feedback on code quality.

Reviewing Scan Results

Issues identified by the scanner are presented through a linter-style interface, with squiggly underlines in the code and corresponding entries in the VS Code Problems View. These issues are highlighted based on the configurable severity of each rule:

  • BLOCKER: Red
  • HIGH: Red
  • MEDIUM: Yellow
  • LOW: Yellow
  • INFO: Blue

Viewing Issue Details

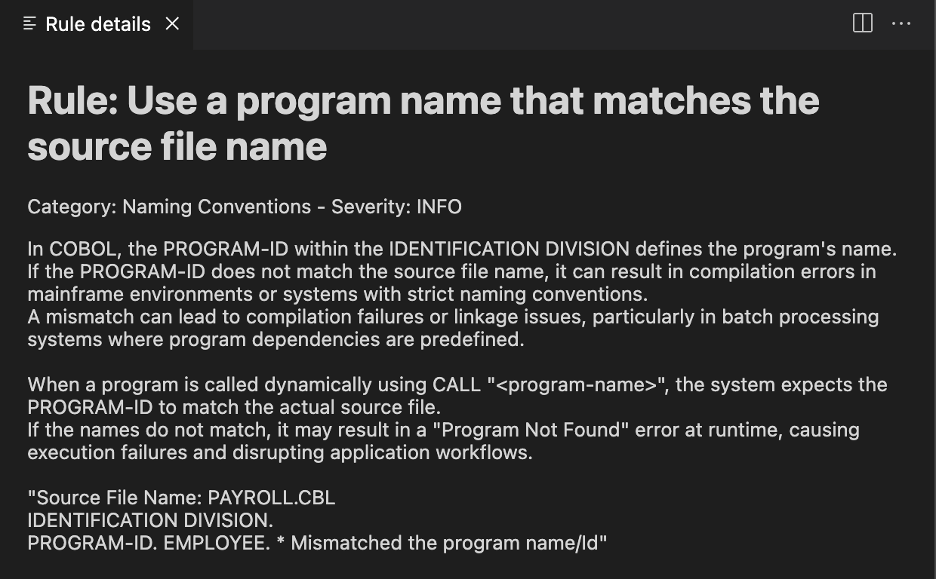

If you hover over an issue in the editor, a Quick Fix menu appears, which offers the Learn more about the issue option. This opens a separate view beside the editor that displays the Rule Details document, as shown in the screenshot below.

View showing rule details

You can also see the list of issues and details in the Problem View. Click the 💡 icon to view the Learn more about this IBM ZCodeScan issue and open the details view.

Managing Rules

Available Rules

By default when no ZCodeScan profile is declared in ZAPP file(s), all defined IBM ZCodeScan rules apply to the current VS Code workspace. The IBM Developer for z/OS documentation contains reference pages for rule management:

Enabling/Disabling Rules

If you do not want all predefined rules to be included in your scan, you can create a file named zcodescan/rules.yaml edit the ZAPP zapp.yaml file and create a ZCodeScan profile. The following is an example of a rules file. For detailed syntax, refer to the linked documentation.

rules:
  - id: codescan. cobol. rules.ProgramIdRule
    severity: INFO
  - id: zcodescan.cobol.rules.CallSyntaxRule
    severity: INFO
  - id: codescan. cobol. rules.SqlWhereRule
    severity: HIGH statements:
      - name: "Select"
        value: True
      - name: "Delete"
        value: True
      - name: "Update"
        value: true
  - id: zcodescan.cobol.rules.RequireEndClauseRule
    severity: HIGH statements:
      - name: "If" value: true
      - name: "Evaluate"
        value: true
      - name: "Read"
        value: true
      - name: "Search"
        value: true
      - name: "Call"
        value: True
  - id: codescan. cobol. rules.AcceptRule
  severity: INFO
  - id: codescan. cobol. rules. GotoRule severity: INFO
  - id: codescan. cobol. rules.GotoParagraphRule
  severity: MEDIUM
  - id: zcodescan.cobol. rules.UnprotectedAuthCredentialRule
  severity: HIGH
  - id: zcodescan.cobol.rules.BufferOverflowRule
  severity: INFO
  - id: codescan.cobol. rules.UninitialzedVariablesRule
  severity: MEDIUM
  - id: codescan.cobol. rules.AcceptDateTimeRule
  severity: MEDIUM
  - id: codescan. cobol. rules.SqlInjectionRule
  severity: INFO

You can also find this example in the Z Open Editor samples Git repository at https://github.com/IBM/zopeneditor-sample/blob/wazi-main/zcodescan/rules.yamlopen in new window.

Note: VS Code multi-root workspaces are supported. Programs are scanned using the rules file located in the same workspace.

Modify rule severities or disable rules in your rules file:

  • Set severity: OFF to disable a rule
  • Set severity: BLOCKER, HIGH, MEDIUM, LOW, or INFO to adjust severity levels
  • Use the statements property to enable/disable specific rule behaviors

Multi-Root Workspaces

VS Code multi-root workspaces are supported. Programs are scanned using the rules file and ZAPP profile located in the workspace. The priority of the rules is defined by the order of the folders contained in the multi-root workspace configuration. The first folder has the highest priority.

Editing Rules Files in VS Code

VS Code helps you edit rules files by providing code completion and documentation hovers for the YAML content. This requires you to install the Red Hat YAML VS Code extension and configure the schema file for rules files.

Setup Instructions

  1. Install the YAML Language Support by Red Hatopen in new window plugin to enable YAML syntax highlighting and schema validation in VS Code.

  2. Click the gear icon ⚙️ in the Sidebar of the editor and select Settings.

  3. Search for Yaml: Schemas and click Edit in settings.json to open the "settings.json" file.

  4. Add the ZCodeScan rules schema to your YAML schemas configuration:

    "yaml.schemas": {
  "https://raw.githubusercontent.com/IBM/zopeneditor-about/refs/heads/main/zcodescan/zcodescan-rules-1.1.0.json": ["*rules.yaml"],
  "https://raw.githubusercontent.com/IBM/zopeneditor-about/refs/heads/main/zcodescan/zcodescan-rules-domains-1.1.0.json": ["*domains.yaml"]
}

  5. If you are working in an airgap configuration and cannot access the internet, ask your administrator to download the schema fileopen in new window and provide it locally. Use a local file URL instead:

    "yaml.schemas": {
  "file:///path/to/zcodescan-rules-1.1.0.json": ["*rules.yaml"],
  "file:///path/to/zcodescan-rules-domains-1.1.0.json": ["*domains.yaml"]
}

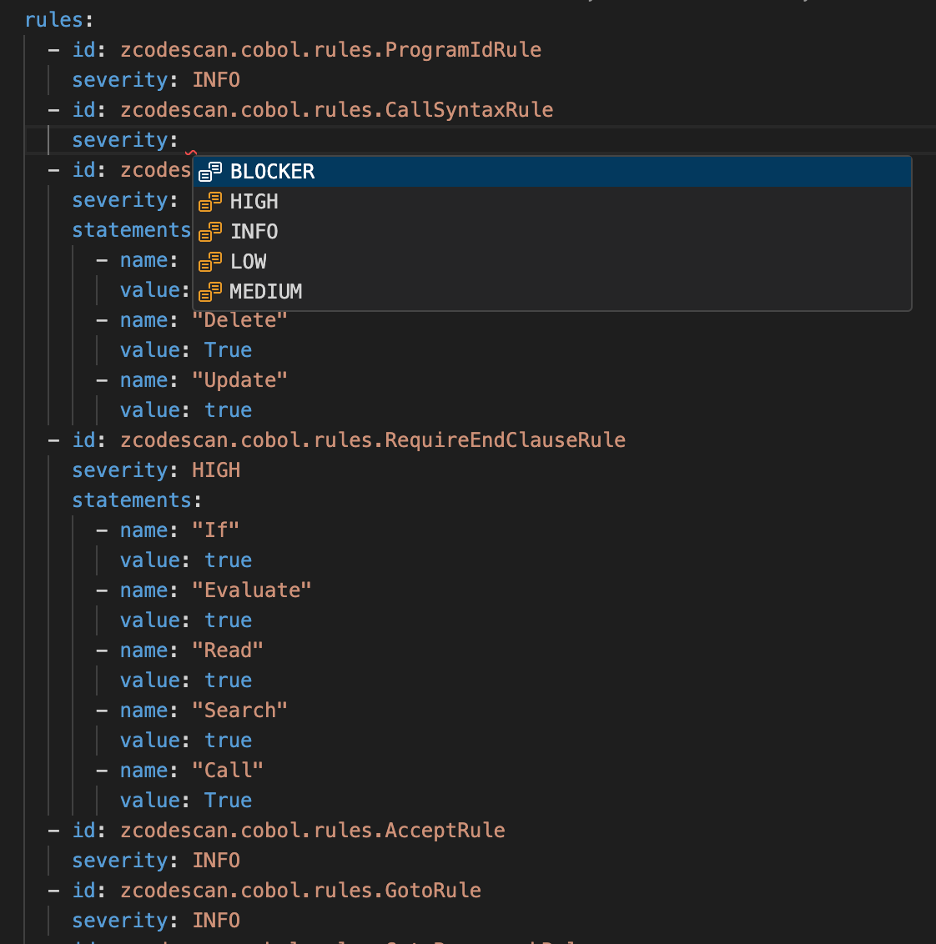

  6. After you configure the YAML VS Code extension with the schema, you open your rules file and test code completion by adding a file pattern to the schema. Here are some suggested file patterns you can use:

    'rulefile_pattern'

You can now see the schema validation active in configuration files. Use the autocomplete feature by pressing CTRL+Space to display options based on the current index context, or type a keyword and press TAB.
